Transporto priemonė: O 301; VIN numerio dalis: 697006
Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| N 000933014014 | SCREW | |
| TRANSMISSION TO BELL HOUSING | ||

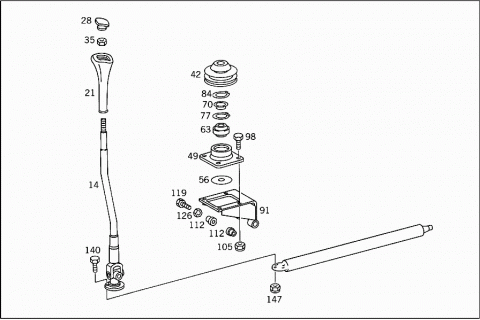

| 014 | A 3002600039 | SHIFT LEVER |
| 021 | A 6202680042 | KNOB |
| (GEARSHIFT LEVER KNOB) | ||
| 028 | A 6202680557 | COVER |
| WITH GEAR INDICATOR | ||
| 035 | N 000439010216 | NUT |
| Repalced by: N 308675010000 | ||
| 035 | N 308675010000 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 042 | A 3012670096 | BOOT |
| Repalced by: A 3562680197 | ||
| 042 | A 3562680197 | BOOT |
| SHIFT LEVER | ||
| 049 | A 3002680040 | BRACKET |
| SHIFT LEVER | ||
| 056 | A 3002680080 | GASKET |
| SHIFT LEVER | ||
| 063 | A 0019811931 | JOINT BEARING |
| SHIFT LEVER | ||
| 070 | A 3002680051 | SPACER RING |
| SHIFT LEVER TO BRACKET | ||
| 077 | N 000472047000 | LOCK RING |
| BEARING TO BRACKET | ||
| 084 | N 000471025002 | LOCK RING |
| BEARING TO SHIFT LEVER | ||
| 091 | A 6972600162 | BRACKET |
| 098 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 098 | N 304017008034 | SCREW |
| BRACKET TO FRAME | ||
| 105 | N 913004008004 | NUT |
| BRACKET TO FRAME | ||
| 112 | A 3002680049 | SLIDE |
| FRONT SHIFTING ROD ADJUSTMENT | ||
| 119 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 119 | N 304017010002 | SCREW |
| SLIDE ADJUSTMENT | ||
| 126 | N 913021010001 | NUT |
| Repalced by: N 304035010001 | ||
| 126 | N 304035010001 | NUT |
| SLIDE ADJUSTMENT | ||
| 133 | A 6972600033 | SHIFTING ROD |
| FRONT | ||
| 1422 MM | ||
| 140 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 140 | N 304017008034 | SCREW |
| SHIFT LEVER TO FRONT SHIFTING TUBE | ||
| N 912004008102 | LOCK WASHER | |
| SHIFT LEVER TO FRONT SHIFTING TUBE | ||
| 147 | N 913004008004 | NUT |
| SHIFT LEVER TO FRONT SHIFTING TUBE | ||
| N 000934008010 | NUT | |
| SHIFT LEVER TO FRONT SHIFTING TUBE | ||
| 154 | A 3962600233 | SHIFTING ROD |
| NO. 2; 2752 MM | ||
| 161 | A 3962600533 | SHIFTING ROD |
| NO. 3; 651 MM | ||
| 168 | A 6972600133 | SHIFTING ROD |
| NO. 4; 416 MM | ||
| 175 | A 3012680086 | RUBBER RING |
| SHIFTING ROD BEARING: | ||
| NO. 4 | ||
| 182 | N 916026050000 | CLAMP |
| Repalced by: A 0069972690 | ||
| 182 | A 0069972690 | LOOM TIE |
| SHIFTING ROD BEARING: | ||
| NO. 4 | ||
| 189 | A 3212680228 | CONNECTOR |
| FLANGE TO SHIFTING TUBE | ||
| 196 | N 006888005006 | WOODRUFF KEY |
| CONNECTOR TO SHIFTING ROD | ||
| NO. 1,NO. 2,NO. 4 | ||
| 203 | N 912004012100 | LOCK WASHER |
| CONNECTOR TO SHIFTING ROD | ||
| NO. 1,NO. 2,NO. 4 | ||
| 210 | N 000934012022 | NUT |
| CONNECTOR TO SHIFTING ROD | ||
| NO. 1,NO. 2,NO. 4 | ||
| 217 | A 3572680089 | JOINT |
| SHIFTING ROD TO SHIFTING ROD | ||
| 217 | A 3572680289 | JOINT |
| SHIFTING ROD TO SHIFTING ROD | ||
| 224 | A 3219900601 | SCREW |
| JOINT TO SHIFTING TUBE | ||
| A 3179900301 | SCREW | |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 231 | N 000931008266 | SCREW |
| JOINT TO TRANSMISSION | ||
| N 912004008102 | LOCK WASHER | |
| SHIFTING TUBE TO SHIFT LEVER | ||
| N 912004008102 | LOCK WASHER | |
| JOINT TO TRANSMISSION | ||
| 238 | N 913004008004 | NUT |
| JOINT TO SHIFTING ROD & TRANSMISSION | ||
| N 000934008010 | NUT | |
| SHIFTING TUBE TO SHIFT LEVER | ||
| N 000934008010 | NUT | |
| JOINT TO TRANSMISSION | ||
| 245 | A 3212680552 | SPACER WASHER |
| AS REQUIRED | ||
| 2.00 MM | ||
| 245 | A 3212680452 | SPACER WASHER |
| AS REQUIRED | ||
| 3.00 MM | ||
| 245 | A 3212680352 | SPACER WASHER |
| AS REQUIRED | ||
| 5.00 MM | ||
| 252 | A 3012930240 | BRACKET |
| SHIFTING ROD BEARING: | ||
| NO. 2,NO. 4 | ||
| 259 | A 3052680150 | BUSHING |
| Repalced by: A 3572680050 | ||
| 259 | A 3572680050 | BUSHING |
| BRACKET | ||
| 266 | A 0002680396 | BOOT |
| SHIFTING ROD | ||
| 273 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 273 | N 304017008027 | SCREW |
| BRACKET TO SUBSTRUCTURE | ||
| 280 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 280 | N 000125008443 | WASHER |
| BRACKET TO SUBSTRUCTURE | ||
| 287 | N 913004008004 | NUT |
| BRACKET TO SUBSTRUCTURE | ||
