Transporto priemonė: O 302 S OTOMARSAN/TUERKEI; VIN numerio dalis: 373158
Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|

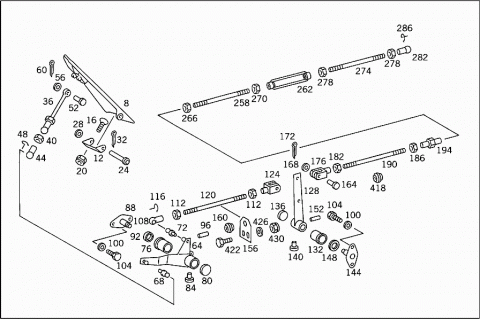

| 008 | A 3073010002 | PEDAL PLATE |
| 012 | A 3013010305 | ARTICULATION PIECE |
| ACCELERATOR PEDAL | ||
| 016 | N 000965008017 | SCREW |
| ARTICULATION ELEMENT TO FLOOR | ||
| 020 | N 913004008004 | NUT |
| Repalced by: N 910113008003 | ||
| 020 | N 910113008003 | NUT |
| ARTICULATION ELEMENT TO FLOOR | ||
| 024 | N 001434010120 | PIN |
| ACCELERATOR PEDAL TO JOINT | ||
| 028 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 028 | N 000125010532 | WASHER |
| ACCELERATOR PEDAL TO JOINT | ||
| 032 | N 000094003200 | COTTER PIN |
| ACCELERATOR PEDAL TO JOINT | ||
| 036 | A 3073000215 | ROD |
| ACCELERATOR PEDAL | ||
| 040 | N 000934008010 | NUT |
| ACCELERATOR PEDAL | ||
| 044 | N 071805013203 | BALL SOCKET |
| ACCELERATOR PEDAL | ||
| 048 | N 071805013402 | SECURING CLIP |
| ACCELERATOR PEDAL | ||
| 052 | N 001444006228 | PIN |
| ROD TO ACCELERATOR PEDAL | ||
| 056 | N 009021006205 | WASHER |
| ROD TO ACCELERATOR PEDAL | ||
| 060 | N 000094001610 | COTTER PIN |
| ROD TO ACCELERATOR PEDAL | ||
| 064 | A 3013000728 | LEVER |
| (DOUBLE LEVER) | ||
| 068 | N 071803013208 | BALL PIVOT |
| DOUBLE LEVER | ||
| 072 | N 071803010202 | BALL PIVOT |
| DOUBLE LEVER | ||
| 076 | A 3073010150 | BUSHING |
| DOUBLE LEVER | ||
| 080 | N 000470020002 | EXPANSION PLUG |
| CONTROL | ||
| 084 | A 0009970488 | GREASE NIPPLE |
| CONTROL | ||
| 088 | A 3073000074 | PIN |
| DOUBLE LEVER | ||
| 092 | A 0089974046 | SEAL RING |
| DOUBLE LEVER | ||
| 096 | N 000007003104 | CYLINDRICAL PIN |
| LEVER TO BALL PIVOT | ||
| 100 | N 000125008418 | WASHER |
| LEVER TO SUBSTRUCTURE | ||
| 104 | N 000933008145 | SCREW |
| LEVER TO SUBSTRUCTURE | ||
| 108 | N 071805010204 | BALL SOCKET |
| ROD TO LEVER | ||
| 112 | N 000934006007 | NUT |
| Repalced by: N 304032006004 | ||
| 112 | N 304032006004 | NUT |
| ROD TO LEVER | ||
| 116 | N 071805010403 | SECURING CLIP |
| ROD TO LEVER | ||
| 120 | N 900331006252 | PULL ROD |
| FROM DOUBLE LEVER TO INTERMEDIATE LEVER | ||
| 6X1860X50 MM | ||
| 120 | N 900331006503 | PULL ROD |
| FROM DOUBLE LEVER TO INTERMEDIATE LEVER | ||
| 6X410X30 MM | ||
| 120 | N 900331006590 | PULL ROD |
| FROM DOUBLE LEVER TO INTERMEDIATE LEVER | ||
| 6X1080X50 MM | ||
| 124 | A 3073010022 | YOKE |
| INTERMEDIATE LEVER | ||
| 128 | A 3733000325 | LEVER |
| Repalced by: A 3733000225 | ||
| 128 | A 3733000225 | LEVER |
| INTERMEDIATE LEVER | ||
| 130 | A 3003001825 | LEVER |
| INTERMEDIATE LEVER | ||
| 132 | A 3073010150 | BUSHING |
| INTERMEDIATE LEVER | ||
| 136 | N 000470020000 | EXPANSION PLUG |
| INTERMEDIATE LEVER | ||
| 140 | A 0009970488 | GREASE NIPPLE |
| INTERMEDIATE LEVER | ||
| 144 | A 3073000074 | PIN |
| INTERMEDIATE LEVER | ||
| 148 | A 0089974046 | SEAL RING |
| INTERMEDIATE LEVER | ||
| 152 | N 000007003104 | CYLINDRICAL PIN |
| INTERMEDIATE LEVER | ||
| 156 | A 3733010040 | BRACKET |
| 160 | A 3013020050 | BUSHING |
| 164 | A 3059910204 | PIN |
| PULL ROD TO LEVER | ||
| 168 | N 000125006421 | WASHER |
| PULL ROD TO LEVER | ||
| 172 | N 000094001610 | COTTER PIN |
| PULL ROD TO LEVER | ||
| 176 | A 3073010022 | YOKE |
| FROM INTERMEDIATE LEVER TO TURNBUCKLE NUT | ||
| 182 | N 000934006007 | NUT |
| Repalced by: N 304032006004 | ||
| 182 | N 304032006004 | NUT |
| R.H. THREAD | ||
| 186 | N 000934006012 | NUT |
| L.H. THREAD | ||
| 190 | N 900331006465 | PULL ROD |
| FROM INTERMEDIATE LEVER TO TURNBUCKLE NUT | ||
| 6X3360X50 MM | ||
| 190 | N 900331006731 | PULL ROD |
| FROM INTERMEDIATE LEVER TO TURNBUCKLE NUT | ||
| 6X2080X50 MM | ||
| 194 | N 900333006001 | TURNBUCKLE |
| 198 | A 3003002025 | LEVER |
| INTERMEDIATE LEVER | ||
| 202 | A 3073010150 | BUSHING |
| INTERMEDIATE LEVER | ||
| 206 | N 000470020000 | EXPANSION PLUG |
| INTERMEDIATE LEVER | ||
| 210 | A 0009970488 | GREASE NIPPLE |
| INTERMEDIATE LEVER | ||
| 214 | A 3073000074 | PIN |
| INTERMEDIATE LEVER | ||
| 218 | A 0089974046 | SEAL RING |
| INTERMEDIATE LEVER | ||
| 222 | N 000007003104 | CYLINDRICAL PIN |
| INTERMEDIATE LEVER | ||
| 226 | N 000933008145 | SCREW |
| INTERMEDIATE LEVER TO SUBSTRUCTURE | ||
| 230 | N 000125008418 | WASHER |
| INTERMEDIATE LEVER TO SUBSTRUCTURE | ||

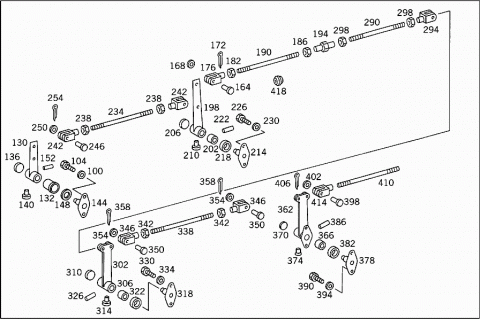

| 234 | N 900331006431 | PULL ROD |
| FROM FRONT INTERMEDIATE LEVER TO REAR INTERMEDIATE LEVER | ||
| 6X1260X50 MM | ||
| 238 | N 000934006007 | NUT |
| Repalced by: N 304032006004 | ||
| 238 | N 304032006004 | NUT |
| FROM FRONT INTERMEDIATE LEVER TO REAR INTERMEDIATE LEVER | ||
| 242 | A 3073010022 | YOKE |
| FROM FRONT INTERMEDIATE LEVER TO REAR INTERMEDIATE LEVER | ||
| 246 | A 3059910204 | PIN |
| PULL ROD TO INTERMEDIATE LEVER BEHIND FRONT AXLE | ||
| 250 | N 000125006421 | WASHER |
| PULL ROD TO INTERMEDIATE LEVER BEHIND FRONT AXLE | ||
| 254 | N 000094001610 | COTTER PIN |
| PULL ROD TO INTERMEDIATE LEVER BEHIND FRONT AXLE | ||
| 258 | N 900331006649 | PULL ROD |
| FROM TURNBUCKLE IN FRONT OF REAR AXLE TO TURNBUCKLE BEHIND REAR AXLE | ||
| 6X3620X50 MM | ||
| 262 | N 001480006200 | TURNBUCKLE |
| FROM TURNBUCKLE IN FRONT OF REAR AXLE TO TURNBUCKLE BEHIND REAR AXLE | ||
| 266 | N 000934006007 | NUT |
| Repalced by: N 304032006004 | ||
| 266 | N 304032006004 | NUT |
| R.H. THREAD | ||
| 270 | N 000934006012 | NUT |
| L.H. THREAD | ||
| 274 | N 900331006600 | PULL ROD |
| FROM TURNBUCKLE BEHIND REAR AXLE TO ENGINE CONTROL | ||
| 6X700X50 MM | ||
| 278 | N 000934006007 | NUT |
| Repalced by: N 304032006004 | ||
| 278 | N 304032006004 | NUT |
| PULL ROD TO ENGINE TIMING | ||
| 282 | N 071805010204 | BALL SOCKET |
| PULL ROD TO ENGINE TIMING | ||
| 286 | N 071805010403 | SECURING CLIP |
| PULL ROD TO ENGINE TIMING | ||
| 290 | N 900331006287 | PULL ROD |
| FROM TURNBUCKLE TO INTERMEDIATE LEVER | ||
| 6X2640X50 MM | ||
| 290 | N 900331006286 | PULL ROD |
| FROM TURNBUCKLE TO INTERMEDIATE LEVER IN FRONT OF REAR AXLE | ||
| 6X2380X50 MM | ||
| 294 | A 3073010022 | YOKE |
| PULL ROD TO LEVER | ||
| 294 | A 3073010022 | YOKE |
| FROM TURNBUCKLE TO INTERMEDIATE LEVER IN FRONT OF REAR AXLE | ||
| 298 | N 000934006007 | NUT |
| Repalced by: N 304032006004 | ||
| 298 | N 304032006004 | NUT |
| R.H. THREAD | ||
| 298 | N 304032006004 | NUT |
| FROM TURNBUCKLE TO INTERMEDIATE LEVER IN FRONT OF REAR AXLE | ||
| 302 | A 3003002425 | LEVER |
| INTERMEDIATE LEVER | ||
| 306 | A 3073010150 | BUSHING |
| INTERMEDIATE LEVER | ||
| 310 | N 000470020000 | EXPANSION PLUG |
| INTERMEDIATE LEVER | ||
| 314 | A 0009970488 | GREASE NIPPLE |
| INTERMEDIATE LEVER | ||
| 318 | A 3073000074 | PIN |
| INTERMEDIATE LEVER | ||
| 322 | A 0089974046 | SEAL RING |
| INTERMEDIATE LEVER | ||
| 326 | N 000007003104 | CYLINDRICAL PIN |
| INTERMEDIATE LEVER | ||
| 330 | N 000933008145 | SCREW |
| (INTERMEDIATE LEVER) IN FRONT OF REAR AXLE,TOP,AT SUBSTRUCTURE | ||
| 334 | N 000125008418 | WASHER |
| (INTERMEDIATE LEVER) IN FRONT OF REAR AXLE,TOP,AT SUBSTRUCTURE | ||
| 338 | N 900331006297 | PULL ROD |
| FROM FRONT INTERMEDIATE LEVER TO REAR INTERMEDIATE LEVER | ||
| 6X680X30 MM | ||
| 342 | N 000934006007 | NUT |
| Repalced by: N 304032006004 | ||
| 342 | N 304032006004 | NUT |
| FROM FRONT INTERMEDIATE LEVER TO REAR INTERMEDIATE LEVER | ||
| 346 | A 3073010022 | YOKE |
| FROM FRONT INTERMEDIATE LEVER TO REAR INTERMEDIATE LEVER | ||
| 350 | A 3059910204 | PIN |
| PULL ROD TO LEVER | ||
| 350 | A 3059910204 | PIN |
| PULL ROD TO INTERMEDIATE LEVER IN FRONT OF REAR AXLE | ||
| 354 | N 000433006402 | WASHER |
| PULL ROD TO LEVER | ||
| 354 | N 000433006402 | WASHER |
| PULL ROD TO INTERMEDIATE LEVER IN FRONT OF REAR AXLE | ||
| 358 | N 000094001610 | COTTER PIN |
| PULL ROD TO LEVER | ||
| 358 | N 000094001610 | COTTER PIN |
| PULL ROD TO INTERMEDIATE LEVER IN FRONT OF REAR AXLE | ||
| 362 | A 3003001025 | LEVER |
| INTERMEDIATE LEVER | ||
| 366 | A 3073010150 | BUSHING |
| INTERMEDIATE LEVER | ||
| 370 | N 000470020000 | EXPANSION PLUG |
| INTERMEDIATE LEVER | ||
| 374 | A 0009970488 | GREASE NIPPLE |
| INTERMEDIATE LEVER | ||
| 378 | A 3073000074 | PIN |
| INTERMEDIATE LEVER | ||
| 382 | A 0089974046 | SEAL RING |
| INTERMEDIATE LEVER | ||
| 386 | N 000007003104 | CYLINDRICAL PIN |
| INTERMEDIATE LEVER | ||
| 390 | N 000933008145 | SCREW |
| INTERMEDIATE LEVER BEHIND REAR AXLE TO SUBSTRUCTURE | ||
| 394 | N 000125008418 | WASHER |
| INTERMEDIATE LEVER BEHIND REAR AXLE TO SUBSTRUCTURE | ||
| 398 | A 3059910204 | PIN |
| PULL ROD TO INTERMEDIATE LEVER BEHIND REAR AXLE | ||
| 402 | N 000125006421 | WASHER |
| PULL ROD TO INTERMEDIATE LEVER BEHIND REAR AXLE | ||
| 406 | N 000094001610 | COTTER PIN |
| PULL ROD TO INTERMEDIATE LEVER BEHIND REAR AXLE | ||
| 410 | N 900331006516 | PULL ROD |
| FROM INTERMEDIATE LEVER BEHIND REAR AXLE TO ENGINE TIMING LEVER | ||
| M 6X1520X50 | ||
| 414 | A 3073010022 | YOKE |
| FROM INTERMEDIATE LEVER BEHIND REAR AXLE TO ENGINE TIMING LEVER | ||
| 418 | A 3013020050 | BUSHING |
| ACCELERAT0R CONTROL LINKAGE | ||
| 422 | N 000933008145 | SCREW |
| BRACKET TO SUBSTRUCTURE | ||
| 426 | N 000125008418 | WASHER |
| BRACKET TO SUBSTRUCTURE | ||
| 430 | N 913004008004 | NUT |
| Repalced by: N 910113008003 | ||
| 430 | N 910113008003 | NUT |
| BRACKET TO SUBSTRUCTURE | ||

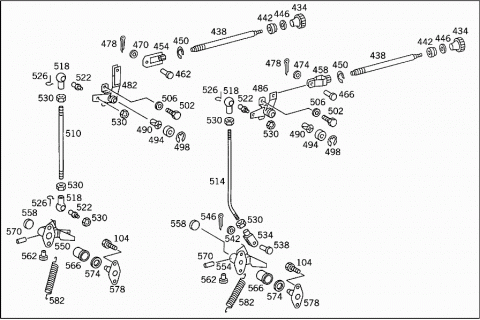

| 434 | A 1155400028 | KNOB |
| ENGINE SHUT-OFF | ||
| 438 | A 3003020207 | SPINDLE |
| ENGINE SHUT-OFF | ||
| 438 | A 3733027007 | SPINDLE |
| ENGINE SHUT-OFF | ||
| 442 | A 1154270686 | DAMPING RING |
| ENGINE SHUT-OFF | ||
| 446 | A 3019901640 | WASHER |
| PRECISION CONTROL | ||
| 450 | N 006799006003 | LOCK PLATE |
| PRECISION CONTROL | ||
| 454 | A 3013000186 | END PIECE |
| PRECISION CONTROL | ||
| 458 | A 3003000088 | YOKE |
| PRECISION CONTROL | ||
| 458 | A 3003000088 | YOKE |
| PRECISION CONTROL | ||
| 462 | N 001444006223 | PIN |
| END PIECE TO CONTROL LEVER | ||
| 466 | N 001444006211 | PIN |
| YOKE TO CONTROL LEVER | ||
| 466 | N 001444006211 | PIN |
| YOKE TO CONTROL LEVER | ||
| 470 | N 000433006402 | WASHER |
| END PIECE TO CONTROL LEVER | ||
| 474 | N 006902006102 | WASHER |
| YOKE TO CONTROL LEVER | ||
| 474 | N 006902006102 | WASHER |
| YOKE TO CONTROL LEVER | ||
| 478 | N 000094001610 | COTTER PIN |
| END PIECE TO CONTROL LEVER | ||
| 482 | A 3013001525 | LEVER |
| CONTROL | ||
| 486 | A 3003000025 | LEVER |
| CONTROL | ||
| 486 | A 3003000025 | LEVER |
| CONTROL | ||
| 490 | A 3813020050 | BUSHING |
| A 3813010388 | COVERING | |
| Repalced by: A 6153010088 | ||
| 494 | A 6153010088 | COVERING |
| 498 | N 006799010001 | LOCK PLATE |
| 502 | N 000933006103 | SCREW |
| LEVER TO HEATER | ||
| 506 | N 000125006421 | WASHER |
| LEVER TO HEATER | ||
| 510 | A 3013020704 | ROD |
| FROM CONTROL LEVER TO SHUT-OFF LEVER | ||
| 514 | A 3013021104 | ROD |
| FROM CONTROL LEVER TO SHUT-OFF LEVER | ||
| 514 | A 3013021104 | ROD |
| FROM CONTROL LEVER TO SHUT-OFF LEVER | ||
| 518 | N 071805008207 | BALL SOCKET |
| ROD TO LEVER | ||
| 522 | N 071803008101 | BALL PIVOT |
| ROD TO LEVER | ||
| 526 | N 071805008403 | SECURING CLIP |
| ROD TO LEVER | ||
| 530 | N 000934005008 | NUT |
| ROD TO LEVER | ||
| 534 | N 071752005001 | YOKE |
| ROD TO LEVER | ||
| 534 | N 071752005001 | YOKE |
| ROD TO LEVER | ||
| 538 | N 001444005202 | PIN |
| YOKE TO SHUT-OFF LEVER,BOTTOM | ||
| 538 | N 001444005202 | PIN |
| YOKE TO SHUT-OFF LEVER,BOTTOM | ||
| 542 | N 006902005100 | WASHER |
| YOKE TO SHUT-OFF LEVER,BOTTOM | ||
| 542 | N 006902005100 | WASHER |
| YOKE TO SHUT-OFF LEVER,BOTTOM | ||
| 546 | N 000094001203 | COTTER PIN |
| YOKE TO SHUT-OFF LEVER,BOTTOM | ||
| 546 | N 000094001203 | COTTER PIN |
| YOKE TO SHUT-OFF LEVER,BOTTOM | ||
| 550 | A 3013001725 | LEVER |
| (SHUT-OFF LEVER) | ||
| 554 | A 3003000825 | LEVER |
| (SHUT-OFF LEVER) | ||
| 554 | A 3003000825 | LEVER |
| (SHUT-OFF LEVER) | ||
| 558 | N 000470020002 | EXPANSION PLUG |
| SHUT-OFF LEVER | ||
| 562 | A 0009970488 | GREASE NIPPLE |
| SHUT-OFF LEVER | ||
| 566 | A 3073010150 | BUSHING |
| SHUT-OFF LEVER | ||
| 570 | N 000007003104 | CYLINDRICAL PIN |
| LEVER TO PIN | ||
| 574 | A 0089974046 | SEAL RING |
| SHUT-OFF LEVER | ||
| 578 | A 3073000074 | PIN |
| SHUT-OFF LEVER | ||
| 582 | A 3199930810 | SPRING |
| LEVER TO SUBSTRUCTURE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
