Transporto priemonė: O 302 S OTOMARSAN/TUERKEI; VIN numerio dalis: 373158

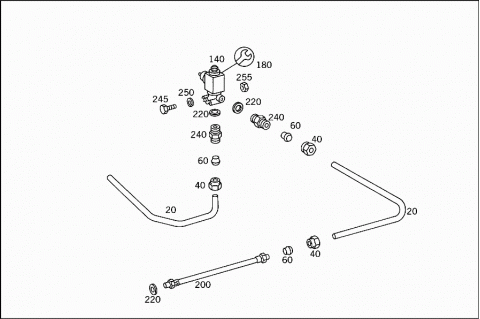

Grupė: 35 REAR AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| 020 | A 3734203037 | LINE |
| FROM T-FITTING TO 3/2-WAY SOLENOID VALVE | ||
| 020 | A 3734204236 | LINE |
| FROM SOLENOID VALVE TO HOSE | ||
| 020 | A 0004291201 | LINE |
| 8 MM | ||
| 040 | N 915017008100 | UNION NUT |
| 060 | N 003861008005 | GLAND |
| 140 | A 0039971836 | VALVE |
| (3/2-WAY SOLENOID VALVE) | ||
| WABCO | ||
| 180 | A 0004305660 | REPAIR KIT |
| (3/2-WAY SOLENOID VALVE) | ||
| 200 | A 0029977782 | HOSE |
| COMPRESSED AIR | ||
| 220 | N 007603012405 | SEAL RING |
| COMPRESED AIR HOSE TO COMPRESSED AIR CYLINDER | ||
| 240 | A 0019972572 | FITTING |
| COMPRESED AIR HOSE TO COMPRESSED AIR CYLINDER | ||
| 245 | N 000931008371 | SCREW |
| Repalced by: N 000931008246 | ||
| 245 | N 000931008246 | SCREW |
| VALVE TO SUBSTRUCTURE | ||
| 250 | N 912004008102 | LOCK WASHER |
| VALVE TO SUBSTRUCTURE | ||
| 255 | N 000934008010 | NUT |
| VALVE TO SUBSTRUCTURE | ||
