Transporto priemonė: O 302 S OTOMARSAN/TUERKEI; VIN numerio dalis: 373163

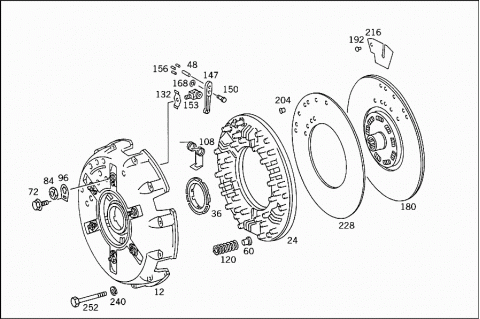

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| 012 | A 0032507004 | CLUTCH PRESSURE PLATE |
| 024 | A 0002524912 | PRESSURE PLATE |
| 036 | A 0002521245 | FLANGE |
| 048 | A 0002522216 | SPINDLE |
| FOR RELEASE LEVERS | ||
| 060 | A 0002520535 | SLEEVE |
| 072 | A 0002522971 | SCREW |
| 084 | A 0002523072 | NUT |
| SETTING | ||
| 096 | A 0002521073 | LOCK |
| 108 | A 0002523927 | SPRING |
| RELEASE LEVER | ||
| 108 | A 0002524027 | SPRING |
| RELEASE LEVER TO RELEASE BEARING | ||
| 120 | A 0002524320 | PRESSURE SPRING |
| 120 | A 0002524820 | PRESSURE SPRING |
| Repalced by: A 0002524420 | ||
| 120 | A 0002524420 | PRESSURE SPRING |
| 132 | A 0002523719 | LEAF SPRING |
| 147 | A 0002524613 | RELEASE LEVER |
| 150 | A 0002523116 | SPINDLE |
| 153 | A 0002522614 | BRACKET |
| 156 | A 0002520118 | ROLLER |
| 168 | N 006799007007 | LOCK PLATE |
| 180 | A 0052502103 | CLUTCH DISC |
| Repalced by: A 0062508703 | ||
| 180 | A 0062508703 | CLUTCH DISC |
| Repalced by: A 0092504503 | ||
| 180 | A 0092504503 | CLUTCH DISC |
| Repalced by: A 0122502403 | ||
| 180 | A 0122502403 | CLUTCH DISC |
| Repalced by: A 0152503603 | ||
| 180 | A 0152503603 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 180 | A 0062508703 | CLUTCH DISC |
| Repalced by: A 0122502603 | ||
| 180 | A 0122502603 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 192 | A 0002522075 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 5 MM;TO 005 250 21 03,006 250 87 03 | ||
| 192 | A 0002523975 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 204 | A 0002523375 | RIVET |
| Repalced by: A 0002523775 | ||
| 204 | A 0002523775 | RIVET |
| Repalced by: A 0002524675 | ||
| 204 | A 0002524675 | RIVET |
| LINING WITH CLUTCH DISC AND INTERMEDIATE SPRING | ||
| TO 005 250 21 03,006 250 87 03, | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TO 009 250 45 03 | ||
| 204 | A 0002524875 | RIVET |
| TO 012 250 24 03, 26 03, 015 250 36 03 | ||
| 216 | A 0002523319 | LEAF SPRING |
| Repalced by: A 0002523919 | ||
| 216 | A 0002523919 | LEAF SPRING |
| 228 | A 0012523310 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| TO 005 250 21 03,006 250 87 03 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 009 250 45 03 | ||
| 228 | A 0012528310 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| TO 012 250 24 03,26 03 | ||
| 228 | A 0022520010 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| TO 015 250 36 03 | ||
| 240 | N 912004010100 | LOCK WASHER |
| Repalced by: N 912004010102 | ||
| 240 | N 912004010102 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||
| 252 | N 000931010423 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| 255 | A 6172500905 | HOUSING |
| CLUTCH | ||
| 258 | A 6202510701 | BELL HOUSING |
| Repalced by: A 6202511601 | ||
| 258 | A 6202511601 | BELL HOUSING |
| 261 | A 3432510150 | BUSHING |
| BOTTOM | ||
| 264 | A 3439920103 | BUSHING |
| BOTTOM | ||
| 267 | A 6202510050 | BUSHING |
| TOP | ||
| 270 | A 3389920103 | BUSHING |
| TOP | ||
| 273 | A 3859970040 | SEAL RING |
| 273 | A 0099971547 | SEAL RING |
| 276 | A 3852930027 | COVER PLATE |
| 279 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 279 | N 000125010532 | WASHER |
| BELL HOUSING TO TIMING GEAR CASE | ||
| 288 | N 000931010264 | SCREW |
| BELL HOUSING TO TIMING GEAR CASE | ||
| 324 | A 0009968740 | ROD END |
| 327 | A 0009966440 | ROD END |
| CLUTCH ACTUATION | ||
| 336 | A 6202560074 | PIN |
| 339 | A 3072560074 | PIN |
| ROD END TO RELEASE LEVER | ||
| 348 | A 0019970041 | SEAL RING |
| Repalced by: A 0019972141 | ||
| 348 | A 0019972141 | SEAL RING |
| ROD END TO RELEASE LEVER | ||
| 348 | A 0019972141 | SEAL RING |
| ROD END TO RELEASE LEVER | ||
| 360 | N 000471012001 | LOCK RING |
| 360 | N 000471012001 | LOCK RING |
| 363 | A 6202950274 | PIN |
| CLUTCH ACTUATION | ||
| 363 | A 6202950274 | PIN |
| CLUTCH ACTUATION | ||
| 366 | A 6202500155 | COVER |
| RELEASE SHAFT,TOP | ||
| 369 | A 6202540108 | RELEASE LEVER |
| 372 | A 6202540308 | RELEASE LEVER |
| Repalced by: A 6202540508 | ||
| 372 | A 6202540508 | RELEASE LEVER |
| Repalced by: A 6202540708 | ||
| 375 | A 6202540708 | RELEASE LEVER |
| 375 | A 6202540708 | RELEASE LEVER |
| 387 | A 0002540335 | BEARING |
| 387 | A 0002540335 | BEARING |
| 390 | A 3852500014 | SHAFT |
| (PARTS KIT),RELEASE SHAFT | ||
| 393 | A 6202500214 | SHAFT |
| (PARTS KIT),RELEASE SHAFT | ||
| 396 | A 0099810410 | NEEDLE BEARING |
| 399 | A 0079978847 | SEAL RING |
| 402 | N 001481005043 | CLAMPING SLEEVE |
| 405 | N 914112010025 | SCREW |
| RELEASE YOKE TO BELL HOUSING | ||
| 408 | A 3172930177 | WASHER |
| AS REQUIRED | ||
| 0.80 MM | ||
| 408 | A 3172930377 | WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 408 | A 3172930577 | WASHER |
| AS REQUIRED | ||
| 1.20 MM | ||
| 408 | A 3172930677 | WASHER |
| AS REQUIRED | ||
| 1.30 MM | ||
| 412 | A 3379975040 | SEAL RING |
| 415 | A 3432930052 | SPACER WASHER |
| BOTTOM | ||
| 418 | N 000471024000 | LOCK RING |
| BOTTOM | ||
| 421 | N 000931012033 | SCREW |
| RELEASE YOKE TO SHAFT | ||
| 424 | A 0002507715 | RELEASE BEARING |
| 424 | A 0002507415 | RELEASE BEARING |
| 427 | A 0002507615 | RELEASE BEARING |
| 432 | N 071428004102 | SCREW-IN FITTING |
| (RELEASE COLLAR) | ||
| 444 | A 3179930225 | SPRING |
| RELEASE COLLAR TO RELEASE YOKE | ||
| 444 | A 6209930125 | SPRING |
| RELEASE COLLAR TO RELEASE YOKE | ||
| 456 | A 3079970082 | HOSE |
| Repalced by: A 3859970582 | ||
| 456 | A 3859970582 | HOSE |
| RELEASE COLLAR LUBRICATION | ||
| 468 | N 003871004102 | UNION SCREW |
| RELEASE COLLAR LUBRICATION | ||
| 480 | N 003862004001 | DOUBLE TAPER RING |
| RELEASE COLLAR LUBRICATION | ||
| 492 | N 071428004102 | SCREW-IN FITTING |
| RELEASE COLLAR LUBRICATION | ||
| 504 | A 3072510208 | INTERMEDIATE PIECE |
| RELEASE COLLAR LUBRICATION | ||
| 516 | N 912004014100 | LOCK WASHER |
| RELEASE COLLAR LUBRICATION | ||
| 528 | N 000439014218 | NUT |
| RELEASE COLLAR LUBRICATION | ||
| 540 | N 003411002001 | GREASE CUP |
| RELEASE COLLAR LUBRICATION | ||
| 552 | N 912004018101 | LOCK WASHER |
| TRANSMISSION TO BELL HOUSING | ||
| 564 | N 000960018018 | SCREW |
| TRANSMISSION TO BELL HOUSING | ||
| 567 | A 6202900534 | LEVER |
| (PARTS KIT),CLUTCH ACTUATION | ||
| 570 | N 000931010260 | SCREW |
| LEVER TO RELEASE SHAFT | ||
| 573 | A 3072950840 | BRACKET |
| CLUTCH SLAVE CYLINDER | ||
| 576 | A 3072540127 | POINTER |
| 579 | A 3079940032 | LOCK |
| BRACKET TO BRACKET | ||
| 582 | N 000933006207 | SCREW |
| BRACKET TO BRACKET | ||
| 585 | N 009021006203 | WASHER |
| BRACKET TO BRACKET | ||
| 588 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 588 | N 304017010002 | SCREW |
| BRACKET TO BELL HOUSING | ||
| 591 | A 3004920341 | BRACKET |
| Repalced by: A 3604923941 | ||
| 591 | A 3604923941 | BRACKET |
| 594 | A 3014920076 | WASHER |
| Repalced by: A 3094310051 | ||
| 594 | A 3094310051 | SPACER RING |
| 600 | N 000931010402 | SCREW |
| EXHAUST PIPE BRACKET TO BELL HOUSING | ||
| 612 | A 6202520171 | SCREW |
| CLUTCH LINING WEAR INDICATOR | ||
| 624 | A 6202540074 | PIN |
| CLUTCH LINING WEAR INDICATOR | ||
| 636 | N 912009008100 | SNAP RING |
| CLUTCH LINING WEAR INDICATOR | ||
| 648 | N 000433008400 | WASHER |
| CLUTCH LINING WEAR INDICATOR | ||
| 660 | N 002098001028 | SPRING |
| CLUTCH LINING WEAR INDICATOR | ||
| 672 | N 080705020001 | NUT |
| CLUTCH LINING WEAR INDICATOR | ||
| 684 | A 0019880835 | CAP |
| CLUTCH LINING WEAR INDICATOR | ||
| 687 | A 0012958807 | SLAVE CYLINDER |
| 696 | A 0012954407 | SLAVE CYLINDER |
| FA.KUGELFISCHER | ||
| 708 | A 0002954883 | BOOT |
| Repalced by: A 0002956083 | ||
| 708 | A 0002956083 | BOOT |
| 720 | A 0004310265 | VALVE |
| Repalced by: A 3075530107 | ||
| 720 | A 3075530107 | VALVE |
| DE-AERATION | ||
| 732 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 732 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 732 | A 0004210887 | PROTECTIVE CAP |
| 735 | A 0002900911 | REPAIR KIT |
| 744 | A 0002901267 | REPAIR KIT |
| Repalced by: A 0002904067 | ||
| 744 | A 0002904067 | REPAIR KIT |
| 756 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 756 | N 304017010002 | SCREW |
| CLUTCH SLAVE CYLINDER TO BRACKET | ||
| 756 | N 000933010254 | SCREW |
| Repalced by: N 304017010019 | ||
| 756 | N 304017010019 | SCREW |
| CLUTCH SLAVE CYLINDER TO BELL HOUSING | ||
| 768 | A 0065427117 | SENDER UNIT |
