Transporto priemonė: O 302 S OTOMARSAN/TUERKEI; VIN numerio dalis: 373163
Grupė: 50 RADIATOR
62064
62065
62066
62067
62068
# Kodas Pavadinimas

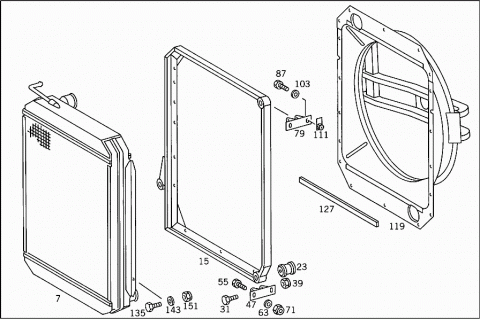

007 A 0005015101 RADIATOR
007 A 0005015201 RADIATOR
015 A 3015000127 SUPPORT
RADIATOR
023 A 0009884211 BUFFER
031 N 000960012345 SCREW
SUPPORT TO STAY
039 N 913004012009 NUT
Repalced by: N 910113012003
039 N 910113012003 NUT
SUPPORT TO STAY
047 A 3015000032 STAY
(BEARING BRACKET)
055 N 000933010254 SCREW
Repalced by: N 304017010019
055 N 304017010019 SCREW
BEARING BRACKET TO SUBSTRUCTURE
063 N 000125010518 WASHER
Repalced by: N 000125010532
063 N 000125010532 WASHER
BEARING BRACKET TO SUBSTRUCTURE
071 N 913004010011 NUT
BEARING BRACKET TO SUBSTRUCTURE
079 A 3015000532 STAY
BEARING BRACKET FOR BASE FRAME
087 N 000933010254 SCREW
Repalced by: N 304017010019
087 N 304017010019 SCREW
BEARING BRACKET TO SIDE MEMBER
103 N 000125010518 WASHER
Repalced by: N 000125010532
103 N 000125010532 WASHER
BEARING BRACKET TO SIDE MEMBER
111 A 3015000031 BRACKET
BEARING BRACKET TO SIDE MEMBER
119 A 3015000827 SUPPORT
FAN
127 A 3012050080 GASKET
135 N 000933008145 SCREW
RADIATOR AND FAN SUPPORT TO BASE FRAME
143 N 000125008417 WASHER
Repalced by: N 000125008443
143 N 000125008443 WASHER
SUPPORT TO RADIATOR BASE FRAME
151 N 913004008004 NUT
Repalced by: N 910113008003
151 N 910113008003 NUT
RADIATOR AND FAN SUPPORT TO BASE FRAME

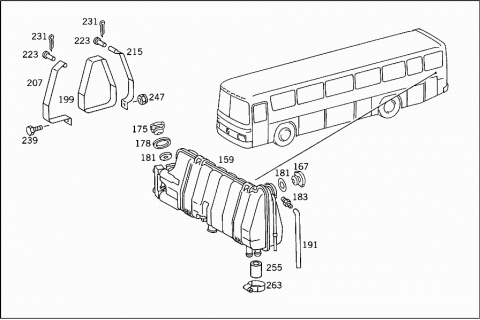

159 A 3005000549 TANK
Repalced by: A 3005000949
159 A 3005000949 TANK
EXPANSION TANK
159 A 3005000149 TANK
EXPANSION TANK
167 A 0005013515 RADIATOR CAP
TOP
175 A 0005013415 RADIATOR CAP
LATERAL
TO 300 500 01 49
175 A 0005014615 RADIATOR CAP
LATERAL
TO 300 500 09 49
178 A 0005010480 GASKET
INSIDE
52MM
181 A 0005010880 GASKET
OUTSIDE
37MM
183 A 0005010010 DRAIN PIPE
191 A 0079972682 HOSE
199 A 3575010095 SHIM
EXPANSION TANK
207 A 3575010320 BRACKET
(STRAP)
215 A 3575010420 BRACKET
(STRAP)
223 N 001444006227 PIN
STRAP TO SUPPORT
231 N 000094001605 COTTER PIN
STRAP TO SUPPORT
239 N 000933008108 SCREW
STRAP TO EXPANSION TANK
247 N 913004008004 NUT
Repalced by: N 910113008003
247 N 910113008003 NUT
STRAP TO EXPANSION TANK
255 A 3149870045 LOCKING CAP
EXPANSION TANK
263 N 916017016000 CLAMP
Repalced by: N 000000000666
263 N 000000000666 CLAMP
EXPANSION TANK
263 A 3739951801 CLAMP
EXPANSION TANK

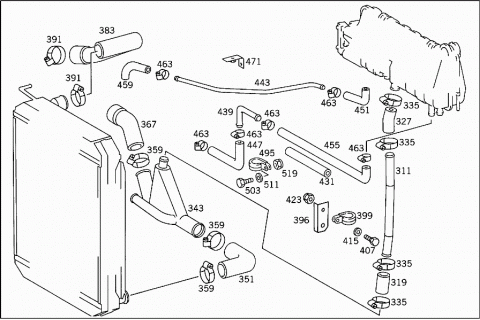

311 A 3005011926 COOLING WATER PIPE
FROM BUBBLE SEPARATOR TO EXPANSION TANK
TO 300 500 09 49
311 A 3005010024 COOLING WATER PIPE
FROM BUBBLE SEPARATOR TO EXPANSION TANK
TO 300 500 01 49
319 N 900271038015 HOSE
COOLING WATER LINE TO EXPANSION TANK & TO BUBBLE SEPARATOR
327 A 3015011882 HOSE
COOLING WATER LINE TO EXPANSION TANK
335 A 3739950501 CLAMP
COOLING WATER LINE TO EXPANSION TANK & TO BUBBLE SEPARATOR
335 N 916017032000 CLAMP
Repalced by: N 000000000670
335 N 000000000670 CLAMP
COOLING WATER LINE TO EXPANSION TANK & TO BUBBLE SEPARATOR
343 A 3015000169 SEPARATOR
351 A 3015010182 HOSE
FROM RADIATOR TO BUBBLE SEPARATOR
359 A 3739950801 CLAMP
HOSE TO RADIATOR AN TO BUBBLE SEPARATOR
359 N 916017050000 CLAMP
Repalced by: N 000000000672
359 N 000000000672 CLAMP
HOSE TO RADIATOR AN TO BUBBLE SEPARATOR
367 A 3015010282 HOSE
FROM BUBBLE SEPARATOR TO WATER PUMP
383 A 3015010582 HOSE
FROM THERMOSTAT TO RADIATOR
391 A 3739951101 CLAMP
HOSE TO THERMOSTAT AND TO RADIATOR
391 A 3739951101 CLAMP
HOSE TO INTAKE PIPE SOCKET
391 N 916017070000 CLAMP
Repalced by: N 000000000674
391 N 000000000674 CLAMP
HOSE TO THERMOSTAT AND TO RADIATOR
391 N 000000000674 CLAMP
HOSE TO INTAKE PIPE SOCKET
396 A 3735010720 BRACKET
399 N 916016038205 CLAMP
COOLING WATER LINE TO BRACKET
407 N 000933006121 SCREW
COOLING WATER LINE TO BRACKET
415 N 000125006421 WASHER
COOLING WATER LINE TO BRACKET
423 N 913004006003 NUT
COOLING WATER LINE TO BRACKET
431 N 900271012018 HOSE
RADIATOR/ENGINE/EXPANSION-TANK DE-AERATION LINES
439 A 3005012026 COOLING WATER PIPE
RADIATOR/ENGINE/EXPANSION-TANK DE-AERATION LINES
443 A 3005012826 COOLING WATER PIPE
RADIATOR/ENGINE/EXPANSION-TANK DE-AERATION LINES
447 A 3025011482 HOSE
RADIATOR/ENGINE/EXPANSION-TANK DE-AERATION LINES
451 A 3028320423 HOSE
RADIATOR/ENGINE/EXPANSION-TANK DE-AERATION LINES
455 A 3005010582 HOSE
Repalced by: A 3185060260
455 A 3185060260 PIPE
RADIATOR/ENGINE/EXPANSION-TANK DE-AERATION LINES
459 A 3015011982 HOSE
RADIATOR/ENGINE/EXPANSION-TANK DE-AERATION LINES
463 A 3739951801 CLAMP
RADIATOR/ENGINE/EXPANSION-TANK DE-AERATION LINES
463 N 916017016000 CLAMP
Repalced by: N 000000000666
463 N 000000000666 CLAMP
RADIATOR/ENGINE/EXPANSION-TANK DE-AERATION LINES
471 A 3521800440 BRACKET
DE-AERATION LINE
495 N 916016022203 CLAMP
DE-AERATION LINE TO SUPPORT
495 N 916016021201 CLAMP
DE-AERATION LINE TO SUPPORT
495 N 916016015202 CLAMP
DE-AERATION LINE TO BRACKET
495 N 916016012202 CLAMP
DE-AERATION LINE TO SUPPORT
495 N 916016012200 CLAMP
HOSE TO COMPRESSED AIR LINE
503 N 000933006220 SCREW
Repalced by: N 304017006016
503 N 304017006016 SCREW
DE-AERATION LINE TO SUPPORT
M 6X20
503 N 304017006016 SCREW
DE-AERATION LINE TO BRACKET
M 6X20
503 N 000933006230 SCREW
DE-AERATION LINE TO SUPPORT
M 6X25
511 N 000125006421 WASHER
DE-AERATION LINE TO SUPPORT
519 N 913004006003 NUT
DE-AERATION LINE TO SUPPORT
519 N 913004006003 NUT
DE-AERATION LINE TO BRACKET

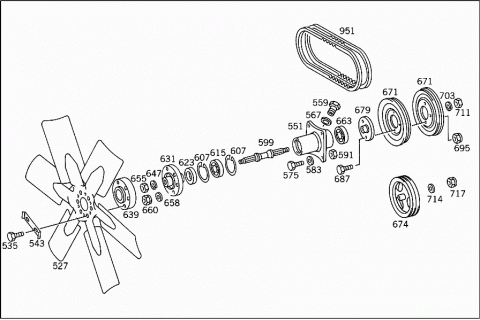

527 A 3732057006 FAN
527 A 0002057906 FAN
535 N 000931008058 SCREW
FAN TO HUB
543 A 3159940030 LOCK
FAN TO HUB
551 A 3012050005 BEARING BODY
FAN DRIVE
TO 301 205 00 02
551 A 3732057305 BEARING BODY
FAN DRIVE
TO 373 205 73 02
559 N 007604010102 SCREW PLUG
OIL FILLING
567 N 007603010404 SEAL RING
OIL FILLING
575 N 000931008372 SCREW
BEARING BODY TO SUPPORT
583 N 000125008417 WASHER
Repalced by: N 000125008443
583 N 000125008443 WASHER
BEARING BODY TO SUPPORT
591 N 913004008004 NUT
Repalced by: N 910113008003
591 N 910113008003 NUT
BEARING BODY TO SUPPORT
599 A 3012050002 FAN SHAFT
599 A 3732057302 FAN SHAFT
607 N 000472052000 LOCK RING
TO 301 205 00 02
607 N 000472052000 LOCK RING
TO 373 205 73 02
615 N 000625036304 GROOVED BALL BEARING
ON FAN SIDE
623 A 0019978447 SEAL RING
ON FAN SIDE
631 A 3212050012 HUB
FAN DRIVE
639 A 3022050036 FLANGE
647 N 912004016101 LOCK WASHER
HUB TO FAN SHAFT
TO 301 205 00 02
655 N 000439016203 NUT
HUB TO FAN SHAFT
TO 301 205 00 02
658 N 000125017010 WASHER
Repalced by: N 000125017016
658 N 000125017016 WASHER
HUB TO FAN SHAFT
TO 373 205 73 02
660 N 913004016005 NUT
Repalced by: N 910113016001
660 N 910113016001 NUT
HUB TO FAN SHAFT
TO 373 205 73 02
663 N 005412600304 CYLINDR. ROLLER BEARING
ON RADIATOR SIDE
663 A 0059819701 CYLINDR. ROLLER BEARING
ON RADIATOR SIDE
671 A 3012060310 PULLEY
FAN DRIVE
TO 301 205 00 02
674 A 3732050210 PULLEY
FAN DRIVE
TO 373 205 73 02
679 A 3012050004 HUB
687 N 000933008153 SCREW
Repalced by: N 304017008034
687 N 304017008034 SCREW
PULLEY TO HUB
695 N 913004008004 NUT
Repalced by: N 910113008003
695 N 910113008003 NUT
PULLEY TO HUB
703 N 912004016101 LOCK WASHER
HUB TO FAN SHAFT
TO 301 205 00 02
711 N 000439016203 NUT
HUB TO FAN SHAFT
TO 301 205 00 02
714 N 000125017010 WASHER
Repalced by: N 000125017016
714 N 000125017016 WASHER
HUB TO FAN SHAFT
TO 373 205 73 02
717 N 913004016005 NUT
Repalced by: N 910113016001
717 N 910113016001 NUT
HUB TO FAN SHAFT
TO 373 205 73 02

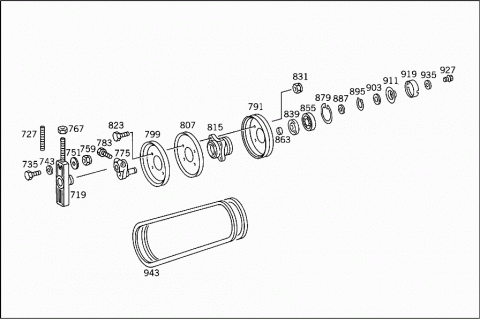

719 A 3012000039 SUPPORT
TIGHTENER PULLEY
727 A 3019900005 STUD
735 N 000931010264 SCREW
SUPPORT TO FAN SUPPORT
743 N 000125010518 WASHER
Repalced by: N 000125010532
743 N 000125010532 WASHER
SUPPORT TO FAN SUPPORT
751 N 009021010102 WASHER
Repalced by: N 009021010202
751 N 009021010202 WASHER
Repalced by: N 009021010209
751 N 009021010209 WASHER
SUPPORT TO FAN SUPPORT
759 N 913004010008 NUT
SUPPORT TO FAN SUPPORT
767 N 000934012022 NUT
SUPPORT TO FAN SUPPORT
775 A 3072000573 LEVER
TIGHTENER PULLEY
783 N 000960012344 SCREW
CLAMPING LEVER TO SUPPORT
791 A 3072060310 PULLEY
791 A 3732057010 PULLEY
799 A 3012060110 PULLEY
196 MM
807 A 3012060210 PULLEY
188 MM
815 A 3012060113 HUB
Repalced by: A 3575060014
815 A 3575060014 HUB
823 N 000931008366 SCREW
Repalced by: N 000931008244
823 N 000931008244 SCREW
PULLEY TO HUB
831 N 913004008004 NUT
Repalced by: N 910113008003
831 N 910113008003 NUT
PULLEY TO HUB
839 A 0119975447 SEAL RING
BELT TIGHTENER PULLEY TO BELT TIGHTENER SPINDLE
855 N 000625036304 GROOVED BALL BEARING
855 A 0059819701 CYLINDR. ROLLER BEARING
863 A 3012060053 SPACER TUBE
879 N 000472052000 LOCK RING
887 A 3022050552 SPACER WASHER
AS REQUIRED
0.20 MM
887 A 3022050652 SPACER WASHER
AS REQUIRED
0.50 MM
887 A 3022050752 SPACER WASHER
AS REQUIRED
1.50 MM
895 N 000471020000 LOCK RING
903 N 915035000012 SEAL RING
911 A 3022060157 EXPANSION PLUG
919 A 3012060072 NUT
927 N 007604010102 SCREW PLUG
935 N 007603010404 SEAL RING
943 A 0039974992 V-BELT
Repalced by: A 0079976592
943 A 0079976592 V-BELT
SET = 2 PIECES
12.5X1950 MM
951 A 0039970592 V-BELT
FROM TIGHTENER PULLEY TO FAN PULLEY
951 A 0069972192 V-BELT
FROM TIGHTENER PULLEY TO FAN PULLEY
