Transporto priemonė: O 302 S OTOMARSAN/TUERKEI; VIN numerio dalis: 373163
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

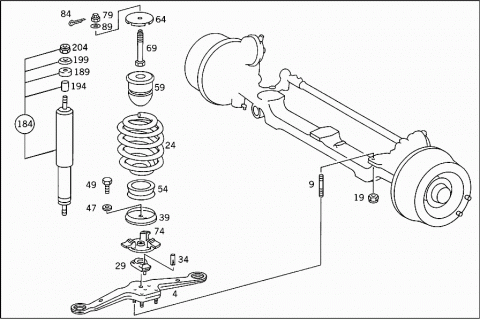

| 004 | A 3023200270 | REAR SUBFRAME |
| SHOCK ABSORBER | ||
| 009 | N 000939014023 | STUD BOLT |
| 019 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 019 | N 910113014000 | NUT |
| SPRING BRACKET TO FRONT AXLE BEAM | ||
| 024 | A 3023210904 | FRONT SPRING |
| 029 | A 3213200666 | SPRING CLAMP |
| FRONT SPRING TO SUPPORT | ||
| 034 | N 001472010009 | GROOVED PIN |
| FRONT SPRING TO SUPPORT | ||
| 039 | A 3213200543 | BRACKET |
| SPRING SEAT | ||
| 047 | N 000125021008 | WASHER |
| BRACKET TO SUPPORT | ||
| 049 | N 000960020026 | SCREW |
| BRACKET TO SUPPORT | ||
| 054 | A 3023220044 | RUBBER BUFFER |
| (HELPER SPRING) | ||
| 059 | A 3023210206 | HELPER SPRING |
| (HELPER SPRING) | ||
| 059 | A 3053240308 | HELPER SPRING |
| FRONT AXLE | ||
| 064 | A 3023220031 | PLATE |
| (HELPER SPRING) | ||
| 069 | A 3029900302 | SCREW |
| (HELPER SPRING) | ||
| 074 | A 3023210133 | SPRING CLAMP |
| FRONT SPRING | ||
| 079 | N 000935020001 | NUT |
| HELPER SPRING TO SUBSTRUCTURE | ||
| 084 | N 000094004065 | COTTER PIN |
| HELPER SPRING TO SUBSTRUCTURE | ||
| 089 | A 3129901540 | WASHER |
| AS REQUIRED | ||

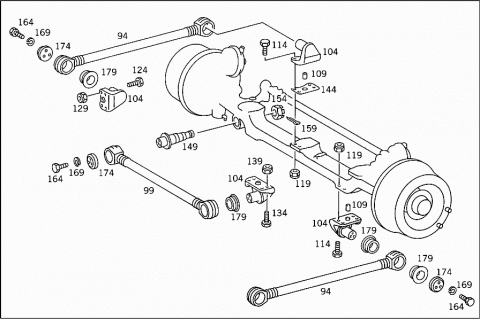

| 094 | A 3223301011 | THRUST ARM |
| LONGITUDINAL CONTROL ARM | ||
| 094 | A 3573303111 | THRUST ARM |
| LONGITUDINAL CONTROL ARM | ||
| 094 | A 3733307411 | THRUST ARM |
| LONGITUDINAL CONTROL ARM | ||
| 099 | A 3173300411 | THRUST ARM |
| TRANSVERSE CONTROL ARM | ||
| 099 | A 3573304211 | THRUST ARM |
| TRANSVERSE CONTROL ARM | ||
| 099 | A 3733307311 | THRUST ARM |
| TRANSVERSE CONTROL ARM | ||
| 104 | A 3073300013 | BEARING BRACKET |
| 104 | A 3733300013 | BEARING BRACKET |
| 109 | A 3173330174 | PIN |
| 114 | N 000960018133 | SCREW |
| BEARING BODY TO FRONT AXLE | ||
| M 18X1,5X75 | ||
| 119 | N 913004018004 | NUT |
| BEARING BODY TO FRONT AXLE | ||
| 124 | N 000960018142 | SCREW |
| BEARING BODY TO SUBSTRUCTURE | ||
| M 18X1,5X65 | ||
| 129 | N 913004018004 | NUT |
| BEARING BODY TO SUBSTRUCTURE | ||
| 134 | N 000960018142 | SCREW |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| 139 | N 913004018004 | NUT |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| 144 | A 3223330184 | SHIM |
| AS REQUIRED | ||
| 1.00 MM | ||
| 144 | A 3223330084 | SHIM |
| AS REQUIRED | ||
| 2.50 MM | ||
| 149 | A 3073330030 | PIN |
| THRUST ARM TO FRONT AXLE | ||
| 154 | N 000937040001 | NUT |
| THRUST ARM TO FRONT AXLE | ||
| 159 | N 000094006320 | COTTER PIN |
| THRUST ARM TO FRONT AXLE | ||
| 164 | A 3079900014 | SCREW |
| THRUST ARM TO BEARING BODY,TO BODY AND TO FRONT AXLE | ||
| 164 | A 3079900014 | SCREW |
| THRUST ARM TO BEARING BODY AT SUBSTRUCTURE | ||
| 164 | A 3079900014 | SCREW |
| PIN TO THRUST ARM | ||
| 169 | N 912004012100 | LOCK WASHER |
| THRUST ARM TO BEARING BODY,TO BODY AND TO FRONT AXLE | ||
| 169 | N 912004012100 | LOCK WASHER |
| THRUST ARM TO BEARING BODY AT SUBSTRUCTURE | ||
| 169 | N 912004012100 | LOCK WASHER |
| PIN TO THRUST ARM | ||
| 174 | A 3173330162 | THRUST WASHER |
| THRUST ARM TO BEARING BODY,TO BODY AND TO FRONT AXLE | ||
| 174 | A 3173330162 | THRUST WASHER |
| THRUST ARM TO BEARING BODY AT SUBSTRUCTURE | ||
| 174 | A 3173330162 | THRUST WASHER |
| PIN TO THRUST ARM | ||
| 179 | A 3173331164 | RUBBER RING |
| THRUST ARM TO BEARING BODY,TO BODY AND TO FRONT AXLE | ||
| 179 | A 3173331164 | RUBBER RING |
| THRUST ARM TO BEARING BODY AT SUBSTRUCTURE | ||
| 179 | A 3173331164 | RUBBER RING |
| PIN TO THRUST ARM | ||
| 184 | A 0023236200 | SHOCK ABSORBER |
| Repalced by: A 3023230000 | ||
| 184 | A 3023230000 | SHOCK ABSORBER |
| PARTS KIT | ||
| 189 | A 3173260068 | RUBBER BUFFER |
| SHOCK ABSORBER TO SPRING SUPPORT AND TO SUBSTRUCTURE | ||
| 194 | A 3029910040 | SPACER TUBE |
| SHOCK ABSORBER TO SPRING SUPPORT AND TO SUBSTRUCTURE | ||
| 199 | A 3023230067 | RETAINER |
| SHOCK ABSORBER TO SPRING SUPPORT AND TO SUBSTRUCTURE | ||
| 204 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 204 | N 910113014000 | NUT |
| SHOCK ABSORBER TO SPRING SUPPORT AND TO SUBSTRUCTURE | ||

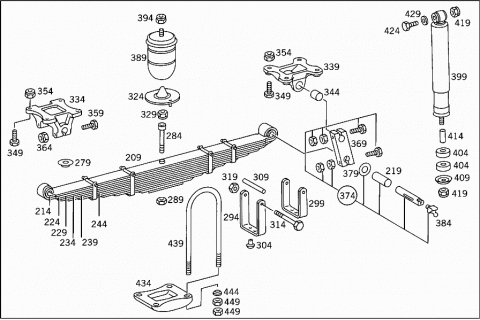

| 209 | A 3733200206 | REAR SPRING |
| (MAIN SPRING),12-LEAF | ||
| 214 | A 3023200693 | SPRING LEAF |
| NO.1 | ||
| 219 | A 3223240050 | BUSHING |
| 224 | A 3023240212 | SPRING LEAF |
| NO.2 | ||
| 229 | A 3733240113 | SPRING LEAF |
| NO.3 | ||
| 234 | A 3733240013 | SPRING LEAF |
| NO.4 | ||
| 239 | A 3733240114 | SPRING LEAF |
| NO.5 | ||
| 244 | A 3733240015 | SPRING LEAF |
| NO.6 | ||
| 279 | A 3023240138 | SLIDING BLOCK |
| 279 | A 3733240038 | SLIDING BLOCK |
| 284 | N 004626016124 | SPRING BOLT |
| 289 | N 000934016006 | NUT |
| 294 | A 3733240133 | SPRING CLAMP |
| INSIDE | ||
| 294 | A 3733240233 | SPRING CLAMP |
| INSIDE | ||
| 299 | A 3733240234 | SPRING CLAMP |
| OUTSIDE | ||
| 304 | N 910005010003 | RIVET |
| INSIDE AND OUTSIDE | ||
| NO.7; 9; 10 | ||
| 309 | A 3023240153 | SPACER TUBE |
| INSIDE AND OUTSIDE | ||
| NO.7; 9; 10 | ||
| 314 | N 000601012007 | SCREW |
| INSIDE AND OUTSIDE | ||
| NO.7; 9; 10 | ||
| 319 | N 000934012000 | NUT |
| INSIDE AND OUTSIDE | ||
| NO.7; 9; 10 | ||
| 324 | A 3023200029 | STOP |
| HELPER SPRING TO REAR AXLE | ||
| 324 | A 3733200029 | STOP |
| HELPER SPRING TO REAR AXLE | ||
| 324 | A 3733200129 | STOP |
| HELPER SPRING TO REAR AXLE | ||
| 329 | N 913004016004 | NUT |
| CENTERING CONE TO REAR AXLE | ||
| 334 | A 3023250101 | REAR SPRING BRACKET |
| FRONT | ||
| 339 | A 3223202575 | SPRING BRACKET |
| REAR | ||
| 344 | A 3223250150 | BUSHING |
| 349 | N 000961014054 | SCREW |
| REAR SPRING FRONT AND REAR BRACKETS TO SUBSTRUCTURE | ||
| 354 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 354 | N 910113014000 | NUT |
| REAR SPRING FRONT AND REAR BRACKETS TO SUBSTRUCTURE | ||
| 359 | N 000960012258 | SCREW |
| 364 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 364 | N 910113012003 | NUT |
| 369 | A 3023250520 | SHACKLE |
| REAR SPRING | ||
| 369 | A 3023250020 | SHACKLE |
| REAR SPRING | ||
| 374 | A 3023200065 | SHACKLE PIN |
| PARTS KIT | ||
| 379 | A 3023230176 | WASHER |
| AS REQUIRED | ||
| 3.70 MM | ||
| 379 | A 3023230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 379 | A 3023230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 379 | A 3023230676 | WASHER |
| AS REQUIRED | ||
| 4.50 MM | ||
| 379 | A 3023230876 | WASHER |
| AS REQUIRED | ||
| 4.80 MM | ||
| 379 | A 3023230976 | WASHER |
| AS REQUIRED | ||
| 5.00 MM | ||
| 384 | N 071412010100 | GREASE NIPPLE |
| 389 | A 3023200377 | RUBBER SPRING |
| (HELPER SPRING) | ||
| 394 | N 913004016004 | NUT |
| HELPER SPRING TO SUBSTRUCTURE | ||
| 399 | A 0023262000 | SHOCK ABSORBER |
| REAR AXLE | ||
| 404 | A 3173260068 | RUBBER BUFFER |
| SHOCK ABSORBER TO REAR AXLE | ||
| 409 | A 3173260167 | RETAINER |
| SHOCK ABSORBER TO REAR AXLE | ||
| 414 | A 3029910140 | SPACER TUBE |
| SHOCK ABSORBER TO REAR AXLE | ||
| 419 | N 913004016004 | NUT |
| SHOCK ABSORBER TO REAR AXLE | ||
| 419 | N 913004016004 | NUT |
| SHOCK ABSORBER TO SUBSTRUCTURE | ||
| 424 | A 3739900001 | SCREW |
| SHOCK ABSORBER TO SUBSTRUCTURE | ||
| 429 | N 000125017010 | WASHER |
| Repalced by: N 000125017016 | ||
| 429 | N 000125017016 | WASHER |
| SHOCK ABSORBER TO SUBSTRUCTURE | ||
| 434 | A 3023250131 | PLATE |
| REAR AXLE TO SPRINGS | ||
| 439 | A 3733510125 | U-BOLT |
| REAR AXLE TO SPRINGS | ||
| 444 | A 3029970026 | WASHER |
| REAR AXLE TO SPRINGS | ||
| 449 | N 000934022006 | NUT |
| REAR AXLE TO SPRINGS | ||

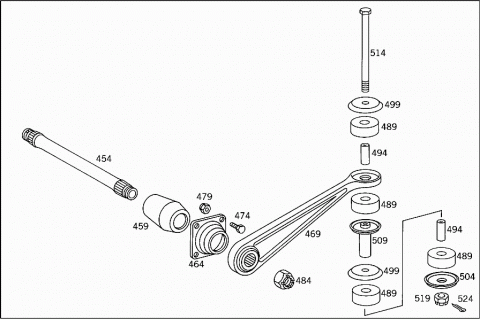

| 454 | A 3003260065 | TORSION BAR |
| REAR AXLE STABILIZER | ||
| 459 | A 3003260068 | RUBBER BUFFER |
| REAR AXLE STABILIZER | ||
| 464 | A 3003260082 | HOUSING |
| REAR AXLE STABILIZER | ||
| 469 | A 3003260069 | LEVER |
| LEFT STABILIZER | ||
| 469 | A 3003260169 | LEVER |
| RIGHT STABILIZER | ||
| 474 | N 000961012165 | SCREW |
| TORSION BAR,RUBBER MOUNTING,AND HOUSING TO SUBSTRUCTURE | ||
| 479 | N 913004012008 | NUT |
| Repalced by: N 910113012002 | ||
| 479 | N 910113012002 | NUT |
| TORSION BAR,RUBBER MOUNTING,AND HOUSING TO SUBSTRUCTURE | ||
| 484 | A 0029901051 | NUT |
| LEVER TO TORSION BAR | ||
| 489 | A 3203230044 | RUBBER BUFFER |
| 494 | A 3219910340 | SPACER TUBE |
| 499 | A 3213230167 | RETAINER |
| 504 | A 3213230267 | RETAINER |
| 509 | A 3223200843 | BRACKET |
| RUBBER BUFFER | ||
| 514 | N 000960018052 | SCREW |
| 519 | A 3029900055 | NUT |
| 524 | N 000094004066 | COTTER PIN |

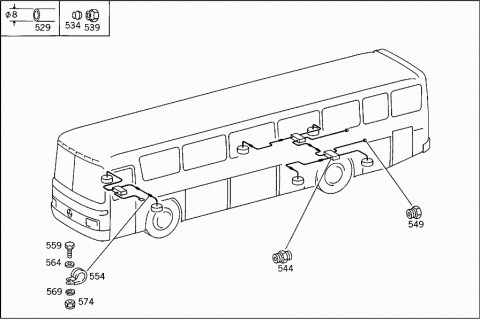

| 529 | A 0004291201 | LINE |
| Repalced by: A 3733200053 | ||
| 529 | A 3733200053 | LINE |
| Repalced by: A 3733204353 | ||
| 529 | A 3733204353 | LINE |
| FROM T-FITTING TO FRONT AXLE LEVEL ADJUSTMENT VALVE | ||
| 529 | A 3733207253 | LINE |
| FROM LEVEL ADJUSTMENT VALVE TO FRONT AXLE | ||
| 529 | A 3733207153 | LINE |
| FROM REAR AXLE LEVEL ADJUSTMENT VALVE TO AIR SPRING BELLOWS | ||
| 529 | A 3733207353 | LINE |
| FROM RIGHT REAR AXLE LEVEL ADJUSTMENT VALVE TO CONNECTOR | ||
| 529 | A 3733208053 | LINE |
| REAR AXLE LEVEL ADJUSTMENT VALVE,LEFT | ||
| 529 | A 3733207453 | LINE |
| FROM CONNECTOR I TO CONNECTOR II | ||
| 529 | A 3733208153 | LINE |
| FROM CONNECTOR I TO CONNECTOR II | ||
| 529 | A 3733207553 | LINE |
| FROM CONNECTOR TO AIR SPRING BELLOWS | ||
| 529 | A 3733200253 | LINE |
| Repalced by: A 3733204553 | ||
| 529 | A 3733204553 | LINE |
| FRONT AXLE LEVEL ADJUSTMENT VALVE,LEFT | ||
| 529 | A 3733200853 | LINE |
| FROM CONNECTOR TO LEVEL ADJUSTMENT VALVE | ||
| 529 | A 3733200353 | LINE |
| FROM CONNECTOR TO LEVEL ADJUSTMENT VALVE | ||
| 529 | A 3733207953 | LINE |
| FROM REAR AXLE LEVEL ADJUSTMENT VALVE TO AIR SPRING BELLOWS | ||
| 529 | A 3733201353 | LINE |
| FROM REAR AXLE LEVEL ADJUSTMENT VALVE TO AIR SPRING BELLOWS | ||
| 529 | A 3733201253 | LINE |
| FROM REAR AXLE LEVEL ADJUSTMENT VALVE TO AIR SPRING BELLOWS | ||
| 529 | A 0004291201 | LINE |
| 8 MM | ||
| 534 | N 003861008005 | GLAND |
| 539 | N 915017008100 | UNION NUT |
| 544 | A 0019972672 | FITTING |
| FROM REAR AXLE LEVEL ADJUSTMENT VALVE TO AIR SPRING BELLOWS | ||
| 549 | A 0049973072 | FITTING |
| AIR CLEANER | ||
| 554 | N 916016008200 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 554 | N 916016008200 | CLAMP |
| COMPRESSED AIR LINE TO HYDRAULIC LINE | ||
| 554 | N 916016015202 | CLAMP |
| COMPRESSED AIR LINE TO HYDRAULIC LINE | ||
| 554 | N 916016020201 | CLAMP |
| COMPRESSED AIR LINE TO HYDRAULIC LINE | ||
| 559 | N 000933006127 | SCREW |
| M 6X25 | ||
| 559 | N 000933006220 | SCREW |
| Repalced by: N 304017006016 | ||
| 559 | N 304017006016 | SCREW |
| M 6X16 | ||
| 564 | N 009021006104 | WASHER |
| 569 | N 912004006102 | LOCK WASHER |
| 574 | N 913004006003 | NUT |

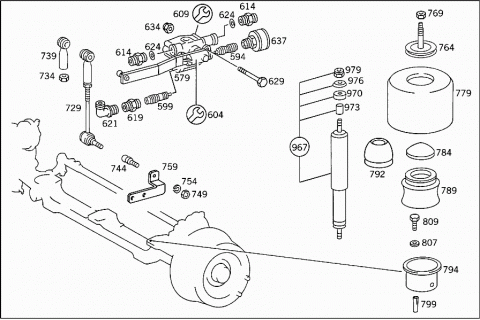

| 579 | A 0003283430 | VALVE |
| FRONT AXLE LEVEL ADJUSTMENT | ||
| BOSCH | ||
| 579 | A 0003283430 | VALVE |
| FRONT AXLE LEVEL ADJUSTMENT | ||
| BOSCH | ||
| 579 | A 0003283730 | VALVE |
| FRONT AXLE LEVEL ADJUSTMENT | ||
| BOSCH | ||
| 594 | A 0003281925 | VALVE |
| INTAKE | ||
| 599 | A 0003282025 | VALVE |
| Repalced by: A 0003282125 | ||
| 599 | A 0003282125 | VALVE |
| EXHAUST | ||
| 604 | A 0003200027 | LEVER |
| Repalced by: A 0003200127 | ||
| 604 | A 0003200127 | LEVER |
| REPAIR KIT | ||
| BOSCH | ||
| 609 | A 0003200467 | GASKET |
| Repalced by: A 0003200258 | ||
| 609 | A 0003200258 | REPAIR KIT |
| REPAIR KIT | ||
| BOSCH | ||
| 614 | A 0019972572 | FITTING |
| 619 | A 0003272125 | VALVE |
| CHECK VALVE | ||
| 621 | A 0009905471 | ELBOW FITTING |
| 624 | N 007603012110 | SEAL RING |
| 629 | N 000931008374 | SCREW |
| LEVEL ADJUSTMENT VALVE TO SUBSTRUCTURE | ||
| 634 | N 913004008005 | NUT |
| LEVEL ADJUSTMENT VALVE TO SUBSTRUCTURE | ||
| 637 | A 0000750032 | FILTER |
| 639 | A 0003282130 | VALVE |
| REAR AXLE LEVEL ADJUSTMENT,LEFT | ||
| 644 | A 0003282030 | VALVE |
| REAR AXLE LEVEL ADJUSTMENT,RIGHT | ||
| 649 | A 0003281925 | VALVE |
| INTAKE | ||
| 654 | A 0003282025 | VALVE |
| Repalced by: A 0003282125 | ||
| 654 | A 0003282125 | VALVE |
| EXHAUST | ||
| 659 | A 0003200027 | LEVER |
| Repalced by: A 0003200127 | ||
| 659 | A 0003200127 | LEVER |
| REPAIR KIT | ||
| 664 | A 0003200467 | REPAIR KIT |
| Repalced by: A 0003200258 | ||
| 664 | A 0003200258 | REPAIR KIT |
| LEVEL ADJUSTMENT VALVE | ||
| 669 | N 007603012405 | SEAL RING |
| 674 | A 0003272125 | VALVE |
| CHECK | ||
| 679 | A 0019972572 | FITTING |
| LEVEL ADJUSTMENT VALVE | ||
| 684 | A 0009905471 | ELBOW FITTING |
| LEVEL ADJUSTMENT VALVE | ||
| A 0059972940 | SEAL RING | |
| LEVEL ADJUSTMENT VALVE | ||
| 689 | A 0004290827 | THRUST RING |
| LEVEL ADJUSTMENT VALVE | ||
| 694 | A 0019875046 | SEALING CORD |
| LEVEL ADJUSTMENT VALVE | ||
| 699 | N 080705012003 | NUT |
| LEVEL ADJUSTMENT VALVE | ||
| 704 | N 000931008374 | SCREW |
| LEVEL ADJUSTMENT VALVE TO SUBSTRUCTURE | ||
| 709 | N 000125008418 | WASHER |
| LEVEL ADJUSTMENT VALVE TO SUBSTRUCTURE | ||
| 714 | N 913004008005 | NUT |
| LEVEL ADJUSTMENT VALVE TO SUBSTRUCTURE | ||
| 719 | A 0000750032 | FILTER |
| 729 | A 3733200189 | ROD |
| Repalced by: A 3073200389 | ||
| 729 | A 3073200389 | ROD |
| LEVEL ADJUSTMENT VALVE | ||
| 734 | N 000934008010 | NUT |
| 739 | A 3579910622 | BALL SOCKET |
| 744 | A 3569910020 | BALL PIVOT |
| Repalced by: N 071803013102 | ||
| 744 | N 071803013102 | BALL PIVOT |
| 749 | N 000934008010 | NUT |
| ROD TO BEARING BRACKET | ||
| 749 | N 913004008005 | NUT |
| ROD TO BEARING BRACKET | ||
| 754 | N 912004008102 | LOCK WASHER |
| ROD TO BEARING BRACKET | ||
| 759 | A 3733270040 | BRACKET |
| OPERATING ROD | ||
| 764 | A 3223200335 | PLATE |
| TOP,AIR SPRING BELLOWS | ||
| 764 | A 6123200035 | PLATE |
| TOP,AIR SPRING BELLOWS | ||
| 769 | N 000936022002 | NUT |
| TOP PLATE TO CROSS MEMBER | ||
| 774 | A 3013270011 | RING |
| REAR AXLE | ||
| 779 | A 3073270001 | AIR SPRING BELLOWS |
| Repalced by: A 0003270101 | ||
| 779 | A 0003270101 | AIR SPRING BELLOWS |
| 779 | A 3073270101 | AIR SPRING BELLOWS |
| Repalced by: A 0003270201 | ||
| 779 | A 0003270201 | AIR SPRING BELLOWS |
| 779 | A 0003270301 | AIR SPRING BELLOWS |
| 784 | A 3223270430 | RUBBER BUFFER |
| SPRING BRACKET | ||
| 789 | A 3013200175 | SPRING BRACKET |
| Repalced by: A 6003200434 | ||
| 789 | A 6003200434 | SUPPORT |
| BOTTOM | ||
| 789 | A 6003201034 | SUPPORT |
| BOTTOM | ||
| 789 | A 3073200175 | SPRING BRACKET |
| Repalced by: A 3573200134 | ||
| 789 | A 3573200134 | SUPPORT |
| BOTTOM | ||
| 789 | A 3573201534 | SUPPORT |
| BOTTOM | ||
| 792 | A 3053240108 | HELPER SPRING |
| REAR AXLE | ||
| 794 | A 3023200143 | BRACKET |
| BOTTOM | ||
| 799 | N 001472010004 | GROOVED PIN |
| 807 | N 000125021008 | WASHER |
| BRACKET TO SPRING BRACKET | ||
| 809 | N 000961020035 | SCREW |
| BRACKET TO SPRING BRACKET | ||
| 814 | A 3003200175 | SPRING BRACKET |
| Repalced by: A 6003200175 | ||
| 814 | A 6003200175 | SPRING BRACKET |
| REAR AXLE | ||

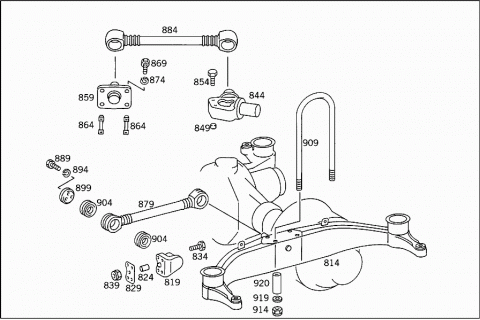

| 819 | A 3073300013 | BEARING BRACKET |
| 819 | A 3733300013 | BEARING BRACKET |
| 824 | A 3173330174 | PIN |
| 829 | A 3223330184 | SHIM |
| 1.0 MM | ||
| 829 | A 3223330084 | SHIM |
| 2.5 MM | ||
| 829 | A 3013520084 | SHIM |
| 3.5 MM | ||
| 829 | A 3013520184 | SHIM |
| 4.0 MM | ||
| 834 | N 000960018142 | SCREW |
| BEARING BODY TO SUBSTRUCTURE | ||
| 839 | N 913004018004 | NUT |
| BEARING BODY TO SUBSTRUCTURE | ||
| 844 | A 3013520341 | BEARING BODY |
| REAR AXLE | ||
| 849 | A 3173510350 | BUSHING |
| 854 | A 3179900019 | SCREW |
| 859 | A 3013520030 | PIN |
| REAR AXLE | ||
| 864 | A 3013330086 | PLATE WITH THREADED HOLES |
| REAR AXLE | ||
| 869 | N 000961016036 | SCREW |
| SUBSTRUCTURE | ||
| 874 | N 912004016101 | LOCK WASHER |
| SUBSTRUCTURE | ||
| 879 | A 3173500606 | CONTROL ARM |
| 879 | A 3573303411 | THRUST ARM |
| 879 | A 3733307211 | THRUST ARM |
| 884 | A 3173500706 | CONTROL ARM |
| 884 | A 6003300111 | THRUST ARM |
| 884 | A 3733307111 | THRUST ARM |
| 889 | A 3079900014 | SCREW |
| CONTROL ARM TO BEARING BODY | ||
| 894 | N 912004012100 | LOCK WASHER |
| CONTROL ARM TO BEARING BODY | ||
| 899 | A 3173330162 | THRUST WASHER |
| CONTROL ARM TO BEARING BODY | ||
| 904 | A 3173331164 | RUBBER RING |
| CONTROL ARM TO BEARING BODY | ||
| 909 | A 6003510125 | U-BOLT |
| SPRING SUPPORT TO REAR AXLE TUBE | ||
| 914 | N 913004024006 | NUT |
| SPRING SUPPORT TO REAR AXLE TUBE | ||
| 919 | A 3573250376 | WASHER |
| SPRING SUPPORT TO REAR AXLE TUBE | ||
| 920 | A 3019910101 | PIN |
| SPRING SUPPORT TO REAR AXLE TUBE | ||
| 922 | A 3003300113 | BEARING BRACKET |
| RIGHT | ||
| 922 | A 3003300013 | BEARING BRACKET |
| LEFT | ||
| 923 | A 3173330174 | PIN |

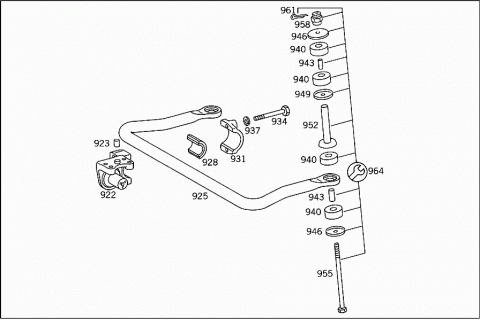

| 925 | A 3013230065 | TORSION BAR |
| 928 | A 3013260081 | RUBBER MOUNTING |
| 931 | A 3003230064 | COVER |
| 934 | N 000960016265 | SCREW |
| 937 | N 912004016101 | LOCK WASHER |
| 940 | A 3203230044 | RUBBER BUFFER |
| 943 | A 3219910340 | SPACER TUBE |
| 946 | A 3213230167 | RETAINER |
| 949 | A 3213230267 | RETAINER |
| 952 | A 3223200843 | BRACKET |
| 955 | N 000960018110 | SCREW |
| 958 | A 3029900055 | NUT |
| 961 | N 000094004066 | COTTER PIN |
| 964 | A 3003200028 | REPAIR KIT |
| STABILIZER TO SUBSTRUCTURE | ||
| 967 | A 3023230200 | SHOCK ABSORBER |
| (PARTS KIT),FRONT AXLE | ||
| 967 | A 3733200030 | SHOCK ABSORBER |
| (PARTS KIT),FRONT AXLE | ||
| 967 | A 3733200230 | SHOCK ABSORBER |
| (PARTS KIT),FRONT AXLE | ||
| 970 | A 3173260068 | RUBBER BUFFER |
| SHOCK ABSORBER TO SPRING SUPPORT AND TO SUBSTRUCTURE | ||
| 973 | A 3029910040 | SPACER TUBE |
| SHOCK ABSORBER TO SPRING SUPPORT AND TO SUBSTRUCTURE | ||
| 976 | A 3023230067 | RETAINER |
| SHOCK ABSORBER TO SPRING SUPPORT AND TO SUBSTRUCTURE | ||
| 979 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 979 | N 910113014000 | NUT |
| SHOCK ABSORBER TO SPRING SUPPORT AND TO SUBSTRUCTURE | ||
| 982 | A 3003260700 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 982 | A 3733200031 | SHOCK ABSORBER |
| Repalced by: A 3003260400 | ||
| 982 | A 3003260400 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 985 | A 3003230044 | RUBBER BUFFER |
| Repalced by: A 3173230444 | ||
| 985 | A 3173230444 | RUBBER BUFFER |
| SHOCK ABSORBER TO SPRING SUPPORT AND TO SUBSTRUCTURE | ||
| 988 | A 3173230667 | RETAINER |
| SHOCK ABSORBER TO SPRING SUPPORT AND TO SUBSTRUCTURE | ||
| 991 | A 3013200026 | SPRING RETAINER |
| SHOCK ABSORBER TO SPRING SUPPORT AND TO SUBSTRUCTURE | ||
| 994 | A 3179911040 | SPACER TUBE |
| SHOCK ABSORBER TO SPRING SUPPORT AND TO SUBSTRUCTURE | ||
| 997 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 997 | N 910113014000 | NUT |
| SHOCK ABSORBER TO SPRING SUPPORT AND TO SUBSTRUCTURE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
