Transporto priemonė: O 303; VIN numerio dalis: 300163

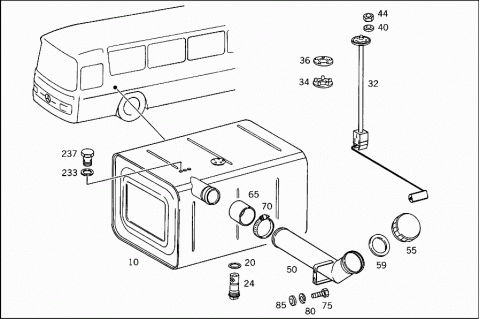

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3014705401 | FUEL TANK |
| 230 L | ||
| 020 | A 0029977245 | SEAL RING |
| FUEL STRAINER SCREEN TO FUEL TANK | ||
| 024 | A 3604700006 | FUEL STRAINER |
| Repalced by: A 3074700106 | ||
| 024 | A 3074700106 | FUEL STRAINER |
| 032 | A 0025429817 | SENDER UNIT |
| Repalced by: A 0055425617 | ||
| 032 | A 0055425617 | SENDER UNIT |
| FUEL GAUGE | ||
| 034 | A 3404700045 | FLANGE |
| 036 | A 3524710080 | GASKET |
| Repalced by: A 4044710080 | ||
| 036 | A 4044710080 | GASKET |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 040 | A 0669970640 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 044 | N 000934005008 | NUT |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 050 | A 3014701420 | FILLER NECK |
| FUEL TANK | ||
| 055 | A 3094700005 | FILLER CAP |
| A 0004710530 | FILLER CAP | |
| Repalced by: A 0004717930 | ||
| A 0004717930 | FILLER CAP | |
| Repalced by: A 0004700305 | ||
| A 0004718030 | FILLER CAP | |
| Repalced by: A 0004700305 | ||
| A 0004700305 | FILLER CAP | |
| A 0004700105 | FILLER CAP | |
| Repalced by: A 0004700305 | ||
| 059 | A 3049970340 | SEAL RING |
| 065 | A 3014760126 | HOSE |
| FUEL TANK | ||
| 070 | N 916017090000 | CLAMP |
| FUEL TANK | ||
| A 4039971172 | FITTING | |
| FUEL TANK | ||
| N 007603014405 | SEAL RING | |
| FUEL TANK | ||
| 075 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 075 | N 304017008016 | SCREW |
| FILLER PIPE TO BODY | ||
| M 8X16 | ||
| 080 | N 912004008102 | LOCK WASHER |
| FILLER PIPE TO BODY | ||
| 085 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 085 | N 000125008443 | WASHER |
| FILLER PIPE TO BODY | ||
| 150 | A 0014774801 | FUEL FILTER |
| Repalced by: A 0010921801 | ||
| 150 | A 0010921801 | FILTER |
| KNECHT | ||
| 150 | A 0014774901 | FUEL FILTER |
| Repalced by: A 0010921901 | ||
| 150 | A 0010921901 | FILTER |
| HENGST | ||
| A 0014779801 | FUEL FILTER | |
| KNECHT | ||
| 160 | A 0000922705 | FILTER ELEMENT |
| Repalced by: A 3524700092 | ||
| 160 | A 0004773815 | FILTER ELEMENT |
| Repalced by: A 3524700092 | ||
| A 0000922005 | FILTER ELEMENT | |
| Repalced by: A 0004774715 | ||
| 170 | A 0004774715 | FILTER ELEMENT |
| Repalced by: A 3524700092 | ||
| 170 | A 3524700092 | FILTER ELEMENT |
| Repalced by: A 0000901151 | ||
| 170 | A 0000901151 | TS FILTER INSERT |
| A 4220900051 | FILTER ELEMENT | |
| Repalced by: A 0000901451 | ||
| A 0000901451 | TS FILTER INSERT | |
| TO 001 477 98 01 | ||
| A 0004773180 | SEAL RING | |
| TO 001 477 98 01 | ||
| 175 | N 000931008251 | SCREW |
| COVER TO HOUSING | ||
| TO 001 477 48 01,001 092 18 01,19 01 | ||
| 175 | N 000931008207 | SCREW |
| Repalced by: N 304014008007 | ||
| 175 | N 304014008007 | SCREW |
| COVER TO HOUSING | ||
| TO 001 477 49 01 | ||
| 185 | N 007603008109 | SEAL RING |
| TO 001 477 49 01 | ||
| 189 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 189 | N 007604014110 | SCREW PLUG |
| LATERAL TOP | ||
| TO 001 477 48 01,001 092 18 01 | ||
| 193 | N 007603014405 | SEAL RING |
| LATERAL TOP | ||
| TO 001 477 48 01,001 092 18 01 | ||
| N 000906014000 | SCREW PLUG | |
| LATERAL TOP | ||
| TO 001 477 49 01 | ||
| 197 | N 007603008109 | SEAL RING |
| BREATHER | ||
| TO 001 477 48 01,001 092 18 01,19 01 | ||
| N 007603008109 | SEAL RING | |
| TO 001 477 98 01 | ||
| 197 | N 007603006101 | SEAL RING |
| BREATHER | ||
| TO 001 477 49 01 | ||
| 205 | A 0000745171 | SCREW |
| Repalced by: A 4420740071 | ||
| 205 | A 4420740071 | SCREW |
| BREATHER | ||
| TO 001 477 48 01,001 092 18 01 | ||
| 205 | A 0004773072 | SCREW |
| BREATHER | ||
| TO 001 477 49 01 | ||
| 213 | A 1009970040 | SEAL RING |
| Repalced by: A 0004773580 | ||
| 213 | A 0004773580 | SEAL RING |
| COVER TO HOUSING | ||
| TO 001 477 48 01 | ||
| 213 | A 0004773580 | SEAL RING |
| COVER TO HOUSING | ||
| 217 | A 0004773708 | COVER |
| Repalced by: A 0000922808 | ||
| 217 | A 0000922808 | FILTER HEAD |
| MULTI-STAGE FUEL FILTER | ||
| TO 001 477 48 01,001 092 18 01 | ||
| 217 | A 0004773408 | COVER |
| MULTI-STAGE FUEL FILTER | ||
| TO 001 477 49 01 | ||
| A 0000923708 | FILTER HEAD | |
| TO 001 092 19 01 | ||
| A 0004770605 | HOUSING | |
| TO 001 092 18 01,001 477 48 01 | ||
| A 4220900007 | HOUSING | |
| TO 001 477 98 01 | ||
| 225 | N 000933012077 | SCREW |
| FUEL FILTER TO SUBSTRUCTURE | ||
| 229 | N 912004012100 | LOCK WASHER |
| FUEL FILTER TO SUBSTRUCTURE | ||
| 233 | N 007603014405 | SEAL RING |
| FUEL LINES TO FUEL TANK | ||
| 237 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 237 | N 915036010108 | HOLLOW SCREW |
| FUEL LINES TO FUEL TANK | ||
| 250 | A 0000911190 | PUMP |
| HAND PUMP | ||
| 255 | N 007603014405 | SEAL RING |
| FUEL LINE TO HAND PUMP | ||
| 259 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 259 | N 915036010108 | HOLLOW SCREW |
| FUEL LINE TO HAND PUMP | ||
| 261 | N 007603014405 | SEAL RING |
| HAND PUMP TO FUEL FILTER | ||
| 263 | A 0009906863 | HOLLOW SCREW |
| HAND PUMP TO FUEL FILTER | ||
| 263 | A 4219900063 | HOLLOW SCREW |
| HAND PUMP TO FUEL FILTER | ||
| 265 | A 3404701965 | LINE |
| WITH SEAL CONE | ||
| 10 MM | ||
| 265 | A 3404701965 | LINE |
| FEED & RETURN | ||
| 10 MM | ||
| 269 | N 915017010201 | UNION NUT |
| 275 | A 3404702665 | LINE |
| WITH FITTING | ||
| 10X0.7 MM | ||
| 275 | A 3404702665 | LINE |
| FEED & RETURN | ||
| 10X0.7 MM | ||
| A 3074709865 | LINE | |
| WITH FITTING | ||
| 10X1 MM | ||
| A 3074709865 | LINE | |
| FEED & RETURN | ||
| 10X1 MM | ||
| 280 | A 3404701265 | LINE |
| WITH BANJO UNION | ||
| 10X0.7 MM | ||
| 280 | A 3404701265 | LINE |
| FEED & RETURN | ||
| 10X0.7 MM | ||
| A 3074709765 | LINE | |
| WITH BANJO UNION | ||
| 10X1 MM | ||
| A 3074709765 | LINE | |
| FEED & RETURN | ||
| 10X1 MM | ||
| N 915017010100 | UNION NUT | |
| N 003861010009 | GLAND | |
| 285 | A 3404761202 | LINE |
| Repalced by: A 0004290901 | ||
| 285 | A 0004290901 | LINE |
| LESS CONNECTIONS | ||
| 10 MM | ||
| 285 | A 0004290901 | LINE |
| TO CONNECT THE FUEL LINES | ||
| 10 MM | ||
| A 0004293301 | LINE | |
| RETURN | ||
| 290 | A 3014704764 | LINE |
| TAPERING | ||
| 290 | A 3014704764 | LINE |
| FROM ENGINE TO RETURN LINE | ||
| A 3074702766 | LINE | |
| FROM ENGINE TO RETURN LINE | ||
| A 0019970652 | HOSE | |
| FEED & RETURN | ||
| A 0089976082 | HOSE | |
| Repalced by: A 0009872627 | ||
| A 0009872627 | PLASTIC PIPE | |
| FEED & RETURN | ||
| A 0004760524 | ELBOW FITTING | |
| N 915017010201 | UNION NUT | |
| A 0019978390 | LOOM TIE | |
| 280 MM | ||
| 300 | A 0089976482 | HOSE |
| FROM ENGINE TO RETURN LINE | ||
| 304 | N 916026016001 | CLAMP |
| Repalced by: A 0059970190 | ||
| 304 | A 0059970190 | HOSE CLAMP |
| FROM ENGINE TO RETURN LINE | ||
| 310 | A 3054760126 | HOSE |
| TO CONNECT THE FUEL LINES | ||
| 314 | N 916026016001 | CLAMP |
| Repalced by: A 0059970190 | ||
| 314 | A 0059970190 | HOSE CLAMP |
| TO CONNECT THE FUEL LINES | ||
| A 0009907870 | T-FITTING | |
| 318 | N 007619008001 | T-FITTING |
| HOSE, FROM T-FITTING TO HOSE; RETURN | ||
| N 915021010000 | FITTING | |
| HOSE, FROM T-FITTING TO HOSE; RETURN | ||
| N 915059008001 | FITTING | |
| 8/10 | ||
| N 915059004001 | FITTING | |
| 4/6 | ||
| 325 | A 0039974582 | HOSE |
| 270 MM | ||
| 325 | A 0039974582 | HOSE |
| FROM FUEL TANK TO FUEL PUMP | ||
| 270 MM | ||
| 325 | A 0039974582 | HOSE |
| FUEL PUMP AND FUEL FILTER | ||
| 270 MM | ||
| 325 | A 0039974582 | HOSE |
| FROM FUEL FILTER TO INJECTION PUMP | ||
| 270 MM | ||
| 325 | A 0039974582 | HOSE |
| FROM FUEL FILTER TO ENGINE | ||
| 270 MM | ||
| 335 | N 007603014405 | SEAL RING |
| FUEL LINE TO FEED PUMP | ||
| 335 | N 007603014405 | SEAL RING |
| FUEL LINE TO FUEL FILTER | ||
| 339 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 339 | N 915036010108 | HOLLOW SCREW |
| FUEL LINE TO FEED PUMP | ||
| 339 | N 915036010108 | HOLLOW SCREW |
| FUEL LINE TO FUEL FILTER | ||
| 341 | A 3529970772 | HOLLOW SCREW |
| Repalced by: A 6159900263 | ||
| 341 | A 6159900263 | HOLLOW SCREW |
| FUEL LINE TO FUEL FILTER | ||
| 345 | A 0009950025 | CLAMP |
| FEED AND RETURN LINES TO SUBSTRUCTURE | ||
| 349 | N 007981006208 | SHEET METAL SCREW |
| FEED AND RETURN LINES TO SUBSTRUCTURE | ||
| 353 | N 916016008200 | CLAMP |
| Repalced by: N 000000000319 | ||
| 353 | N 000000000319 | CLAMP |
| RETURN LINE TO CLUTCH HYDRAULIC LINE | ||
| 357 | N 916016010201 | CLAMP |
| Repalced by: N 916016010211 | ||
| 357 | N 916016010211 | CLAMP |
| Repalced by: N 000000001045 | ||
| 357 | N 000000001045 | CLAMP |
| RETURN LINE TO CLUTCH HYDRAULIC LINE | ||
| 360 | N 000933006127 | SCREW |
| RETURN LINE TO CLUTCH HYDRAULIC LINE | ||
| 364 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 364 | N 009021006208 | WASHER |
| RETURN LINE TO CLUTCH HYDRAULIC LINE | ||
| 368 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 368 | N 913004006001 | NUT |
| RETURN LINE TO CLUTCH HYDRAULIC LINE | ||
| 380 | A 3014760436 | BRACKET |
| Repalced by: A 6004760236 | ||
| 380 | A 6004760236 | BRACKET |
| CLAMP | ||
| A 3521800440 | BRACKET | |
| TRANSMISSION | ||
| A 3004700281 | BRACKET | |
| Repalced by: A 3521800440 | ||
| A 3521800440 | BRACKET | |
| TRANSMISSION | ||
| 385 | N 912004008102 | LOCK WASHER |
| BRACKET TO SUBSTRUCTURE | ||
| 389 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 389 | N 304017008016 | SCREW |
| BRACKET TO SUBSTRUCTURE | ||
| 395 | N 916016010201 | CLAMP |
| Repalced by: N 916016010211 | ||
| 395 | N 916016010211 | CLAMP |
| Repalced by: N 000000001045 | ||
| 395 | N 000000001045 | CLAMP |
| FUEL LINE TO BRACKET | ||
| 400 | N 000933006127 | SCREW |
| FUEL LINE TO BRACKET | ||
| 404 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 404 | N 009021006208 | WASHER |
| FUEL LINE TO BRACKET | ||
| 408 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 408 | N 913004006001 | NUT |
| FUEL LINE TO BRACKET | ||
| 415 | A 3014700381 | BRACKET |
| FEED LINE AND RETURN LINE TO CLUTCH SLAVE CYLINDER | ||
| 420 | A 3179950832 | CLAMP |
| FEED LINE AND RETURN LINE TO CLUTCH SLAVE CYLINDER | ||
| 425 | N 000933006127 | SCREW |
| FEED LINE AND RETURN LINE TO CLUTCH SLAVE CYLINDER | ||
| 429 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 429 | N 009021006208 | WASHER |
| FEED LINE AND RETURN LINE TO CLUTCH SLAVE CYLINDER | ||
| 435 | A 3179950832 | CLAMP |
| FUEL LINES TO ENGINE | ||
| 440 | A 3125251089 | BASE |
| Repalced by: A 3142030084 | ||
| 440 | A 3142030084 | SHIM |
| FUEL LINES TO ENGINE | ||
| 445 | N 000933006127 | SCREW |
| FUEL LINES TO ENGINE | ||
| 449 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 449 | N 913004006001 | NUT |
| FUEL LINES TO ENGINE | ||
| N 916016010201 | CLAMP | |
| Repalced by: N 916016010211 | ||
| N 916016010211 | CLAMP | |
| Repalced by: N 000000001045 | ||
| N 000000001045 | CLAMP | |
| FUEL HOSE TO PUMP | ||
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| FUEL HOSE TO PUMP | ||
| 455 | A 3124761236 | BRACKET |
| Repalced by: A 3604293140 | ||
| 455 | A 3604293140 | BRACKET |
| FUEL LINE | ||
| 460 | A 3129950232 | CLAMP |
| Repalced by: A 4429955032 | ||
| 460 | A 4429955032 | CLAMP |
| FUEL LINE TO BRACKET | ||
| 465 | N 000933006127 | SCREW |
| FUEL LINE TO BRACKET | ||
| 469 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 469 | N 913004006001 | NUT |
| FUEL LINE TO BRACKET | ||
| N 916016010201 | CLAMP | |
| Repalced by: N 916016010211 | ||
| N 916016010211 | CLAMP | |
| Repalced by: N 000000001045 | ||
| N 000000001045 | CLAMP | |
| FUEL LINE TO FUEL LINE | ||
| N 000933006127 | SCREW | |
| FUEL LINE TO FUEL LINE | ||
| N 009021006205 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| FUEL LINE TO FUEL LINE | ||
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| FUEL LINE TO FUEL LINE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
