Transporto priemonė: O 303; VIN numerio dalis: 300373

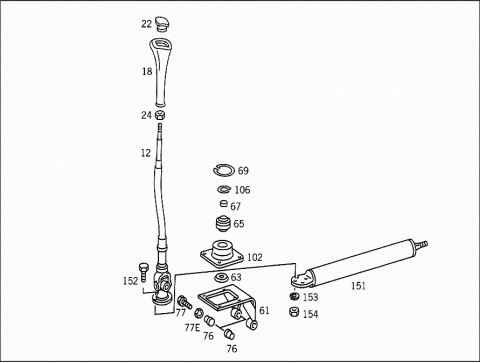

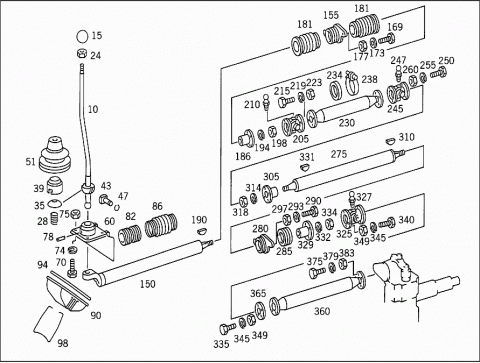

Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 719.1 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 719.0 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 719.5 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 714.6 | ||
| 010 | A 3012600139 | SHIFT LEVER |
| 012 | A 3002600039 | SHIFT LEVER |
| 012 | A 3002600039 | SHIFT LEVER |
| 012 | A 3002600139 | SHIFT LEVER |
| 015 | A 3602600040 | HANDLE |
| (GEARSHIFT LEVER KNOB) | ||
| 018 | A 6202680042 | KNOB |
| (SHIFT LEVER HANDLE) | ||
| 022 | A 6202680457 | COVER |
| WITH GEAR INDICATOR | ||
| 022 | A 6202680457 | COVER |
| WITH GEAR INDICATOR | ||
| 022 | A 6202680357 | COVER |
| WITH GEAR INDICATOR | ||
| 024 | N 913021010001 | NUT |
| Repalced by: N 304035010001 | ||
| 024 | N 304035010001 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 028 | A 3029930401 | SPRING |
| 035 | A 3022670008 | SPHERICAL PIECE |
| 039 | A 3022670006 | COVER |
| COVERING | ||
| 043 | A 3212670025 | SLIDING BLOCK |
| SHIFT LEVER TO BEARING BRACKET | ||
| 047 | N 009045008002 | SNAP RING |
| SHIFT LEVER TO BEARING BRACKET | ||
| 051 | A 3012670096 | BOOT |
| Repalced by: A 3562680197 | ||
| 051 | A 3562680197 | BOOT |
| SHIFT LEVER | ||
| 060 | A 3012680037 | BEARING BRACKET |
| SHIFT LEVER | ||
| 061 | A 3002600062 | BRACKET |
| SHIFT LEVER UPPER PART | ||
| 061 | A 3002600062 | BRACKET |
| SHIFT LEVER UPPER PART | ||
| 061 | A 3002600362 | BRACKET |
| SHIFT LEVER UPPER PART | ||
| 061 | A 3002600662 | BRACKET |
| SHIFT LEVER UPPER PART | ||
| 063 | A 3002680080 | GASKET |
| SHIFT LEVER | ||
| 065 | A 0019811931 | JOINT BEARING |
| SHIFT LEVER | ||
| 067 | A 3002680051 | SPACER RING |
| SHIFT LEVER | ||
| 069 | N 000472047000 | LOCK RING |
| SHIFT LEVER BEARING | ||
| 070 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 070 | N 304017008034 | SCREW |
| BRACKET TO FRAME | ||
| 8X25 | ||
| 070 | N 304017008034 | SCREW |
| BRACKET TO FRAME | ||
| 8X25 | ||
| 070 | N 000931008328 | SCREW |
| BRACKET TO FRAME | ||
| 8X20 | ||
| 074 | N 912004008102 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 075 | N 000934008010 | NUT |
| BRACKET TO FRAME | ||
| 076 | A 3002680049 | SLIDE |
| FRONT SHIFTING ROD ADJUSTMENT | ||
| 076 | A 3002680049 | SLIDE |
| FRONT SHIFTING ROD ADJUSTMENT | ||
| 076 | A 3962680049 | SLIDE |
| FRONT SHIFTING ROD ADJUSTMENT | ||
| 077 | N 000933010128 | SCREW |
| FRONT SHIFTING ROD ADJUSTMENT | ||
| 077 | N 000933010128 | SCREW |
| FRONT SHIFTING ROD ADJUSTMENT | ||
| N 000417010015 | HEADLESS SETSCREW | |
| FRONT SHIFTING ROD ADJUSTMENT | ||
| 077E | N 000439010202 | NUT |
| FRONT SHIFTING ROD ADJUSTMENT | ||
| A 3962680096 | BOOT | |
| FRONT SHIFTING ROD SLIDE COVERING | ||
| 078 | N 001473005012 | GROOVED PIN |
| COVER TO BEARING BRACKET | ||
| 082 | A 3052680150 | BUSHING |
| Repalced by: A 3572680050 | ||
| 082 | A 3572680050 | BUSHING |
| SHIFTING ROD BEARING | ||
| 086 | A 0002680396 | BOOT |
| SHIFTING ROD BEARING | ||
| 090 | A 3012680105 | COVER |
| BEARING BRACKET | ||
| 094 | A 3012680180 | GASKET |
| BEARING BRACKET | ||
| 098 | A 3012680040 | BRACKET |
| COVER TO BEARING BRACKET | ||
| 102 | A 3002680040 | BRACKET |
| BEARING TO SHIFT LEVER | ||
| 102 | A 3002680040 | BRACKET |
| BEARING TO SHIFT LEVER | ||
| 102 | A 3002680440 | BRACKET |
| BEARING TO SHIFT LEVER | ||
| 106 | N 000471025002 | LOCK RING |
| BEARING TO SHIFT LEVER | ||
| 150 | A 3012605733 | SHIFTING ROD |
| FRONT | ||
| 151 | A 3002600033 | SHIFTING ROD |
| FRONT | ||
| 152 | A 3219900601 | SCREW |
| SHIFT LEVER TO FRONT SHIFTING TUBE | ||
| 153 | N 912004008102 | LOCK WASHER |
| SHIFT LEVER TO FRONT SHIFTING TUBE | ||
| 154 | N 000934008110 | NUT |
| SHIFT LEVER TO FRONT SHIFTING TUBE | ||
| 155 | A 3012900531 | BEARING |
| Repalced by: A 3012930240 | ||
| 155 | A 3012930240 | BRACKET |
| SHIFTING ROD BEARING | ||
| NO.1 | ||
| 155 | A 3012930240 | BRACKET |
| SHIFTING ROD BEARING | ||
| NO.3 | ||
| 169 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 169 | N 304017008034 | SCREW |
| BEARING TO SUBSTRUCTURE | ||
| 173 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 173 | N 000125008443 | WASHER |
| BEARING TO SUBSTRUCTURE | ||
| 177 | N 913004008004 | NUT |
| BEARING TO SUBSTRUCTURE | ||
| 181 | A 0002680396 | BOOT |
| SHIFTING ROD | ||
| 181 | A 0002680396 | BOOT |
| FOR BOOT,FLANGE,AND BUSHING,SEE ALSO GROUP 29 | ||
| 186 | A 3212680228 | CONNECTOR |
| FLANGE TO SHIFTING TUBE | ||
| 190 | N 006888005006 | WOODRUFF KEY |
| CONNECTOR TO FRONT SHIFTING TUBE | ||
| 194 | N 912004012100 | LOCK WASHER |
| CONNECTOR TO FRONT SHIFTING TUBE | ||
| 198 | N 000934012022 | NUT |
| CONNECTOR TO FRONT SHIFTING TUBE | ||
| 205 | A 0002682289 | JOINT |
| Repalced by: A 3572680089 | ||
| 205 | A 3572680089 | JOINT |
| FRONT | ||
| 205 | A 0002683189 | JOINT |
| Repalced by: A 3572680289 | ||
| 205 | A 3572680289 | JOINT |
| FRONT | ||
| 210 | N 071412006300 | GREASE NIPPLE |
| TO 000 268 22 89,000 268 31 89 | ||
| 215 | A 3179900301 | SCREW |
| JOINT TO FRONT SHIFTING ROD AND TO SHIFTING ROD ABOVE FRONT AXLE | ||
| 219 | N 912004008102 | LOCK WASHER |
| JOINT TO FRONT SHIFTING ROD AND TO SHIFTING ROD ABOVE FRONT AXLE | ||
| 223 | N 000934008010 | NUT |
| JOINT TO FRONT SHIFTING ROD AND TO SHIFTING ROD ABOVE FRONT AXLE | ||
| 230 | A 3012604933 | SHIFTING ROD |
| ABOVE FRONT AXLE | ||
| 234 | A 3012680086 | RUBBER RING |
| ABOVE FRONT AXLE | ||
| 238 | N 900288062000 | CLAMP |
| 245 | A 0002682289 | JOINT |
| Repalced by: A 3572680089 | ||
| 245 | A 3572680089 | JOINT |
| SHIFTING ROD ABOVE FRONT AXLE TO SHIFTING ROD ABOVE REAR AXLE | ||
| 245 | A 0002683189 | JOINT |
| Repalced by: A 3572680289 | ||
| 245 | A 3572680289 | JOINT |
| SHIFTING ROD ABOVE FRONT AXLE TO SHIFTING ROD ABOVE REAR AXLE | ||
| 247 | N 071412006300 | GREASE NIPPLE |
| TO 000 268 22 89,000 268 31 89 | ||
| 250 | A 3179900301 | SCREW |
| SHIFTING ROD ABOVE FRONT AXLE TO SHIFTING ROD ABOVE REAR AXLE | ||
| 255 | N 912004008102 | LOCK WASHER |
| SHIFTING ROD ABOVE FRONT AXLE TO SHIFTING ROD ABOVE REAR AXLE | ||
| 260 | N 000934008010 | NUT |
| SHIFTING ROD ABOVE FRONT AXLE TO SHIFTING ROD ABOVE REAR AXLE | ||
| 275 | A 3012605833 | SHIFTING ROD |
| ABOVE REAR AXLE | ||
| 280 | A 3012900631 | BEARING |
| Repalced by: A 3012930240 | ||
| 280 | A 3012930240 | BRACKET |
| SHIFTING ROD BEARING | ||
| NO.3 | ||
| 285 | A 3212680850 | BUSHING |
| Repalced by: A 3572680150 | ||
| 285 | A 3572680150 | BUSHING |
| 285 | A 3052680150 | BUSHING |
| Repalced by: A 3572680050 | ||
| 285 | A 3572680050 | BUSHING |
| 290 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 290 | N 304017008034 | SCREW |
| BEARING TO SUBSTRUCTURE | ||
| 293 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 293 | N 000125008443 | WASHER |
| BEARING TO SUBSTRUCTURE | ||
| 297 | N 913004008004 | NUT |
| BEARING TO SUBSTRUCTURE | ||
| 305 | A 3212680228 | CONNECTOR |
| 310 | N 006888005006 | WOODRUFF KEY |
| CONNECTOR TO SHIFTING ROD ABOVE REAR AXLE | ||
| 314 | N 912004012100 | LOCK WASHER |
| CONNECTOR TO SHIFTING ROD ABOVE REAR AXLE | ||
| 318 | N 000934012022 | NUT |
| CONNECTOR TO SHIFTING ROD ABOVE REAR AXLE | ||
| 325 | A 0002682289 | JOINT |
| Repalced by: A 3572680089 | ||
| 325 | A 3572680089 | JOINT |
| SHIFTING ROD ABOVE REAR AXLE TO REAR SHIFTING ROD | ||
| 325 | A 0002683189 | JOINT |
| Repalced by: A 3572680289 | ||
| 325 | A 3572680289 | JOINT |
| SHIFTING ROD ABOVE REAR AXLE TO REAR SHIFTING ROD | ||
| 327 | N 071412006300 | GREASE NIPPLE |
| TO 000 268 22 89,000 268 31 89 | ||
| 329 | A 3212680228 | CONNECTOR |
| 331 | N 006888005006 | WOODRUFF KEY |
| CONNECTOR TO SHIFTING ROD ABOVE REAR AXLE | ||
| 332 | N 912004012100 | LOCK WASHER |
| CONNECTOR TO SHIFTING ROD ABOVE REAR AXLE | ||
| 334 | N 000934012022 | NUT |
| CONNECTOR TO SHIFTING ROD ABOVE REAR AXLE | ||
| 335 | A 3219900601 | SCREW |
| SHIFTING ROD ABOVE REAR AXLE TO REAR SHIFTING ROD | ||
| M 8X25 | ||
| 340 | A 3179900301 | SCREW |
| SHIFTING ROD ABOVE REAR AXLE TO REAR SHIFTING ROD | ||
| M 8X18 | ||
| 345 | N 912004008102 | LOCK WASHER |
| SHIFTING ROD ABOVE REAR AXLE TO REAR SHIFTING ROD | ||
| 349 | N 000934008010 | NUT |
| SHIFTING ROD ABOVE REAR AXLE TO REAR SHIFTING ROD | ||
| 360 | A 3012605533 | SHIFTING ROD |
| REAR | ||
| 1468 MM | ||
| 360 | A 3012605233 | SHIFTING ROD |
| Repalced by: A 3012608233 | ||
| 360 | A 3012608233 | SHIFTING ROD |
| REAR | ||
| 1313 MM | ||
| 360 | A 3002601833 | SHIFTING ROD |
| REAR | ||
| 1374 MM | ||
| 365 | A 3212680552 | SPACER WASHER |
| AS REQUIRED | ||
| 2.00 MM | ||
| 365 | A 3212680452 | SPACER WASHER |
| AS REQUIRED | ||
| 3.00 MM | ||
| 365 | A 3212680352 | SPACER WASHER |
| AS REQUIRED | ||
| 5.00 MM | ||
| 375 | N 000931008266 | SCREW |
| SHIFTING ROD TO TRANSMISSION | ||
| M 8X40 | ||
| 375 | N 000933008315 | SCREW |
| SHIFTING ROD TO TRANSMISSION | ||
| M 8X40 | ||
| 379 | N 912004008102 | LOCK WASHER |
| SHIFTING ROD TO TRANSMISSION | ||
| 383 | N 000934008010 | NUT |
| SHIFTING ROD TO TRANSMISSION | ||
