Transporto priemonė: O 303; VIN numerio dalis: 300385

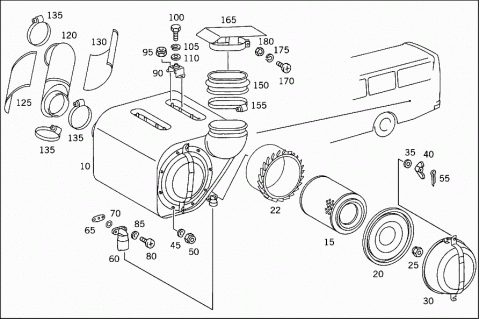

Grupė: 52 CHASSIS SHEET METAL - 001 SHEET METAL,AIR INTAKE

#	Kodas	Pavadinimas
010	A 0080949202	AIR CLEANER
	Repalced by: A 0110947002
010	A 0080949102	AIR CLEANER
	Repalced by: A 0110947002
010	A 0110947002	AIR CLEANER
		MANN & HUMMEL
010	A 0110947102	AIR CLEANER
		MANN & HUMMEL
015	A 0010944704	FILTER ELEMENT
		TO 008 094 92 02,011 094 70 02
015	A 0010947904	FILTER ELEMENT
		TO 008 094 91 02,011 094 71 02
020	A 0010943206	COVER
		TO 011 094 70 02,008 094 92 02
020	A 0010943306	COVER
		TO 008 094 91 02,011 094 71 02
022	A 0000942105	AIR BAFFLE
025	A 0009901550	NUT
030	A 0000947503	FILTER BOWL
		TO 008 094 92 02,011 094 70 02
030	A 0000947603	FILTER BOWL
		TO 008 094 91 02,011 094 71 02
035	N 000125010518	WASHER
	Repalced by: N 000125010532
035	N 000125010532	WASHER
040	N 000315008006	NUT
045	N 000137008204	SPRING WASHER
	Repalced by: N 000137008212
045	N 000137008212	SPRING WASHER
050	N 913004008004	NUT
055	N 000094003210	COTTER PIN
060	A 0000941468	MAINTENANCE INDICATOR
		TO 008 094 91 02,008 094 92 02
060	A 0000941868	MAINTENANCE INDICATOR
		TO 011 094 70 02,011 094 71 02
065	A 0010941180	GASKET
		TO 011 094 70 02,011 094 71 02
070	A 0010944480	GASKET
	Repalced by: A 0000940276
070	A 0000940276	WASHER
		FELT
080	N 000084006137	SCREW
085	N 000137006204	SPRING WASHER
090	A 0009881911	BUFFER
	Repalced by: A 0009885511
090	A 0009885511	BUFFER
		AIR CLEANER
095	N 913004008004	NUT
		BUFFER TO AIR CLEANER
100	N 000933008212	SCREW
	Repalced by: N 304017008016
100	N 304017008016	SCREW
		AIR CLEANER TO SUBSTRUCTURE
105	N 912004008102	LOCK WASHER
		AIR CLEANER TO SUBSTRUCTURE
110	N 000125008418	WASHER
	Repalced by: N 000125008443
110	N 000125008443	WASHER
		AIR CLEANER TO SUBSTRUCTURE
120	A 3015280308	AIR INTAKE PIPE
	Repalced by: A 3005280308
120	A 3005280308	AIR INTAKE PIPE
		FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
120	A 3015280408	AIR INTAKE PIPE
	Repalced by: A 3005280108
120	A 3005280108	AIR INTAKE PIPE
		FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
120	A 3005280007	PIPE ELBOW
		FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
125	A 3015280011	SHELL PLATE
	Repalced by: A 3005280308
125	A 3015280211	SHELL PLATE
	Repalced by: A 3005280108
130	A 3015280111	SHELL PLATE
	Repalced by: A 3005280308
130	A 3015280311	SHELL PLATE
	Repalced by: A 3005280108
	N 900271130000	HOSE
		PIPE ELBOW TO AIR CLEANER
	A 3005280082	HOSE
		FROM PIPE ELBOW TO TRANSVERSE INTAKE PIPE
135	N 916017130000	CLAMP
	Repalced by: N 000000000678
135	N 000000000678	CLAMP
		AIR INTAKE PIPE TO TRANSVERSE INTAKE PIPE AND TO AIR CLEANER
	Repalced by: N 000000005892
135	N 000000005892	CLAMP
		AIR INTAKE PIPE TO TRANSVERSE INTAKE PIPE AND TO AIR CLEANER
135	N 000000005892	CLAMP
		PIPE ELBOW TO AIR CLEANER
135	N 000000005892	CLAMP
		FROM PIPE ELBOW TO TRANSVERSE INTAKE PIPE
150	A 3015280182	HOSE
		FROM AIR CLEANER TO INTAKE PIPE
150	A 3015280182	HOSE
		FROM AIR CLEANER TO INTAKE PIPE
150	A 3005280182	HOSE
		FROM AIR CLEANER TO INTAKE PIPE
155	N 916017160000	CLAMP
		AIR CLEANER AND AIR INTAKE PIPE
165	A 3015200089	COVER
		AIR INTAKE
170	N 007985006154	SCREW
		COVERING
175	N 912004006102	LOCK WASHER
		COVERING
180	N 000934006007	NUT
		COVERING
	A 3014206835	LINE
	Repalced by: A 0004291601
	A 0004292101	LINE
		FROM AIR CLEANER TO AIR COMPRESSOR
	A 3005280008	AIR INTAKE PIPE
		FROM AIR CLEANER TO AIR COMPRESSOR
	N 916017020000	CLAMP
	Repalced by: N 000000000667
	N 000000000667	CLAMP
		AIR INTAKE PIPE TO PIPE ELBOW
