Transporto priemonė: O 303; VIN numerio dalis: 300385
Grupė: 30 CONTROL

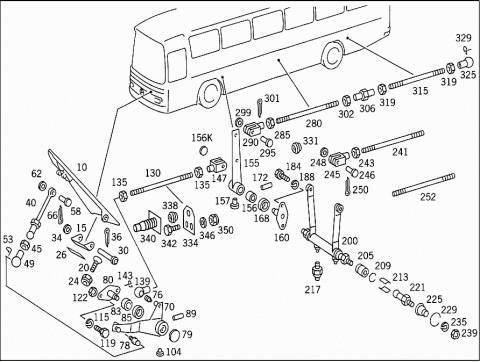

27544

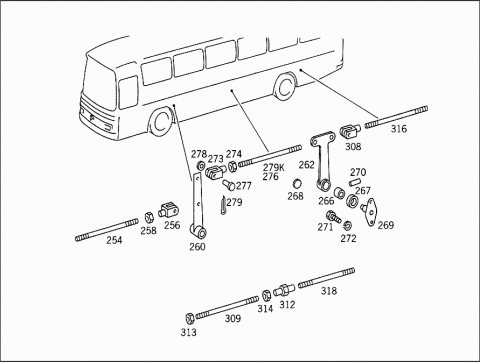

27545

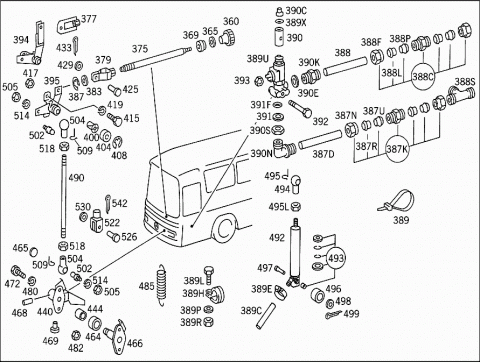

27546
# Kodas Pavadinimas
010 A 3073010002 PEDAL PLATE
015 A 3013010305 ARTICULATION PIECE
ACCELERATOR PEDAL
020 N 000963008004 SCREW
ARTICULATION ELEMENT TO FLOOR
024 N 913004008004 NUT
ARTICULATION ELEMENT TO FLOOR
026 A 3013010084 SHIM
ARTICULATION ELEMENT TO FLOOR
030 N 001434010058 PIN
ACCELERATOR PEDAL TO JOINT
034 N 000125010518 WASHER
Repalced by: N 000125010532
034 N 000125010532 WASHER
ACCELERATOR PEDAL TO JOINT
036 N 000094003219 COTTER PIN
ACCELERATOR PEDAL TO JOINT
040 A 3073000315 ROD
Repalced by: A 3073000215
040 A 3073000215 ROD
FROM PEDAL PLATE TO LEVER
045 N 000934008010 NUT
ROD TO LEVER
049 N 071805013203 BALL SOCKET
ROD TO LEVER
053 N 071805013402 CIRCLIP
ROD TO LEVER
058 N 001434006099 PIN
ROD TO PEDAL PLATE
062 N 009021006205 WASHER
Repalced by: N 009021006208
062 N 009021006208 WASHER
ROD TO PEDAL PLATE
066 N 000094001617 COTTER PIN
ROD TO PEDAL PLATE
070 A 3013000728 LEVER
(DOUBLE LEVER)
070 A 3013000625 LEVER
(DOUBLE LEVER)
076 N 071803010209 BALL PIVOT
Repalced by: A 3129910120
076 A 3129910120 BALL PIVOT
10X4.5 MM
078 N 071803013208 BALL PIVOT
13X5 MM
079 N 000470020000 EXPANSION PLUG
080 A 3073000074 PIN
083 A 3073010150 BUSHING
085 A 0089974046 SEAL RING
089 N 000007003104 CYLINDRICAL PIN
104 A 0009970488 GREASE NIPPLE
115 N 912004008102 LOCK WASHER
LEVER TO SUBSTRUCTURE
115 N 912004008102 LOCK WASHER
LEVER TO SUBSTRUCTURE
119 N 000933008145 SCREW
LEVER TO SUBSTRUCTURE
122 N 913004008004 NUT
LEVER TO SUBSTRUCTURE
130 N 900331006624 PULL ROD
FROM DOUBLE LEVER TO INTERMEDIATE LEVER
130 N 900331006620 PULL ROD
FROM DOUBLE LEVER TO INTERMEDIATE LEVER
135 N 000934006007 NUT
ROD TO LEVER
139 N 071805010204 BALL SOCKET
INTERMEDIATE LEVER
143 N 071805010403 CIRCLIP
ROD TO LEVER
147 A 3073010022 YOKE
155 A 3013000025 LEVER
Repalced by: A 6973000025
155 A 6973000025 LEVER
(INTERMEDIATE LEVER)
155 A 6973000025 LEVER
(INTERMEDIATE LEVER)
155 A 3003001725 LEVER
(INTERMEDIATE LEVER)
156 A 3073010150 BUSHING
156K N 000470020000 EXPANSION PLUG
157 A 0009970488 GREASE NIPPLE
160 A 3073000074 PIN
168 A 0089974046 SEAL RING
172 N 000007003104 CYLINDRICAL PIN
184 N 000933008145 SCREW
LEVER TO SUBSTRUCTURE
188 N 912004008102 LOCK WASHER
LEVER TO SUBSTRUCTURE
200 A 3013000220 SHAFT
REVERSING LEVER
205 A 0009974086 PLUG
209 N 007993016200 SNAP RING
213 A 3013010053 SPACER TUBE
217 N 071412008101 GREASE NIPPLE
Repalced by: N 071412008102
217 N 071412008102 GREASE NIPPLE
221 A 3059910015 BALL PIVOT
225 A 3053010097 BOOT
229 N 007993024100 SNAP RING
235 N 912004012100 LOCK WASHER
SHAFT TO SUBSTRUCTURE
239 N 000936012005 NUT
Repalced by: N 308675012000
239 N 308675012000 NUT
SHAFT TO SUBSTRUCTURE
241 N 900331006617 PULL ROD
FROM LEVER TO INTERMEDIATE LEVER AT ENGINE
243 N 000934006007 NUT
LEVER TO LEVER
245 A 3073010022 YOKE
LEVER TO LEVER
246 A 3059910204 PIN
ROD TO LEVER
248 N 000125006421 WASHER
ROD TO LEVER
Repalced by: N 000125006449
248 N 000125006449 WASHER
ROD TO LEVER
250 N 000094001617 COTTER PIN
ROD TO LEVER
252 N 900331006622 PULL ROD
FROM SHAFT TO INTERMEDIATE LEVER
254 N 900331006617 PULL ROD
FROM SHAFT TO INTERMEDIATE LEVER
256 A 3073010022 YOKE
FROM SHAFT TO INTERMEDIATE LEVER
258 N 000934006007 NUT
FROM SHAFT TO INTERMEDIATE LEVER
260 A 3003002025 LEVER
Repalced by: A 3003001925
260 A 3003001925 LEVER
(INTERMEDIATE LEVER) BEHIND FRONT AXLE,TOP,AT SUBSTRUCTURE
262 A 3003002425 LEVER
(INTERMEDIATE LEVER) IN FRONT OF REAR AXLE,TOP,AT SUBSTRUCTURE
262 A 3003001125 LEVER
(INTERMEDIATE LEVER) IN FRONT OF REAR AXLE,BOTTOM,AT SUBSTRUCTURE
266 A 3073010150 BUSHING
267 A 0089974046 SEAL RING
268 N 000470020000 EXPANSION PLUG
269 A 3073000074 PIN
270 N 000007003104 CYLINDRICAL PIN
271 N 000933008145 SCREW
LEVER TO SUBSTRUCTURE
272 N 912004008102 LOCK WASHER
LEVER TO SUBSTRUCTURE
273 A 3073010022 YOKE
LEVER TO LEVER
274 N 000934006007 NUT
LEVER TO LEVER
276 N 900331006621 PULL ROD
LEVER TO LEVER
276 N 900331006619 PULL ROD
LEVER TO LEVER
277 A 3059910204 PIN
PULL ROD TO LEVER
278 N 000125006421 WASHER
PULL ROD TO LEVER
Repalced by: N 000125006449
278 N 000125006449 WASHER
PULL ROD TO LEVER
279 N 000094001617 COTTER PIN
PULL ROD TO LEVER
279K N 900331006624 PULL ROD
FROM TURNBUCKLE NUT TO INTERMEDIATE LEVER
280 N 900331006635 PULL ROD
FROM INTERMEDIATE LEVER TO TURNBUCKLE NUT
285 N 000934006007 NUT
FROM INTERMEDIATE LEVER TO TURNBUCKLE NUT
290 A 3073010022 YOKE
FROM INTERMEDIATE LEVER TO TURNBUCKLE NUT
295 A 3059910204 PIN
PULL ROD TO LEVER AND TO INTERMEDIATE LEVER
295 A 3059910204 PIN
PULL ROD TO LEVER AND TO INTERMEDIATE LEVER
299 N 000125006421 WASHER
PULL ROD TO LEVER AND TO INTERMEDIATE LEVER
Repalced by: N 000125006449
299 N 000125006449 WASHER
PULL ROD TO LEVER AND TO INTERMEDIATE LEVER
301 N 000094001617 COTTER PIN
PULL ROD TO LEVER AND TO INTERMEDIATE LEVER
302 N 000934006012 NUT
FROM INTERMEDIATE LEVER TO TURNBUCKLE NUT
306 N 900333006001 TURNBUCKLE
PULL ROD
308 A 3073010022 YOKE
FROM INTERMEDIATE LEVER TO ENGINE
309 N 900331006636 PULL ROD
FROM TURNBUCKLE IN FRONT OF REAR AXLE TO TURNBUCKLE BEHIND REAR AXLE
4500 MM
309 N 900331006636 PULL ROD
FROM TURNBUCKLE IN FRONT OF REAR AXLE TO TURNBUCKLE BEHIND REAR AXLE
4000 MM
312 N 001480006200 TURNBUCKLE
313 N 000934006007 NUT
314 N 000934006012 NUT
L.H. THREAD
315 N 900331006326 PULL ROD
FROM TURNBUCKLE NUT TO ENGINE
5000 MM
315 N 900331006326 PULL ROD
FROM TURNBUCKLE NUT TO ENGINE
5000 MM
316 N 900331006622 PULL ROD
FROM INTERMEDIATE LEVER TO ENGINE
318 N 900331006618 PULL ROD
FROM TURNBUCKLE BEHIND REAR AXLE TO ENGINE
319 N 000934006007 NUT
PULL ROD TO LEVER AT ENGINE
325 N 071805010204 BALL SOCKET
PULL ROD TO LEVER AT ENGINE
329 N 071805010403 CIRCLIP
PULL ROD TO LEVER AT ENGINE
331 A 3013020050 BUSHING
ACCELERATOR CONTROL LINKAGE BEARING
334 A 3053010140 BRACKET
Repalced by: A 3053000240
334 A 3053000240 BRACKET
PULL ROD
338 A 3013020050 BUSHING
ACCELERATOR CONTROL LINKAGE BEARING
340 A 3643010097 BOOT
ACCELERAT0R CONTROL LINKAGE
342 N 000933008145 SCREW
BRACKET TO SUBSTRUCTURE
346 N 000125008418 WASHER
Repalced by: N 000125008443
346 N 000125008443 WASHER
BRACKET TO SUBSTRUCTURE
350 N 913004008004 NUT
BRACKET TO SUBSTRUCTURE
360 A 1155400028 KNOB
ENGINE SHUT-OFF
360 A 1155400028 KNOB
ENGINE SHUT-OFF
365 N 006902007100 WASHER
ENGINE SHUT-OFF
365 N 006902007100 WASHER
ENGINE SHUT-OFF
369 A 1154270686 DAMPING RING
ENGINE SHUT-OFF
369 A 1154270686 DAMPING RING
ENGINE SHUT-OFF
375 A 3013020307 SPINDLE
ENGINE SHUT-OFF
375 A 3013020307 SPINDLE
ENGINE SHUT-OFF
375 A 3013020307 SPINDLE
ENGINE SHUT-OFF
375 A 3003020207 SPINDLE
ENGINE SHUT-OFF
375 A 3003020007 SPINDLE
ENGINE SHUT-OFF
375 A 3003020107 SPINDLE
ENGINE SHUT-OFF
375 A 3003020107 SPINDLE
ENGINE SHUT-OFF
377 A 3013000186 END PIECE
PRECISION CONTROL
377 A 3013000186 END PIECE
PRECISION CONTROL
377 A 3013000186 END PIECE
PRECISION CONTROL
379 A 3003000088 YOKE
PRECISION CONTROL
379 A 3003000088 YOKE
PRECISION CONTROL
379 A 3003000088 YOKE
PRECISION CONTROL
383 A 3019901640 WASHER
KNOB TO END PIECE
383 A 3019901640 WASHER
KNOB TO END PIECE
387 N 006799006003 LOCK PLATE
KNOB TO END PIECE
387 N 006799006003 LOCK PLATE
KNOB TO END PIECE
387D A 0089979082 HOSE
Repalced by: A 0009872727
387D A 0009872727 PLASTIC PIPE
ENGINE SHUT-OFF
6X8 MM
387K A 0039978972 FITTING
Repalced by: A 0029905971
387K A 0029905971 FITTING
(PARTS KIT),LINE RUPTURE
387N N 915017008100 UNION NUT
LINE CONNECTIONS
387R N 003861008005 GLAND
LINE CONNECTIONS
387U N 915062006000 SLEEVE
LINE CONNECTIONS
388 A 0089976082 HOSE
Repalced by: A 0009872627
388 A 0009872627 PLASTIC PIPE
ENGINE SHUT-OFF
4X6 MM
388C A 0039979172 FITTING
(PARTS KIT),LINE RUPTURE
388F N 915017006100 UNION NUT
LINE CONNECTIONS
388L N 003861006007 GLAND
LINE CONNECTIONS
388P N 915062004000 SLEEVE
LINE CONNECTIONS
388S A 0009909970 T-FITTING
SECONDARY-CONSUMING-UNIT BULKHEAD FITTING
389 A 0019978490 LOOM TIE
LINE MOUNTING
389C A 3024760226 HOSE
Repalced by: A 3578320723
389C A 3578320723 HOSE
LINE CONNECTION
389E N 900288012001 CLAMP
HOSE TO COMPRESSED AIR LINE
389H N 916016012200 CLAMP
HOSE TO BRACKET
389L N 000933006127 SCREW
HOSE TO BRACKET
389P N 009021006205 WASHER
Repalced by: N 009021006208
389P N 009021006208 WASHER
HOSE TO BRACKET
389R N 913004006002 NUT
Repalced by: N 913004006001
389R N 913004006001 NUT
HOSE TO BRACKET
389U A 0039971136 VALVE
Repalced by: A 0039975336
389U A 0039975336 VALVE
Repalced by: A 0049975736
389U A 0049975736 VALVE
ENGINE SHUT-OFF
389X A 0109974448 SEAL RING
389X A 0079970248 SEAL RING
389X A 0049970640 SEAL RING
N 007603006100 SEAL RING
390 A 0004311668 VALVE PART
390 A 0005533307 VALVE
390C A 0014310087 PROTECTIVE CAP
A 0004305660 REPAIR KIT
SOLENOID VALVE
390E N 007603012405 SEAL RING
390K A 0039979072 FITTING
Repalced by: A 0029906071
390K A 0029906071 FITTING
390N A 0009905471 ELBOW FITTING
390S N 080705012003 NUT
391 A 0004290827 THRUST RING
391F A 0019875046 SEALING CORD
392 N 000933008161 SCREW
VALVE TO SUBSTRUCTURE
393 N 913004008004 NUT
VALVE TO SUBSTRUCTURE
394 A 3013001525 LEVER
CONTROL LEVER
394 A 3013001525 LEVER
CONTROL LEVER
394 A 3013001525 LEVER
CONTROL LEVER
395 A 3003000025 LEVER
CONTROL LEVER
395 A 3003000025 LEVER
CONTROL LEVER
395 A 3003000025 LEVER
CONTROL LEVER
400 A 3813020050 BUSHING
400 A 3813020050 BUSHING
404 A 3813010388 COVERING
Repalced by: A 6153010088
404 A 6153010088 COVERING
404 A 6153010088 COVERING
408 N 006799010001 LOCK PLATE
408 N 006799010001 LOCK PLATE
415 N 000933006103 SCREW
Repalced by: N 304017006018
415 N 304017006018 SCREW
CONTROL LEEVER TO HEATER
415 N 304017006018 SCREW
CONTROL LEEVER TO HEATER
417 N 000934008010 NUT
VALVE TO SUBSTRUCTURE
419 N 912004006102 LOCK WASHER
CONTROL LEEVER TO HEATER
419 N 912004006102 LOCK WASHER
CONTROL LEEVER TO HEATER
425 N 001434006001 PIN
END PIECE TO CONTROL LEVER
425 N 001434006001 PIN
END PIECE TO CONTROL LEVER
425 N 001434006001 PIN
END PIECE TO CONTROL LEVER
425 N 001444006211 PIN
END PIECE TO CONTROL LEVER
425 N 001444006211 PIN
END PIECE TO CONTROL LEVER
425 N 001444006211 PIN
END PIECE TO CONTROL LEVER
429 N 000125006421 WASHER
END PIECE TO CONTROL LEVER
Repalced by: N 000125006449
429 N 000125006449 WASHER
END PIECE TO CONTROL LEVER
429 N 000125006449 WASHER
END PIECE TO CONTROL LEVER
429 N 000125006449 WASHER
END PIECE TO CONTROL LEVER
429 N 006902006102 WASHER
Repalced by: N 000988008024
429 N 000988008024 FITTED WASHER
END PIECE TO CONTROL LEVER
429 N 000988008024 FITTED WASHER
END PIECE TO CONTROL LEVER
429 N 000988008024 FITTED WASHER
END PIECE TO CONTROL LEVER
433 N 000094001617 COTTER PIN
END PIECE TO CONTROL LEVER
440 A 3013001725 LEVER
(SHUT-OFF LEVER)
440 A 3013001725 LEVER
(SHUT-OFF LEVER)
440 A 3013001725 LEVER
(SHUT-OFF LEVER)
440 A 3003000625 LEVER
(SHUT-OFF LEVER)
440 A 3003000825 LEVER
(SHUT-OFF LEVER)
440 A 3003000825 LEVER
(SHUT-OFF LEVER)
440 A 3003000825 LEVER
(SHUT-OFF LEVER)
440 A 3013002725 LEVER
(SHUT-OFF LEVER)
440 A 3003002125 LEVER
(SHUT-OFF LEVER)
444 A 3073010150 BUSHING
444 A 3073010150 BUSHING
464 A 0089974046 SEAL RING
464 A 0089974046 SEAL RING
465 N 000470020000 EXPANSION PLUG
465 N 000470020000 EXPANSION PLUG
466 A 3013000174 PIN
466 A 3073000074 PIN
468 N 000007003104 CYLINDRICAL PIN
468 N 000007003104 CYLINDRICAL PIN
469 A 0009970488 GREASE NIPPLE
469 A 0009970488 GREASE NIPPLE
469 N 071412008302 GREASE NIPPLE
472 N 000933008145 SCREW
LEVER TO SUBSTRUCTURE
M 8X18
472 N 000933008145 SCREW
LEVER TO SUBSTRUCTURE
M 8X18
472 N 000933008212 SCREW
Repalced by: N 304017008016
472 N 304017008016 SCREW
LEVER TO SUBSTRUCTURE
M 8X16
480 N 912004008102 LOCK WASHER
LEVER TO SUBSTRUCTURE
480 N 912004008102 LOCK WASHER
LEVER TO SUBSTRUCTURE
482 N 913004008004 NUT
LEVER TO SUBSTRUCTURE
485 A 3199930810 SPRING
LEVER TO SUBSTRUCTURE
485 A 3199930810 SPRING
LEVER TO SUBSTRUCTURE
490 A 3013020704 ROD
FROM CONTROL LEVER TO SHUT-OFF LEVER
490 A 3013020704 ROD
FROM CONTROL LEVER TO SHUT-OFF LEVER
490 A 3013020704 ROD
FROM CONTROL LEVER TO SHUT-OFF LEVER
490 A 3013020704 ROD
FROM CONTROL LEVER TO SHUT-OFF LEVER
490 A 3013021104 ROD
FROM CONTROL LEVER TO SHUT-OFF LEVER
490 A 3013021104 ROD
FROM CONTROL LEVER TO SHUT-OFF LEVER
490 A 3013021104 ROD
FROM CONTROL LEVER TO SHUT-OFF LEVER
490 A 3013021004 ROD
FROM CONTROL LEVER TO SHUT-OFF LEVER
492 A 0004301926 CYLINDER
Repalced by: A 0004301826
492 A 0004301826 CYLINDER
Repalced by: A 0004302726
492 A 0004302726 CYLINDER
Repalced by: A 0004303026
492 A 0004303026 CYLINDER
ENGINE SHUT-OFF
493 A 0015867443 REPAIR KIT
494 N 071805013203 BALL SOCKET
POWER CYLINDER
495 N 071805013402 CIRCLIP
POWER CYLINDER
495L N 000934008010 NUT
POWER CYLINDER
496 A 3073010053 SPACER TUBE
POWER CYLINDER
497 N 001434008096 PIN
POWER CYLINDER TO BRACKET AT SUBSTRUCTURE
498 N 000125008418 WASHER
Repalced by: N 000125008443
498 N 000125008443 WASHER
POWER CYLINDER TO BRACKET AT SUBSTRUCTURE
499 N 000094002059 COTTER PIN
POWER CYLINDER TO BRACKET AT SUBSTRUCTURE
Repalced by: N 000094002060
499 N 000094002060 COTTER PIN
POWER CYLINDER TO BRACKET AT SUBSTRUCTURE
N 071802008201 ANGLE JOINT
ROD TO LEVER
502 N 071803008101 BALL PIVOT
502 N 071803008101 BALL PIVOT
504 N 071805008207 BALL SOCKET
504 N 071805008207 BALL SOCKET
505 N 000934005008 NUT
505 N 000934005008 NUT
509 N 071805008403 CIRCLIP
509 N 071805008403 CIRCLIP
514 N 912004005103 LOCK WASHER
ROD TO LEVER
514 N 912004005103 LOCK WASHER
ROD TO LEVER
518 N 000934005008 NUT
ROD TO LEVER
518 N 000934005008 NUT
ROD TO LEVER
522 N 071752005001 YOKE
ROD TO LEVER
522 N 071752005001 YOKE
ROD TO LEVER
522 N 071752005001 YOKE
ROD TO LEVER
526 N 001444005202 PIN
YOKE TO SHUT-OFF LEVER,BOTTOM
526 N 001444005202 PIN
YOKE TO SHUT-OFF LEVER,BOTTOM
526 N 001444005202 PIN
YOKE TO SHUT-OFF LEVER,BOTTOM
530 N 006902005100 WASHER
Repalced by: N 000125006421
530 N 000125006421 WASHER
YOKE TO SHUT-OFF LEVER,BOTTOM
Repalced by: N 000125006449
530 N 000125006449 WASHER
YOKE TO SHUT-OFF LEVER,BOTTOM
530 N 000125006449 WASHER
YOKE TO SHUT-OFF LEVER,BOTTOM
530 N 000125006449 WASHER
YOKE TO SHUT-OFF LEVER,BOTTOM
542 N 000094001203 COTTER PIN
YOKE TO SHUT-OFF LEVER,BOTTOM
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
