Transporto priemonė: O 303; VIN numerio dalis: 300385
Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|
| A 0015413001 | BATTERY | |
| Repalced by: A 0025411701 | ||
| 003 | A 0025411701 | BATTERY |
| 12 V/170 AH | ||
| 005 | A 0005462235 | BOOT |
| Repalced by: A 0005464335 | ||
| 005 | A 0005464335 | BOOT |
| Repalced by: A 0005464635 | ||
| 005 | A 0005464635 | BOOT |
| POS. POLE | ||
| A 0005464435 | BOOT | |
| Repalced by: A 0005464635 | ||
| A 0005464635 | BOOT | |
| FROM BATTERY I POS. POLE TO BATTERY II NEG. POLE | ||
| 007 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 007 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY I TO BATTERY II | ||
| 009 | N 072332013100 | SOLDERING TERMINAL |
| POS. POLE | ||
| 011 | N 072332013200 | SOLDERING TERMINAL |
| NEG.POLE | ||
| 013 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 013 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY TO CABLE CONNECTOR | ||
| 015 | N 072332013100 | SOLDERING TERMINAL |
| POS. POLE | ||
| 017 | N 046234010007 | CABLE SHOE |
| POS. CABLE | ||
| A 3875400031 | NEG. CABLE | |
| Repalced by: N 072551070880 | ||
| 021 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 021 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY II TO BATTERY MASTER SWITCH | ||
| 022 | N 072332013200 | SOLDERING TERMINAL |
| NEG.POLE | ||
| 022D | N 046234010007 | CABLE SHOE |
| NEG. CABLE | ||
| 023 | A 0005454008 | SWITCH |
| BATTERY MASTER SWITCH | ||
| 025 | N 912004008102 | LOCK WASHER |
| SWITCH TO SUBSTRUCTURE | ||
| 027 | N 007513008106 | TAPPING SCREW |
| SWITCH TO SUBSTRUCTURE | ||
| 029 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 029 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY MASTER SWITCH TO CABLE CONNECTOR | ||
| 029 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY MASTER SWITCH TO GROUND | ||
| 031 | N 072332013200 | SOLDERING TERMINAL |
| NEG.POLE | ||
| 033 | N 046234010007 | CABLE SHOE |
| NEG. CABLE | ||
| 037 | A 3015460044 | CLAMPING PIECE |
| BATTERY CABLES THRU ENGINE COMPARTMENT PARTITION PANEL | ||
| 038 | A 3835460044 | CLAMPING PIECE |
| BATTERY CABLE MOUNTING IN BATTERY COMPARTMENT | ||
| 039 | N 000931006073 | SCREW |
| BATTERY CABLES THRU ENGINE COMPARTMENT PARTITION PANEL | ||
| M 6X100 | ||
| 040 | N 912004006102 | LOCK WASHER |
| BATTERY CABLES THRU ENGINE COMPARTMENT PARTITION PANEL | ||
| 041 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 041 | N 009021006208 | WASHER |
| BATTERY CABLES THRU ENGINE COMPARTMENT PARTITION PANEL | ||
| 042 | N 000934006007 | NUT |
| BATTERY CABLES THRU ENGINE COMPARTMENT PARTITION PANEL | ||
| 043 | N 000931006118 | SCREW |
| CLAMPING PIECE TO SUBSTRUCTURE | ||
| 043 | N 007985006160 | SCREW |
| Repalced by: N 007985006590 | ||
| 043 | N 007985006590 | SCREW |
| Repalced by: N 000000001481 | ||
| 043 | N 000000001481 | SCREW |
| CLAMPING PIECE TO BRACKET | ||
| 044 | N 912004006102 | LOCK WASHER |
| CLAMPING PIECE TO SUBSTRUCTURE | ||
| 044 | N 912004006102 | LOCK WASHER |
| CLAMPING PIECE TO BRACKET | ||
| 045 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 045 | N 009021006208 | WASHER |
| CLAMPING PIECE TO SUBSTRUCTURE | ||
| 046 | N 000934006007 | NUT |
| CLAMPING PIECE TO SUBSTRUCTURE | ||
| 046 | N 000934006007 | NUT |
| CLAMPING PIECE TO BRACKET | ||
| A 3015410053 | SPACER TUBE | |
| 061 | A 3028951153 | BASE |
| BATTERY CABLE MOUNTING IN BATTERY COMPARTMENT | ||
| 063 | N 007985006171 | SCREW |
| BATTERY CABLE MOUNTING IN BATTERY COMPARTMENT | ||
| 064 | N 000965006037 | SCREW |
| BATTERY CABLE MOUNTING IN BATTERY COMPARTMENT | ||
| 065 | N 000125006421 | WASHER |
| BATTERY CABLE MOUNTING IN BATTERY COMPARTMENT | ||
| Repalced by: N 000125006449 | ||
| 065 | N 000125006449 | WASHER |
| BATTERY CABLE MOUNTING IN BATTERY COMPARTMENT | ||
| 066 | N 912004006102 | LOCK WASHER |
| BATTERY CABLE MOUNTING IN BATTERY COMPARTMENT | ||
| 067 | N 000934006007 | NUT |
| BATTERY CABLE MOUNTING IN BATTERY COMPARTMENT | ||
| 068 | N 913010006107 | RIVETED NUT |
| BATTERY CABLE MOUNTING IN BATTERY COMPARTMENT | ||
| 068H | N 007513006114 | TAPPING SCREW |
| Repalced by: N 000933006083 | ||
| 068H | N 000933006083 | SCREW |
| BATTERY CABLE MOUNTING IN BATTERY COMPARTMENT | ||
| 080 | A 3045460141 | CABLE CONNECTOR |
| AT BRACKET | ||
| A 3155400043 | CABLE CONNECTOR | |
| Repalced by: A 3155460041 | ||
| 081 | A 3155460041 | CABLE CONNECTOR |
| AT BRACKET | ||
| 082 | N 000084010114 | SCREW |
| CABLE CONNECTOR | ||
| M 10X35 | ||
| 082E | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 082E | N 000125010532 | WASHER |
| CABLE CONNECTOR | ||
| 082N | N 912004010102 | LOCK WASHER |
| CABLE CONNECTOR | ||
| 083 | N 913021010001 | NUT |
| Repalced by: N 304035010001 | ||
| 083 | N 304035010001 | NUT |
| CABLE CONNECTOR | ||
| A 3045460168 | CAP | |
| JUNCTION BOX | ||
| 086 | A 3155460068 | CAP |
| JUNCTION BOX | ||
| 087 | A 3015460068 | CAP |
| JUNCTION BOX | ||
| 089 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 089 | N 000000001146 | SCREW |
| CAP TO BRACKET | ||
| M 6X16 | ||
| 090 | N 912004006102 | LOCK WASHER |
| CAP TO BRACKET | ||
| 091 | N 000934006007 | NUT |
| CAP TO BRACKET | ||
| 092 | N 000084008120 | SCREW |
| CABLE CONNECTOR TO BRACKET | ||
| M 8X25 | ||
| 093 | N 000084008119 | SCREW |
| CABLE CONNECTOR TO BRACKET | ||
| M 8X20 | ||
| 093F | N 912004008102 | LOCK WASHER |
| CABLE CONNECTOR TO BRACKET | ||
| A 3015401631 | NEG. CABLE | |
| Repalced by: N 072551050880 | ||
| N 072551050880 | ELECTRIC CABLE | |
| Repalced by: N 922002050000 | ||
| 094 | N 922002050000 | ELECTRIC CABLE |
| Repalced by: A 6735460011 | ||
| 094 | A 6735460011 | ELECTRIC CABLE |
| FROM CABLE CONNECTOR TO GROUND SHACKLE | ||
| 095 | N 046234010008 | CABLE SHOE |
| FROM CABLE CONNECTOR TO GROUND SHACKLE | ||
| 096 | N 912004010102 | LOCK WASHER |
| BATTERY CABLE TO CABLE CONNECTOR | ||
| 097 | N 913021010001 | NUT |
| Repalced by: N 304035010001 | ||
| 097 | N 304035010001 | NUT |
| BATTERY CABLE TO CABLE CONNECTOR | ||
| 098 | N 000933010105 | SCREW |
| GROUND CABLE TO SHACKLE | ||
| 099 | N 912004010102 | LOCK WASHER |
| GROUND CABLE TO SHACKLE | ||
| 100 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 100 | N 000125010532 | WASHER |
| GROUND CABLE TO SHACKLE | ||
| 101 | N 000934010014 | NUT |
| GROUND CABLE TO SHACKLE | ||
| A 3015400830 | POSITIVE CABLE | |
| Repalced by: N 072551070880 | ||
| N 072551070880 | ELECTRIC CABLE | |
| Repalced by: N 922002070000 | ||
| A 3015400431 | NEG. CABLE | |
| Repalced by: N 072551070880 | ||
| 104 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 104 | A 6735460013 | ELECTRIC CABLE |
| FROM CABLE CONNECTOR TO STARTING MOTOR | ||
| 105 | N 046234010007 | CABLE SHOE |
| POS. CABLE | ||
| 105 | N 046234010007 | CABLE SHOE |
| POS. CABLE | ||
| 105 | N 046234012006 | CABLE SHOE |
| POS. CABLE TO STARTING MOTOR | ||
| 105 | N 046234010007 | CABLE SHOE |
| NEG. CABLE | ||
| 106B | N 912004006102 | LOCK WASHER |
| BATTERY CABLE TO STARTING MOTOR | ||
| 106D | N 000934006007 | NUT |
| BATTERY CABLE TO STARTING MOTOR | ||
| 106F | N 912004012100 | LOCK WASHER |
| BATTERY CABLE TO STARTING MOTOR | ||
| 106H | N 000934012021 | NUT |
| BATTERY CABLE TO STARTING MOTOR | ||
| 106L | N 912004010102 | LOCK WASHER |
| BATTERY CABLE TO STARTING MOTOR | ||
| 106P | N 000934010014 | NUT |
| BATTERY CABLE TO STARTING MOTOR | ||
| 107 | N 916016018201 | CLAMP |
| BATTERY CABLE MOUNTING IN BATTERY COMPARTMENT | ||
| 107 | N 916016018201 | CLAMP |
| BATTERY CABLE MOUNTING IN BATTERY COMPARTMENT | ||
| 107 | N 916016028200 | CLAMP |
| BATTERY CABLE TO SUBSTRUCTURE | ||
| 109 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 109 | N 000000001146 | SCREW |
| BRACKET TO BELL HOUSING | ||
| M 6X16 | ||
| 109 | N 000000001146 | SCREW |
| BRACKET TO BELL HOUSING | ||
| M 6X16 | ||
| 109 | N 007985006160 | SCREW |
| Repalced by: N 007985006590 | ||
| 109 | N 007985006590 | SCREW |
| Repalced by: N 000000001481 | ||
| 109 | N 000000001481 | SCREW |
| BRACKET TO BELL HOUSING | ||
| M 6X40 | ||
| 110 | N 912004006102 | LOCK WASHER |
| BRACKET TO BELL HOUSING | ||
| 111 | N 000934006007 | NUT |
| BRACKET TO BELL HOUSING | ||
| A 3005400873 | BRACKET | |
| POS. AND NEG. CABLES TO BELL HOUSING | ||
| A 3835460044 | CLAMPING PIECE | |
| STARTING CABLE TO BRACKET | ||
| N 007985006160 | SCREW | |
| Repalced by: N 007985006590 | ||
| N 007985006590 | SCREW | |
| Repalced by: N 000000001481 | ||
| N 000000001481 | SCREW | |
| CLAMPING PIECE TO BRACKET | ||
| N 009021006205 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| CLAMPING PIECE TO BRACKET | ||
| N 000986006000 | CAP NUT | |
| Repalced by: N 001587006002 | ||
| N 001587006002 | CAP NUT | |
| CLAMPING PIECE TO BRACKET | ||
| 113 | A 1869970481 | GROMMET |
| ENGINE-COMPARTMENT/BATTERY-COMPARTMENT CABLE PASSAGE | ||
| 115 | A 1869970781 | GROMMET |
| ENGINE-COMPARTMENT/BATTERY-COMPARTMENT CABLE PASSAGE | ||
| 120 | A 3015409705 | CABLE HARNESS |
| MAIN CABLE,FRONT END | ||
| 120 | A 3015403906 | CABLE HARNESS |
| MAIN CABLE,FRONT END | ||
| 120 | A 3015409805 | CABLE HARNESS |
| MAIN CABLE,FRONT END | ||
| 120 | A 3015404006 | CABLE HARNESS |
| MAIN CABLE,FRONT END | ||
| 123 | A 3359970081 | GROMMET |
| SWITCH BOX | ||
| 125 | A 3109970081 | GROMMET |
| CIGAR LIGHTER | ||
| 127 | A 3149970181 | GROMMET |
| LEFT HEADLAMP | ||
| 129 | A 0065455528 | PIN BUSHING HOUSING |
| 10-POLE | ||
| 131 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 133 | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| 135 | A 0055459928 | PIN BUSHING HOUSING |
| 7-POLE | ||
| 137 | A 0075450528 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 139 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 141 | A 0025451228 | PLUG HOUSING |
| 4-POLE | ||
| 143 | A 0015458528 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 145 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 147 | A 0015457928 | PLUG HOUSING |
| BIPOLAR | ||
| 149 | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 150 | A 0015454128 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 151 | A 0025451528 | PLUG CONNECTOR |
| 154 | A 0065451428 | PIN BUSHING HOUSING |
| RELAY | ||
| Repalced by: A 0008250518 | ||
| 154 | A 0008250518 | BASE |
| RELAY | ||
| 157 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 160 | A 0005454626 | PIN BUSHING |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 162 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 162 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 162 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 164 | A 0005457926 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 1-2.5 MM2 | ||
| 167 | A 0025451428 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 169 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 172 | A 0005451745 | BOOT |
| PIN BUSHING | ||
| 174 | A 0075450028 | PIN BUSHING HOUSING |
| Repalced by: A 0155454928 | ||
| 174 | A 0155454928 | PLUG |
| 4-POLE | ||
| A 0095453828 | COVER | |
| Repalced by: A 0095452128 | ||
| 177 | A 0095452128 | COVER |
| UPPER PART | ||
| 180 | A 0085453728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 183 | A 0085453828 | COVER |
| UPPER PART | ||
| 186 | A 0015454826 | ROUND PIN BUSHING |
| 187 | A 0005467741 | CABLE CONNECTOR |
| 1,5 - 6,6 MM2 | ||
| 187 | A 0015466641 | CABLE CONNECTOR |
| 6-10 MM2 | ||
| A 3019900354 | NUT | |
| Repalced by: A 0009903654 | ||
| 189 | A 0009903654 | NUT |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| M 27X1 | ||
| 192 | A 3809900140 | WASHER |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| 194 | A 3805460335 | BOOT |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| 196 | A 3805450226 | PLUG SOCKET |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| 198 | A 0015454826 | ROUND PIN BUSHING |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| 200 | A 0009902054 | NUT |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| M 24X1 | ||
| 202 | A 0009906840 | WASHER |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24X1 | ||
| 204 | A 3805460335 | BOOT |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24X1 | ||
| 206 | A 3805450026 | PLUG SOCKET |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24X1 | ||
| 208 | A 0015454826 | ROUND PIN BUSHING |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24X1 | ||
| A 3805400281 | PLUG SOCKET | |
| Repalced by: A 3805402281 | ||
| 208A | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| A 3805400181 | PLUG SOCKET | |
| Repalced by: A 3805402181 | ||
| 208AE | A 3805402181 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 24X1 | ||
| 208AH | A 0009970381 | GROMMET |
| 3 MM | ||
| 208AH | A 0009970581 | GROMMET |
| 5 MM | ||
| 208AL | A 0019978390 | LOOM TIE |

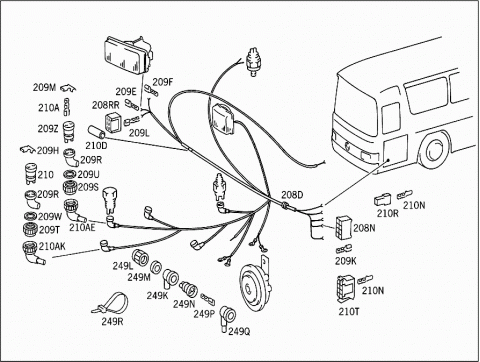

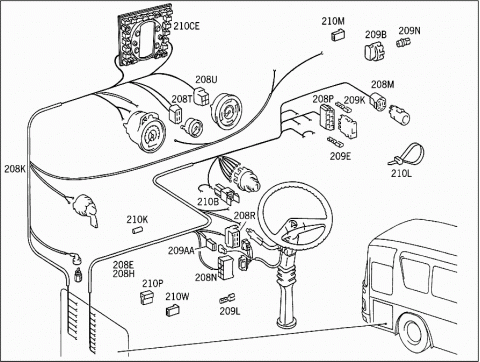

| 208B | A 3005400005 | CABLE HARNESS |
| FRONT END MAIN CABLE HARNESS; ELECTRICAL APPARATUS COMPARTMENT | ||
| 208B | A 3005400332 | ELECTRIC CABLE |
| FRONT END MAIN CABLE HARNESS; ELECTRICAL APPARATUS COMPARTMENT | ||
| 208C | A 3005403705 | CABLE HARNESS |
| FRONT END MAIN CABLE HARNESS, ELECTRICAL COMPARTMENT, HEATING | ||
| 208D | A 3005400105 | CABLE HARNESS |
| FRONT END MAIN CABLE HARNESS;LEGROOM | ||
| A 3005408405 | CABLE HARNESS | |
| FRONT END MAIN CABLE HARNESS;LEGROOM | ||
| 208E | A 3005400305 | CABLE HARNESS |
| FRONT END MAIN CABLE HARNESS; INSTRUMENT PANEL,ON THE RIGHT | ||
| 208E | A 3005405906 | CABLE HARNESS |
| FRONT END MAIN CABLE HARNESS; INSTRUMENT PANEL,ON THE RIGHT | ||
| A 3005408605 | CABLE HARNESS | |
| FRONT END MAIN CABLE HARNESS; INSTRUMENT PANEL,ON THE LEFT | ||
| A 3005406006 | CABLE HARNESS | |
| FRONT END MAIN CABLE HARNESS; INSTRUMENT PANEL,ON THE LEFT | ||
| 208F | A 3005403905 | CABLE HARNESS |
| FRONT END MAIN CABLE HARNESS; INSTRUMENT PANEL,ON THE RIGHT;HEATER | ||
| A 3005408805 | CABLE HARNESS | |
| FRONT END MAIN CABLE HARNESS; INSTRUMENT PANEL,ON THE RIGHT;HEATER | ||
| 208H | A 3005400205 | CABLE HARNESS |
| FRONT END MAIN CABLE HARNESS; INSTRUMENT PANEL,ON THE LEFT | ||
| A 3005408505 | CABLE HARNESS | |
| FRONT END MAIN CABLE HARNESS; INSTRUMENT PANEL,ON THE RIGHT | ||
| 208K | A 3005400405 | CABLE HARNESS |
| FRONT END MAIN CABLE HARNESS; INSTRUMENT PANEL,CENTRAL | ||
| 208K | A 3005405306 | CABLE HARNESS |
| FRONT END MAIN CABLE HARNESS; INSTRUMENT PANEL,CENTRAL | ||
| 208K | A 3005400132 | ELECTRIC CABLE |
| FRONT END MAIN CABLE HARNESS; INSTRUMENT PANEL,CENTRAL | ||
| A 3005408705 | CABLE HARNESS | |
| FRONT END MAIN CABLE HARNESS; INSTRUMENT PANEL,CENTRAL | ||
| A 3005405406 | CABLE HARNESS | |
| FRONT END MAIN CABLE HARNESS; INSTRUMENT PANEL,CENTRAL | ||
| A 3005400232 | ELECTRIC CABLE | |
| FRONT END MAIN CABLE HARNESS; INSTRUMENT PANEL,CENTRAL | ||
| 208L | A 3005404005 | CABLE HARNESS |
| FRONT END MAIN CABLE HARNESS; INSTRUMENT PANEL,CENTRAL;HEATING | ||
| A 3005408905 | CABLE HARNESS | |
| FRONT END MAIN CABLE HARNESS; INSTRUMENT PANEL,CENTRAL;HEATING | ||
| 208M | A 0065455528 | PIN BUSHING HOUSING |
| 10-POLE | ||
| 208N | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 208P | A 6115450028 | PIN BUSHING HOUSING |
| 8-POLE | ||
| A 6115450128 | PIN BUSHING HOUSING | |
| 8-POLE | ||
| 208R | A 0015458128 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 208RR | A 0075450528 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 208S | A 0065450728 | PIN BUSHING HOUSING |
| 5-POLE | ||
| 208T | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 208U | A 0125452128 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 208W | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 209 AA | ||
| 209A | A 3575450028 | PLUG HOUSING |
| 8-POLE | ||
| 209AA | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 209B | A 0045452628 | PLUG |
| BIPOLAR | ||
| 209C | A 0025451328 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 209D | A 0005454626 | PIN BUSHING |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 209E | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 209F | A 0025454026 | FLAT PIN BUSHING |
| Repalced by: A 0035455326 | ||
| 209F | A 0035455326 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 209H | A 0005453626 | PIN BUSHING |
| Repalced by: A 0075457426 | ||
| 209H | A 0075457426 | PIN BUSHING |
| OFFSET | ||
| 4 MM2 | ||
| 209K | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 209L | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 209L | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 209M | A 0005457926 | PIN BUSHING |
| OFFSET | ||
| 1-2.5 MM2 | ||
| 209N | A 0015453526 | ROUND PIN BUSHING |
| Repalced by: A 0035452626 | ||
| 209N | A 0035452626 | ROUND PIN BUSHING |
| 2,5 MM2 | ||
| 209P | A 0025451428 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 209Q | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 209R | A 3805460335 | BOOT |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M27X1,M24X1 | ||
| 209S | A 0009903654 | NUT |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| M 27X1 | ||
| 209T | A 0009902054 | NUT |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| M 24X1 | ||
| 209U | A 3809900140 | WASHER |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M27X1 | ||
| 209W | A 0009906840 | WASHER |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M24X1 | ||
| 209Z | A 3805450226 | PLUG SOCKET |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M27X1 | ||
| 210 | A 3805450026 | PLUG SOCKET |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M24X1 | ||
| 210A | A 0015454826 | ROUND PIN BUSHING |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M27X1,M24X1 | ||
| 210AE | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| 210AK | A 3805402181 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 24X1 | ||
| 210B | A 0008250382 | SOCKET |
| BULB | ||
| 210C | A 0005453545 | PIN BUSHING HOUSING |
| PIN BUSHING | ||
| 210CE | A 3018210511 | PLATE |
| PLUG HOUSING | ||
| 210D | A 3805460037 | GROMMET |
| 210E | A 0009970681 | GROMMET |
| 210E | A 0009970781 | GROMMET |
| 210K | A 0009970381 | GROMMET |
| 210L | A 0019978390 | LOOM TIE |
| 280 MM | ||
| 210L | A 0019978490 | LOOM TIE |
| 376 MM | ||
| 210M | A 0025451128 | PIN BUSHING HOUSING |
| ADDITIONAL WORK ON FRONT END MAIN CABLE HARNESS | ||
| 210M | A 0025451128 | PIN BUSHING HOUSING |
| MAIN CABLE HARNESS BRANCH-OFF TOWARDS HEATING CONTROL LIGHTING | ||
| 210N | A 0015458628 | PLUG |
| ADDITIONAL WORK ON FRONT END MAIN CABLE HARNESS | ||
| 2.5 MM2 | ||
| 210P | A 0015458728 | PIN BUSHING HOUSING |
| ADDITIONAL WORK ON MAIN CABLE HARNESS | ||
| 210R | A 0025451328 | PIN BUSHING HOUSING |
| FROM ELECTR. COMPARTMENT CABLE HARNESS TO ENGINE-SPEED-CONTROL CABLE HARNESS | ||
| 210R | A 0025451328 | PIN BUSHING HOUSING |
| ADDITIONAL WORK ON MAIN CABLE HARNESS | ||
| 210T | A 3575450028 | PLUG HOUSING |
| ADDITIONAL WORK ON FRONT END MAIN CABLE HARNESS | ||
| 210W | A 0005451745 | BOOT |
| MAIN CABLE HARNESS BRANCH-OFF TOWARDS HEATING CONTROL LIGHTING | ||
| 211 | N 916016038205 | CLAMP |
| FRONT END MAIN CABLE HARNESS TO WINDOW SILL | ||
| 213 | N 007981006215 | SHEET METAL SCREW |
| FRONT END MAIN CABLE HARNESS TO WINDOW SILL | ||
| 215 | A 0019978390 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 280 MM2 | ||
| 217 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 217 | N 304017008034 | SCREW |
| WINDOW SILL GROUND BRANCH-OFF TO GROUND | ||
| 219 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 219 | N 000125008443 | WASHER |
| WINDOW SILL GROUND BRANCH-OFF TO GROUND | ||
| 221 | N 912004008102 | LOCK WASHER |
| WINDOW SILL GROUND BRANCH-OFF TO GROUND | ||
| 223 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 223 | N 304017008034 | SCREW |
| INSTRUMENT PANEL GROUND BRANCH-OFF TO GROUND | ||
| 225 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 225 | N 000125008443 | WASHER |
| INSTRUMENT PANEL GROUND BRANCH-OFF TO GROUND | ||
| 227 | N 912004008102 | LOCK WASHER |
| INSTRUMENT PANEL GROUND BRANCH-OFF TO GROUND | ||
| 229 | N 000934008010 | NUT |
| INSTRUMENT PANEL GROUND BRANCH-OFF TO GROUND | ||
| 231 | A 1009970081 | GROMMET |
| MAIN CABLE HARNESS TO ELECTRICAL APPARATUS COMPARTMENT | ||
| 233 | N 072571001033 | CLAMP |
| BRANCH-OFF FOR LUGGAGE COMPARTMENT LAMP TO BODY | ||
| 235 | N 007981003246 | SHEET METAL SCREW |
| BRANCH-OFF FOR LUGGAGE COMPARTMENT LAMP TO BODY | ||
| 236 | A 3005406708 | CABLE HARNESS |
| FROM FRONT PLUG-CONNECT. TO ELECTRICAL COMPARTMENT & TO TIME-LAG RELAY | ||
| 236B | A 0075450528 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 236D | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 236F | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 236F | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 236K | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 236M | A 0005451428 | PLUG |
| Repalced by: A 0025451428 | ||
| 236M | A 0025451428 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 236P | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||

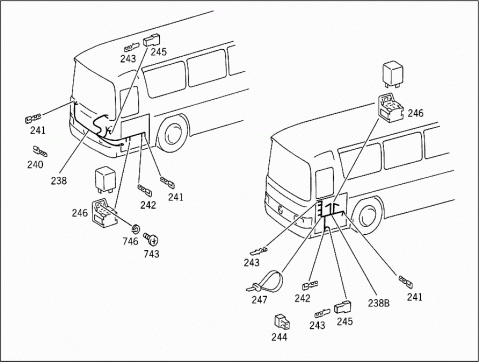

| 238 | A 3015405508 | CABLE HARNESS |
| FROM WINDSHIELD WIPER PLUG-CONNECTION TO WINDSHIELD WIPER RELAY | ||
| 238 | A 3015401110 | CABLE HARNESS |
| FROM WINDSHIELD WIPER PLUG-CONNECTION TO WINDSHIELD WIPER RELAY | ||
| 238B | A 3005400209 | CABLE HARNESS |
| FROM WINDSHIELD WIPER PLUG-CONNECTION TO WINDSHIELD WIPER RELAY | ||
| 240 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 240 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 241 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 241 | A 0025454026 | FLAT PIN BUSHING |
| Repalced by: A 0035455326 | ||
| 241 | A 0035455326 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 242 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 243 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 243 | A 0015458628 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 244 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 245 | A 0025451328 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 246 | A 0065451428 | PIN BUSHING HOUSING |
| RELAY | ||
| Repalced by: A 0008250518 | ||
| 246 | A 0008250518 | BASE |
| RELAY | ||
| 247 | A 0019978390 | LOOM TIE |
| 280 MM | ||
| 247 | A 0019978490 | LOOM TIE |
| 376 MM | ||
| 248E | A 0025451128 | PIN BUSHING HOUSING |
| FRONT/REAR PLUG-CONNECTIONS, ENGINE SPEED CONTROL FUSE | ||
| 248H | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 248H | A 0075458426 | PIN BUSHING |
| FRONT/REAR PLUG-CONNECTIONS, ENGINE SPEED CONTROL FUSE | ||
| 248L | A 0025451428 | PLUG |
| FRONT/REAR PLUG-CONNECTIONS, ENGINE SPEED CONTROL FUSE | ||
| 248N | A 0025450628 | PLUG |
| FRONT/REAR PLUG-CONNECTIONS, ENGINE SPEED CONTROL FUSE | ||
| 248P | A 0005451745 | BOOT |
| FRONT/REAR PLUG-CONNECTIONS, ENGINE SPEED CONTROL FUSE | ||
| 248R | A 0015458328 | PIN BUSHING HOUSING |
| INDUCTIVE-PICKUP/SPEED-SWITCH CABLE HARNESS | ||
| 248T | A 0005453826 | PIN BUSHING |
| INDUCTIVE-PICKUP/SPEED-SWITCH CABLE HARNESS | ||
| 2.5 MM2 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| 248T | A 0005453826 | PIN BUSHING |
| INDUCTIVE PICKUP | ||
| M 24X1 | ||
| 249K | A 3805460335 | BOOT |
| TO M 24X1 | ||
| 249L | A 0009902054 | NUT |
| M 24X1 | ||
| 249M | A 0009906840 | WASHER |
| TO M 24X1 | ||
| 249N | A 3805450026 | PLUG SOCKET |
| TO M 24X1 | ||
| 249P | A 0015454826 | ROUND PIN BUSHING |
| TO M 24X1 | ||
| 249Q | A 3805400181 | PLUG SOCKET |
| Repalced by: A 3805402181 | ||
| 249Q | A 3805402181 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 24X1 | ||
| 249R | A 0019978490 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 376 MM | ||

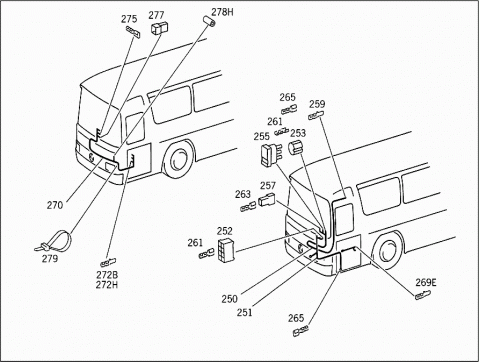

| 250 | A 3015403809 | CABLE HARNESS |
| NIGHT-LIGHTING | ||
| 251 | A 3005402009 | CABLE HARNESS |
| NIGHT-LIGHTING; FROM FRONT END PLUG CONNECTION TO INSTRUMENT PANEL | ||
| 252 | A 6115450028 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 253 | A 0055459928 | PIN BUSHING HOUSING |
| 7-POLE | ||
| A 0025451128 | PIN BUSHING HOUSING | |
| UNIPOLAR | ||
| 255 | A 0025458628 | PLUG |
| BIPOLAR | ||
| 257 | A 0025451328 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 259 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 261 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 263 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 263 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 265 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 269E | A 0025450628 | PLUG |
| NIGHT-LIGHTG.;FROM FRONT PLUG CONNECT. TO REAR PLUG CONNECT. IN ELEC.COMPTMT. | ||
| 2.5 MM2 | ||
| 270 | A 3015404208 | CABLE HARNESS |
| AIR FLAP CONTROL | ||
| 270E | A 3015404708 | CABLE HARNESS |
| AIR FLAP CONTROL | ||
| 270L | A 3005402709 | CABLE HARNESS |
| AIR FLAP CONTROL;FROM FRONT END PLUG CONNECTION TO PLUG CONNECTION AT BODY | ||
| 270N | A 3005405308 | CABLE HARNESS |
| FROM FRONT END PLUG CONNECTION TO BODY PLUG CONNECTION | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 271A | ||

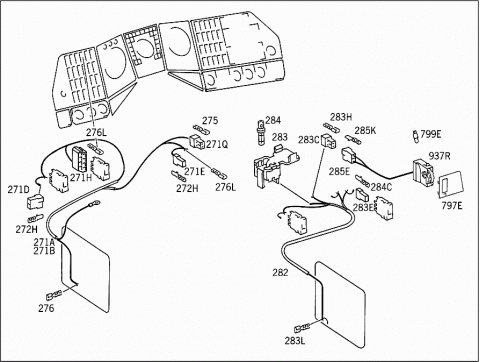

| 271A | A 3005402809 | CABLE HARNESS |
| AIR FLAP CONTROL;FROM FRONT END PLUG CONNECTION TO INSTRUMENT PANEL | ||
| 271B | A 3005405408 | CABLE HARNESS |
| FROM FRONT END PLUG CONNECTION TO INSTRUMENT PANEL | ||
| 271C | A 3575450028 | PLUG HOUSING |
| 8-POLE | ||
| 271D | A 0015457928 | PLUG HOUSING |
| BIPOLAR | ||
| 271E | A 0025451328 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 271H | A 6115450028 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 271L | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 271N | A 0065450728 | PIN BUSHING HOUSING |
| 5-POLE | ||
| 271Q | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 271S | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 272B | ||
| 272B | A 0015458628 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 272H | ||
| 272H | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 273 | A 0025451428 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 275 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 275 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 276 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 276H | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 276L | A 0025454026 | FLAT PIN BUSHING |
| Repalced by: A 0035455326 | ||
| 276L | A 0035455326 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 4-6MM2 | ||
| 277 | A 0005451645 | BOOT |
| 278 | A 0065451428 | PIN BUSHING HOUSING |
| RELAY | ||
| Repalced by: A 0008250518 | ||
| 278 | A 0008250518 | BASE |
| RELAY | ||
| 278H | A 0009970381 | GROMMET |
| 3 MM | ||
| 279 | A 0019978390 | LOOM TIE |
| 280 MM | ||
| 280 | A 3005404709 | CABLE HARNESS |
| FROM FRONT ELEC.COMPTMT. PLUG-CONNECT. TO SECTIONALLY CONTROLLED HEATER RELAY | ||
| 280 | A 3005405307 | CABLE HARNESS |
| FROM FRONT ELEC.COMPTMT. PLUG-CONNECT. TO SECTIONALLY CONTROLLED HEATER RELAY | ||
| A 0075450528 | PIN BUSHING HOUSING | |
| 6-POLE | ||
| 280B | A 0065450728 | PIN BUSHING HOUSING |
| 5-POLE | ||
| A 0015458428 | PIN BUSHING HOUSING | |
| 4-POLE | ||
| A 0025451128 | PIN BUSHING HOUSING | |
| UNIPOLAR | ||
| 280D | A 3575450028 | PLUG HOUSING |
| 8-POLE | ||
| A 0015458228 | PLUG HOUSING | |
| 8-POLE | ||
| 280F | A 0025451328 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 280H | A 0025454026 | FLAT PIN BUSHING |
| Repalced by: A 0035455326 | ||
| 280H | A 0035455326 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 6 MM2 | ||
| 280L | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 6 MM2 | ||
| 280P | A 0005453826 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 280Q | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 280Q | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 280R | A 0015458628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 280T | A 0005453545 | PIN BUSHING HOUSING |

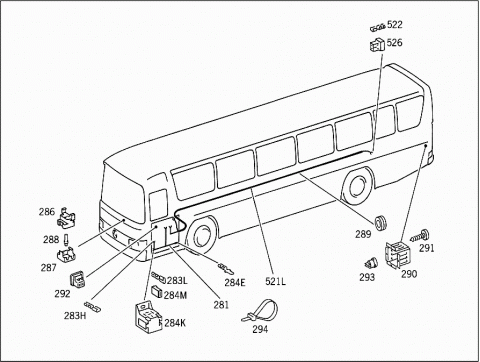

| 281 | A 3005402409 | CABLE HARNESS |
| FROM FRONT PLUG-CONNECTION TO RELAY IN ELECTRICAL COMPARTMENT | ||
| 282 | A 3005402509 | CABLE HARNESS |
| FROM FRONT END PLUG CONNECTION TO INSTRUMENT PANEL | ||
| 283 | A 0105457028 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 283C | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 283E | A 0025451328 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 283H | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 283H | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 283L | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 284 | A 0015452826 | PIN BUSHING |
| Repalced by: A 0025459926 | ||
| 284 | A 0025459926 | ROUND PIN BUSHING |
| 284C | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 284E | A 0015458628 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 284K | A 0065451428 | PIN BUSHING HOUSING |
| RELAY | ||
| Repalced by: A 0008250518 | ||
| 284K | A 0008250518 | BASE |
| RELAY | ||
| 284M | A 0005453545 | PIN BUSHING HOUSING |
| 285E | A 0015457928 | PLUG HOUSING |
| TEMPERATURE SWITCH | ||
| 285K | A 0025450628 | PLUG |
| TEMPERATURE SWITCH | ||
| 2.5 MM2 | ||
| A 0005400027 | ELECTRIC CABLE | |
| FROM INSTRUMENT PANEL TO TEMPERATURE FEELER | ||
| 286 | A 0105451028 | PIN BUSHING HOUSING |
| LOWER PART | ||
| 287 | A 0105450928 | COVER |
| UPPER PART | ||
| 288 | A 0015452826 | PIN BUSHING |
| Repalced by: A 0025459926 | ||
| 288 | A 0025459926 | ROUND PIN BUSHING |
| (ROUND PIN BUSHING) | ||
| 289 | A 0009972081 | GROMMET |
| 290 | A 3015420091 | COVERING |
| TEMPERATURE GAUGE SENDER UNIT | ||
| 291 | N 007981003249 | SHEET METAL SCREW |
| TEMPERATURE GAUGE SENDER UNIT | ||
| 292 | A 0065423017 | TEMPERATURE SENSOR |
| (TEMPERATURE SENSOR) FLOOR HEATING CONTROL | ||
| 293 | A 0008250082 | SOCKET |
| SENDER UNIT | ||
| 294 | A 0019978390 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| LEITUNGSSAETZE ASR | ||
| A 3005400234 | CABLE HARNESS | |
| FROM ELECTRICAL COMPARTMENT TO RETARDER SWITCH | ||
| A 3005403834 | CABLE HARNESS | |
| FROM ELECTRICAL COMPARTMENT TO CONTROL UNIT | ||
| A 3005400334 | CABLE HARNESS | |
| FROM ELECTRICAL COMPARTMENT TO ANTILOCK BRAKING SYSTEM COMPARTMENT | ||
| A 3005400134 | CABLE HARNESS | |
| FROM ELECTRICAL COMPARTMENT TO INSTRUMENT PANEL | ||
| A 3005400034 | CABLE HARNESS | |
| FROM ELECTRICAL COMPARTMENT TO TELLTALE LAMP | ||
| A 3005400434 | CABLE HARNESS | |
| FROM REAR END PLUG CONNECTION TO PRESSURE CONTROL VALVES | ||
| A 3005405434 | CABLE HARNESS | |
| FROM REAR END PLUG CONNECTION TO PRESSURE CONTROL VALVES | ||
| A 0015458328 | PIN BUSHING HOUSING | |
| 8-POLE | ||
| A 6115450028 | PIN BUSHING HOUSING | |
| 8-POLE | ||
| A 0015458128 | PIN BUSHING HOUSING | |
| 6-POLE | ||
| A 0065450728 | PIN BUSHING HOUSING | |
| 5-POLE | ||
| A 0015458428 | PIN BUSHING HOUSING | |
| 4-POLE | ||
| A 0025451128 | PIN BUSHING HOUSING | |
| UNIPOLAR | ||
| A 3575450028 | PLUG HOUSING | |
| 8-POLE | ||
| A 0055456628 | PLUG HOUSING | |
| 3-POLE | ||
| A 0025451328 | PIN BUSHING HOUSING | |
| UNIPOLAR | ||
| A 0005454026 | PIN BUSHING | |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| A 0005453826 | PIN BUSHING | |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| A 0005453726 | PIN BUSHING | |
| Repalced by: A 0075458426 | ||
| A 0075458426 | PIN BUSHING | |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| A 0025450628 | PLUG | |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5MM2 | ||
| A 3805402781 | PLUG SOCKET | |
| (PARTS KIT),BIPOLAR SCREW CONNECTION, FOR CORRUGATED TUBE | ||
| M 27X1 | ||
| A 0019978390 | LOOM TIE | |
| CABLE HARNESS MOUNTING | ||
| 300 | A 3015400106 | CABLE HARNESS |
| MAIN CABLE,REAR END | ||
| 300 | A 3015400406 | CABLE HARNESS |
| MAIN CABLE,REAR END | ||
| 300 | A 3005400805 | CABLE HARNESS |
| MAIN CABLE,REAR END | ||
| 300 | A 3005401505 | CABLE HARNESS |
| MAIN CABLE,REAR END | ||
| 300 | A 3005405405 | CABLE HARNESS |
| MAIN CABLE,REAR END | ||
| 300 | A 3005405405 | CABLE HARNESS |
| MAIN CABLE,REAR END | ||
| 300 | A 3005405605 | CABLE HARNESS |
| MAIN CABLE,REAR END | ||
| 300 | A 3005401332 | ELECTRIC CABLE |
| MAIN CABLE,REAR END | ||
| 300 | A 3005406132 | ELECTRIC CABLE |
| MAIN CABLE,REAR END | ||
| A 3005402106 | CABLE HARNESS | |
| Repalced by: A 3005405405 | ||
| 300 | A 3005402206 | CABLE HARNESS |
| MAIN CABLE,REAR END | ||
| 300 | A 3005406832 | ELECTRIC CABLE |
| MAIN CABLE,REAR END | ||
| 304 | A 3229970281 | GROMMET |
| ELECTRICAL COMPARTMENT | ||
| 305 | A 1009970081 | GROMMET |
| ELECTRICAL COMPARTMENT | ||
| 307 | A 3359970081 | GROMMET |
| A 8339970281 | GROMMET | |
| Repalced by: A 0009973381 | ||
| A 0009973381 | GROMMET | |
| 308 | A 0009970381 | GROMMET |
| 309 | A 0009970581 | GROMMET |
| 310 | A 0009970781 | GROMMET |
| 311 | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| A 0025451328 | PIN BUSHING HOUSING | |
| UNIPOLAR | ||
| 315 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 319 | A 0075450528 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 323 | A 0085456428 | PIN BUSHING HOUSING |
| 5-POLE | ||
| 327 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 328 | A 0125452228 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 331 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 336 | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 337 | A 0025451228 | PLUG HOUSING |
| 4-POLE | ||
| 339 | A 0065451428 | PIN BUSHING HOUSING |
| RELAY | ||
| Repalced by: A 0008250518 | ||
| 339 | A 0008250518 | BASE |
| RELAY | ||
| 343 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 343 | A 0005454626 | PIN BUSHING |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| A 0005454526 | PIN BUSHING | |
| WITH DETENT | ||
| 2.5 MM2 | ||
| 345 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 345 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 346 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 347 | A 0015458628 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| A 0025450628 | PLUG | |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 349 | A 0005467741 | CABLE CONNECTOR |
| 1,5 - 6,6 MM2 | ||
| 349 | A 0015466641 | CABLE CONNECTOR |
| 6-10 MM2 | ||
| 351 | A 0005451745 | BOOT |
| PIN BUSHING | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 328 | ||
| 357 | A 0009902054 | NUT |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| M 24X1 | ||
| 358 | A 0009903654 | NUT |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| M 27X1 | ||
| 360 | A 0009906840 | WASHER |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24X1 | ||
| 361 | A 3809900140 | WASHER |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| 362 | A 3805460335 | BOOT |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24X1,M 27X1 | ||
| 364 | A 0015454826 | ROUND PIN BUSHING |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24X1,M 27X1 | ||
| 366 | A 3805450026 | PLUG SOCKET |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24X1 | ||
| 368 | A 3805450226 | PLUG SOCKET |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| 369 | A 3805400181 | PLUG SOCKET |
| Repalced by: A 3805402181 | ||
| 369 | A 3805402181 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 24X1 | ||
| 369E | A 3805400281 | PLUG SOCKET |
| Repalced by: A 3805402281 | ||
| 369E | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| 370 | A 3019900154 | NUT |
| TACHOGRAPH SENDER UNIT | ||
| M 28X1.5 | ||
| 370 | A 0005421572 | NUT |
| TACHOGRAPH SENDER UNIT | ||
| 370 | A 0005421872 | NUT |
| A 0005450873 | LOCK | |
| 372 | A 3019901440 | WASHER |
| TACHOGRAPH SENDER UNIT | ||
| 372 | A 0005451176 | WASHER |
| TACHOGRAPH SENDER UNIT | ||
| 374 | A 3015460035 | BOOT |
| TACHOGRAPH SENDER UNIT | ||
| 375 | A 0005463435 | BOOT |
| TACHOGRAPH SENDER UNIT | ||
| 375 | A 0005455945 | BOOT |
| TACHOGRAPH SENDER UNIT | ||
| 376 | A 0095451928 | PIN BUSHING HOUSING |
| TACHOGRAPH SENDER UNIT | ||
| 376H | A 0125450928 | PIN BUSHING HOUSING |
| TACHOGRAPH SENDER UNIT | ||
| A 0035452226 | PIN BUSHING HOUSING | |
| TACHOGRAPH SENDER UNIT | ||
| A 0035451826 | CONTACT SPRING | |
| Repalced by: A 0045455326 | ||
| A 0045455326 | FLAT PIN BUSHING | |
| TACHOGRAPH SENDER UNIT | ||
| A 0019978390 | LOOM TIE | |
| SECONDARY SWITCHBOARD | ||
| A 0019978490 | LOOM TIE | |
| SECONDARY SWITCHBOARD | ||
| 378 | A 0029978590 | CLIP |
| TACHOGRAPH SENDER UNIT | ||
| 203 MM | ||
| 379 | A 0035422217 | SENDER UNIT |
| TACHOGRAPH | ||
| 0.912 | ||
| 379 | A 0035421917 | SENDER UNIT |
| TACHOGRAPH | ||
| 0.826 | ||
| 379 | A 0035421917 | SENDER UNIT |
| TACHOGRAPH | ||
| 0.826 | ||
| 379 | A 0035421917 | SENDER UNIT |
| TACHOGRAPH | ||
| 0.826 | ||
| 379 | A 0035421917 | SENDER UNIT |
| TACHOGRAPH | ||
| 0.826 | ||
| 379 | A 0035422117 | SENDER UNIT |
| TACHOGRAPH | ||
| 0.879 | ||
| 379E | A 0055429417 | SENDER UNIT |
| ELECTRONIC TACHOGRAPH | ||
| 379E | A 0055429417 | SENDER UNIT |
| ELECTRONIC TACHOGRAPH | ||
| 379E | A 0065424617 | SENDER UNIT |
| ELECTRONIC TACHOGRAPH | ||
| 379E | A 0065424617 | SENDER UNIT |
| ELECTRONIC TACHOGRAPH | ||
| 380 | A 0019978390 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 280 MM | ||
| 381 | A 0009970203 | PLUG |
| PLUG SOCKET | ||
| M 27X1 | ||
| A 0015461330 | SHRINK HOSE | |
| 382 | N 007985006161 | SCREW |
| Repalced by: N 007985006580 | ||
| 382 | N 007985006580 | SCREW |
| REAR END MAIN CABLE HARNESS TO SECONDARY INSTRUMENT PANEL | ||
| 384 | N 912004006102 | LOCK WASHER |
| REAR END MAIN CABLE HARNESS TO SECONDARY INSTRUMENT PANEL | ||
| 388 | N 916016022206 | CLAMP |
| REAR END MAIN CABLE HARNESS TO SECONDARY INSTRUMENT PANEL | ||
| Repalced by: N 916016022203 | ||
| 388 | N 916016022203 | CLAMP |
| REAR END MAIN CABLE HARNESS TO SECONDARY INSTRUMENT PANEL | ||
| 390 | A 3029950120 | CLAMP |
| REAR END MAIN CABLE HARNESS TO SUBSTRUCTURE IN ENGINE COMPARTMENT | ||
| 392 | N 007981005211 | SHEET METAL SCREW |
| REAR END MAIN CABLE HARNESS TO SUBSTRUCTURE IN ENGINE COMPARTMENT | ||
| 5.5X16 | ||
| 394 | N 916016028200 | CLAMP |
| REAR END MAIN CABLE HARNESS TO RAIL IN ENGINE COMPARTMENT | ||
| 394 | N 916016032200 | CLAMP |
| REAR END MAIN CABLE HARNESS TO RAIL IN ENGINE COMPARTMENT | ||
| 394 | N 916016035205 | CLAMP |
| REAR END MAIN CABLE HARNESS TO RAIL IN ENGINE COMPARTMENT | ||
| 396 | N 007981004258 | SHEET METAL SCREW |
| REAR END MAIN CABLE HARNESS TO RAIL IN ENGINE COMPARTMENT | ||
| 4.8X16 | ||

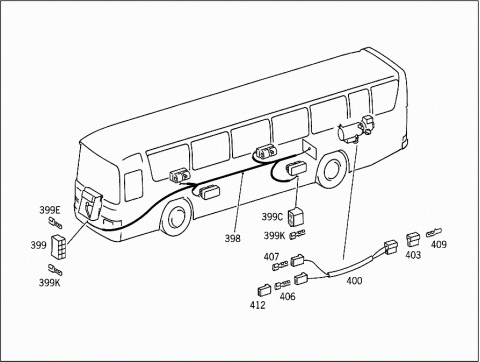

| 398 | A 3005407409 | CABLE HARNESS |
| FROM REAR END MAIN CABLE HARNESS TO HEATING | ||
| 398 | A 3005407409 | CABLE HARNESS |
| FROM REAR END MAIN CABLE HARNESS TO HEATING | ||
| 398 | A 3005407409 | CABLE HARNESS |
| FROM REAR END MAIN CABLE HARNESS TO HEATING | ||
| A 3005405107 | CABLE HARNESS | |
| Repalced by: A 3005405507 | ||
| 398 | A 3005407609 | CABLE HARNESS |
| FROM REAR END MAIN CABLE HARNESS TO HEATING | ||
| 398 | A 3005407609 | CABLE HARNESS |
| FROM REAR END MAIN CABLE HARNESS TO HEATING | ||
| A 3005405507 | CABLE HARNESS | |
| FROM REAR END MAIN CABLE HARNESS TO HEATING | ||
| 399 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 399C | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 399E | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 399K | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 400 | A 3015401327 | ELECTRIC CABLE |
| FROM THERMOSTAT TO WEBASTO HEATER CONTROL UNIT | ||
| 403 | A 0015457928 | PLUG HOUSING |
| BIPOLAR | ||
| 406 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 406 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 407 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 409 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 412 | A 0005451745 | BOOT |
| PIN BUSHING | ||

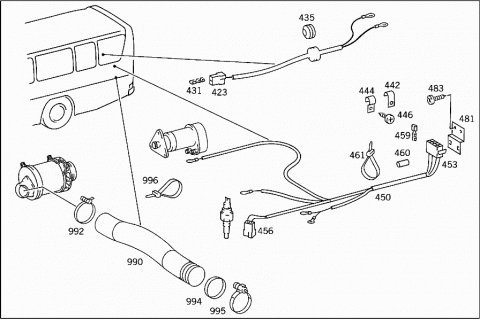

| A 3015404308 | CABLE HARNESS | |
| FROM OVERLOAD PROTECTOR TO ALTERNATOR | ||
| 423 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 431 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 431 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 435 | A 1109970481 | GROMMET |
| 442 | A 3055460075 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 10 MM | ||
| 444 | N 072571001030 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 446 | N 007981004334 | SHEET METAL SCREW |
| Repalced by: N 007981004385 | ||
| 446 | N 007981004385 | SHEET METAL SCREW |
| CABLE HARNESS MOUNTING | ||
| 450 | A 3015400108 | CABLE HARNESS |
| ENGINE | ||
| 453 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 456 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 459 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 459 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 459 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 460 | A 0009970581 | GROMMET |
| 5 MM | ||
| 461 | A 0019978390 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||

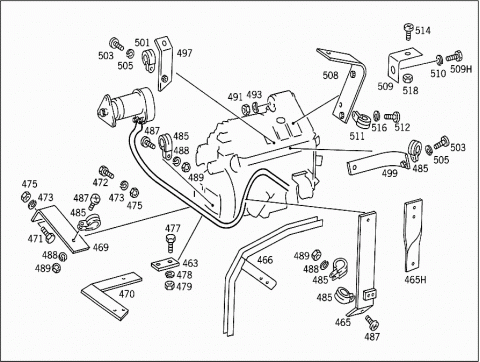

| 463 | A 3015460543 | BRACKET |
| POS. AND NEG. CABLES | ||
| 465 | A 3015401373 | BRACKET |
| POS. AND NEG. CABLES | ||
| 465 | A 3015401373 | BRACKET |
| POS. AND NEG. CABLES | ||
| 465H | A 3005460643 | BRACKET |
| POS. AND NEG. CABLES | ||
| 466 | A 3015401173 | BRACKET |
| POS. AND NEG. CABLES | ||
| 469 | A 3015462343 | BRACKET |
| BATTERY CABLE TO ENGINE MOUNTING | ||
| 469 | A 3015462343 | BRACKET |
| BATTERY CABLE TO ENGINE MOUNTING | ||
| 470 | A 3015401073 | BRACKET |
| BATTERY CABLE TO ENGINE MOUNTING | ||
| 471 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 471 | N 304017006016 | SCREW |
| BRACKET TO ENGINE CONSOLE | ||
| M 6X16 | ||
| 472 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 472 | N 304017006020 | SCREW |
| BRACKET TO ENGINE CONSOLE | ||
| M 6X20 | ||
| 473 | N 912004006102 | LOCK WASHER |
| BRACKET TO ENGINE CONSOLE | ||
| 475 | N 000934006007 | NUT |
| BRACKET TO ENGINE CONSOLE | ||
| 477 | N 000933010164 | SCREW |
| BRACKET TO ENGINE CONSOLE | ||
| M 10X22 | ||
| 478 | N 912004010102 | LOCK WASHER |
| BRACKET TO ENGINE CONSOLE | ||
| 479 | N 000934010014 | NUT |
| BRACKET TO ENGINE CONSOLE | ||
| 481 | A 3015460843 | BRACKET |
| PLUG CONNECTION | ||
| 483 | N 007981004282 | SHEET METAL SCREW |
| BRACKET IN ENGINE COMPARTMENT | ||
| 485 | N 916016018201 | CLAMP |
| ELECTRIC CABLES TO BRACKET | ||
| 485 | N 916016018201 | CLAMP |
| ELECTRIC CABLES TO BRACKET | ||
| 487 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 487 | N 000000001146 | SCREW |
| ELECTRIC CABLES TO BRACKET | ||
| M 6X16 | ||
| 487 | N 000000001146 | SCREW |
| ELECTRIC CABLES TO BRACKET | ||
| M 6X16 | ||
| 488 | N 912004006102 | LOCK WASHER |
| ELECTRIC CABLES TO BRACKET | ||
| 489 | N 000934006007 | NUT |
| ELECTRIC CABLES TO BRACKET | ||
| 491 | N 000934005008 | NUT |
| CABLE TO ALTERNATOR | ||
| 491 | N 000934006007 | NUT |
| CABLE TO ALTERNATOR | ||
| 491 | N 000934008010 | NUT |
| CABLE TO ALTERNATOR | ||
| 493 | N 000137005203 | SPRING WASHER |
| CABLE TO ALTERNATOR | ||
| 493 | N 000137006204 | SPRING WASHER |
| CABLE TO ALTERNATOR | ||
| 493 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 493 | N 000137008212 | SPRING WASHER |
| CABLE TO ALTERNATOR | ||
| 497 | A 3015401473 | BRACKET |
| CHARGING CABLE | ||
| 499 | A 3015401573 | BRACKET |
| CHARGING CABLE | ||
| 501 | N 916016022202 | CLAMP |
| CHARGING CABLE TO BRACKET | ||
| 503 | N 007985006157 | SCREW |
| Repalced by: N 000000001145 | ||
| 503 | N 000000001145 | SCREW |
| CHARGING CABLE TO BRACKET | ||
| 505 | N 912004006102 | LOCK WASHER |
| CHARGING CABLE TO BRACKET | ||
| 508 | A 3015400973 | BRACKET |
| CHARGING CABLE TO ENGINE | ||
| 509 | A 3075460343 | BRACKET |
| CHARGING CABLE TO ENGINE | ||
| 509 | A 3055480043 | BRACKET |
| CHARGING CABLE TO ENGINE | ||
| 509H | N 000933010130 | SCREW |
| CHARGING CABLE TO ENGINE | ||
| M 10X16 | ||
| 509H | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 509H | N 304017008016 | SCREW |
| CHARGING CABLE TO ENGINE | ||
| M 8X16 | ||
| 510 | N 912004010102 | LOCK WASHER |
| CHARGING CABLE TO ENGINE | ||
| 510 | N 912004008102 | LOCK WASHER |
| CHARGING CABLE TO ENGINE | ||
| 511 | N 916016022202 | CLAMP |
| CHARGING CABLE TO BRACKET | ||
| 512 | N 007985006157 | SCREW |
| Repalced by: N 000000001145 | ||
| 512 | N 000000001145 | SCREW |
| CHARGING CABLE TO BRACKET | ||
| M 6X12 | ||
| 514 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 514 | N 000000001146 | SCREW |
| CHARGING CABLE TO BRACKET | ||
| M 6X16 | ||
| 516 | N 912004006102 | LOCK WASHER |
| CHARGING CABLE TO BRACKET | ||
| 518 | N 000934006007 | NUT |
| CHARGING CABLE TO BRACKET | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 962 | ||
| 521 | A 3005401009 | CABLE HARNESS |
| WINDSHIELD WASHER RESIDUAL LIQUID INDICATION,TELL-TALE LAMP | ||
| 521L | A 3005400909 | CABLE HARNESS |
| WINDSHIELD WASHER RESIDUAL LIQUID INDICATION,SUPPLY SWITCH | ||
| 522 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 522 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 524 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 525 | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 526 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 527 | A 0025451328 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 529 | A 0019978390 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 530 | A 3015400007 | CABLE HARNESS |
| TAIL LAMPS | ||
| 532 | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| 534 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 536 | A 0025451428 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 538 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 540 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 540 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 541 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 543 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 545 | A 0065458128 | PIN BUSHING HOUSING |
| LOWER PART | ||
| 547 | A 0095453728 | COVER |
| UPPER PART | ||
| 549 | A 0015454826 | ROUND PIN BUSHING |
| (ROUND PIN BUSHING) | ||
| 552 | A 3149970181 | GROMMET |
| 555 | A 0009881678 | CLIP |
| TAIL LAMP BRANCH-OFF TO BODY | ||
| 558 | A 0019978390 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 280 MM | ||
| A 0065452732 | CONTROL UNIT | |
| Repalced by: A 0135450532 | ||
| A 0135450532 | CONTROL UNIT | |
| ACCELERATION SKID CONTROL | ||
| N 000933006083 | SCREW | |
| CONTROL UNIT | ||
| N 000137006204 | SPRING WASHER | |
| CONTROL UNIT | ||
| A 0005454732 | CONTROL UNIT | |
| Repalced by: A 0025457132 | ||
| 560 | A 0025457132 | CONTROL UNIT |
| OVERLOAD PROTECTOR | ||
| 562 | N 007981004322 | SHEET METAL SCREW |
| Repalced by: N 007981004233 | ||
| 562 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 562 | N 000000000460 | SHEET METAL SCREW |
| SWITCH IN BATTERY COMPARTMENT | ||
| 564 | N 912004005103 | LOCK WASHER |
| SWITCH IN BATTERY COMPARTMENT | ||
| 566 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 566 | N 000433005304 | WASHER |
| SWITCH IN BATTERY COMPARTMENT | ||
| 570 | A 3055450001 | FUSE BOX |
| 12-POLE; TERMINALS 1-12 SHUNTED | ||
| 575 | A 3055450101 | FUSE BOX |
| 12-POLE; TERMINALS 1-2-3;4-5-6-7-8; 9-10;11-12 SHUNTED | ||
| 580 | A 0015451001 | FUSE BOX |
| Repalced by: A 0005459901 | ||
| 580 | A 0005459901 | FUSE BOX |
| BIPOLAR | ||
| 582 | N 000965005014 | SCREW |
| FUSE BOX TO APPARATUS PLATE | ||
| M5X16 | ||
| 584 | N 912004006102 | LOCK WASHER |
| FUSE BOX TO APPARATUS PLATE | ||
| 585 | N 007985005504 | SCREW |
| FUSE BOX TO APPARATUS PLATE | ||
| M 5X12 | ||
| 587 | N 007985004136 | SCREW |
| CABLE TO FUSE BOX | ||
| M 4X12 | ||
| 589 | N 006797004132 | TOOTHED WASHER |
| CABLE TO FUSE BOX | ||
| 589E | A 0005453360 | JUNCTION BOX |
| MAIN INSTRUMENT PANEL | ||
| A 3055450302 | CONTACT RAIL | |
| Repalced by: A 3055450602 | ||
| 589H | A 3055450602 | CONTACT RAIL |
| Repalced by: A 6005450202 | ||
| 589H | A 6005450202 | CONTACT RAIL |
| JUNCTION BOX | ||
| 590 | A 0005401024 | DIODE |
| MAIN INSTRUMENT PANEL | ||
| 590H | N 007985005504 | SCREW |
| DIODE CASE | ||
| M 5X12 | ||
| 591 | N 912004005103 | LOCK WASHER |
| DIODE CASE | ||
| 592 | A 0005458234 | FUSE |
| Repalced by: N 072581008101 | ||
| 592 | N 072581008101 | FUSE |
| MAIN INSTRUMENT PANEL | ||
| 8 A | ||
| 596 | A 0005458334 | FUSE |
| MAIN INSTRUMENT PANEL | ||
| 16 A | ||
| 600 | A 0005455405 | RELAY |
| Repalced by: A 0035459605 | ||
| 608 | A 0035459605 | RELAY |
| BATTERY MASTER SWITCH | ||
| 600 | A 0005458405 | RELAY |
| BATTERY MASTER SWITCH | ||
| 600 | A 0005458405 | RELAY |
| WEBASTO HEATER | ||
| 600 | A 0005458405 | RELAY |
| FOGLAMPS | ||
| 600 | A 0005458405 | RELAY |
| REAR FOGLAMP | ||
| 600 | A 0005458405 | RELAY |
| INTERIOR LIGHTING | ||
| 600 | A 0005458405 | RELAY |
| ALTERNATOR | ||
| 600 | A 0005458405 | RELAY |
| AIR FLAP CONTROL | ||
| 600 | A 0005458405 | RELAY |
| HAZARD WARNING LIGHT SWITCH | ||
| 600 | A 0005458405 | RELAY |
| HEADLAMP | ||
| 600 | A 0005458405 | RELAY |
| UNDERSEAT HEATING | ||
| 600 | A 0005458405 | RELAY |
| FLOOR HEATING TEMPERATURE CONTROL | ||
| 600 | A 0005458405 | RELAY |
| SECTIONALLY CONTROLLED HEATING | ||
| 600 | A 0005458405 | RELAY |
| ENGINE SHUT-OFF | ||
| 600 | A 0015455405 | RELAY |
| IGNITION/STARTING SWITCH | ||
| 612 | N 007985005504 | SCREW |
| SOCKET TO APPARATUS PANEL | ||
| 614 | N 912004005103 | LOCK WASHER |
| SOCKET TO APPARATUS PANEL | ||
| 620 | A 0025448032 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 620 | A 0015448832 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 620 | A 0035440132 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 624 | N 007985005504 | SCREW |
| SENDER UNIT TO APPARATUS PLATE | ||
| 625 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 625 | N 000433005304 | WASHER |
| SENDER UNIT TO APPARATUS PLATE | ||
| 626 | N 912004005103 | LOCK WASHER |
| SENDER UNIT TO APPARATUS PLATE | ||
| 630 | A 0005400924 | CASE |
| DIODES, CURRENT OVERLOAD PROTECTION | ||
| TYP: AK 336.7 | ||
| 630 | A 0005400024 | DIODE BOX |
| DIODES,TO WEBASTO HEATER | ||
| TYP: AK 336.1 | ||
| 630 | A 0005400024 | DIODE BOX |
| AIR FLAP CONTROL | ||
| TYP: AK 336.1 | ||
| 636 | A 0005400824 | DIODE |
| Repalced by: A 0005400624 | ||
| 636 | A 0005400624 | DIODE CASE |
| DIODES, TO COOLING WATER BUZZER | ||
| 636 | A 0005400624 | DIODE CASE |
| AIR FLAP CONTROL | ||
| 641 | N 007985005504 | SCREW |
| DIODE CASE | ||
| M 5X12 | ||
| 641 | N 007985005193 | SCREW |
| DIODE CASE | ||
| M 5X10 | ||
| 641 | N 007985004136 | SCREW |
| DIODE CASE | ||
| M 4X12 | ||
| 642 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 642 | N 000433005304 | WASHER |
| DIODE CASE | ||
| 643 | N 912004005103 | LOCK WASHER |
| DIODE CASE | ||
| 643 | N 912004004102 | LOCK WASHER |
| DIODE CASE | ||
| 648 | A 0005450940 | BRACKET |
| TEST PLUG CONNECTION | ||
| 648 | A 0005451640 | BRACKET |
| TEST PLUG CONNECTION | ||
| 650 | A 0055450624 | SENDER UNIT |
| Repalced by: A 0225452532 | ||
| 650 | A 0225452532 | CONTROL UNIT |
| WIPER PULSE SENDER UNIT | ||
| 650 | A 0055451424 | SENDER UNIT |
| WIPER PULSE SENDER UNIT | ||
| 650 | A 0055451624 | SENDER UNIT |
| WIPER PULSE SENDER UNIT | ||
| 652 | N 007985005504 | SCREW |
| WIPER PULSE SENDER UNIT TO APPARATUS PLATE | ||
| M 5X12 | ||
| 652 | N 007987005175 | SCREW |
| WIPER PULSE SENDER UNIT TO APPARATUS PLATE | ||
| M 5X16 | ||
| 654 | N 912004005103 | LOCK WASHER |
| WIPER PULSE SENDER UNIT TO APPARATUS PLATE | ||
| 654 | N 912006006002 | LOCK WASHER |
| WIPER PULSE SENDER UNIT TO APPARATUS PLATE | ||
| 658 | A 0005456205 | RELAY |
| CLUTCH | ||
| 671 | N 007985005504 | SCREW |
| RELAY SOCKET TO SWITCHBOARD | ||
| M 5X12 | ||
| 673 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 673 | N 000433005304 | WASHER |
| RELAY SOCKET TO SWITCHBOARD | ||
| 676 | A 0005461243 | BRACKET |
| ELECTRIC CABLE TO SWITCHBOARD | ||
| 679 | A 0019978390 | LOOM TIE |
| ELECTRIC CABLE TO BRACKET | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 697 | ||
| 690 | A 0005457701 | FUSE BOX |
| BIPOLAR | ||
| 692 | N 000084006132 | SCREW |
| FOR CABLE CONNECTION | ||
| 695 | N 000137006204 | SPRING WASHER |
| FOR CABLE CONNECTION | ||
| 695 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 695 | N 000137008212 | SPRING WASHER |
| FOR CABLE CONNECTION | ||
| 697 | N 000934008010 | NUT |
| FOR CABLE CONNECTION | ||
| 698 | N 000084005402 | SCREW |
| FOR CABLE CONNECTION | ||
| 700 | N 006902005100 | WASHER |
| Repalced by: N 000125006421 | ||
| 700 | N 000125006421 | WASHER |
| FOR CABLE CONNECTION | ||
| Repalced by: N 000125006449 | ||
| 700 | N 000125006449 | WASHER |
| FOR CABLE CONNECTION | ||
| 701 | N 002093010100 | DISC SPRING |
| FOR CABLE CONNECTION | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 700 | ||
| 703 | N 007985005175 | SCREW |
| FROM FUSE BOX TO AUXILIARY INSTRUMENT PANEL | ||
| 705 | A 0005459301 | FUSE BOX |
| 4-POLE | ||
| 708 | N 007985004136 | SCREW |
| FOR CABLE CONNECTION | ||
| 710 | N 006797004132 | TOOTHED WASHER |
| FOR CABLE CONNECTION | ||
| 712 | N 000084005180 | SCREW |
| Repalced by: N 007985005175 | ||
| 712 | N 007985005175 | SCREW |
| FROM FUSE BOX TO AUXILIARY INSTRUMENT PANEL | ||
| 715 | A 0005450334 | FUSE |
| 80 A | ||
| 715 | A 0005452534 | FUSE |
| 50 A | ||
| 719 | A 0005458334 | FUSE |
| 16 A | ||
| 719 | A 0005458234 | FUSE |
| Repalced by: N 072581008101 | ||
| 719 | N 072581008101 | FUSE |
| 8 A | ||
| 730 | A 0015423419 | RELAY |
| DECLUTCHING START UNIT | ||
| 730 | A 0015423419 | RELAY |
| DECLUTCHING START UNIT | ||
| 731 | A 0015455405 | RELAY |
| PANE WIPER | ||
| 50 A | ||
| 732 | A 0025459332 | CONTROL UNIT |
| ENGINE SPEED SWITCH | ||
| 733 | N 007985005193 | SCREW |
| RELAY TO SWITCHBOARD | ||
| 734 | N 007985006157 | SCREW |
| Repalced by: N 000000001145 | ||
| 734 | N 000000001145 | SCREW |
| SWITCH TO SWITCHBOARD | ||
| M 6X12 | ||
| 735 | N 912004005103 | LOCK WASHER |
| RELAY TO SWITCHBOARD | ||
| 736 | N 912004006102 | LOCK WASHER |
| SWITCH TO SWITCHBOARD | ||
| 740 | A 0005455405 | RELAY |
| Repalced by: A 0035459605 | ||
| 740 | A 0035459605 | RELAY |
| STARTING MOTOR | ||
| 740 | A 0005458405 | RELAY |
| STARTING MOTOR | ||
| 743 | N 007985005193 | SCREW |
| RELAY SOCKET TO SWITCHBOARD | ||
| 746 | N 912006005002 | LOCK WASHER |
| 747 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 747 | N 000433005304 | WASHER |
| RELAY SOCKET TO SWITCHBOARD | ||
| A 0055451024 | SWITCH,AUTOMATIC | |
| Repalced by: A 0055453824 | ||
| A 0055453824 | SWITCH,AUTOMATIC | |
| Repalced by: A 0055455124 | ||
| 750 | A 0055455124 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 750 | A 0055458024 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 750 | A 6205400045 | STEERG.COLUMN MTD. SWITCH |
| 750 | A 0055451124 | SWITCH,AUTOMATIC |
| Repalced by: A 0055453924 | ||
| 750 | A 0055453924 | SWITCH,AUTOMATIC |
| Repalced by: A 0055455224 | ||
| 750 | A 0055455224 | STEERG.COLUMN MTD. SWITCH |
| STEERING COLUMN MOUNTED | ||
| 750 | A 0055458124 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 750 | A 6205400145 | STEERG.COLUMN MTD. SWITCH |
| 751 | A 6085450045 | BOOT |
| STEERING COLUMN MOUNTED SWITCH | ||
| 752 | A 0025428320 | HORN |
| Repalced by: A 0045422920 | ||
| 752 | A 0045422920 | HORN |
| Repalced by: A 0045424420 | ||
| 752 | A 0045424420 | HORN |
| BOSCH | ||
| 752 | A 0025426720 | HORN |
| Repalced by: A 0045424420 | ||
| 752 | A 0045424420 | HORN |
| HELLA | ||
| 752 | A 0035425320 | HORN |
| Repalced by: A 0025426720 | ||
| 755 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 755 | N 304017010002 | SCREW |
| HORN MOUNTING | ||
| 757 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 757 | N 000125010532 | WASHER |
| HORN MOUNTING | ||
| 759 | N 912004010102 | LOCK WASHER |
| HORN MOUNTING | ||
| 761 | N 000934010014 | NUT |
| HORN MOUNTING | ||
| 763 | N 000084004137 | SCREW |
| Repalced by: N 007985004149 | ||
| 763 | N 007985004149 | SCREW |
| Repalced by: N 000000001933 | ||
| 763 | N 000000001933 | SCREW |
| ELECTRIC CABLE TO HORN | ||
| 765 | N 912004004102 | LOCK WASHER |
| ELECTRIC CABLE TO HORN | ||
| 769 | A 0025450628 | PLUG |
| SHUNTING IN PLUG HOUSING | ||
| 2.5 MM2 | ||
| 775 | A 0005456009 | SWITCH |
| STOP LIGHT | ||
| 777 | A 0005452008 | SWITCH |
| EXHAUST BRAKE,"ON" | ||
| A 0005455414 | SWITCH | |
| Repalced by: A 0005457914 | ||
| 779 | A 0005457914 | SWITCH |
| SPRING-LOADED-BRAKE-UNIT RELEASE PRESSURE | ||
| 5.7 BAR | ||
| 779 | A 0005457914 | SWITCH |
| SPRING-LOADED-BRAKE SUPPLY PRESSURE | ||
| 5.7 BAR | ||
| 781 | A 0015455714 | SWITCH |
| SPRING-LOADED-BRAKE EMERGENCY RELEASE | ||
| 782 | A 0005455909 | SWITCH |
| CLUTCH FLUID PRESSURE | ||
| A 0005455409 | SWITCH | |
| Repalced by: A 0005458009 | ||
| 784 | A 0005458009 | SWITCH |
| Repalced by: A 0005459109 | ||
| 784 | A 0005459109 | SWITCH |
| Repalced by: A 0015451209 | ||
| 784 | A 0015451209 | SWITCH |
| Repalced by: A 0015452809 | ||
| 784 | A 0015452809 | SWITCH |
| EXHAUST BRAKE | ||
| 786 | A 0029901451 | NUT |
| EXHAUST BRAKE SWITCH | ||
| M 12X1 | ||
| A 0006800052 | HOUSING | |
| Repalced by: A 0006890469 | ||
| 788H | A 0006890469 | PLATE |
| TELL-TALE LAMPS AND TACHOMETER | ||
| 788H | A 0006892269 | PLATE |
| TELL-TALE LAMPS AND TACHOMETER | ||
| 788H | A 0006890073 | HOUSING |
| TELL-TALE LAMPS AND TACHOMETER | ||
| 788R | A 0006890008 | COVERING |
| TELL-TALE LAMPS AND TACHOMETER | ||
| 789 | A 0006800211 | PLATE |
| Repalced by: A 3016893011 | ||
| 789 | A 3016893011 | PLATE |
| Repalced by: A 3016893111 | ||
| 789 | A 3016893111 | PLATE |
| TACHOGRAFH TO INSTRUMENT PANEL | ||
| 790 | A 0006890111 | PLATE |
| INSTRUMENT CLUSTER TO INSTRUMENT PANEL | ||
| 791 | A 0006890211 | PLATE |
| INSTRUMENT LIGHTING | ||
| 792 | N 000084003122 | SCREW |
| POTENTIOMETER TO HOUSING | ||
| M 3X20 | ||
| 793 | N 000137003101 | SPRING WASHER |
| POTENTIOMETER TO HOUSING | ||
| 794 | A 3016891611 | PLATE |
| HEATING | ||
| 794 | A 3016891611 | PLATE |
| LIGHT SWITCH | ||
| 794E | A 3016890311 | PLATE |
| LIGHT SWITCH | ||
| 795 | A 3016890411 | PLATE |
| BLOWER | ||
| 796 | A 3016890511 | PLATE |
| FLOOR HEATING | ||
| 797 | A 3016890611 | PLATE |
| ROOF MOUNTED VENTILATOR | ||
| 797E | A 3016891111 | PLATE |
| FLOOR HEATING TEMPERATURE CONTROL | ||
| 797H | A 3016893511 | PLATE |
| FLOOR HEATING | ||
| 797K | A 3016893611 | PLATE |
| FLOOR HEATING | ||
| 798 | A 3016890073 | HOUSING |
| HEATER OPERATING UNIT | ||
| 799 | N 072601024230 | BULB |
| TELL-TALE LAMP | ||
| 24V 1.2W | ||
| 799E | A 0015443494 | BULB |
| FLOOR HEATING TEMPERATURE CONTROL | ||
| 800 | A 0005453013 | SWITCH |
| (IGNITION AND LIGHT SWITH) | ||
| 803 | A 0005450376 | WASHER |
| IGNITION SWITCH TO INSTRUMENT PANEL | ||
| 805 | A 0005451072 | NUT |
| IGNITION SWITCH TO INSTRUMENT PANEL | ||
| 808 | A 0005451235 | KEY |
| IGNITION AND LIGHT SWITCH | ||
| 808B | A 0005830296 | RING |
| IGNITION AND LIGHT SWITCH | ||
| 808D | A 0005454704 | LIGHT SWITCH |
| Repalced by: A 0005453704 | ||
| 808D | A 0005453704 | LIGHT SWITCH |
| 808K | A 0005452345 | BOOT |
| LIGHT SWITCH | ||
| 808T | N 007985004123 | SCREW |
| LIGHT SWITCH | ||
| M 4X6 | ||
| 809 | N 912004004102 | LOCK WASHER |
| LIGHT SWITCH | ||
| A 1265400083 | HANDLE | |
| Repalced by: A 2015400183 | ||
| 809D | A 2015400183 | HANDLE |
| LIGHT SWITCH | ||
| 809K | A 3016890073 | HOUSING |
| LIGHT SWITCH | ||
| 809N | A 1075450072 | NUT |
| LIGHT SWITCH | ||
| 809T | A 0005452245 | BOOT |
| LIGHT SWITCH | ||
| 810 | A 0015455014 | SWITCH |
| BATTERY MASTER SWITCH | ||
| 815 | A 0045450224 | SWITCH |
| HAZARD WARNING LIGHT | ||
| 817 | A 0055459224 | HAZARD WARNG.LIGHT SWITCH |
| 817K | N 072601024230 | BULB |
| HAZARD WARNING LIGHT SWITCH | ||
| 818 | A 0005453637 | BUTTON |
| HAZARD WARNING LIGHT SWITCH | ||
| 820 | N 072601024801 | BULB |
| HAZARD WARNING LIGHT SWITCH | ||
| 2 W | ||
| 822 | A 3015400265 | RESISTOR |
| HAZARD WARNING LIGHT SWITCH | ||
| 270 OHM | ||
| 825 | A 0015454914 | SWITCH |
| STARTING AT INSTRUMENT PANEL | ||
| A 0005421425 | POTENTIOMETER | |
| Repalced by: A 3015420025 | ||
| 828 | A 3015420025 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 830 | A 0005450372 | NUT |
| SWITCH TO INSTRUMENT PANEL | ||
| M12 | ||
| 830 | A 0029906251 | NUT |
| SWITCH TO INSTRUMENT PANEL | ||
| M10 | ||
| 833 | A 0005421889 | KNOB |
| INSTRUMENT LIGHTING | ||
| 833 | A 0005422189 | KNOB |
| INSTRUMENT LIGHTING | ||
| 836 | A 0015450611 | SWITCH |
| EXHAUST BRAKE,"OFF" | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 935 | ||
| 839 | A 0015450411 | SWITCH |
| Repalced by: A 0015450611 | ||
| 839 | A 0015450611 | SWITCH |
| FOGLAMP | ||
| 839 | A 0015450611 | SWITCH |
| INTERIOR LIGHTING | ||
| 839 | A 0015450611 | SWITCH |
| WEBASTO HEATER | ||
| 839 | A 0015450611 | SWITCH |
| DRIVER'S LAMP | ||
| 839 | A 0015450611 | SWITCH |
| LUGGAGE COMPARTMENT LIGHTING | ||
| 839 | A 0015450611 | SWITCH |
| NIGHT-LIGHTING | ||
| 839 | A 0015450611 | SWITCH |
| HEATED OUTSIDE REARVIEW MIRROR | ||
| 839 | A 0015450611 | SWITCH |
| REAR FOGLAMP | ||
| 842 | A 0015450014 | SWITCH |
| REAR FOGLAMP | ||
| 844 | A 0015450811 | SWITCH |
| PANE WASHER | ||
| 844 | A 0015450811 | SWITCH |
| FOGLAMP | ||
| 846 | A 0005459614 | SWITCH |
| Repalced by: A 0005459014 | ||
| 846 | A 0005459014 | SWITCH |
| FRONT DOOR | ||
| 846 | A 0005459014 | SWITCH |
| REAR DOOR | ||
| 848 | A 0005452883 | CAP |
| PUSHBUTTON SWITCH | ||
| A 0005457790 | LENS | |
| Repalced by: A 0035454890 | ||
| 850 | A 0035454890 | LENS |
| FOGLAMP | ||
| 852 | A 0015453490 | LENS |
| EXHAUST BRAKE,"OFF" | ||
| 854 | A 0005457990 | LENS |
| DRIVER'S LAMP | ||
| 856 | A 0005459190 | LENS |
| INTERIOR LIGHTING | ||
| 858 | A 0015454690 | LENS |
| WEBASTO HEATER | ||
| A 0005457890 | LENS | |
| Repalced by: A 0025452190 | ||
| A 0025452190 | LENS | |
| Repalced by: A 0035458090 | ||
| 860 | A 0035458090 | LENS |
| REAR FOGLIGHT | ||
| 862 | A 0005459790 | LENS |
| LUGGAGE COMPARTMENT LIGHTING | ||
| 864 | A 0015457090 | LENS |
| NIGHT-LIGHTING | ||
| 866 | A 0015456990 | LENS |
| PANE WASHER | ||
| 866D | A 0005459990 | LENS |
| FRONT DOOR | ||
| 866H | A 0015450090 | LENS |
| REAR DOOR | ||
| 866M | A 0015450490 | LENS |
| HEATED OUTSIDE REARVIEW MIRROR | ||
| 866S | A 0045451990 | LENS |
| FRESH AIR,OPENING/CLOSING | ||
| 866W | A 0045452790 | LENS |
| AIR FLAP CONTROL | ||
| SMOG | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 867B | ||
| 867B | A 0045450490 | LENS |
| FLOOR HEATING | ||
| 867D | A 0045450290 | LENS |
| EXHAUST BRAKE,"OFF" | ||
| 867H | A 0045452190 | LENS |
| HEATED OUTSIDE REARVIEW MIRROR | ||
| 867M | A 0035459990 | LENS |
| Repalced by: A 0045455390 | ||
| 867M | A 0045455390 | LENS |
| WEBASTO HEATER | ||
| 867Q | A 0045451690 | LENS |
| LUGGAGE COMPARTMENT LIGHTING | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 868B | ||
| 868B | A 0045452690 | LENS |
| FRONT END HEATING | ||
| 868D | A 0045451090 | LENS |
| INTERIOR LIGHTING,LEFT | ||
| 868H | A 0035458990 | LENS |
| DRIVER'S LAMP | ||
| 868M | A 0045451190 | LENS |
| INTERIOR LIGHTING,RIGHT | ||
| 868N | A 0055454690 | LENS |
| ENGINE STOP | ||
| 868Q | A 0045452390 | LENS |
| ROOF-MOUNTED TURBO-BLOWER | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 869A | ||
| 869A | A 0045452090 | LENS |
| FRESH AIR/MIXED AIR | ||
| 869B | A 0045451290 | LENS |
| NIGHT-LIGHTING | ||
| 869D | A 0045451890 | LENS |
| FRONT DOOR | ||
| 869E | A 0045450190 | LENS |
| REAR AND CENTRAL DOORS | ||
| 869H | A 0045450390 | LENS |
| ANTE-TOP MOUNTED BLOWER,LEFT AND RIGHT,STEPS 1 AND 2 | ||
| 869M | A 0045450690 | LENS |
| ANTE-TOP MOUNTED BLOWER,CENTRAL,STEPS 1 AND 2 | ||
| A 0065452990 | LENS | |
| ABS SYSTEM,ASR FUNCTION | ||
| 870 | N 072601024801 | BULB |
| 24 V/ 2W | ||
| 872 | A 3015443194 | BULB |
| AT INSTRUMENT PANEL | ||
| 872 | A 3015443194 | BULB |
| AT INSTRUMENT PANEL | ||
| 875 | A 0015451815 | TELL-TALE LAMP |
| CHARGE CONTROL | ||
| 875 | A 0015451815 | TELL-TALE LAMP |
| HAND BRAKE CONTROL | ||
| 875 | A 0015451815 | TELL-TALE LAMP |
| CLUTCH FLUID PRESSURE | ||
| 875 | A 0015451815 | TELL-TALE LAMP |
| HIGH BEAM CONTROL | ||
| 875 | A 0015451815 | TELL-TALE LAMP |
| TRUCK-TRACTOR BLINKER | ||
| 875 | A 0015451815 | TELL-TALE LAMP |
| TRAILER BLINKER | ||
| 875 | A 0015451815 | TELL-TALE LAMP |
| ROOF MOUNTED AIR FLAP CLOSING | ||
| 878 | A 3015450076 | WASHER |
| TELL-TALE LAMP | ||
| 880 | A 3015450089 | SHIM |
| TELL-TALE LAMP | ||
| A 0005453790 | LENS | |
| Repalced by: A 0035453290 | ||
| 882 | A 0035453290 | LENS |
| CHARGE CONTROL | ||
| A 0005455190 | LENS | |
| Repalced by: A 0035453790 | ||
| 884 | A 0035453790 | LENS |
| HAND BRAKE | ||
| 886 | A 0005456390 | LENS |
| CLUTCH FLUID PRESSURE | ||
| A 0005455290 | LENS | |
| Repalced by: A 0035453390 | ||
| 888 | A 0035453390 | LENS |
| Repalced by: A 0065451990 | ||
| 888 | A 0065451990 | LENS |
| HIGH BEAM CONTROL | ||
| A 0015459390 | LENS | |
| Repalced by: A 0035454190 | ||
| A 0035454190 | LENS | |
| Repalced by: A 0035455290 | ||
| A 0005455490 | LENS | |
| Repalced by: A 0035454290 | ||
| A 0035454290 | LENS | |
| Repalced by: A 0035455290 | ||
| 892 | A 0035455290 | LENS |
| BLINKER LIGHT CONTROL | ||
| 894 | A 0025455690 | LENS |
| CONTROL OF ROOF MOUNTED AIR FLAP USED WITH HEAT EXCHANGER | ||
| 898 | N 072601024801 | BULB |
| 24 V/2 W | ||
| 900 | A 3015450345 | BOOT |
| QUADRUPLE | ||
| 903 | A 3015450245 | BOOT |
| TRIPLE | ||
| 906 | A 0009974435 | PLUG |
| PUSH BUTTON SWITCH | ||
| 909 | A 0009974335 | PLUG |
| TELL-TALE LAMP | ||
| 912 | A 3015450076 | WASHER |
| PLUG | ||
| 915 | A 3015450289 | SHIM |
| PLUG | ||
| 917 | A 3015840238 | GUMMED LABEL |
| BLOWER | ||
| 920 | A 0015456907 | SWITCH |
| FRONT END HEATING,STEPS 1 AND 2 | ||
| 922 | A 0015457007 | SWITCH |
| FRONT END HEATING,STEP 3 | ||
| 924 | A 0015452507 | SWITCH |
| ROOF-MOUNTED TURBO-BLOWER | ||
| 925 | A 0025453207 | SWITCH |
| Repalced by: A 0025457507 | ||
| 925 | A 0025457507 | SWITCH |
| ROOF-MOUNTED TURBO-BLOWER | ||
| 926 | A 0015457107 | SWITCH |
| FLOOR HEATING | ||
| A 0025451807 | SWITCH | |
| Repalced by: A 0025451407 | ||
| 927 | A 0025451407 | SWITCH |
| Repalced by: A 0025457007 | ||
| 927 | A 0025457007 | SWITCH |
| FRONT END HEATING,STEPS 1 AND 2 | ||
| 927 | A 0025457007 | SWITCH |
| ANTE-TOP MOUNTED BLOWER,LEFT AND RIGHT,STEPS 1 AND 2 | ||
| 927 | A 0025457007 | SWITCH |
| ANTE-TOP MOUNTED BLOWER,CENTRAL,STEPS 1 AND 2 | ||
| 927 | A 0025457007 | SWITCH |
| FLOOR HEATING | ||
| 927 | A 0025457007 | SWITCH |
| DRIVER'S LAMP | ||
| 927D | A 0015457307 | SWITCH |
| ANTE-TOP MOUNTED BLOWER,LEFT AND RIGHT,STEPS 1 AND 2 | ||
| 927M | A 0015457407 | SWITCH |
| ANTE-TOP MOUNTED BLOWER,LEFT AND RIGHT,STEP 3 | ||
| 927Q | A 0025453007 | SWITCH |
| Repalced by: A 0025457407 | ||
| 927Q | A 0025457407 | SWITCH |
| Repalced by: A 0035453807 | ||
| 927Q | A 0035453807 | SWITCH |
| FRONT END HEATING,STEP 3 | ||
| 927Q | A 0035453807 | SWITCH |
| ANTE-TOP MOUNTED BLOWER,LEFT AND RIGHT,STEP 3 | ||
| A 0015457507 | SWITCH | |
| Repalced by: A 0015457807 | ||
| 927W | A 0015457807 | SWITCH |
| ANTE-TOP MOUNTED BLOWER,CENTRAL,STEPS 1 AND 2 | ||
| 927Y | A 0015457607 | SWITCH |
| FRESH AIR/CIRCULATING AIR | ||
| 928 | A 0015457207 | SWITCH |
| AIR FLAP CONTROL | ||
| 930 | A 0015452007 | SWITCH |
| AIR FLAP CONTROL | ||
| SMOG | ||
| 931 | A 3015840138 | GUMMED LABEL |
| SMOG | ||
| A 0025451007 | SWITCH | |
| Repalced by: A 0025451207 | ||
| 935 | A 0025451207 | SWITCH |
| Repalced by: A 0025456907 | ||
| 935 | A 0025456907 | SWITCH |
| FRESH AIR/MIXED AIR | ||
| 935 | A 0025456907 | SWITCH |
| AIR FLAP CONTROL,OPENING/CLOSING | ||
| 935 | A 0025456907 | SWITCH |
| EXHAUST BRAKE,"OFF" | ||
| 935 | A 0025456907 | SWITCH |
| HEATED OUTSIDE REARVIEW MIRROR | ||
| 935 | A 0025456907 | SWITCH |
| WEBASTO HEATER | ||
| 935 | A 0025456907 | SWITCH |
| LUGGAGE COMPARTMENT LIGHTING | ||
| 935 | A 0025456907 | SWITCH |
| INTERIOR LIGHTING | ||
| 935 | A 0025456907 | SWITCH |
| DRIVER'S LAMP | ||
| 935 | A 0025456907 | SWITCH |
| NIGHT-LIGHTING | ||
| 935 | A 0025456907 | SWITCH |
| ABS SYSTEM,ASR FUNCTION | ||
| 936 | A 0025450607 | SWITCH |
| Repalced by: A 0025454407 | ||
| 936 | A 0025454407 | SWITCH |
| ENGINE STOP | ||
| 937 | A 0025452407 | SWITCH |
| FRONT DOOR | ||
| 937 | A 0025452407 | SWITCH |
| REAR AND CENTRAL DOORS | ||
| 937R | A 0005400645 | SWITCH |
| FLOOR HEATING TEMPERATURE CONTROL | ||
| 24 V | ||
| 938 | A 0009973986 | PLUG |
| TO PLUG THE BORES | ||
| 36.40X18.30 MM | ||
| 940 | A 0009974786 | PLUG |
| TO PLUG THE BORES | ||
| 36.3X23.3 MM | ||
| 940D | A 3016891939 | COVER |
| BLIND ELEMENT | ||
| 940H | A 3016891839 | COVER |
| HEATER OPERATING UNIT | ||
| 941 | A 3016892039 | COVER |
| BLIND ELEMENT | ||
| 941 | A 3016892039 | COVER |
| BLIND ELEMENT | ||
| 941D | A 3016891339 | COVER |
| BLIND ELEMENT | ||
| 942 | A 0005422523 | BUZZER |
| HAZARD WARNING LIGHT SENDER UNIT | ||
| 945 | N 007985005193 | SCREW |
| BUZZER | ||
| 947 | N 912004005103 | LOCK WASHER |
| BUZZER | ||
| 950 | A 0005423623 | BUZZER |
| COOLING WATER TEMPERATURE CONTROL | ||
| 950H | A 3055420440 | BRACKET |
| BUZZER TO CAB | ||
| 951 | N 007516004111 | TAPPING SCREW |
| BUZZER TO CAB | ||
| 952 | A 3055450022 | SWITCH |
| SPRING-LOADED-BRAKE EMERGENCY RELEASE | ||
| 952H | A 0025452007 | SWITCH |
| SPRING-LOADED-BRAKE EMERGENCY RELEASE | ||
| 953 | A 0005453703 | CAP |
| SPRING-LOADED-BRAKE EMERGENCY RELEASE | ||
| 953H | A 0025454707 | SWITCH |
| SPRING-LOADED-BRAKE EMERGENCY RELEASE | ||
| 953P | A 6115400066 | ADAPTER FRAME |
| SWITCH TO INSTRUMENT PANEL | ||
| 954 | A 0005420481 | GROMMET |
| SPEEDOMETER | ||
| 954 | A 0005420481 | GROMMET |
| INSTRUMENT CLUSTER | ||
| 960 | A 0095421310 | TACHOGRAPH |
| MEASURING RANGE,125KM/H; ONE-DAY/DRIVER'S CHANGE REGISTRATION | ||
| 960 | A 0105426910 | TACHOGRAPH |
| Repalced by: A 0125422310 | ||
| 960 | A 0125422310 | TACHOGRAPH |
| Repalced by: A 0115423710 | ||
| 960 | A 0115423710 | TACHOGRAPH |
| TACHOGRAPH ADJUSTABLE | ||
| 960 | A 0115420110 | TACHOGRAPH |
| Repalced by: A 0115423410 | ||
| 960 | A 0115423410 | TACHOGRAPH |
| Repalced by: A 0115423710 | ||
| 960 | A 0115423710 | TACHOGRAPH |
| TACHOGRAPH ADJUSTABLE | ||
| A 0015442694 | BULB | |
| WITH SOCKET | ||
| 960D | A 0005423394 | DIAGRAM PAPER |
| SET = 100 PIECES | ||
| TO 009 542 13 10,010 542 69 10 | ||
| 960D | A 0005423394 | DIAGRAM PAPER |
| SET = 100 PIECES | ||
| TO 011 542 01 10,011 542 34 10 | ||
| 961 | A 0005421447 | COUPLER |
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 962E | ||
| 964H | A 0005421647 | COUPLER |
| 965 | A 0015429216 | TACHOMETER |
| Repalced by: A 0035420916 | ||
| 965 | A 0035422716 | TACHOMETER |
| Repalced by: A 0035420916 | ||
| 965 | A 0035420916 | TACHOMETER |
| A 0005454919 | SOCKET | |
| A 0005451219 | SOCKET | |
| 965E | N 072601024801 | BULB |
| TACHOMETER | ||
| 24V 2W | ||
| 965E | N 910150024000 | BULB |
| TACHOMETER | ||
| 24V 2W | ||
| 965H | A 0005421840 | BRACKET |
| TACHOGRAFH TO INSTRUMENT PANEL | ||
| 965L | A 3005420240 | BRACKET |
| TACHOGRAFH TO INSTRUMENT PANEL | ||
| 966 | N 007971002234 | SHEET METAL SCREW |
| TACHOGRAFH TO INSTRUMENT PANEL | ||
| 2.2X9.5 | ||
| 966E | N 007981004243 | SHEET METAL SCREW |
| Repalced by: N 000000002062 | ||
| 966E | N 000000002062 | SCREW |
| INSTRUMENT CLUSTER TO INSTRUMENT PANEL | ||
| 4.2X9.5 | ||
| 966E | N 000000002062 | SCREW |
| TACHOGRAFH TO INSTRUMENT PANEL | ||
| 4.2X9.5 | ||
| A 0005421172 | NUT | |
| Repalced by: N 000934005008 | ||
| 966H | N 000934005008 | NUT |
| TACHOGRAFH TO INSTRUMENT PANEL | ||
| 967 | A 0005422640 | BRACKET |
| TACHOMETER TO INSTRUMENT PANEL | ||
| 967 | A 0005421740 | BRACKET |
| TACHOMETER TO INSTRUMENT PANEL | ||
| 967 | A 0005421740 | BRACKET |
| INSTRUMENT CLUSTER TO INSTRUMENT PANEL | ||
| 968 | A 3005420340 | BRACKET |
| INSTRUMENT CLUSTER TO INSTRUMENT PANEL | ||
| 968 | A 3005420540 | BRACKET |
| INSTRUMENT CLUSTER TO INSTRUMENT PANEL | ||
| A 0005421072 | NUT | |
| Repalced by: N 000934004006 | ||
| 969 | N 000934004006 | NUT |
| TACHOMETER TO INSTRUMENT PANEL | ||
| 969 | N 000934004006 | NUT |
| INSTRUMENT CLUSTER TO INSTRUMENT PANEL | ||
| A 0025406147 | INSTRUMENT CLUSTER | |
| Repalced by: A 0035405747 | ||
| 970 | A 0035405747 | INSTRUMENT CLUSTER |
| A 0025405847 | INSTRUMENT CLUSTER | |
| Repalced by: A 0035405447 | ||
| 970 | A 0035405447 | INSTRUMENT CLUSTER |
| Repalced by: A 0035407847 | ||
| 970 | A 0035407847 | INSTRUMENT CLUSTER |
| Repalced by: A 0035409647 | ||
| 970 | A 0035409647 | INSTRUMENT CLUSTER |
| 972 | A 0035423305 | TEMPERATURE GAUGE |
| TO 002 540 58 47,003 540 54 47 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TO 002 540 61 47,003 540 57 47 | ||
| 972 | A 0035428805 | TEMPERATURE GAUGE |
| TO 003 540 78 47, | ||
| 972 | A 0035427405 | TEMPERATURE GAUGE |
| TO 003 540 96 47 | ||
| 974 | A 0015420408 | AIR PRESSURE GAUGE |
| TO 002 540 58 47,003 540 54 47 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TO 002 540 61 47,003 540 57 47 | ||
| 974 | A 0015423908 | AIR PRESSURE GAUGE |
| TO 003 540 78 47, | ||
| 974 | A 0015424208 | AIR PRESSURE GAUGE |
| TO 003 540 96 47 | ||
| 976 | A 0015429902 | OIL PRESSURE GAUGE |
| TO 002 540 58 47,003 540 54 47 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TO 002 540 61 47,003 540 57 47 | ||
| 976 | A 0025422702 | OIL PRESSURE GAUGE |
| TO 003 540 78 47 | ||
| 976 | A 0025421702 | OIL PRESSURE GAUGE |
| TO 003 540 96 47 | ||
| 978 | A 0015425403 | FUEL GAUGE DASH UNIT |
| TO 002 540 61 47,003 540 57 47 | ||
| 978 | A 0015424503 | FUEL GAUGE DASH UNIT |
| TO 002 540 58 47,003 540 54 47 | ||
| 978 | A 0015424503 | FUEL GAUGE DASH UNIT |
| TO 002 540 58 47,003 540 54 47 | ||
| 978 | A 0025429203 | FUEL GAUGE DASH UNIT |
| TO 003 540 78 47 | ||
| 978 | A 0025428503 | FUEL GAUGE DASH UNIT |
| TO 003 540 96 47 | ||
| 979 | A 0005422178 | CONNECTION PLATE |
| TO 0025406147,0025405847,0035405447 | ||
| 979 | A 0005423178 | CONNECTION PLATE |
| TO 003 540 57 47,003 540 78 47 | ||
| A 0005423578 | CONNECTION PLATE | |
| TO 003 540 96 47 | ||
| 980 | A 0005451219 | SOCKET |
| TO 002 540 61 47,003 540 57 47 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TO 002540 5847,003540 5447,003540 7847 | ||
| 982 | N 072601024801 | BULB |
| TO 002 540 61 47,003 540 57 47, | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TO 002540 5847;003540 5447;003540 7847 | ||
| 982 | A 0015442694 | BULB |
| TO 003 540 96 47 | ||
| A 0005420390 | BLIND CAP | |
| TACHOGRAPH LEAD SEALING | ||
| 984 | A 0005420285 | PROTECTIVE PLATE |
| TACHOGRAPH LEAD SEALING | ||
| 988 | N 007971002206 | SHEET METAL SCREW |
| TACHOGRAPH LEAD SEALING | ||
| 990 | A 3025280082 | HOSE |
| Repalced by: A 0005420435 | ||
| 990 | A 0005420435 | HOSE |
| Repalced by: A 0005420735 | ||
| 990 | A 0005420735 | HOSE |
| FROM ALTERNATOR INTAKE ELBOW TO INTAKE CASE | ||
| 992 | N 900262009100 | LOOM TIE |
| 994 | N 900263009009 | STRAP |
| 995 | N 916017060000 | CLAMP |
| Repalced by: N 000000000673 | ||
| 995 | N 000000000673 | CLAMP |
| AIR HOSE TO ELBOW AND TO INTAKE CASE | ||
| 996 | A 0019978490 | LOOM TIE |
| AIR HOSE TO ENGINE COMPARTMENT PANEL | ||
| 376 MM | ||
| 996 | A 0019978390 | LOOM TIE |
| 280 MM | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
