Transporto priemonė: O 303; VIN numerio dalis: 300385
Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|

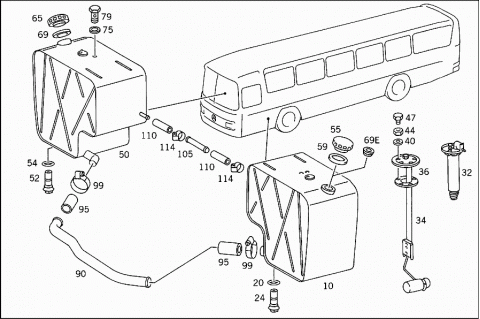

| 010 | A 3014705701 | FUEL TANK |
| LEFT | ||
| 180 L | ||
| 010 | A 3004700701 | FUEL TANK |
| 010 | A 3004700101 | FUEL TANK |
| Repalced by: A 3004701801 | ||
| 015 | A 3004701801 | FUEL TANK |
| Repalced by: A 3004702501 | ||
| 015 | A 3004702501 | FUEL TANK |
| COMPLETE | ||
| 225 L | ||
| 015 | A 3004702001 | FUEL TANK |
| Repalced by: A 3004702701 | ||
| 015 | A 3004702701 | FUEL TANK |
| Repalced by: A 3004700701 | ||
| 015 | A 3004700701 | FUEL TANK |
| LEFT | ||
| 180 L | ||
| 020 | A 0029977245 | SEAL RING |
| 020 | A 0119978848 | SEAL RING |
| Repalced by: A 1109970145 | ||
| 020 | A 1109970145 | SEAL RING |
| TANK IN PLASTIC VERSION | ||
| 024 | A 3604700006 | FUEL STRAINER |
| Repalced by: A 3074700106 | ||
| 024 | A 3074700106 | FUEL STRAINER |
| 024 | A 3004700006 | FUEL STRAINER |
| TANK IN PLASTIC VERSION | ||
| 028 | A 0055422817 | SENDER UNIT |
| FUEL GAUGE | ||
| 028 | A 0055426917 | SENDER UNIT |
| FUEL GAUGE | ||
| 032 | A 0025429717 | SENDER UNIT |
| FUEL GAUGE | ||
| 034 | A 0045422517 | SENDER UNIT |
| FUEL GAUGE | ||
| 034 | A 0065427417 | SENDER UNIT |
| FUEL GAUGE | ||
| 036 | A 3524710080 | GASKET |
| Repalced by: A 4044710080 | ||
| 036 | A 4044710080 | GASKET |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 036 | A 4044710080 | GASKET |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 040 | A 0669970640 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 040 | A 0669970640 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 044 | N 000934005008 | NUT |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 047 | N 914138005002 | SCREW |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 050 | A 3004700201 | FUEL TANK |
| Repalced by: A 3004701901 | ||
| 050 | A 3014705801 | FUEL TANK |
| RIGHT | ||
| 180 L | ||
| 050 | A 3004700801 | FUEL TANK |
| Repalced by: A 3004702101 | ||
| 050 | A 3004700801 | FUEL TANK |
| Repalced by: A 3004702101 | ||
| 051 | A 3004702101 | FUEL TANK |
| Repalced by: A 3004700801 | ||
| 051 | A 3004700801 | FUEL TANK |
| RIGHT | ||
| 180 L | ||
| 051 | A 3004701901 | FUEL TANK |
| RIGHT | ||
| 225 L | ||
| A 3604700006 | FUEL STRAINER | |
| Repalced by: A 3074700106 | ||
| 052 | A 3074700106 | FUEL STRAINER |
| 052 | A 3004700006 | FUEL STRAINER |
| 054 | A 0029977245 | SEAL RING |
| FUEL STRAINER SCREEN TO FUEL TANK | ||
| 054 | A 0119978848 | SEAL RING |
| Repalced by: A 1109970145 | ||
| 054 | A 1109970145 | SEAL RING |
| FUEL STRAINER SCREEN TO FUEL TANK | ||
| 055 | A 3094700005 | FILLER CAP |
| LEFT | ||
| 055 | A 0004710530 | FILLER CAP |
| Repalced by: A 0004717930 | ||
| 055 | A 0004717930 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 055 | A 0004718030 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 055 | A 0004700305 | FILLER CAP |
| 055 | A 0004700305 | FILLER CAP |
| 055 | A 0004700305 | FILLER CAP |
| RIGHT | ||
| A 0004700105 | FILLER CAP | |
| Repalced by: A 0004700305 | ||
| 059 | A 3049970340 | SEAL RING |
| 065 | A 1104700805 | FILLER CAP |
| Repalced by: A 3004700005 | ||
| 065 | A 3004700005 | FILLER CAP |
| Repalced by: A 0004715130 | ||
| 065 | A 0004715130 | FILLER CAP |
| RIGHT | ||
| 065 | A 0004715130 | FILLER CAP |
| RIGHT | ||
| 069 | A 0004710780 | GASKET |
| Repalced by: A 1104710280 | ||
| 069 | A 1104710280 | GASKET |
| TO 110 470 08 05 | ||
| 069 | A 1154710079 | SEAL RING |
| TO 300 470 00 05 | ||
| 069E | N 000906036000 | SCREW PLUG |
| FILLER CAP | ||
| 070 | A 3224710032 | COVER |
| BLIND COVER TO TANK | ||
| 070D | A 4044710080 | GASKET |
| BLIND COVER TO TANK | ||
| 071 | A 0669970640 | SEAL RING |
| BLIND COVER TO TANK | ||
| 072 | N 914138005002 | SCREW |
| BLIND COVER TO TANK | ||
| N 914138005002 | SCREW | |
| BLIND COVER TO TANK | ||
| 074 | A 3014760032 | VALVE |
| CHECK | ||
| 074 | A 3014760032 | VALVE |
| FEED LINE AND RETURN LINE | ||
| 074 | A 3014760032 | VALVE |
| CHECK | ||
| 074 | A 3014760032 | VALVE |
| HEATING FEED | ||
| 075 | N 007603014405 | SEAL RING |
| FEED AND RETURN LINES TO FUEL TANK | ||
| 079 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 079 | N 915036010108 | HOLLOW SCREW |
| FEED AND RETURN LINES TO FUEL TANK | ||

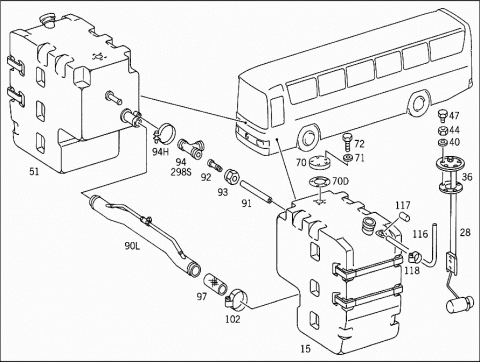

| 090 | A 3014710123 | LINE |
| FROM LEFT FUEL TANK TO RIGHT FUEL TANK | ||
| 090L | A 3004700064 | LINE |
| FROM LEFT FUEL TANK TO RIGHT FUEL TANK | ||
| 090L | A 3004700064 | LINE |
| FROM LEFT FUEL TANK TO RIGHT FUEL TANK | ||
| 091 | A 0109976482 | HOSE |
| 2X165 MM | ||
| 091 | A 0109976482 | HOSE |
| 2X165 MM | ||
| 092 | A 0019974972 | FITTING |
| 092 | A 0019974972 | FITTING |
| 093 | N 915017010200 | UNION NUT |
| 093 | N 915017010200 | UNION NUT |
| 094 | N 915021010000 | FITTING |
| 094 | N 915021010000 | FITTING |
| 094H | A 0019978390 | LOOM TIE |
| 280 MM | ||
| 094H | A 0019978390 | LOOM TIE |
| 280 MM | ||
| 095 | A 3014760226 | HOSE |
| LINE TO TANK | ||
| 097 | A 3004760101 | LINE |
| LINE TO TANK | ||
| 097 | A 3004760101 | LINE |
| LINE TO TANK | ||
| 099 | N 916017060000 | CLAMP |
| Repalced by: N 000000000673 | ||
| 099 | N 000000000673 | CLAMP |
| LINE TO TANK | ||
| 102 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 102 | N 000000000672 | CLAMP |
| LINE TO TANK | ||
| 102 | N 000000000672 | CLAMP |
| LINE TO TANK | ||
| 105 | A 3014764901 | LINE |
| Repalced by: A 0004291601 | ||
| 105 | A 0004291601 | LINE |
| FUEL TANK BREATHING | ||
| 110 | A 3014760326 | HOSE |
| BREATHER LINE TO TANK BREATHER PIPE | ||
| 114 | N 900288030006 | CLAMP |
| BREATHER LINE TO TANK BREATHER PIPE | ||
| 30/12 | ||
| 116 | N 073379014201 | HOSE |
| DE-AERATION | ||
| 30 MM | ||
| 117 | A 3079870045 | LOCKING CAP |
| DE-AERATION | ||
| 118 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 118 | N 000000000667 | CLAMP |
| DE-AERATION | ||
| 20/32 | ||
| 120 | A 3179950832 | CLAMP |
| LINES TO LEFT FUEL TANK | ||
| 125 | N 000125006421 | WASHER |
| LINES TO LEFT FUEL TANK | ||
| Repalced by: N 000125006449 | ||
| 125 | N 000125006449 | WASHER |
| LINES TO LEFT FUEL TANK | ||
| 129 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 129 | N 913004006001 | NUT |
| LINES TO LEFT FUEL TANK | ||
| 135 | A 3609950301 | CLAMP |
| LINE TO RIGHT FUEL TANK | ||
| 140 | N 000125006421 | WASHER |
| LINE TO RIGHT FUEL TANK | ||
| Repalced by: N 000125006449 | ||
| 140 | N 000125006449 | WASHER |
| LINE TO RIGHT FUEL TANK | ||
| 144 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 144 | N 913004006001 | NUT |
| LINE TO RIGHT FUEL TANK | ||

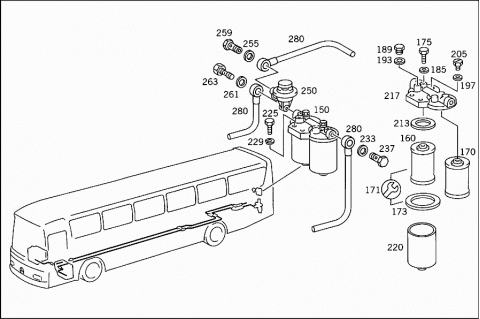

| 150 | A 0014774801 | FUEL FILTER |
| Repalced by: A 0010921801 | ||
| 150 | A 0010921801 | FILTER |
| KNECHT | ||
| 150 | A 0014774901 | FUEL FILTER |
| Repalced by: A 0010921901 | ||
| 150 | A 0010921901 | FILTER |
| HENGST | ||
| 150 | A 0014779801 | FUEL FILTER |
| KNECHT | ||
| 160 | A 0000922705 | FILTER ELEMENT |
| Repalced by: A 3524700092 | ||
| 160 | A 0004773815 | FILTER ELEMENT |
| Repalced by: A 3524700092 | ||
| 170 | A 0000922005 | FILTER ELEMENT |
| Repalced by: A 0004774715 | ||
| 170 | A 0004774715 | FILTER ELEMENT |
| Repalced by: A 3524700092 | ||
| 171 | A 3524700092 | FILTER ELEMENT |
| Repalced by: A 0000901151 | ||
| 171 | A 0000901151 | TS FILTER INSERT |
| 171 | A 4220900051 | FILTER ELEMENT |
| Repalced by: A 0000901451 | ||
| 171 | A 0000901451 | TS FILTER INSERT |
| TO 001 477 98 01 | ||
| 173 | A 0004773580 | SEAL RING |
| 173 | A 0004773180 | SEAL RING |
| TO 001 477 98 01 | ||
| 175 | N 000931008251 | SCREW |
| COVER TO HOUSING | ||
| M 8X75 | ||
| 175 | N 000931008207 | SCREW |
| Repalced by: N 304014008007 | ||
| 175 | N 304014008007 | SCREW |
| COVER TO HOUSING | ||
| TO 001 477 49 01,M8X90 | ||
| 185 | N 007603008109 | SEAL RING |
| COVER TO HOUSING | ||
| 189 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 189 | N 007604014110 | SCREW PLUG |
| LATERAL TOP | ||
| TO 001 477 48 01,001 092 18 01 | ||
| 189 | N 000906014000 | SCREW PLUG |
| LATERAL TOP | ||
| TO 001 477 49 01 | ||
| 193 | N 007603014405 | SEAL RING |
| LATERAL TOP | ||
| TO 001 477 48 01,001 092 18 01 | ||
| 197 | N 007603008109 | SEAL RING |
| BREATHER | ||
| TO 001 477 48 01,001 092 18 01,19 01 | ||
| 197 | N 007603006101 | SEAL RING |
| BREATHER | ||
| TO 001 477 49 01 | ||
| 205 | A 0000745171 | SCREW |
| Repalced by: A 4420740071 | ||
| 205 | A 4420740071 | SCREW |
| BREATHER | ||
| TO 001 477 48 01,001 092 18 01 | ||
| 205 | A 0004773072 | SCREW |
| BREATHER | ||
| TO 001 477 49 01 | ||
| 205 | A 0000741771 | SCREW |
| BREATHER | ||
| TO 001 477 98 01 | ||
| 213 | A 1009970040 | SEAL RING |
| Repalced by: A 0004773580 | ||
| 213 | A 0004773580 | SEAL RING |
| 217 | A 0004773708 | COVER |
| Repalced by: A 0000922808 | ||
| 217 | A 0000922808 | FILTER HEAD |
| MULTI-STAGE FUEL FILTER | ||
| TO 001 477 48 01,001 092 18 01 | ||
| 217 | A 0004773408 | COVER |
| MULTI-STAGE FUEL FILTER | ||
| TO 001 477 49 01 | ||
| A 0000923708 | FILTER HEAD | |
| MULTI-STAGE FUEL FILTER | ||
| TO 001 092 19 01 | ||
| A 0004772808 | COVER | |
| Repalced by: A 0004774108 | ||
| A 0004774108 | COVER | |
| TO 001 477 98 01 | ||
| 220 | A 0004770605 | HOUSING |
| TO 001 092 18 01,001 477 48 01 | ||
| 220 | A 4220900007 | HOUSING |
| TO 001 477 98 01 | ||
| 225 | N 000933012077 | SCREW |
| FUEL FILTER TO SUBSTRUCTURE | ||
| 229 | N 912004012100 | LOCK WASHER |
| FUEL FILTER TO SUBSTRUCTURE | ||
| 233 | N 007603014405 | SEAL RING |
| FUEL LINE TO FUEL FILTER | ||
| 237 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 237 | N 915036010108 | HOLLOW SCREW |
| FUEL LINE TO FUEL FILTER | ||
| 237 | A 3529970772 | HOLLOW SCREW |
| Repalced by: A 6159900263 | ||
| 237 | A 6159900263 | HOLLOW SCREW |
| FUEL LINE TO FUEL FILTER | ||
| 250 | A 0000911190 | PUMP |
| HAND PUMP | ||
| 255 | N 007603014405 | SEAL RING |
| FUEL LINE TO HAND PUMP | ||
| 259 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 259 | N 915036010108 | HOLLOW SCREW |
| FUEL LINE TO HAND PUMP | ||
| 261 | N 007603014405 | SEAL RING |
| HAND PUMP TO FUEL FILTER | ||
| 263 | A 0009906863 | HOLLOW SCREW |
| HAND PUMP TO FUEL FILTER | ||
| 263 | A 4219900063 | HOLLOW SCREW |
| HAND PUMP TO FUEL FILTER | ||
| 265 | A 3404701965 | LINE |
| WITH SEAL CONE | ||
| 10 MM | ||
| 265 | A 3404701965 | LINE |
| FEED & RETURN | ||
| 10 MM | ||
| 265 | A 3074702766 | LINE |
| WITH SEAL CONE | ||
| 265 | A 3074702766 | LINE |
| FROM HOSE TO T-FITTING | ||
| 265 | A 3074702766 | LINE |
| FROM ENGINE TO RUBBER HOSE | ||
| 620 MM | ||
| 265 | A 3074702766 | LINE |
| FROM T-FITTING TO CONICAL CHECK VALVE | ||
| 265 | A 3074702766 | LINE |
| WITH SEAL CONE | ||
| 265 | A 3074702766 | LINE |
| FRONT FUEL TANK | ||
| 915 MM | ||
| 265 | A 3074702766 | LINE |
| WITH SEAL CONE | ||
| 269 | N 915017010200 | UNION NUT |
| 275 | A 3404702665 | LINE |
| WITH FITTING | ||
| 10 MM | ||
| 275 | A 3404702665 | LINE |
| FEED & RETURN | ||
| 10 MM | ||
| 275 | A 3074709865 | LINE |
| WITH FITTING | ||
| 275 | A 3074709865 | LINE |
| FROM FUEL FILTER TO INJECTION PUMP | ||
| 275 | A 3074709865 | LINE |
| WITH FITTING | ||
| 275 | A 3074709865 | LINE |
| HOSE TO CHECK VALVE | ||
| 80 MM | ||
| 275 | A 3074709865 | LINE |
| WITH FITTING | ||
| 275 | A 3074709865 | LINE |
| FROM FUEL HOSE TO FUEL FILTER | ||
| 275 | A 3074709865 | LINE |
| WITH FITTING | ||
| 275 | A 3074709865 | LINE |
| FROM FUEL FILTER TO ENGINE | ||
| 275 | A 3074709865 | LINE |
| WITH FITTING | ||
| 275 | A 3074709865 | LINE |
| FEED & RETURN | ||
| 278 | A 3404701265 | LINE |
| WITH BANJO UNION | ||
| 10X0,7 MM | ||
| 278 | A 3404701265 | LINE |
| FEED & RETURN | ||
| 10X0,7 MM | ||
| 280 | A 3074709765 | LINE |
| WITH BANJO UNION | ||
| 10X1 MM | ||
| 280 | A 3074709765 | LINE |
| FROM CHECK VALVE TO FEED PUMP | ||
| 670 MM | ||
| 280 | A 3074709765 | LINE |
| WITH BANJO UNION | ||
| 10X1 MM | ||
| 280 | A 3074709765 | LINE |
| FROM FUEL HOSE TO FUEL FILTER | ||
| 10X1 MM | ||
| 280 | A 3074709765 | LINE |
| WITH BANJO UNION | ||
| 10X1 MM | ||
| 280 | A 3074709765 | LINE |
| FROM FUEL FILTER TO INJECTION PUMP | ||
| 10X1 MM | ||
| 280 | A 3074709765 | LINE |
| WITH BANJO UNION | ||
| 10X1 MM | ||
| 280 | A 3074709765 | LINE |
| FROM FUEL FILTER TO ENGINE | ||
| 10X1 MM | ||
| 280 | A 3074709765 | LINE |
| WITH BANJO UNION | ||
| 10X1 MM | ||
| 280 | A 3074709765 | LINE |
| FEED & RETURN | ||
| 10X1 MM | ||
| 285 | A 0004290901 | LINE |
| LESS CONNECTIONS | ||
| 10 MM | ||
| 285 | A 0004290901 | LINE |
| FROM RUBBER HOSE TO RUBBER HOSE | ||
| 10 MM | ||
| 285 | A 0004290901 | LINE |
| RETURN | ||
| 10 MM | ||
| 290 | A 3014704764 | LINE |
| TAPERING | ||
| 290 | A 3014704764 | LINE |
| FROM ENGINE TO RETURN LINE | ||
| 285 | A 0004293301 | LINE |
| LESS CONNECTIONS | ||
| 10 MM | ||
| 291 | N 915017010100 | UNION NUT |
| FUEL LINES | ||
| 292 | N 003861010009 | GLAND |
| FUEL LINES | ||
| 293 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 293 | A 0009872627 | PLASTIC PIPE |
| FEED & RETURN | ||
| 294 | A 0019970652 | HOSE |
| FEED & RETURN | ||
| 8X10 MM | ||
| 294 | A 0019970652 | HOSE |
| FEED & RETURN | ||
| 8X10 MM | ||
| 295 | A 0049971672 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| TO 001 997 06 52 | ||
| A 0039971572 | FITTING | |
| Repalced by: N 915059008000 | ||
| 296 | N 915059008001 | FITTING |
| RETURN LINE | ||
| 8/10 | ||
| 296S | N 915059004001 | FITTING |
| 4/6 | ||
| 297 | A 0019974972 | FITTING |
| WITH SEAL CONE | ||
| 297T | A 0009907870 | T-FITTING |
| 297T | A 0009907870 | T-FITTING |
| 298 | A 3879900078 | CONNECTOR |
| 298 | N 915062008000 | SLEEVE |
| 298S | N 915021010000 | FITTING |
| FEED, FRONT | ||
| 298S | N 915021010000 | FITTING |
| FEED, FRONT | ||
| 298S | N 915021010000 | FITTING |
| WEBASTO HEATER | ||
| 299 | A 0019978390 | LOOM TIE |
| FUEL LINE | ||
| 280 MM | ||
| 299 | A 0019978390 | LOOM TIE |
| FUEL LINE | ||
| 280 MM | ||
| 299 | A 0019978490 | LOOM TIE |
| LINE MOUNTING | ||
| 376 MM | ||
| 300 | A 0089976482 | HOSE |
| FROM ENGINE TO RETURN LINE | ||
| 304 | N 916026016001 | CLAMP |
| Repalced by: A 0059970190 | ||
| 304 | A 0059970190 | HOSE CLAMP |
| FROM ENGINE TO RETURN LINE | ||
| 310 | A 3054760126 | HOSE |
| TO CONNECT THE FUEL LINES | ||
| 310 | A 3054760126 | HOSE |
| FEED LINE TO FUEL TANK | ||
| 310 | A 0089976482 | HOSE |
| FEED LINE TO FUEL TANK | ||
| 314 | N 900288029002 | CLAMP |
| TO CONNECT THE FUEL LINES | ||
| 29/12 | ||
| 314 | N 916026016001 | CLAMP |
| Repalced by: A 0059970190 | ||
| 314 | A 0059970190 | HOSE CLAMP |
| TO CONNECT THE FUEL LINES | ||
| 14-24 | ||
| 314 | A 0059970190 | HOSE CLAMP |
| FEED LINE TO FUEL TANK | ||
| 14-24 | ||
| 314 | N 900288017008 | CLAMP |
| FEED LINE TO FUEL TANK | ||
| 17/12 | ||
| 314 | N 900288019007 | CLAMP |
| FEED LINE TO FUEL TANK | ||
| 19/12 | ||
| 318 | N 007619008001 | T-FITTING |
| HOSE, FROM T-FITTING TO HOSE; RETURN | ||
| 318 | N 007619008001 | T-FITTING |
| HOSE, FROM T-FITTING TO HOSE; RETURN | ||
| 318 | N 915021010000 | FITTING |
| HOSE, FROM T-FITTING TO HOSE; RETURN | ||
| 318 | N 915021010000 | FITTING |
| HOSE, FROM T-FITTING TO HOSE; RETURN | ||
| 325 | A 0039974582 | HOSE |
| 270 MM | ||
| 325 | A 0039974582 | HOSE |
| FROM FUEL TANK TO FUEL PUMP | ||
| 270 MM | ||
| 325 | A 0039974582 | HOSE |
| FUEL PUMP AND FUEL FILTER | ||
| 270 MM | ||
| 325 | A 0039974582 | HOSE |
| FROM FUEL FILTER TO INJECTION PUMP | ||
| 270 MM | ||
| 325 | A 0039974582 | HOSE |
| FROM FUEL FILTER TO FUEL TANK | ||
| 270 MM | ||
| 335 | N 007603014405 | SEAL RING |
| FUEL LINE TO FEED PUMP | ||
| 339 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 339 | N 915036010108 | HOLLOW SCREW |
| FUEL LINE TO FEED PUMP | ||
| 345 | A 0009950025 | CLAMP |
| FEED AND RETURN LINES TO SUBSTRUCTURE | ||
| 349 | N 007981006208 | SHEET METAL SCREW |
| FEED AND RETURN LINES TO SUBSTRUCTURE | ||
| 354 | N 916016008200 | CLAMP |
| Repalced by: N 000000000319 | ||
| 354 | N 000000000319 | CLAMP |
| RETURN LINE TO CLUTCH HYDRAULIC LINE | ||
| 354 | N 916016010201 | CLAMP |
| Repalced by: N 916016010211 | ||
| 354 | N 916016010211 | CLAMP |
| Repalced by: N 000000001045 | ||
| 354 | N 000000001045 | CLAMP |
| RETURN LINE TO CLUTCH HYDRAULIC LINE | ||
| 354 | N 000000001045 | CLAMP |
| RETURN LINE TO CLUTCH HYDRAULIC LINE | ||
| 354 | N 916016022203 | CLAMP |
| RETURN LINE TO CLUTCH HYDRAULIC LINE | ||
| 364 | N 000933006127 | SCREW |
| RETURN LINE TO CLUTCH HYDRAULIC LINE | ||
| 364 | N 000933006127 | SCREW |
| RETURN LINE TO CLUTCH HYDRAULIC LINE | ||
| 370 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 370 | N 009021006208 | WASHER |
| RETURN LINE TO CLUTCH HYDRAULIC LINE | ||
| 370 | N 009021006208 | WASHER |
| RETURN LINE TO CLUTCH HYDRAULIC LINE | ||
| 375 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 375 | N 913004006001 | NUT |
| RETURN LINE TO CLUTCH HYDRAULIC LINE | ||
| 375 | N 913004006001 | NUT |
| RETURN LINE TO CLUTCH HYDRAULIC LINE | ||
| 380 | A 3014760436 | BRACKET |
| Repalced by: A 6004760236 | ||
| 380 | A 6004760236 | BRACKET |
| CLAMP | ||
| 381 | A 3521800440 | BRACKET |
| TRANSMISSION | ||
| 381 | A 3521870540 | BRACKET |
| TRANSMISSION | ||
| A 3004700281 | BRACKET | |
| Repalced by: A 3521800440 | ||
| A 3521800440 | BRACKET | |
| TRANSMISSION | ||
| 382 | A 3004700081 | BRACKET |
| TRANSMISSION | ||
| 385 | N 912004008102 | LOCK WASHER |
| BRACKET TO SUBSTRUCTURE | ||
| 389 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 389 | N 304017008016 | SCREW |
| BRACKET TO SUBSTRUCTURE | ||
| 395 | N 916016010201 | CLAMP |
| Repalced by: N 916016010211 | ||
| 395 | N 916016010211 | CLAMP |
| Repalced by: N 000000001045 | ||
| 395 | N 000000001045 | CLAMP |
| FUEL LINE TO BRACKET | ||
| 400 | N 000933006127 | SCREW |
| FUEL LINE TO BRACKET | ||
| 404 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 404 | N 009021006208 | WASHER |
| FUEL LINE TO BRACKET | ||
| 404 | N 009021006208 | WASHER |
| FUEL LINE TO BRACKET | ||
| 408 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 408 | N 913004006001 | NUT |
| FUEL LINE TO BRACKET | ||
| 415 | A 3014700381 | BRACKET |
| FEED LINE AND RETURN LINE TO CLUTCH SLAVE CYLINDER | ||
| 420 | A 3179950832 | CLAMP |
| FEED LINE AND RETURN LINE TO CLUTCH SLAVE CYLINDER | ||
| 425 | N 000933006127 | SCREW |
| FEED LINE AND RETURN LINE TO CLUTCH SLAVE CYLINDER | ||
| 429 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 429 | N 009021006208 | WASHER |
| FEED LINE AND RETURN LINE TO CLUTCH SLAVE CYLINDER | ||
| 433 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 433 | N 913004006001 | NUT |
| FEED LINE AND RETURN LINE TO CLUTCH SLAVE CYLINDER | ||
| 435 | A 3179950832 | CLAMP |
| FUEL LINES TO ENGINE | ||
| 440 | A 3125251089 | BASE |
| Repalced by: A 3142030084 | ||
| 440 | A 3142030084 | SHIM |
| FUEL LINES TO ENGINE | ||
| 445 | N 000933006127 | SCREW |
| FUEL LINES TO ENGINE | ||
| 449 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 449 | N 913004006001 | NUT |
| FUEL LINES TO ENGINE | ||
| 451 | N 916016010201 | CLAMP |
| Repalced by: N 916016010211 | ||
| 451 | N 916016010211 | CLAMP |
| Repalced by: N 000000001045 | ||
| 451 | N 000000001045 | CLAMP |
| FUEL HOSE TO PUMP | ||
| 453 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 453 | N 304017006018 | SCREW |
| FUEL HOSE TO PUMP | ||
| 455 | A 3124761236 | BRACKET |
| Repalced by: A 3604293140 | ||
| 455 | A 3604293140 | BRACKET |
| FUEL LINE | ||
| 460 | A 3129950232 | CLAMP |
| Repalced by: A 4429955032 | ||
| 460 | A 4429955032 | CLAMP |
| FUEL LINE TO BRACKET | ||
| 465 | N 000933006127 | SCREW |
| FUEL LINE TO BRACKET | ||
| 469 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 469 | N 913004006001 | NUT |
| FUEL LINE TO BRACKET | ||
| 473 | N 916016010201 | CLAMP |
| Repalced by: N 916016010211 | ||
| 473 | N 916016010211 | CLAMP |
| Repalced by: N 000000001045 | ||
| 473 | N 000000001045 | CLAMP |
| FUEL LINE TO FUEL LINE | ||
| 477 | N 000933006127 | SCREW |
| FUEL LINE TO FUEL LINE | ||
| 481 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 481 | N 009021006208 | WASHER |
| FUEL LINE TO FUEL LINE | ||
| 485 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 485 | N 913004006001 | NUT |
| FUEL LINE TO FUEL LINE | ||
| N 916016010201 | CLAMP | |
| Repalced by: N 916016010211 | ||
| N 916016010211 | CLAMP | |
| Repalced by: N 000000001045 | ||
| N 000000001045 | CLAMP | |
| FUEL LINE TO COMPRESSED AIR LINE | ||
| 10/15 MM | ||
| N 916016006208 | CLAMP | |
| FUEL LINE TO COMPRESSED AIR LINE | ||
| 6/15 MM | ||
| N 000933006127 | SCREW | |
| FUEL LINE TO COMPRESSED AIR LINE | ||
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| FUEL LINE TO COMPRESSED AIR LINE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
