Transporto priemonė: O 303; VIN numerio dalis: 300385
Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|

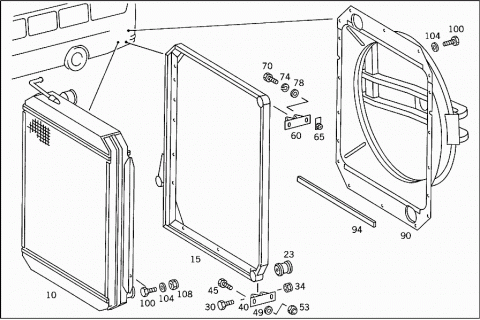

| 010 | A 0005013001 | RADIATOR |
| WATER | ||
| 010 | A 0005015101 | RADIATOR |
| WATER | ||
| 010 | A 0005015201 | RADIATOR |
| WATER | ||
| 015 | A 3015000227 | SUPPORT |
| RADIATOR | ||
| 015 | A 3015000127 | SUPPORT |
| RADIATOR | ||
| 023 | A 3028880224 | MOUNTING |
| Repalced by: A 0009884211 | ||
| 023 | A 3028880026 | SLEEVE |
| Repalced by: A 0009884211 | ||
| 023 | A 0009884211 | BUFFER |
| RADIATOR BASE FRAME | ||
| 030 | N 000960012230 | SCREW |
| VALVE TO VALVE HOUSING | ||
| 034 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 034 | N 910113012003 | HEXAGON NUT |
| VALVE TO VALVE HOUSING | ||
| 040 | A 3015000132 | STAY |
| BEARING BRACKET FOR BASE FRAME | ||
| 040 | A 3015000032 | STAY |
| BEARING BRACKET FOR BASE FRAME | ||
| 045 | N 000933010105 | SCREW |
| STAY TO SUBSTRUCTURE | ||
| 049 | A 1169901140 | WASHER |
| STAY TO SUBSTRUCTURE | ||
| 053 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 053 | N 910113010000 | NUT |
| STAY TO SUBSTRUCTURE | ||
| 060 | A 3015000332 | STAY |
| BEARING BRACKET FOR BASE FRAME | ||
| 060 | A 3015000532 | STAY |
| BEARING BRACKET FOR BASE FRAME | ||
| 065 | A 3015000031 | BRACKET |
| Repalced by: A 3184923841 | ||
| 065 | A 3184923841 | BRACKET |
| Repalced by: A 3184923441 | ||
| 065 | A 3184923441 | BRACKET |
| BEARING BRACKET TO SIDE MEMBER | ||
| 070 | N 000933010105 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 074 | N 912004010102 | LOCK WASHER |
| BEARING BRACKET TO SIDE MEMBER | ||
| 078 | A 1169901140 | WASHER |
| BEARING BRACKET TO SIDE MEMBER | ||
| 090 | A 3015000927 | SUPPORT |
| FAN | ||
| 090 | A 3015000827 | SUPPORT |
| FAN | ||
| 094 | A 3012050180 | GASKET |
| Repalced by: A 3012050080 | ||
| 094 | A 3012050080 | GASKET |
| 094 | A 3012050080 | GASKET |
| 100 | N 000933008145 | SCREW |
| RADIATOR AND FAN SUPPORT TO BASE FRAME | ||
| 104 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 104 | N 000125008443 | WASHER |
| RADIATOR AND FAN SUPPORT TO BASE FRAME | ||
| 108 | N 913004008004 | NUT |
| RADIATOR AND FAN SUPPORT TO BASE FRAME | ||

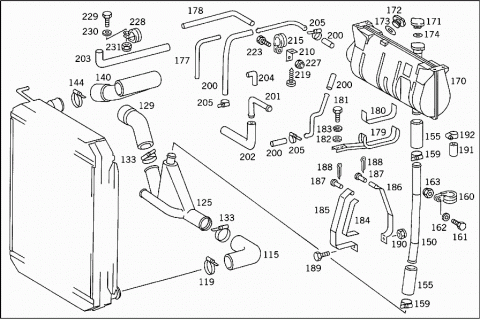

| 115 | A 3015010182 | HOSE |
| FROM RADIATOR TO BUBBLE SEPARATOR | ||
| 119 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 119 | N 000000000672 | CLAMP |
| HOSE TO RADIATOR AN TO BUBBLE SEPARATOR | ||
| 125 | A 3015000169 | SEPARATOR |
| (BUBBLE SEPARATOR) | ||
| 129 | A 3015010282 | HOSE |
| FROM BUBBLE SEPARATOR TO WATER PUMP | ||
| 133 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 133 | N 000000000672 | CLAMP |
| HOSE TO BUBBLE SEPARATOR | ||
| 140 | A 3015010582 | HOSE |
| FROM THERMOSTAT TO RADIATOR | ||
| 144 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 144 | N 000000000674 | CLAMP |
| 144 | N 000000000674 | CLAMP |
| HOSE TO THERMOSTAT AND TO RADIATOR | ||
| 144 | N 000000000674 | CLAMP |
| HOSE TO WATER PUMP | ||
| 150 | A 3015011424 | COOLING WATER PIPE |
| FROM BUBBLE SEPARATOR TO EXPANSION TANK | ||
| 150 | A 3005010024 | COOLING WATER PIPE |
| FROM BUBBLE SEPARATOR TO EXPANSION TANK | ||
| 150 | A 3005011926 | COOLING WATER PIPE |
| FROM BUBBLE SEPARATOR TO EXPANSION TANK | ||
| 155 | N 900271038026 | HOSE |
| COOLING WATER LINE TO BUBBLE SEPARATOR | ||
| 155 | A 3058321223 | HOSE |
| COOLING WATER LINE TO EXPANSION TANK | ||
| 159 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 159 | N 000000000670 | CLAMP |
| COOLING WATER LINE TO BUBBLE SEPARATOR | ||
| 159 | N 000000000670 | CLAMP |
| COOLING WATER LINE TO BUBBLE SEPARATOR | ||
| 159 | N 000000000670 | CLAMP |
| COOLING WATER LINE TO EXPANSION TANK | ||
| A 3074290140 | BRACKET | |
| COOLING WATER LINE | ||
| 160 | N 916016038205 | CLAMP |
| COOLING WATER LINE TO BRACKET | ||
| 161 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 161 | N 304017006020 | SCREW |
| COOLING WATER LINE TO BRACKET | ||
| 162 | N 000125006421 | WASHER |
| COOLING WATER LINE TO BRACKET | ||
| Repalced by: N 000125006449 | ||
| 162 | N 000125006449 | WASHER |
| COOLING WATER LINE TO BRACKET | ||
| 163 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 163 | N 913004006001 | NUT |
| COOLING WATER LINE TO BRACKET | ||
| 170 | A 3005000049 | TANK |
| Repalced by: A 3005000149 | ||
| 170 | A 3005000149 | TANK |
| COOLING WATER EXPANSION | ||
| 170 | A 3005000549 | TANK |
| EXPANSION TANK | ||
| 171 | A 0005013515 | RADIATOR CAP |
| TOP | ||
| 172 | A 0005013415 | RADIATOR CAP |
| LATERAL | ||
| TO 300 500 00 49,300 500 01 49 | ||
| 172 | A 0005014615 | RADIATOR CAP |
| TO 300 500 05 49 | ||
| 173 | A 0005010480 | GASKET |
| INSIDE | ||
| 52 MM,TO 000 501 34 15,000 501 46 15 | ||
| 174 | A 0005010880 | GASKET |
| OUTSIDE | ||
| 37 MM | ||
| 177 | A 0079972682 | HOSE |
| Repalced by: A 0219977682 | ||
| 177 | A 0219977682 | HOSE |
| TO 300 500 05 49 | ||
| 178 | A 0005010010 | DRAIN PIPE |
| 179 | A 3005000231 | BRACKET |
| EXPANSION TANK | ||
| A 3005000331 | BRACKET | |
| EXPANSION TANK | ||
| 179 | A 3005000131 | BRACKET |
| EXPANSION TANK | ||
| A 3005000431 | BRACKET | |
| EXPANSION TANK | ||
| 180 | A 3005010095 | SHIM |
| Repalced by: A 3815010495 | ||
| 180 | A 3815010495 | SHIM |
| BRACKET TO EXPANSION TANK | ||
| 181 | N 000933008301 | SCREW |
| Repalced by: A 0079900801 | ||
| 181 | A 0079900801 | SCREW |
| BRACKET TO EXPANSION TANK | ||
| 182 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 182 | N 000125008443 | WASHER |
| BRACKET TO EXPANSION TANK | ||
| 183 | N 912004008102 | LOCK WASHER |
| BRACKET TO EXPANSION TANK | ||
| N 000557008003 | NUT | |
| BRACKET TO EXPANSION TANK | ||
| 184 | A 3575010095 | SHIM |
| EXPANSION TANK | ||
| 185 | A 3575010320 | BRACKET |
| ENGINE PARTITION PANEL END | ||
| 186 | A 3575010420 | BRACKET |
| TAILGATE END | ||
| 187 | N 001444006227 | PIN |
| BRACKET TO RETAINING CLAMP | ||
| 188 | N 000094001617 | COTTER PIN |
| BRACKET TO RETAINING CLAMP | ||
| 189 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 189 | N 304017008021 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| 189 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 189 | N 304017008034 | SCREW |
| BRACKET TO EXPANSION TANK | ||
| M 8X25 | ||
| 190 | N 913004008004 | NUT |
| EXPANSION TANK TO BRACKET | ||
| 191 | A 3149870045 | LOCKING CAP |
| EXPANSION TANK | ||
| 192 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 192 | N 000000000666 | CLAMP |
| EXPANSION TANK | ||
| N 000933008301 | SCREW | |
| Repalced by: A 0079900801 | ||
| A 0079900801 | SCREW | |
| BRACKET TO EXPANSION TANK | ||
| A 3015010525 | BREATHER PIPE | |
| Repalced by: N 900271012018 | ||
| A 3015010325 | BREATHER PIPE | |
| Repalced by: N 900271012018 | ||
| 200 | N 900271012018 | HOSE |
| 12X21 MM | ||
| 200 | N 900271012018 | HOSE |
| DE-AERATION LINE TO ENGINE AND TO EXPANSION TANK | ||
| 12X21 MM | ||
| 200 | N 900271012018 | HOSE |
| FROM RADIATOR TO EXPANSION TANK | ||
| 12X21 MM | ||
| 201 | A 3005012026 | COOLING WATER PIPE |
| DE-AERATION LINE TO ENGINE AND TO EXPANSION TANK | ||
| 201 | A 3005012826 | COOLING WATER PIPE |
| DE-AERATION LINE TO ENGINE AND TO EXPANSION TANK | ||
| 202 | A 3025011482 | HOSE |
| DE-AERATION LINE TO ENGINE AND TO EXPANSION TANK | ||
| 203 | A 3005010582 | HOSE |
| Repalced by: A 3185060260 | ||
| 203 | A 3185060260 | PIPE |
| DE-AERATION LINE TO ENGINE AND TO EXPANSION TANK | ||
| 204 | A 3018320523 | HOSE |
| DE-AERATION LINE TO ENGINE AND TO EXPANSION TANK | ||
| 205 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 205 | N 000000000666 | CLAMP |
| RADIATOR/ENGINE/EXPANSION-TANK DE-AERATION LINES | ||
| N 916016022206 | CLAMP | |
| FROM RADIATOR TO EXPANSION TANK | ||
| Repalced by: N 916016022203 | ||
| N 916016022203 | CLAMP | |
| FROM RADIATOR TO EXPANSION TANK | ||
| N 916016012200 | CLAMP | |
| FROM RADIATOR TO EXPANSION TANK | ||
| N 000933006183 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| FROM RADIATOR TO EXPANSION TANK | ||
| N 913004006003 | NUT | |
| Repalced by: N 910113006001 | ||
| N 910113006001 | NUT | |
| FROM RADIATOR TO EXPANSION TANK | ||
| 210 | A 3015010620 | BRACKET |
| Repalced by: A 3604280243 | ||
| 210 | A 3604280243 | ANGLE |
| DE-AERATION LINE | ||
| 215 | N 916016012200 | CLAMP |
| DE-AERATION LINE TO ENGINE AND TO EXPANSION TANK | ||
| 215 | N 916016021201 | CLAMP |
| DE-AERATION LINE TO ENGINE AND TO EXPANSION TANK | ||
| 219 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 219 | N 000000000460 | SHEET METAL SCREW |
| DE-AERATION LINE TO ENGINE PARTITION PANEL | ||
| 223 | N 000084006134 | SCREW |
| DE-AERATION LINE TO ENGINE PARTITION PANEL | ||
| 223 | N 000933006127 | SCREW |
| DE-AERATION LINE TO ENGINE AND TO EXPANSION TANK | ||
| 227 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 227 | N 913004006001 | NUT |
| DE-AERATION LINE TO ENGINE AND TO EXPANSION TANK | ||
| 228 | N 916016015202 | CLAMP |
| DE-AERATION LINE TO SUPPORT | ||
| 229 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 229 | N 304017006016 | SCREW |
| DE-AERATION LINE TO SUPPORT | ||
| 230 | N 000125006421 | WASHER |
| DE-AERATION LINE TO SUPPORT | ||
| Repalced by: N 000125006449 | ||
| 230 | N 000125006449 | WASHER |
| DE-AERATION LINE TO SUPPORT | ||
| 231 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 231 | N 913004006001 | NUT |
| DE-AERATION LINE TO SUPPORT | ||

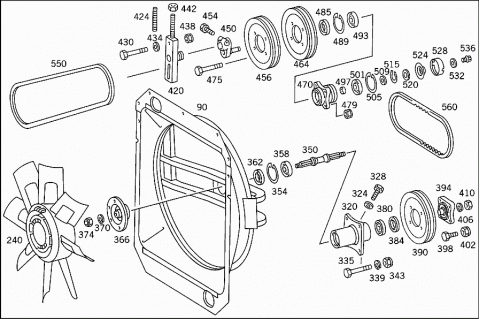

| 240 | A 0002055906 | FAN |
| WITH POWER SAVER FAN | ||
| 240 | A 0002055806 | FAN |
| Repalced by: A 0022051906 | ||
| 240 | A 0022051906 | FAN |
| Repalced by: A 0022056306 | ||
| 240 | A 0022056306 | FAN |
| WITH POWER SAVER FAN | ||
| 245 | A 0012050706 | FAN |
| TO 000 205 59 06 | ||
| 245 | A 0012050606 | FAN |
| TO 000 205 58 06 | ||
| 245 | A 0022052806 | FAN |
| TO 002 205 19 06 | ||
| 249 | A 0002060060 | SEAL RING |
| TO 000 205 59 06,58 06 | ||
| 253 | A 0002060051 | SPACER RING |
| TO 000 205 59 06,58 06 | ||
| 254 | A 0002050073 | LOCK |
| 100X2.0MM | ||
| 254 | A 0002050173 | LOCK |
| 100X2.1MM | ||
| 254 | A 0002050273 | LOCK |
| 100X2.2MM | ||
| 254 | A 0002050373 | LOCK |
| 100X2.3MM | ||
| 257 | A 0039812725 | BALL BEARING |
| Repalced by: A 0049810525 | ||
| 257 | A 0049810525 | BALL BEARING |
| TO 000 205 59 06,58 06 | ||
| 257 | A 0059810125 | BALL BEARING |
| Repalced by: A 0059814825 | ||
| 257 | A 0059814825 | BALL BEARING |
| TO 002 205 19 06;63 06 | ||
| 261 | A 0002060345 | FLANGE |
| TO 000 205 59 06,58 06 | ||
| 261 | A 0002061545 | FLANGE |
| TO 002 205 19 06 | ||
| 265 | A 0002060428 | PRIMARY CUP |
| Repalced by: A 0002060628 | ||
| 265 | A 0002060628 | PRIMARY CUP |
| TO 000 205 59 06,58 06 | ||
| 265 | A 0002060928 | PRIMARY CUP |
| TO 002 205 19 06 | ||
| 269 | A 0009907420 | SCREW |
| 273 | A 0002060080 | GASKET |
| Repalced by: A 0002060580 | ||
| 273 | A 0002060580 | GASKET |
| TO 000 205 59 06,58 06 | ||
| 273 | A 0002060280 | GASKET |
| Repalced by: A 0002060780 | ||
| 273 | A 0002060780 | GASKET |
| TO 002 205 19 06;63 06 | ||
| 277 | A 0002060403 | COVER |
| TO 000 205 59 06,58 06 | ||
| 277 | A 0002062903 | COVER |
| TO 002 205 19 06 | ||
| 281 | N 000912006040 | SCREW |
| 285 | A 0002000072 | CLAMPING PIECE |
| TO 000 205 59 06,58 06 | ||
| 289 | N 000965004021 | SCREW |
| TO 000 205 59 06,58 06 | ||
| 289 | A 0002060071 | SCREW |
| TO 002 205 63 06 | ||
| 290 | A 0002060118 | GUIDE |
| TO 002 205 19 06;63 06 | ||
| A 0005831635 | RECEPTACLE | |
| Repalced by: A 0005831835 | ||
| A 0005831835 | RECEPTACLE | |
| TO 000 205 59 06 | ||
| A 0005831735 | RECEPTACLE | |
| Repalced by: A 0005831935 | ||
| A 0005831935 | RECEPTACLE | |
| TO 000 205 58 06 | ||
| A 0005832135 | RECEPTACLE | |
| TO 002 205 19 06;63 06 | ||
| 300 | N 000933008177 | SCREW |
| Repalced by: N 304017008024 | ||
| 300 | N 304017008024 | SCREW |
| FAN TO HUB | ||
| 304 | N 913004008005 | NUT |
| FAN TO HUB | ||
| 320 | A 3012050005 | BEARING BODY |
| FAN DRIVE | ||
| 324 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 324 | N 007603010110 | SEAL RING |
| OIL FILLING | ||
| 328 | N 007604010102 | SCREW PLUG |
| Repalced by: N 007604010108 | ||
| 328 | N 007604010108 | SCREW PLUG |
| OIL FILLING | ||
| 335 | N 000931008248 | SCREW |
| Repalced by: N 304017008053 | ||
| 335 | N 304017008053 | SCREW |
| BEARING BODY TO SUPPORT | ||
| 339 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 339 | N 000125008443 | WASHER |
| BEARING BODY TO SUPPORT | ||
| 343 | N 913004008004 | NUT |
| BEARING BODY TO SUPPORT | ||
| 350 | A 3012050002 | FAN SHAFT |
| FAN DRIVE | ||
| 354 | N 000472052000 | LOCK RING |
| FAN SHAFT | ||
| 358 | N 000625900200 | GROOVED BALL BEARING |
| ON FAN SIDE | ||
| 362 | A 0019978447 | SEAL RING |
| ON FAN SIDE | ||
| 366 | A 3222050204 | HUB |
| FAN DRIVE | ||
| 370 | N 912004016101 | LOCK WASHER |
| HUB TO FAN SHAFT | ||
| 374 | N 000439016203 | NUT |
| HUB TO FAN SHAFT | ||
| 380 | N 005412600304 | CYLINDR. ROLLER BEARING |
| ON RADIATOR SIDE | ||
| 380 | A 0059819701 | CYLINDR. ROLLER BEARING |
| FAN DRIVE | ||
| 384 | A 0019978447 | SEAL RING |
| ON RADIATOR SIDE | ||
| 390 | A 3012060510 | PULLEY |
| FAN DRIVE | ||
| 390 | A 3012060310 | PULLEY |
| FAN DRIVE | ||
| 390 | A 3012060310 | PULLEY |
| FAN DRIVE | ||
| 390 | A 3012060010 | PULLEY |
| FAN DRIVE | ||
| 394 | A 3012050004 | HUB |
| FAN DRIVE | ||
| 394 | A 3012050004 | HUB |
| FAN DRIVE | ||
| 394 | A 3012050204 | HUB |
| FAN DRIVE | ||
| 398 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 398 | N 304017008021 | SCREW |
| PULLEY TO HUB | ||
| 398 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 398 | N 304017008034 | SCREW |
| PULLEY TO HUB | ||
| M 8X25 | ||
| 398 | N 304017008034 | SCREW |
| PULLEY TO HUB | ||
| M 8X25 | ||
| 398 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 398 | N 304017008027 | SCREW |
| PULLEY TO HUB | ||
| M 8X30 | ||
| 402 | N 913004008004 | NUT |
| PULLEY TO HUB | ||
| 406 | N 912004016101 | LOCK WASHER |
| HUB TO FAN SHAFT | ||
| 410 | N 000439016203 | NUT |
| HUB TO FAN SHAFT | ||
| 420 | A 3012000039 | SUPPORT |
| TIGHTENER PULLEY | ||
| 424 | A 3019900005 | STUD |
| 430 | N 000931010264 | SCREW |
| SUPPORT TO FAN SUPPORT | ||
| 434 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 434 | N 000125010532 | WASHER |
| SUPPORT TO FAN SUPPORT | ||
| 434 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 434 | N 009021010209 | WASHER |
| SUPPORT TO FAN SUPPORT | ||
| 438 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 438 | N 910113010000 | NUT |
| SUPPORT TO FAN SUPPORT | ||
| 442 | N 000934012022 | NUT |
| SUPPORT TO FAN SUPPORT | ||
| 450 | A 3012000073 | LEVER |
| Repalced by: A 3072000173 | ||
| 450 | A 3072000173 | LEVER |
| Repalced by: A 3072000573 | ||
| 450 | A 3072000573 | LEVER |
| TIGHTENER PULLEY | ||
| 454 | N 000960012189 | SCREW |
| Repalced by: N 308676012031 | ||
| 454 | N 308676012031 | SCREW |
| Repalced by: N 308676012011 | ||
| 454 | N 308676012011 | SCREW |
| CLAMPING LEVER TO SUPPORT | ||
| 456 | A 3012060110 | PULLEY |
| 196 MM | ||
| 456 | A 3012060110 | PULLEY |
| ON FAN SIDE | ||
| 196 MM | ||
| 456 | A 3012060110 | PULLEY |
| REAR | ||
| 196 MM | ||
| 464 | A 3012060210 | PULLEY |
| 188 MM | ||
| 464 | A 3012060210 | PULLEY |
| ON FAN SIDE | ||
| 188 MM | ||
| 464 | A 3012060210 | PULLEY |
| REAR | ||
| 188 MM | ||
| 456 | A 3012060010 | PULLEY |
| 470 | A 3012060113 | HUB |
| PULLEY | ||
| 475 | N 000931008046 | SCREW |
| Repalced by: N 304017008018 | ||
| 475 | N 304017008018 | SCREW |
| PULLEY TO HUB | ||
| 475 | N 000931008244 | SCREW |
| PULLEY TO HUB | ||
| 479 | N 913004008004 | NUT |
| PULLEY TO HUB | ||
| 485 | A 0019978547 | SEAL RING |
| BELT TIGHTENER PULLEY TO BELT TIGHTENER SPINDLE | ||
| 485 | A 0119975447 | SEAL RING |
| BELT TIGHTENER PULLEY TO BELT TIGHTENER SPINDLE | ||
| 489 | N 000472052000 | LOCK RING |
| CLAMPING LEVER | ||
| 52X2 MM | ||
| 493 | N 000625900200 | GROOVED BALL BEARING |
| CLAMPING LEVER | ||
| 497 | A 3012060053 | SPACER TUBE |
| HUB,INSIDE | ||
| 501 | N 000625900200 | GROOVED BALL BEARING |
| HUB,INSIDE | ||
| 505 | N 000472052000 | LOCK RING |
| HUB,INSIDE | ||
| 52X2 MM | ||
| 509 | A 3022050552 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 509 | A 3022050652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 509 | A 3022050752 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 515 | N 000471020001 | LOCK RING |
| HUB,INSIDE | ||
| 20X1.2 MM | ||
| 520 | N 915035000012 | SEAL RING |
| HUB,INSIDE | ||
| 52X60 MM | ||
| 524 | A 3012060157 | EXPANSION PLUG |
| HUB,INSIDE | ||
| 528 | A 3012060072 | NUT |
| HUB,INSIDE | ||
| 532 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 532 | N 007603010110 | SEAL RING |
| HUB,INSIDE | ||
| 536 | N 007604010102 | SCREW PLUG |
| Repalced by: N 007604010108 | ||
| 536 | N 007604010108 | SCREW PLUG |
| HUB,INSIDE | ||
| 550 | A 0039974392 | V-BELT |
| FROM VIBRATION DAMPER TO TIGHTENER PULLEY | ||
| 550 | A 0039974892 | V-BELT |
| FROM VIBRATION DAMPER TO TIGHTENER PULLEY | ||
| 12.5X1950 MM | ||
| 550 | A 0049973192 | V-BELT |
| Repalced by: A 0039974992 | ||
| 550 | A 0079976592 | V-BELT |
| Repalced by: A 0039974992 | ||
| 550 | A 0039974992 | V-BELT |
| SET = 2 PIECES | ||
| 12.5X1950 MM | ||
| 550 | A 0039974992 | V-BELT |
| FROM VIBRATION DAMPER TO TIGHTENER PULLEY | ||
| 12.5X1950 MM | ||
| 560 | A 3459977192 | V-BELT |
| Repalced by: A 0039970692 | ||
| 560 | A 0039970692 | V-BELT |
| FROM TIGHTENER PULLEY TO FAN PULLEY | ||
| 12.5X1150 MM | ||
| 560 | A 0059976092 | V-BELT |
| Repalced by: A 0079975492 | ||
| 560 | A 0079975492 | V-BELT |
| Repalced by: A 0069972192 | ||
| 560 | A 0069972192 | V-BELT |
| SET = 2 PIECES | ||
| 12.5X1175 MM | ||
| 560 | A 0069972192 | V-BELT |
| FROM TIGHTENER PULLEY TO FAN PULLEY | ||
| 12.5X1175 MM | ||
| 560 | A 0069972192 | V-BELT |
| SET = 2 PIECES | ||
| 12.5X1175 MM | ||
| 560 | A 0039970592 | V-BELT |
| SET = 2 PIECES | ||
| 12.5X1150 MM | ||
| 560 | A 0039970592 | V-BELT |
| FROM TIGHTENER PULLEY TO FAN PULLEY | ||
| 12.5X1150 MM | ||
| A 0079979592 | V-BELT | |
| TOOTHED;SET = 2 PIECES | ||
| 12.5X1925 MM | ||
| A 0079979592 | V-BELT | |
| FROM VIBRATION DAMPER TO TIGHTENER PULLEY | ||
| SA 23.711/01 | ||
| A 0039975292 | V-BELT | |
| TOOTHED;SET = 2 PIECES | ||
| 12.5X1250 MM | ||
| A 0039975292 | V-BELT | |
| FROM TIGHTENER PULLEY TO FAN PULLEY | ||
| SA 23.711/02 | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
