Transporto priemonė: O 303; VIN numerio dalis: 300385
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 0004291201 | LINE |
| BRASS,AIR RESERVOIR,HEIGHT ADJUSTMENTVALVE,AIR SPRING BELLOWS | ||
| 6X8 MM | ||
| A 0089979082 | HOSE | |
| Repalced by: A 0009872727 | ||
| A 0009872727 | PLASTIC PIPE | |
| LEVEL ADJUSTMENT VALVE BREATHING | ||
| 6X8 MM | ||
| A 0009872727 | PLASTIC PIPE | |
| AIR SPRING BELLOWS,LEFT AND RIGHT | ||
| 6X8 MM | ||
| A 0039978972 | FITTING | |
| Repalced by: A 0029905971 | ||
| A 0029905971 | FITTING | |
| (PARTS KIT),LINE RUPTURE | ||
| 012 | N 915017008100 | UNION NUT |
| LINE CONNECTIONS | ||
| 016 | N 003861008005 | GLAND |
| LINE CONNECTIONS | ||
| N 915062006000 | SLEEVE | |
| LINE CONNECTIONS | ||
| 020 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 020 | A 0029905971 | FITTING |
| BETWEEN THE LINES | ||
| A 0089976082 | HOSE | |
| Repalced by: A 0009872627 | ||
| A 0009872627 | PLASTIC PIPE | |
| FROM 3/2-WAY VALVE TO LEVEL ADJUSTMENT VALVE | ||
| 4X6 MM | ||
| A 0039979172 | FITTING | |
| (PARTS KIT),LINE RUPTURE | ||
| N 915017006100 | UNION NUT | |
| N 003861006007 | GLAND | |
| N 915062004000 | SLEEVE | |
| A 0005461830 | INSULATING HOSE | |
| PROTECTIVE TUBE | ||
| A 0005467130 | INSULATING HOSE | |
| PROTECTIVE TUBE | ||
| 024 | N 916016008200 | CLAMP |
| Repalced by: N 000000000319 | ||
| 024 | N 000000000319 | CLAMP |
| COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE | ||
| 024 | N 000000000319 | CLAMP |
| COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE | ||
| 028 | N 000933006127 | SCREW |
| COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE | ||
| 028 | N 000933006127 | SCREW |
| COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE | ||
| 032 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 032 | N 009021006208 | WASHER |
| COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE | ||
| 032 | N 009021006208 | WASHER |
| COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE | ||
| 036 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 036 | N 910113006001 | NUT |
| COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE | ||
| 036 | N 910113006001 | NUT |
| COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE | ||
| 040 | N 916016008200 | CLAMP |
| Repalced by: N 000000000319 | ||
| 040 | N 000000000319 | CLAMP |
| COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE WITH NUT | ||
| 044 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 044 | N 304017006016 | SCREW |
| COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE WITH NUT | ||
| 048 | N 912004006102 | LOCK WASHER |
| COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE WITH NUT | ||
| 052 | N 916016008200 | CLAMP |
| Repalced by: N 000000000319 | ||
| 052 | N 000000000319 | CLAMP |
| COMPRESSED AIR LINE TO COMPRESSED AIR LINE | ||
| 056 | N 916016012200 | CLAMP |
| COMPRESSED AIR LINE TO COMPRESSED AIR LINE | ||
| 060 | N 000933006127 | SCREW |
| COMPRESSED AIR LINE TO COMPRESSED AIR LINE | ||
| 064 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 064 | N 910113006001 | NUT |
| COMPRESSED AIR LINE TO COMPRESSED AIR LINE | ||
| A 0029975890 | CABLE TIE | |
| Repalced by: A 0019978490 | ||
| A 0019978490 | LOOM TIE | |
| COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE | ||
| 068 | A 0009902670 | T-FITTING |
| BRANCH-OFF TO REAR AXLE LEVEL ADJUSTMENT VALVE | ||
| 068 | A 0009906970 | T-FITTING |
| BRANCH-OFF TO REAR AXLE LEVEL ADJUSTMENT DEVICE | ||
| 068 | A 0009909970 | T-FITTING |
| REAR AXLE LEVEL ADJUSTMENT VALVE | ||
| A 0019902171 | ELBOW FITTING | |
| LEVEL ADJUSTMENT VALVE,CONNECTIONS: | ||
| "1,2" | ||
| 072 | A 0003282130 | VALVE |
| FRONT AXLE LEVEL ADJUSTMENT | ||
| 072 | A 0003282130 | VALVE |
| FRONT AXLE LEVEL ADJUSTMENT | ||
| 072 | A 0003282130 | VALVE |
| FRONT AXLE LEVEL ADJUSTMENT | ||
| 072 | A 0003283730 | VALVE |
| FRONT AXLE LEVEL ADJUSTMENT | ||
| 076 | A 0019970247 | SEAL RING |
| INSIDE | ||
| 080 | A 0019970347 | SEAL RING |
| OUTSIDE | ||
| 084 | A 0003281925 | VALVE |
| INTAKE | ||
| 088 | A 0003282025 | VALVE |
| Repalced by: A 0003282125 | ||
| 088 | A 0003282125 | VALVE |
| EXHAUST | ||
| A 0003280014 | SHAFT | |
| 87 MM | ||
| A 0003200027 | LEVER | |
| Repalced by: A 0003200127 | ||
| A 0003200127 | LEVER | |
| (PARTS KIT) | ||
| A 0003200467 | REPAIR KIT | |
| Repalced by: A 0003200258 | ||
| A 0003200258 | REPAIR KIT | |
| FRONT AXLE LEVEL ADJUSTMENT VALVE | ||
| 092 | A 0019972572 | FITTING |
| Repalced by: N 000000006446 | ||
| 092 | N 000000006446 | FITTING |
| 096 | N 007603012405 | SEAL RING |
| 096 | N 007603012405 | SEAL RING |
| 096 | N 007603012405 | SEAL RING |
| 096 | N 007603012110 | SEAL RING |
| 100 | A 0003272125 | VALVE |
| CHECK VALVE | ||
| 104 | A 0000750032 | FILTER |
| 108 | N 000931008254 | SCREW |
| Repalced by: N 304014008002 | ||
| 108 | N 304014008002 | SCREW |
| LEVEL ADJUSTMENT VALVE TO SUBSTRUCTURE | ||
| 112 | N 913004008004 | NUT |
| LEVEL ADJUSTMENT VALVE TO SUBSTRUCTURE | ||
| 116 | A 3603200589 | ROD |
| Repalced by: A 3073200289 | ||
| 116 | A 3073200289 | ROD |
| FROM LEVEL ADJUSTMENT VALVE TO FRONT AXLE | ||
| 120 | N 000934008010 | NUT |
| 124 | N 071803013102 | BALL PIVOT |
| 128 | N 912004008102 | LOCK WASHER |
| ROD TO BEARING BRACKET | ||
| 132 | N 912004008102 | LOCK WASHER |
| ROD TO BEARING BRACKET | ||
| 136 | A 3013270040 | BRACKET |
| OPERATING ROD | ||
| 140 | A 3223200335 | PLATE |
| FRONT AXLE PNEUMATIC SUSPENSION | ||
| 144 | A 3013270011 | RING |
| TOP PLATE TO FRONT AXLE CROSS MEMBER | ||
| 148 | N 000936022002 | NUT |
| TOP PLATE TO FRONT AXLE CROSS MEMBER | ||
| 152 | A 3073270001 | AIR SPRING BELLOWS |
| Repalced by: A 0003270101 | ||
| 152 | A 0003270101 | AIR SPRING BELLOWS |
| FRONT AXLE PNEUMATIC SUSPENSION | ||
| 152 | A 3073270101 | AIR SPRING BELLOWS |
| Repalced by: A 0003270201 | ||
| 152 | A 0003270201 | AIR SPRING BELLOWS |
| FRONT AXLE PNEUMATIC SUSPENSION | ||
| A 0003270301 | AIR SPRING BELLOWS | |
| FRONT AXLE PNEUMATIC SUSPENSION | ||
| 160 | A 3053240308 | HELPER SPRING |
| SPRING BRACKET | ||
| 162 | A 3223270430 | RUBBER BUFFER |
| SPRING BRACKET | ||
| 164 | A 3073200175 | SPRING BRACKET |
| Repalced by: A 3573200134 | ||
| 164 | A 3573200134 | SUPPORT |
| AIR SPRING BELLOWS,BOTTOM | ||
| 164 | A 3573201534 | SUPPORT |
| AIR SPRING BELLOWS,BOTTOM | ||
| 164 | A 3013200175 | SPRING BRACKET |
| Repalced by: A 6003200434 | ||
| 164 | A 6003200434 | SUPPORT |
| AIR SPRING BELLOWS,BOTTOM | ||
| 168 | A 3023200143 | BRACKET |
| AIR SPRING BELLOWS TO FRONT AXLE | ||
| N 001472010004 | GROOVED PIN | |
| 176 | N 000961020035 | SCREW |
| BRACKET TO SPRING BRACKET | ||
| 180 | N 912004020100 | LOCK WASHER |
| BRACKET TO SPRING BRACKET | ||
| 184 | A 3053200070 | REAR SUBFRAME |
| Repalced by: A 3003200070 | ||
| 184 | A 3003200070 | REAR SUBFRAME |
| AIR SPRING BELLOWS,SHOCK ABSORBER | ||
| N 000939014023 | STUD BOLT | |
| 188 | N 912004014100 | LOCK WASHER |
| SPRING BRACKET TO FRONT AXLE BEAM | ||
| 192 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 192 | N 910113014000 | NUT |
| SPRING BRACKET TO FRONT AXLE BEAM | ||
| 196 | A 3023260300 | SHOCK ABSORBER |
| Repalced by: A 3023260500 | ||
| 196 | A 3023260500 | SHOCK ABSORBER |
| (PARTS KIT),FRONT AXLE | ||
| 200 | A 3179911040 | SPACER TUBE |
| SHOCK ABSORBER TO SPRING SUPPORT AND TO SUBSTRUCTURE | ||
| 204 | A 3173230444 | RUBBER BUFFER |
| SHOCK ABSORBER TO SPRING SUPPORT AND TO SUBSTRUCTURE | ||
| 208 | A 3173230667 | RETAINER |
| SHOCK ABSORBER TO SPRING SUPPORT AND TO SUBSTRUCTURE | ||
| 212 | N 913001014003 | NUT |
| SHOCK ABSORBER TO SPRING SUPPORT AND TO SUBSTRUCTURE | ||
| 216 | A 3013230065 | TORSION BAR |
| FRONT AXLE | ||
| 220 | A 3073230063 | BEARING BRACKET |
| TORSION BAR | ||
| 224 | N 000960016249 | SCREW |
| Repalced by: N 308676016004 | ||
| 224 | N 308676016004 | SCREW |
| STABILIZER BEARING BRACKET TO LONGITUDINAL CONTROL ARM BEARING BRACKET | ||
| 228 | N 912004016101 | LOCK WASHER |
| STABILIZER BEARING BRACKET TO LONGITUDINAL CONTROL ARM BEARING BRACKET | ||
| 232 | A 3833260181 | RUBBER MOUNTING |
| TORSION BAR | ||
| 232 | A 3013260081 | RUBBER MOUNTING |
| TORSION BAR | ||
| 236 | A 3073230064 | COVER |
| BEARING COVER | ||
| 236 | A 3013230064 | COVER |
| Repalced by: A 3003230064 | ||
| 236 | A 3003230064 | COVER |
| BEARING COVER | ||
| 240 | N 912004014100 | LOCK WASHER |
| COVER TO BEARING BRACKET | ||
| 240 | N 912004016101 | LOCK WASHER |
| COVER TO BEARING BRACKET | ||
| N 913004016004 | NUT | |
| Repalced by: N 910113016002 | ||
| N 910113016002 | NUT | |
| COVER TO BEARING BRACKET | ||
| 244 | N 000960014230 | SCREW |
| COVER TO BEARING BRACKET | ||
| 244 | N 000960016182 | SCREW |
| COVER TO BEARING BRACKET | ||
| 244 | N 000960016140 | SCREW |
| Repalced by: N 000960016206 | ||
| 244 | N 000960016206 | SCREW |
| COVER TO BEARING BRACKET | ||
| 246 | A 3003200028 | REPAIR KIT |
| TORSION BAR,REAR | ||
| 248 | A 3223200843 | BRACKET |
| TORSION BAR TO REAR AXLE | ||
| 252 | A 3219910340 | SPACER TUBE |
| TORSION BAR TO REAR AXLE | ||
| 256 | A 3213230267 | RETAINER |
| BOTTOM | ||
| 260 | A 3203230044 | RUBBER BUFFER |
| TORSION BAR TO REAR AXLE | ||
| 264 | A 3213230167 | RETAINER |
| TOP | ||
| 268 | N 000960018110 | SCREW |
| TORSION BAR TO SUBSTRUCTURE | ||
| 272 | A 3029900055 | NUT |
| TORSION BAR TO SUBSTRUCTURE | ||
| 274 | N 000094004065 | COTTER PIN |
| TORSION BAR TO SUBSTRUCTURE | ||
| 276 | A 3073300013 | BEARING BRACKET |
| LONGITUDINAL CONTROL ARM | ||
| 276 | A 3073300013 | BEARING BRACKET |
| TRANSVERSE CONTROL ARM | ||
| 280 | A 3073300113 | BEARING BRACKET |
| TORSION BAR AND LONGITUDINAL CONTROL ARM | ||
| 280 | A 3013300013 | BEARING BRACKET |
| Repalced by: A 3003300013 | ||
| 280 | A 3003300013 | BEARING BRACKET |
| TORSION BAR AND LONGITUDINAL CONTROL ARM ON THE LEFT | ||
| 280 | A 3013300113 | BEARING BRACKET |
| Repalced by: A 3003300113 | ||
| 280 | A 3003300113 | BEARING BRACKET |
| TORSION BAR AND LONGITUDINAL CONTROL ARM ON THE RIGHT | ||
| 284 | A 3173330174 | PIN |
| 25 MM | ||
| 288 | A 3073510074 | PIN |
| 22 MM | ||
| 292 | N 000960018111 | SCREW |
| Repalced by: N 308676018010 | ||
| 292 | N 308676018010 | SCREW |
| BEARING BODY TO SUBSTRUCTURE,TOP | ||
| M 18X70 | ||
| 292 | N 000960018133 | SCREW |
| BEARING LINER AT UPPER SUBSTRUCTURE, AS REQUIRED | ||
| M 18X75 | ||
| 292 | N 000960018109 | SCREW |
| Repalced by: N 308676018009 | ||
| 292 | N 308676018009 | SCREW |
| BEARING BODY TO SUBSTRUCTURE | ||
| M 18X60 | ||
| 296 | N 913004018004 | NUT |
| BEARING BODY TO SUBSTRUCTURE | ||
| 296 | N 913004018004 | NUT |
| BEARING BODY TO FRONT AXLE | ||
| 304 | N 000960018111 | SCREW |
| Repalced by: N 308676018010 | ||
| 304 | N 308676018010 | SCREW |
| BEARING BODY TO FRONT AXLE | ||
| M 18X70 | ||
| 308 | N 913004018004 | NUT |
| BEARING BODY TO FRONT AXLE | ||
| 312 | A 3223330184 | SHIM |
| AS REQUIRED | ||
| 1.00 MM | ||
| 312 | A 3223330084 | SHIM |
| AS REQUIRED | ||
| 2.50 MM | ||
| 312 | A 3013520184 | SHIM |
| AS REQUIRED | ||
| 4.00 MM | ||
| 312 | A 3003330184 | SHIM |
| AS REQUIRED | ||
| 6.00 MM | ||
| 316 | A 3013300077 | STOP |
| NUT LOCK | ||

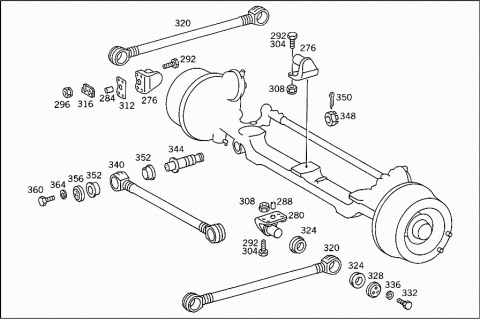

| 320 | A 3223301011 | THRUST ARM |
| Repalced by: A 3573303111 | ||
| 320 | A 3573303111 | THRUST ARM |
| LONGITUDINAL CONTROL ARM | ||
| 324 | A 3173331164 | RUBBER RING |
| THRUST ARM TO BEARING BODY,TO BODY AND TO FRONT AXLE | ||
| 328 | A 3173330162 | THRUST WASHER |
| THRUST ARM TO BEARING BODY,TO BODY AND TO FRONT AXLE | ||
| 332 | A 3079900014 | SCREW |
| THRUST ARM TO BEARING BODY,TO BODY AND TO FRONT AXLE | ||
| 336 | N 912004012100 | LOCK WASHER |
| THRUST ARM TO BEARING BODY,TO BODY AND TO FRONT AXLE | ||
| 340 | A 3013300011 | THRUST ARM |
| Repalced by: A 6003300011 | ||
| 340 | A 6003300011 | THRUST ARM |
| TRANSVERSE CONTROL ARM | ||
| 344 | A 3073330030 | PIN |
| CONTROL ARM TO FRONT AXLE | ||
| 348 | N 000937040001 | NUT |
| PIN TO FRONT AXLE BEAM | ||
| 350 | N 000094006320 | COTTER PIN |
| PIN TO FRONT AXLE BEAM | ||
| 352 | A 3173331164 | RUBBER RING |
| CONTROL ARM TO PIN | ||
| 352 | A 3173331164 | RUBBER RING |
| CONTROL ARM TO BEARING BRACKET AT SUBSTRUCTURE | ||
| 356 | A 3173330162 | THRUST WASHER |
| CONTROL ARM TO PIN | ||
| 356 | A 3173330162 | THRUST WASHER |
| CONTROL ARM TO BEARING BRACKET AT SUBSTRUCTURE | ||
| 360 | A 3079900014 | SCREW |
| CONTROL ARM TO PIN | ||
| 360 | A 3079900014 | SCREW |
| CONTROL ARM TO BEARING BRACKET AT SUBSTRUCTURE | ||
| 364 | N 912004012100 | LOCK WASHER |
| CONTROL ARM TO PIN | ||
| 364 | N 912004012100 | LOCK WASHER |
| CONTROL ARM TO BEARING BRACKET AT SUBSTRUCTURE | ||

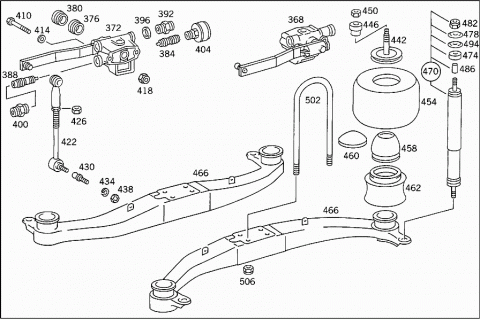

| 368 | A 0003282130 | VALVE |
| REAR AXLE LEVEL ADJUSTMENT,LEFT | ||
| 372 | A 0003282030 | VALVE |
| REAR AXLE LEVEL ADJUSTMENT,RIGHT | ||
| 376 | A 0019970247 | SEAL RING |
| INSIDE | ||
| 380 | A 0019970347 | SEAL RING |
| OUTSIDE | ||
| 384 | A 0003281925 | VALVE |
| INTAKE | ||
| 388 | A 0003282025 | VALVE |
| Repalced by: A 0003282125 | ||
| 388 | A 0003282125 | VALVE |
| EXHAUST | ||
| A 0003280014 | SHAFT | |
| 87 MM | ||
| A 0003200027 | LEVER | |
| Repalced by: A 0003200127 | ||
| A 0003200127 | LEVER | |
| (PARTS KIT) | ||
| A 0003200467 | REPAIR KIT | |
| Repalced by: A 0003200258 | ||
| A 0003200258 | REPAIR KIT | |
| LEVEL ADJUSTMENT VALVE | ||
| 392 | A 0019972572 | FITTING |
| Repalced by: N 000000006446 | ||
| 392 | N 000000006446 | FITTING |
| 396 | N 007603012405 | SEAL RING |
| 400 | A 0003272125 | VALVE |
| CHECK VALVE | ||
| A 0009905471 | ELBOW FITTING | |
| LEVEL ADJUSTMENT VALVE BREATHING | ||
| N 080705012003 | NUT | |
| LEVEL ADJUSTMENT VALVE BREATHING | ||
| A 0004290827 | THRUST RING | |
| LEVEL ADJUSTMENT VALVE BREATHING | ||
| A 0019875046 | SEALING CORD | |
| LEVEL ADJUSTMENT VALVE BREATHING | ||
| A 0049973072 | FITTING | |
| LEVEL ADJUSTMENT VALVE BREATHING | ||
| 404 | A 0000750032 | FILTER |
| LEVEL ADJUSTMENT VALVE BREATHING | ||
| N 916016015202 | CLAMP | |
| LINE MOUNTING | ||
| 15 MM | ||
| N 916016022206 | CLAMP | |
| LINE MOUNTING | ||
| 22 MM | ||
| Repalced by: N 916016022203 | ||
| N 916016022203 | CLAMP | |
| LINE MOUNTING | ||
| 22 MM | ||
| N 000933006127 | SCREW | |
| LINE MOUNTING | ||
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| LINE MOUNTING | ||
| 410 | N 000931008254 | SCREW |
| Repalced by: N 304014008002 | ||
| 410 | N 304014008002 | SCREW |
| LEVEL ADJUSTMENT VALVE TO SUBSTRUCTURE | ||
| 414 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 414 | N 000125008443 | WASHER |
| LEVEL ADJUSTMENT VALVE TO SUBSTRUCTURE | ||
| 418 | N 913004008005 | NUT |
| LEVEL ADJUSTMENT VALVE TO SUBSTRUCTURE | ||
| 422 | A 3013200189 | ROD |
| Repalced by: A 3073200389 | ||
| 422 | A 3073200389 | ROD |
| FROM VALVE TO SPRING BRACKET | ||
| 426 | N 000934008010 | NUT |
| 430 | N 071803013102 | BALL PIVOT |
| 434 | N 912004008102 | LOCK WASHER |
| ROD TO BEARING BRACKET | ||
| 438 | N 000934008010 | NUT |
| ROD TO BEARING BRACKET | ||
| 442 | A 3223200335 | PLATE |
| AIR SPRING BELLOWS TO SUBSTRUCTURE | ||
| 446 | A 3013270011 | RING |
| PLATE TO SUBSTRUCTURE | ||
| 450 | N 000936022002 | NUT |
| PLATE TO SUBSTRUCTURE | ||
| 454 | A 3073270001 | AIR SPRING BELLOWS |
| Repalced by: A 0003270101 | ||
| 454 | A 0003270101 | AIR SPRING BELLOWS |
| REAR AXLE PNEUMATIC SUSPENSION | ||
| 454 | A 3073270101 | AIR SPRING BELLOWS |
| Repalced by: A 0003270201 | ||
| 454 | A 0003270201 | AIR SPRING BELLOWS |
| REAR AXLE PNEUMATIC SUSPENSION | ||
| 458 | A 3053240108 | HELPER SPRING |
| SPRING BRACKET | ||
| 460 | A 3223270430 | RUBBER BUFFER |
| SPRING BRACKET | ||
| 462 | A 3073200175 | SPRING BRACKET |
| Repalced by: A 3573200134 | ||
| 462 | A 3573200134 | SUPPORT |
| AIR SPRING BELLOWS,BOTTOM | ||
| 462 | A 3573201534 | SUPPORT |
| AIR SPRING BELLOWS,BOTTOM | ||
| 462 | A 3013200175 | SPRING BRACKET |
| Repalced by: A 6003200434 | ||
| 462 | A 6003200434 | SUPPORT |
| AIR SPRING BELLOWS,BOTTOM | ||
| 466 | A 3013200975 | SPRING BRACKET |
| Repalced by: A 6003200075 | ||
| 466 | A 6003200075 | SPRING BRACKET |
| AIR SPRING BELLOWS AND REAR AXLE SHOCK ABSORBER | ||
| 470 | A 3003260000 | SHOCK ABSORBER |
| Repalced by: A 3003260200 | ||
| 470 | A 3003260200 | SHOCK ABSORBER |
| Repalced by: A 3003260500 | ||
| 470 | A 3003260500 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 470 | A 3003260200 | SHOCK ABSORBER |
| Repalced by: A 3003260400 | ||
| 470 | A 3003260400 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 474 | A 3173230444 | RUBBER BUFFER |
| SHOCK ABSORBER TO SUBSTRUCTURE | ||
| 474 | A 3173230444 | RUBBER BUFFER |
| SHOCK ABSORBER TO SUPPORTING ARM | ||
| 478 | A 3013200026 | SPRING RETAINER |
| SHOCK ABSORBER TO SUBSTRUCTURE | ||
| 482 | N 913001014003 | NUT |
| SHOCK ABSORBER TO SUBSTRUCTURE | ||
| 482 | N 913001014003 | NUT |
| SHOCK ABSORBER TO SUPPORTING ARM | ||
| 486 | A 3179911040 | SPACER TUBE |
| SHOCK ABSORBER TO SUPPORTING ARM | ||
| 494 | A 3173230667 | RETAINER |
| SHOCK ABSORBER TO SUPPORTING ARM | ||
| 502 | A 3073510125 | U-BOLT |
| Repalced by: A 6003510125 | ||
| 502 | A 6003510125 | U-BOLT |
| SPRING BRACKET TO REAR AXLE | ||
| A 3573250076 | WASHER | |
| Repalced by: A 3573250176 | ||
| A 3573250176 | WASHER | |
| Repalced by: A 3573250376 | ||
| A 3573250376 | WASHER | |
| SPRING BRACKET TO REAR AXLE | ||
| 506 | N 913004024004 | NUT |
| SPRING BRACKET TO REAR AXLE | ||
| 510 | A 3013260165 | TORSION BAR |
| REAR AXLE | ||
| 510 | A 3003260065 | TORSION BAR |
| REAR AXLE | ||
| 514 | A 3013260269 | LEVER |
| LEFT | ||
| 514 | A 3003260069 | LEVER |
| LEFT | ||
| 514 | A 3013260369 | LEVER |
| RIGHT | ||
| 514 | A 3003260169 | LEVER |
| RIGHT | ||
| 518 | N 000094006317 | COTTER PIN |
| LEVER TO TORSION BAR | ||
| 520 | N 000937036000 | NUT |
| Repalced by: A 0029901051 | ||
| 520 | A 0029901051 | NUT |
| LEVER TO TORSION BAR | ||
| 521 | A 3009900040 | WASHER |
| LEVER TO TORSION BAR | ||
| 522 | A 3013260082 | HOUSING |
| TORSION BAR BEARING | ||
| 522 | A 3003260082 | HOUSING |
| TORSION BAR BEARING | ||
| 526 | A 3013260168 | RUBBER BUFFER |
| TORSION BAR BEARING | ||
| 526 | A 3003260068 | RUBBER BUFFER |
| TORSION BAR BEARING | ||
| 530 | N 000961012165 | SCREW |
| Repalced by: N 000961012051 | ||
| 530 | N 000961012051 | SCREW |
| HOUSING TO SUBSTRUCTURE | ||
| 534 | N 913002012002 | NUT |
| HOUSING TO SUBSTRUCTURE | ||
| 536 | A 3003200028 | REPAIR KIT |
| TORSION BAR,REAR | ||
| 538 | A 3223200843 | BRACKET |
| TORSION BAR TO REAR AXLE | ||
| 542 | A 3219910340 | SPACER TUBE |
| TORSION BAR TO REAR AXLE | ||
| 546 | A 3213230267 | RETAINER |
| BOTTOM | ||
| 550 | A 3203230044 | RUBBER BUFFER |
| TORSION BAR TO REAR AXLE | ||
| 554 | A 3213230167 | RETAINER |
| TOP | ||
| 558 | N 000960018110 | SCREW |
| STABILIZER TO SUBSTRUCTURE | ||
| 562 | A 3029900055 | NUT |
| STABILIZER TO SUBSTRUCTURE | ||
| 564 | N 000094004065 | COTTER PIN |
| STABILIZER TO SUBSTRUCTURE | ||
| 566 | A 3013520341 | BEARING BODY |
| UPPER CONTROL ARM | ||
| 570 | A 3173510350 | BUSHING |
| BEARING BODY TO REAR AXLE | ||
| 574 | A 3179900019 | SCREW |
| BEARING BODY TO REAR AXLE | ||
| 578 | A 3173500706 | CONTROL ARM |
| Repalced by: A 6003300111 | ||
| 578 | A 6003300111 | THRUST ARM |
| DIAGONAL CONTROL ARM | ||
| 582 | A 3173331164 | RUBBER RING |
| CONTROL ARM TO BEARING BODY | ||
| 586 | A 3173330162 | THRUST WASHER |
| CONTROL ARM TO BEARING BODY | ||
| 596 | A 3079900014 | SCREW |
| CONTROL ARM TO BEARING BODY | ||
| 594 | N 912004012100 | LOCK WASHER |
| CONTROL ARM TO BEARING BODY | ||
| 598 | A 3013520030 | PIN |
| CONTROL ARM | ||
| 602 | A 3013330086 | PLATE WITH THREADED HOLES |
| CONTROL ARM | ||
| 606 | N 000961016036 | SCREW |
| Repalced by: N 308676016013 | ||
| 606 | N 308676016013 | SCREW |
| PIN TO SUBSTRUCTURE | ||
| 610 | N 912004016101 | LOCK WASHER |
| PIN TO SUBSTRUCTURE | ||
| 614 | A 3173331164 | RUBBER RING |
| DIAGONAL CONTROL ARM TO PIN | ||
| 618 | A 3173330162 | THRUST WASHER |
| DIAGONAL CONTROL ARM TO PIN | ||
| 622 | A 3079900014 | SCREW |
| DIAGONAL CONTROL ARM TO PIN | ||
| 626 | N 912004012100 | LOCK WASHER |
| DIAGONAL CONTROL ARM TO PIN | ||
| 630 | A 3073300013 | BEARING BRACKET |
| LONGITUDINAL CONTROL ARM | ||
| 634 | A 3173330174 | PIN |
| 25 MM | ||
| 638 | N 000960018142 | SCREW |
| BEARING BODY TO SUBSTRUCTURE | ||
| 642 | N 913004018004 | NUT |
| BEARING BODY TO SUBSTRUCTURE | ||
| 646 | A 3223330184 | SHIM |
| AS REQUIRED | ||
| 1.00 MM | ||
| 646 | A 3223330084 | SHIM |
| AS REQUIRED | ||
| 2.50 MM | ||
| 646 | A 3013520184 | SHIM |
| AS REQUIRED | ||
| 4.00 MM | ||
| 646 | A 3003330184 | SHIM |
| AS REQUIRED | ||
| 6.00 MM | ||
| 650 | A 3173500606 | CONTROL ARM |
| Repalced by: A 3573303411 | ||
| 650 | A 3573303411 | THRUST ARM |
| LONGITUDINAL CONTROL ARM | ||
| 654 | A 3173331164 | RUBBER RING |
| REAR AXLE LONGITUDINAL CONTROL ARM TO BEARING BODY | ||
| 658 | A 3173330162 | THRUST WASHER |
| REAR AXLE LONGITUDINAL CONTROL ARM TO BEARING BODY | ||
| 662 | A 3079900014 | SCREW |
| REAR AXLE LONGITUDINAL CONTROL ARM TO BEARING BODY | ||
| 666 | N 912004012100 | LOCK WASHER |
| REAR AXLE LONGITUDINAL CONTROL ARM TO BEARING BODY | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
