Transporto priemonė: O 303; VIN numerio dalis: 300385

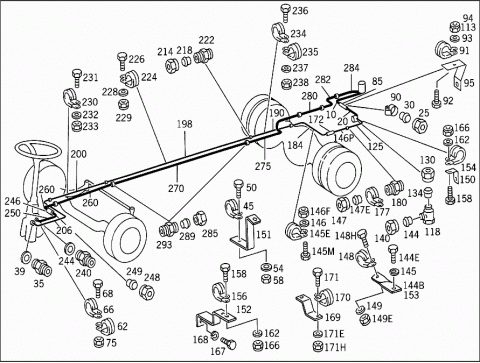

Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3014600024 | LINE |
| WITH BEAD,OIL RESERVOIR TO HOSE | ||
| 22 MM / 1210 MM | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR STEERING,SEE UNIT STANDARD VERSION, MODEL: | ||
| 765.2 | ||
| 010 | A 3014600024 | LINE |
| WITH BEAD,OIL RESERVOIR TO HOSE | ||
| 22 MM / 1210 MM | ||
| 010 | A 3014600024 | LINE |
| WITH BEAD,OIL RESERVOIR TO HOSE | ||
| 22 MM / 1210 MM | ||
| 010 | A 3014600024 | LINE |
| WITH BEAD,OIL RESERVOIR TO HOSE | ||
| 22 MM / 1210 MM | ||
| 010 | A 3014600024 | LINE |
| FOR STEERING,SEE UNIT STANDARD VERSION, MODEL: | ||
| 765.3 | ||
| 010 | A 6004660165 | LINE |
| FROM OIL TANK TO HOSE | ||
| 010 | A 3014600124 | LINE |
| WITH BEAD,OIL RESERVOIR TO HOSE | ||
| 22 MM / 1370 MM | ||
| 010 | A 3004604924 | LINE |
| WITH BEAD,OIL RESERVOIR TO HOSE | ||
| 22 MM | ||
| 010 | A 3014600224 | LINE |
| WITH BEAD,OIL RESERVOIR TO HOSE | ||
| 22 MM / 1530 MM | ||
| 010 | A 3004605024 | LINE |
| WITH BEAD,OIL RESERVOIR TO HOSE | ||
| 22 MM | ||
| 020 | A 3014600324 | LINE |
| WITH BEAD,HOSE TO POWER STEERING PUMP | ||
| 22 MM / 620 MM | ||
| 020 | A 3014609024 | LINE |
| WITH BEAD,HOSE TO POWER STEERING PUMP | ||
| 22 MM / 720 MM | ||
| 025 | N 915017022100 | UNION NUT |
| Repalced by: N 000000006243 | ||
| 025 | N 000000006243 | NUT |
| 030 | N 003861022004 | GLAND |
| 035 | A 3529970671 | FITTING |
| HIGH PRESSURE LINE TO STEERING | ||
| 039 | N 007603016103 | SEAL RING |
| HIGH PRESSURE LINE TO STEERING | ||
| 045 | N 916016022206 | CLAMP |
| LOW PRESSURE LINE TO SUBSTRUCTURE | ||
| 22/15 | ||
| Repalced by: N 916016022203 | ||
| 045 | N 916016022203 | CLAMP |
| LOW PRESSURE LINE TO SUBSTRUCTURE | ||
| 22/15 | ||
| 045 | N 916016032201 | CLAMP |
| LOW PRESSURE LINE TO SUBSTRUCTURE | ||
| 32/15 | ||
| 050 | N 000933006127 | SCREW |
| LOW PRESSURE LINE TO SUBSTRUCTURE | ||
| 054 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 054 | N 009021006208 | WASHER |
| LOW PRESSURE LINE TO SUBSTRUCTURE | ||
| 058 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 058 | N 910113006001 | NUT |
| LOW PRESSURE LINE TO SUBSTRUCTURE | ||
| 062 | N 916016015202 | CLAMP |
| HIGH PRESSURE LINE TO LOW PRESSURE LINE | ||
| 15/15 | ||
| 066 | N 916016022206 | CLAMP |
| HIGH PRESSURE LINE TO LOW PRESSURE LINE | ||
| 22/15 | ||
| Repalced by: N 916016022203 | ||
| 066 | N 916016022203 | CLAMP |
| HIGH PRESSURE LINE TO LOW PRESSURE LINE | ||
| 22/15 | ||
| 068 | N 000933006127 | SCREW |
| HIGH PRESSURE LINE TO LOW PRESSURE LINE | ||
| 075 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 075 | N 910113006001 | NUT |
| HIGH PRESSURE LINE TO LOW PRESSURE LINE | ||
| 085 | A 0069971182 | HOSE |
| FROM OIL TANK TO PUMP | ||
| 090 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 090 | N 000000000668 | CLAMP |
| 25/40 | ||
| 091 | N 916016022206 | CLAMP |
| LOW PRESSURE LINE TO SUSPENSION EYE BRACKET | ||
| Repalced by: N 916016022203 | ||
| 091 | N 916016022203 | CLAMP |
| LOW PRESSURE LINE TO SUSPENSION EYE BRACKET | ||
| 092 | N 000933006127 | SCREW |
| LOW PRESSURE LINE TO SUSPENSION EYE BRACKET | ||
| 093 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 093 | N 009021006208 | WASHER |
| LOW PRESSURE LINE TO SUSPENSION EYE BRACKET | ||
| 094 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 094 | N 910113006001 | NUT |
| LOW PRESSURE LINE TO SUSPENSION EYE BRACKET | ||
| 095 | A 3014660540 | BRACKET |
| LOW PRESSURE LINE TO SUBSTRUCTURE | ||
| 113 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 113 | N 910113006001 | NUT |
| LOW PRESSURE LINE TO CLUTCH CYLINDER BRACKET | ||
| 118 | A 0009907168 | FITTING |
| LINE TO OIL PUMP | ||
| A 3529970671 | FITTING | |
| LINE TO OIL PUMP | ||
| N 007603016103 | SEAL RING | |
| LINE TO OIL PUMP | ||
| 125 | A 3014601924 | LINE |
| Repalced by: A 3074669465 | ||
| 125 | A 3074669465 | LINE |
| WITH TAPER,POWER STEERING PUMP TO HOSE | ||
| 15 MM / 12 MM | ||
| 125 | A 3074669465 | LINE |
| WITH TAPER,POWER STEERING PUMP TO HOSE | ||
| 15 MM / 12 MM | ||
| 125 | A 3004604624 | LINE |
| WITH TAPER,POWER STEERING PUMP TO HOSE | ||
| 15 MM / 12 MM, 1010 MM | ||
| 125 | A 3004608324 | LINE |
| FROM POWER STEERING PUMP TO HOSE | ||
| 845 MM | ||
| 125 | A 3004601524 | LINE |
| WITH TAPER,POWER STEERING PUMP TO FITTING | ||
| 15 MM / 12 MM, 460 MM | ||
| 125 | A 3004608424 | LINE |
| FROM POWER STEERING PUMP TO FITTING | ||
| 470 MM | ||
| 130 | N 915017015100 | UNION NUT |
| 134 | N 003861015004 | GLAND |
| 140 | N 915017012100 | UNION NUT |
| Repalced by: N 000000006239 | ||
| 140 | N 000000006239 | UNION NUT |
| 144 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 144 | A 0019901967 | SEAL CONE |
| 144B | A 3004660440 | BRACKET |
| FROM PUMP TO HOSE | ||
| 144E | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 144E | N 304017008016 | SCREW |
| FROM PUMP TO HOSE | ||
| M 8X16 | ||
| 145 | N 912004008102 | LOCK WASHER |
| FROM PUMP TO HOSE | ||
| 145E | N 916016015202 | CLAMP |
| FROM PUMP TO HOSE | ||
| 145M | N 000933006127 | SCREW |
| FROM PUMP TO HOSE | ||
| M 6X25 | ||
| 146 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 146 | N 009021006208 | WASHER |
| FROM PUMP TO HOSE | ||
| 146F | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 146F | N 910113006001 | NUT |
| FROM PUMP TO HOSE | ||
| 146P | A 3004601624 | LINE |
| FROM CONNECTION FITTING TO HOSE | ||
| 146P | A 3004603124 | LINE |
| FROM CONNECTION FITTING TO HOSE | ||
| 146P | A 3004604124 | LINE |
| FROM CONNECTION FITTING TO HOSE | ||
| 147 | N 915017015101 | UNION NUT |
| 147E | N 003861015004 | GLAND |
| 148 | N 916016015202 | CLAMP |
| HIGH PRESSURE LINE TO EXHAUST BRAKE BRACKET | ||
| 148H | N 000933006127 | SCREW |
| HIGH PRESSURE LINE TO EXHAUST BRAKE BRACKET | ||
| 149 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 149 | N 009021006208 | WASHER |
| HIGH PRESSURE LINE TO EXHAUST BRAKE BRACKET | ||
| 149E | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 149E | N 910113006001 | NUT |
| HIGH PRESSURE LINE TO EXHAUST BRAKE BRACKET | ||
| 150 | A 3014660640 | BRACKET |
| HIGH PRESSURE LINE TO EXHAUST PIPE BRACKET | ||
| 151 | A 3004660040 | BRACKET |
| LINES TO BRACKET | ||
| 152 | A 3004660340 | BRACKET |
| LINES TO BRACKET | ||
| 153 | A 3004660440 | BRACKET |
| HIGH PRESSURE LINE | ||
| 154 | N 916016015202 | CLAMP |
| HIGH PRESSURE LINE TO EXHAUST PIPE BRACKET | ||
| 154 | N 916016015202 | CLAMP |
| LINES TO BRACKET | ||
| 156 | N 916016022201 | CLAMP |
| LINES TO BRACKET | ||
| 158 | N 000933006127 | SCREW |
| HIGH PRESSURE LINE TO EXHAUST PIPE BRACKET | ||
| 158 | N 000933006127 | SCREW |
| LINES TO BRACKET | ||
| 162 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 162 | N 009021006208 | WASHER |
| HIGH PRESSURE LINE TO EXHAUST PIPE BRACKET | ||
| 162 | N 009021006208 | WASHER |
| LINES TO BRACKET | ||
| 166 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 166 | N 910113006001 | NUT |
| HIGH PRESSURE LINE TO EXHAUST PIPE BRACKET | ||
| 166 | N 910113006001 | NUT |
| LINES TO BRACKET | ||
| 167 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 167 | N 304017008016 | SCREW |
| HIGH PRESSURE LINE | ||
| M 8X16 | ||
| 168 | N 912004008102 | LOCK WASHER |
| HIGH PRESSURE LINE | ||
| 169 | A 3014290340 | BRACKET |
| BRACKET TO TRANSMISSION | ||
| 170 | N 916016015202 | CLAMP |
| BRACKET TO TRANSMISSION | ||
| 171 | N 000933006127 | SCREW |
| BRACKET TO TRANSMISSION | ||
| M 6X25 | ||
| 171E | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 171E | N 009021006208 | WASHER |
| BRACKET TO TRANSMISSION | ||
| 171H | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 171H | N 910113006001 | NUT |
| BRACKET TO TRANSMISSION | ||
| 172 | A 3059971082 | HOSE |
| FROM PUMP TO STEERING | ||
| 172 | A 3059971682 | HOSE |
| FROM PUMP TO STEERING | ||
| 172 | A 0139971182 | HOSE |
| FROM PUMP TO STEERING | ||
| 172 | A 0129979782 | HOSE |
| FROM PUMP TO STEERING | ||
| 172 | A 0169973782 | HOSE |
| Repalced by: A 0269972582 | ||
| 172 | A 0269972582 | EXPANSION HOSE |
| FROM PUMP TO STEERING | ||
| 177 | N 916016020201 | CLAMP |
| CLAMP TO BRACKET | ||
| 180 | N 003902015002 | CONNECTION FITTING |
| FROM HOSE TO FITTING | ||
| 180 | N 003902015002 | CONNECTION FITTING |
| FROM HOSE TO FITTING | ||
| 184 | A 3014602324 | LINE |
| Repalced by: A 0005516256 | ||
| 184 | A 0005516256 | TUBE |
| FROM HIGH PRESSURE HOSE TO CONNECTOR | ||
| 184 | A 3014602524 | LINE |
| Repalced by: A 0005516256 | ||
| 184 | A 0005516256 | TUBE |
| FROM HIGH PRESSURE HOSE TO CONNECTOR | ||
| 184 | A 3004603924 | LINE |
| FROM HIGH PRESSURE HOSE TO CONNECTOR | ||
| 184 | A 3004604524 | LINE |
| FROM HIGH PRESSURE HOSE TO CONNECTOR | ||
| 184 | A 3014602724 | LINE |
| Repalced by: A 0005516256 | ||
| 184 | A 0005516256 | TUBE |
| FROM HIGH PRESSURE HOSE TO CONNECTOR | ||
| 184 | A 3004605524 | LINE |
| FROM HIGH PRESSURE HOSE TO CONNECTOR | ||
| 190 | A 3014602824 | LINE |
| HIGH PRESSURE,CONNECTION PIECE I TO CONNECTION PIECE II | ||
| 15 MM | ||
| 190 | A 3014602824 | LINE |
| HIGH PRESSURE,CONNECTION PIECE I TO CONNECTION PIECE II | ||
| 15 MM | ||
| 190 | A 3014602824 | LINE |
| HIGH PRESSURE,CONNECTION PIECE I TO CONNECTION PIECE II | ||
| 15 MM | ||
| 190 | A 3014602824 | LINE |
| HIGH PRESSURE,CONNECTION PIECE I TO CONNECTION PIECE II | ||
| 15 MM | ||
| 198 | A 3004600024 | LINE |
| Repalced by: A 0005516256 | ||
| 198 | A 0005516256 | TUBE |
| HIGH PRESSURE,PUMP TO STEERING | ||
| 15 MM | ||
| 198 | A 0005516256 | TUBE |
| HIGH PRESSURE,CONNECTION PIECE II TO CONNECTION PIECE III | ||
| 15 MM / 4750 MM | ||
| 198 | A 0005516256 | TUBE |
| HIGH PRESSURE,CONNECTION PIECE III TO CONNECTION PIECE IV | ||
| 15 MM / 2610 MM | ||
| A 3014609124 | LINE | |
| Repalced by: A 0005516256 | ||
| A 0005516256 | TUBE | |
| HIGH PRESSURE,CONNECTION PIECE III TO CONNECTION PIECE IV | ||
| 15 MM | ||
| 200 | A 3004605724 | LINE |
| HIGH PRESSURE,CONNECTION PIECE III TO CONNECTION PIECE IV | ||
| 15 MM | ||
| 206 | A 3004600124 | LINE |
| HIGH PRESSURE | ||
| 15 MM | ||
| 206 | A 3004600124 | LINE |
| FROM CONNECTION FITTING IV TO HYDRAULIC STEERING | ||
| 15 MM | ||
| 206 | A 3014607924 | LINE |
| HIGH PRESSURE | ||
| 15 MM | ||
| 206 | A 3014607924 | LINE |
| FROM CONNECTION FITTING IV TO CONNECTION FITTING V | ||
| 15 MM | ||
| A 3004605824 | LINE | |
| HIGH PRESSURE | ||
| 15 MM | ||
| A 3004605824 | LINE | |
| RIGHT TRANSVERSE INTAKE PIPE | ||
| 15 MM | ||
| A 3014608024 | LINE | |
| Repalced by: A 0005516256 | ||
| A 0005516256 | TUBE | |
| FROM CONNECTION FITTING TO STEERING | ||
| 214 | N 915017015100 | UNION NUT |
| 218 | N 003861015004 | GLAND |
| 222 | N 003902015002 | CONNECTION FITTING |
| 224 | N 916016015202 | CLAMP |
| HIGH PRESSURE OIL LINE TO SUBSTRUCTURE | ||
| 226 | N 000933006127 | SCREW |
| HIGH PRESSURE OIL LINE TO SUBSTRUCTURE | ||
| 228 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 228 | N 009021006208 | WASHER |
| HIGH PRESSURE OIL LINE TO SUBSTRUCTURE | ||
| 229 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 229 | N 910113006001 | NUT |
| HIGH PRESSURE OIL LINE TO SUBSTRUCTURE | ||
| 230 | N 916016015202 | CLAMP |
| HIGH PRESSURE LINE TO BRAKE LINE | ||
| 231 | N 000933006127 | SCREW |
| HIGH PRESSURE LINE TO BRAKE LINE | ||
| 232 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 232 | N 009021006208 | WASHER |
| HIGH PRESSURE LINE TO BRAKE LINE | ||
| 233 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 233 | N 910113006001 | NUT |
| HIGH PRESSURE LINE TO BRAKE LINE | ||
| 234 | N 916016015202 | CLAMP |
| HIGH AND LOW PRESSURE HOSES TO SUBSTRUCTURE | ||
| 15/15 | ||
| 235 | N 916016022206 | CLAMP |
| HIGH AND LOW PRESSURE HOSES TO SUBSTRUCTURE | ||
| 22/15 | ||
| Repalced by: N 916016022203 | ||
| 235 | N 916016022203 | CLAMP |
| HIGH AND LOW PRESSURE HOSES TO SUBSTRUCTURE | ||
| 22/15 | ||
| 236 | N 000933006127 | SCREW |
| HIGH AND LOW PRESSURE HOSES TO SUBSTRUCTURE | ||
| 237 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 237 | N 009021006208 | WASHER |
| HIGH AND LOW PRESSURE HOSES TO SUBSTRUCTURE | ||
| 238 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 238 | N 910113006001 | NUT |
| HIGH AND LOW PRESSURE HOSES TO SUBSTRUCTURE | ||
| 240 | A 3529970571 | FITTING |
| LOW PRESSURE LINE TO STEERING | ||
| 244 | N 007603018101 | SEAL RING |
| LOW PRESSURE LINE TO STEERING | ||
| 246 | A 3009970382 | HOSE |
| FROM STEERING TO OIL TANK | ||
| 248 | N 915017022100 | UNION NUT |
| FROM HOSE TO FITTING | ||
| Repalced by: N 000000006243 | ||
| 248 | N 000000006243 | NUT |
| FROM HOSE TO FITTING | ||
| 249 | N 003861022004 | GLAND |
| FROM HOSE TO FITTING | ||
| 250 | A 3014600424 | LINE |
| LOW PRESSURE,STEERING TO CONNECTION PIECE I | ||
| 22 MM / 1225 MM | ||
| 250 | A 3014608124 | LINE |
| LOW PRESSURE,STEERING TO CONNECTION PIECE I | ||
| 22 MM / 995 MM | ||
| 260 | A 3014600624 | LINE |
| LOW PRESSURE | ||
| 22 MM | ||
| 260 | A 3014600624 | LINE |
| FROM CONNECTOR I TO CONNECTOR II | ||
| 2680 MM | ||
| 260 | A 3014600624 | LINE |
| LOW PRESSURE | ||
| 22 MM | ||
| A 3014608224 | LINE | |
| LOW PRESSURE | ||
| 22 MM | ||
| A 3014608224 | LINE | |
| FROM LOW PRESSURE HOSE TO CONNECTION FITTING | ||
| 1105 MM | ||
| A 3014607624 | LINE | |
| Repalced by: A 0004291601 | ||
| A 3004606024 | LINE | |
| LOW PRESSURE | ||
| A 3004606024 | LINE | |
| FROM CONNECTOR I TO CONNECTOR II | ||
| 700 MM | ||
| 270 | A 3014601224 | LINE |
| Repalced by: A 0004291601 | ||
| 270 | A 0004291601 | LINE |
| LOW PRESSURE | ||
| 22 MM | ||
| 270 | A 0004291601 | LINE |
| FROM CONNECTOR I TO CONNECTOR II | ||
| 22 MM | ||
| 270 | A 0004291601 | LINE |
| FROM CONNECTOR I TO CONNECTOR II | ||
| 1975 MM | ||
| 270 | A 0004291601 | LINE |
| LOW PRESSURE,STEERING TO PUMP | ||
| 22 MM | ||
| 270 | A 0004291601 | LINE |
| FROM CONNECTOR II TO CONNECTOR III | ||
| 4750 MM | ||
| 270 | A 0004291601 | LINE |
| FROM CONNECTOR III TO CONNECTOR IV | ||
| 22 MM | ||
| 270 | A 3004603824 | LINE |
| 22 MM | ||
| 270 | A 3004603824 | LINE |
| FROM LOW PRESSURE HOSE TO CONNECTION FITTING | ||
| 1150 MM | ||
| 270 | A 3004603724 | LINE |
| LOW PRESSURE,STEERING TO HOSE | ||
| 22 MM / 480 MM | ||
| A 3004605924 | LINE | |
| LOW PRESSURE,STEERING TO PUMP | ||
| 22 MM | ||
| 275 | A 3014601324 | LINE |
| Repalced by: A 3004600824 | ||
| 275 | A 3004600824 | LINE |
| LOW PRESSURE | ||
| 275 | A 3004600824 | LINE |
| FROM CONNECTOR III TO CONNECTOR IV | ||
| 2050 MM | ||
| 275 | A 3004600824 | LINE |
| LOW PRESSURE | ||
| 275 | A 3004600824 | LINE |
| LOW PRESSURE | ||
| A 3004608624 | LINE | |
| LOW PRESSURE | ||
| A 3004608624 | LINE | |
| FROM CONNECTOR III TO CONNECTOR IV | ||
| 275 | A 3004605124 | LINE |
| LOW PRESSURE | ||
| 22 MM | ||
| 275 | A 3004605124 | LINE |
| FROM CONNECTOR III TO CONNECTOR IV | ||
| 22 MM | ||
| 280 | A 3004605224 | LINE |
| LOW PRESSURE | ||
| 22 MM | ||
| 280 | A 3004605224 | LINE |
| FROM CONNECTOR IV TO CONNECTOR V | ||
| 22 MM | ||
| 282 | A 3004601724 | LINE |
| LOW PRESSURE | ||
| 22 MM | ||
| 282 | A 3004601724 | LINE |
| FROM CONNECTOR V TO CONNECTOR VI | ||
| 750 MM | ||
| 282 | A 3004605324 | LINE |
| LOW PRESSURE | ||
| 22 MM | ||
| 282 | A 3004605324 | LINE |
| FROM CONNECTOR V TO CONNECTOR VI | ||
| 22 MM | ||
| 284 | A 3004601824 | LINE |
| LOW PRESSURE,CONNECTION PIECE TO OILRESERVOIR | ||
| 22 MM / 1510 MM | ||
| 284 | A 3004605424 | LINE |
| LOW PRESSURE,CONNECTION PIECE TO OILRESERVOIR | ||
| 22 MM | ||
| A 3004609624 | LINE | |
| LOW PRESSURE | ||
| 22 MM | ||
| A 3004609624 | LINE | |
| FROM CONNECTION FITTING VI TO OIL TANK | ||
| 22 MM | ||
| 284 | A 3014601824 | LINE |
| Repalced by: A 3004600924 | ||
| 284 | A 3004600924 | LINE |
| LOW PRESSURE,CONNECTION PIECE TO OILRESERVOIR | ||
| 2475 MM | ||
| 285 | N 915017022100 | UNION NUT |
| Repalced by: N 000000006243 | ||
| 285 | N 000000006243 | NUT |
| 289 | N 003861022004 | GLAND |
| 293 | N 003902022001 | FITTING |

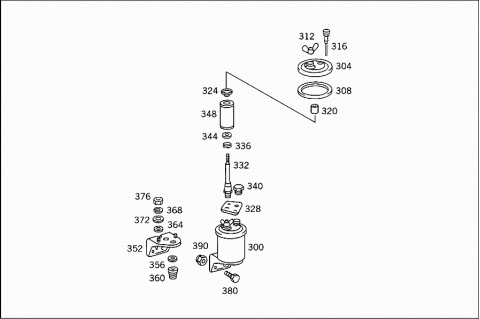

| 300 | A 0004662802 | TANK |
| OIL TANK | ||
| A 0004664502 | TANK | |
| OIL TANK | ||
| 304 | A 0004661305 | COVER |
| A 0004660068 | FILLER CAP | |
| 308 | A 0004660260 | SEAL RING |
| 308 | A 0004661760 | SEAL RING |
| 312 | N 000315008006 | NUT |
| 316 | A 0004660067 | OIL DIPSTICK |
| 316 | A 0004660267 | OIL DIPSTICK |
| Repalced by: A 0004660867 | ||
| 316 | A 0004660867 | OIL DIPSTICK |
| A 1233270059 | PROTECTIVE CAP | |
| 320 | A 0009870643 | RUBBER SLEEVE |
| 324 | A 0004660675 | CENTERING RING |
| 328 | A 0004660037 | REINFORCEMENT |
| 332 | A 0014664465 | FILTER CARRIER |
| 336 | A 0004660153 | SPACER TUBE |
| 340 | A 0004660571 | FITTING |
| 344 | A 0004660275 | WASHER |
| Repalced by: A 9402680552 | ||
| 344 | A 9402680552 | SPACER WASHER |
| 348 | A 0004660604 | FILTER |
| 352 | A 0004660040 | BRACKET |
| Repalced by: A 0004660840 | ||
| 352 | A 0004660840 | BRACKET |
| A 0004660740 | BRACKET | |
| 356 | A 0059970848 | SEAL RING |
| 360 | A 0004660458 | CONNECTOR |
| 364 | A 0099970145 | SEAL RING |
| 368 | N 912004008102 | LOCK WASHER |
| 372 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 372 | N 009021008213 | WASHER |
| 376 | N 000934008010 | NUT |
| A 6004600035 | BRACKET | |
| OIL TANK TO BODY | ||
| 380 | N 000933010128 | SCREW |
| OIL TANK TO BRACKET | ||
| M 10X20 | ||
| 390 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 390 | N 910113010000 | NUT |
| OIL TANK TO BRACKET | ||
| A 3004660740 | BRACKET | |
| OIL TANK TO BRACKET | ||
| A 3834660181 | HOSE | |
| AT OIL TANK | ||
| A 3574660081 | HOSE | |
| AT OIL TANK | ||
| N 916017025000 | CLAMP | |
| Repalced by: N 000000000668 | ||
| N 000000000668 | CLAMP | |
| AT OIL TANK | ||
| N 916017011000 | CLAMP | |
| Repalced by: N 916017011001 | ||
| N 916017011001 | CLAMP | |
| Repalced by: N 000000000665 | ||
| N 000000000665 | CLAMP | |
| AT OIL TANK | ||

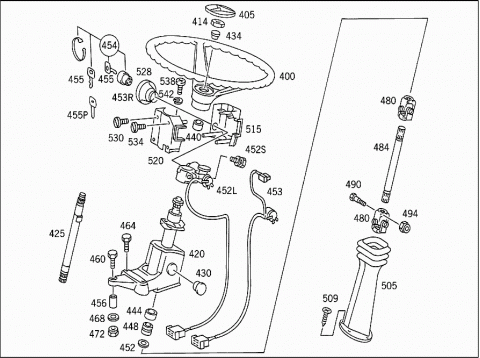

| 400 | A 3834640201 | STEERING WHEEL |
| 400 | A 3014640201 | STEERING WHEEL |
| 405 | A 0004640432 | BADGE |
| 414 | N 308675022001 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| 420 | A 3014600231 | STEERING COLUMN BRACKET |
| A 3014603031 | STEERING COLUMN BRACKET | |
| 420 | A 3004600031 | STEERING COLUMN BRACKET |
| 420 | A 3014600431 | STEERING COLUMN BRACKET |
| Repalced by: A 3014603431 | ||
| 420 | A 3014603431 | STEERING COLUMN BRACKET |
| 420 | A 3004600131 | STEERING COLUMN BRACKET |
| 425 | A 3014600009 | STEERING SHAFT |
| Repalced by: A 3014600909 | ||
| 425 | A 3014600909 | STEERING SHAFT |
| 425 | A 3014600109 | STEERING SHAFT |
| Repalced by: A 3014601009 | ||
| 425 | A 3014601009 | STEERING SHAFT |
| 430 | A 3839970286 | PLUG |
| TOP OUTSIDE | ||
| 434 | A 3819971186 | PLUG |
| TOP INSIDE | ||
| 440 | A 3014600050 | BUSHING |
| Repalced by: A 0119817310 | ||
| 440 | A 3014600050 | BUSHING |
| Repalced by: A 0119817310 | ||
| 440 | A 0119817310 | NEEDLE BEARING |
| Repalced by: A 0129818510 | ||
| 440 | A 0129818510 | NEEDLE BEARING |
| TOP | ||
| 440 | A 0139815910 | NEEDLE BEARING |
| A 3574620075 | WASHER | |
| 444 | A 3124621150 | BUSHING |
| Repalced by: A 0119815110 | ||
| 444 | A 3124621150 | BUSHING |
| Repalced by: A 0119815110 | ||
| 444 | A 0119815110 | NEEDLE BEARING |
| BOTTOM | ||
| 444 | A 0129818310 | NEEDLE BEARING |
| BOTTOM | ||
| 448 | A 3214620165 | RING |
| BOTTOM | ||
| 452 | A 3224620023 | COVER |
| BOTTOM | ||
| 452L | A 0014621930 | STEERING LOCK |
| 452S | A 0004622371 | SCREW |
| (BREAK-OFF BOLT),STEERING LOCK MOUNTING | ||
| 453 | A 0005455513 | SWITCH BOX |
| 453R | A 3814600104 | TUMBLER |
| HUF | ||
| 453R | A 3094600004 | TUMBLER |
| LESS KEY | ||
| YMOS | ||
| 454 | A 3814600004 | TUMBLER |
| WITH 2 KEYS | ||
| HUF | ||
| 454 | A 3094620079 | TUMBLER |
| WITH 2 KEYS | ||
| YMOS | ||
| 455 | A 0007600006 | KEY |
| HUF | ||
| 455 | A 0007600606 | KEY |
| YMOS | ||
| 455P | A 0007663706 | KEY |
| BLANK | ||
| HUF | ||
| 455P | A 0007665306 | KEY |
| BLANK | ||
| YMOS | ||
| 456 | A 3014620350 | BUSHING |
| STEERING COLUMN BRACKET TO SUBSTRUCTURE | ||
| 460 | N 000931010268 | SCREW |
| Repalced by: N 304017010050 | ||
| 460 | N 304017010050 | SCREW |
| STEERING COLUMN BRACKET TO SUBSTRUCTURE | ||
| M 10X70 | ||
| 464 | N 000933010145 | SCREW |
| STEERING COLUMN BRACKET TO SUBSTRUCTURE | ||
| M 10X35 | ||
| 468 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 468 | N 000125010532 | WASHER |
| STEERING COLUMN BRACKET TO SUBSTRUCTURE | ||
| 472 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 472 | N 910113010000 | NUT |
| STEERING COLUMN BRACKET TO SUBSTRUCTURE | ||
| 480 | A 3814600057 | UNIVERSAL JOINT |
| Repalced by: A 3164600057 | ||
| 480 | A 3164600057 | UNIVERSAL JOINT |
| Repalced by: A 0004600057 | ||
| 480 | A 0004600057 | UNIVERSAL JOINT |
| TOP AND BOTTOM | ||
| 480 | A 3164600157 | UNIVERSAL JOINT |
| Repalced by: A 0004600157 | ||
| 480 | A 0004600157 | UNIVERSAL JOINT |
| 484 | A 3014620301 | STEERING SHAFT |
| BOTTOM | ||
| 484 | A 3014620301 | STEERING SHAFT |
| BOTTOM | ||
| 484 | A 3014620701 | STEERING SHAFT |
| BOTTOM | ||
| 484 | A 3014620701 | STEERING SHAFT |
| BOTTOM | ||
| 484 | A 3004620001 | STEERING SHAFT |
| BOTTOM | ||
| 484 | A 3004620001 | STEERING SHAFT |
| BOTTOM | ||
| 484 | A 3004620001 | STEERING SHAFT |
| BOTTOM | ||
| 484 | A 3004620101 | STEERING SHAFT |
| BOTTOM | ||
| 484 | A 3004620101 | STEERING SHAFT |
| BOTTOM | ||
| 484 | A 3004620101 | STEERING SHAFT |
| BOTTOM | ||
| 484 | A 3004620101 | STEERING SHAFT |
| BOTTOM | ||
| 484 | A 3004620101 | STEERING SHAFT |
| BOTTOM | ||
| 484 | A 3004620201 | STEERING SHAFT |
| BOTTOM | ||
| 484 | A 3004620301 | STEERING SHAFT |
| BOTTOM | ||
| 490 | A 3819900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| M 8X42 | ||
| 490 | A 3819900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| M 8X42 | ||
| 490 | A 3169900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| M 8X38 | ||
| 494 | N 913004008005 | NUT |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| 500 | A 3014620196 | BOOT |
| 505 | A 3014610097 | PROTECTIVE SLEEVE |
| 509 | N 000097004037 | WOOD SCREW |
| PROTECTIVE SLEEVE TO CAB FLOOR | ||
| 515 | A 3814620043 | SHELL |
| STEERING COLUMN PANELLING | ||
| 515 | A 3814622143 | SHELL |
| STEERING COLUMN PANELLING | ||
| 515 | A 3814620443 | SHELL |
| STEERING COLUMN PANELLING | ||
| 515 | A 3814622243 | SHELL |
| STEERING COLUMN PANELLING | ||
| 520 | A 3814620143 | SHELL |
| Repalced by: A 3814622443 | ||
| 520 | A 3814622443 | SHELL |
| STEERING COLUMN PANELLING | ||
| 520 | A 3814620543 | SHELL |
| STEERING COLUMN PANELLING | ||
| 520 | A 3814622343 | SHELL |
| STEERING COLUMN PANELLING | ||
| A 6204620043 | SHELL | |
| STEERING COLUMN PANELLING; BRAZIL,NO.8316 | ||
| A 6204620443 | SHELL | |
| STEERING COLUMN PANELLING; BRAZIL,NO.8316 | ||
| A 3574620096 | BOOT | |
| STEERING COLUMN PANELLING; BRAZIL,NO.8316 | ||
| A 3574620196 | BOOT | |
| STEERING COLUMN PANELLING; BRAZIL,NO.8316 | ||
| 528 | A 3814620486 | GROMMET |
| 530 | A 3819900221 | SCREW |
| SHELL TO STEERING COLUMN | ||
| M 5X75.5 | ||
| 534 | A 3019900021 | SCREW |
| Repalced by: A 3819900321 | ||
| 534 | A 3819900321 | SCREW |
| SHELL TO STEERING COLUMN | ||
| M 5X83 | ||
| 538 | N 007985004107 | SCREW |
| STEERING COLUMN MOUNTED SWITCH TO SHELL | ||
| 538 | N 007985005193 | SCREW |
| STEERING COLUMN MOUNTED SWITCH TO SHELL | ||
| 542 | N 912006004000 | LOCK WASHER |
| STEERING COLUMN MOUNTED SWITCH TO SHELL | ||
| 542 | N 912004005103 | LOCK WASHER |
| 550 | A 3014610140 | STEERING SUPPORT |
| 550 | A 3014610140 | STEERING SUPPORT |
| 550 | A 3004610040 | STEERING SUPPORT |
| 550 | A 3014610340 | STEERING SUPPORT |
| 550 | A 3014610340 | STEERING SUPPORT |
| 550 | A 6004610040 | STEERING SUPPORT |
| 560 | N 000960014247 | SCREW |
| Repalced by: N 308676014013 | ||
| 560 | N 308676014013 | SCREW |
| STEERING SUPPORT TO SUBSTRUCTURE | ||
| M 14X1.5X65 | ||
| 560 | N 308676014013 | SCREW |
| STEERING SUPPORT TO SUBSTRUCTURE | ||
| M 14X1.5X65 | ||
| 560 | N 000960014190 | SCREW |
| STEERING SUPPORT TO SUBSTRUCTURE | ||
| M 14X60 | ||
| 560 | N 000960014190 | SCREW |
| STEERING SUPPORT TO SUBSTRUCTURE | ||
| M 14X60 | ||
| 564 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 564 | N 910113014000 | NUT |
| STEERING SUPPORT TO SUBSTRUCTURE | ||
| 570 | N 000961016036 | SCREW |
| Repalced by: N 308676016013 | ||
| 570 | N 308676016013 | SCREW |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| 574 | N 912004016101 | LOCK WASHER |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| 580 | A 3014630801 | PITMAN ARM |
| 580 | A 3014630801 | PITMAN ARM |
| 580 | A 3004630001 | PITMAN ARM |
| 580 | A 3014630901 | PITMAN ARM |
| 580 | A 3014630901 | PITMAN ARM |
| 580 | A 3004630201 | PITMAN ARM |
| 590 | N 000937042003 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 590 | N 000937042003 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 590 | A 0029905051 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 590 | A 0019908151 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 590 | A 0019908151 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 595 | N 000094008014 | COTTER PIN |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 595 | N 000094008014 | COTTER PIN |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 600 | A 3014600505 | DRAG LINK |
| Repalced by: A 3004600405 | ||
| 600 | A 3004600405 | DRAG LINK |
| FROM PITMAN ARM TO INTERMEDIATE LEVER | ||
| LEMFOERDER | ||
| 600 | A 3004600505 | DRAG LINK |
| FROM PITMAN ARM TO INTERMEDIATE LEVER | ||
| EHRENREICH | ||
| A 0003301085 | BOOT | |
| FIXED PART OF JOINT | ||
| 605 | A 0003382645 | CLAMP |
| LEMFOERDER | ||
| 605 | A 0003383545 | CLAMP |
| Repalced by: A 0003382645 | ||
| 605 | A 0003382645 | CLAMP |
| EHRENREICH | ||
| 609 | N 000960012296 | SCREW |
| 613 | A 0004630572 | NUT |
| Repalced by: N 913004012008 | ||
| 613 | N 913004012008 | NUT |
| 617 | A 0004632229 | BALL JOINT |
| Repalced by: A 0004633429 | ||
| 617 | A 0004633429 | BALL JOINT |
| Repalced by: A 0013300135 | ||
| 617 | A 0013300135 | JOINT |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 617 | A 0013300235 | JOINT |
| R.H. THREAD | ||
| EHRENREICH | ||
| 621 | A 0003301085 | BOOT |
| 625 | N 000937020001 | NUT |
| DRAG LINK TO PITMAN ARM AND TO STEERING INTERMEDIATE ARM | ||
| 635 | N 000094004065 | COTTER PIN |
| DRAG LINK TO PITMAN ARM AND TO STEERING INTERMEDIATE ARM | ||
| 640 | A 3024630410 | STEERING INTERMEDIATE ARM |
| Repalced by: A 3004630010 | ||
| 640 | A 3004630010 | STEERING INTERMEDIATE ARM |
| 640 | A 3024630510 | STEERING INTERMEDIATE ARM |
| Repalced by: A 3004630310 | ||
| 640 | A 3004630310 | STEERING INTERMEDIATE ARM |
| STEERING INTERMEDIATE ARM | ||
| 648 | N 071412010200 | GREASE NIPPLE |
| STEERING INTERMEDIATE ARM | ||
| 652 | A 3014630084 | SHIM |
| PIVOT BEARING TO SUBSTRUCTURE | ||
| 656 | N 000961014054 | SCREW |
| PIVOT BEARING TO SUBSTRUCTURE | ||
| 660 | N 912004014100 | LOCK WASHER |
| PIVOT BEARING TO SUBSTRUCTURE | ||
| 670 | A 3174630011 | TRUNNION BEARING |
| STEERING INTERMEDIATE ARM | ||
| 674 | N 006504042100 | RADIAL SEAL RING |
| Repalced by: A 0079976446 | ||
| 674 | A 0079976446 | SEAL RING |
| 678 | A 3174630052 | SPACER WASHER |
| 682 | N 000720030206 | TAPERED ROLLER BEARING |
| 30X62 MM | ||
| 686 | N 000720030205 | TAPERED ROLLER BEARING |
| Repalced by: A 0059819105 | ||
| 686 | A 0059819105 | TAPERED ROLLER BEARING |
| 25X52 MM | ||
| 690 | A 3174630062 | THRUST WASHER |
| 694 | N 000937020001 | NUT |
| INTERMEDIATE LEVER TO PIVOT BEARING | ||
| 698 | N 000094004065 | COTTER PIN |
| INTERMEDIATE LEVER TO PIVOT BEARING | ||
| 700 | A 3214630033 | CAP |
| STEERING INTERMEDIATE ARM | ||
| 710 | A 3054600305 | DRAG LINK |
| Repalced by: A 3004600605 | ||
| 710 | A 3004600605 | DRAG LINK |
| FROM INTERMEDIATE LEVER TO STEERING ARM | ||
| LEMFOERDER | ||
| 710 | A 3004600705 | DRAG LINK |
| FROM INTERMEDIATE LEVER TO STEERING ARM | ||
| EHRENREICH | ||
| A 0003301085 | BOOT | |
| FIXED PART OF JOINT | ||
| 715 | A 0003381645 | CLAMP |
| Repalced by: A 4619955044 | ||
| 715 | A 4619955044 | CLAMP |
| "6245" | ||
| 719 | N 000960010035 | SCREW |
| M 10X48 | ||
| 723 | A 0004630472 | NUT |
| Repalced by: N 913004010010 | ||
| 723 | N 913004010010 | NUT |
| Repalced by: N 910113010002 | ||
| 723 | N 910113010002 | HEXAGON NUT |
| 727 | A 0004632229 | BALL JOINT |
| Repalced by: A 0004633429 | ||
| 727 | A 0004633429 | BALL JOINT |
| Repalced by: A 0013300135 | ||
| 727 | A 0013300135 | JOINT |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 727 | A 0013300235 | JOINT |
| R.H. THREAD | ||
| EHRENREICH | ||
| 731 | A 0003301085 | BOOT |
| 735 | N 000937020001 | NUT |
| DRAG LINK TO INTERMEDIATE ARM & TO STEERING ARM | ||
| 745 | N 000094004065 | COTTER PIN |
| DRAG LINK TO INTERMEDIATE ARM & TO STEERING ARM | ||
| 750 | A 3024630432 | SHOCK ABSORBER |
| Repalced by: A 0004635932 | ||
| 750 | A 0004635932 | SHOCK ABSORBER |
| Repalced by: A 0004636132 | ||
| 750 | A 0004636132 | SHOCK ABSORBER |
| STEERING SHOCK ABSORBER | ||
| 754 | A 0004630565 | RUBBER RING |
| 757 | A 0004630050 | BUSHING |
| 765 | A 0003300185 | BOOT |
| Repalced by: A 0003300785 | ||
| 765 | A 0003300785 | BOOT |
| 770 | A 3024600235 | BRACKET |
| STEERING SHOCK ABSORBER | ||
| 775 | N 000935014001 | NUT |
| STEERING SHOCK ABSORBER TO STEERING ARM | ||
| 780 | N 000094003226 | COTTER PIN |
| STEERING SHOCK ABSORBER TO STEERING ARM | ||
| 785 | N 000960014121 | SCREW |
| Repalced by: N 308676014014 | ||
| 785 | N 308676014014 | SCREW |
| STEERING SHOCK ABSORBER TO BRACKET | ||
| 789 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 789 | N 910113014000 | NUT |
| STEERING SHOCK ABSORBER TO BRACKET | ||
| 795 | N 000960012331 | SCREW |
| BRACKET & BEARING BRACKET TO FRONT AXLE | ||
| 799 | N 913004012008 | NUT |
| BRACKET & BEARING BRACKET TO FRONT AXLE | ||
| 804 | N 000960012264 | SCREW |
| Repalced by: N 308765012003 | ||
| 804 | N 308765012003 | SCREW |
| BRACKET TO FRONT AXLE | ||
| M 12X90 | ||
| 804 | N 000960012331 | SCREW |
| BRACKET TO FRONT AXLE | ||
| M 12X95 | ||
| 810 | N 913004012008 | NUT |
| BRACKET TO FRONT AXLE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
