Transporto priemonė: O 303; VIN numerio dalis: 300385

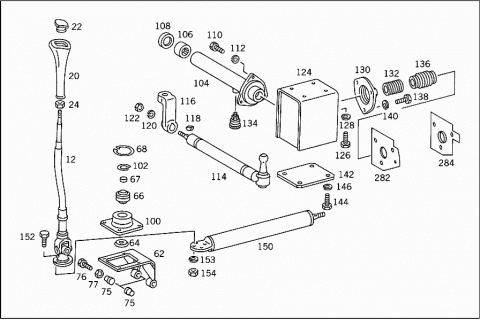

Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 719.1 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 714.6 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 714.6 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 719.0 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 719.5 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 010 | A 3012600139 | SHIFT LEVER |
| 010 | A 3012600139 | SHIFT LEVER |
| 010 | A 3012600139 | SHIFT LEVER |
| 010 | A 3012600139 | SHIFT LEVER |
| 010 | A 3002600239 | SHIFT LEVER |
| Repalced by: A 3002600339 | ||
| 010 | A 3002600339 | SHIFT LEVER |
| 010 | A 3002600339 | SHIFT LEVER |
| 012 | A 3002600039 | SHIFT LEVER |
| 012 | A 3002600039 | SHIFT LEVER |
| 012 | A 3002600039 | SHIFT LEVER |
| 012 | A 3002600139 | SHIFT LEVER |
| 012 | A 3002600139 | SHIFT LEVER |
| 012 | A 3002600239 | SHIFT LEVER |
| Repalced by: A 3002600339 | ||
| 012 | A 3002600339 | SHIFT LEVER |
| 015 | A 3602600040 | HANDLE |
| SHIFT LEVER | ||
| 015 | A 3432600040 | HANDLE |
| (GEARSHIFT LEVER KNOB) | ||
| 015 | A 3432600040 | HANDLE |
| (GEARSHIFT LEVER KNOB) | ||
| 015 | A 3432600040 | HANDLE |
| (GEARSHIFT LEVER KNOB) | ||
| 020 | A 6202680042 | KNOB |
| (SHIFT LEVER HANDLE) | ||
| 020 | A 6202680042 | KNOB |
| (SHIFT LEVER HANDLE) | ||
| 020 | A 6202680042 | KNOB |
| (SHIFT LEVER HANDLE) | ||
| 022 | A 6202680457 | COVER |
| WITH GEAR INDICATOR | ||
| 022 | A 6202680457 | COVER |
| WITH GEAR INDICATOR | ||
| 022 | A 6202680457 | COVER |
| WITH GEAR INDICATOR | ||
| 022 | A 6202680357 | COVER |
| WITH GEAR INDICATOR | ||
| 022 | A 6202680357 | COVER |
| WITH GEAR INDICATOR | ||
| 024 | N 000439010216 | NUT |
| Repalced by: N 308675010000 | ||
| 024 | N 308675010000 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 028 | A 3029930401 | SPRING |
| 028 | A 3179930501 | SPRING |
| 035 | A 3022670008 | SPHERICAL PIECE |
| 035 | A 3022670008 | SPHERICAL PIECE |
| 039 | A 3022670006 | COVER |
| COVERING | ||
| 039 | A 3022670006 | COVER |
| COVERING | ||
| 043 | A 3212670025 | SLIDING BLOCK |
| SHIFT LEVER TO BEARING BRACKET | ||
| 043 | A 3212670025 | SLIDING BLOCK |
| SHIFT LEVER TO BEARING BRACKET | ||
| 047 | N 009045008002 | SNAP RING |
| SHIFT LEVER TO BEARING BRACKET | ||
| 047 | N 009045008002 | SNAP RING |
| SHIFT LEVER TO BEARING BRACKET | ||
| 051 | A 3012670096 | BOOT |
| Repalced by: A 3562680197 | ||
| 051 | A 3562680197 | BOOT |
| SHIFT LEVER | ||
| 060 | A 3012680037 | BEARING BRACKET |
| SHIFT LEVER | ||
| 060 | A 3012680137 | BEARING BRACKET |
| SHIFT LEVER | ||
| A 3002600062 | BRACKET | |
| SHIFT LEVER UPPER PART | ||
| A 3002600062 | BRACKET | |
| SHIFT LEVER UPPER PART | ||
| A 3002600062 | BRACKET | |
| SHIFT LEVER UPPER PART | ||
| 062 | A 3002600362 | BRACKET |
| SHIFT LEVER UPPER PART | ||
| 062 | A 3002600362 | BRACKET |
| SHIFT LEVER UPPER PART | ||
| 062 | A 3002600662 | BRACKET |
| SHIFT LEVER UPPER PART | ||
| 064 | A 3002680080 | GASKET |
| SHIFT LEVER | ||
| 066 | A 0019811931 | JOINT BEARING |
| SHIFT LEVER | ||
| 067 | A 3002680051 | SPACER RING |
| SHIFT LEVER | ||
| 068 | N 000472047000 | LOCK RING |
| SHIFT LEVER BEARING | ||
| 070 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 070 | N 304017008034 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 8X25 | ||
| 070 | N 304017008034 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 8X25 | ||
| 070 | N 304017008034 | SCREW |
| BRACKET TO FRAME | ||
| M 8X25 | ||
| 070 | N 304017008034 | SCREW |
| LEVER TO BRACKET | ||
| M 8X25 | ||
| 070 | N 304017008034 | SCREW |
| LEVER TO BRACKET | ||
| M 8X25 | ||
| 070 | N 000931008328 | SCREW |
| BRACKET TO FRAME | ||
| M 8X20 | ||
| 070 | N 000931008328 | SCREW |
| LEVER TO BRACKET | ||
| M 8X20 | ||
| 074 | N 912004008102 | LOCK WASHER |
| BEARING BRACKET TO FRAME | ||
| 074H | N 000934008010 | NUT |
| BRACKET TO FRAME | ||
| 075 | A 3002680049 | SLIDE |
| FRONT SHIFTING ROD ADJUSTMENT | ||
| 075 | A 3002680049 | SLIDE |
| FRONT SHIFTING ROD ADJUSTMENT | ||
| 075 | A 3962680049 | SLIDE |
| FRONT SHIFTING ROD ADJUSTMENT | ||
| 076 | N 000933010128 | SCREW |
| FRONT SHIFTING ROD ADJUSTMENT | ||
| 076 | N 000933010128 | SCREW |
| FRONT SHIFTING ROD ADJUSTMENT | ||
| N 000417010015 | HEADLESS SETSCREW | |
| FRONT SHIFTING ROD ADJUSTMENT | ||
| 077 | N 000439010202 | NUT |
| FRONT SHIFTING ROD ADJUSTMENT | ||
| A 3962680096 | BOOT | |
| FRONT SHIFTING ROD SLIDE COVERING | ||
| 078 | N 001473005012 | GROOVED PIN |
| COVER TO BEARING BRACKET | ||
| 078 | N 001473005012 | GROOVED PIN |
| COVER TO BEARING BRACKET | ||
| 082 | A 3052680150 | BUSHING |
| Repalced by: A 3572680050 | ||
| 082 | A 3572680050 | BUSHING |
| SHIFTING ROD BEARING | ||
| 086 | A 0002680396 | BOOT |
| SHIFTING ROD BEARING | ||
| 090 | A 3012680105 | COVER |
| BEARING BRACKET | ||
| 090 | A 3012680105 | COVER |
| BEARING BRACKET | ||
| 094 | A 3012680180 | GASKET |
| BEARING BRACKET | ||
| 094 | A 3012680180 | GASKET |
| BEARING BRACKET | ||
| 098 | A 3012680040 | BRACKET |
| COVER TO BEARING BRACKET | ||
| 098 | A 3012680040 | BRACKET |
| COVER TO BEARING BRACKET | ||
| 100 | A 3002680040 | BRACKET |
| BEARING TO SHIFT LEVER | ||
| 100 | A 3002680040 | BRACKET |
| BEARING TO SHIFT LEVER | ||
| 100 | A 3002680040 | BRACKET |
| BEARING TO SHIFT LEVER | ||
| 100 | A 3002680440 | BRACKET |
| BEARING TO SHIFT LEVER | ||
| 100 | A 3002680440 | BRACKET |
| BEARING TO SHIFT LEVER | ||
| 102 | N 000471025002 | LOCK RING |
| BEARING TO SHIFT LEVER | ||
| 104 | A 3012600085 | PIPE |
| SHIFTING SHAFT BEARING | ||
| 106 | A 0059813610 | NEEDLE BEARING |
| Repalced by: A 0049813810 | ||
| 106 | A 0049813810 | NEEDLE BEARING |
| SHIFTING SHAFT BEARING | ||
| 108 | A 0019973047 | SEAL RING |
| SHIFTING SHAFT BEARING | ||
| 110 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 110 | N 304017008016 | SCREW |
| TUBE TO SHIFT CASE | ||
| 112 | N 912004008102 | LOCK WASHER |
| TUBE TO SHIFT CASE | ||
| 114 | A 3012600138 | SHAFT |
| Repalced by: A 3002600038 | ||
| 114 | A 3002600038 | SHAFT |
| (SHIFTING SHAFT) | ||
| 116 | A 3012680013 | LEVER |
| SHIFTING SHAFT | ||
| 116 | A 3012680013 | LEVER |
| SHIFTING SHAFT | ||
| 116 | A 3012680013 | LEVER |
| SHIFTING SHAFT | ||
| 116 | A 3002680013 | LEVER |
| Repalced by: A 3002680113 | ||
| 116 | A 3002680113 | LEVER |
| SHIFTING SHAFT | ||
| 116 | A 3002680113 | LEVER |
| SHIFTING SHAFT | ||
| 118 | N 006888005006 | WOODRUFF KEY |
| LEVER TO SHAFT | ||
| 120 | N 912004012100 | LOCK WASHER |
| LEVER TO SHAFT | ||
| 122 | N 000934012022 | NUT |
| LEVER TO SHAFT | ||
| 124 | A 3012600372 | SHIFT CASE |
| Repalced by: A 3002600072 | ||
| 124 | A 3002600072 | SHIFT CASE |
| 126 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 126 | N 304017008016 | SCREW |
| SHIFT CASE TO FRAME | ||
| 128 | N 912004008102 | LOCK WASHER |
| SHIFT CASE TO FRAME | ||
| 130 | A 3012680144 | FLANGE |
| SHIFT CASE | ||
| 132 | A 3052680150 | BUSHING |
| Repalced by: A 3572680050 | ||
| 132 | A 3572680050 | BUSHING |
| SHIFT CASE | ||
| 134 | N 003411002000 | GREASE CUP |
| SHIFT CASE | ||
| 136 | A 0002680396 | BOOT |
| SHIFT CASE | ||
| 138 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 138 | N 304017008021 | SCREW |
| FLANGE TO SHIFT CASE | ||
| 140 | N 912004008102 | LOCK WASHER |
| FLANGE TO SHIFT CASE | ||
| 142 | A 3012680405 | COVER |
| Repalced by: A 3002680005 | ||
| 142 | A 3002680005 | COVER |
| SHIFT CASE | ||
| 144 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 144 | N 304017008016 | SCREW |
| COVER TO SHIFT CASE | ||
| 146 | N 912004008102 | LOCK WASHER |
| COVER TO SHIFT CASE | ||
| 150 | A 3002600133 | SHIFTING ROD |
| FRONT | ||
| 150 | A 3002600133 | SHIFTING ROD |
| FRONT | ||
| 150 | A 3002600833 | SHIFTING ROD |
| FRONT | ||
| 151 | A 3012604733 | SHIFTING ROD |
| FRONT | ||
| 151 | A 3012604833 | SHIFTING ROD |
| FRONT | ||
| 151 | A 3002602333 | SHIFTING ROD |
| FRONT | ||
| 152 | A 3219900601 | SCREW |
| SHIFT LEVER TO FRONT SHIFTING TUBE | ||
| 153 | N 912004008102 | LOCK WASHER |
| SHIFT LEVER TO FRONT SHIFTING TUBE | ||
| 154 | N 000934008010 | NUT |
| SHIFT LEVER TO FRONT SHIFTING TUBE | ||
| 155 | A 3012900531 | BEARING |
| Repalced by: A 3012930240 | ||
| 155 | A 3012930240 | BRACKET |
| SHIFTING ROD BEARING | ||
| NO.3 | ||
| 155 | A 3012930240 | BRACKET |
| SHIFTING ROD BEARING | ||
| NO.3 | ||
| 155 | A 3012930240 | BRACKET |
| SHIFTING ROD BEARING | ||
| NO.3 | ||
| 169 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 169 | N 304017008034 | SCREW |
| BEARING TO SUBSTRUCTURE | ||
| 173 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 173 | N 000125008443 | WASHER |
| BEARING TO SUBSTRUCTURE | ||
| 177 | N 913004008004 | NUT |
| BEARING TO SUBSTRUCTURE | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR BOOT,FLANGE,AND BUSHING,SEE ALSO GROUP 29 | ||
| 181 | A 0002680396 | BOOT |
| SHIFTING ROD | ||
| 186 | A 3212680228 | CONNECTOR |
| FLANGE TO SHIFTING TUBE | ||
| 190 | N 006888005006 | WOODRUFF KEY |
| CONNECTOR TO FRONT SHIFTING TUBE | ||
| 194 | N 912004012100 | LOCK WASHER |
| CONNECTOR TO FRONT SHIFTING TUBE | ||
| 198 | N 000934012022 | NUT |
| CONNECTOR TO FRONT SHIFTING TUBE | ||
| 205 | A 0002682289 | JOINT |
| Repalced by: A 3572680089 | ||
| 205 | A 3572680089 | JOINT |
| FRONT | ||
| 205 | A 0002683189 | JOINT |
| Repalced by: A 3572680289 | ||
| 205 | A 3572680289 | JOINT |
| FRONT | ||
| 207 | N 071412006300 | GREASE NIPPLE |
| TO 000 268 22 89,000 268 31 89 | ||
| 215 | A 3179900301 | SCREW |
| JOINT TO FRONT SHIFTING ROD AND TO SHIFTING ROD ABOVE FRONT AXLE | ||
| 219 | N 912004008102 | LOCK WASHER |
| JOINT TO FRONT SHIFTING ROD AND TO SHIFTING ROD ABOVE FRONT AXLE | ||
| 223 | N 000934008010 | NUT |
| JOINT TO FRONT SHIFTING ROD AND TO SHIFTING ROD ABOVE FRONT AXLE | ||
| 230 | A 3012604933 | SHIFTING ROD |
| ABOVE FRONT AXLE | ||
| 230 | A 3012604933 | SHIFTING ROD |
| ABOVE FRONT AXLE | ||
| 230 | A 3002600933 | SHIFTING ROD |
| ABOVE FRONT AXLE | ||
| 234 | A 3012680086 | RUBBER RING |
| 238 | N 900288062000 | CLAMP |
| 245 | A 0002682289 | JOINT |
| Repalced by: A 3572680089 | ||
| 245 | A 3572680089 | JOINT |
| SHIFTING ROD ABOVE FRONT AXLE TO SHIFTING ROD ABOVE REAR AXLE | ||
| 245 | A 0002683189 | JOINT |
| Repalced by: A 3572680289 | ||
| 245 | A 3572680289 | JOINT |
| SHIFTING ROD ABOVE FRONT AXLE TO SHIFTING ROD ABOVE REAR AXLE | ||
| 247 | N 071412006300 | GREASE NIPPLE |
| TO 000 268 22 89,000 268 31 89 | ||
| 249 | A 3179900301 | SCREW |
| SHIFTING ROD ABOVE FRONT AXLE TO SHIFTING ROD ABOVE REAR AXLE | ||
| 251 | N 912004008102 | LOCK WASHER |
| SHIFTING ROD ABOVE FRONT AXLE TO SHIFTING ROD ABOVE REAR AXLE | ||
| 253 | N 000934008010 | NUT |
| SHIFTING ROD ABOVE FRONT AXLE TO SHIFTING ROD ABOVE REAR AXLE | ||
| 275 | A 3012605133 | SHIFTING ROD |
| ABOVE REAR AXLE | ||
| 275 | A 3012605133 | SHIFTING ROD |
| ABOVE REAR AXLE | ||
| 275 | A 3002601233 | SHIFTING ROD |
| Repalced by: A 3002603333 | ||
| 275D | A 3002603333 | SHIFTING ROD |
| FRONT PART; ABOVE REAR AXLE | ||
| 276 | A 3002603133 | SHIFTING ROD |
| REAR PART; ABOVE REAR AXLE | ||
| 277 | A 3179900301 | SCREW |
| SHIFTING ROD TO SHIFTING ROD | ||
| 278 | N 912004008102 | LOCK WASHER |
| SHIFTING ROD TO SHIFTING ROD | ||
| 279 | N 000934008010 | NUT |
| SHIFTING ROD TO SHIFTING ROD | ||
| 280 | A 3012900631 | BEARING |
| Repalced by: A 3012930240 | ||
| 280 | A 3012930240 | BRACKET |
| SHIFTING ROD BEARING | ||
| NO.1 | ||
| 208 | A 3012930240 | BRACKET |
| SHIFTING ROD BEARING | ||
| NO.1 | ||
| 208 | A 3012930240 | BRACKET |
| SHIFTING ROD BEARING | ||
| NO.3 | ||
| 208 | A 3012930240 | BRACKET |
| SHIFTING ROD BEARING | ||
| NO.3 | ||
| 208 | A 3012930240 | BRACKET |
| SHIFTING ROD BEARING | ||
| NO.5 | ||
| A 3002900031 | BEARING | |
| SHIFTING ROD BEARING | ||
| NO.3 | ||
| 282 | A 3002930017 | BEARING |
| 284 | A 3002930117 | BEARING |
| 285 | A 3212680850 | BUSHING |
| Repalced by: A 3572680150 | ||
| 285 | A 3572680150 | BUSHING |
| CONNECTOR | ||
| 285 | A 3052680150 | BUSHING |
| Repalced by: A 3572680050 | ||
| 285 | A 3572680050 | BUSHING |
| 285 | A 3572680050 | BUSHING |
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 30,FIG.NO.: | ||
| 340 | ||
| 305 | A 3212680228 | CONNECTOR |
| 310 | N 006888005006 | WOODRUFF KEY |
| CONNECTOR TO SHIFTING ROD ABOVE REAR AXLE | ||
| 314 | N 912004012100 | LOCK WASHER |
| CONNECTOR TO SHIFTING ROD ABOVE REAR AXLE | ||
| 318 | N 000934012022 | NUT |
| CONNECTOR TO SHIFTING ROD ABOVE REAR AXLE | ||
| 325 | A 0002682289 | JOINT |
| Repalced by: A 3572680089 | ||
| 325 | A 3572680089 | JOINT |
| SHIFTING ROD ABOVE REAR AXLE TO REAR SHIFTING ROD | ||
| 325 | A 0002683189 | JOINT |
| Repalced by: A 3572680289 | ||
| 325 | A 3572680289 | JOINT |
| SHIFTING ROD ABOVE REAR AXLE TO REAR SHIFTING ROD | ||
| 326 | N 071412006300 | GREASE NIPPLE |
| TO 000 268 22 89,000 268 31 89 | ||
| 327 | A 3212680228 | CONNECTOR |
| 329 | N 006888005006 | WOODRUFF KEY |
| CONNECTOR TO SHIFTING TUBE | ||
| 331 | N 912004012100 | LOCK WASHER |
| CONNECTOR TO SHIFTING TUBE | ||
| 332 | N 000934012022 | NUT |
| CONNECTOR TO SHIFTING TUBE | ||
| 335 | A 3219900601 | SCREW |
| SHIFTING ROD ABOVE REAR AXLE TO REAR SHIFTING ROD | ||
| M 8X25 | ||
| 340 | A 3179900301 | SCREW |
| SHIFTING ROD ABOVE REAR AXLE TO REAR SHIFTING ROD | ||
| M 8X18 | ||
| 345 | N 912004008102 | LOCK WASHER |
| SHIFTING ROD ABOVE REAR AXLE TO REAR SHIFTING ROD | ||
| 349 | N 000934008010 | NUT |
| SHIFTING ROD ABOVE REAR AXLE TO REAR SHIFTING ROD | ||
| 351 | A 3012680086 | RUBBER RING |
| SHIFTING SHAFT BEARING | ||
| 4 | ||
| 353 | N 900288062000 | CLAMP |
| SHIFTING SHAFT BEARING | ||
| 4 | ||
| 360 | A 3012605533 | SHIFTING ROD |
| REAR | ||
| 1468 MM | ||
| 360 | A 3012605233 | SHIFTING ROD |
| Repalced by: A 3012608233 | ||
| 360 | A 3012608233 | SHIFTING ROD |
| REAR | ||
| 1313 MM | ||
| 360 | A 3012608233 | SHIFTING ROD |
| REAR | ||
| 1313 MM | ||
| 360 | A 3012608233 | SHIFTING ROD |
| REAR | ||
| 1313 MM | ||
| 360 | A 3002600333 | SHIFTING ROD |
| REAR | ||
| 1340 MM | ||
| 360 | A 3002600333 | SHIFTING ROD |
| REAR | ||
| 1340 MM | ||
| 360 | A 3002601833 | SHIFTING ROD |
| REAR | ||
| 1374 MM | ||
| 360 | A 3002601833 | SHIFTING ROD |
| REAR | ||
| 1374 MM | ||
| 360 | A 3002601033 | SHIFTING ROD |
| REAR | ||
| 1251 MM | ||
| 365 | A 3212680552 | SPACER WASHER |
| AS REQUIRED | ||
| 2.00 MM | ||
| 365 | A 3212680452 | SPACER WASHER |
| AS REQUIRED | ||
| 3.00 MM | ||
| 365 | A 3212680352 | SPACER WASHER |
| AS REQUIRED | ||
| 5.00 MM | ||
| 366 | A 0002682289 | JOINT |
| Repalced by: A 3572680089 | ||
| 366 | A 3572680089 | JOINT |
| REAR SHIFTING ROD TO CONNECTOR | ||
| 366 | A 0002683189 | JOINT |
| Repalced by: A 3572680289 | ||
| 366 | A 3572680289 | JOINT |
| REAR SHIFTING ROD TO CONNECTOR | ||
| 367 | N 071412006300 | GREASE NIPPLE |
| TO 000 268 22 89,000 268 31 89 | ||
| 368 | A 3179900301 | SCREW |
| REAR SHIFTING ROD TO JOINT | ||
| 368H | N 912004008102 | LOCK WASHER |
| REAR SHIFTING ROD TO JOINT | ||
| 369 | N 000934008010 | NUT |
| REAR SHIFTING ROD TO JOINT | ||
| 370 | A 3212680228 | CONNECTOR |
| REAR SHIFTING ROD | ||
| 371 | N 006888005006 | WOODRUFF KEY |
| CONNECTOR TO SHIFTING TUBE | ||
| 372 | N 912004012100 | LOCK WASHER |
| CONNECTOR TO SHIFTING TUBE | ||
| 373 | N 000934012022 | NUT |
| CONNECTOR TO SHIFTING TUBE | ||
| 374 | A 3002601433 | SHIFTING ROD |
| REAR | ||
| 920 MM | ||
| 374 | A 3002601133 | SHIFTING ROD |
| REAR | ||
| 945 MM | ||
| 374 | A 3002601633 | SHIFTING ROD |
| REAR | ||
| 975 MM | ||
| 374 | A 3002601633 | SHIFTING ROD |
| REAR | ||
| 975 MM | ||
| 375 | N 000931008266 | SCREW |
| SHIFTING ROD TO TRANSMISSION | ||
| M 8X40 | ||
| 375 | N 000933008315 | SCREW |
| SHIFTING ROD TO TRANSMISSION | ||
| M 8X40 | ||
| 379 | N 912004008102 | LOCK WASHER |
| SHIFTING ROD TO TRANSMISSION | ||
| 383 | N 000934008010 | NUT |
| SHIFTING ROD TO TRANSMISSION | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
