Transporto priemonė: O 303; VIN numerio dalis: 301106
Grupė: 42 BRAKE SYSTEM - 001 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL: | ||
| 730.0 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR BRAKES,SEE UNIT STANDARD VERSION, MODEL: | ||
| 744.7 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR BRAKES,SEE UNIT STANDARD VERSION, MODEL: | ||
| 745.2 | ||
| 003 | A 0034304001 | BRAKE MASTER CYLINDER |
| 007 | A 0004202155 | BLEEDER VALVE |
| Repalced by: A 0004310265 | ||
| 007 | A 0004310265 | VALVE |
| Repalced by: A 3075530107 | ||
| 007 | A 3075530107 | VALVE |
| 011 | A 0004212687 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 011 | A 3164210187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 011 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 011 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 011 | A 0004210887 | PROTECTIVE CAP |
| 015 | A 0004312275 | THREADED UNION |
| 019 | A 0014310460 | SEAL RING |
| 024 | A 0004312375 | THREADED UNION |
| 030 | A 0004319160 | SEAL RING |
| 034 | A 0014312393 | SPRING |
| 038 | A 0014312293 | SPRING |
| 042 | A 0004312689 | SPRING RETAINER |
| 046 | A 0009933705 | SPRING |
| 050 | A 0004313776 | WASHER |
| A 0004310971 | SCREW | |
| 056 | A 0004319360 | SEAL RING |
| 060 | A 0015867743 | REPAIR KIT |
| Repalced by: A 0004303383 | ||
| 060 | A 0004303383 | PISTON |
| REPAIR KIT | ||
| 070 | A 0004280130 | CONNECTOR |
| 072 | A 0004280126 | HOLLOW SCREW |
| 074 | N 007603022102 | SEAL RING |
| 076 | A 0005455009 | SWITCH |
| Repalced by: A 0005455909 | ||
| 076 | A 0005455909 | SWITCH |
| STOP LIGHT | ||
| 078 | A 0004281924 | DISTRIBUTOR |
| 080 | A 0004280026 | HOLLOW SCREW |
| 081 | N 007603014405 | SEAL RING |
| 082 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 082 | N 304017010002 | SCREW |
| 083 | N 912004010102 | LOCK WASHER |
| 084 | A 0024306101 | BRAKE MASTER CYLINDER |
| FRONT AXLE | ||
| 085 | A 0004310975 | THREADED UNION |
| 086 | N 007603035101 | SEAL RING |
| A 0009930605 | SPRING | |
| 087 | A 0004311876 | WASHER |
| 088 | A 0004313793 | SPRING |
| 089 | A 0004310089 | SPRING RETAINER |
| 090 | A 0004310685 | FILLER RING |
| A 0004311976 | WASHER | |
| Repalced by: A 0004312176 | ||
| A 0004312176 | WASHER | |
| A 0004310265 | VALVE | |
| Repalced by: A 3075530107 | ||
| 091 | A 3075530107 | VALVE |
| A 3164210187 | PROTECTIVE CAP | |
| Repalced by: A 0004210887 | ||
| 092 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 092 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 092 | A 0004210887 | PROTECTIVE CAP |
| 093 | A 0005861143 | REPAIR KIT |
| 094 | A 0004281924 | DISTRIBUTOR |
| BRAKE MASTER CYLINDER | ||
| 095 | A 0004280026 | HOLLOW SCREW |
| 096 | N 007603014405 | SEAL RING |
| 097 | A 0004280130 | CONNECTOR |
| 098 | A 0004280126 | HOLLOW SCREW |
| 099 | N 007603022102 | SEAL RING |
| 100 | N 000933010203 | SCREW |
| MASTER CYLINDER TO ONE-CHAMBER AIR BRAKE CYLINDER | ||
| 101 | N 912004010102 | LOCK WASHER |
| 102 | A 0024304101 | BRAKE MASTER CYLINDER |
| REAR AXLE | ||
| 102 | A 0024304101 | BRAKE MASTER CYLINDER |
| FRONT AND REAR AXLES | ||
| 103 | A 0004310265 | VALVE |
| Repalced by: A 3075530107 | ||
| 103 | A 3075530107 | VALVE |
| 103 | A 3075530107 | VALVE |
| 104 | A 3164210187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 104 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 104 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 104 | A 0004210887 | PROTECTIVE CAP |
| 104 | A 0004210887 | PROTECTIVE CAP |
| 105 | N 007603040102 | SEAL RING |
| 105 | N 007603040102 | SEAL RING |
| A 0004311075 | THREADED UNION | |
| A 0004311075 | THREADED UNION | |
| 106 | A 0004300381 | VALVE |
| 106 | A 0004300381 | VALVE |
| A 0009930605 | SPRING | |
| A 0009930605 | SPRING | |
| A 0004311776 | WASHER | |
| A 0004311776 | WASHER | |
| 107 | A 0009941835 | SNAP RING |
| A 0004314293 | SPRING | |
| A 0004314293 | SPRING | |
| A 0004311785 | FILLER RING | |
| A 0004311785 | FILLER RING | |
| A 0004310376 | WASHER | |
| Repalced by: A 0004311176 | ||
| A 0004311176 | WASHER | |
| A 0004311176 | WASHER | |
| 108 | A 0005861743 | REPAIR KIT |
| 108 | A 0005861743 | REPAIR KIT |
| 109 | A 0004230184 | FITTING |
| BRAKE MASTER CYLINDER | ||
| 110 | N 007603014405 | SEAL RING |
| 111 | A 0004280130 | CONNECTOR |
| 111 | A 0004280130 | CONNECTOR |
| 112 | A 0004280126 | HOLLOW SCREW |
| 112 | A 0004280126 | HOLLOW SCREW |
| 112 | A 0004280026 | HOLLOW SCREW |
| BRAKE MASTER CYLINDER | ||
| 113 | N 007603022102 | SEAL RING |
| 113 | N 007603022102 | SEAL RING |
| 113 | N 007603014405 | SEAL RING |
| BRAKE MASTER CYLINDER | ||
| 114 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 114 | N 304017010002 | SCREW |
| MASTER CYLINDER TO ONE-CHAMBER AIR BRAKE CYLINDER | ||
| 115 | N 912004010102 | LOCK WASHER |
| 116 | A 0005456009 | SWITCH |
| EXHAUST BRAKE | ||
| 117 | A 0004281924 | DISTRIBUTOR |
| BRAKE MASTER CYLINDER | ||
| A 0004280026 | HOLLOW SCREW | |
| BRAKE MASTER CYLINDER | ||
| 120 | A 0009972881 | GROMMET |
| 121 | A 0004315802 | RESERVOIR |
| 121 | A 0014313802 | RESERVOIR |
| 122 | A 0004312133 | FILLER CAP |
| Repalced by: A 0004313733 | ||
| 122 | A 0004313433 | FILLER CAP |
| Repalced by: A 0004313733 | ||
| 122 | A 0004314933 | FILLER CAP |
| Repalced by: A 0004313733 | ||
| 122 | A 0004313733 | FILLER CAP |
| Repalced by: A 0004316533 | ||
| 122 | A 0004316533 | FILLER CAP |
| Repalced by: A 0004317633 | ||
| 122 | A 0004317633 | FILLER CAP |
| TO 001 431 38 02,000 431 58 02 | ||
| 123 | A 0009972940 | SEAL RING |
| 43.7X30 MM | ||
| 123 | A 0039976440 | SEAL RING |
| 42X21.5 MM | ||
| 124 | A 0004312134 | STRAINER |
| Repalced by: A 0004313134 | ||
| 124 | A 0004313134 | STRAINER |
| TO 000 431 58 02,001 431 38 02 | ||
| 125 | A 0004314534 | STRAINER |
| Repalced by: A 0004313134 | ||
| 125 | A 0004311040 | CLAMP |
| TO 000 431 58 02 | ||
| 126 | N 000933006102 | SCREW |
| RESERVOIR TO DRIP PAN | ||
| 127 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 127 | N 009021006208 | WASHER |
| RESERVOIR TO DRIP PAN | ||
| 128 | N 912004006102 | LOCK WASHER |
| RESERVOIR TO DRIP PAN | ||
| 129 | A 3059970382 | HOSE |
| Repalced by: A 3099971682 | ||
| 129 | A 3099971682 | HOSE |
| Repalced by: A 6039970482 | ||
| 129 | A 6039970482 | HOSE |
| FROM FLUID RESERVOIR TO BRAKE LINE | ||
| 129 | A 6039970482 | HOSE |
| FROM FLUID RESERVOIR TO BRAKE LINE | ||
| 129 | A 6039970482 | HOSE |
| FROM FLUID RESERVOIR TO BRAKE LINE | ||
| A 3149970982 | HOSE | |
| Repalced by: A 3099971682 | ||
| A 3099971682 | HOSE | |
| Repalced by: A 6039970482 | ||
| A 6039970482 | HOSE | |
| 130 | N 900288014002 | CLAMP |
| HOSE TO BRAKE LINE | ||
| A 0009951801 | CLAMP | |
| Repalced by: N 916016008200 | ||
| 131 | N 916016008200 | CLAMP |
| 132 | N 007971004240 | SHEET METAL SCREW |
| Repalced by: N 007981004258 | ||
| 132 | N 007981004258 | SHEET METAL SCREW |
| 133 | N 000084006137 | SCREW |
| 134 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 134 | N 910113006001 | NUT |
| A 3014280101 | LINE | |
| Repalced by: A 0004290801 | ||
| 135 | A 0004290801 | LINE |
| FROM FLUID RESERVOIR TO BRAKE LINE | ||
| 135 | A 0004290801 | LINE |
| FROM FLUID RESERVOIR TO BRAKE LINE | ||
| A 3014282301 | LINE | |
| Repalced by: A 0004290801 | ||
| A 3014283501 | LINE | |
| Repalced by: A 0004290801 | ||
| A 3014282501 | LINE | |
| Repalced by: A 0004290801 | ||
| 135 | A 0004290801 | LINE |
| 135 | A 0004290801 | LINE |
| 136 | A 0009972781 | GROMMET |
| Repalced by: A 0009972881 | ||
| 136 | A 0009972881 | GROMMET |
| 137 | A 0009971881 | GROMMET |
| 137 | A 3029970381 | GROMMET |
| A 3014200228 | LINE | |
| Repalced by: A 3524288502 | ||
| A 3014202928 | LINE | |
| Repalced by: A 3524288502 | ||
| A 3014202428 | LINE | |
| Repalced by: A 3524288502 | ||
| A 3014203628 | LINE | |
| 570 MM | ||
| A 3014203628 | LINE | |
| 570 MM | ||
| 138 | A 3014200328 | LINE |
| Repalced by: A 3524288502 | ||
| 138 | A 3014203228 | LINE |
| Repalced by: A 3524288502 | ||
| 138 | A 3014202628 | LINE |
| Repalced by: A 3524288502 | ||
| 138 | A 3524288502 | LINE |
| FROM BRAKE HOSE TO MASTER CYLINDER | ||
| A 3014203728 | LINE | |
| 850 MM | ||
| A 3014203728 | LINE | |
| 850 MM | ||
| 139 | A 3404200529 | LINE |
| 400 MM | ||
| 139 | A 3404200829 | LINE |
| FROM FITTING TO CONNECTION FITTING | ||
| 550 MM | ||
| 140 | A 3404204529 | LINE |
| FROM CONNECTION FITTING III TO CONNECTION FITTING IV | ||
| 3600 MM | ||
| 140 | A 3404204529 | LINE |
| FROM FITTING II TO CONNECTION FITTING III | ||
| 3600 MM | ||
| A 3404202929 | LINE | |
| 1600 MM | ||
| A 3404202629 | LINE | |
| 1450 MM | ||
| A 3404202529 | LINE | |
| 1400 MM | ||
| 141 | A 3404202429 | LINE |
| FROM MASTER CYLINDER II TO CONNECTOR | ||
| 1350 MM | ||
| 141 | A 3404202429 | LINE |
| FROM FITTING I TO CONNECTION FITTING II | ||
| 1350 MM | ||
| 141 | A 3404202129 | LINE |
| FROM MASTER CYLINDER II TO CONNECTOR | ||
| 1200 MM | ||
| 142 | A 3404202329 | LINE |
| FROM DISTRIBUTOR TO RIGHT REAR WHEEL | ||
| 1300 MM | ||
| 142 | A 3404202029 | LINE |
| 1150 MM | ||
| 142 | A 3404201629 | LINE |
| 950 MM | ||
| 143 | A 3404201529 | LINE |
| 900 MM | ||
| 143 | A 3404201529 | LINE |
| FROM DISTRIBUTOR TO FRONT RIGHT BRAKE HOSE | ||
| 900 MM | ||
| 144 | A 3404201429 | LINE |
| FROM FITTING I TO CONNECTION FITTING II | ||
| 850 MM | ||
| 144 | A 3404201429 | LINE |
| FROM FITTING I TO CONNECTION FITTING II | ||
| 850 MM | ||
| 145 | A 3404201329 | LINE |
| 800 MM | ||
| 145 | A 3404201329 | LINE |
| 800 MM | ||
| 145 | A 3404201129 | LINE |
| 700 MM | ||
| 145 | A 3404200729 | LINE |
| 500 MM | ||
| 146 | A 0004292736 | CONNECTOR |
| FRONT | ||
| A 3404203129 | LINE | |
| 1700 MM | ||
| 147 | N 916016006208 | CLAMP |
| LINE MOUNTING | ||
| 147 | N 916016008200 | CLAMP |
| LINE MOUNTING | ||
| 147 | N 916016012200 | CLAMP |
| LINE MOUNTING | ||
| 147 | N 916016015202 | CLAMP |
| LINE MOUNTING | ||
| N 000084006173 | SCREW | |
| 148 | A 3404200929 | LINE |
| 600 MM | ||
| 148 | A 3404200929 | LINE |
| 600 MM | ||
| 148 | A 3404200929 | LINE |
| FRONT AND REAR AXLES | ||
| 600 MM | ||
| 149 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 149 | N 009021006208 | WASHER |
| 149 | N 009021006208 | WASHER |
| 150 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 150 | N 910113006001 | NUT |
| 151 | A 0004280135 | BRAKE HOSE |
| A 0004280235 | BRAKE HOSE | |
| Repalced by: A 0024280535 | ||
| A 0004287635 | BRAKE HOSE | |
| Repalced by: A 0024280535 | ||
| 152 | A 0024280535 | BRAKE HOSE |
| LEFT AND RIGHT | ||
| 152 | A 0014285535 | BRAKE HOSE |
| LEFT AND RIGHT | ||
| 152 | A 0004284035 | BRAKE HOSE |
| LEFT AND RIGHT | ||
| 153 | A 0004287635 | BRAKE HOSE |
| Repalced by: A 0024280535 | ||
| 153 | A 0024280535 | BRAKE HOSE |
| 153 | A 0014285535 | BRAKE HOSE |
| 154 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 154 | A 6525040038 | MOUNTING PLATE |
| 155 | A 0004290437 | DISTRIBUTOR |
| Repalced by: A 0004312231 | ||
| 155 | A 0004312231 | TEST CONNECTION |
| AT FRONT AXLE | ||
| 155 | A 0004316531 | TEST CONNECTION |
| AT FRONT AXLE | ||
| 156 | A 3024290240 | BRACKET |
| TEST CONNECTION | ||
| 157 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 157 | N 304017008027 | SCREW |
| TEST CONNECTION | ||
| 157 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 157 | N 304017008034 | SCREW |
| TEST CONNECTION | ||
| 158 | N 912004008102 | LOCK WASHER |
| TEST CONNECTION | ||
| 159 | N 000934008010 | NUT |
| TEST CONNECTION | ||
| 159 | N 913004008005 | NUT |
| TEST CONNECTION | ||
| 160 | N 000960012189 | SCREW |
| Repalced by: N 308676012031 | ||
| 160 | N 308676012031 | SCREW |
| Repalced by: N 308676012011 | ||
| 160 | N 308676012011 | SCREW |
| AT FRONT AXLE | ||
| 161 | N 913004012008 | NUT |
| AT FRONT AXLE | ||
| A 0004290437 | DISTRIBUTOR | |
| Repalced by: A 0004312231 | ||
| 162 | A 0004312231 | TEST CONNECTION |
| AT REAR AXLE | ||
| 162 | A 0004316531 | TEST CONNECTION |
| AT REAR AXLE | ||
| A 3024280443 | ANGLE | |
| TEST CONNECTION | ||
| 163 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 163 | N 304017008027 | SCREW |
| TEST CONNECTION | ||
| 163 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 163 | N 304017008034 | SCREW |
| TEST CONNECTION | ||
| 164 | N 912004008102 | LOCK WASHER |
| TEST CONNECTION | ||
| 165 | N 000934008010 | NUT |
| TEST CONNECTION | ||
| 165 | N 913004008005 | NUT |
| TEST CONNECTION | ||
| 166 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 166 | N 304017008016 | SCREW |
| AT REAR AXLE | ||
| 167 | N 912004008102 | LOCK WASHER |
| AT REAR AXLE | ||
| A 3014290540 | BRACKET | |
| Repalced by: A 3014291040 | ||
| 168 | A 3014291040 | BRACKET |
| RIGHT FRONT BRAKE HOSE TO FRONT AXLE | ||
| A 3014290440 | BRACKET | |
| Repalced by: A 3014290940 | ||
| 169 | A 3014290940 | BRACKET |
| LEFT FRONT BRAKE HOSE TO FRONT AXLE | ||
| 170 | N 000933008160 | SCREW |
| Repalced by: N 304017008040 | ||
| 170 | N 304017008040 | SCREW |
| Repalced by: N 910105008010 | ||
| 170 | N 910105008010 | SCREW |
| 171 | N 913004008005 | NUT |
| 172 | A 0004292736 | CONNECTOR |
| BETWEEN THE LINES | ||
| 173 | A 3129973482 | HOSE |
| 174 | A 3129951020 | CLAMP |
| 175 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 175 | N 304017008016 | SCREW |
| 176 | N 912004008102 | LOCK WASHER |
| 177 | A 3014200480 | BRAKE INTERMEDIATE SHAFT |
| 178 | A 3024270062 | THRUST WASHER |
| 179 | A 3024202978 | BEARING BRACKET |
| 180 | N 000470060000 | EXPANSION PLUG |
| 181 | A 0069973746 | SEAL RING |
| 182 | A 3224260183 | SPHERICAL PIECE |
| 183 | A 3214260082 | SHIM |
| 183 | A 3214260182 | SHIM |
| 184 | N 000933010105 | SCREW |
| 185 | N 912004010102 | LOCK WASHER |
| 186 | A 0004315014 | BRAKE CYLINDER |
| Repalced by: A 0014316514 | ||
| 186 | A 0014316514 | BRAKE CYLINDER |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| 187 | A 0004318186 | CUP |
| Repalced by: A 0015864342 | ||
| 187 | A 0015864342 | REPAIR KIT |
| Repalced by: A 0034201724 | ||
| 187 | A 0034201724 | REPAIR KIT |
| 188 | A 0004318786 | CUP |
| TO 000 431 50 14 | ||
| 188 | A 0014311786 | CUP |
| TO 001 431 65 14 | ||
| 189 | A 0004310649 | SLIDE |
| 190 | A 0009908971 | ELBOW FITTING |
| 191 | A 0004290927 | THRUST RING |
| 192 | A 0009971548 | SEAL RING |
| 193 | N 080705016003 | NUT |
| A 3024270184 | SHIM | |
| A 3024270284 | SHIM | |
| 194 | N 000961012151 | SCREW |
| 195 | N 912004012100 | LOCK WASHER |
| 196 | A 3014200147 | YOKE |
| FROM BRAKE SHAFT TO BRAKE LEVER | ||
| 197 | N 071752012006 | YOKE |
| FROM BRAKE SHAFT TO BRAKE LEVER | ||
| 198 | N 900331012340 | PULL ROD |
| FROM BRAKE SHAFT TO BRAKE LEVER | ||
| 199 | N 000934012020 | NUT |
| FROM BRAKE SHAFT TO BRAKE LEVER | ||
| 200 | N 000934012021 | NUT |
| FROM BRAKE SHAFT TO BRAKE LEVER | ||
| 201 | A 0009912707 | PIN |
| PULL ROD TO BRAKE INTERMEDIATE SHAFT | ||
| 202 | A 0009912307 | PIN |
| PULL ROD TO BRAKE LEVER,REAR AXLE | ||
| 203 | N 000433013005 | WASHER |
| Repalced by: N 000433013010 | ||
| 203 | N 000433013010 | WASHER |
| 204 | N 000094004051 | COTTER PIN |
| A 0009909871 | ELBOW FITTING | |
| Repalced by: A 0004291838 | ||
| 205 | A 0004291838 | ELBOW FITTING |
| AT AIR COMPRESSOR | ||
| 205 | A 0004294338 | ELBOW FITTING |
| AT AIR COMPRESSOR | ||
| 206 | N 080705026000 | NUT |
| Repalced by: N 080705026003 | ||
| 206 | N 080705026003 | NUT |
| AT AIR COMPRESSOR | ||
| 207 | A 0004290527 | THRUST RING |
| AT AIR COMPRESSOR | ||
| 208 | A 0039973848 | SEAL RING |
| AT AIR COMPRESSOR | ||
| 208 | A 0009872846 | SEALING CORD |
| AT AIR COMPRESSOR | ||
| 209 | A 0004297735 | BRAKE HOSE |
| 209 | A 0004297735 | BRAKE HOSE |
| 209 | A 0004297835 | BRAKE HOSE |
| 209 | A 0004297835 | BRAKE HOSE |
| 210 | A 0009902570 | T-FITTING |
| BRANCH-OFF TO ANTI-FREEZE DEVICE | ||
| 210 | A 0009902570 | T-FITTING |
| BRANCH-OFF TO ANTI-FREEZE DEVICE | ||
| 211 | A 0004291501 | LINE |
| 211 | A 0005516256 | TUBE |
| 15 MM | ||
| 212 | N 915018018000 | UNION NUT |
| 212 | N 915018015000 | UNION NUT |
| 213 | N 003861018003 | GLAND |
| Repalced by: A 0019901167 | ||
| 213 | A 0019901167 | SEAL CONE |
| 213 | N 003861015004 | GLAND |
| 214 | N 915065018101 | THRUST RING |
| 214 | A 0004291027 | THRUST RING |
| 215 | A 0004291584 | SEAL RING |
| Repalced by: N 915045015100 | ||
| 215 | N 915045015100 | SEAL RING |
| 215 | N 915045014100 | SEAL RING |
| A 0019972072 | FITTING | |
| Repalced by: N 074313018200 | ||
| 216 | N 074313018201 | FITTING |
| BETWEEN THE LINES | ||
| 216 | A 0019972172 | FITTING |
| BETWEEN THE LINES | ||
| 217 | A 3014290140 | BRACKET |
| 218 | A 3004290240 | BRACKET |
| BRACKET TO WATER RADIATOR | ||
| 219 | A 3004290140 | BRACKET |
| Repalced by: A 6764660040 | ||
| 219 | A 6764660040 | BRACKET |
| Repalced by: A 6454310740 | ||
| 219 | A 6454310740 | BRACKET |
| BRACKET TO WATER RADIATOR | ||
| 220 | A 0009954801 | CLAMP |
| Repalced by: N 916016018201 | ||
| 220 | N 916016018201 | CLAMP |
| 221 | A 3609950010 | CLAMP |
| Repalced by: A 3609950210 | ||
| 221 | A 3609950210 | CLAMP |
| 222 | A 3609950601 | CLAMP |
| 223 | N 916016006208 | CLAMP |
| 6/15 | ||
| 223 | N 916016012200 | CLAMP |
| 12/15 | ||
| 223 | N 916016015202 | CLAMP |
| 15/15 | ||
| 223 | N 916016012200 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 15/20 | ||
| 224 | N 000933006127 | SCREW |
| 225 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 225 | N 910113006001 | NUT |
| 226 | A 0004291401 | LINE |
| 227 | N 915018015000 | UNION NUT |
| 228 | N 003861015004 | GLAND |
| 229 | A 0004291027 | THRUST RING |
| 230 | N 915045014100 | SEAL RING |
| 231 | A 0004292101 | LINE |
| 12 MM | ||
| 232 | N 915017012100 | UNION NUT |
| 233 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 233 | A 0019901967 | SEAL CONE |
| 234 | A 0019972172 | FITTING |
| BETWEEN THE LINES | ||
| A 0029971472 | FITTING | |
| Repalced by: A 0049971772 | ||
| A 0049971772 | FITTING | |
| Repalced by: A 0029906171 | ||
| 234 | A 0029906171 | FITTING |
| BETWEEN THE LINES | ||
| 234 | A 0029971672 | FITTING |
| BETWEEN THE LINES | ||
| 235 | A 0019973872 | FITTING |
| Repalced by: A 0009977172 | ||
| 235 | A 0009977172 | FITTING |
| ELECTRICAL COMPARTMENT | ||
| 235 | A 0019972772 | FITTING |
| 236 | N 080705012003 | NUT |
| ELECTRICAL COMPARTMENT | ||
| 236 | N 080705014002 | NUT |
| 237 | N 000125013008 | WASHER |
| 237 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 237 | N 000125015019 | WASHER |
| A 0019902971 | ELBOW FITTING | |
| BETWEEN THE LINES | ||
| 237 | A 0009905370 | T-FITTING |
| CONNECTOR | ||
| I | ||
| 237 | A 0009905370 | T-FITTING |
| CONNECTION TO STOP LIGHT SWITCH | ||
| I | ||
| 238 | A 0009954701 | CLAMP |
| Repalced by: N 916016015202 | ||
| 238 | N 916016015202 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET AT SUBSTRUCTURE | ||
| 15/15 | ||
| 238 | N 916016012201 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET AT SUBSTRUCTURE | ||
| 12/15 | ||
| 239 | A 0009954801 | CLAMP |
| Repalced by: N 916016018201 | ||
| 239 | N 916016018201 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET AT SUBSTRUCTURE | ||
| 18/15 | ||
| 240 | N 000933006127 | SCREW |
| COMPRESSED AIR LINE TO BRACKET AT SUBSTRUCTURE | ||
| M 6X25 | ||
| 240 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 240 | N 304017008016 | SCREW |
| COMPRESSED AIR LINE TO BRACKET AT SUBSTRUCTURE | ||
| M 8X16 | ||
| 241 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 241 | N 009021006208 | WASHER |
| COMPRESSED AIR LINE TO BRACKET AT SUBSTRUCTURE | ||
| 242 | N 912004006102 | LOCK WASHER |
| COMPRESSED AIR LINE TO BRACKET AT SUBSTRUCTURE | ||
| 243 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 243 | N 913004006001 | NUT |
| COMPRESSED AIR LINE TO BRACKET AT SUBSTRUCTURE | ||
| 243 | N 913004008004 | NUT |
| COMPRESSED AIR LINE TO BRACKET AT SUBSTRUCTURE | ||
| 244 | A 3024290340 | BRACKET |
| COMPRESSED AIR LINE | ||
| 245 | A 0019978390 | LOOM TIE |
| 246 | A 0005467130 | INSULATING HOSE |
| 247 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 247 | A 0009872727 | PLASTIC PIPE |
| PLASTIC LINE | ||
| 8X1 | ||
| 247 | A 0004291201 | LINE |
| 249 | N 915062006000 | SLEEVE |
| 251 | N 915052006021 | BANJO UNION |
| 253 | N 915017008100 | UNION NUT |
| 255 | N 003861008005 | GLAND |
| 257 | A 0019972672 | FITTING |
| Repalced by: A 0039978972 | ||
| 257 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 257 | A 0029905971 | FITTING |
| BETWEEN THE LINES | ||
| 259 | A 0009902770 | T-FITTING |
| BETWEEN THE LINES | ||
| 259 | A 0009905270 | T-FITTING |
| BRANCH-OFF LEADING TO AIR RESERVOIR & BRAKE VALVE | ||
| 261 | A 0039970672 | FITTING |
| BRANCH-OFF LEADING TO AIR RESERVOIR & BRAKE VALVE | ||
| 263 | N 915017012100 | UNION NUT |
| 265 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 265 | A 0019901967 | SEAL CONE |
| 268 | A 0019901970 | T-FITTING |
| BRANCH-OFF TO AIR SPRING | ||
| 270 | A 0009902670 | T-FITTING |
| AUTOMATIC DRAIN VALVE BRANCH-OFF | ||
| A 0009951801 | CLAMP | |
| Repalced by: N 916016008200 | ||
| 272 | N 916016008200 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 274 | N 000933006127 | SCREW |
| COMPRESSED AIR LINE TO BRACKET | ||
| 276 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 276 | N 009021006208 | WASHER |
| COMPRESSED AIR LINE TO BRACKET | ||
| 278 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 278 | N 910113006001 | NUT |
| COMPRESSED AIR LINE TO BRACKET | ||
| 280 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 280 | A 0009872627 | PLASTIC PIPE |
| PLASTIC LINE | ||
| 6X1 MM | ||
| 280 | A 0004291101 | LINE |
| 6 MM | ||
| N 915052004026 | BANJO UNION | |
| 282 | N 915062004000 | SLEEVE |
| 284 | N 915017006100 | UNION NUT |
| 286 | N 003861006007 | GLAND |
| 288 | A 0019972872 | FITTING |
| Repalced by: A 0039979072 | ||
| 288 | A 0039979072 | FITTING |
| Repalced by: A 0029906071 | ||
| 288 | A 0029906071 | FITTING |
| BETWEEN THE LINES | ||
| 290 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 292 | A 0009952401 | CLAMP |
| Repalced by: N 916016006201 | ||
| 292 | N 916016006208 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 294 | N 007971004240 | SHEET METAL SCREW |
| Repalced by: N 007981004258 | ||
| 294 | N 007981004258 | SHEET METAL SCREW |
| COMPRESSED AIR LINE TO BRACKET | ||
| 296 | A 0014310006 | PRESSURE REGULATOR |
| Repalced by: A 0024314906 | ||
| 296 | A 0024314906 | PRESSURE REGULATOR |
| WABCO | ||
| 296 | A 0014310606 | PRESSURE REGULATOR |
| Repalced by: A 0024313406 | ||
| 296 | A 0024313406 | PRESSURE REGULATOR |
| Repalced by: A 0024314306 | ||
| 296 | A 0024314306 | PRESSURE REGULATOR |
| BOSCH | ||
| 298 | A 0024304681 | REPAIR KIT |
| VALVE KIT | ||
| TO 001 431 00 06,WEST. 975 300 110 0 | ||
| A 0025866043 | REPAIR KIT | |
| TO 001 431 34 06,GRAU | ||
| 300 | A 0015868543 | REPAIR KIT |
| Repalced by: A 0004301407 | ||
| 300 | A 0004301407 | REPAIR KIT |
| TO 001 431 06 06,BOSCH 0 481 039 101 | ||
| A 0004301768 | REPAIR KIT | |
| DIAPHRAGM | ||
| TO 002 431 43 06; BOSCH | ||
| A 0004307960 | REPAIR KIT | |
| TIRE INFLATING CONNECTION | ||
| TO 002 431 43 06; BOSCH | ||
| 303 | A 0015864343 | REPAIR KIT |
| Repalced by: A 0004301107 | ||
| 303 | A 0004301107 | REPAIR KIT |
| TO 001 431 00 06,WEST. 975 300 110 0 | ||
| A 0014304960 | REPAIR KIT | |
| TO 002 431 49 06; WABCO | ||
| 305 | N 304014008004 | SCREW |
| PRESSURE REGULATOR TO RUBBER BUFFER | ||
| 307 | N 912004008102 | LOCK WASHER |
| PRESSURE REGULATOR TO RUBBER BUFFER | ||
| 309 | A 3055910084 | SHIM |
| PRESSURE REGULATOR TO RUBBER BUFFER | ||
| 311 | A 0019874540 | RUBBER BUFFER |
| Repalced by: A 0009887511 | ||
| 311 | A 0009887511 | BUFFER |
| AT PRESSURE REGULATOR | ||
| 313 | N 913004008005 | NUT |
| AT PRESSURE REGULATOR | ||
| 315 | N 900271015037 | HOSE |
| PRESSURE REGULATOR | ||
| A 3059970582 | HOSE | |
| BLEEDING | ||
| N 916002024100 | CLAMP | |
| 317 | A 0009973081 | GROMMET |
| LINE THRU FRAME | ||
| 317 | A 0009973081 | GROMMET |
| LINE THRU FRAME | ||
| 319 | N 916026016001 | CLAMP |
| Repalced by: A 0059970190 | ||
| 319 | A 0059970190 | LOOM TIE |
| HOSE | ||
| 321 | A 0009905871 | ELBOW FITTING |
| AT PRESSURE REGULATOR | ||
| 321 | A 0009907771 | ELBOW FITTING |
| AT PRESSURE REGULATOR | ||
| A 0009909371 | ELBOW FITTING | |
| AT PRESSURE REGULATOR | ||
| A 0019902271 | ELBOW FITTING | |
| Repalced by: N 074301026202 | ||
| 323 | N 074301026202 | ELBOW FITTING |
| AT PRESSURE REGULATOR | ||
| 323 | A 0009905871 | ELBOW FITTING |
| AT PRESSURE REGULATOR | ||
| 323 | A 0019902671 | ELBOW FITTING |
| AT PRESSURE REGULATOR | ||
| 323 | A 0019902671 | ELBOW FITTING |
| AT PRESSURE REGULATOR | ||
| 323 | A 0009905871 | ELBOW FITTING |
| AT PRESSURE REGULATOR | ||
| 325 | N 074305022202 | NUT |
| AT PRESSURE REGULATOR | ||
| 327 | A 0004290227 | THRUST RING |
| AT PRESSURE REGULATOR | ||
| 329 | A 0029976772 | FITTING |
| AT PRESSURE REGULATOR | ||
| 331 | A 0009870446 | SEALING CORD |
| AT PRESSURE REGULATOR | ||
| 332 | A 3074300070 | MUFFLER |
| BLEEDING | ||
| 334 | A 0004291027 | THRUST RING |
| COMPRESSED AIR LINE TO MUFFLER | ||
| 336 | N 915045014100 | SEAL RING |
| COMPRESSED AIR LINE TO MUFFLER | ||
| 338 | N 074305022202 | NUT |
| MUFFLER TO SUBSTRUCTURE | ||
| 341 | N 000125023006 | WASHER |
| MUFFLER TO SUBSTRUCTURE | ||
| 343 | A 3004290040 | BRACKET |
| ANTI-FREEZE DEVICE | ||
| 345 | N 007971004240 | SHEET METAL SCREW |
| Repalced by: N 007981004258 | ||
| 345 | N 007981004258 | SHEET METAL SCREW |
| BRACKET TO BODY | ||
| 347 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 347 | N 000433005304 | WASHER |
| BRACKET TO BODY | ||
| 349 | A 0004311615 | ANTI-FREEZE DEVICE |
| 349 | A 0004311615 | ANTI-FREEZE DEVICE |
| 351 | A 0004313115 | ANTI-FREEZE DEVICE |
| 353 | A 0004312315 | ANTI-FREEZE DEVICE |
| Repalced by: A 0004313115 | ||
| 355 | A 0049977945 | SEAL RING |
| Repalced by: A 0179974148 | ||
| 355 | A 0179974148 | SEAL RING |
| TO 000 431 31 15 | ||
| 357 | A 0004311864 | ACTUATING PART |
| TO 000 431 31 15 | ||
| 359 | A 0129972548 | SEAL RING |
| TO 000 431 31 15 | ||
| 361 | A 0014312860 | SEAL RING |
| TO 000 431 31 15 | ||
| 363 | A 0004312981 | VALVE DISC |
| TO 000 431 31 15 | ||
| 365 | A 0129972648 | SEAL RING |
| Repalced by: A 0029971640 | ||
| 365 | A 0029971640 | SEAL RING |
| TO 000 431 31 15 | ||
| 367 | A 0004315634 | STRAINER |
| TO 000 431 31 15 | ||
| 369 | A 0014317302 | RESERVOIR |
| TO 000 431 31 15 | ||
| 371 | A 0049978045 | SEAL RING |
| TO 000 431 31 15 | ||
| 373 | A 0004315734 | STRAINER |
| TO 000 431 31 15 | ||
| 375 | A 0004316133 | FILLER CAP |
| TO 000 431 31 15 | ||
| 377 | A 0004350390 | VALVE DISC |
| TO 000 431 23 15 | ||
| 379 | A 0004317086 | CUP |
| TO 000 431 23 15 | ||
| 381 | A 0069976545 | SEAL RING |
| TO 000 431 23 15 | ||
| 383 | A 0015866843 | REPAIR KIT |
| TO 000 431 16 15 | ||
| 383 | A 0015866843 | REPAIR KIT |
| TO 000 431 16 15 | ||
| 385 | A 0019972572 | FITTING |
| ANTI-FREEZE DEVICE | ||
| 385 | A 0019972572 | FITTING |
| ANTI-FREEZE DEVICE | ||
| 387 | A 0029971172 | FITTING |
| ANTI-FREEZE DEVICE | ||
| 389 | A 0039979072 | FITTING |
| Repalced by: A 0029906071 | ||
| 389 | A 0029906071 | FITTING |
| ANTI-FREEZE DEVICE | ||
| 391 | N 007603012405 | SEAL RING |
| ANTI-FREEZE DEVICE | ||
| 393 | N 007603022102 | SEAL RING |
| ANTI-FREEZE DEVICE | ||
| N 007971002221 | SHEET METAL SCREW | |
| CHAIN TO ENGINE COMPARTMENT INSULATION | ||
| 395 | N 009021003107 | WASHER |
| CHAIN TO ENGINE COMPARTMENT INSULATION | ||
| 397 | A 3074300110 | CHAIN |
| ANTI-FREEZE DEVICE | ||
| 399 | A 0002760229 | NOZZLE |
| ANTI-FREEZE DEVICE | ||
| 399 | A 0002760229 | NOZZLE |
| ANTI-FREEZE DEVICE | ||
| 399 | A 0002760329 | NOZZLE |
| ANTI-FREEZE DEVICE | ||
| 401 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 401 | N 304017008021 | SCREW |
| ANTI-FREEZE DEVICE TO BODY | ||
| M 8X20 | ||
| 401 | N 304017008021 | SCREW |
| ANTI-FREEZE DEVICE TO BODY | ||
| M 8X20 | ||
| 403 | N 000931008228 | SCREW |
| Repalced by: N 000933008134 | ||
| 403 | N 000933008134 | SCREW |
| ANTI-FREEZE DEVICE TO BODY | ||
| M 8X80 | ||
| 403 | N 000933008134 | SCREW |
| ANTI-FREEZE DEVICE TO BODY | ||
| M 8X80 | ||
| 405 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 405 | N 000125008443 | WASHER |
| ANTI-FREEZE DEVICE TO BODY | ||
| 407 | N 913004008005 | NUT |
| ANTI-FREEZE DEVICE TO BODY | ||
| 409 | A 0014310102 | RESERVOIR |
| ANTI-FREEZE | ||
| 409 | A 0014310102 | RESERVOIR |
| ANTI-FREEZE | ||
| 411 | A 0004311533 | FILLER CAP |
| TO 001 431 01 02 | ||
| 413 | A 0004311634 | STRAINER |
| TO 001 431 01 02 | ||
| A 0029977072 | FITTING | |
| TO 001 431 01 02 | ||
| A 0004317760 | SEAL RING | |
| TO 001 431 01 02 | ||
| 415 | A 0004310991 | CLAMPING RING |
| TO 001 431 01 02 | ||
| 417 | N 000933006127 | SCREW |
| ANTI-FREEZE RESERVOIR TO BODY | ||
| M 6X25 | ||
| 417 | N 000933006127 | SCREW |
| ANTI-FREEZE RESERVOIR TO BODY | ||
| M 6X25 | ||
| 419 | N 000125006421 | WASHER |
| ANTI-FREEZE RESERVOIR TO BODY | ||
| 419 | N 000125006421 | WASHER |
| ANTI-FREEZE RESERVOIR TO BODY | ||
| 421 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 421 | N 910113006001 | NUT |
| ANTI-FREEZE RESERVOIR TO BODY | ||
| 421 | N 910113006001 | NUT |
| ANTI-FREEZE RESERVOIR TO BODY | ||
| A 3074300140 | STRAP | |
| A 3074300140 | STRAP | |
| 425 | A 3014300005 | RESERVOIR |
| Repalced by: A 0034320201 | ||
| 425 | A 0034320201 | RESERVOIR |
| 1,5 L | ||
| 427 | A 0019972172 | FITTING |
| AT AIR RESERVOIR | ||
| 427 | A 0029971172 | FITTING |
| AT AIR RESERVOIR | ||
| 427 | A 0029971172 | FITTING |
| AT AIR RESERVOIR | ||
| 429 | N 000908022001 | SCREW PLUG |
| Repalced by: N 000908022011 | ||
| 429 | N 000908022011 | SCREW PLUG |
| AT AIR RESERVOIR | ||
| 432 | N 007603022102 | SEAL RING |
| AT AIR RESERVOIR | ||
| 432 | N 007603022102 | SEAL RING |
| AT AIR RESERVOIR | ||
| 435 | A 0009907771 | ELBOW FITTING |
| AT AIR RESERVOIR | ||
| 437 | N 074305022202 | NUT |
| AT AIR RESERVOIR | ||
| 439 | A 0004290227 | THRUST RING |
| AT AIR RESERVOIR | ||
| 441 | A 0009870446 | SEALING CORD |
| AT AIR RESERVOIR | ||
| 443 | A 0004324301 | RESERVOIR |
| Repalced by: A 0034321301 | ||
| 443 | A 0034321301 | RESERVOIR |
| Repalced by: A 0034323101 | ||
| 443 | A 0034323101 | RESERVOIR |
| COMPRESSED AIR | ||
| 20 L | ||
| 445 | A 0009902470 | T-FITTING |
| AT AIR RESERVOIR | ||
| 445 | A 0019901070 | T-FITTING |
| AT AIR RESERVOIR | ||
| 447 | A 3019900301 | SCREW |
| Repalced by: A 3019900801 | ||
| 447 | A 3019900801 | SCREW |
| AT AIR RESERVOIR | ||
| 449 | A 0039970572 | FITTING |
| Repalced by: A 0049979072 | ||
| 449 | A 0049979072 | FITTING |
| AT AIR RESERVOIR | ||
| 451 | A 0009909671 | ELBOW FITTING |
| Repalced by: A 0029901271 | ||
| 451 | A 0029901271 | ELBOW FITTING |
| AT AIR RESERVOIR | ||
| 451 | A 0029901271 | ELBOW FITTING |
| AT AIR RESERVOIR | ||
| 451 | A 0019902871 | ELBOW FITTING |
| Repalced by: A 0029901371 | ||
| 451 | A 0029901371 | ELBOW FITTING |
| AT AIR RESERVOIR | ||
| 451 | A 0029901371 | ELBOW FITTING |
| AT AIR RESERVOIR | ||
| 453 | N 074305022202 | NUT |
| AT AIR RESERVOIR | ||
| 455 | A 0009870446 | SEALING CORD |
| AT AIR RESERVOIR | ||
| 457 | A 0004290227 | THRUST RING |
| AT AIR RESERVOIR | ||
| 459 | A 0004308981 | VALVE |
| (REGULATING VALVE) | ||
| 461 | A 0009907771 | ELBOW FITTING |
| REGULATING VALVE,CONNECTION: | ||
| "1" | ||
| A 0029971172 | FITTING | |
| REGULATING VALVE,CONNECTION: | ||
| "1" | ||
| 463 | N 000908022001 | SCREW PLUG |
| Repalced by: N 000908022011 | ||
| 463 | N 000908022011 | SCREW PLUG |
| REGULATING VALVE,CONNECTION: | ||
| "1" | ||
| 465 | A 0019903770 | T-FITTING |
| REGULATING VALVE,CONNECTION: | ||
| "1" | ||
| 467 | N 074305022202 | NUT |
| REGULATING VALVE,CONNECTION: | ||
| "1" | ||
| 469 | A 0004290227 | THRUST RING |
| REGULATING VALVE,CONNECTION: | ||
| "1" | ||
| 471 | A 0009870446 | SEALING CORD |
| REGULATING VALVE,CONNECTION: | ||
| "1" | ||
| 473 | N 007603022102 | SEAL RING |
| REGULATING VALVE,CONNECTION: | ||
| "1" | ||
| 475 | A 0004311431 | TEST CONNECTION |
| Repalced by: A 0004314831 | ||
| 475 | A 0004314831 | TEST CONNECTION |
| REGULATING VALVE,CONNECTIONS "1,2" | ||
| WESTINGHOUSE | ||
| 475 | A 0004312031 | TEST CONNECTION |
| REGULATING VALVE,CONNECTIONS "1,2" | ||
| VOSS | ||
| 475 | A 0004316131 | TEST CONNECTION |
| REGULATING VALVE,CONNECTIONS "1,2" | ||
| WIRA | ||
| 475 | A 0004314531 | TEST CONNECTION |
| REGULATING VALVE,CONNECTIONS "1,2" | ||
| SCHAEFER | ||
| A 0009979486 | PLUG | |
| 479 | N 007603022102 | SEAL RING |
| REGULATING VALVE,CONNECTION: | ||
| "2" | ||
| 481 | A 0039972072 | FITTING |
| REGULATING VALVE,CONNECTION: | ||
| "2" | ||
| 483 | A 0009970071 | FITTING |

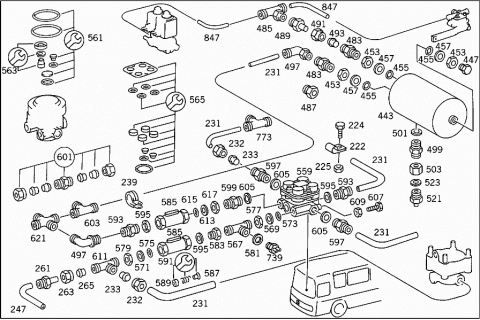

| SECONDARY CONSUMING UNIT AIR RESERVOIR | ||
| 485 | A 0009906970 | T-FITTING |
| SECONDARY CONSUMING UNIT AIR RESERVOIR | ||
| 487 | A 0009970271 | FITTING |
| SECONDARY CONSUMING UNIT AIR RESERVOIR | ||
| 489 | A 0039970672 | FITTING |
| SECONDARY CONSUMING UNIT AIR RESERVOIR | ||
| 491 | N 915017012100 | UNION NUT |
| SECONDARY CONSUMING UNIT AIR RESERVOIR | ||
| 493 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 493 | A 0019901967 | SEAL CONE |
| SECONDARY CONSUMING UNIT AIR RESERVOIR | ||
| A 0009906970 | T-FITTING | |
| REAR BRAKE HOSE,REAR AXLE I | ||
| 495 | N 007603016401 | SEAL RING |
| AT AIR RESERVOIR | ||
| N 915045012100 | SEAL RING | |
| Repalced by: N 007603012121 | ||
| N 007603012121 | SEAL RING | |
| AT AIR RESERVOIR | ||
| A 3819971186 | PLUG | |
| AT AIR RESERVOIR | ||
| 497 | A 0009905771 | ELBOW FITTING |
| AT AIR RESERVOIR | ||
| A 0029971672 | FITTING | |
| AT AIR RESERVOIR | ||
| 499 | A 0019978872 | FITTING |
| AIR RESERVOIR TO SUBSTRUCTURE | ||
| 501 | N 007603022102 | SEAL RING |
| AIR RESERVOIR TO SUBSTRUCTURE | ||
| 503 | A 0004290734 | ADAPTER FITTING |
| AIR RESERVOIR TO SUBSTRUCTURE | ||
| N 000125023006 | WASHER | |
| AIR RESERVOIR TO SUBSTRUCTURE | ||
| A 0004290227 | THRUST RING | |
| AIR RESERVOIR TO SUBSTRUCTURE | ||
| A 0009870446 | SEALING CORD | |
| AIR RESERVOIR TO SUBSTRUCTURE | ||
| 509 | A 0004323101 | RESERVOIR |
| Repalced by: A 0034320901 | ||
| 509 | A 0034320901 | RESERVOIR |
| 10 L | ||
| 511 | A 0029977272 | FITTING |
| Repalced by: A 0049978972 | ||
| 511 | A 0049978972 | FITTING |
| AT AIR RESERVOIR | ||
| 511 | A 0049978972 | FITTING |
| AT AIR RESERVOIR | ||
| 511 | A 0039970572 | FITTING |
| Repalced by: A 0049979072 | ||
| 511 | A 0049979072 | FITTING |
| AT AIR RESERVOIR | ||
| 511 | A 0049979072 | FITTING |
| AT AIR RESERVOIR | ||
| 513 | A 3019900301 | SCREW |
| Repalced by: A 3019900801 | ||
| 513 | A 3019900801 | SCREW |
| AT AIR RESERVOIR | ||
| 515 | N 074305022202 | NUT |
| AT AIR RESERVOIR | ||
| 517 | A 0009870446 | SEALING CORD |
| AT AIR RESERVOIR | ||
| 519 | A 0004290227 | THRUST RING |
| AT AIR RESERVOIR | ||
| 521 | A 0004321107 | VALVE |
| DRAIN | ||
| 521 | A 0004322107 | VALVE |
| DRAIN | ||
| 521 | A 0004322407 | VALVE |
| DRAIN | ||
| 523 | N 007603022102 | SEAL RING |
| CONNECTION "12" | ||
| 525 | A 3014300140 | STRAP |
| AIR RESERVOIR TO SUBSTRUCTURE | ||
| 527 | A 3018960197 | PAD |
| Repalced by: A 3634750320 | ||
| 527 | A 3634750320 | PAD |
| AIR RESERVOIR TO SUBSTRUCTURE | ||
| 529 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 529 | N 304017010002 | SCREW |
| AIR RESERVOIR TO SUBSTRUCTURE | ||
| 531 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 531 | N 910113010000 | NUT |
| AIR RESERVOIR TO SUBSTRUCTURE | ||
| 533 | A 3079970372 | FITTING |
| AIR RESERVOIR DRAIN | ||
| 535 | N 007603022102 | SEAL RING |
| AIR RESERVOIR DRAIN | ||
| 537 | A 0009905471 | ELBOW FITTING |
| AIR RESERVOIR DRAIN | ||
| 539 | N 080705012003 | NUT |
| AIR RESERVOIR DRAIN | ||
| 541 | A 0019875046 | SEALING CORD |
| AIR RESERVOIR DRAIN | ||
| 543 | A 0004290827 | THRUST RING |
| AIR RESERVOIR DRAIN | ||
| 545 | A 0019904371 | ELBOW FITTING |
| AIR RESERVOIR DRAIN | ||
| 547 | N 074305022202 | NUT |
| AIR RESERVOIR DRAIN | ||
| 549 | A 0009870446 | SEALING CORD |
| AIR RESERVOIR DRAIN | ||
| 551 | A 0004290227 | THRUST RING |
| AIR RESERVOIR DRAIN | ||
| 553 | A 0004291795 | AIR CLEANER |
| Repalced by: A 0004293895 | ||
| 553 | A 0004293895 | AIR CLEANER |
| FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1" | ||
| 555 | A 0004290297 | FILTER ELEMENT |
| Repalced by: A 0025861643 | ||
| A 0004291397 | FILTER ELEMENT | |
| WABCO 020 0 | ||
| 557 | A 0109971445 | SEAL RING |
| WABCO 000 0,36.2X3.0 MM | ||
| A 0029974345 | SEAL RING | |
| WABCO 020 0,39.2X3.0 MM | ||
| A 0025861643 | REPAIR KIT | |
| WABCO 000 0 | ||
| 559 | A 0014311506 | VALVE |
| Repalced by: A 0014315806 | ||
| 559 | A 0014315806 | VALVE |
| Repalced by: A 0014319306 | ||
| 559 | A 0014319306 | VALVE |
| (FOUR-CIRCUIT PROTECTIVE VALVE) | ||
| BOSCH | ||
| 561 | A 0025864043 | REPAIR KIT |
| SEAL RING | ||
| TO 001 431 15 06,BOSCH 62001 | ||
| 561 | A 0015868443 | REPAIR KIT |
| SEAL RING | ||
| TO BOSCH 62005 | ||
| 563 | A 0025863943 | REPAIR KIT |
| BOOT | ||
| TO 001 431 15 06,BOSCH 62001 | ||
| 563 | A 0025861743 | REPAIR KIT |
| BOOT | ||
| TO BOSCH 62001,62005 | ||
| A 0034304681 | GASKET KIT | |
| TO 001 431 58 06,BOSCH 62012 | ||
| 565 | A 0004304706 | GASKET KIT |
| TO 001 431 93 06,BOSCH 62401 | ||
| 565 | A 0004300260 | REPAIR KIT |
| TO 001 431 93 06,BOSCH 62201 | ||
| 567 | A 0009907370 | T-FITTING |
| AT FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 569 | A 0004290927 | THRUST RING |
| AT FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 569 | A 0004290927 | THRUST RING |
| AT FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 571 | A 0004290227 | THRUST RING |
| BULKHEAD FITTING | ||
| 573 | A 0009971548 | SEAL RING |
| AT FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 573 | A 0009971548 | SEAL RING |
| AT FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 575 | A 0009870446 | SEALING CORD |
| 577 | N 080705016003 | NUT |
| AT FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 577 | N 080705016003 | NUT |
| AT FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 579 | N 074305022202 | NUT |
| AT FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 581 | N 915045014100 | SEAL RING |
| AT FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 583 | A 0029973372 | FITTING |
| AT FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 585 | A 0004290444 | VALVE |
| Repalced by: A 0034290744 | ||
| 585 | A 0034290744 | VALVE |
| CHECK VALVE | ||
| 585 | A 0034290744 | VALVE |
| CHECK VALVE | ||
| 587 | A 0004290088 | VALVE SEAT RING |
| TO 000 429 04 44,003 429 07 44 | ||
| 589 | A 0004290049 | BUSHING |
| TO 000 429 04 44,003 429 07 44 | ||
| 591 | A 0005865942 | REPAIR KIT |
| TO 000 429 04 44 | ||
| 593 | A 0019972172 | FITTING |
| AT FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 593 | A 0029971172 | FITTING |
| AT FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 593 | A 0019972172 | FITTING |
| AT FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 595 | N 007603022102 | SEAL RING |
| AT FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 597 | A 0009970071 | FITTING |
| AT FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 597 | A 0009970071 | FITTING |
| AT FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 597 | A 0029971572 | FITTING |
| AT FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 597 | A 0029971572 | FITTING |
| AT FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 597 | A 0029971572 | FITTING |
| AT FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 597 | A 0029971572 | FITTING |
| AT FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 599 | A 0029979172 | FITTING |
| AT FOUR-CIRCUIT PROTECTIVE VALVE | ||
| A 0029971472 | FITTING | |
| Repalced by: A 0049971772 | ||
| 601 | A 0049971772 | FITTING |
| Repalced by: A 0029906171 | ||
| 601 | A 0029906171 | FITTING |
| AT FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 603 | A 0019904070 | T-FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23" | ||
| 24 | ||
| 605 | N 007603016401 | SEAL RING |
| AT FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 607 | N 304014008004 | SCREW |
| FOUR-CIRCUIT PROTECTIVE VALVE TO BRACKET AT SUBSTRUCTURE | ||
| 609 | N 913004008005 | NUT |
| FOUR-CIRCUIT PROTECTIVE VALVE TO BRACKET AT SUBSTRUCTURE | ||
| 611 | A 0009902470 | T-FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23" | ||
| 611 | A 0019901070 | T-FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23" | ||
| 613 | A 0004290227 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: | ||
| "23",24" | ||
| 615 | A 0009870446 | SEALING CORD |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: | ||
| "23",24" | ||
| 617 | N 074305022202 | NUT |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: | ||
| "23",24" | ||
| A 0009905771 | ELBOW FITTING | |
| A 0029971672 | FITTING | |
| 621 | A 0009901187 | CROSS FITTING |
| 623 | A 0014316505 | BRAKE VALVE |
| 623 | A 0014313905 | BRAKE VALVE |
| Repalced by: A 0024314305 | ||
| 623 | A 0024314305 | BRAKE VALVE |
| TWO-CIRCUIT | ||
| 623 | A 0024314305 | BRAKE VALVE |
| TWO-CIRCUIT | ||
| 623 | A 0034318905 | BRAKE VALVE |
| TWO-CIRCUIT | ||
| 623 | A 0034318605 | BRAKE VALVE |
| TWO-CIRCUIT | ||
| 627 | A 0004315487 | PROTECTIVE CAP |
| TO 001 431 39 05,65 05 | ||
| 627 | A 0004315487 | PROTECTIVE CAP |
| TO 001 431 39 05,65 05 | ||
| 629 | A 0005868643 | REPAIR KIT |
| TO 001 431 65 05 | ||
| 629 | A 0005868643 | REPAIR KIT |
| TO 001 431 39 05,002 431 43 05 | ||
| 631 | A 0009902970 | T-FITTING |
| AT BRAKE VALVE | ||
| 631 | A 0019901270 | T-FITTING |
| AT BRAKE VALVE | ||
| 633 | A 0009902570 | T-FITTING |
| AT BRAKE VALVE | ||
| 633 | A 0009902570 | T-FITTING |
| AT BRAKE VALVE | ||
| 635 | A 3019970172 | FITTING |
| Repalced by: A 0009905168 | ||
| 635 | A 0009905168 | FITTING |
| AT BRAKE VALVE | ||
| 637 | N 074305022202 | NUT |
| AT BRAKE VALVE | ||
| 637 | N 074305022202 | NUT |
| AT BRAKE VALVE | ||
| 637 | N 074305022202 | NUT |
| AT BRAKE VALVE | ||
| 639 | A 0009870446 | SEALING CORD |
| AT BRAKE VALVE | ||
| 639 | A 0009870446 | SEALING CORD |
| AT BRAKE VALVE | ||
| 639 | A 0009870446 | SEALING CORD |
| AT BRAKE VALVE | ||
| 641 | A 0004290227 | THRUST RING |
| AT BRAKE VALVE | ||
| 641 | A 0004290227 | THRUST RING |
| AT BRAKE VALVE | ||
| 641 | A 0004290227 | THRUST RING |
| AT BRAKE VALVE | ||
| 643 | A 0019903770 | T-FITTING |
| AT BRAKE VALVE | ||
| 645 | A 0019972172 | FITTING |
| AT BRAKE VALVE | ||
| 645 | A 0019972172 | FITTING |
| AT BRAKE VALVE | ||
| 645 | A 0019972172 | FITTING |
| AT BRAKE VALVE | ||
| 647 | A 0029971172 | FITTING |
| AT BRAKE VALVE | ||
| 647 | A 0029971172 | FITTING |
| AT BRAKE VALVE | ||
| A 0029971572 | FITTING | |
| AT BRAKE VALVE | ||
| 649 | N 007603022102 | SEAL RING |
| AT BRAKE VALVE | ||
| 649 | N 007603016401 | SEAL RING |
| AT BRAKE VALVE | ||
| 651 | N 000908022001 | SCREW PLUG |
| Repalced by: N 000908022011 | ||
| 651 | N 000908022011 | SCREW PLUG |
| AT BRAKE VALVE | ||
| 653 | A 0009905070 | T-FITTING |
| AT BRAKE VALVE | ||
| 653 | A 0009905070 | T-FITTING |
| AT BRAKE VALVE | ||
| 655 | A 0009971548 | SEAL RING |
| AT BRAKE VALVE | ||
| 655 | A 0009971548 | SEAL RING |
| AT BRAKE VALVE | ||
| 657 | A 0004290927 | THRUST RING |
| AT BRAKE VALVE | ||
| 657 | A 0004290927 | THRUST RING |
| AT BRAKE VALVE | ||
| 659 | N 080705016003 | NUT |
| 659 | N 080705016003 | NUT |
| A 0014314005 | BRAKE VALVE | |
| 661 | A 0009906470 | T-FITTING |
| AT BRAKE VALVE | ||
| 663 | A 0004290927 | THRUST RING |
| AT BRAKE VALVE | ||
| 665 | A 0009971548 | SEAL RING |
| AT BRAKE VALVE | ||
| 667 | N 080705016003 | NUT |
| AT BRAKE VALVE | ||
| 669 | A 0009970071 | FITTING |
| AT BRAKE VALVE | ||
| 671 | N 000908016001 | SCREW PLUG |
| AT BRAKE VALVE | ||
| 673 | N 007603016401 | SEAL RING |
| AT BRAKE VALVE | ||
| 677 | A 0024315905 | BRAKE VALVE |
| Repalced by: A 0034319005 | ||
| 677 | A 0034319005 | BRAKE VALVE |
| SERVICE BRAKE | ||
| BOSCH | ||
| 677 | A 0024318405 | BRAKE VALVE |
| Repalced by: A 0034318705 | ||
| 677 | A 0034318705 | BRAKE VALVE |
| SERVICE BRAKE | ||
| WABCO | ||
| 677 | A 0024315805 | BRAKE VALVE |
| TWO-CIRCUIT | ||
| 677 | A 0024318305 | BRAKE VALVE |
| TWO-CIRCUIT | ||
| 681 | A 0005868643 | REPAIR KIT |
| TO 001 431 65 05 | ||
| 681 | A 0004303506 | REPAIR KIT |
| TO 002 431 58 05 | ||
| 681 | A 0014300460 | REPAIR KIT |
| TO 002 431 83 05 | ||
| 681 | A 0025868743 | REPAIR KIT |
| Repalced by: A 0004303506 | ||
| 681 | A 0004303506 | REPAIR KIT |
| TO 002 431 59 05,BOSCH | ||
| 681 | A 0014300460 | REPAIR KIT |
| TO 002 431 84 05,WABCO | ||
| A 0009901270 | T-FITTING | |
| AT BRAKE VALVE | ||
| 685 | A 0009905070 | T-FITTING |
| AT BRAKE VALVE | ||
| 687 | A 0004290927 | THRUST RING |
| AT BRAKE VALVE | ||
| 689 | A 0009971548 | SEAL RING |
| AT BRAKE VALVE | ||
| 691 | N 080705016003 | NUT |
| AT BRAKE VALVE | ||
| 693 | A 3019970172 | FITTING |
| Repalced by: A 0009905168 | ||
| 693 | A 0009905168 | FITTING |
| TO 001 431 65 05 | ||
| 695 | A 0029971172 | FITTING |
| TO 001 431 65 05 | ||
| A 0009971572 | FITTING | |
| Repalced by: A 0019972572 | ||
| 697 | A 0019972572 | FITTING |
| AT BRAKE VALVE | ||
| 701 | N 007603016401 | SEAL RING |
| AT BRAKE VALVE | ||
| 705 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 705 | N 910113010000 | NUT |
| BRAKE VALVE TO PEDAL BEARING BRACKET | ||
| 707 | N 000908022001 | SCREW PLUG |
| Repalced by: N 000908022011 | ||
| 707 | N 000908022011 | SCREW PLUG |
| 707 | N 000908022011 | SCREW PLUG |
| 711 | A 0004319614 | BRAKE CYLINDER |
| Repalced by: A 0014317114 | ||
| 711 | A 0014317114 | BRAKE CYLINDER |
| BOSCH | ||
| 713 | A 0004317283 | PISTON |
| 715 | A 0049970248 | SEAL RING |
| 717 | A 0039979248 | SEAL RING |
| 719 | A 0019979340 | SEAL RING |
| Repalced by: A 0019975945 | ||
| 719 | A 0019975945 | SEAL RING |
| 721 | A 0004317183 | PISTON |
| 722 | A 0069975645 | SEAL RING |
| 723 | A 0014310660 | SEAL RING |
| 724 | A 0039979348 | SEAL RING |
| 725 | A 0004317383 | PISTON |
| 726 | A 0039979448 | SEAL RING |
| 727 | A 0004311249 | GUIDE BUSHING |
| 728 | A 0009902047 | LOCK WASHER |
| Repalced by: N 000127010202 | ||
| 728 | N 912004010102 | LOCK WASHER |
| A 0039974347 | SEAL RING | |
| 730 | A 0004318886 | CUP |
| 732 | A 0025860743 | REPAIR KIT |
| Repalced by: A 0004302108 | ||
| 732 | A 0004302108 | REPAIR KIT |
| REPAIR KIT | ||
| 733 | A 0009970071 | FITTING |
| AT BRAKE VALVE | ||
| 734 | A 0009906470 | T-FITTING |
| AT BRAKE VALVE | ||
| 735 | N 007603016401 | SEAL RING |
| AT BRAKE VALVE | ||
| 736 | N 080705016003 | NUT |
| AT BRAKE VALVE | ||
| 737 | A 0004290927 | THRUST RING |
| AT BRAKE VALVE | ||
| 738 | A 0009971548 | SEAL RING |
| AT BRAKE VALVE | ||
| 739 | A 0005454509 | SWITCH |
| Repalced by: A 0005456009 | ||
| 739 | A 0005456009 | SWITCH |
| EXHAUST BRAKE | ||
| 739 | A 0005456009 | SWITCH |
| EXHAUST BRAKE | ||
| 740 | A 0019901771 | ELBOW FITTING |
| 741 | N 000933010174 | SCREW |
| Repalced by: N 304017010040 | ||
| 741 | N 304017010040 | SCREW |
| 742 | N 912004010102 | LOCK WASHER |
| 743 | A 0034304401 | BRAKE BOOSTER |
| FRONT AXLE | ||
| 744 | A 0015869143 | REPAIR KIT |
| TO 003 430 44 01 | ||
| 745 | A 0034304501 | BRAKE BOOSTER |
| Repalced by: A 0034308001 | ||
| 745 | A 0034308001 | BRAKE MASTER CYLINDER |
| REAR AXLE | ||
| 745 | A 0034308001 | BRAKE MASTER CYLINDER |
| REAR AXLE | ||
| 746 | A 0004312085 | FILLER RING |
| 747 | A 0059979648 | SEAL RING |
| 160 X 3 | ||
| 748 | A 0059979748 | SEAL RING |
| 10 X 3 | ||
| 749 | N 000933010128 | SCREW |
| M 10 X 20 | ||
| 750 | N 000934010014 | NUT |
| 751 | N 000933005075 | SCREW |
| Repalced by: N 304017005002 | ||
| 751 | N 304017005002 | SCREW |
| M 5 X 16 | ||
| 752 | N 000934005008 | NUT |
| 753 | N 006799005005 | LOCK PLATE |
| A 0025861543 | REPAIR KIT | |
| TO 003 430 45 01 | ||
| A 0025861543 | REPAIR KIT | |
| TO 003 430 45 01 | ||
| 754 | A 0025869443 | REPAIR KIT |
| TO 003 430 80 01,003 430 45 01 | ||
| 754 | A 0025869443 | REPAIR KIT |
| TO 003 430 80 01,003 430 45 01 | ||
| 755 | A 0009905871 | ELBOW FITTING |
| AT BRAKE BOOSTER | ||
| 755 | A 0009907771 | ELBOW FITTING |
| AT BRAKE BOOSTER | ||
| 756 | N 074305022202 | NUT |
| AT BRAKE BOOSTER | ||
| 757 | A 0004290227 | THRUST RING |
| AT BRAKE BOOSTER | ||
| 758 | A 0009870446 | SEALING CORD |
| AT BRAKE BOOSTER | ||
| 759 | A 0029978472 | FITTING |
| AT BRAKE BOOSTER | ||
| 760 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 760 | N 007603010110 | SEAL RING |
| AT BRAKE BOOSTER | ||
| 761 | N 912004010102 | LOCK WASHER |
| BRAKE CYLINDER TO SUBSTRUCTURE | ||
| N 913004010011 | NUT | |
| A 0004304981 | VALVE | |
| A 0009909171 | ELBOW FITTING | |
| N 074305022202 | NUT | |
| A 0004290227 | THRUST RING | |
| A 0009870446 | SEALING CORD | |
| N 000908022001 | SCREW PLUG | |
| Repalced by: N 000908022011 | ||
| N 000908022011 | SCREW PLUG | |
| N 007603022102 | SEAL RING | |
| A 0005867943 | REPAIR KIT | |
| A 0004311431 | TEST CONNECTION | |
| Repalced by: A 0004314831 | ||
| A 0004311531 | TEST CONNECTION | |
| Repalced by: A 0004314831 | ||
| 771 | A 0004313431 | TEST CONNECTION |
| Repalced by: A 0004314831 | ||
| 771 | A 0004314831 | TEST CONNECTION |
| WESTINGHOUSE | ||
| 771 | A 0004314831 | TEST CONNECTION |
| WESTINGHOUSE | ||
| 771 | A 0004314831 | TEST CONNECTION |
| WESTINGHOUSE | ||
| 771 | A 0004312031 | TEST CONNECTION |
| VOSS | ||
| 771 | A 0004312031 | TEST CONNECTION |
| VOSS | ||
| 771 | A 0004312031 | TEST CONNECTION |
| VOSS | ||
| 771 | A 0004316131 | TEST CONNECTION |
| WIRA | ||
| 771 | A 0004316131 | TEST CONNECTION |
| WIRA | ||
| 771 | A 0004316131 | TEST CONNECTION |
| WIRA | ||
| 771 | A 0004314531 | TEST CONNECTION |
| SCHAEFER | ||
| 771 | A 0004314531 | TEST CONNECTION |
| SCHAEFER | ||
| 771 | A 0004314531 | TEST CONNECTION |
| SCHAEFER | ||
| A 0009979486 | PLUG | |
| 772 | A 0009902570 | T-FITTING |
| TEST CONNECTION | ||
| 772 | A 0009905370 | T-FITTING |
| TEST CONNECTION | ||
| 773 | A 0019902770 | T-FITTING |
| A 0029976772 | FITTING | |
| 775 | A 0009902370 | T-FITTING |
| 775 | A 0009905270 | T-FITTING |
| BRANCH-OFF TO DIAPHRAGM CYLINDER | ||
| 777 | A 0019972172 | FITTING |
| AT LEFT AND RIGHT DIAPHRAGM CYLINDERS | ||
| 777 | A 0009970071 | FITTING |
| AT LEFT AND RIGHT DIAPHRAGM CYLINDERS | ||
| 778 | N 007603022102 | SEAL RING |
| AT LEFT AND RIGHT DIAPHRAGM CYLINDERS | ||
| 779 | N 007603016401 | SEAL RING |
| AT LEFT AND RIGHT DIAPHRAGM CYLINDERS | ||
| A 0009902570 | T-FITTING | |
| CONNECTION TO STOP LIGHT SWITCH | ||
| 781 | A 0039970672 | FITTING |
| 782 | N 915017012100 | UNION NUT |
| 783 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 783 | A 0019901967 | SEAL CONE |
| A 0009902370 | T-FITTING | |
| 785 | A 0009907771 | ELBOW FITTING |
| BRAKE HOSE,FRONT | ||
| 786 | A 0009907871 | ELBOW FITTING |
| BRAKE HOSE,FRONT | ||
| A 0019972372 | FITTING | |
| 787 | N 074305022202 | NUT |
| BRAKE HOSE,FRONT | ||
| 788 | N 080705018002 | NUT |
| BRAKE HOSE,FRONT | ||
| A 0004296335 | BRAKE HOSE | |
| Repalced by: N 074310013002 | ||
| 789 | N 916027013006 | HOSE |
| BRAKE HOSE,FRONT | ||
| A 0004296635 | BRAKE HOSE | |
| Repalced by: N 074310013002 | ||
| 790 | A 0029971872 | FITTING |
| BRAKE HOSE,FRONT | ||
| 791 | N 915017015200 | UNION NUT |
| BRAKE HOSE,FRONT | ||
| A 0029973890 | LOOM TIE | |
| Repalced by: A 0009971390 | ||
| 792 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 792 | N 000000000667 | CLAMP |
| BRAKE HOSE,FRONT | ||
| 792 | N 000000000667 | CLAMP |
| BRAKE HOSE,FRONT | ||
| 793 | A 3174200148 | BRAKE HOSE |
| Repalced by: A 0004299935 | ||
| 793 | A 0004299935 | BRAKE HOSE |
| FROM ELBOW FITTING TO DOUBLE FITTING | ||
| 794 | A 3074201148 | BRAKE HOSE |
| Repalced by: A 0004298835 | ||
| 794 | A 0004298835 | BRAKE HOSE |
| FROM ELBOW FITTING TO DOUBLE FITTING | ||
| 794 | A 3014201448 | BRAKE HOSE |
| Repalced by: A 3074200948 | ||
| 795 | A 3434293608 | LINE |
| LEFT & RIGHT BRAKE LINES | ||
| 796 | A 0029971172 | FITTING |
| LEFT AND RIGHT BRAKE HOSES | ||
| A 0029971472 | FITTING | |
| Repalced by: A 0049971772 | ||
| 796 | A 0049971772 | FITTING |
| Repalced by: A 0029906171 | ||
| 796 | A 0029906171 | FITTING |
| LEFT AND RIGHT BRAKE HOSES | ||
| 797 | N 915045014100 | SEAL RING |
| LEFT AND RIGHT BRAKE HOSES | ||
| 798 | A 0029971572 | FITTING |
| FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS | ||
| 799 | N 007603016401 | SEAL RING |
| FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS | ||
| 800 | N 915018015000 | UNION NUT |
| FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS | ||
| 801 | N 003861015004 | GLAND |
| FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| AT LEFT AND RIGHT REAR DIAPHRAGM CYLINDERS | ||
| 802 | A 3074201148 | BRAKE HOSE |
| Repalced by: A 0004298835 | ||
| 802 | A 0004298835 | BRAKE HOSE |
| SPRING-LOAD ACCUMULATOR TEST CONNECTION | ||
| 802 | A 3894205648 | BRAKE HOSE |
| Repalced by: A 0004299535 | ||
| 802 | A 0004299535 | BRAKE HOSE |
| SPRING-LOAD ACCUMULATOR TEST CONNECTION | ||
| N 915045012100 | SEAL RING | |
| Repalced by: N 007603012121 | ||
| N 007603012121 | SEAL RING | |
| N 915045014100 | SEAL RING | |
| 805 | A 0009902470 | T-FITTING |
| AT RIGHT DIAPHRAGM CYLINDER | ||
| 805 | A 0019901170 | T-FITTING |
| AT RIGHT DIAPHRAGM CYLINDER | ||
| 806 | A 0004290227 | THRUST RING |
| AT RIGHT DIAPHRAGM CYLINDER | ||
| 806 | A 0004290927 | THRUST RING |
| AT RIGHT DIAPHRAGM CYLINDER | ||
| 807 | A 0009870446 | SEALING CORD |
| AT RIGHT DIAPHRAGM CYLINDER | ||
| 807 | A 0009971548 | SEAL RING |
| AT RIGHT DIAPHRAGM CYLINDER | ||
| 808 | N 074305022202 | NUT |
| AT RIGHT DIAPHRAGM CYLINDER | ||
| 808 | N 080705016003 | NUT |
| AT RIGHT DIAPHRAGM CYLINDER | ||
| 809 | A 0009905871 | ELBOW FITTING |
| AT LEFT DIAPHRAGM CYLINDER | ||
| 810 | A 0029971572 | FITTING |
| AT LEFT DIAPHRAGM CYLINDER | ||
| 811 | N 074305022202 | NUT |
| AT LEFT DIAPHRAGM CYLINDER | ||
| 812 | A 0004290227 | THRUST RING |
| AT LEFT DIAPHRAGM CYLINDER | ||
| 813 | A 0009870446 | SEALING CORD |
| AT LEFT DIAPHRAGM CYLINDER | ||
| 814 | N 007603016401 | SEAL RING |
| AT LEFT DIAPHRAGM CYLINDER | ||
| 815 | A 0019978536 | VALVE |
| Repalced by: A 0039971136 | ||
| 815 | A 0039971136 | VALVE |
| Repalced by: A 0039975336 | ||
| 815 | A 0039975336 | VALVE |
| 816 | A 0109974448 | SEAL RING |
| TO 003 997 11 36 | ||
| 816 | A 0079970248 | SEAL RING |
| 17.3X2.4 MM | ||
| 817 | A 0049970640 | SEAL RING |
| 7X12X11.5 MM | ||
| 818 | N 007603006100 | SEAL RING |
| 6X10 MM | ||
| 819 | A 0004311368 | VALVE PART |
| Repalced by: A 0004311668 | ||
| 819 | A 0004311668 | VALVE PART |
| TO 001 997 85 36 | ||
| 819 | A 0004311468 | VALVE PART |
| Repalced by: A 0005533307 | ||
| A 0005533307 | VALVE | |
| TO 003 997 11 36 | ||
| 820 | A 0004319287 | PROTECTIVE CAP |
| Repalced by: A 0014310087 | ||
| 820 | A 0014310087 | PROTECTIVE CAP |
| TO 003 997 11 36,001 997 85 36 | ||
| A 0004305660 | REPAIR KIT | |
| TO 003 997 11 36,WABCO 472 123 108 0 | ||
| 822 | A 0019972572 | FITTING |
| 823 | N 007603012405 | SEAL RING |
| 824 | N 000931008246 | SCREW |
| Repalced by: N 304017008028 | ||
| 824 | N 304017008028 | SCREW |
| 825 | N 913004008005 | NUT |
| 826 | A 0004295444 | VALVE |
| DRAIN VALVE | ||
| 827 | A 0005868342 | REPAIR KIT |
| 828 | A 0019972572 | FITTING |
| DRAIN VALVE | ||
| 829 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 829 | N 304017008021 | SCREW |
| 830 | N 913004008005 | NUT |
| 831 | N 007603012405 | SEAL RING |
| DRAIN VALVE | ||
| 832 | A 0004291401 | LINE |
| 15 MM | ||
| 832 | A 0004292101 | LINE |
| 12 MM | ||
| 833 | N 915018015000 | UNION NUT |
| 833 | N 915017012100 | UNION NUT |
| 834 | N 003861015004 | GLAND |
| 834 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 834 | A 0019901967 | SEAL CONE |
| 835 | A 0004291027 | THRUST RING |
| 836 | N 915045012100 | SEAL RING |
| Repalced by: N 007603012121 | ||
| 836 | N 007603012121 | SEAL RING |
| 837 | A 0009905270 | T-FITTING |
| BRANCH-OFF LEADING TO REAR AXLE BRAKE CYLINDER | ||
| 837 | A 0009902370 | T-FITTING |
| 838 | A 0009970271 | FITTING |
| BRANCH-OFF TO HAND BRAKE VALVE | ||
| 839 | N 915045012100 | SEAL RING |
| Repalced by: N 007603012121 | ||
| 839 | N 007603012121 | SEAL RING |
| BRANCH-OFF TO HAND BRAKE VALVE | ||
| A 0039970672 | FITTING | |
| BRANCH-OFF TO HAND BRAKE VALVE | ||
| N 915017012100 | UNION NUT | |
| BRANCH-OFF TO HAND BRAKE VALVE | ||
| N 003861012007 | GLAND | |
| Repalced by: A 0019901967 | ||
| A 0019901967 | SEAL CONE | |
| BRANCH-OFF TO HAND BRAKE VALVE | ||
| 843 | A 0009954701 | CLAMP |
| Repalced by: N 916016015202 | ||
| 843 | N 916016015202 | CLAMP |
| LINE TO SUBSTRUCTURE | ||
| 844 | N 000933006127 | SCREW |
| LINE TO SUBSTRUCTURE | ||
| 845 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 845 | N 009021006208 | WASHER |
| LINE TO SUBSTRUCTURE | ||
| 846 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 846 | N 910113006001 | NUT |
| LINE TO SUBSTRUCTURE | ||
| 847 | A 0004291201 | LINE |
| 848 | N 915017008100 | UNION NUT |
| 849 | N 003861008005 | GLAND |
| 850 | A 0019972672 | FITTING |
| Repalced by: A 0039978972 | ||
| 850 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 850 | A 0029905971 | FITTING |
| BETWEEN THE LINES | ||
| 851 | A 0009972581 | GROMMET |
| Repalced by: A 0009972481 | ||
| 851 | A 0009972481 | GROMMET |
| 852 | A 0009902670 | T-FITTING |
| AUTOMATIC DRAIN VALVE BRANCH-OFF | ||
| 853 | A 0009951801 | CLAMP |
| Repalced by: N 916016008200 | ||
| 853 | N 916016008200 | CLAMP |
| LINE TO SUBSTRUCTURE | ||
| 854 | N 000084006137 | SCREW |
| 855 | N 007971004240 | SHEET METAL SCREW |
| Repalced by: N 007981004258 | ||
| 855 | N 007981004258 | SHEET METAL SCREW |
| 856 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 856 | N 009021006208 | WASHER |
| 857 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 857 | N 910113006001 | NUT |
| A 0019972672 | FITTING | |
| Repalced by: A 0039978972 | ||
| 858 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 858 | A 0029905971 | FITTING |
| 858 | A 0029906171 | FITTING |
| BETWEEN THE LINES | ||
| 860 | A 0019972372 | FITTING |
| BETWEEN THE LINES | ||
| 860 | A 0029971672 | FITTING |
| BETWEEN THE LINES | ||
| 860 | A 0029977272 | FITTING |
| Repalced by: A 0049978972 | ||
| 860 | A 0049978972 | FITTING |
| 860 | A 0029971672 | FITTING |
| BETWEEN THE LINES | ||
| 860 | A 0019972172 | FITTING |
| BETWEEN THE LINES | ||
| 861 | N 074305022202 | NUT |
| 861 | N 080705018002 | NUT |
| BETWEEN THE LINES | ||
| A 0004291027 | THRUST RING | |
| A 0004291027 | THRUST RING | |
| 863 | N 915045014100 | SEAL RING |
| 863 | N 915045014100 | SEAL RING |
| N 007603022102 | SEAL RING | |
| A 0009909870 | T-FITTING | |
| 865 | N 074305022202 | NUT |
| A 0004290227 | THRUST RING | |
| A 0009870446 | SEALING CORD | |
| 868 | A 3014200086 | BRACKET |
| Repalced by: A 3014200286 | ||
| 868 | A 3014200286 | BRACKET |
| 868 | A 3014200286 | BRACKET |
| A 0004296935 | BRAKE HOSE | |
| Repalced by: N 074310013002 | ||
| 869 | N 916027013006 | HOSE |
| 869 | A 3014200548 | BRAKE HOSE |
| Repalced by: A 0004298535 | ||
| 869 | A 0004298535 | BRAKE HOSE |
| RELAY VALVE,CONNECTION "2" | ||
| 869 | A 3894205248 | BRAKE HOSE |
| Repalced by: A 0004299335 | ||
| 869 | A 0004299335 | BRAKE HOSE |
| 870 | A 0029971872 | FITTING |
| 871 | A 0009902370 | T-FITTING |
| 872 | N 915017015200 | UNION NUT |
| 873 | N 915045012100 | SEAL RING |
| Repalced by: N 007603012121 | ||
| 873 | N 007603012121 | SEAL RING |
| A 0009950565 | CLAMP | |
| Repalced by: A 0029973890 | ||
| A 0029973890 | LOOM TIE | |
| Repalced by: N 916017020000 | ||
| 875 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 875 | N 000000000667 | CLAMP |
| 876 | A 0024302481 | VALVE |
| PARKING BRAKE | ||
| 877 | A 0009973677 | HANDLE |
| Repalced by: A 0009972477 | ||
| 877 | A 0009972477 | HANDLE |
| TO 002 430 24 81 | ||
| A 0034303381 | REPAIR KIT | |
| 879 | A 0004307681 | VALVE |
| HAND BRAKE VALVE | ||
| 880 | A 0015454314 | SWITCH |
| TO 000 430 76 81 | ||
| 881 | A 0005868043 | REPAIR KIT |
| Repalced by: A 0004305760 | ||
| 881 | A 0004305760 | REPAIR KIT |
| TO 000 430 76 81 | ||
| 883 | A 1152681442 | KNOB |
| 884 | A 1152680072 | NUT |
| 885 | A 0019970652 | HOSE |
| PARKING BRAKE VALVE | ||
| 8X10 MM | ||
| 887 | N 007603014405 | SEAL RING |
| AT HAND BRAKE VALVE | ||
| 887 | N 007603014405 | SEAL RING |
| PARKING BRAKE VALVE | ||
| 888 | A 0019973072 | FITTING |
| AT HAND BRAKE VALVE | ||
| 888 | A 0019973072 | FITTING |
| PARKING BRAKE VALVE | ||
| 889 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 889 | N 915036010108 | HOLLOW SCREW |
| PARKING BRAKE VALVE | ||
| 890 | N 000963006005 | SCREW |
| HAND BRAKE VALVE TO BRACKET | ||
| 891 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 891 | N 304017008016 | SCREW |
| PARKING BRAKE VALVE | ||
| 892 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 892 | N 910113006001 | NUT |
| HAND BRAKE VALVE TO BRACKET | ||
| 893 | N 912004008102 | LOCK WASHER |
| PARKING BRAKE VALVE | ||
| 895 | A 0004296544 | VALVE |
| Repalced by: A 0014296844 | ||
| 895 | A 0014296844 | VALVE |
| (RELAY VALVE) | ||
| WESTINGHOUSE | ||
| 895 | A 0014292044 | VALVE |
| Repalced by: A 0034291644 | ||
| 895 | A 0034291644 | VALVE |
| (RELAY VALVE) | ||
| BOSCH | ||
| 895 | A 0014299144 | VALVE |
| (RELAY VALVE) | ||
| GRAU | ||
| 895 | A 0024290744 | VALVE |
| Repalced by: A 0034295344 | ||
| 895 | A 0034295344 | VALVE |
| (RELAY VALVE) | ||
| KNORR | ||
| 897 | A 0059972648 | SEAL RING |
| 22.3X2.4 MM;TO 001 429 91 44 | ||
| 898 | A 0004312788 | VALVE SEAT |
| TO 001 429 91 55 | ||
| 899 | A 0059972748 | SEAL RING |
| 80X3 MM;TO 000 429 28 95, GRAU | ||
| 900 | A 0014311660 | SEAL RING |
| TO 001 429 91 44 | ||
| 901 | A 0014311760 | SEAL RING |
| TO 001 429 91 44 | ||
| 902 | A 0004311980 | GASKET |
| TO 001 429 91 44 | ||
| 903 | A 0015862742 | REPAIR KIT |
| TO 001 429 20 44 | ||
| 905 | A 0025863542 | REPAIR KIT |
| TO 002 429 07 44, 003 429 53 44 | ||
| 905 | A 0005865742 | REPAIR KIT |
| TO 001 429 68 44 | ||
| 906 | A 0025865642 | REPAIR KIT |
| Repalced by: A 0004201071 | ||
| 906 | A 0004201071 | VALVE |
| GASKET KIT | ||
| TO 003 429 16 44; UP TO 03.82 | ||
| 906 | A 0004201271 | VALVE |
| GASKET KIT | ||
| TO 003 429 16 44; FROM 04.82 | ||
| 907 | A 0025865742 | REPAIR KIT |
| Repalced by: A 0004301109 | ||
| 907 | A 0004301109 | REPAIR KIT |
| BLEEDER VALVE | ||
| TO 003 429 16 44 | ||
| 909 | A 0019972172 | FITTING |
| AT RELAY VALVE | ||
| 909 | A 0029971172 | FITTING |
| AT RELAY VALVE | ||
| 909 | A 0029971572 | FITTING |
| AT RELAY VALVE | ||
| 911 | A 0009970171 | FITTING |
| AT RELAY VALVE | ||
| 911 | A 0029979572 | FITTING |
| AT RELAY VALVE | ||
| 912 | N 000908022001 | SCREW PLUG |
| Repalced by: N 000908022011 | ||
| 912 | N 000908022011 | SCREW PLUG |
| AT RELAY VALVE | ||
| 912 | N 000908016001 | SCREW PLUG |
| AT RELAY VALVE | ||
| 914 | N 007603022102 | SEAL RING |
| AT RELAY VALVE | ||
| 914 | N 007603016401 | SEAL RING |
| AT RELAY VALVE | ||
| 915 | A 0009905871 | ELBOW FITTING |
| AT RELAY VALVE | ||
| 915 | A 0009907771 | ELBOW FITTING |
| AT RELAY VALVE | ||
| 916 | A 0004290227 | THRUST RING |
| AT RELAY VALVE | ||
| 917 | A 0009870446 | SEALING CORD |
| AT RELAY VALVE | ||
| 918 | N 074305022202 | NUT |
| AT RELAY VALVE | ||
| 919 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 919 | N 000125008443 | WASHER |
| RELAY VALVE TO BRACKET | ||
| 920 | N 913004008004 | NUT |
| RELAY VALVE TO BRACKET | ||
| 921 | A 0014292444 | VALVE |
| TWO-WAY | ||
| WESTINGHOUSE | ||
| A 0004290682 | VALVE | |
| Repalced by: A 0004290782 | ||
| 922 | A 0004290782 | VALVE |
| Repalced by: A 0004291182 | ||
| 922 | A 0004291182 | VALVE BODY |
| TO 001 429 24 44 | ||
| A 0029810485 | BALL | |
| TO 003 429 11 44 | ||
| A 0004290180 | GASKET | |
| TO 003 429 11 44 | ||
| 923 | A 0009909670 | T-FITTING |
| Repalced by: A 0019902071 | ||
| 923 | A 0019902071 | ELBOW FITTING |
| AT TWO-WAY VALVE | ||
| 923 | A 0009902470 | T-FITTING |
| AT TWO-WAY VALVE | ||
| 923 | A 0019901070 | T-FITTING |
| AT TWO-WAY VALVE | ||
| 923 | A 0019901070 | T-FITTING |
| AT TWO-WAY VALVE | ||
| 925 | A 0009907771 | ELBOW FITTING |
| AT TWO-WAY VALVE | ||
| 927 | A 0019972372 | FITTING |
| AT TWO-WAY VALVE | ||
| 927 | A 0019972372 | FITTING |
| AT TWO-WAY VALVE | ||
| 927 | A 0029979172 | FITTING |
| AT TWO-WAY VALVE | ||
| 929 | A 0039970572 | FITTING |
| AT TWO-WAY VALVE | ||
| 929 | A 0009970171 | FITTING |
| AT TWO-WAY VALVE | ||
| A 0019902071 | ELBOW FITTING | |
| AT TWO-WAY VALVE | ||
| 931 | A 0009909870 | T-FITTING |
| AT TWO-WAY VALVE | ||
| 931 | A 0019901370 | T-FITTING |
| AT TWO-WAY VALVE | ||
| 933 | A 0019972172 | FITTING |
| AT TWO-WAY VALVE | ||
| 933 | A 0029971172 | FITTING |
| AT TWO-WAY VALVE | ||
| 935 | N 074305022202 | NUT |
| AT TWO-WAY VALVE | ||
| 935 | N 074305022202 | NUT |
| AT TWO-WAY VALVE | ||
| 935 | N 074305022202 | NUT |
| AT TWO-WAY VALVE | ||
| 937 | A 0004290227 | THRUST RING |
| AT TWO-WAY VALVE | ||
| 937 | A 0004290227 | THRUST RING |
| AT TWO-WAY VALVE | ||
| 937 | A 0004290227 | THRUST RING |
| AT TWO-WAY VALVE | ||
| 939 | A 0009870446 | SEALING CORD |
| AT TWO-WAY VALVE | ||
| 939 | A 0009870446 | SEALING CORD |
| AT TWO-WAY VALVE | ||
| 939 | A 0009870446 | SEALING CORD |
| AT TWO-WAY VALVE | ||
| 940 | N 007603016401 | SEAL RING |
| TWO-WAY VALVE TO SPRING LOAD ACCUMULATOR CYLINDER | ||
| 941 | N 080705016003 | NUT |
| TWO-WAY VALVE TO SPRING LOAD ACCUMULATOR CYLINDER | ||
| 943 | A 0004290927 | THRUST RING |
| TWO-WAY VALVE TO SPRING LOAD ACCUMULATOR CYLINDER | ||
| 945 | A 0009971548 | SEAL RING |
| TWO-WAY VALVE TO SPRING LOAD ACCUMULATOR CYLINDER | ||
| 947 | N 007603022102 | SEAL RING |
| AT TWO-WAY VALVE | ||
| 950 | N 915020012000 | NUT |
| AT TWO-WAY VALVE | ||
| 953 | N 915005004001 | LOCKING CONE |
| AT TWO-WAY VALVE | ||
| N 000931008248 | SCREW | |
| Repalced by: N 304017008053 | ||
| N 304017008053 | SCREW | |
| N 913004008005 | NUT | |
| N 000934008010 | NUT | |
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR SOLENOID VALVE,SEE EXHAUST BRAKE, GROUP 43 | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
