Transporto priemonė: O 303; VIN numerio dalis: 301106
Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 0015412201 | BATTERY |
| Repalced by: A 0035411801 | ||
| 001 | A 0035411801 | BATTERY |
| Repalced by: A 0025412301 | ||
| 001 | A 0025412301 | BATTERY |
| 12 V/135 AH | ||
| 001 | A 0025412301 | BATTERY |
| 12 V/135 AH | ||
| 001 | A 0025412301 | BATTERY |
| 12 V/135 AH | ||
| 001 | A 0015413001 | BATTERY |
| Repalced by: A 0025411701 | ||
| 001 | A 0025411701 | BATTERY |
| 12V/170 AH | ||
| A 0015411001 | BATTERY | |
| Repalced by: A 0015418001 | ||
| 001 | A 0015418001 | BATTERY |
| Repalced by: A 0025414101 | ||
| 001 | A 0025414101 | BATTERY |
| Repalced by: A 0045411501 | ||
| 001 | A 0045411501 | BATTERY |
| Repalced by: A 0045413101 | ||
| 001 | A 0045413101 | BATTERY |
| 12V/88 AH | ||
| 001 | A 0045413101 | BATTERY |
| 12V/88 AH | ||
| 002 | A 0005462235 | BOOT |
| Repalced by: A 0005464335 | ||
| 002 | A 0005464335 | BOOT |
| Repalced by: A 0005464635 | ||
| 002 | A 0005464635 | BOOT |
| POS. POLE | ||
| 002 | A 0005464635 | BOOT |
| POS. POLE | ||
| 002 | A 0005461835 | BOOT |
| POS. POLE | ||
| A 3015400030 | POS.CABLE | |
| Repalced by: N 072551070880 | ||
| A 3015400430 | POS.CABLE | |
| Repalced by: N 072551070880 | ||
| N 072551070880 | ELECTRIC CABLE | |
| Repalced by: N 922002070000 | ||
| 004 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 004 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY POS. POLE TO CABLE CONNECTOR | ||
| 005 | N 072332013100 | SOLDERING TERMINAL |
| POS. POLE | ||
| 006 | N 046234010007 | CABLE SHOE |
| CABLE CONNECTOR | ||
| A 3015400330 | POS.CABLE | |
| Repalced by: N 072551070880 | ||
| A 3015400230 | POS.CABLE | |
| Repalced by: N 072551070880 | ||
| A 3015400830 | POS.CABLE | |
| Repalced by: N 072551070880 | ||
| N 072551070880 | ELECTRIC CABLE | |
| Repalced by: N 922002070000 | ||
| 008 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 008 | A 6735460013 | ELECTRIC CABLE |
| FROM CABLE CONNECTOR TO STARTING MOTOR | ||
| 009 | N 046234010007 | CABLE SHOE |
| POS. CABLE | ||
| A 3015400231 | NEG. CABLE | |
| Repalced by: N 072551070880 | ||
| A 3875400031 | NEG. CABLE | |
| Repalced by: N 072551070880 | ||
| N 072551070880 | ELECTRIC CABLE | |
| Repalced by: N 922002070000 | ||
| 010 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 010 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY TO BATTERY MASTER SWITCH | ||
| 011 | N 072332013200 | SOLDERING TERMINAL |
| NEG.POLE | ||
| 012 | N 046234013200 | CABLE SHOE |
| BATTERY MASTER SWITCH | ||
| A 3015400431 | NEG. CABLE | |
| Repalced by: N 072551070880 | ||
| A 3015400731 | NEG. CABLE | |
| Repalced by: N 072551070880 | ||
| N 072551070880 | ELECTRIC CABLE | |
| Repalced by: N 922002070000 | ||
| 013 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 013 | A 6735460013 | ELECTRIC CABLE |
| FROM CABLE CONNECTOR TO STARTING MOTOR | ||
| 013 | A 6735460013 | ELECTRIC CABLE |
| FROM GROUND CONNECTION TO STARTING MOTOR | ||
| 014 | N 046234010007 | CABLE SHOE |
| NEG. CABLE | ||
| A 3015400531 | NEG. CABLE | |
| Repalced by: N 072551070880 | ||
| A 3015400131 | NEG. CABLE | |
| Repalced by: N 072551070880 | ||
| N 072551070880 | ELECTRIC CABLE | |
| Repalced by: N 922002070000 | ||
| 016 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 016 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY MASTER SWITCH TO CABLE CONNECTOR | ||
| 017 | N 046234010007 | CABLE SHOE |
| CABLE CONNECTOR | ||
| A 3015401631 | NEG. CABLE | |
| Repalced by: N 072551050880 | ||
| N 072551050880 | ELECTRIC CABLE | |
| Repalced by: N 922002050000 | ||
| 018 | N 922002050000 | ELECTRIC CABLE |
| Repalced by: A 6735460011 | ||
| 018 | A 6735460011 | ELECTRIC CABLE |
| FROM CABLE CONNECTOR TO GROUND PIN | ||
| 019 | N 046234010008 | CABLE SHOE |
| FROM CABLE CONNECTOR TO GROUND PIN | ||
| A 3225400241 | GROUND STRAP | |
| Repalced by: N 072551070880 | ||
| A 3635400230 | POS.CABLE | |
| Repalced by: N 072551070880 | ||
| A 3835400730 | POS.CABLE | |
| Repalced by: N 072551070880 | ||
| N 072551070880 | ELECTRIC CABLE | |
| Repalced by: N 922002070000 | ||
| 020 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 020 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY I TO BATTERY II | ||
| 021 | N 072332013100 | SOLDERING TERMINAL |
| POS. POLE | ||
| 022 | N 072332013200 | SOLDERING TERMINAL |
| NEG.POLE | ||
| A 3015403509 | CABLE HARNESS | |
| Repalced by: A 3015404608 | ||
| A 3015404408 | CABLE HARNESS | |
| Repalced by: A 3015404608 | ||
| A 3015404508 | CABLE HARNESS | |
| Repalced by: A 3015404608 | ||
| A 3015404608 | CABLE HARNESS | |
| CHARGING CABLE | ||
| 023 | N 000934005008 | NUT |
| CABLE TO ALTERNATOR | ||
| 023 | N 000934006007 | NUT |
| CABLE TO ALTERNATOR | ||
| 023 | N 000934008010 | NUT |
| CABLE TO ALTERNATOR | ||
| 026 | N 000137005203 | SPRING WASHER |
| CABLE TO ALTERNATOR | ||
| 026 | N 000137006204 | SPRING WASHER |
| CABLE TO ALTERNATOR | ||
| 029 | N 912004006102 | LOCK WASHER |
| BATTERY CABLE TO STARTING MOTOR | ||
| 030 | N 000934006007 | NUT |
| BATTERY CABLE TO STARTING MOTOR | ||
| 031 | N 912004012100 | LOCK WASHER |
| BATTERY CABLE TO STARTING MOTOR | ||
| 032 | N 000934012021 | NUT |
| BATTERY CABLE TO STARTING MOTOR | ||
| 033 | N 912004010102 | LOCK WASHER |
| BATTERY CABLE TO STARTING MOTOR | ||
| 034 | N 000934010014 | NUT |
| BATTERY CABLE TO STARTING MOTOR | ||
| 035 | N 916016018201 | CLAMP |
| AT BRACKET | ||
| 036 | N 916016015202 | CLAMP |
| AT BRACKET | ||
| 037 | A 3028951153 | BASE |
| BATTERY CABLE MOUNTING IN BATTERY COMPARTMENT | ||
| 038 | N 007985006171 | SCREW |
| BATTERY CABLE MOUNTING IN BATTERY COMPARTMENT | ||
| 039 | N 916016022202 | CLAMP |
| AT BRACKET | ||
| A 3015460243 | BRACKET | |
| Repalced by: A 3015401473 | ||
| 040 | A 3015401473 | BRACKET |
| CHARGING CABLE | ||
| A 3015460143 | BRACKET | |
| Repalced by: A 3015401573 | ||
| 041 | A 3015401573 | BRACKET |
| CHARGING CABLE TO ENGINE | ||
| 043 | N 007985006115 | SCREW |
| BRACKET MOUNTING | ||
| 043 | N 007985006192 | SCREW |
| BRACKET MOUNTING | ||
| 043 | N 007985006109 | SCREW |
| BRACKET MOUNTING | ||
| 044 | N 007985006157 | SCREW |
| Repalced by: N 000000001145 | ||
| 044 | N 000000001145 | SCREW |
| BRACKET MOUNTING | ||
| 045 | N 000965006037 | SCREW |
| BRACKET MOUNTING | ||
| M 6 X 12 | ||
| 047 | N 912004006102 | LOCK WASHER |
| BATTERY CABLE MOUNTING IN BATTERY COMPARTMENT | ||
| 048 | N 000125006421 | WASHER |
| BATTERY CABLE MOUNTING IN BATTERY COMPARTMENT | ||
| 049 | N 000934006007 | NUT |
| BATTERY CABLE MOUNTING IN BATTERY COMPARTMENT | ||
| 050 | N 913010006107 | RIVETED NUT |
| BATTERY CABLE MOUNTING IN BATTERY COMPARTMENT | ||
| 051 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 051 | N 000000000460 | SHEET METAL SCREW |
| BRACKET MOUNTING | ||
| A 3015400573 | BRACKET | |
| BATTERY CABLE TO ENGINE MOUNTING | ||
| 052 | A 3015401373 | BRACKET |
| BATTERY CABLE TO ENGINE MOUNTING | ||
| 053 | A 3005460643 | BRACKET |
| BATTERY CABLE TO ENGINE MOUNTING | ||
| 054 | A 3835460044 | CLAMPING PIECE |
| 055 | A 3015460044 | CLAMPING PIECE |
| BATTERY CABLE | ||
| 056 | A 3015400973 | BRACKET |
| CHARGING CABLE TO ENGINE | ||
| 056 | A 3015400973 | BRACKET |
| CHARGING CABLE TO ENGINE | ||
| 057 | A 3015400473 | BRACKET |
| CHARGING CABLE TO ENGINE | ||
| 060 | A 3015461443 | BRACKET |
| BATTERY CABLE TO ENGINE MOUNTING | ||
| A 3015460443 | BRACKET | |
| Repalced by: A 3015462343 | ||
| 061 | A 3015462343 | BRACKET |
| BATTERY CABLE TO ENGINE MOUNTING | ||
| A 3015460543 | BRACKET | |
| BATTERY CABLE TO ENGINE MOUNTING | ||
| 062 | N 000931006118 | SCREW |
| BRACKET MOUNTING | ||
| 6X35 MM | ||
| 063 | N 000931006165 | SCREW |
| BRACKET MOUNTING | ||
| 6X100 MM | ||
| 064 | N 000933006102 | SCREW |
| BRACKET MOUNTING | ||
| 6X16 MM | ||
| 064 | N 007985006160 | SCREW |
| BATTERY CABLE MOUNTING IN BATTERY COMPARTMENT | ||
| 6X40 | ||
| 065 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 065 | N 304017006020 | SCREW |
| BRACKET MOUNTING | ||
| 6X20 MM | ||
| 066 | N 000933010164 | SCREW |
| BRACKET MOUNTING | ||
| 067 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 067 | N 009021006208 | WASHER |
| BRACKET MOUNTING | ||
| 068 | N 912004006102 | LOCK WASHER |
| BRACKET MOUNTING | ||
| 069 | N 912004010102 | LOCK WASHER |
| BRACKET MOUNTING | ||
| 070 | N 000934006007 | NUT |
| BRACKET MOUNTING | ||
| 071 | N 000934010014 | NUT |
| BRACKET MOUNTING | ||
| A 3015400773 | BRACKET | |
| A 3045400243 | CABLE CONNECTOR | |
| Repalced by: A 3045460141 | ||
| A 3155400043 | CABLE CONNECTOR | |
| Repalced by: A 3155460041 | ||
| 072 | A 3045460141 | CABLE CONNECTOR |
| 073 | A 3155460041 | CABLE CONNECTOR |
| 074 | N 000084010114 | SCREW |
| CABLE CONNECTOR | ||
| M 10X35 | ||
| 075 | N 000439010209 | NUT |
| CABLE CONNECTOR | ||
| 078 | N 000084008120 | SCREW |
| CABLE CONNECTOR TO BRACKET | ||
| M 8X25 | ||
| 079 | N 000084008119 | SCREW |
| CABLE CONNECTOR TO BRACKET | ||
| M 8X20 | ||
| 080 | N 912004008102 | LOCK WASHER |
| CABLE CONNECTOR TO BRACKET | ||
| 082 | N 000934010014 | NUT |
| NEG. CABLE TO GROUND PIN | ||
| 081 | N 000933010105 | SCREW |
| GROUND CABLE TO SHACKLE | ||
| M 10X25 | ||
| 083 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 083 | N 000125010532 | WASHER |
| NEG. CABLE TO GROUND PIN | ||
| 084 | N 912004010102 | LOCK WASHER |
| NEG. CABLE TO GROUND PIN | ||
| 085 | N 000934008010 | NUT |
| CABLE CONNECTOR TO BRACKET | ||
| 086 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 086 | N 000125008443 | WASHER |
| CABLE CONNECTOR TO BRACKET | ||
| 087 | N 912004008102 | LOCK WASHER |
| CABLE CONNECTOR TO BRACKET | ||
| 088 | A 3045460168 | CAP |
| CABLE CONNECTOR | ||
| 089 | A 3155460068 | CAP |
| 090 | A 3015460078 | INSULATION |
| CABLE CONNECTOR | ||
| 091 | N 007985006192 | SCREW |
| AT BRACKET | ||
| 092 | N 912004006102 | LOCK WASHER |
| AT BRACKET | ||
| 093 | N 000934006007 | NUT |
| AT BRACKET | ||
| 094 | N 912004010102 | LOCK WASHER |
| CABLES TO CABLE CONNECTOR | ||
| 095 | N 913021010001 | NUT |
| Repalced by: N 304035010001 | ||
| 095 | N 304035010001 | NUT |

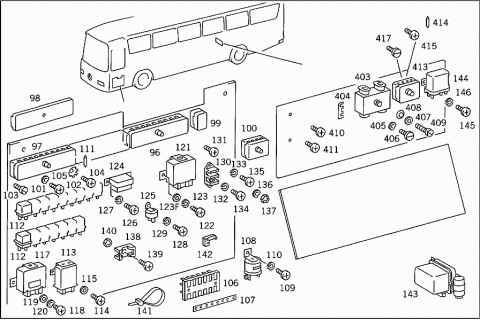

| 096 | A 3055450001 | FUSE BOX |
| 12-POLE; TERMINALS 1-12 SHUNTED | ||
| 097 | A 3055450101 | FUSE BOX |
| 12-POLE; TERMINALS 1-2-3;4-5-6-7-8; 9-10;11-12 SHUNTED | ||
| 098 | A 0005451203 | CAP |
| A 0005457101 | FUSE BOX | |
| Repalced by: A 0005459901 | ||
| 099 | A 0005459901 | FUSE BOX |
| BIPOLAR | ||
| 100 | A 3545450001 | FUSE BOX |
| 4-POLE | ||
| 101 | N 000137005203 | SPRING WASHER |
| 102 | N 007985005175 | SCREW |
| FUSE BOX TO APPARATUS PLATE | ||
| M 5X16 | ||
| 102 | N 007985005504 | SCREW |
| FUSE BOX TO APPARATUS PLATE | ||
| M 5X12 | ||
| 103 | N 000084005180 | SCREW |
| Repalced by: N 007985005175 | ||
| 103 | N 007985005175 | SCREW |
| FUSE BOX | ||
| M 5X16 | ||
| 104 | N 007985004136 | SCREW |
| CABLE TO FUSE BOX | ||
| M 4X12 | ||
| 105 | N 006797004333 | TOOTHED WASHER |
| CABLE TO FUSE BOX | ||
| 106 | A 0005453360 | JUNCTION BOX |
| MAIN INSTRUMENT PANEL | ||
| A 3055450302 | CONTACT RAIL | |
| Repalced by: A 3055450602 | ||
| A 3055450602 | CONTACT RAIL | |
| Repalced by: A 6005450202 | ||
| 107 | A 6005450202 | CONTACT RAIL |
| JUNCTION BOX | ||
| 108 | A 0005401024 | DIODE |
| MAIN INSTRUMENT PANEL | ||
| 109 | N 007985005504 | SCREW |
| DIODE CASE | ||
| M 6X10 | ||
| 110 | N 912004005103 | LOCK WASHER |
| DIODE CASE | ||
| 111 | A 0005458234 | FUSE |
| Repalced by: N 072581008101 | ||
| 111 | N 072581008101 | FUSE |
| 8 A | ||
| 111 | A 0005458334 | FUSE |
| 16 A | ||
| A 0005455334 | FUSE | |
| Repalced by: A 0005458234 | ||
| 111 | A 0005458234 | FUSE |
| Repalced by: N 072581008101 | ||
| 111 | N 072581008101 | FUSE |
| 25A | ||
| 112 | A 0005455405 | RELAY |
| Repalced by: A 0035459605 | ||
| 112 | A 0035459605 | RELAY |
| (MAKE-AND-BREAK-CONTACT RELAY) | ||
| 112 | A 0005458405 | RELAY |
| (MAKE-AND-BREAK-CONTACT RELAY) | ||
| 112 | A 0005458405 | RELAY |
| BATTERY MASTER SWITCH | ||
| 112 | A 0005458405 | RELAY |
| WEBASTO HEATER | ||
| 112 | A 0005458405 | RELAY |
| FOGLAMPS | ||
| 112 | A 0005458405 | RELAY |
| REAR FOGLAMP | ||
| 112 | A 0005458405 | RELAY |
| INTERIOR LIGHTING | ||
| 112 | A 0005458405 | RELAY |
| ALTERNATOR | ||
| 112 | A 0005458405 | RELAY |
| STARTING MOTOR | ||
| 112 | A 0005458405 | RELAY |
| UNDERSEAT HEATING | ||
| 112 | A 0005458405 | RELAY |
| UNDERSEAT HEATING | ||
| 112 | A 0005458405 | RELAY |
| ROOF MOUNTED VENTILATOR | ||
| 112 | A 0005458405 | RELAY |
| HAZARD WARNING LIGHT | ||
| 112 | A 0005458405 | RELAY |
| IGNITION/STARTING SWITCH | ||
| 112 | A 0005458405 | RELAY |
| HEADLAMP | ||
| 112 | A 0005458405 | RELAY |
| AIR FLAP CONTROL | ||
| 113 | A 0005456205 | RELAY |
| CLUTCH | ||
| 114 | N 007985005504 | SCREW |
| TIME-LAG RELAY | ||
| M 5X12 | ||
| 115 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 115 | N 000433005304 | WASHER |
| TIME-LAG RELAY | ||
| 117 | A 0045456324 | SWITCH,AUTOMATIC |
| WIPER PULSE SENDER UNIT | ||
| 117 | A 0055450624 | SENDER UNIT |
| Repalced by: A 0225452532 | ||
| 117 | A 0225452532 | CONTROL UNIT |
| WIPER PULSE SENDER UNIT | ||
| 117 | A 0055451424 | SENDER UNIT |
| WIPER PULSE SENDER UNIT | ||
| 117 | A 0055451624 | SENDER UNIT |
| WIPER PULSE SENDER UNIT | ||
| 118 | N 007985005504 | SCREW |
| WIPER PULSE SENDER UNIT TO APPARATUS PLATE | ||
| M 5X12 | ||
| 118 | N 007985005193 | SCREW |
| WIPER PULSE SENDER UNIT TO APPARATUS PLATE | ||
| M 5X10 | ||
| 118 | N 007985005175 | SCREW |
| WIPER PULSE SENDER UNIT TO APPARATUS PLATE | ||
| M 5X16 | ||
| 119 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 119 | N 000433005304 | WASHER |
| WIPER PULSE SENDER UNIT TO APPARATUS PLATE | ||
| 120 | N 000137005203 | SPRING WASHER |
| WIPER PULSE SENDER UNIT TO APPARATUS PLATE | ||
| 120 | N 912004005103 | LOCK WASHER |
| WIPER PULSE SENDER UNIT TO APPARATUS PLATE | ||
| A 0025440532 | SENDER UNIT | |
| Repalced by: A 0025448032 | ||
| 121 | A 0025448032 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 121 | A 0015448832 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 121 | A 0035440132 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 122 | N 007985005504 | SCREW |
| SENDER UNIT TO APPARATUS PLATE | ||
| M 5X12 | ||
| 123 | N 912004005103 | LOCK WASHER |
| SENDER UNIT TO APPARATUS PLATE | ||
| 123F | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 123F | N 000433005304 | WASHER |
| SENDER UNIT TO APPARATUS PLATE | ||
| 124 | A 0005400924 | CASE |
| DIODES,TO BATTERY MASTER SWITCH | ||
| TYP: AK 336.7 | ||
| 124 | A 0005400024 | DIODE BOX |
| DIODES,TO WEBASTO HEATER | ||
| TYP: AK 336.1 | ||
| A 0005400824 | DIODE | |
| Repalced by: A 0005400624 | ||
| 125 | A 0005400624 | DIODE CASE |
| DIODES, TO COOLING WATER BUZZER | ||
| 125 | A 0005400624 | DIODE CASE |
| AIR FLAP CONTROL | ||
| 126 | N 007985005504 | SCREW |
| DIODE CASE | ||
| M 5X10 | ||
| 127 | N 912004005103 | LOCK WASHER |
| DIODE CASE | ||
| 128 | N 007985004136 | SCREW |
| DIODE CASE | ||
| M 4X12 | ||
| 129 | N 912004004102 | LOCK WASHER |
| DIODE CASE | ||
| 130 | A 0005468041 | CABLE CONNECTOR |
| BIPOLAR | ||
| 131 | N 007985004136 | SCREW |
| CABLE CONNECTOR | ||
| 132 | N 912004006102 | LOCK WASHER |
| CABLES TO CABLE CONNECTOR | ||
| 133 | N 912004004102 | LOCK WASHER |
| CABLES TO CABLE CONNECTOR | ||
| 134 | N 007985006161 | SCREW |
| Repalced by: N 007985006580 | ||
| 134 | N 007985006580 | SCREW |
| CABLES TO CABLE CONNECTOR | ||
| 135 | N 007985004107 | SCREW |
| CABLES TO CABLE CONNECTOR | ||
| 136 | N 000137008204 | SPRING WASHER |
| FOR CABLE CONNECTION | ||
| 137 | N 000934008010 | NUT |
| FOR CABLE CONNECTION | ||
| 138 | A 0005460843 | BRACKET |
| TEST PLUG CONNECTION | ||
| 139 | N 007985004107 | SCREW |
| TEST PLUG CONNECTION | ||
| 140 | N 000934004006 | NUT |
| TEST PLUG CONNECTION | ||
| A 0019979590 | LOOM TIE | |
| Repalced by: A 0019978390 | ||
| 141 | A 0019978390 | LOOM TIE |
| TEST PLUG CONNECTION | ||
| 142 | A 0005450940 | BRACKET |
| TEST PLUG CONNECTION | ||
| 142 | A 0005451640 | BRACKET |
| TEST PLUG CONNECTION | ||
| 143 | A 0005426419 | RELAY |
| DECLUTCHING START UNIT | ||
| 144 | A 0015423419 | RELAY |
| DECLUTCHING START UNIT | ||
| 144 | A 0015423419 | RELAY |
| DECLUTCHING START UNIT | ||
| 145 | N 007985005193 | SCREW |
| DECLUTCHING START RELAY | ||
| 146 | N 912004005103 | LOCK WASHER |
| DECLUTCHING START RELAY | ||

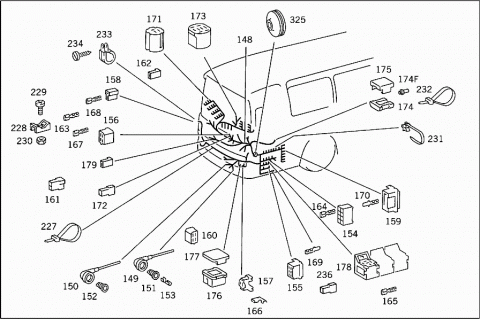

| 148 | A 3015400305 | CABLE HARNESS |
| MAIN CABLE,FRONT END | ||
| 148 | A 3015401705 | CABLE HARNESS |
| MAIN CABLE,FRONT END | ||
| 148 | A 3015407505 | CABLE HARNESS |
| MAIN CABLE,FRONT END | ||
| 148 | A 3015407705 | CABLE HARNESS |
| MAIN CABLE,FRONT END | ||
| 148 | A 3015409705 | CABLE HARNESS |
| MAIN CABLE,FRONT END | ||
| 148 | A 3015403906 | CABLE HARNESS |
| MAIN CABLE,FRONT END | ||
| A 3015402605 | CABLE HARNESS | |
| Repalced by: A 3015405605 | ||
| 148 | A 3015405605 | CABLE HARNESS |
| MAIN CABLE,FRONT END | ||
| 148 | A 3015407805 | CABLE HARNESS |
| MAIN CABLE,FRONT END | ||
| 148 | A 3015409805 | CABLE HARNESS |
| MAIN CABLE,FRONT END | ||
| 148 | A 3015404006 | CABLE HARNESS |
| MAIN CABLE,FRONT END | ||
| A 0005400481 | PLUG SOCKET | |
| Repalced by: A 3805400181 | ||
| A 3805400181 | PLUG SOCKET | |
| Repalced by: A 3805402181 | ||
| 149 | A 3805402181 | PLUG SOCKET |
| REPAIR SIZE | ||
| M 24X1 | ||
| A 0005400581 | PLUG SOCKET | |
| Repalced by: A 3805400281 | ||
| A 3805400281 | PLUG SOCKET | |
| Repalced by: A 3805402281 | ||
| 150 | A 3805402281 | PLUG SOCKET |
| REPAIR SIZE | ||
| M 27X1 | ||
| A 3019900254 | NUT | |
| Repalced by: A 0009902054 | ||
| A 0009902054 | NUT | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| M 24X1 | ||
| A 3019900354 | NUT | |
| Repalced by: A 0009903654 | ||
| A 0009903654 | NUT | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| M 27X1 | ||
| A 0009906840 | WASHER | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24X1 | ||
| A 3809900140 | WASHER | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| A 3805460335 | BOOT | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24X1,M 27X1 | ||
| 151 | A 3805450026 | PLUG SOCKET |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24X1 | ||
| 152 | A 3805450226 | PLUG SOCKET |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| 153 | A 0015454826 | ROUND PIN BUSHING |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24X1,M 27X1 | ||
| 154 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 155 | A 0015458128 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 155 | A 0075450528 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 156 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 157 | A 0015458528 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 158 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 159 | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| 160 | A 0025451228 | PLUG HOUSING |
| 4-POLE | ||
| 161 | A 0015457928 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 162 | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| A 0005454526 | PIN BUSHING | |
| Repalced by: A 0005453726 | ||
| 163 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 163 | A 0075458426 | PIN BUSHING |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 164 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 165 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 166 | A 0005457926 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 1-2.5 MM2 | ||
| 167 | A 0005454626 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 168 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 168 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 169 | A 0015458628 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 170 | A 0025451428 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 171 | A 0055459928 | PIN BUSHING HOUSING |
| INSTRUMENT PANEL | ||
| 172 | A 0025451528 | PLUG CONNECTOR |
| AIR CONDITIONER | ||
| 173 | A 0065455528 | PIN BUSHING HOUSING |
| HAZARD WARNING LIGHT SWITCH | ||
| A 0065457928 | PLUG | |
| Repalced by: A 0025454928 | ||
| A 0025454928 | PLUG | |
| Repalced by: A 0085453728 | ||
| 174 | A 0085453728 | PIN BUSHING HOUSING |
| CIGAR LIGHTER | ||
| A 0015453526 | ROUND PIN BUSHING | |
| Repalced by: A 0035452626 | ||
| 174F | A 0035452626 | ROUND PIN BUSHING |
| (ROUND PIN BUSHING) | ||
| 175 | A 0005452403 | CAP |
| CIGAR LIGHTER | ||
| 176 | A 0075450028 | PIN BUSHING HOUSING |
| Repalced by: A 0155454928 | ||
| 176 | A 0155454928 | PLUG |
| 4-POLE | ||
| 176 | A 0155454928 | PLUG |
| HEADLAMP | ||
| A 0005452803 | CAP | |
| Repalced by: A 0095453828 | ||
| A 0095453828 | COVER | |
| Repalced by: A 0095452128 | ||
| 177 | A 0095452128 | COVER |
| 4-POLE | ||
| 177 | A 0095452128 | COVER |
| HEADLAMP | ||
| 178 | A 0065451428 | PIN BUSHING HOUSING |
| RELAY | ||
| 179 | A 0005451745 | BOOT |
| PIN BUSHING | ||

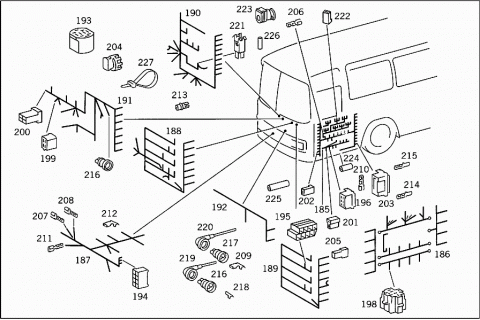

| 185 | A 3005400005 | CABLE HARNESS |
| FRONT END MAIN CABLE HARNESS; ELECTRICAL APPARATUS COMPARTMENT | ||
| 1 | ||
| 186 | A 3005403705 | CABLE HARNESS |
| FRONT END MAIN CABLE HARNESS, ELECTRICAL COMPARTMENT, HEATING | ||
| 1A | ||
| 187 | A 3005400105 | CABLE HARNESS |
| FRONT END MAIN CABLE HARNESS;LEGROOM | ||
| 2 | ||
| 188 | A 3005400305 | CABLE HARNESS |
| FRONT END MAIN CABLE HARNESS; INSTRUMENT PANEL,ON THE RIGHT | ||
| 4 | ||
| 189 | A 3005403905 | CABLE HARNESS |
| FRONT END MAIN CABLE HARNESS; INSTRUMENT PANEL,ON THE RIGHT;HEATER | ||
| 3 A | ||
| 190 | A 3005400205 | CABLE HARNESS |
| FRONT END MAIN CABLE HARNESS; INSTRUMENT PANEL,ON THE LEFT | ||
| 3 | ||
| 191 | A 3005400405 | CABLE HARNESS |
| FRONT END MAIN CABLE HARNESS; INSTRUMENT PANEL,CENTRAL | ||
| 5 | ||
| 192 | A 3005404005 | CABLE HARNESS |
| FRONT END MAIN CABLE HARNESS; INSTRUMENT PANEL,CENTRAL;HEATING | ||
| 5A | ||
| 193 | A 0065455528 | PIN BUSHING HOUSING |
| 10-POLE | ||
| 194 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 195 | A 6115450028 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 196 | A 0015458128 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 198 | A 0065450728 | PIN BUSHING HOUSING |
| 5-POLE | ||
| 199 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 200 | A 0125452128 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 201 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 202 | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 203 | A 3575450028 | PLUG HOUSING |
| 8-POLE | ||
| 204 | A 0045452628 | PLUG |
| BIPOLAR | ||
| 205 | A 0025451328 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 206 | A 0005454626 | PIN BUSHING |
| WITH DETENT | ||
| 4 MM - 6 MM | ||
| 207 | A 0005454026 | PIN BUSHING |
| LESS DETENT | ||
| 4 MM - 6 MM | ||
| 208 | A 0025454026 | FLAT PIN BUSHING |
| Repalced by: A 0035455326 | ||
| 208 | A 0035455326 | PIN BUSHING |
| BATTERY-TO-STARTING-MOTOR-REVERSINGSWITCH NEG. CABLE | ||
| 4 MM - 6 MM | ||
| 209 | A 0005453626 | PIN BUSHING |
| Repalced by: A 0075457426 | ||
| 209 | A 0075457426 | PIN BUSHING |
| OFFSET | ||
| 4 MM2 | ||
| 210 | A 0005453826 | PIN BUSHING |
| LESS DETENT | ||
| 2.5 MM | ||
| 211 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 211 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM | ||
| 212 | A 0005457926 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 1 MM - 2.5 MM | ||
| A 0015453526 | ROUND PIN BUSHING | |
| Repalced by: A 0035452626 | ||
| 213 | A 0035452626 | ROUND PIN BUSHING |
| 214 | A 0025451428 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4 MM - 6 MM | ||
| 215 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| A 3805460335 | BOOT | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24X1,M 27X1 | ||
| A 0009903654 | NUT | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| M 27X1 | ||
| A 0009902054 | NUT | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| M 24X1 | ||
| A 3809900140 | WASHER | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| A 0009906840 | WASHER | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24X1 | ||
| 216 | A 3805450226 | PLUG SOCKET |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| 217 | A 3805450026 | PLUG SOCKET |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24X1 | ||
| 218 | A 0015454826 | ROUND PIN BUSHING |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1,M 24X1 | ||
| A 3805400281 | PLUG SOCKET | |
| Repalced by: A 3805402281 | ||
| 219 | A 3805402281 | PLUG SOCKET |
| REPAIR SIZE | ||
| M 27X1 | ||
| A 3805400181 | PLUG SOCKET | |
| Repalced by: A 3805402181 | ||
| 220 | A 3805402181 | PLUG SOCKET |
| REPAIR SIZE | ||
| M 24X1 | ||
| 221 | A 0008250382 | SOCKET |
| BULB | ||
| 222 | A 0005453545 | BOOT |
| 223 | A 3805460037 | GROMMET |
| 224 | A 0009970681 | GROMMET |
| 225 | A 0009970781 | GROMMET |
| A 0009971081 | GROMMET | |
| 226 | A 0009970381 | GROMMET |
| 227 | A 0019978390 | LOOM TIE |
| 280 MM | ||
| 227 | A 0019978490 | LOOM TIE |
| 376 MM | ||
| 228 | A 0005460843 | BRACKET |
| MAIN CABLE,FRONT END | ||
| 229 | N 007985004107 | SCREW |
| BRACKET MOUNTING | ||
| 230 | N 000934004006 | NUT |
| BRACKET MOUNTING | ||
| 231 | A 0005461243 | BRACKET |
| ELECTRIC CABLE TO SWITCHBOARD | ||
| 232 | A 0019978390 | LOOM TIE |
| ELECTRIC CABLE TO SWITCHBOARD | ||
| 280 MM | ||
| 233 | N 916016038200 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 234 | N 007981006215 | SHEET METAL SCREW |
| 236 | A 0025451128 | PIN BUSHING HOUSING |
| ADDITIONAL WORK ON FRONT END MAIN CABLE HARNESS | ||
| 237 | A 3015403809 | CABLE HARNESS |
| NIGHT-LIGHTING | ||
| 238 | A 3005402009 | CABLE HARNESS |
| NIGHT-LIGHTING; FROM FRONT END PLUG CONNECTION TO INSTRUMENT PANEL | ||
| 239 | A 6115450028 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 240 | A 0055459928 | PIN BUSHING HOUSING |
| 7-POLE | ||
| 242 | A 0025458628 | PLUG |
| BIPOLAR | ||
| 243 | A 0025451328 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 244 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 245 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 246 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 246 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 246 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 247 | A 0025450628 | PLUG |
| NIGHT-LIGHTG.;FROM FRONT PLUG CONNECT. TO REAR PLUG CONNECT. IN ELEC.COMPTMT. | ||
| 2.5 MM2 | ||
| 248 | A 3015404208 | CABLE HARNESS |
| AIR FLAP CONTROL | ||

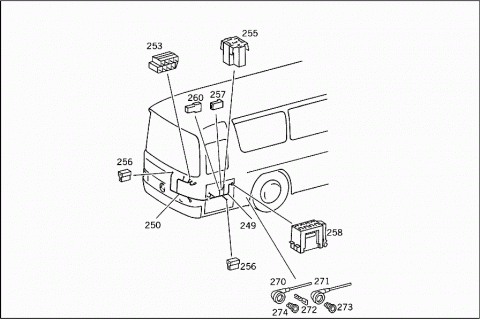

| 249 | A 3005402709 | CABLE HARNESS |
| AIR FLAP CONTROL;FROM FRONT END PLUG CONNECTION TO PLUG CONNECTION AT BODY | ||
| 250 | A 3005402809 | CABLE HARNESS |
| AIR FLAP CONTROL;FROM FRONT END PLUG CONNECTION TO INSTRUMENT PANEL | ||
| 253 | A 6115450028 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 255 | A 0065450728 | PIN BUSHING HOUSING |
| 5-POLE | ||
| 256 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 257 | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 258 | A 3575450028 | PLUG HOUSING |
| 8-POLE | ||
| 260 | A 0025451328 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 263 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 263 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 266 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 267 | A 0015458628 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 268 | A 0005451645 | BOOT |
| 269 | A 0009970381 | GROMMET |
| CABLE SHOE | ||
| A 3015406109 | CABLE HARNESS | |
| BRAKE LINING WEAR INDICATOR | ||
| A 3805460335 | BOOT | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1,M 24X1 | ||
| A 0009903654 | NUT | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| M 27X1 | ||
| A 0009902054 | NUT | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| M 24X1 | ||
| A 3809900140 | WASHER | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| A 0009906840 | WASHER | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24X1 | ||
| 270 | A 3805450226 | PLUG SOCKET |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| 271 | A 3805450026 | PLUG SOCKET |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24X1 | ||
| 272 | A 0015454826 | ROUND PIN BUSHING |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1,M 24X1 | ||
| A 3805400181 | PLUG SOCKET | |
| Repalced by: A 3805402181 | ||
| 273 | A 3805402181 | PLUG SOCKET |
| REPAIR SIZE | ||
| M 24X1 | ||
| A 3805400281 | PLUG SOCKET | |
| Repalced by: A 3805402281 | ||
| 274 | A 3805402281 | PLUG SOCKET |
| REPAIR SIZE | ||
| M 27X1 | ||
| A 3015406009 | CABLE HARNESS | |
| TO FRONT END CABLE OF H.D.UNDERFLOOR HEATER UNITS | ||
| 275 | A 3015405909 | CABLE HARNESS |
| Repalced by: A 3015405709 | ||
| 275 | A 3015405709 | CABLE HARNESS |
| H.D. UNDERFLOOR HEATER UNITS | ||
| 275 | A 3015405809 | CABLE HARNESS |
| Repalced by: A 3015405709 | ||
| 275 | A 3015405709 | CABLE HARNESS |
| H.D. UNDERFLOOR HEATER UNITS | ||
| 276 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 277 | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 278 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 278 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 278 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 280 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| A 3015400505 | CABLE HARNESS | |
| Repalced by: A 3015400105 | ||
| 281 | A 3015400105 | CABLE HARNESS |
| MAIN CABLE,REAR END | ||
| A 3015402105 | CABLE HARNESS | |
| Repalced by: A 3015402705 | ||
| 281 | A 3015402705 | CABLE HARNESS |
| MAIN CABLE,REAR END | ||
| A 3015404105 | CABLE HARNESS | |
| Repalced by: A 3015404205 | ||
| 281 | A 3015404205 | CABLE HARNESS |
| MAIN CABLE,REAR END | ||
| A 3015408305 | CABLE HARNESS | |
| Repalced by: A 3015408505 | ||
| A 3015402905 | CABLE HARNESS | |
| Repalced by: A 3015402705 | ||
| A 3015404405 | CABLE HARNESS | |
| Repalced by: A 3015404205 | ||
| A 3015408605 | CABLE HARNESS | |
| Repalced by: A 3015408505 | ||
| A 3015400106 | CABLE HARNESS | |
| MAIN CABLE,REAR END | ||
| 281 | A 3005400805 | CABLE HARNESS |
| MAIN CABLE,REAR END | ||
| 281 | A 3005405405 | CABLE HARNESS |
| MAIN CABLE,REAR END | ||
| 281 | A 3015400205 | CABLE HARNESS |
| MAIN CABLE,REAR END | ||
| A 3015402005 | CABLE HARNESS | |
| Repalced by: A 3015402705 | ||
| A 3015404005 | CABLE HARNESS | |
| Repalced by: A 3015404205 | ||
| 281 | A 3015404205 | CABLE HARNESS |
| MAIN CABLE,REAR END | ||
| A 3015408205 | CABLE HARNESS | |
| Repalced by: A 3015408505 | ||
| A 3015402805 | CABLE HARNESS | |
| Repalced by: A 3015402705 | ||
| 281 | A 3015402705 | CABLE HARNESS |
| MAIN CABLE,REAR END | ||
| A 3015404305 | CABLE HARNESS | |
| Repalced by: A 3015404205 | ||
| 281 | A 3015408505 | CABLE HARNESS |
| MAIN CABLE,REAR END | ||
| 281 | A 3015400406 | CABLE HARNESS |
| MAIN CABLE,REAR END | ||
| A 0005400481 | PLUG SOCKET | |
| Repalced by: A 3805400181 | ||
| A 3805400181 | PLUG SOCKET | |
| Repalced by: A 3805402181 | ||
| 282 | A 3805402181 | PLUG SOCKET |
| REPAIR SIZE | ||
| M 24X1 | ||
| A 0005400581 | PLUG SOCKET | |
| Repalced by: A 3805400281 | ||
| A 3805400281 | PLUG SOCKET | |
| Repalced by: A 3805402281 | ||
| 283 | A 3805402281 | PLUG SOCKET |
| REPAIR SIZE | ||
| M 27X1 | ||
| A 3805460335 | BOOT | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24X1,M 27X1 | ||
| A 0009902054 | NUT | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| M 24X1 | ||
| A 0009903654 | NUT | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| M 27X1 | ||
| A 0009906840 | WASHER | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24X1 | ||
| A 3809900140 | WASHER | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| 284 | A 3805450026 | PLUG SOCKET |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| M 24X1 | ||
| 285 | A 3805450226 | PLUG SOCKET |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| M 27X1 | ||
| 286 | A 0015454826 | ROUND PIN BUSHING |
| TO M 24X1,M 27X1 | ||
| A 0005459526 | PLUG SOCKET | |
| Repalced by: A 0095451928 | ||
| 287 | A 0005421572 | NUT |
| TACHOGRAPH SENDER UNIT | ||
| M 28X1.5 | ||
| 288 | A 3019901440 | WASHER |
| TACHOGRAPH SENDER UNIT | ||
| 289 | A 3015460035 | BOOT |
| TACHOGRAPH SENDER UNIT | ||
| 289 | A 0005463435 | BOOT |
| TACHOGRAPH SENDER UNIT | ||
| 291 | A 0019978490 | LOOM TIE |
| TACHOGRAPH SENDER UNIT | ||
| 376 MM | ||
| 292 | A 0095451928 | PIN BUSHING HOUSING |
| TACHOGRAPH SENDER UNIT | ||
| 292 | A 0125450928 | PIN BUSHING HOUSING |
| TACHOGRAPH SENDER UNIT | ||
| 293 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 294 | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 295 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 296 | A 0015454128 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 297 | A 0125452228 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 298 | A 0015458128 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 298 | A 0075450528 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 299 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 300 | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| 301 | A 0015456028 | PLUG HOUSING |
| 6-POLE | ||
| 302 | A 0085456428 | PIN BUSHING HOUSING |
| 5-POLE | ||
| 303 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 304 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 305 | A 0005454626 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 306 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 306 | A 0075458426 | PIN BUSHING |
| WITH DETENT | ||
| 2.5 MM2 | ||
| 307 | A 0025451428 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 308 | A 0015458628 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 309 | A 0005451745 | BOOT |
| PIN BUSHING | ||
| 310 | A 0065451428 | PIN BUSHING HOUSING |
| RELAY | ||
| A 0005467741 | CABLE CONNECTOR | |
| 1,5 - 6,6 MM2 | ||
| 311 | A 0015466641 | CABLE CONNECTOR |
| 6-10 MM2 | ||
| 312 | A 0025451528 | PLUG CONNECTOR |
| AIR CONDITIONER | ||
| 313 | A 0009970381 | GROMMET |
| CABLE SHOE | ||
| 3X25 MM | ||
| 313 | A 0009970581 | GROMMET |
| CABLE SHOE | ||
| 5X25 MM | ||
| 313 | A 0009970781 | GROMMET |
| CABLE SHOE | ||
| 10X35 MM | ||
| 315 | A 1869970481 | GROMMET |
| 316 | A 3229970281 | GROMMET |
| ELECTRICAL COMPARTMENT | ||
| 317 | A 1009970081 | GROMMET |
| ELECTRICAL COMPARTMENT | ||
| 319 | A 0005460843 | BRACKET |
| MAIN CABLE,REAR END | ||
| 320 | N 007985004107 | SCREW |
| MAIN CABLE,REAR END | ||
| 321 | N 000934004006 | NUT |
| MAIN CABLE,REAR END | ||
| A 3015400073 | BRACKET | |
| FRONT END MAIN CABLE HARNESS PLUG-CONNECTION TO REAR END MAIN CABLE HARNESS | ||
| 322 | N 914025006103 | COMBINATION BOLT |
| BRACKET TO SUBSTRUCTURE | ||
| 324 | A 0019978390 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 280 MM | ||
| 324 | A 0019978490 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 376 MM | ||
| A 3019970381 | GROMMET | |
| Repalced by: A 1009970081 | ||
| 325 | A 1009970081 | GROMMET |
| CABLE THROUGH ELECTRICAL COMPARTMENT | ||
| 326 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 326 | N 304017008034 | SCREW |
| GROUND CABLE TO SHACKLE | ||
| 327 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 327 | N 000125008443 | WASHER |
| GROUND CABLE TO SHACKLE | ||
| 328 | N 912004008102 | LOCK WASHER |
| GROUND CABLE TO SHACKLE | ||
| 329 | N 000934008010 | NUT |
| GROUND CABLE TO SHACKLE | ||
| 330 | N 916016022206 | CLAMP |
| MAIN CABLE,REAR END | ||
| 331 | N 912004006102 | LOCK WASHER |
| MAIN CABLE,REAR END | ||
| 332 | N 007985006161 | SCREW |
| Repalced by: N 007985006580 | ||
| 332 | N 007985006580 | SCREW |
| MAIN CABLE,REAR END | ||
| A 0009957101 | CLAMP | |
| Repalced by: N 916016038201 | ||
| 332C | N 916016038205 | CLAMP |
| MAIN CABLE HARNESS TO HEATING | ||
| 332C | N 916016028200 | CLAMP |
| MAIN CABLE HARNESS TO HEATING | ||
| 332F | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 332F | N 304017008039 | SCREW |
| MAIN CABLE HARNESS TO HEATING | ||
| 332K | N 912004008102 | LOCK WASHER |
| MAIN CABLE HARNESS TO HEATING | ||
| 332N | N 000934008010 | NUT |
| MAIN CABLE HARNESS TO HEATING | ||
| 333 | A 3029950120 | CLAMP |
| REAR END MAIN CABLE HARNESS TO SUBSTRUCTURE IN ENGINE COMPARTMENT | ||
| 334 | N 007981005211 | SHEET METAL SCREW |
| REAR END MAIN CABLE HARNESS TO SUBSTRUCTURE IN ENGINE COMPARTMENT | ||
| 335 | A 1869970481 | GROMMET |
| CABLE THRU ENGINE-COMPARTMENT/BATTERYCOMPARTMENT PARTITION PANEL | ||
| 336 | A 1869970781 | GROMMET |
| CABLE THROUGH PARTITION PANEL BETWEEN BATTERY- AND LUGGAGE COMPARTMENTS | ||
| 337 | N 072571001033 | CLAMP |
| BRANCH-OFF FOR LUGGAGE COMPARTMENT LAMP TO BODY | ||
| 338 | N 007981003246 | SHEET METAL SCREW |
| BRANCH-OFF FOR LUGGAGE COMPARTMENT LAMP TO BODY | ||
| 339 | A 3015409609 | CABLE HARNESS |
| FROM REAR END MAIN CABLE HARNESS TO HEATING | ||
| 339 | A 3005407409 | CABLE HARNESS |
| FROM REAR END MAIN CABLE HARNESS TO HEATING | ||
| 340 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 341 | A 0015458128 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 342 | A 0015454128 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 343 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 344 | A 0015456028 | PLUG HOUSING |
| 6-POLE | ||
| 345 | A 0025451228 | PLUG HOUSING |
| 4-POLE | ||
| 346 | A 0015458628 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 346 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 347 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 347 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 347 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| A 3219970081 | GROMMET | |
| Repalced by: A 3359970081 | ||
| 348 | A 3359970081 | GROMMET |
| 349 | A 3015400309 | CABLE HARNESS |
| GOVERNOR | ||
| A 3015404308 | CABLE HARNESS | |
| OVERLOAD PROTECTOR | ||
| 350 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 351 | A 0025451328 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 352 | A 0025459528 | PIN BUSHING HOUSING |
| REGULATOR AND CUT-OUT | ||
| 353 | A 0025451428 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 354 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 354 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 355 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 356 | A 0005451745 | BOOT |
| PIN BUSHING | ||
| 357 | A 1109970481 | GROMMET |
| 359 | A 3055460075 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 360 | N 072571001008 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 361 | N 007981004334 | SHEET METAL SCREW |
| Repalced by: N 007981004385 | ||
| 361 | N 007981004385 | SHEET METAL SCREW |
| CABLE HARNESS MOUNTING | ||
| A 3015401109 | CABLE HARNESS | |
| Repalced by: A 3015404709 | ||
| A 3015401209 | CABLE HARNESS | |
| Repalced by: A 3015404709 | ||
| 362 | A 3015404709 | CABLE HARNESS |
| FROM REAR END MAIN CABLE HARNESS TO ENGINE | ||
| 362 | A 3015400108 | CABLE HARNESS |
| FROM REAR END MAIN CABLE HARNESS TO ENGINE | ||
| 363 | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| 363 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 364 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 365 | A 0015458628 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 366 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 366 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 367 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 368 | A 3015460843 | BRACKET |
| CABLE HARNESS MOUNTING | ||
| 369 | N 007981004282 | SHEET METAL SCREW |
| CABLE HARNESS MOUNTING | ||

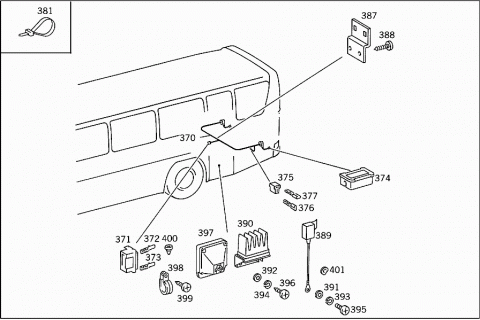

| 370 | A 3015400007 | CABLE HARNESS |
| TAIL LAMP | ||
| 371 | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| 372 | A 0015458628 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 373 | A 0025451428 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6MM2 | ||
| 374 | A 0065458128 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 375 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 376 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 376 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 376 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 377 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6MM2 | ||
| 381 | A 0019978390 | LOOM TIE |
| 280 MM | ||
| 387 | A 3015460843 | BRACKET |
| CABLE HARNESS MOUNTING | ||
| 388 | N 007981004282 | SHEET METAL SCREW |
| CABLE HARNESS MOUNTING | ||
| A 0001569601 | CONDENSER | |
| Repalced by: A 0011566701 | ||
| 389 | A 0011566701 | CONDENSER |
| THREE-PHASE ALTERNATOR INTERFERENCE SUPPRESSION | ||
| A 0005454732 | CONTROL UNIT | |
| Repalced by: A 0025457132 | ||
| 390 | A 0025457132 | CONTROL UNIT |
| OVERLOAD PROTECTOR | ||
| 391 | N 000125006421 | WASHER |
| SWITCH | ||
| 392 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 392 | N 000433005304 | WASHER |
| SWITCH | ||
| 393 | N 912004006102 | LOCK WASHER |
| SWITCH | ||
| 394 | N 912004005103 | LOCK WASHER |
| SWITCH | ||
| 395 | N 000000001147 | SCREW |
| SWITCH | ||
| M 6X20 | ||
| 396 | N 007981004322 | SHEET METAL SCREW |
| Repalced by: N 007981004233 | ||
| 396 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 396 | N 000000000460 | SHEET METAL SCREW |
| SWITCH | ||
| 396 | N 007981006208 | SHEET METAL SCREW |
| SWITCH | ||
| 397 | A 0021540506 | REGULATOR AND CUT-OUT |
| ALTERNATOR | ||
| 398 | A 0009957601 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 399 | N 007981004274 | SHEET METAL SCREW |
| CABLE HARNESS MOUNTING | ||
| 400 | A 0009871840 | RUBBER BUFFER |
| TO PLUG THE BORES | ||
| 403 | A 0005457701 | FUSE BOX |
| BIPOLAR | ||
| 404 | A 0005452534 | FUSE |
| 50 A | ||
| 404 | A 0005450334 | FUSE |
| 80A | ||
| 405 | N 000137006204 | SPRING WASHER |
| SECONDARY SWITCHBOARD | ||
| 406 | N 000084006132 | SCREW |
| SECONDARY SWITCHBOARD | ||
| 407 | N 006902005100 | WASHER |
| Repalced by: N 000125006421 | ||
| 407 | N 000125006421 | WASHER |
| SECONDARY SWITCHBOARD | ||
| 408 | N 002093010100 | DISC SPRING |
| SECONDARY SWITCHBOARD | ||
| 409 | N 000084005402 | SCREW |
| SECONDARY SWITCHBOARD | ||
| 410 | N 007985005175 | SCREW |
| FUSE BOX | ||
| 411 | N 007985004136 | SCREW |
| 413 | A 0005459301 | FUSE BOX |
| 4-POLE | ||
| 414 | A 0005458234 | FUSE |
| Repalced by: N 072581008101 | ||
| 414 | N 072581008101 | FUSE |
| 8 A | ||
| 414 | A 0005458334 | FUSE |
| 16 A | ||
| 415 | N 007985004136 | SCREW |
| 417 | N 000084005400 | SCREW |
| FUSE BOX | ||
| 421 | A 0005454008 | SWITCH |
| BATTERY | ||
| 422 | N 007513008106 | TAPPING SCREW |
| 423 | N 912004008102 | LOCK WASHER |
| A 0045454224 | SWITCH,AUTOMATIC | |
| Repalced by: A 0055451024 | ||
| A 0055451024 | SWITCH,AUTOMATIC | |
| Repalced by: A 0055453824 | ||
| A 0055453824 | SWITCH,AUTOMATIC | |
| Repalced by: A 0055455124 | ||
| 424 | A 0055455124 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 424 | A 0055458024 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| A 0045455324 | SWITCH,AUTOMATIC | |
| Repalced by: A 0055451124 | ||
| A 0055451124 | SWITCH,AUTOMATIC | |
| Repalced by: A 0055453924 | ||
| A 0055453924 | SWITCH,AUTOMATIC | |
| Repalced by: A 0055455224 | ||
| 424 | A 0055455224 | STEERG.COLUMN MTD. SWITCH |
| 424 | A 0055458124 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 425 | A 6085450045 | BOOT |
| 426 | A 0025428320 | HORN |
| Repalced by: A 0045422920 | ||
| 426 | A 0045422920 | HORN |
| Repalced by: A 0045424420 | ||
| 426 | A 0045424420 | HORN |
| BOSCH | ||
| 426 | A 0025426720 | HORN |
| Repalced by: A 0045424420 | ||
| 426 | A 0045424420 | HORN |
| HELLA | ||
| 426 | A 0035425320 | HORN |
| Repalced by: A 0025426720 | ||
| 427 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 427 | N 304017010002 | SCREW |
| HORN MOUNTING | ||
| 428 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 428 | N 000125010532 | WASHER |
| HORN MOUNTING | ||
| 429 | N 912004010102 | LOCK WASHER |
| HORN MOUNTING | ||
| 430 | N 000934010014 | NUT |
| HORN MOUNTING | ||
| 431 | N 000084004137 | SCREW |
| Repalced by: N 007985004149 | ||
| 431 | N 007985004149 | SCREW |
| Repalced by: N 000000001933 | ||
| 431 | N 000000001933 | SCREW |
| ELECTRIC CABLE TO HORN | ||
| 432 | N 912004004102 | LOCK WASHER |
| ELECTRIC CABLE TO HORN | ||
| A 0005454509 | SWITCH | |
| Repalced by: A 0005456009 | ||
| 433 | A 0005456009 | SWITCH |
| STOP LIGHT | ||
| 434 | A 0005452008 | SWITCH |
| EXHAUST BRAKE FOOT-OPERATED SWITCH | ||
| A 0005455414 | SWITCH | |
| Repalced by: A 0005457914 | ||
| 435 | A 0005457914 | SWITCH |
| BREAK PULSE | ||
| 5.7 BAR | ||
| 435 | A 0005457914 | SWITCH |
| SPRING-LOADED BRAKE,RELEASE PRESSURE | ||
| 5.7 BAR | ||
| 435 | A 0005457914 | SWITCH |
| SPRING-LOADED-BRAKE SUPPLY PRESSURE | ||
| 5.7 BAR | ||
| 435 | A 0015455714 | SWITCH |
| SPRING-LOADED-BRAKE EMERGENCY RELEASE | ||
| A 0005455009 | SWITCH | |
| Repalced by: A 0005455909 | ||
| 436 | A 0005455909 | SWITCH |
| CLUTCH FLUID PRESSURE | ||
| 437 | A 0005455609 | SWITCH |
| AIR-RESERVOIR DRAIN | ||
| A 0005455409 | SWITCH | |
| Repalced by: A 0005458009 | ||
| 438 | A 0005458009 | SWITCH |
| Repalced by: A 0005459109 | ||
| 438 | A 0005459109 | SWITCH |
| Repalced by: A 0015451209 | ||
| 438 | A 0015451209 | SWITCH |
| Repalced by: A 0015452809 | ||
| 438 | A 0015452809 | SWITCH |
| STOP LIGHT SWITCH | ||
| 439 | A 0029901451 | NUT |
| STOP LIGHT SWITCH | ||
| A 0015452307 | SWITCH | |
| Repalced by: A 0015456907 | ||
| 440 | A 0015456907 | SWITCH |
| FRONT END HEATING,STEPS 1 AND 2 | ||
| A 0015452407 | SWITCH | |
| Repalced by: A 0015457007 | ||
| 440 | A 0015457007 | SWITCH |
| FRONT END HEATING,STEP 3 | ||
| 440 | A 0015457007 | SWITCH |
| ROOF-MOUNTED TURBO-BLOWER | ||
| 2 | ||
| 440 | A 0015457007 | SWITCH |
| ANTE-TOP MOUNTED BLOWER,LEFT AND RIGHT,STEP 3 | ||
| 440 | A 0015457107 | SWITCH |
| FLOOR HEATING | ||
| A 0015454707 | SWITCH | |
| Repalced by: A 0015457507 | ||
| A 0015457507 | SWITCH | |
| Repalced by: A 0015457807 | ||
| 440 | A 0015457807 | SWITCH |
| ANTE-TOP MOUNTED BLOWER,CENTRAL,STEPS 1 AND 2 | ||
| 440 | A 0015457307 | SWITCH |
| ANTE-TOP MOUNTED BLOWER,LEFT AND RIGHT,STEPS 1 AND 2 | ||
| 440 | A 0015457407 | SWITCH |
| ANTE-TOP MOUNTED BLOWER,LEFT AND RIGHT,STEP 3 | ||
| 440 | A 0015452507 | SWITCH |
| ROOF-MOUNTED TURBO-BLOWER | ||
| 4 | ||
| 440 | A 0015452507 | SWITCH |
| ROOF-MOUNTED TURBO-BLOWER | ||
| 1.3 | ||
| 440 | A 0015452507 | SWITCH |
| ROOF-MOUNTED TURBO-BLOWER | ||
| 2 | ||
| 440 | A 0015457207 | SWITCH |
| AIR FLAP CONTROL | ||
| 441 | A 0009973986 | PLUG |
| TUMBLER SWITCH | ||
| 442 | A 0009974786 | PLUG |
| TUMBLER SWITCH | ||
| 443 | A 0015451815 | TELL-TALE LAMP |
| LESS LENS | ||
| 444 | N 072601024801 | BULB |
| TELL-TALE LAMP | ||
| 445 | A 3015450089 | SHIM |
| TELL-TALE LAMP | ||
| 446 | A 3015450076 | WASHER |
| TELL-TALE LAMP | ||
| 447 | A 0005459790 | LENS |
| LUGGAGE COMPARTMENT LIGHTING | ||
| 448 | A 0005455090 | LENS |
| Repalced by: A 0055458890 | ||
| 448 | A 0055458890 | LENS |
| BRAKE FLUID | ||
| 448 | A 0055458890 | LENS |
| BRAKE FLUID | ||
| 449 | A 0035455290 | LENS |
| BLINKER | ||
| 450 | A 0065451990 | LENS |
| HIGH BEAM CONTROL | ||
| A 0005453790 | LENS | |
| Repalced by: A 0035453290 | ||
| 451 | A 0035453290 | LENS |
| CHARGE CONTROL | ||
| A 0005453890 | LENS | |
| Repalced by: A 0035453590 | ||
| 452 | A 0035453590 | LENS |
| OIL PRESSURE | ||
| 453 | A 0035453890 | LENS |
| BRAKE LINING WEAR | ||
| A 0005455190 | LENS | |
| Repalced by: A 0035453790 | ||
| 454 | A 0035453790 | LENS |
| HAND BRAKE | ||
| 455 | A 0005456390 | LENS |
| CLUTCH | ||
| 456 | A 3015450289 | SHIM |
| TELL-TALE LAMP | ||
| 457 | A 0009974335 | PLUG |
| TELL-TALE LAMP | ||
| A 0015450411 | SWITCH | |
| Repalced by: A 0015450611 | ||
| 458 | A 0015450611 | SWITCH |
| REAR FOGLAMP | ||
| 458 | A 0015450611 | SWITCH |
| EXHAUST BRAKE | ||
| 458 | A 0015450611 | SWITCH |
| FOGLAMP | ||
| 458 | A 0015450611 | SWITCH |
| INTERIOR LIGHTING | ||
| 458 | A 0015450611 | SWITCH |
| WEBASTO HEATER | ||
| 458 | A 0015450611 | SWITCH |
| DRIVER'S LAMP | ||
| 458 | A 0015450611 | SWITCH |
| LUGGAGE COMPARTMENT LIGHTING | ||
| 458 | A 0015450611 | SWITCH |
| NIGHT-LIGHTING | ||
| 458 | A 0015450611 | SWITCH |
| HEATED OUTSIDE REARVIEW MIRROR | ||
| 458 | A 0015450014 | SWITCH |
| REAR FOGLAMP | ||
| 458 | A 0015450811 | SWITCH |
| PANE WASHER | ||
| 458 | A 0015450811 | SWITCH |
| FOGLAMP | ||
| 459 | A 0005452883 | CAP |
| PUSH BUTTON SWITCH | ||
| A 0005457790 | LENS | |
| Repalced by: A 0035454890 | ||
| 460 | A 0035454890 | LENS |
| FOGLAMP | ||
| 461 | A 0015453490 | LENS |
| EXHAUST BRAKE | ||
| 462 | A 0005457990 | LENS |
| DRIVER'S LAMP | ||
| 463 | A 0005459190 | LENS |
| INTERIOR LIGHTING | ||
| 464 | A 0015457090 | LENS |
| NIGHT-LIGHTING | ||
| 465 | A 0015450490 | LENS |
| HEATED OUTSIDE REARVIEW MIRROR | ||
| 466 | A 0015454690 | LENS |
| WEBASTO HEATER | ||
| A 0005457890 | LENS | |
| Repalced by: A 0025452190 | ||
| A 0025452190 | LENS | |
| Repalced by: A 0035458090 | ||
| 467 | A 0035458090 | LENS |
| REAR FOGLIGHT | ||
| 468 | A 0015456990 | LENS |
| PANE WASHER | ||
| 469 | N 072601024801 | BULB |
| 2W | ||
| 470 | A 0009974435 | PLUG |
| PUSH BUTTON SWITCH | ||
| 471 | A 3015450345 | BOOT |
| QUADRUPLE | ||
| 472 | A 3015450245 | BOOT |
| TRIPLE | ||
| 473 | A 3016891839 | COVER |
| HEATER OPERATING UNIT | ||
| 474 | A 3016892039 | COVER |
| BLIND ELEMENT | ||
| 474 | A 3016891339 | COVER |
| BLIND ELEMENT | ||
| A 0006800052 | HOUSING | |
| Repalced by: A 0006890469 | ||
| 476 | A 0006890469 | PLATE |
| TELL-TALE LAMPS AND TACHOMETER | ||
| 477 | A 0006890073 | HOUSING |
| TELL-TALE LAMPS AND TACHOMETER | ||
| 478 | A 0006890008 | COVERING |
| TELL-TALE LAMPS AND TACHOMETER | ||
| 479 | A 3015443194 | BULB |
| AT INSTRUMENT PANEL | ||
| 480 | A 0006800211 | PLATE |
| Repalced by: A 3016893011 | ||
| 480 | A 3016893011 | PLATE |
| Repalced by: A 3016893111 | ||
| 480 | A 3016893111 | PLATE |
| TACHOGRAFH TO INSTRUMENT PANEL | ||
| 481 | A 0006890111 | PLATE |
| INSTRUMENT CLUSTER TO INSTRUMENT PANEL | ||
| 482 | A 0006890211 | PLATE |
| INSTRUMENT LIGHTING | ||
| 483 | N 000084003109 | SCREW |
| POTENTIOMETER TO HOUSING | ||
| M 3X15 | ||
| 484 | N 000137003101 | SPRING WASHER |
| POTENTIOMETER TO HOUSING | ||
| 485 | A 3016891611 | PLATE |
| HEATING | ||
| 486 | A 3016890411 | PLATE |
| BLOWER | ||
| 487 | A 3016890511 | PLATE |
| FLOOR HEATING | ||
| 488 | A 3016890611 | PLATE |
| ROOF MOUNTED VENTILATOR | ||
| 491 | A 3016890073 | HOUSING |
| HEATER OPERATING UNIT | ||
| 492 | N 072601024230 | BULB |
| TELL-TALE LAMP | ||
| 12 V 1.2 W | ||
| 493 | A 0055459224 | HAZARD WARNG.LIGHT SWITCH |
| 494 | N 072601024230 | BULB |
| HAZARD WARNING LIGHT | ||
| A 0025453007 | SWITCH | |
| Repalced by: A 0025457407 | ||
| 495 | A 0025457407 | SWITCH |
| Repalced by: A 0035453807 | ||
| 495 | A 0035453807 | SWITCH |
| FRONT END HEATING,STEP 3 | ||
| 495 | A 0035453807 | SWITCH |
| ANTE-TOP MOUNTED BLOWER,LEFT AND RIGHT,STEP 3 | ||
| A 0025450807 | SWITCH | |
| Repalced by: A 0025451407 | ||
| A 0025451407 | SWITCH | |
| Repalced by: A 0025457007 | ||
| 495 | A 0025457007 | SWITCH |
| ANTE-TOP MOUNTED BLOWER,CENTRAL,STEPS 1 AND 2 | ||
| 495 | A 0025457007 | SWITCH |
| FRONT END HEATING,STEPS 1 AND 2 | ||
| 495 | A 0025457007 | SWITCH |
| ANTE-TOP MOUNTED BLOWER,LEFT AND RIGHT,STEPS 1 AND 2 | ||
| 495 | A 0025457007 | SWITCH |
| FLOOR HEATING | ||
| 495 | A 0025457507 | SWITCH |
| ROOF-MOUNTED TURBO-BLOWER | ||
| A 0025450407 | SWITCH | |
| Repalced by: A 0025451207 | ||
| A 0025451007 | SWITCH | |
| Repalced by: A 0025451207 | ||
| A 0025450007 | SWITCH | |
| Repalced by: A 0025451207 | ||
| A 0025451207 | SWITCH | |
| Repalced by: A 0025456907 | ||
| 495 | A 0025456907 | SWITCH |
| 495 | A 0025456907 | SWITCH |
| AIR FLAP CONTROL,OPENING/CLOSING | ||
| 495 | A 0025456907 | SWITCH |
| FRESH AIR/CIRCULATING AIR | ||
| 495 | A 0025456907 | SWITCH |
| EXHAUST BRAKE,"OFF" | ||
| 495 | A 0025456907 | SWITCH |
| HEATED OUTSIDE REARVIEW MIRROR | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| WEBASTO HEATER | ||
| 495 | A 0025456907 | SWITCH |
| LUGGAGE COMPARTMENT LIGHTING | ||
| 495 | A 0025456907 | SWITCH |
| INTERIOR LIGHTING | ||
| 495 | A 0025456907 | SWITCH |
| DRIVER'S LAMP | ||
| 495 | A 0025456907 | SWITCH |
| NIGHT-LIGHTING | ||
| 496 | A 0045451990 | LENS |
| FRESH AIR,OPENING/CLOSING | ||
| 497 | A 0045452090 | LENS |
| FRESH AIR/CIRCULATING AIR | ||
| 498 | A 0045452390 | LENS |
| ROOF-MOUNTED TURBO-BLOWER | ||
| 499 | A 0045450490 | LENS |
| FLOOR HEATING | ||
| 500 | A 0045452690 | LENS |
| BLOWER | ||
| 501 | A 0045452190 | LENS |
| HEATED OUTSIDE REARVIEW MIRROR | ||
| 502 | A 0035459990 | LENS |
| Repalced by: A 0045455390 | ||
| 502 | A 0045455390 | LENS |
| WEBASTO HEATER | ||
| 503 | A 0045451690 | LENS |
| LUGGAGE COMPARTMENT LIGHTING | ||
| 504 | A 0045451290 | LENS |
| NIGHT-LIGHTING | ||
| 505 | A 0045451090 | LENS |
| INTERIOR LIGHTING | ||
| 506 | A 0045450290 | LENS |
| EXHAUST BRAKE,"OFF" | ||
| 508 | A 0045451190 | LENS |
| INTERIOR LIGHTING | ||
| 509 | A 0035458990 | LENS |
| DRIVER'S LAMP | ||
| 510 | A 0045450390 | LENS |
| ANTE-TOP MOUNTED BLOWER,LEFT AND RIGHT,STEPS 1 AND 2 | ||
| 511 | A 0045450690 | LENS |
| ANTE-TOP MOUNTED BLOWER,CENTRAL,STEPS 1 AND 2 | ||
| 512 | A 3016891939 | COVER |
| BLIND ELEMENT | ||
| 513 | A 0005421123 | BUZZER |
| COOLING WATER TEMPERATURE WARNING | ||
| 514 | A 0005423623 | BUZZER |
| COOLING WATER TEMPERATURE WARNING | ||
| 515 | A 3055420440 | BRACKET |
| WARNING BUZZER | ||
| 516 | N 007516004111 | TAPPING SCREW |
| WARNING BUZZER | ||
| 517 | A 0005422523 | BUZZER |
| BLINKER | ||
| 518 | N 912004005103 | LOCK WASHER |
| BLINKER | ||
| 519 | N 007985005193 | SCREW |
| BLINKER | ||
| A 0005421425 | POTENTIOMETER | |
| Repalced by: A 3015420025 | ||
| 521 | A 3015420025 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 522 | A 0005450372 | NUT |
| INSTRUMENT LIGHTING SWITCH | ||
| M12 | ||
| 522 | A 0029906251 | NUT |
| INSTRUMENT LIGHTING SWITCH | ||
| M10 | ||
| 523 | A 0005421889 | KNOB |
| INSTRUMENT LIGHTING SWITCH | ||
| A 0015450214 | SWITCH | |
| Repalced by: A 0015454914 | ||
| 524 | A 0015454914 | SWITCH |
| STARTING AT INSTRUMENT PANEL | ||
| A 0015450714 | SWITCH | |
| Repalced by: A 0015455014 | ||
| 525 | A 0015455014 | SWITCH |
| BATTERY MASTER SWITCH | ||
| 526 | A 0045450224 | SWITCH |
| HAZARD WARNING LIGHT | ||
| 527 | A 3015400265 | RESISTOR |
| HAZARD WARNING LIGHT SWITCH | ||
| 528 | A 0005453637 | BUTTON |
| HAZARD WARNING LIGHT SWITCH | ||
| 529 | N 072601024801 | BULB |
| HAZARD WARNING LIGHT SWITCH | ||
| 530 | A 3015840238 | GUMMED LABEL |
| BLOWER | ||
| 531 | A 0005453013 | SWITCH |
| IGNITION AND LIGHT SWITCH | ||
| 532 | A 0005450376 | WASHER |
| SWITCH BOX TO INSTRUMENT PANEL | ||
| 533 | A 0005451072 | NUT |
| SWITCH BOX TO INSTRUMENT PANEL | ||
| 534 | A 0005451235 | KEY |
| SWITCH BOX | ||
| 536 | A 0005454704 | LIGHT SWITCH |
| Repalced by: A 0005453704 | ||
| 536 | A 0005453704 | LIGHT SWITCH |
| 537 | A 0005452345 | BOOT |
| LIGHT SWITCH | ||
| 538 | A 3016891611 | PLATE |
| LIGHT SWITCH | ||
| 539 | N 007985004123 | SCREW |
| LIGHT SWITCH | ||
| 540 | N 912004004102 | LOCK WASHER |
| LIGHT SWITCH | ||
| A 1265400083 | HANDLE | |
| Repalced by: A 2015400183 | ||
| 542 | A 2015400183 | HANDLE |
| Repalced by: A 2025450081 | ||
| 542 | A 2025450081 | KNOB |
| LIGHT SWITCH | ||
| 543 | A 3016890073 | HOUSING |
| LIGHT SWITCH | ||
| 544 | A 1075450072 | NUT |
| LIGHT SWITCH | ||
| 545 | A 0005452245 | BOOT |
| A 0005453914 | SWITCH | |
| Repalced by: A 0005456314 | ||
| A 0005456314 | SWITCH | |
| Repalced by: A 0015450214 | ||
| A 0015450214 | SWITCH | |
| Repalced by: A 0015454914 | ||
| 546 | A 0015454914 | SWITCH |
| SPRING-LOADED-BRAKE EMERGENCY RELEASE | ||
| 546 | A 3055450022 | SWITCH |
| SPRING-LOADED-BRAKE EMERGENCY RELEASE | ||
| 547 | A 0025452007 | SWITCH |
| SPRING-LOADED-BRAKE EMERGENCY RELEASE | ||
| 548 | A 0005453703 | CAP |
| SPRING-LOADED-BRAKE EMERGENCY RELEASE | ||
| A 0025405847 | INSTRUMENT CLUSTER | |
| Repalced by: A 0035405447 | ||
| A 0035405447 | INSTRUMENT CLUSTER | |
| Repalced by: A 0035407847 | ||
| A 0035407847 | INSTRUMENT CLUSTER | |
| Repalced by: A 0035409647 | ||
| 551 | A 0035409647 | INSTRUMENT CLUSTER |
| 552 | A 0035423305 | TEMPERATURE GAUGE |
| TO 002 540 58 47,003 540 54 47 | ||
| 552 | A 0035428805 | TEMPERATURE GAUGE |
| TO 003 540 78 47, | ||
| A 0035427405 | TEMPERATURE GAUGE | |
| TO 003 540 96 47, | ||
| 553 | A 0015420408 | AIR PRESSURE GAUGE |
| TO 002 540 58 47,003 540 54 47 | ||
| 553 | A 0015423908 | AIR PRESSURE GAUGE |
| TO 003 540 78 47, | ||
| A 0015424208 | AIR PRESSURE GAUGE | |
| TO 003 540 96 47, | ||
| 554 | A 0015429902 | OIL PRESSURE GAUGE |
| TO 002 540 58 47,003 540 54 47 | ||
| 554 | A 0025422702 | OIL PRESSURE GAUGE |
| TO 003 540 78 47 | ||
| A 0025421702 | OIL PRESSURE GAUGE | |
| TO 003 540 96 47 | ||
| 555 | A 0015424503 | FUEL GAUGE DASH UNIT |
| TO 002 540 58 47,003 540 54 47 | ||
| 555 | A 0025429203 | FUEL GAUGE DASH UNIT |
| TO 003 540 78 47 | ||
| A 0025428503 | FUEL GAUGE DASH UNIT | |
| TO 003 540 96 47 | ||
| 556 | A 0005422178 | CONNECTION PLATE |
| TO 002 540 58 47,003 540 54 47 | ||
| 556 | A 0005423178 | CONNECTION PLATE |
| TO 003 540 78 47 | ||
| 556 | A 0005423578 | CONNECTION PLATE |
| TO 003 540 96 47 | ||
| 557 | A 0005451219 | SOCKET |
| 558 | N 072601024801 | BULB |
| 2 W | ||
| 559 | A 0005420481 | GROMMET |
| INSTRUMENT CLUSTER TO INSTRUMENT PANEL | ||
| 559 | A 0005420481 | GROMMET |
| TACHOGRAFH TO INSTRUMENT PANEL | ||
| A 0065428610 | TACHOGRAPH | |
| Repalced by: A 0055424410 | ||
| 560 | A 0055424410 | TACHOGRAPH |
| ONE-DAY REGISTRATION; READING IN KILOMETERS; MEASURING RANGE,100KM/H | ||
| A 0085422710 | TACHOGRAPH | |
| Repalced by: A 0085425310 | ||
| 560 | A 0085425310 | TACHOGRAPH |
| 560 | A 0095421310 | TACHOGRAPH |
| ELECTRONIC | ||
| A 0105426910 | TACHOGRAPH | |
| Repalced by: A 0125422310 | ||
| 560 | A 0125422310 | TACHOGRAPH |
| Repalced by: A 0115423710 | ||
| 560 | A 0115423710 | TACHOGRAPH |
| TACHOGRAPH ADJUSTABLE | ||
| A 0115420110 | TACHOGRAPH | |
| Repalced by: A 0115423410 | ||
| 560 | A 0115423410 | TACHOGRAPH |
| Repalced by: A 0115423710 | ||
| 560 | A 0115423710 | TACHOGRAPH |
| TACHOGRAPH ADJUSTABLE | ||
| 561 | A 0015442694 | BULB |
| WITH SOCKET | ||
| 563 | A 0005420285 | PROTECTIVE PLATE |
| LEAD SEALING | ||
| A 0005421994 | DIAGRAM PAPER | |
| SET = 100 PIECES | ||
| TO 006 542 86 10 | ||
| 401 | N 000137008204 | SPRING WASHER |
| CABLE TO ALTERNATOR | ||
| A 0005423394 | DIAGRAM PAPER | |
| SET = 100 PIECES | ||
| TO 008 542 27 10,53 10,009 542 13 10 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TO 010 542 69 10,011 542 01 10 | ||
| 565 | A 0005421347 | COUPLER |
| 566 | N 072601024801 | BULB |
| 567 | A 0015424316 | TACHOMETER |
| ELECTRONIC | ||
| 567 | A 0015427116 | TACHOMETER |
| ELECTRONIC | ||
| 568 | A 0005421840 | BRACKET |
| TACHOGRAFH TO INSTRUMENT PANEL | ||
| 569 | A 3005420240 | BRACKET |
| TACHOGRAFH TO INSTRUMENT PANEL | ||
| 570 | N 007971002234 | SHEET METAL SCREW |
| TACHOGRAFH TO INSTRUMENT PANEL | ||
| 2.2X9.5 | ||
| A 0005421172 | NUT | |
| Repalced by: N 000934005008 | ||
| 571 | N 000934005008 | NUT |
| TACHOGRAFH TO INSTRUMENT PANEL | ||
| 572 | A 0005422640 | BRACKET |
| TACHOMETER TO INSTRUMENT PANEL | ||
| 572 | A 0005422640 | BRACKET |
| INSTRUMENT CLUSTER TO INSTRUMENT PANEL | ||
| 572 | A 0005421740 | BRACKET |
| TACHOMETER TO INSTRUMENT PANEL | ||
| 574 | A 3005420340 | BRACKET |
| INSTRUMENT CLUSTER TO INSTRUMENT PANEL | ||
| 575 | N 007981004243 | SHEET METAL SCREW |
| Repalced by: N 000000002062 | ||
| 575 | N 000000002062 | SCREW |
| BRACKET TO INSTRUMENT PANEL | ||
| 4,2X9,5 | ||
| A 0005421072 | NUT | |
| Repalced by: N 000934004006 | ||
| 576 | N 000934004006 | NUT |
| TACHOMETER TO INSTRUMENT PANEL | ||
| 576 | N 000934004006 | NUT |
| INSTRUMENT CLUSTER TO INSTRUMENT PANEL | ||
| 576E | A 0005420581 | GROMMET |
| TACHOMETER TO INSTRUMENT PANEL | ||
| 577 | A 0045421507 | FLEXIBLE SHAFT |
| 577 | A 0045425507 | FLEXIBLE SHAFT |
| TACHOGRAPH | ||
| 578 | A 0035421707 | FLEXIBLE SHAFT |
| FRONT AND REAR | ||
| 1420 MM | ||
| 579 | A 0045422607 | FLEXIBLE SHAFT |
| CENTRAL | ||
| 579 | A 0045422707 | FLEXIBLE SHAFT |
| CENTRAL | ||
| 580 | A 0005420847 | COUPLER |
| FLEXIBLE SHAFT | ||
| A 0005420147 | COUPLER | |
| Repalced by: A 0005423147 | ||
| 580 | A 0005423147 | COUPLER |
| Repalced by: A 0005421247 | ||
| 580 | A 0005421247 | COUPLER |
| FLEXIBLE SHAFT | ||
| 581 | A 0005420746 | CONNECTOR |
| FLEXIBLE SHAFT | ||
| A 0005420246 | CONNECTOR | |
| Repalced by: A 0005423147 | ||
| 582 | A 0005423147 | COUPLER |
| Repalced by: A 0005421247 | ||
| 582 | A 0005421247 | COUPLER |
| FLEXIBLE SHAFT | ||
| 583 | A 0019978390 | LOOM TIE |
| 280 MM | ||
| 584 | A 0005428630 | ANGLE DRIVE |
| 0.7895 | ||
| A 0005422930 | ANGLE DRIVE | |
| Repalced by: A 0005420630 | ||
| 584 | A 0005420630 | ANGLE DRIVE |
| FLEXIBLE SHAFT TO TRANSMISSION | ||
| 1.000 | ||
| 585 | A 0035421717 | SENDER UNIT |
| ELECTRONIC TACHOGRAPH | ||
| 0.7836 | ||
| 585 | A 0035421617 | SENDER UNIT |
| ELECTRONIC TACHOGRAPH | ||
| 0.7566 | ||
| 585 | A 0035422417 | SENDER UNIT |
| ELECTRONIC TACHOGRAPH | ||
| 0.9798 | ||
| 586 | A 0055429417 | SENDER UNIT |
| ELECTRONIC TACHOGRAPH | ||
| 586 | A 0065424617 | SENDER UNIT |
| ELECTRONIC TACHOGRAPH | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
