Transporto priemonė: O 303; VIN numerio dalis: 301166

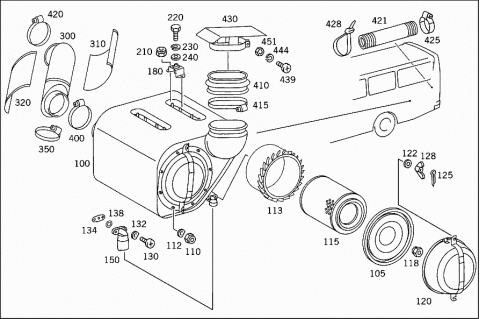

Grupė: 52 CHASSIS SHEET METAL
| # | Kodas | Pavadinimas |
|---|---|---|
| 100 | A 0080949202 | AIR CLEANER |
| Repalced by: A 0110947002 | ||
| 100 | A 0110947002 | AIR CLEANER |
| MANN & HUMMEL | ||
| 100 | A 0090940402 | AIR CLEANER |
| MANN & HUMMEL | ||
| 105 | A 0010943206 | COVER |
| INSIDE | ||
| 105 | A 0010944406 | COVER |
| INSIDE | ||
| 110 | N 913004008004 | NUT |
| 112 | N 000137008204 | SPRING WASHER |
| 113 | A 0000942105 | AIR BAFFLE |
| 115 | A 0010944704 | FILTER ELEMENT |
| 115 | A 0010944204 | FILTER ELEMENT |
| 118 | A 0009901550 | NUT |
| 118 | A 0029900851 | NUT |
| 120 | A 0000947503 | FILTER BOWL |
| COVER | ||
| 120 | A 0000947403 | FILTER BOWL |
| COVER | ||
| 122 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 122 | N 000125010532 | WASHER |
| 125 | N 000094003219 | COTTER PIN |
| 128 | N 000315008006 | NUT |
| 130 | N 000084006137 | SCREW |
| 132 | N 000137006204 | SPRING WASHER |
| 134 | A 0010941180 | GASKET |
| A 0010944480 | GASKET | |
| Repalced by: A 0000940276 | ||
| 138 | A 0000940276 | WASHER |
| FELT | ||
| 150 | A 0000941468 | MAINTENANCE INDICATOR |
| 180 | A 0009881911 | BUFFER |
| Repalced by: A 0009885511 | ||
| 180 | A 0009885511 | BUFFER |
| AIR CLEANER | ||
| 210 | N 913004008004 | NUT |
| 220 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 220 | N 304017008016 | SCREW |
| AIR CLEANER TO SUBSTRUCTURE | ||
| 230 | N 912004008102 | LOCK WASHER |
| AIR CLEANER TO SUBSTRUCTURE | ||
| 240 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 240 | N 000125008443 | WASHER |
| AIR CLEANER TO SUBSTRUCTURE | ||
| A 3015281108 | AIR INTAKE PIPE | |
| Repalced by: A 3005280208 | ||
| 300 | A 3005280208 | AIR INTAKE PIPE |
| FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE | ||
| 300 | A 3015280308 | AIR INTAKE PIPE |
| FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE | ||
| A 3015280408 | AIR INTAKE PIPE | |
| Repalced by: A 3005280108 | ||
| 300 | A 3005280108 | AIR INTAKE PIPE |
| FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE | ||
| 310 | A 3015280011 | SHELL PLATE |
| FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE | ||
| 320 | A 3015280111 | SHELL PLATE |
| FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE | ||
| A 3015280211 | SHELL PLATE | |
| Repalced by: A 3005280108 | ||
| A 3015280311 | SHELL PLATE | |
| Repalced by: A 3005280108 | ||
| 350 | N 916017110001 | CLAMP |
| Repalced by: A 0059971490 | ||
| 350 | A 0059971490 | LOOM TIE |
| FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE | ||
| 400 | N 916017130000 | CLAMP |
| Repalced by: N 000000000678 | ||
| 400 | N 000000000678 | CLAMP |
| FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE | ||
| A 3015280282 | HOSE | |
| Repalced by: A 3015281182 | ||
| 410 | A 3015281182 | HOSE |
| Repalced by: A 6005280082 | ||
| 410 | A 6005280082 | HOSE |
| FROM AIR CLEANER TO INTAKE PIPE | ||
| 410 | A 3015280182 | HOSE |
| FROM AIR CLEANER TO INTAKE PIPE | ||
| 415 | N 916017090000 | CLAMP |
| AIR CLEANER AND AIR INTAKE PIPE | ||
| 420 | N 916017160000 | CLAMP |
| AIR CLEANER AND AIR INTAKE PIPE | ||
| A 3015280382 | HOSE | |
| Repalced by: A 3025280082 | ||
| 421 | A 3025280082 | HOSE |
| FROM ALTERNATOR INTAKE ELBOW TO INTAKE CASE | ||
| 425 | N 916017060000 | CLAMP |
| Repalced by: N 000000000673 | ||
| 425 | N 000000000673 | CLAMP |
| AIR HOSE TO ELBOW AND TO INTAKE CASE | ||
| A 0029972490 | LOOM TIE | |
| Repalced by: A 0019978490 | ||
| 428 | A 0019978490 | LOOM TIE |
| 430 | A 3015200089 | COVER |
| AIR INTAKE | ||
| 439 | N 007985006154 | SCREW |
| 444 | N 912004006102 | LOCK WASHER |
| 451 | N 000934006007 | NUT |
