Transporto priemonė: O 303; VIN numerio dalis: 301204

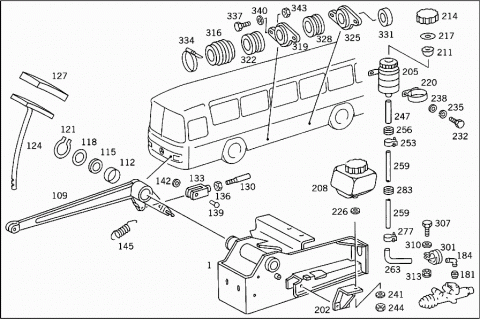

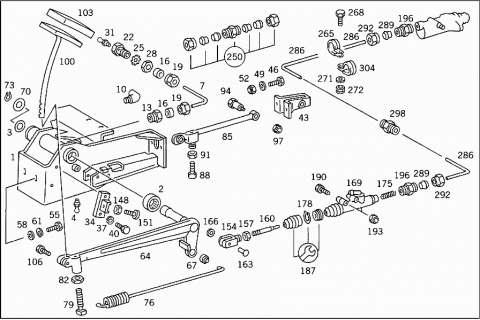

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 3012900819 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 002 | A 0059813110 | NEEDLE BEARING |
| 003 | A 0119972746 | SEAL RING |
| 004 | N 071412010100 | GREASE NIPPLE |
| 007 | A 0004290601 | LINE |
| 4 MM | ||
| 010 | A 0005731330 | ELBOW |
| LINE TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 013 | A 0005730532 | CONNECTOR |
| LINE TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 016 | N 003862004001 | DOUBLE TAPER RING |
| LINE TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 019 | N 003871004102 | UNION SCREW |
| LINE TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 022 | N 071429014110 | BULKHEAD FITTING |
| LINE TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 025 | N 006797014150 | TOOTHED WASHER |
| LINE TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 028 | N 000439014203 | NUT |
| Repalced by: N 308675014001 | ||
| 028 | N 308675014001 | NUT |
| LINE TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 031 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 031 | N 071412008102 | GREASE NIPPLE |
| LINE TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 031 | N 071412008302 | GREASE NIPPLE |
| LINE TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 034 | A 3012901033 | BRACKET |
| PEDAL ASSEMBLY | ||
| 037 | N 912004008102 | LOCK WASHER |
| BRACKET TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 040 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 040 | N 304017008021 | SCREW |
| BRACKET TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 043 | A 3012900933 | BRACKET |
| PEDAL ASSEMBLY | ||
| 046 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 046 | N 304017008034 | SCREW |
| BRACKET TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 049 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 049 | N 000125008443 | WASHER |
| BRACKET TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 052 | N 913004008004 | NUT |
| BRACKET TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 055 | N 000933010128 | SCREW |
| PEDAL BEARING BRACKET TO SUBSTRUCTURE | ||
| 058 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 058 | N 000125010532 | WASHER |
| PEDAL BEARING BRACKET TO SUBSTRUCTURE | ||
| 061 | N 912004010102 | LOCK WASHER |
| PEDAL BEARING BRACKET TO SUBSTRUCTURE | ||
| 064 | A 3012900316 | PEDAL |
| CLUTCH | ||
| 067 | A 3072910250 | BUSHING |
| 067 | A 0009817031 | JOINT BEARING |
| 070 | A 3079900040 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 073 | N 000471025002 | LOCK RING |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 076 | A 3079930210 | SPRING |
| CLUTCH PEDAL | ||
| 079 | A 3049900022 | SCREW |
| SPRING TO CLUTCH PEDAL | ||
| 082 | N 080705018002 | NUT |
| SPRING TO CLUTCH PEDAL | ||
| 085 | A 3012902243 | CONNECTOR |
| CLUTCH OPERATION | ||
| 085 | A 3012902043 | CONNECTOR |
| CLUTCH OPERATION | ||
| 088 | A 3012910241 | STOP |
| 091 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 091 | N 304035008001 | NUT |
| 094 | A 3079900114 | SCREW |
| CONNECTOR TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 097 | N 000936010010 | NUT |
| CONNECTOR TO PEDAL ASSEMBLY BEARING BRACKET | ||
| N 000094002021 | COTTER PIN | |
| CONNECTOR TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 100 | A 3012900724 | PEDAL PLATE |
| Repalced by: A 3002900024 | ||
| 100 | A 3002900024 | PEDAL PLATE |
| CLUTCH | ||
| 103 | A 3052910182 | PAD |
| CLUTCH | ||
| 106 | N 000933010105 | SCREW |
| 109 | A 3012900218 | PEDAL |
| BRAKE | ||
| 112 | A 3389920103 | BUSHING |
| 115 | A 0119972846 | SEAL RING |
| 118 | A 3019900240 | WASHER |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 121 | N 000471040002 | LOCK RING |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 124 | A 3012900524 | PEDAL PLATE |
| BRAKE | ||
| 127 | A 3052910182 | PAD |
| BRAKE | ||
| 130 | A 3012950033 | ROD |
| FROM BRAKE PEDAL TO BRAKE VALVE | ||
| 130 | A 3002950033 | ROD |
| FROM BRAKE PEDAL TO BRAKE VALVE | ||
| 133 | N 071752010004 | YOKE |
| Repalced by: A 0009961401 | ||
| 133 | A 0009961401 | YOKE |
| FROM BRAKE PEDAL TO BRAKE VALVE | ||
| 136 | N 000934010014 | NUT |
| FROM BRAKE PEDAL TO BRAKE VALVE | ||
| 139 | N 001434010009 | PIN |
| PISTON ROD TO LEVER | ||
| 142 | N 000433010505 | WASHER |
| PISTON ROD TO LEVER | ||
| N 000094003015 | COTTER PIN | |
| PISTON ROD TO LEVER | ||
| 145 | A 3019930010 | SPRING |
| Repalced by: A 3019930310 | ||
| 145 | A 3019930310 | SPRING |
| 148 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 148 | N 304035008001 | NUT |
| CLUTCH AND BRAKE PEDALS TO BEARING BRACKET | ||
| 151 | A 3012910241 | STOP |
| CLUTCH AND BRAKE PEDALS TO BEARING BRACKET | ||
| A 3072900039 | ROD | |
| 154 | A 0009961801 | YOKE |
| Repalced by: A 3079960201 | ||
| 154 | A 3079960201 | YOKE |
| FROM CLUTCH PEDAL TO MASTER CYLINDER | ||
| 157 | N 900071010202 | NUT |
| FROM CLUTCH PEDAL TO MASTER CYLINDER | ||
| 160 | A 3072950033 | ROD |
| FROM CLUTCH PEDAL TO MASTER CYLINDER | ||
| 163 | A 3012910174 | PIN |
| PISTON ROD TO LEVER | ||
| 166 | A 3019900740 | WASHER |
| PISTON ROD TO LEVER | ||
| N 000094003226 | COTTER PIN | |
| PISTON ROD TO LEVER | ||
| 169 | A 0002958206 | MASTER CYLINDER |
| CLUTCH | ||
| 175 | A 0049936001 | SPRING |
| A 0019979040 | SEAL RING | |
| 178 | N 000472024000 | LOCK RING |
| A 0002953283 | BOOT | |
| 181 | A 0009974235 | PLUG |
| Repalced by: A 0009971186 | ||
| 181 | A 0009971186 | PLUG |
| 184 | A 0002950436 | INTERMEDIATE PIECE |
| Repalced by: A 0002950036 | ||
| 184 | A 0002950036 | INTERMEDIATE PIECE |
| 187 | A 0005863529 | REPAIR KIT |
| Repalced by: A 0002903412 | ||
| 187 | A 0002903412 | REPAIR KIT |
| CLUTCH MASTER CYLINDER | ||
| 190 | N 000931006087 | SCREW |
| Repalced by: N 304014006004 | ||
| 190 | N 304014006004 | SCREW |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 193 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 193 | N 910113006001 | NUT |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 196 | A 3079970172 | FITTING |
| CLUTCH MASTER AND SLAVE CYLINDERS | ||
| A 0009906070 | T-FITTING | |
| 202 | A 3002900133 | BRACKET |
| FLUID RESERVOIR | ||
| 205 | A 0004314702 | RESERVOIR |
| LESS WARNING DEVICE | ||
| 205 | A 0004314702 | RESERVOIR |
| LESS WARNING DEVICE | ||
| 205 | A 0014312902 | RESERVOIR |
| LESS WARNING DEVICE | ||
| 205 | A 0014312902 | RESERVOIR |
| LESS WARNING DEVICE | ||
| 208 | A 0002952615 | RESERVOIR |
| WITH WARNING DEVICE | ||
| A 0004310034 | STRAINER | |
| Repalced by: A 0004313734 | ||
| 211 | A 0004313734 | STRAINER |
| Repalced by: A 0004314334 | ||
| 211 | A 0004314334 | STRAINER |
| 211 | A 0004314334 | STRAINER |
| 211 | A 0004312634 | STRAINER |
| Repalced by: A 0004315334 | ||
| 211 | A 0004315334 | STRAINER |
| Repalced by: A 0004316934 | ||
| 211 | A 0004316934 | STRAINER |
| A 0004313133 | FILLER CAP | |
| Repalced by: A 0004315133 | ||
| 214 | A 0004314333 | FILLER CAP |
| Repalced by: A 0004315133 | ||
| 214 | A 0004315133 | FILLER CAP |
| Repalced by: A 0004315433 | ||
| 214 | A 0002950237 | SCREW PLUG |
| Repalced by: A 0004315433 | ||
| 214 | A 0004315433 | FILLER CAP |
| BUTTRESS THREAD | ||
| 214 | A 0004315433 | FILLER CAP |
| BUTTRESS THREAD | ||
| 214 | A 0004315733 | FILLER CAP |
| Repalced by: A 0004316633 | ||
| 214 | A 0004316633 | FILLER CAP |
| Repalced by: A 0004317733 | ||
| 214 | A 0004317733 | FILLER CAP |
| WITH SEAL RING | ||
| 217 | A 0009972940 | SEAL RING |
| 43.7X30 MM | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 000 431 51 33,000 431 57 33 | ||
| 217 | A 0039976440 | SEAL RING |
| 42X21.5 MM | ||
| 220 | A 0004311040 | CLAMP |
| 220 | A 0004311040 | CLAMP |
| A 0004316287 | PROTECTIVE CAP | |
| 226 | A 0014310060 | SEAL RING |
| A 0004311371 | SCREW | |
| 232 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 232 | N 304017006018 | SCREW |
| RESERVOIR TO SUBSTRUCTURE | ||
| 232 | N 304017006018 | SCREW |
| RESERVOIR TO SUBSTRUCTURE | ||
| 235 | N 912004006102 | LOCK WASHER |
| RESERVOIR TO SUBSTRUCTURE | ||
| 235 | N 912004006102 | LOCK WASHER |
| RESERVOIR TO SUBSTRUCTURE | ||
| 238 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 238 | N 009021006208 | WASHER |
| RESERVOIR TO SUBSTRUCTURE | ||
| 238 | N 009021006208 | WASHER |
| RESERVOIR TO SUBSTRUCTURE | ||
| 241 | N 000125006421 | WASHER |
| FLUID RESERVOIR TO BRACKET | ||
| 244 | N 000439006204 | NUT |
| FLUID RESERVOIR TO BRACKET | ||
| 247 | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 247 | A 0009872827 | PLASTIC PIPE |
| FROM RESERVOIR TO MASTER CYLINDER | ||
| 9X12 MM | ||
| 247 | A 0009872827 | PLASTIC PIPE |
| FROM RESERVOIR TO MASTER CYLINDER | ||
| 9X12 MM | ||
| 250 | A 0049971772 | FITTING |
| Repalced by: A 0029906171 | ||
| 250 | A 0029906171 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 250 | A 0029906171 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 253 | N 900288014002 | CLAMP |
| HOSE TO DRIP PAN | ||
| 253 | N 900288014002 | CLAMP |
| HOSE TO DRIP PAN | ||
| 256 | A 0009972881 | GROMMET |
| SEAL IN DRIP PAN | ||
| 256 | A 0009972881 | GROMMET |
| SEAL IN DRIP PAN | ||
| 259 | A 3012950013 | PIPE |
| Repalced by: A 0004290801 | ||
| 259 | A 3012952413 | PIPE |
| Repalced by: A 0004290801 | ||
| 259 | A 0004290801 | LINE |
| FROM RESERVOIR TO MASTER CYLINDER | ||
| 8X0.7MM | ||
| 263 | A 3109970382 | HOSE |
| Repalced by: A 6039970482 | ||
| 263 | A 6039970482 | HOSE |
| FROM RESERVOIR TO MASTER CYLINDER | ||
| 7.3X11.8 MM | ||
| 265 | A 0009954601 | CLAMP |
| Repalced by: N 916016008201 | ||
| 265 | N 916016008201 | CLAMP |
| BRACKET TO SUBSTRUCTURE | ||
| 268 | N 000084005134 | SCREW |
| BRACKET TO SUBSTRUCTURE | ||
| 271 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 271 | N 009021005205 | WASHER |
| BRACKET TO SUBSTRUCTURE | ||
| 272 | N 913004005001 | NUT |
| BRACKET TO SUBSTRUCTURE | ||
| 277 | N 900288014002 | CLAMP |
| RESERVOIR LINE | ||
| 277 | N 900288014002 | CLAMP |
| RESERVOIR LINE | ||
| 283 | A 3029970381 | GROMMET |
| 283 | A 3029970381 | GROMMET |
| 286 | A 0004290301 | LINE |
| FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER | ||
| 8X1 MM | ||
| 286 | A 0004290301 | LINE |
| FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER | ||
| 8X1 MM | ||
| 289 | N 003861008005 | GLAND |
| 292 | N 915017008100 | UNION NUT |
| 298 | A 0009906070 | T-FITTING |
| 14X1.5 MM | ||
| N 003902008001 | CONNECTION FITTING | |
| Repalced by: A 0019972672 | ||
| 298 | A 0019972672 | FITTING |
| Repalced by: A 0039978972 | ||
| 298 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 298 | A 0029905971 | FITTING |
| 301 | N 916016008200 | CLAMP |
| 8/15 MM | ||
| 304 | N 916016022206 | CLAMP |
| 22/15 MM | ||
| 307 | N 000933006127 | SCREW |
| FROM CLUTCH MASTER CYLINDER LINE TO HYDRAULIC HOSE | ||
| 310 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 310 | N 009021006208 | WASHER |
| FROM CLUTCH MASTER CYLINDER LINE TO HYDRAULIC HOSE | ||
| 313 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 313 | N 910113006001 | NUT |
| FROM CLUTCH MASTER CYLINDER LINE TO HYDRAULIC HOSE | ||
| 316 | A 0002680396 | BOOT |
| SHIFTING TUBE | ||
| 319 | A 3012900531 | BEARING |
| Repalced by: A 3012930240 | ||
| 319 | A 3012930240 | BRACKET |
| SHIFTING TUBE | ||
| 322 | A 3052680150 | BUSHING |
| Repalced by: A 3572680050 | ||
| 322 | A 3572680050 | BUSHING |
| SHIFTING TUBE | ||
| 325 | A 3012900631 | BEARING |
| Repalced by: A 3012930240 | ||
| 325 | A 3012930240 | BRACKET |
| SHIFTING TUBE | ||
| 328 | A 3212680850 | BUSHING |
| Repalced by: A 3572680150 | ||
| 328 | A 3572680150 | BUSHING |
| SHIFTING TUBE | ||
| 331 | A 3012680086 | RUBBER RING |
| SHIFTING TUBE | ||
| 334 | N 900288062000 | CLAMP |
| SHIFTING TUBE | ||
| 337 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 337 | N 304017008034 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 340 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 340 | N 000125008443 | WASHER |
| BEARING BRACKET TO FRAME | ||
| 343 | N 913004008004 | NUT |
| BEARING BRACKET TO FRAME | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
