Transporto priemonė: O 303; VIN numerio dalis: 301245
Grupė: 42 BRAKE SYSTEM - 001 BRAKES

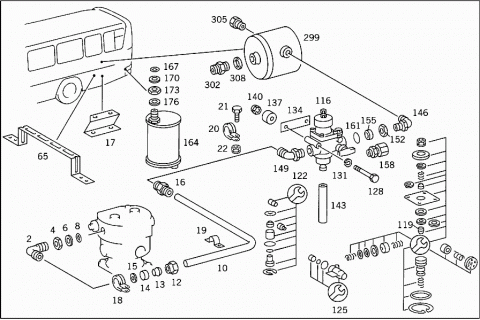

43728

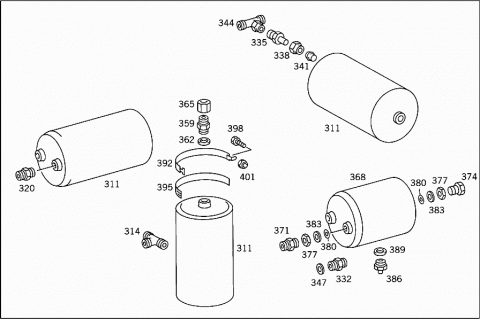

43729

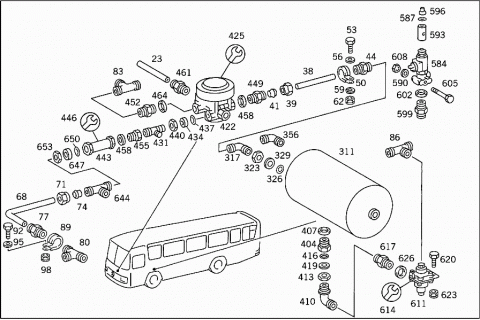

43730

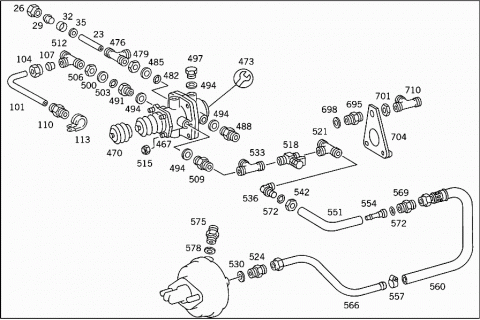

43731

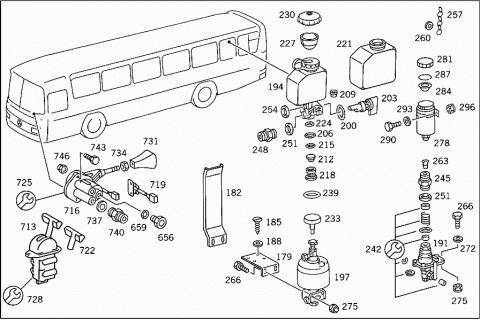

43732

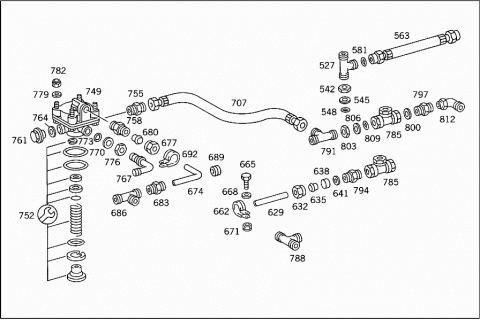

43733
# Kodas Pavadinimas
T YYYYYYYYYYYY PART NAME MISSING
FOR FRONT AXLE, SEE UNIT STANDARD VERSION,MODEL:
730.0
T YYYYYYYYYYYY PART NAME MISSING
FOR REAR AXLE, SEE UNIT STANDARD VERSION,MODEL:
745.2
002 A 0009909871 ELBOW FITTING
Repalced by: A 0004291838
002 A 0004291838 ELBOW FITTING
AT AIR COMPRESSOR
002 A 0004294338 ELBOW FITTING
AT AIR COMPRESSOR
002 A 0004294338 ELBOW FITTING
AT AIR COMPRESSOR
002 A 0004294338 ELBOW FITTING
AT AIR COMPRESSOR
004 N 080705026000 NUT
Repalced by: N 080705026003
004 N 080705026003 NUT
AT AIR COMPRESSOR
004 N 080705026003 NUT
AT AIR COMPRESSOR
004 N 080705026003 NUT
AT AIR COMPRESSOR
A 0039973848 SEAL RING
AT AIR COMPRESSOR
A 0039973848 SEAL RING
AT AIR COMPRESSOR
A 0039973848 SEAL RING
AT AIR COMPRESSOR
006 A 0004290527 THRUST RING
AT AIR COMPRESSOR
006 A 0004290527 THRUST RING
AT AIR COMPRESSOR
006 A 0004290527 THRUST RING
AT AIR COMPRESSOR
008 A 0009872846 SEALING CORD
AT AIR COMPRESSOR
010 A 0004291501 LINE
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
18 MM
010 A 0005516256 TUBE
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
15 MM
012 N 915018018000 UNION NUT
012 N 915018015000 UNION NUT
013 N 003861018003 GLAND
Repalced by: A 0019901167
013 A 0019901167 SEAL CONE
013 N 003861015004 GLAND
014 N 915065018101 THRUST RING
014 A 0004291027 THRUST RING
015 A 0004291584 SEAL RING
Repalced by: N 915045015100
015 N 915045015100 SEAL RING
015 N 915045014100 SEAL RING
A 0004297735 BRAKE HOSE
A 0004297835 BRAKE HOSE
016 A 0019972072 FITTING
Repalced by: N 074313018200
016 N 074313018201 FITTING
BETWEEN THE LINES
016 A 0019972172 FITTING
BETWEEN THE LINES
017 A 3014290140 BRACKET
COMPRESSED AIR LINE
017 A 3004290140 BRACKET
Repalced by: A 6764660040
017 A 6764660040 BRACKET
Repalced by: A 6454310740
017 A 6454310740 BRACKET
BRACKET TO RADIATOR
N 000933008045 SCREW
BRACKET TO RADIATOR
N 000125008418 WASHER
Repalced by: N 000125008443
N 000125008443 WASHER
BRACKET TO RADIATOR
N 913001008002 NUT
BRACKET TO RADIATOR
018 A 0009954801 CLAMP
Repalced by: N 916016018201
018 N 916016018201 CLAMP
COMPRESSED AIR LINE TO BRACKET
019 A 3609950010 CLAMP
Repalced by: A 3609950210
019 A 3609950210 CLAMP
COMPRESSED AIR LINE TO BRACKET
019 A 3609950601 CLAMP
COMPRESSED AIR LINE TO BRACKET
020 N 916016015202 CLAMP
COMPRESSED AIR LINE TO BRACKET
020 N 916016015202 CLAMP
LINE TO FRAME
020 N 916016015202 CLAMP
FROM ANTI-FREEZE DEVICE TO CONNECTOR I
N 007971004240 SHEET METAL SCREW
Repalced by: N 007981004258
N 007981004258 SHEET METAL SCREW
LINE TO FRAME
N 000125053170 WASHER
LINE TO FRAME
N 916016012200 CLAMP
COMPRESSED AIR LINE TO BRACKET
N 916016012200 CLAMP
COMPRESSED AIR LINE TO COMPRESSED AIR LINE
12/15 MM
N 916016006208 CLAMP
COMPRESSED AIR LINE TO COMPRESSED AIR LINE
6/15 MM
N 916016015202 CLAMP
COMPRESSED AIR LINE TO COMPRESSED AIR LINE
15/15 MM
021 N 000933006127 SCREW
COMPRESSED AIR LINE TO BRACKET
022 N 913001006000 NUT
COMPRESSED AIR LINE TO BRACKET
N 009021006205 WASHER
Repalced by: N 009021006208
N 009021006208 WASHER
COMPRESSED AIR LINE TO BRACKET
023 A 0004291401 LINE
FROM HOSE TO MUFFLER
15 MM
A 3014660540 BRACKET
026 N 915018015000 UNION NUT
029 N 003861015004 GLAND
032 A 0004291027 THRUST RING
035 N 915045014100 SEAL RING
038 A 0004292101 LINE
12 MM
038 A 0004292101 LINE
FROM AIR RESERVOIR TO ANTI-FREEZE DEVICE
12 MM
038 A 0004292101 LINE
PRESSURE REGULATOR,CONNECTORS,AIR RESERVOIR
12 MM
038 A 0004292101 LINE
AIR RESERVOIR,DRAIN VALVE,SECONDARY CONSUMING UNITS
12 MM
038 A 0004292101 LINE
FOUR-CIRCUIT PROTECTIVE VALVE,HAND BRAKE VALVE,RELAY VALVE
12 MM
038 A 0004292101 LINE
BRAKE VALVE,TEST CONNECTION,STOP LIGHT SWITCH,BRAKE CYLINDER
12 MM
038 A 0004292101 LINE
TWO-WAY QUICK-RELEASE VALVE
12 MM
038 A 0004292101 LINE
BRANCH-OFF TO AIR SPRING
12 MM
039 N 915017012100 UNION NUT
N 003861012007 GLAND
Repalced by: A 0019901967
A 0019901967 SEAL CONE
041 A 0019972172 FITTING
BETWEEN THE LINES
044 A 0029971472 FITTING
Repalced by: A 0049971772
044 A 0049971772 FITTING
Repalced by: A 0029906171
044 A 0029906171 FITTING
BETWEEN THE LINES
044 A 0029906171 FITTING
FROM ANTI-FREEZE DEVICE TO CONNECTOR I
A 0019972372 FITTING
BETWEEN THE LINES
A 0029971672 FITTING
BETWEEN THE LINES
A 0019902771 ELBOW FITTING
BETWEEN THE LINES
A 0019902771 ELBOW FITTING
BETWEEN THE LINES
A 0019902971 ELBOW FITTING
BETWEEN THE LINES
A 0009905370 T-FITTING
CONNECTOR
I
050 A 0009954701 CLAMP
Repalced by: N 916016015202
050 N 916016015202 CLAMP
COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE
050 A 0009954801 CLAMP
Repalced by: N 916016018201
050 N 916016018201 CLAMP
COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE
050 N 916016012200 CLAMP
COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE
050 N 916016012200 CLAMP
COMPRESSED AIR LINE TO COMPRESSED AIR LINE
050 N 916016006208 CLAMP
COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE
050 N 916016012201 CLAMP
COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE
053 N 000933006127 SCREW
COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE
M 6X25
053 N 000933006102 SCREW
COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE
M 6X15
053 N 000933008212 SCREW
Repalced by: N 304017008016
053 N 304017008016 SCREW
COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE
M 8X16
053 N 000933006121 SCREW
Repalced by: N 304017006020
053 N 304017006020 SCREW
COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE
M 6X20
056 N 009021006205 WASHER
Repalced by: N 009021006208
056 N 009021006208 WASHER
COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE
059 N 912004006102 LOCK WASHER
COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE
062 N 913004006002 NUT
Repalced by: N 913004006001
062 N 913004006001 NUT
COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE
062 N 913004006001 NUT
COMPRESSED AIR LINE TO COMPRESSED AIR LINE
062 N 913004008004 NUT
COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE
062 N 913004008004 NUT
COMPRESSED AIR LINE TO COMPRESSED AIR LINE
065 A 3024290340 BRACKET
COMPRESSED AIR LINE
A 3014291240 BRACKET
COMPRESSED AIR LINE
A 0005467130 INSULATING HOSE
DIA.,
8.5 MM
A 0019978390 LOOM TIE
A 0019978490 LOOM TIE
LINE MOUNTING
068 A 0089979082 HOSE
Repalced by: A 0009872727
068 A 0009872727 PLASTIC PIPE
PLASTIC LINE
6X8 MM
068 A 0009872727 PLASTIC PIPE
FROM CONNECTOR TO PARKING BRAKE VALVE
6X8 MM
068 A 0009872727 PLASTIC PIPE
FOUR-CIRCUIT PROTECTIVE VALVE,HAND BRAKE VALVE,RELAY VALVE
6X8 MM
068 A 0004291201 LINE
8 MM
068 A 0004291201 LINE
PRESSURE REGULATOR,ANTI-FREEZE PUMP, FLUID RESERVOIR
8 MM
068 A 0004291201 LINE
RELAY VALVE,BRAKE VALVE
8 MM
068 A 0004291201 LINE
FROM TWO-WAY VALVE TO AIR ACCUMULATOR
8 MM
068 A 0004291201 LINE
FROM AIR RESERVOIR TO OPERATING VALVE
8 MM
N 915052006021 BANJO UNION
071 N 915017008100 UNION NUT
074 N 003861008005 GLAND
N 915062006000 SLEEVE
077 A 0019972672 FITTING
Repalced by: A 0039978972
077 A 0039978972 FITTING
Repalced by: A 0029905971
077 A 0029905971 FITTING
BETWEEN THE LINES
080 A 0009902770 T-FITTING
BETWEEN THE LINES
080 A 0009902570 T-FITTING
BETWEEN THE LINES
080 A 0009905270 T-FITTING
BETWEEN THE LINES
A 0039970672 FITTING
BETWEEN THE LINES
A 0019973872 FITTING
Repalced by: A 0009977172
A 0009977172 FITTING
ELECTRICAL COMPARTMENT
A 0009977172 FITTING
ELECTRICAL COMPARTMENT
N 080705012003 NUT
ELECTRICAL COMPARTMENT
N 080705012003 NUT
ELECTRICAL COMPARTMENT
N 000125013008 WASHER
N 000125013008 WASHER
A 0019972772 FITTING
BETWEEN THE LINES
N 000125015013 WASHER
Repalced by: N 000125015019
N 000125015019 WASHER
BULKHEAD FITTING TO BRACKET
N 080705014002 NUT
BULKHEAD FITTING TO BRACKET
N 915017012100 UNION NUT
N 003861012007 GLAND
Repalced by: A 0019901967
A 0019901967 SEAL CONE
A 0009907070 T-FITTING
BRANCH-OFF TO ANTI-FREEZE DEVICE
A 0009902570 T-FITTING
083 A 0019901970 T-FITTING
BRANCH-OFF TO AIR SPRING
086 A 0009902670 T-FITTING
DRAIN
089 A 0009951801 CLAMP
Repalced by: N 916016008200
089 N 916016008200 CLAMP
COMPRESSED AIR LINE TO BRACKET
092 N 000933006127 SCREW
COMPRESSED AIR LINE TO BRACKET
095 N 000125006421 WASHER
COMPRESSED AIR LINE TO BRACKET
098 N 913001006000 NUT
COMPRESSED AIR LINE TO BRACKET
101 A 0089976082 HOSE
Repalced by: A 0009872627
101 A 0009872627 PLASTIC PIPE
PLASTIC LINE
4X6 MM
101 A 0004291101 LINE
FROM BRAKE VALVE TO PRESSURE GAUGE
6 MM
101 A 0004291101 LINE
FROM BRAKE VALVE TO PRESSURE GAUGE
6 MM
104 N 915017006100 UNION NUT
107 N 003861006007 GLAND
A 0029976772 FITTING
110 A 0019972872 FITTING
Repalced by: A 0039979072
110 A 0039979072 FITTING
Repalced by: A 0029906071
110 A 0029906071 FITTING
BETWEEN THE LINES
113 A 0009952401 CLAMP
Repalced by: N 916016006201
113 N 916016006208 CLAMP
COMPRESSED AIR LINE TO BRACKET
N 007971004240 SHEET METAL SCREW
Repalced by: N 007981004258
N 007981004258 SHEET METAL SCREW
COMPRESSED AIR LINE TO BRACKET
116 A 0014310006 PRESSURE REGULATOR
Repalced by: A 0024314906
116 A 0024314906 PRESSURE REGULATOR
WABCO
116 A 0014310606 PRESSURE REGULATOR
Repalced by: A 0024313406
116 A 0024313406 PRESSURE REGULATOR
Repalced by: A 0024314306
116 A 0024314306 PRESSURE REGULATOR
BOSCH
119 A 0015864343 REPAIR KIT
Repalced by: A 0004301107
119 A 0004301107 REPAIR KIT
TO 001 431 00 06,WABCO
122 A 0024304681 REPAIR KIT
VALVE KIT
TO 001 431 00 06,WABCO
A 0014304960 REPAIR KIT
TO 002 431 49 06; WABCO
A 0015868543 REPAIR KIT
Repalced by: A 0004301407
125 A 0004301407 REPAIR KIT
TO 001 431 06 06,BOSCH
A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 43 06; BOSCH
A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 43 06; BOSCH
128 N 304014008004 SCREW
PRESSURE REGULATOR TO RUBBER BUFFER
131 N 912004008102 LOCK WASHER
PRESSURE REGULATOR TO RUBBER BUFFER
134 A 3055910084 SHIM
PRESSURE REGULATOR TO RUBBER BUFFER
137 A 0019874540 RUBBER BUFFER
Repalced by: A 0009887511
137 A 0009887511 BUFFER
AT PRESSURE REGULATOR
140 N 913001008002 NUT
AT PRESSURE REGULATOR
143 N 900271015037 HOSE
PRESSURE REGULATOR
A 0009973081 GROMMET
COMPRESSED AIR LINE THRU FRAME
N 916026016001 CLAMP
Repalced by: A 0059970190
A 0059970190 LOOM TIE
HOSE
146 A 0009905871 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION:
"21"
146 A 0009907771 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION:
"21"
A 0009909371 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION:
"21"
149 A 0019902271 ELBOW FITTING
Repalced by: N 074301026202
149 N 074301026202 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION:
"1"
149 A 0009905871 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION:
"1"
149 A 0019902671 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION:
"1"
149 A 0019902671 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION:
"1"
149 A 0009905871 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION:
"1"
152 N 074305022202 NUT
PRESSURE REGULATOR,CONNECTIONS:
"1,21"
155 A 0004290227 THRUST RING
PRESSURE REGULATOR,CONNECTIONS:
"1,21"
158 A 0029976772 FITTING
PRESSURE REGULATOR,CONNECTION:
"21"
161 A 0009870446 SEALING CORD
PRESSURE REGULATOR,CONNECTIONS:
"1,21"
164 A 3074300070 MUFFLER
PRESSURE REGULATOR BREATHING
167 A 0004291027 THRUST RING
COMPRESSED AIR LINE TO MUFFLER
170 N 915045014100 SEAL RING
COMPRESSED AIR LINE TO MUFFLER
173 N 074305022202 NUT
MUFFLER TO SUBSTRUCTURE
176 N 000125023006 WASHER
MUFFLER TO SUBSTRUCTURE
179 A 3004290040 BRACKET
ANTI-FREEZE DEVICE
182 A 3004310140 BRACKET
ANTI-FREEZE DEVICE
185 N 007971004240 SHEET METAL SCREW
Repalced by: N 007981004258
185 N 007981004258 SHEET METAL SCREW
BRACKET TO BODY
188 N 000125005317 WASHER
Repalced by: N 000433005304
188 N 000433005304 WASHER
BRACKET TO BODY
191 A 0004311615 ANTI-FREEZE DEVICE
191 A 0004311615 ANTI-FREEZE DEVICE
194 A 0004313115 ANTI-FREEZE DEVICE
197 A 0004312315 ANTI-FREEZE DEVICE
Repalced by: A 0004313115
200 A 0049977945 SEAL RING
Repalced by: A 0179974148
200 A 0179974148 SEAL RING
TO 000 431 31 15
203 A 0004311864 ACTUATING PART
TO 000 431 31 15
206 A 0129972548 SEAL RING
TO 000 431 31 15
209 A 0014312860 SEAL RING
TO 000 431 31 15
212 A 0004312981 VALVE DISC
TO 000 431 31 15
215 A 0129972648 SEAL RING
Repalced by: A 0029971640
215 A 0029971640 SEAL RING
TO 000 431 31 15
218 A 0004315634 STRAINER
TO 000 431 31 15
221 A 0014317302 RESERVOIR
TO 000 431 31 15
224 A 0049978045 SEAL RING
TO 000 431 31 15
227 A 0004315734 STRAINER
TO 000 431 31 15
230 A 0004316133 FILLER CAP
TO 000 431 31 15
233 A 0004350390 VALVE DISC
TO 000 431 23 15
A 0004317086 CUP
TO 000 431 23 15
239 A 0069976545 SEAL RING
TO 000 431 23 15
242 A 0015866843 REPAIR KIT
ANTI-FREEZE DEVICE
TO 000 431 16 15
242 A 0015866843 REPAIR KIT
ANTI-FREEZE DEVICE
TO 000 431 16 15
245 A 0019972572 FITTING
ANTI-FREEZE DEVICE
245 A 0019972572 FITTING
ANTI-FREEZE DEVICE
248 A 0029971172 FITTING
ANTI-FREEZE DEVICE
248 A 0039979072 FITTING
Repalced by: A 0029906071
248 A 0029906071 FITTING
ANTI-FREEZE DEVICE
251 N 007603012405 SEAL RING
ANTI-FREEZE DEVICE
254 N 007603022102 SEAL RING
257 A 3074300110 CHAIN
ANTI-FREEZE DEVICE
N 007971002221 SHEET METAL SCREW
CHAIN TO ENGINE COMPARTMENT INSULATION
260 N 009021003107 WASHER
CHAIN TO ENGINE COMPARTMENT INSULATION
263 A 0002760229 NOZZLE
ANTI-FREEZE DEVICE
263 A 0002760229 NOZZLE
ANTI-FREEZE DEVICE
263 A 0002760329 NOZZLE
ANTI-FREEZE DEVICE
266 N 000933008147 SCREW
Repalced by: N 304017008021
266 N 304017008021 SCREW
ANTE-FREEZE DEVICE TO BRACKET
266 N 304017008021 SCREW
ANTE-FREEZE DEVICE TO BRACKET
266 N 000931008228 SCREW
Repalced by: N 000933008134
266 N 000933008134 SCREW
272 N 000125008418 WASHER
Repalced by: N 000125008443
272 N 000125008443 WASHER
ANTE-FREEZE DEVICE TO BRACKET
275 N 913001008002 NUT
ANTE-FREEZE DEVICE TO BRACKET
278 A 0014310102 RESERVOIR
ANTI-FREEZE
278 A 0014310102 RESERVOIR
ANTI-FREEZE
281 A 0004311533 FILLER CAP
TO 001 431 01 02
284 A 0004311634 STRAINER
TO 001 431 01 02
A 0029977072 FITTING
Repalced by: A 0009972645
287 A 0004310991 CLAMPING RING
TO 001 431 01 02
290 N 000933006127 SCREW
ANTI-FREEZE RESERVOIR TO BODY
290 N 000933006127 SCREW
ANTI-FREEZE RESERVOIR TO BODY
293 N 000125006421 WASHER
ANTI-FREEZE RESERVOIR TO BODY
293 N 000125006421 WASHER
ANTI-FREEZE RESERVOIR TO BODY
296 N 913001006000 NUT
ANTI-FREEZE RESERVOIR TO BODY
296 N 913001006000 NUT
ANTI-FREEZE RESERVOIR TO BODY
299 A 3014300005 RESERVOIR
Repalced by: A 0034320201
299 A 0034320201 RESERVOIR
RESERVOIR
1.5 L
A 0019972172 FITTING
AT AIR RESERVOIR
302 A 0029971172 FITTING
AT AIR RESERVOIR
302 A 0029971172 FITTING
AT AIR RESERVOIR
305 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
305 N 000908022011 SCREW PLUG
AT AIR RESERVOIR
308 N 007603022102 SEAL RING
AT AIR RESERVOIR
308 N 007603022102 SEAL RING
AT AIR RESERVOIR
A 0009907771 ELBOW FITTING
AT AIR RESERVOIR
N 074305022202 NUT
AT AIR RESERVOIR
A 0004290227 THRUST RING
AT AIR RESERVOIR
A 0009870446 SEALING CORD
AT AIR RESERVOIR
311 A 0004324301 RESERVOIR
Repalced by: A 0034321301
311 A 0034321301 RESERVOIR
Repalced by: A 0034323101
311 A 0034323101 RESERVOIR
20 L
311 A 0034323101 RESERVOIR
WET AIR RESERVOIR
20 L
311 A 0034323101 RESERVOIR
REAR AXLE BRAKE CIRCUIT
"1A"
311 A 0034323101 RESERVOIR
FRONT AXLE BRAKE CIRCUIT
"1,1A"
311 A 0034323101 RESERVOIR
SECONDARY CONSUMING UNITS
20 L
314 A 0009902470 T-FITTING
FRONT BRAKE CIRCUIT AIR RESERVOIR
314 A 0019901070 T-FITTING
FRONT BRAKE CIRCUIT AIR RESERVOIR
A 3019900301 SCREW
Repalced by: A 3019900801
A 3019900801 SCREW
AT AIR RESERVOIR
A 0029977272 FITTING
Repalced by: A 0049978972
A 0049978972 FITTING
AT AIR RESERVOIR
A 0009909671 ELBOW FITTING
Repalced by: A 0029901271
A 0029901271 ELBOW FITTING
AT AIR RESERVOIR
317 A 0019902871 ELBOW FITTING
Repalced by: A 0029901371
317 A 0029901371 ELBOW FITTING
AT AIR RESERVOIR
320 A 0039970572 FITTING
Repalced by: A 0049979072
320 A 0049979072 FITTING
AT AIR RESERVOIR
323 N 074305022202 NUT
AT AIR RESERVOIR
326 A 0009870446 SEALING CORD
AT AIR RESERVOIR
329 A 0004290227 THRUST RING
AT AIR RESERVOIR
332 A 0009970071 FITTING
AT AIR RESERVOIR
335 A 0009970271 FITTING
BRANCH-OFF TO EXHAUST BRAKE
335 A 0039970672 FITTING
BRANCH-OFF TO EXHAUST BRAKE
338 N 915017012100 UNION NUT
BRANCH-OFF TO EXHAUST BRAKE
341 N 003861012007 GLAND
Repalced by: A 0019901967
341 A 0019901967 SEAL CONE
BRANCH-OFF TO EXHAUST BRAKE
344 A 0009906970 T-FITTING
BRANCH-OFF TO EXHAUST BRAKE
347 N 007603016401 SEAL RING
AT AIR RESERVOIR
N 915045012100 SEAL RING
Repalced by: N 007603012121
N 007603012121 SEAL RING
AT AIR RESERVOIR
A 3819971186 PLUG
AT AIR RESERVOIR
356 A 0009905771 ELBOW FITTING
AT AIR RESERVOIR
359 A 0019978872 FITTING
AT AIR RESERVOIR
362 N 007603022102 SEAL RING
AT AIR RESERVOIR
365 A 0004290734 ADAPTER FITTING
AT AIR RESERVOIR
N 000125023006 WASHER
AT AIR RESERVOIR
A 0004290227 THRUST RING
AT AIR RESERVOIR
A 0009870446 SEALING CORD
AT AIR RESERVOIR
368 A 0004323101 RESERVOIR
Repalced by: A 0034320901
368 A 0034320901 RESERVOIR
REAR AXLE BRAKE CIRCUIT
10 L
371 A 0029977272 FITTING
Repalced by: A 0049978972
371 A 0049978972 FITTING
AT AIR RESERVOIR
A 0039970572 FITTING
Repalced by: A 0049979072
A 0049979072 FITTING
AT AIR RESERVOIR
374 A 3019900301 SCREW
Repalced by: A 3019900801
374 A 3019900801 SCREW
AT AIR RESERVOIR
377 N 074305022202 NUT
AT AIR RESERVOIR
380 A 0009870446 SEALING CORD
AT AIR RESERVOIR
383 A 0004290227 THRUST RING
AT AIR RESERVOIR
386 A 0004321107 VALVE
DRAIN
386 A 0004322107 VALVE
DRAIN
386 A 0004322407 VALVE
DRAIN
386 A 0004322407 VALVE
AIR RESERVOIR
A 0005830296 RING
DRAIN VALVE
TO 000 432 08 07
389 N 007603022102 SEAL RING
392 A 3014300140 STRAP
AIR RESERVOIR TO SUBSTRUCTURE
395 A 3018960197 PAD
Repalced by: A 3634750320
395 A 3634750320 PAD
AIR RESERVOIR TO SUBSTRUCTURE
398 N 000933010129 SCREW
Repalced by: N 304017010002
398 N 304017010002 SCREW
AIR RESERVOIR TO SUBSTRUCTURE
401 N 913002010001 NUT
AIR RESERVOIR TO SUBSTRUCTURE
404 A 3079970372 FITTING
AIR RESERVOIR DRAIN
407 N 007603022102 SEAL RING
AIR RESERVOIR DRAIN
410 A 0009905471 ELBOW FITTING
AIR RESERVOIR DRAIN
410 A 0019904371 ELBOW FITTING
AIR RESERVOIR DRAIN
413 N 080705012003 NUT
AIR RESERVOIR DRAIN
413 N 074305022202 NUT
AIR RESERVOIR DRAIN
416 A 0019875046 SEALING CORD
AIR RESERVOIR DRAIN
416 A 0009870446 SEALING CORD
AIR RESERVOIR DRAIN
419 A 0004290827 THRUST RING
AIR RESERVOIR DRAIN
419 A 0004290227 THRUST RING
AIR RESERVOIR DRAIN
A 0004291795 AIR CLEANER
Repalced by: A 0004293895
A 0004293895 AIR CLEANER
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
A 0004290297 FILTER ELEMENT
Repalced by: A 0025861643
A 0004291397 FILTER ELEMENT
WABCO 020 0;TO 000 429 38 95
A 0109971445 SEAL RING
WABCO 000 0,36.2X3.0 MM
A 0029974345 SEAL RING
WABCO 020 0,39.2X3.0 MM
A 0025861643 REPAIR KIT
WABCO 000 0;TO 000 429 17 95
A 0029971172 FITTING
AIR CLEANER
N 007603022102 SEAL RING
AIR CLEANER
422 A 0014311506 VALVE
Repalced by: A 0014315806
422 A 0014315806 VALVE
Repalced by: A 0014319306
422 A 0014319306 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
BOSCH
A 0025864043 REPAIR KIT
SEAL RING
TO 001 431 15 06,BOSCH 62001
A 0025863943 REPAIR KIT
BOOT
TO 001 431 15 06,BOSCH 62001
A 0034304681 GASKET KIT
TO 001 431 58 06,BOSCH 62012
425 A 0015868443 REPAIR KIT
SEAL RING
TO BOSCH 62005
425 A 0025861743 REPAIR KIT
BOOT
BOSCH 62001,62005
425 A 0004304706 GASKET KIT
TO 001 431 93 06,BOSCH 62401
425 A 0004300260 REPAIR KIT
TO 001 431 93 06,BOSCH 62201
431 A 0009907370 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
431 A 0019901370 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
434 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
434 A 0004290227 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
434 A 0004290227 THRUST RING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
434 A 0004290227 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
437 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
A 0009870446 SEALING CORD
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
A 0009870446 SEALING CORD
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
A 0009870446 SEALING CORD
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
440 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
440 N 074305022202 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
440 N 074305022202 NUT
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
440 N 074305022202 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
A 0029971372 FITTING
AT FOUR-CIRCUIT PROTECTIVE VALVE
N 007603022102 SEAL RING
AT FOUR-CIRCUIT PROTECTIVE VALVE
443 A 0004290444 VALVE
Repalced by: A 0034290744
443 A 0034290744 VALVE
CHECK VALVE
443 A 0034290744 VALVE
CHECK VALVE
A 0004290088 VALVE SEAT RING
TO 000 429 04 44,003 429 07 44
A 0004290049 BUSHING
TO 000 429 04 44,003 429 07 44
446 A 0005865942 REPAIR KIT
TO 000 429 04 44
A 0004205855 REPAIR KIT
TO 003 429 07 44
A 0019972172 FITTING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
A 0019972172 FITTING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
449 A 0029971172 FITTING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
449 A 0029971172 FITTING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
A 0019902871 ELBOW FITTING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
A 0019902871 ELBOW FITTING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
A 0029971572 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"1,21,22"
A 0029971572 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "21,22"
"1,21,22"
A 0029971572 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"1,21,22"
A 0029971572 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "22"
"1,21,22"
A 0029971572 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
A 0019903371 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "21,22"
A 0019903371 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "22"
N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "21,22"
N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "22"
A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "21,22"
A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "21,22"
A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "21,22"
A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "21,22"
452 A 0029979172 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
N 007603014106 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
N 915045014100 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
455 A 0029973372 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
458 N 007603022102 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"1,23"
458 N 007603022102 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"1,23"
461 A 0009970071 FITTING
AT FOUR-CIRCUIT PROTECTIVE VALVE
461 A 0009970071 FITTING
AT FOUR-CIRCUIT PROTECTIVE VALVE
464 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22,24"
464 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,24"
N 074305022202 NUT
AT FOUR-CIRCUIT PROTECTIVE VALVE
A 0019904070 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
A 0019904070 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
A 0019904070 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
A 0019901070 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
A 0039970672 FITTING
AT T-FITTING
N 915017012100 UNION NUT
AT T-FITTING
N 003861012007 GLAND
Repalced by: A 0019901967
A 0019901967 SEAL CONE
AT T-FITTING
N 000931008207 SCREW
Repalced by: N 304014008007
N 304014008007 SCREW
FOUR-CIRCUIT PROTECTIVE VALVE TO BRACKET AT SUBSTRUCTURE
M 8X90
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
FOUR-CIRCUIT PROTECTIVE VALVE TO BRACKET AT SUBSTRUCTURE
M 8X20
N 912004008102 LOCK WASHER
FOUR-CIRCUIT PROTECTIVE VALVE TO BRACKET AT SUBSTRUCTURE
N 913001008001 NUT
FOUR-CIRCUIT PROTECTIVE VALVE TO BRACKET AT SUBSTRUCTURE
467 A 0014313905 BRAKE VALVE
Repalced by: A 0024314305
467 A 0024314305 BRAKE VALVE
TWO-CIRCUIT
WABCO
467 A 0024315805 BRAKE VALVE
Repalced by: A 0034318905
467 A 0034318905 BRAKE VALVE
TWO-CIRCUIT
BOSCH
467 A 0024318305 BRAKE VALVE
Repalced by: A 0034318605
467 A 0034318605 BRAKE VALVE
TWO-CIRCUIT
WABCO
470 A 0004315487 PROTECTIVE CAP
TO WABCO 461 307 379 0,342 0
A 0004313623 VALVE
WABCO
473 A 0005868643 REPAIR KIT
TO WABCO 461 307 379 0,342 0
473 A 0014300460 REPAIR KIT
TO WABCO 461 315 036 0
473 A 0025868743 REPAIR KIT
Repalced by: A 0004303506
473 A 0004303506 REPAIR KIT
TO 002 431 58 05,BOSCH
476 A 0009902570 T-FITTING
AT BRAKE VALVE
476 A 0009902570 T-FITTING
AT BRAKE VALVE
479 N 074305022202 NUT
AT BRAKE VALVE
479 N 074305022202 NUT
AT BRAKE VALVE
479 N 074305022202 NUT
AT BRAKE VALVE
482 A 0009870446 SEALING CORD
AT BRAKE VALVE
482 A 0009870446 SEALING CORD
AT BRAKE VALVE
482 A 0009870446 SEALING CORD
AT BRAKE VALVE
485 A 0004290227 THRUST RING
AT BRAKE VALVE
485 A 0004290227 THRUST RING
AT BRAKE VALVE
485 A 0004290227 THRUST RING
AT BRAKE VALVE
A 0019903770 T-FITTING
AT BRAKE VALVE
488 A 0019972172 FITTING
AT BRAKE VALVE
488 A 0019972172 FITTING
AT BRAKE VALVE
A 0029971572 FITTING
AT BRAKE VALVE
A 0029971572 FITTING
AT BRAKE VALVE
A 0019903371 ELBOW FITTING
AT BRAKE VALVE
491 A 3019970172 FITTING
Repalced by: A 0009905168
491 A 0009905168 FITTING
AT BRAKE VALVE
491 A 0009905168 FITTING
AT BRAKE VALVE
491 A 0009905168 FITTING
AT BRAKE VALVE
A 0019901270 T-FITTING
AT BRAKE VALVE
A 0019901270 T-FITTING
AT BRAKE VALVE
A 0009905170 T-FITTING
AT BRAKE VALVE
494 N 007603022102 SEAL RING
AT BRAKE VALVE
N 007603016401 SEAL RING
AT BRAKE VALVE
N 007603016401 SEAL RING
AT BRAKE VALVE
497 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
497 N 000908022011 SCREW PLUG
AT BRAKE VALVE
500 A 0004290927 THRUST RING
AT BRAKE VALVE
500 A 0004290927 THRUST RING
AT BRAKE VALVE
500 A 0004290927 THRUST RING
AT BRAKE VALVE
500 A 0004290927 THRUST RING
AT BRAKE VALVE
500 A 0004290927 THRUST RING
AT BRAKE VALVE
500 A 0004290227 THRUST RING
AT BRAKE VALVE
503 A 0009971548 SEAL RING
AT BRAKE VALVE
503 A 0009971548 SEAL RING
AT BRAKE VALVE
503 A 0009971548 SEAL RING
AT BRAKE VALVE
503 A 0009971548 SEAL RING
AT BRAKE VALVE
503 A 0009971548 SEAL RING
AT BRAKE VALVE
A 0009870446 SEALING CORD
AT BRAKE VALVE
506 N 080705016003 NUT
AT BRAKE VALVE
506 N 080705016003 NUT
AT BRAKE VALVE
506 N 080705016003 NUT
AT BRAKE VALVE
506 N 080705016003 NUT
AT BRAKE VALVE
506 N 080705016003 NUT
AT BRAKE VALVE
N 074305022202 NUT
AT BRAKE VALVE
509 A 0029971172 FITTING
AT BRAKE VALVE
509 A 0029971172 FITTING
AT BRAKE VALVE
509 A 0029971172 FITTING
AT BRAKE VALVE
512 A 0009905070 T-FITTING
AT BRAKE VALVE
512 A 0009905070 T-FITTING
AT BRAKE VALVE
512 A 0009905070 T-FITTING
AT BRAKE VALVE
N 007604016102 SCREW PLUG
N 007603016401 SEAL RING
515 N 913004010008 NUT
Repalced by: N 910113010000
515 N 910113010000 NUT
BRAKE VALVE TO PEDAL BEARING BRACKET
518 A 0004311531 TEST CONNECTION
Repalced by: A 0004314831
518 A 0004313431 TEST CONNECTION
Repalced by: A 0004314831
518 A 0004314831 TEST CONNECTION
WABCO
518 A 0004314831 TEST CONNECTION
WABCO
518 A 0004312031 TEST CONNECTION
VOSS
518 A 0004312031 TEST CONNECTION
VOSS
518 A 0004316131 TEST CONNECTION
WIRA
518 A 0004316131 TEST CONNECTION
WIRA
518 A 0004314531 TEST CONNECTION
SCHAEFER
518 A 0004314531 TEST CONNECTION
SCHAEFER
A 0009905370 T-FITTING
TEST CONNECTION
A 0019902770 T-FITTING
TEST CONNECTION
A 0019902770 T-FITTING
TEST CONNECTION
A 0029976772 FITTING
TEST CONNECTION
A 0029976772 FITTING
TEST CONNECTION
521 A 0009902370 T-FITTING
BRANCH-OFF TO DIAPHRAGM CYLINDER
521 A 0009905270 T-FITTING
BRANCH-OFF TO DIAPHRAGM CYLINDER
A 0019972172 FITTING
AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
A 0019972172 FITTING
AT LEFT DIAPHRAGM CYLINDER
A 0029971172 FITTING
AT LEFT DIAPHRAGM CYLINDER
A 0029971572 FITTING
AT LEFT DIAPHRAGM CYLINDER
N 007603016401 SEAL RING
AT LEFT DIAPHRAGM CYLINDER
16X20 MM
524 A 0009970071 FITTING
AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
527 A 0009902470 T-FITTING
AT RIGHT DIAPHRAGM CYLINDER
527 A 0019901870 T-FITTING
AT RIGHT DIAPHRAGM CYLINDER
527 A 0019901170 T-FITTING
AT RIGHT DIAPHRAGM CYLINDER
N 007603022102 SEAL RING
AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
N 074305022202 NUT
AT RIGHT DIAPHRAGM CYLINDER
N 080705016003 NUT
AT RIGHT DIAPHRAGM CYLINDER
530 N 007603016401 SEAL RING
AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
A 0009902570 T-FITTING
CONNECTION TO STOP LIGHT SWITCH
533 A 0009905370 T-FITTING
CONNECTION TO STOP LIGHT SWITCH
536 A 0009905871 ELBOW FITTING
AT FRONT BRAKE HOSES
536 A 0009907771 ELBOW FITTING
AT FRONT BRAKE HOSES
536 A 0009907871 ELBOW FITTING
AT FRONT BRAKE HOSES
A 0019902771 ELBOW FITTING
AT FRONT BRAKE HOSES
A 0039978872 FITTING
AT FRONT BRAKE HOSES
542 N 074305022202 NUT
BRAKE HOSE CONNECTION
542 N 080705018002 NUT
BRAKE HOSE CONNECTION
545 A 0004290227 THRUST RING
AT RIGHT DIAPHRAGM CYLINDER
545 A 0004290927 THRUST RING
AT RIGHT DIAPHRAGM CYLINDER
548 A 0009870446 SEALING CORD
AT RIGHT DIAPHRAGM CYLINDER
A 0009971548 SEAL RING
AT RIGHT DIAPHRAGM CYLINDER
A 0004296835 BRAKE HOSE
Repalced by: N 074310013002
551 A 0004296335 BRAKE HOSE
Repalced by: N 074310013002
551 N 916027013006 HOSE
FRONT AXLE
551 A 0004296935 BRAKE HOSE
Repalced by: N 074310013002
A 0004296635 BRAKE HOSE
Repalced by: A 3074201148
554 A 0029971872 FITTING
DIAPHRAGM CYLINDER
N 915017015200 UNION NUT
DIAPHRAGM CYLINDER
A 0029973890 LOOM TIE
Repalced by: A 0009971390
A 0009971390 LOOM TIE
Repalced by: N 916017020000
557 N 916017020000 CLAMP
Repalced by: N 000000000667
557 N 000000000667 CLAMP
560 A 3174200148 BRAKE HOSE
Repalced by: A 0004299935
560 A 0004299935 BRAKE HOSE
DIAPHRAGM CYLINDER
563 A 3074201148 BRAKE HOSE
Repalced by: A 0004298835
563 A 0004298835 BRAKE HOSE
FROM ELBOW FITTING TO DOUBLE FITTING
563 A 3014201448 BRAKE HOSE
Repalced by: A 3074200948
563 A 3074200948 BRAKE HOSE
Repalced by: A 0004298635
563 A 0004298635 BRAKE HOSE
FROM ELBOW FITTING TO DOUBLE FITTING
563 A 3004200048 BRAKE HOSE
Repalced by: A 0004299635
563 A 0004299635 BRAKE HOSE
FROM ELBOW FITTING TO DOUBLE FITTING
566 A 3434293608 LINE
569 A 0029971172 FITTING
DIAPHRAGM CYLINDER
569 A 0029971172 FITTING
AT FRONT BRAKE HOSES
569 A 0049971772 FITTING
Repalced by: A 0029906171
569 A 0029906171 FITTING
DIAPHRAGM CYLINDER
572 N 915045014100 SEAL RING
DIAPHRAGM CYLINDER
572 N 915045014100 SEAL RING
BRAKE HOSE TO FITTING
575 A 0029971572 FITTING
AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
578 N 007603016401 SEAL RING
AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
A 0019903371 ELBOW FITTING
AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
N 080705016003 NUT
A 0004290927 THRUST RING
A 0009971548 SEAL RING
N 915018015000 UNION NUT
N 003861015004 GLAND
A 3074201148 BRAKE HOSE
Repalced by: A 0004298835
A 0004298835 BRAKE HOSE
FROM TEST CONNECTION TO DIAPHRAGM CYLINDER
A 3894205648 BRAKE HOSE
Repalced by: A 0004299535
A 0004299535 BRAKE HOSE
FROM TEST CONNECTION TO DIAPHRAGM CYLINDER
A 0004299535 BRAKE HOSE
FROM TEST CONNECTION TO DIAPHRAGM CYLINDER
581 N 915045014100 SEAL RING
584 A 0019978536 VALVE
Repalced by: A 0039971136
584 A 0039971136 VALVE
Repalced by: A 0039975336
584 A 0039975336 VALVE
AUTOMATIC DRAIN
587 A 0079970248 SEAL RING
17.3X2.4 MM
587 A 0109974448 SEAL RING
TO 003 997 11 36,WABCO 472 123 108 0
A 0049970640 SEAL RING
590 N 007603006100 SEAL RING
6X10 MM
593 A 0004311368 VALVE PART
Repalced by: A 0004311668
593 A 0004311668 VALVE PART
593 A 0004311468 VALVE PART
Repalced by: A 0005533307
A 0005533307 VALVE
TO 003 997 11 36
596 A 0004319287 PROTECTIVE CAP
Repalced by: A 0014310087
596 A 0014310087 PROTECTIVE CAP
TO 003 997 11 36,001 997 85 36
A 0004305660 REPAIR KIT
TO 003 997 11 36,WABCO 472 123 108 0
599 A 0019972572 FITTING
602 N 007603012405 SEAL RING
605 N 000931008246 SCREW
Repalced by: N 304017008028
605 N 304017008028 SCREW
608 N 913001008002 NUT
611 A 0034293544 VALVE
Repalced by: A 0004295444
611 A 0004295444 VALVE
AUTOMATIC DRAIN
A 0069979245 SEAL RING
17X3.8 MM, TO 003 429 35 44
A 0009879746 SEALING CORD
9.2X3.5 MM, TO 003 429 35 44
A 0089973248 SEAL RING
22.3X2.4 MM, TO 003 429 35 44
A 0079970248 SEAL RING
17.3X2.4 MM, TO 003 429 35 44
A 0014300860 REPAIR KIT
TO 003 429 35 44
614 A 0005868342 REPAIR KIT
TO 000 429 54 44
617 A 0019972572 FITTING
DRAIN VALVE
620 N 000933008147 SCREW
Repalced by: N 304017008021
620 N 304017008021 SCREW
VALVE TO FLOOR
623 N 913001008002 NUT
VALVE TO FLOOR
626 N 007603012405 SEAL RING
DRAIN VALVE
629 A 0004291401 LINE
RELAY VALVE,BRAKE VALVE
15 MM
629 A 0004292101 LINE
RELAY VALVE,BRAKE VALVE
12 MM
632 N 915018015000 UNION NUT
632 N 915017012100 UNION NUT
635 N 003861015004 GLAND
635 N 003861012007 GLAND
Repalced by: A 0019901967
635 A 0019901967 SEAL CONE
638 A 0004291027 THRUST RING
641 N 915045012100 SEAL RING
Repalced by: N 007603012121
641 N 007603012121 SEAL RING
644 A 0009902370 T-FITTING
AT FOUR-CIRCUIT PROTECTIVE VALVE
644 A 0009902470 T-FITTING
AT FOUR-CIRCUIT PROTECTIVE VALVE
A 0019901070 T-FITTING
AT FOUR-CIRCUIT PROTECTIVE VALVE
647 A 0004290227 THRUST RING
AT FOUR-CIRCUIT PROTECTIVE VALVE
650 A 0009870446 SEALING CORD
AT FOUR-CIRCUIT PROTECTIVE VALVE
653 N 074305022202 NUT
AT FOUR-CIRCUIT PROTECTIVE VALVE
656 A 0009970271 FITTING
BRANCH-OFF TO HAND BRAKE VALVE
659 N 915045014100 SEAL RING
BRANCH-OFF TO HAND BRAKE VALVE
A 0039970672 FITTING
BRANCH-OFF TO HAND BRAKE VALVE
N 915017012100 UNION NUT
BRANCH-OFF TO HAND BRAKE VALVE
N 003861012007 GLAND
Repalced by: A 0019901967
A 0019901967 SEAL CONE
BRANCH-OFF TO HAND BRAKE VALVE
662 N 916016015202 CLAMP
LINE TO SUBSTRUCTURE
662 N 916016012200 CLAMP
LINE TO SUBSTRUCTURE
665 N 000933006127 SCREW
LINE TO SUBSTRUCTURE
668 N 009021006205 WASHER
Repalced by: N 009021006208
668 N 009021006208 WASHER
LINE TO SUBSTRUCTURE
671 N 913001006000 NUT
LINE TO SUBSTRUCTURE
674 A 0004291201 LINE
FROM RELAY VALVE TO T-FITTING
8 MM
677 N 915017008100 UNION NUT
680 N 003861008005 GLAND
683 A 0019972672 FITTING
Repalced by: A 0039978972
683 A 0039978972 FITTING
Repalced by: A 0029905971
683 A 0029905971 FITTING
BETWEEN THE LINES
686 A 0009902670 T-FITTING
AUTOMATIC DRAIN VALVE BRANCH-OFF
689 A 0009972581 GROMMET
Repalced by: A 0009972481
689 A 0009972481 GROMMET
692 A 0009951801 CLAMP
Repalced by: N 916016008200
692 N 916016008200 CLAMP
LINE TO SUBSTRUCTURE
N 916016008200 CLAMP
LINE TO SUBSTRUCTURE
N 000933006127 SCREW
LINE TO SUBSTRUCTURE
N 009021006205 WASHER
Repalced by: N 009021006208
N 009021006208 WASHER
LINE TO SUBSTRUCTURE
N 913001006000 NUT
LINE TO SUBSTRUCTURE
695 A 0029977272 FITTING
Repalced by: A 0049978972
695 A 0049978972 FITTING
BETWEEN THE LINES
695 A 0029971672 FITTING
BETWEEN THE LINES
695 A 0019972172 FITTING
BETWEEN THE LINES
695 A 0029971472 FITTING
Repalced by: A 0049971772
695 A 0049971772 FITTING
Repalced by: A 0029906171
695 A 0029906171 FITTING
BETWEEN THE LINES
A 0004291027 THRUST RING
LINE CONNECTIONS
698 N 915045012100 SEAL RING
Repalced by: N 007603012121
698 N 007603012121 SEAL RING
LINE CONNECTIONS
698 N 007603022102 SEAL RING
LINE CONNECTIONS
701 N 074305022202 NUT
LINE CONNECTIONS
701 N 080705018002 NUT
LINE CONNECTIONS
A 0004290227 THRUST RING
LINE CONNECTIONS
A 0009870446 SEALING CORD
LINE CONNECTIONS
704 A 3014200086 BRACKET
Repalced by: A 3014200286
704 A 3014200286 BRACKET
FITTING
A 0004296935 BRAKE HOSE
Repalced by: N 074310013002
N 916027013006 HOSE
RELAY VALVE,CHECK VALVE,SPRING-LOADED BRAKE CYLINDER
707 A 3014200548 BRAKE HOSE
Repalced by: A 0004298535
707 A 0004298535 BRAKE HOSE
RELAY VALVE,CHECK VALVE,SPRING-LOADED BRAKE CYLINDER
707 A 3894205248 BRAKE HOSE
Repalced by: A 0004299335
707 A 0004299335 BRAKE HOSE
RELAY VALVE,CHECK VALVE,SPRING-LOADED BRAKE CYLINDER
A 0029971872 FITTING
RELAY VALVE,CONNECTION "2"
710 A 0009902370 T-FITTING
RELAY VALVE,CONNECTION "2"
N 915017015200 UNION NUT
RELAY VALVE,CONNECTION "2"
N 915045012100 SEAL RING
Repalced by: N 007603012121
N 007603012121 SEAL RING
RELAY VALVE,CONNECTION "2"
A 0009950565 CLAMP
Repalced by: A 0029973890
A 0029973890 LOOM TIE
Repalced by: N 916017020000
N 916017020000 CLAMP
Repalced by: N 000000000667
N 000000000667 CLAMP
LINE MOUNTING
713 A 0024308581 VALVE
PARKING BRAKE
713 A 0024308581 VALVE
PARKING BRAKE
A 0024306481 VALVE
Repalced by: A 0024302481
713 A 0024302481 VALVE
PARKING BRAKE
713 A 0024302481 VALVE
PARKING BRAKE
716 A 0004307681 VALVE
HAND BRAKE VALVE
716 A 0004307681 VALVE
HAND BRAKE VALVE
719 A 0015454314 SWITCH
WITH CABLE
TO 000 430 76 81
719 A 0015454314 SWITCH
WITH CABLE
TO 000 430 76 81
722 A 0009973677 HANDLE
Repalced by: A 0009972477
722 A 0009972477 HANDLE
722 A 0009972477 HANDLE
725 A 0005868043 REPAIR KIT
Repalced by: A 0004305760
725 A 0004305760 REPAIR KIT
TO 000 430 76 81
725 A 0004305760 REPAIR KIT
TO 000 430 76 81
728 A 0025867243 REPAIR KIT
Repalced by: A 0034303381
728 A 0034303381 REPAIR KIT
TO 002 430 24 81,002 430 64 81
731 A 1152681442 KNOB
AT HAND BRAKE VALVE
731 A 1152681442 KNOB
AT HAND BRAKE VALVE
734 A 1152680072 NUT
AT HAND BRAKE VALVE
734 A 1152680072 NUT
AT HAND BRAKE VALVE
A 0019970652 HOSE
PARKING BRAKE VALVE
737 N 007603014405 SEAL RING
AT HAND BRAKE VALVE
737 N 007603014405 SEAL RING
AT HAND BRAKE VALVE
737 N 007603014405 SEAL RING
PARKING BRAKE VALVE
740 A 0019973072 FITTING
AT HAND BRAKE VALVE
740 A 0019973072 FITTING
AT HAND BRAKE VALVE
740 A 0019973072 FITTING
PARKING BRAKE VALVE
N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
N 915036010108 HOLLOW SCREW
COMPRESSED AIR LINE TO VALVE
N 915036010108 HOLLOW SCREW
COMPRESSED AIR LINE TO VALVE
743 N 000963006005 SCREW
VALVE TO BRACKET
743 N 000963006005 SCREW
VALVE TO BRACKET
N 000933008212 SCREW
Repalced by: N 304017008016
N 304017008016 SCREW
PARKING BRAKE VALVE
N 304017008016 SCREW
PARKING BRAKE VALVE
746 N 913001006000 NUT
VALVE TO BRACKET
746 N 913001006000 NUT
VALVE TO BRACKET
N 912004008102 LOCK WASHER
PARKING BRAKE VALVE
N 912004008102 LOCK WASHER
PARKING BRAKE VALVE
A 0004296544 VALVE
Repalced by: A 0014296844
749 A 0014296844 VALVE
(RELAY VALVE)
WABCO
749 A 0014292044 VALVE
Repalced by: A 0034291644
749 A 0034291644 VALVE
(RELAY VALVE)
BOSCH
749 A 0014299144 VALVE
(RELAY VALVE)
GRAU
749 A 0024290744 VALVE
Repalced by: A 0034295344
749 A 0034295344 VALVE
(RELAY VALVE)
KNORR
A 0059972648 SEAL RING
22.3X2.4 MM;TO 001 429 91 44,GRAU
A 0004312788 VALVE SEAT
TO 001 429 91 44,GRAU
A 0059972748 SEAL RING
80.3X3 MM;TO 000 429 28 95, GRAU
A 0014311660 SEAL RING
TO 001 429 91 44,GRAU
A 0014311760 SEAL RING
TO 001 429 91 44,GRAU
A 0004311980 GASKET
TO 001 429 91 44,GRAU
752 A 0005865742 REPAIR KIT
TO 001 429 68 44,WABCO
A 0015862742 REPAIR KIT
TO 001 429 20 44,BOSCH
A 0025863542 REPAIR KIT
TO 002 429 07 44,003 429 53 44,KNORR
A 0025865642 REPAIR KIT
Repalced by: A 0004201071
A 0004201071 VALVE
GASKET KIT
TO 003 429 16 44; UP TO 03.82
A 0004201271 VALVE
GASKET KIT
TO 003 429 16 44; FROM 04.82
A 0025865742 REPAIR KIT
Repalced by: A 0004301109
A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 003 429 16 44
755 A 0019972172 FITTING
RELAY VALVE,CONNECTION:
"2B"
755 A 0029971172 FITTING
RELAY VALVE,CONNECTION:
"2B"
755 A 0029971572 FITTING
RELAY VALVE,CONNECTION:
"2B"
758 A 0009970171 FITTING
RELAY VALVE,CONNECTION:
"4"
758 A 0029979572 FITTING
RELAY VALVE,CONNECTION:
"4"
761 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
761 N 000908022011 SCREW PLUG
RELAY VALVE,CONNECTION:
"2A"
761 N 000908016001 SCREW PLUG
RELAY VALVE,CONNECTION:
"2A"
764 N 007603022102 SEAL RING
RELAY VALVE,CONNECTION:
"2A"
764 N 007603016401 SEAL RING
RELAY VALVE,CONNECTION:
"2A"
767 A 0009905871 ELBOW FITTING
RELAY VALVE,CONNECTION:
"1"
767 A 0009907771 ELBOW FITTING
RELAY VALVE,CONNECTION:
"1"
770 A 0004290227 THRUST RING
RELAY VALVE,CONNECTION:
"1"
773 A 0009870446 SEALING CORD
RELAY VALVE,CONNECTION:
"1"
776 N 074305022202 NUT
RELAY VALVE,CONNECTION:
"1"
779 N 000125008418 WASHER
Repalced by: N 000125008443
779 N 000125008443 WASHER
RELAY VALVE TO BRACKET
782 N 913001008001 NUT
RELAY VALVE TO BRACKET
785 A 0014292444 VALVE
TWO-WAY
WABCO
A 0004290682 VALVE
Repalced by: A 0004290782
A 0004290782 VALVE
Repalced by: A 0004291182
A 0004291182 VALVE BODY
TO 001 429 24 44,WABCO
788 A 0009909870 T-FITTING
AT TWO-WAY VALVE
788 A 0019901370 T-FITTING
AT TWO-WAY VALVE
788 A 0009902470 T-FITTING
AT TWO-WAY VALVE
791 A 0019901070 T-FITTING
AT TWO-WAY VALVE
A 0019972372 FITTING
AT TWO-WAY VALVE
A 0029979172 FITTING
AT TWO-WAY VALVE
A 0019972172 FITTING
AT TWO-WAY VALVE
794 A 0029971172 FITTING
AT TWO-WAY VALVE
797 A 0009970171 FITTING
AT TWO-WAY VALVE
800 N 007603022102 SEAL RING
AT TWO-WAY VALVE
803 N 074305022202 NUT
(TWO-WAY-VALVE) SPRING-LOAD ACCUMULATOR CYLINDER
806 A 0004290227 THRUST RING
(TWO-WAY-VALVE) SPRING-LOAD ACCUMULATOR CYLINDER
809 A 0009870446 SEALING CORD
(TWO-WAY-VALVE) SPRING-LOAD ACCUMULATOR CYLINDER
N 080705016003 NUT
SPRING-LOAD ACCUMULATOR CYLINDER TWOWAY VALVE,LEFT
A 0004290927 THRUST RING
SPRING-LOAD ACCUMULATOR CYLINDER TWOWAY VALVE,LEFT
A 0009971548 SEAL RING
SPRING-LOAD ACCUMULATOR CYLINDER TWOWAY VALVE,LEFT
N 007603016401 SEAL RING
SPRING-LOAD ACCUMULATOR CYLINDER TWOWAY VALVE,RIGHT
16X20 MM
812 A 0019902171 ELBOW FITTING
SPRING-LOAD ACCUMULATOR CYLINDER TWOWAY VALVE,RIGHT
N 000931008248 SCREW
Repalced by: N 304017008053
N 304017008053 SCREW
SPRING-LOAD ACCUMULATOR CYLINDER TWOWAY VALVE,RIGHT
N 000934008010 NUT
SPRING-LOAD ACCUMULATOR CYLINDER TWOWAY VALVE,RIGHT
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
