Transporto priemonė: O 303; VIN numerio dalis: 301274

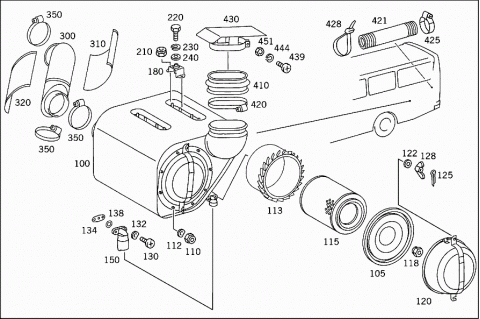

Grupė: 52 CHASSIS SHEET METAL

#	Kodas	Pavadinimas
100	A 0080949202	AIR CLEANER
	Repalced by: A 0110947002
100	A 0110947002	AIR CLEANER
		MANN & HUMMEL
100	A 0110947002	AIR CLEANER
		MANN & HUMMEL
100	A 0080949102	AIR CLEANER
	Repalced by: A 0110947102
100	A 0110947102	AIR CLEANER
		MANN & HUMMEL
100	A 0110947102	AIR CLEANER
		MANN & HUMMEL
105	A 0010943206	COVER
		INSIDE
		TO 008 094 92 02,011 094 70 02
105	A 0010943206	COVER
		INSIDE
		TO 008 094 92 02,011 094 70 02
105	A 0010943306	COVER
		INSIDE
		TO 008 094 91 02,011 094 71 02
105	A 0010943306	COVER
		INSIDE
		TO 008 094 91 02,011 094 71 02
110	N 913004008004	NUT
112	N 000137008204	SPRING WASHER
113	A 0000942105	AIR BAFFLE
115	A 0010944704	FILTER ELEMENT
		TO 008 094 92 02,011 094 70 02
115	A 0010944704	FILTER ELEMENT
		TO 008 094 92 02,011 094 70 02
115	A 0010947904	FILTER ELEMENT
		TO 008 094 91 02,011 094 71 02
115	A 0010947904	FILTER ELEMENT
		TO 008 094 91 02,011 094 71 02
118	A 0009901550	NUT
120	A 0000947503	FILTER BOWL
		COVER
		TO 008 094 92 02,011 094 70 02
120	A 0000947503	FILTER BOWL
		COVER
		TO 008 094 92 02,011 094 70 02
120	A 0000947603	FILTER BOWL
		COVER
		TO 008 094 91 02,011 094 71 02
120	A 0000947603	FILTER BOWL
		COVER
		TO 008 094 91 02,011 094 71 02
122	N 000125010518	WASHER
	Repalced by: N 000125010532
122	N 000125010532	WASHER
125	N 000094003219	COTTER PIN
128	N 000315008006	NUT
130	N 000084006137	SCREW
132	N 000137006204	SPRING WASHER
134	A 0010941180	GASKET
	A 0010944480	GASKET
	Repalced by: A 0000940276
138	A 0000940276	WASHER
		FELT
150	A 0000941468	MAINTENANCE INDICATOR
		TO 008 094 91 02,008 094 92 02
150	A 0000941868	MAINTENANCE INDICATOR
		TO 011 094 70 02,011 094 71 02
180	A 0009881911	BUFFER
	Repalced by: A 0009885511
180	A 0009885511	BUFFER
210	N 913004008004	NUT
220	N 000933008212	SCREW
	Repalced by: N 304017008016
220	N 304017008016	SCREW
		AIR CLEANER TO SUBSTRUCTURE
230	N 912004008102	LOCK WASHER
		AIR CLEANER TO SUBSTRUCTURE
240	N 000125008418	WASHER
	Repalced by: N 000125008443
240	N 000125008443	WASHER
		AIR CLEANER TO SUBSTRUCTURE
300	A 3015280308	AIR INTAKE PIPE
		FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
300	A 3015280408	AIR INTAKE PIPE
	Repalced by: A 3005280108
300	A 3005280108	AIR INTAKE PIPE
		FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
300	A 3005280108	AIR INTAKE PIPE
		FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
300	A 3015280208	AIR INTAKE PIPE
	Repalced by: A 3005280408
	A 3005280408	AIR INTAKE PIPE
	A 3005280408	AIR INTAKE PIPE
310	A 3015280011	SHELL PLATE
		FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
320	A 3015280111	SHELL PLATE
		FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
	A 3015280211	SHELL PLATE
	Repalced by: A 3005280108
	A 3015280211	SHELL PLATE
	Repalced by: A 3005280408
	A 3015280211	SHELL PLATE
	A 3015280311	SHELL PLATE
	Repalced by: A 3005280108
	A 3015280311	SHELL PLATE
	Repalced by: A 3005280408
	A 3015280311	SHELL PLATE
350	N 916017130000	CLAMP
	Repalced by: N 000000000678
350	N 000000000678	CLAMP
		FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
410	A 3015280182	HOSE
		FROM AIR CLEANER TO INTAKE PIPE
420	N 916017160000	CLAMP
		AIR CLEANER AND AIR INTAKE PIPE
	A 3015280382	HOSE
	Repalced by: A 3025280082
421	A 3025280082	HOSE
		FROM ALTERNATOR INTAKE ELBOW TO INTAKE CASE
425	N 916017060000	CLAMP
	Repalced by: N 000000000673
425	N 000000000673	CLAMP
		AIR HOSE TO ELBOW AND TO INTAKE CASE
	A 0029972490	LOOM TIE
	Repalced by: A 0019978490
428	A 0019978490	LOOM TIE
430	A 3015200089	COVER
		AIR INTAKE
439	N 007985006154	SCREW
444	N 912004006102	LOCK WASHER
451	N 000934006007	NUT
