Transporto priemonė: O 303; VIN numerio dalis: 600161

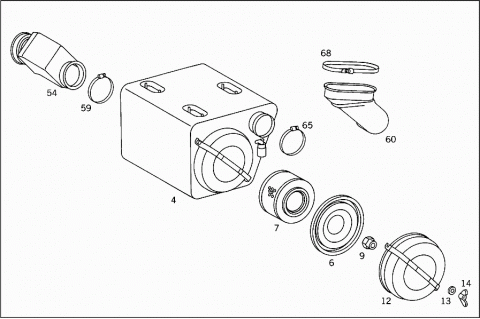

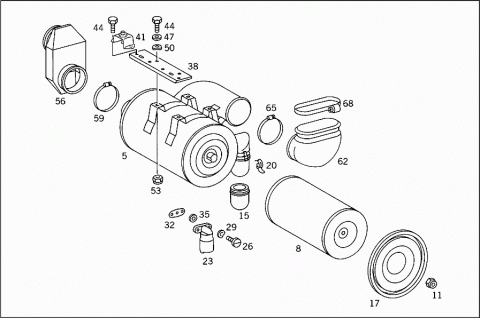

Grupė: 52 CHASSIS SHEET METAL - 120 AIR INTAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 0090940402 | AIR CLEANER |
| 005 | A 0090943202 | AIR CLEANER |
| 006 | A 0010944406 | COVER |
| 007 | A 0010944204 | FILTER ELEMENT |
| 008 | A 0010947904 | FILTER ELEMENT |
| 009 | A 0029900851 | NUT |
| 011 | A 0009901550 | NUT |
| 012 | A 0000947403 | FILTER BOWL |
| 013 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 013 | N 000125010532 | WASHER |
| 014 | N 000315008006 | NUT |
| 015 | A 0000940217 | DUST COLLECTOR BOWL |
| 017 | A 0000940711 | SCOOP |
| 020 | A 0000941355 | FASTENER |
| 023 | A 0000941468 | MAINTENANCE INDICATOR |
| 026 | N 000084006426 | SCREW |
| WARNING INDICATOR TO AIR CLEANER | ||
| 029 | N 000137006204 | SPRING WASHER |
| WARNING INDICATOR TO AIR CLEANER | ||
| 032 | A 0010941180 | GASKET |
| WARNING INDICATOR TO AIR CLEANER | ||
| 035 | A 0000940276 | WASHER |
| FELT | ||
| 038 | A 3015200033 | SUPPORT |
| FRONT | ||
| 038 | A 3015200133 | SUPPORT |
| REAR | ||
| 041 | A 0009885511 | BUFFER |
| AIR CLEANER | ||
| 044 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 044 | N 304017008016 | SCREW |
| AIR CLEANER TO SUBSTRUCTURE | ||
| 044 | N 304017008016 | SCREW |
| AIR CLEANER TO SUPPORT | ||
| 044 | N 304017008016 | SCREW |
| BUFFER TO SUPPORT | ||
| 047 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 047 | N 000125008443 | WASHER |
| AIR CLEANER | ||
| 050 | N 912004008102 | LOCK WASHER |
| AIR CLEANER | ||
| 053 | N 913004008004 | NUT |
| AIR CLEANER | ||
| 054 | A 3005280208 | AIR INTAKE PIPE |
| FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE | ||
| 056 | A 3015281508 | AIR INTAKE PIPE |
| Repalced by: A 6005280008 | ||
| 056 | A 6005280008 | AIR INTAKE PIPE |
| FROM AIR CLEANER TO ENGINE INTAKE PIPE | ||
| 059 | N 916017110001 | CLAMP |
| Repalced by: A 0059971490 | ||
| 059 | A 0059971490 | HOSE CLAMP |
| AIR INTAKE PIPE TO AIR CLEANER | ||
| Repalced by: A 0019951910 | ||
| 059 | A 0019951910 | CLAMP |
| AIR INTAKE PIPE TO AIR CLEANER | ||
| 059 | N 916017130000 | CLAMP |
| Repalced by: N 000000000678 | ||
| 059 | N 000000000678 | CLAMP |
| AIR INTAKE PIPE TO AIR INTAKE PIPE | ||
| Repalced by: N 000000005892 | ||
| 059 | N 000000005892 | CLAMP |
| AIR INTAKE PIPE TO AIR INTAKE PIPE | ||
| 059 | N 000000000678 | CLAMP |
| AIR INTAKE PIPE TO AIR CLEANER AND TO INTAKE PIPE SOCKET | ||
| Repalced by: N 000000005892 | ||
| 059 | N 000000005892 | CLAMP |
| AIR INTAKE PIPE TO AIR CLEANER AND TO INTAKE PIPE SOCKET | ||
| A 6005280022 | COVERING | |
| AIR INTAKE PIPE | ||
| N 000933006183 | SCREW | |
| Repalced by: N 304017006016 | ||
| N 304017006016 | SCREW | |
| SCREENING PLATE TO RADIATOR PARTITION PANEL COVERING | ||
| N 000125006421 | WASHER | |
| SCREENING PLATE TO RADIATOR PARTITION PANEL COVERING | ||
| 060 | A 3015281182 | HOSE |
| Repalced by: A 6005280082 | ||
| 060 | A 6005280082 | HOSE |
| FROM AIR CLEANER TO INTAKE PIPE | ||
| 062 | A 3005280482 | HOSE |
| FROM AIR CLEANER TO INTAKE PIPE | ||
| 065 | N 916017090000 | CLAMP |
| HOSE TO PICO AIR CLEANER | ||
| 065 | N 916017130000 | CLAMP |
| Repalced by: N 000000000678 | ||
| 065 | N 000000000678 | CLAMP |
| HOSE TO PICO AIR CLEANER | ||
| Repalced by: N 000000005892 | ||
| 065 | N 000000005892 | CLAMP |
| HOSE TO PICO AIR CLEANER | ||
| 068 | N 916017160000 | CLAMP |
| HOSE TO AIR INTAKE PIPE | ||
