Transporto priemonė: O 303; VIN numerio dalis: 600353

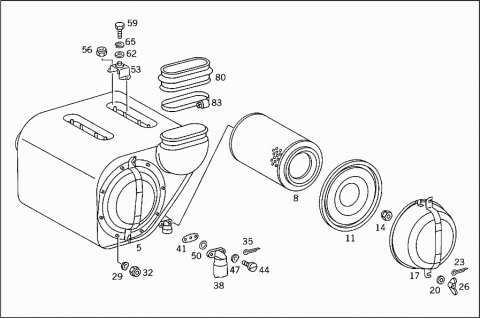

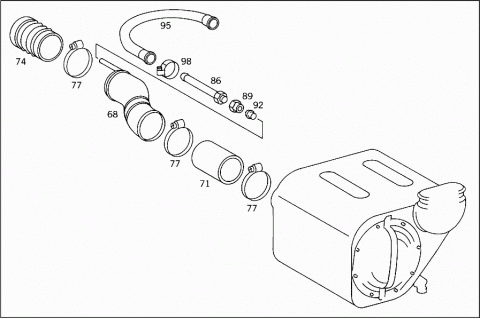

Grupė: 52 CHASSIS SHEET METAL - 120 AIR INTAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0110947002 | AIR CLEANER |
| 005 | A 0110947102 | AIR CLEANER |
| 008 | A 0010944704 | FILTER ELEMENT |
| 008 | A 0010947904 | FILTER ELEMENT |
| 011 | A 0010943206 | COVER |
| 011 | A 0010943306 | COVER |
| 014 | A 0009901550 | NUT |
| 017 | A 0000947503 | FILTER BOWL |
| 017 | A 0000947603 | FILTER BOWL |
| 020 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 020 | N 000125010532 | WASHER |
| 023 | N 000094003219 | COTTER PIN |
| 026 | N 000315008006 | NUT |
| 029 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 029 | N 000137008212 | SPRING WASHER |
| 032 | N 913004008004 | NUT |
| 035 | N 000094003219 | COTTER PIN |
| 038 | A 0000941868 | MAINTENANCE INDICATOR |
| 041 | A 0010941180 | GASKET |
| WARNING INDICATOR TO AIR CLEANER | ||
| 044 | N 000084006137 | SCREW |
| WARNING INDICATOR TO AIR CLEANER | ||
| 047 | N 000137006204 | SPRING WASHER |
| WARNING INDICATOR TO AIR CLEANER | ||
| 050 | A 0000940276 | WASHER |
| FELT | ||
| 053 | A 0009885511 | BUFFER |
| AIR CLEANER | ||
| 056 | N 913004008004 | NUT |
| BUFFER TO AIR CLEANER | ||
| 059 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 059 | N 304017008016 | SCREW |
| AIR CLEANER TO SUBSTRUCTURE | ||
| 062 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 062 | N 000125008443 | WASHER |
| AIR CLEANER TO SUBSTRUCTURE | ||
| 065 | N 912004008102 | LOCK WASHER |
| AIR CLEANER TO SUBSTRUCTURE | ||
| 068 | A 3005280308 | AIR INTAKE PIPE |
| FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE | ||
| 068 | A 3005280108 | AIR INTAKE PIPE |
| FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE | ||
| 068 | A 3005280007 | PIPE ELBOW |
| FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE | ||
| 071 | N 900271130000 | HOSE |
| FROM AIR CLEANER TO PIPE ELBOW | ||
| 074 | A 3005280082 | HOSE |
| FROM PIPE ELBOW TO TRANSVERSE INTAKE PIPE | ||
| 077 | N 916017130000 | CLAMP |
| Repalced by: N 000000000678 | ||
| 077 | N 000000000678 | CLAMP |
| AIR INTAKE | ||
| Repalced by: N 000000005892 | ||
| 077 | N 000000005892 | CLAMP |
| AIR INTAKE | ||
| 080 | A 3015280182 | HOSE |
| FROM AIR CLEANER TO INTAKE PIPE | ||
| 080 | A 3005280182 | HOSE |
| FROM AIR CLEANER TO INTAKE PIPE | ||
| 083 | N 916017160000 | CLAMP |
| HOSE TO AIR CLEANER AND TO INTAKE PIPE | ||
| 086 | A 3014206835 | LINE |
| AIR COMPRESSOR | ||
| 089 | N 915017022100 | UNION NUT |
| AIR COMPRESSOR | ||
| Repalced by: N 000000006243 | ||
| 089 | N 000000006243 | NUT |
| AIR COMPRESSOR | ||
| 092 | N 003861022004 | GLAND |
| AIR COMPRESSOR | ||
| 095 | A 3005280008 | AIR INTAKE PIPE |
| AIR COMPRESSOR | ||
| 098 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 098 | N 000000000667 | CLAMP |
| AIR INTAKE PIPE TO AIR COMPRESSOR AND TO INTAKE ELBOW | ||
