Transporto priemonė: O 303; VIN numerio dalis: 600353

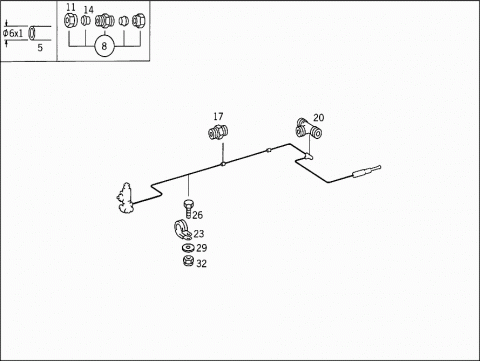

Grupė: 43 EXHAUST BRAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0004291101 | LINE |
| FROM 3/2-WAY VALVE TO EXHAUST BRAKE CYLINDER | ||
| 008 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 011 | N 915017006100 | UNION NUT |
| 014 | N 003861006007 | GLAND |
| 017 | A 0039979072 | FITTING |
| Repalced by: A 0029906071 | ||
| 017 | A 0029906071 | FITTING |
| BETWEEN THE LINES | ||
| 020 | A 0009900587 | CROSS FITTING |
| BRANCH-OFF TO EXHAUST BRAKE CYLINDER | ||
| 023 | N 916016006208 | CLAMP |
| LINE MOUNTING | ||
| N 916016022206 | CLAMP | |
| LINE MOUNTING | ||
| 22/15 MM | ||
| Repalced by: N 916016022203 | ||
| N 916016022203 | CLAMP | |
| LINE MOUNTING | ||
| 22/15 MM | ||
| 026 | N 000933006127 | SCREW |
| LINE MOUNTING | ||
| 029 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 029 | N 009021006208 | WASHER |
| LINE MOUNTING | ||
| 032 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 032 | N 910113006001 | NUT |
| LINE MOUNTING | ||
