Transporto priemonė: O 303; VIN numerio dalis: 600364

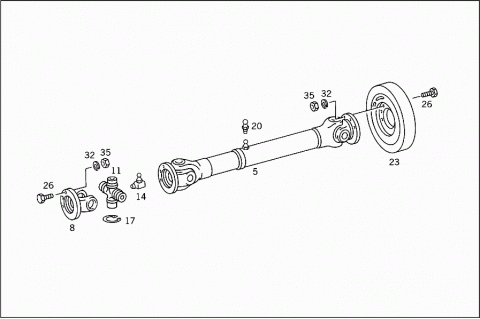

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3854106107 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 995 MM | ||
| 005 | A 3004100507 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 785 MM | ||
| 005 | A 3894102702 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 792 MM | ||
| 008 | A 3854111711 | DRIVE FLANGE |
| 008 | A 3894110511 | DRIVE FLANGE |
| 011 | A 3814100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9734100031 | ||
| 011 | A 9734100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 011 | A 0004100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004101628 | ||
| 011 | A 0004101628 | UNIVERSAL JOINT |
| Repalced by: A 9424100131 | ||
| 011 | A 9424100131 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 014 | N 071412008302 | GREASE NIPPLE |
| 014 | N 071412008302 | GREASE NIPPLE |
| 017 | A 0069940641 | LOCK |
| AS REQUIRED | ||
| 1.65 MM | ||
| 017 | A 0069940841 | LOCK |
| AS REQUIRED | ||
| 1.70 MM | ||
| 017 | A 0069941241 | LOCK |
| AS REQUIRED | ||
| 1.80 MM | ||
| 017 | A 0069941441 | LOCK |
| AS REQUIRED | ||
| 1.85 MM | ||
| 017 | A 0069941941 | LOCK |
| AS REQUIRED | ||
| 2.00 MM | ||
| 017 | A 0069942341 | LOCK |
| AS REQUIRED | ||
| 2.10 MM | ||
| 017 | A 0069942741 | LOCK |
| AS REQUIRED | ||
| 2.20 MM | ||
| 020 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 020 | N 071412008102 | GREASE NIPPLE |
| 020 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 020 | N 071412008102 | GREASE NIPPLE |
| 023 | A 3850301003 | VIBRATION ABSORBER |
| Repalced by: A 6004110047 | ||
| 023 | A 6004110047 | VIBRATION DAMPER |
| PROPELLER SHAFT TO REAR AXLE | ||
| 023 | A 3850301103 | VIBRATION ABSORBER |
| Repalced by: A 6004110147 | ||
| 023 | A 6004110147 | VIBRATION DAMPER |
| PROPELLER SHAFT TO REAR AXLE | ||
| 026 | A 3609901901 | SCREW |
| Repalced by: A 3609903001 | ||
| 026 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 026 | A 3609902901 | SCREW |
| Repalced by: A 3609903101 | ||
| 026 | A 3609903101 | SCREW |
| PROPELLER SHAFT TO REAR AXLE | ||
| 026 | A 0029909901 | SCREW |
| Repalced by: A 3959900501 | ||
| 026 | A 3959900501 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 032 | N 912004012100 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 032 | N 912004016101 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 035 | N 000934012034 | NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 035 | N 000934016013 | NUT |
| Repalced by: N 308673016001 | ||
| 035 | N 308673016001 | NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
