Transporto priemonė: O 305 G; VIN numerio dalis: 307101
Grupė: 42 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|

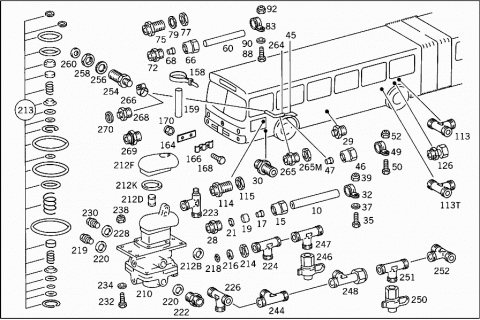

| 010 | A 0004291401 | LINE |
| BRASS | ||
| 15 MM | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOUR-CIRCUIT PROTECTIVE VALVE, TWO-CIRCUIT PROTECTIVE VALVE | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| AIR RESERVOIR,TWO-WAY VALVE | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TEST CONNECTION,BRAKE POWER REGULATOR, CENTRAL AXLE BRAKE CYLINDER | ||
| 015 | N 915018015000 | UNION NUT |
| 017 | N 003861015004 | GLAND |
| 019 | A 0004291027 | THRUST RING |
| 021 | N 915045014100 | SEAL RING |
| 028 | A 0019972172 | FITTING |
| 029 | A 0029971172 | FITTING |
| 030 | A 0019972372 | FITTING |
| 032 | N 916016015202 | CLAMP |
| COMPRSSED AIR LINE TO SUBSTRUCTURE | ||
| 035 | N 000933006127 | SCREW |
| COMPRSSED AIR LINE TO SUBSTRUCTURE | ||
| 037 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 037 | N 009021006208 | WASHER |
| COMPRSSED AIR LINE TO SUBSTRUCTURE | ||
| 039 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 039 | N 913004006001 | NUT |
| COMPRSSED AIR LINE TO SUBSTRUCTURE | ||
| 045 | A 3434293608 | LINE |
| WITH BEAD;BRASS | ||
| 045 | A 3434293608 | LINE |
| FROM BRAKE HOSE TO LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS | ||
| 046 | N 915018015000 | UNION NUT |
| 047 | N 003861015004 | GLAND |
| 049 | N 916016015202 | CLAMP |
| COMPRESSED AIR LINE TO FRONT AXLE | ||
| 050 | N 000933006127 | SCREW |
| COMPRESSED AIR LINE TO FRONT AXLE | ||
| 052 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 052 | N 910113006001 | NUT |
| COMPRESSED AIR LINE TO FRONT AXLE | ||
| 060 | A 0004292101 | LINE |
| BRASS | ||
| 12 MM | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| REAR CARRIAGE CONNECTING HOSE,FOURCIRCUIT PROTECT. VALVE,OVERFLOW VALVE | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| LEFT & RIGHT FRONT WHEEL BRAKE HOSES, STOP LIGHT SWITCH | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| EXHAUST BRAKE SWITCH,WET-AIR & COMPRESSED-AIR RESERVOIRS | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| RELAY VALVE,TWO-WAY VALVE,HAND BRAKE VALVE | ||
| 066 | N 915017012100 | UNION NUT |
| BETWEEN THE LINES | ||
| 068 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 068 | A 0019901967 | SEAL CONE |
| BETWEEN THE LINES | ||
| 072 | A 0029971472 | FITTING |
| Repalced by: A 0049971772 | ||
| 072 | A 0049971772 | FITTING |
| Repalced by: A 0029906171 | ||
| 072 | A 0029906171 | FITTING |
| BETWEEN THE LINES | ||
| 075 | A 0029971672 | FITTING |
| BETWEEN THE LINES | ||
| 077 | N 080705018002 | NUT |
| FITTING TO PARTITION PANEL | ||
| 079 | N 000125019009 | WASHER |
| FITTING TO PARTITION PANEL | ||
| 083 | N 916016010201 | CLAMP |
| Repalced by: N 916016010211 | ||
| 083 | N 916016010211 | CLAMP |
| Repalced by: N 000000001045 | ||
| 083 | N 000000001045 | CLAMP |
| COMPRSSED AIR LINE TO SUBSTRUCTURE | ||
| 10 MM | ||
| 083 | N 916016022206 | CLAMP |
| COMPRSSED AIR LINE TO SUBSTRUCTURE | ||
| 22 MM | ||
| 083 | N 916016012201 | CLAMP |
| COMPRSSED AIR LINE TO SUBSTRUCTURE | ||
| 12 MM | ||
| 083 | N 916016015202 | CLAMP |
| COMPRSSED AIR LINE TO SUBSTRUCTURE | ||
| 15 MM | ||
| N 000933008212 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| COMPRSSED AIR LINE TO SUBSTRUCTURE | ||
| M 8X16 | ||
| 088 | N 000933006127 | SCREW |
| COMPRSSED AIR LINE TO SUBSTRUCTURE | ||
| M 6X25 | ||
| 088 | N 000933006102 | SCREW |
| COMPRESSED AIR LINE TO BRACKET | ||
| M 6X15 | ||
| 090 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 090 | N 009021006208 | WASHER |
| COMPRSSED AIR LINE TO SUBSTRUCTURE | ||
| 092 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 092 | N 910113006001 | NUT |
| COMPRSSED AIR LINE TO SUBSTRUCTURE | ||
| N 913004008004 | NUT | |
| COMPRSSED AIR LINE TO SUBSTRUCTURE | ||
| 094 | A 0019970652 | HOSE |
| 8X10 MM | ||
| 098 | A 0049971672 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| TO 001 997 06 52 | ||
| 100 | A 0004291201 | LINE |
| BRASS | ||
| 8 MM | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| WET AIR RESERVOIR,DRAIN VALVE,RELAY VALVE,HAND BRAKE VALVE | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TWO-WAY VALVE,QUICK-RELEASE VALVE, PRESSURE RELIEF VALVE | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| THROTTLE CHECK VALVE,TWO-WAY VALVE, COMBINATION CYLINDER | ||
| 103 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 103 | A 0009872727 | PLASTIC PIPE |
| 6X8 MM | ||
| 105 | N 915017008100 | UNION NUT |
| 107 | N 003861008005 | GLAND |
| 108 | A 0007630043 | SLEEVE |
| Repalced by: N 915062006000 | ||
| 108 | N 915062006000 | SLEEVE |
| 109 | N 915052006021 | BANJO UNION |
| 111 | A 0009972581 | GROMMET |
| Repalced by: A 0009972481 | ||
| 111 | A 0009972481 | GROMMET |
| HAND BRAKE VALVE,CONNECTION "1" | ||
| 112 | A 0019972672 | FITTING |
| Repalced by: A 0039978972 | ||
| 112 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 112 | A 0029905971 | FITTING |
| 113 | A 0009902770 | T-FITTING |
| 113T | A 0009902670 | T-FITTING |
| BRANCH-OFF TO AIR SPRING | ||
| 114 | A 0019973872 | FITTING |
| Repalced by: A 0009977172 | ||
| 114 | A 0009977172 | FITTING |
| ELECTRICAL COMPARTMENT | ||
| 114 | A 0009977172 | FITTING |
| ELECTRICAL COMPARTMENT | ||
| 114 | A 0009977172 | FITTING |
| ELECTRICAL COMPARTMENT | ||
| 115 | N 080705012003 | NUT |
| ELECTRICAL COMPARTMENT | ||
| 115 | N 080705012003 | NUT |
| ELECTRICAL COMPARTMENT | ||
| 115 | N 080705012003 | NUT |
| ELECTRICAL COMPARTMENT | ||
| 116 | N 916016008200 | CLAMP |
| COMPRSSED AIR LINE TO SUBSTRUCTURE | ||
| 120 | N 000933006127 | SCREW |
| COMPRSSED AIR LINE TO SUBSTRUCTURE | ||
| 122 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 122 | N 009021006208 | WASHER |
| COMPRSSED AIR LINE TO SUBSTRUCTURE | ||
| 124 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 124 | N 910113006001 | NUT |
| COMPRSSED AIR LINE TO SUBSTRUCTURE | ||
| 126 | A 0029976772 | FITTING |
| AT ENGINE-SHUT-OFF BRANCH-OFF T-FITTING | ||
| 130 | A 0004291101 | LINE |
| BRASS | ||
| 6 MM | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| BRAKE POWER REGULATOR,TWO-CIRCUIT BRAKE VALVE,PRESSURE GAUGE | ||
| 132 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 132 | A 0009872627 | PLASTIC PIPE |
| 6X8 MM | ||
| 134 | N 915017006100 | UNION NUT |
| 136 | N 003861006007 | GLAND |
| 137 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 137 | N 000000000666 | CLAMP |
| 138 | A 0009920105 | BUSHING |
| Repalced by: N 915062004000 | ||
| 138 | N 915062004000 | SLEEVE |
| 139 | A 0009904388 | BANJO UNION |
| Repalced by: N 915052004007 | ||
| 139 | N 915052004026 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/14 MM | ||
| 140 | A 0019972872 | FITTING |
| Repalced by: A 0039979072 | ||
| 140 | A 0039979072 | FITTING |
| Repalced by: A 0029906071 | ||
| 140 | A 0029906071 | FITTING |
| 145 | N 916016006208 | CLAMP |
| COMPRSSED AIR LINE TO SUBSTRUCTURE | ||
| N 915052009009 | BANJO UNION | |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| 9/16 MM | ||
| 148 | N 000933006127 | SCREW |
| COMPRSSED AIR LINE TO SUBSTRUCTURE | ||
| 150 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 150 | N 009021006208 | WASHER |
| COMPRSSED AIR LINE TO SUBSTRUCTURE | ||
| 152 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 152 | N 910113006001 | NUT |
| COMPRSSED AIR LINE TO SUBSTRUCTURE | ||
| 154 | N 916016008200 | CLAMP |
| COMPRESSED AIR LINE TO COMPRESSED AIR LINE | ||
| 155 | N 916016006208 | CLAMP |
| COMPRESSED AIR LINE TO COMPRESSED AIR LINE | ||
| 156 | N 000933006127 | SCREW |
| COMPRESSED AIR LINE TO COMPRESSED AIR LINE | ||
| 157 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 157 | N 910113006001 | NUT |
| COMPRESSED AIR LINE TO COMPRESSED AIR LINE | ||
| 158 | A 0019978490 | LOOM TIE |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| A 3359970081 | GROMMET | |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 159 | A 0005467130 | INSULATING HOSE |
| 164 | A 3125421139 | PLATE |
| PRESSURE GAUGE LINE TO PRESSURE GAUGE LINE | ||
| 166 | A 3129950033 | CLAMP |
| PRESSURE GAUGE LINE TO PRESSURE GAUGE LINE | ||
| 168 | N 000933005049 | SCREW |
| PRESSURE GAUGE LINE TO PRESSURE GAUGE LINE | ||
| 170 | N 913004005001 | NUT |
| PRESSURE GAUGE LINE TO PRESSURE GAUGE LINE | ||

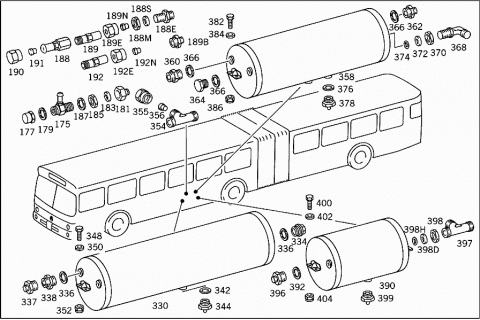

| 175 | A 0004310531 | TEST CONNECTION |
| WITH REFILL CONNECTION | ||
| 177 | N 915020022000 | NUT |
| 179 | N 007603022102 | SEAL RING |
| 181 | A 0009970271 | FITTING |
| 183 | N 915045014100 | SEAL RING |
| 185 | N 074305022202 | NUT |
| TEST CONNECTION TO BRACKET | ||
| 187 | N 000125023006 | WASHER |
| TEST CONNECTION TO BRACKET | ||
| A 0004314431 | TEST CONNECTION | |
| Repalced by: A 0004310731 | ||
| 188 | A 0004310731 | TEST CONNECTION |
| 188E | A 0039978472 | FITTING |
| TEST CONNECTION | ||
| 188M | N 080705018002 | NUT |
| BULKHEAD FITTING TO BRACKET | ||
| 188S | N 000125019009 | WASHER |
| BULKHEAD FITTING TO BRACKET | ||
| 189 | A 0039970672 | FITTING |
| AT FITTING | ||
| 189B | A 0029971172 | FITTING |
| 189E | N 915017012100 | UNION NUT |
| AT FITTING | ||
| 189N | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 189N | A 0019901967 | SEAL CONE |
| AT FITTING | ||
| 190 | N 915020018000 | NUT |
| TO 000 431 44 31 | ||
| 191 | N 915005010002 | LOCKING CONE |
| TO 000 431 44 31 | ||
| 192 | A 0039970672 | FITTING |
| 192E | N 915017012100 | UNION NUT |
| 192N | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 192N | A 0019901967 | SEAL CONE |
| A 3074200168 | SUPPORT | |
| N 913004008005 | NUT | |
| CONSOLE TO CONSOLE | ||
| A 0009907871 | ELBOW FITTING | |
| AT BRACKET | ||
| N 080705018002 | NUT | |
| AT BRACKET | ||
| N 000125019009 | WASHER | |
| AT BRACKET | ||

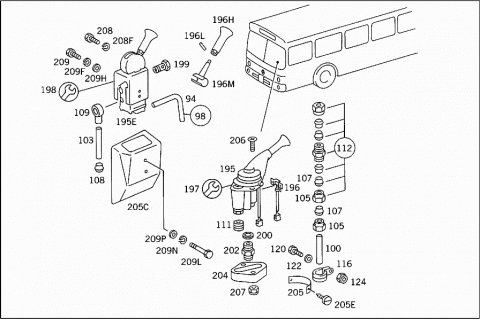

| 195 | A 0004305481 | VALVE |
| HAND BRAKE | ||
| 195 | A 0014300481 | VALVE |
| HAND BRAKE | ||
| 195 | A 0014300481 | VALVE |
| HAND BRAKE | ||
| 195 | A 0014300481 | VALVE |
| HAND BRAKE | ||
| 195E | A 0014303281 | VALVE |
| HAND BRAKE | ||
| 195E | A 0014305281 | VALVE |
| (PARKING BRAKE VALVE) | ||
| 195E | A 0014305281 | VALVE |
| (PARKING BRAKE VALVE) | ||
| 196 | A 0015454314 | SWITCH |
| TO 001 430 04 81 | ||
| 196 | A 0015454314 | SWITCH |
| TO 001 430 04 81 | ||
| 196 | A 0015454314 | SWITCH |
| TO 001 430 04 81 | ||
| A 0014310887 | PROTECTIVE CAP | |
| TO 001 430 32 81,52 81 | ||
| A 0009972277 | HANDLE | |
| Repalced by: A 0009972777 | ||
| 196H | A 0009972777 | HANDLE |
| TO 001 430 32 81,001 430 52 81 | ||
| 196M | A 0004312139 | LEVER |
| Repalced by: A 0034302881 | ||
| 196M | A 0034302881 | REPAIR KIT |
| HAND BRAKE LEVER | ||
| TO 001 430 32 81,001 430 52 81 | ||
| 196L | A 0009910855 | PIN |
| TO 001 430 32 81,001 430 52 81 | ||
| A 3074200068 | SUPPORT | |
| 197 | A 0015861343 | REPAIR KIT |
| TO 000 430 54 81 | ||
| 198 | A 0025867243 | REPAIR KIT |
| Repalced by: A 0034303381 | ||
| 198 | A 0034303381 | REPAIR KIT |
| TO 001 430 32 81,001 430 52 81 | ||
| 199 | N 915036008202 | HOLLOW SCREW |
| COMPRESSED AIR LINE TO PARKING BRAKE VALVE | ||
| 199 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 199 | N 915036010108 | HOLLOW SCREW |
| COMPRESSED AIR LINE TO PARKING BRAKE VALVE | ||
| 199 | N 915036010108 | HOLLOW SCREW |
| COMPRESSED AIR LINE TO PARKING BRAKE VALVE | ||
| 199 | N 915036010108 | HOLLOW SCREW |
| COMPRESSED AIR LINE TO PARKING BRAKE VALVE | ||
| 200 | N 007603014405 | SEAL RING |
| COMPRESSED AIR LINE TO PARKING BRAKE VALVE | ||
| 202 | A 0019973072 | FITTING |
| COMPRESSED AIR LINE TO PARKING BRAKE VALVE | ||
| 202 | A 0019973072 | FITTING |
| COMPRESSED AIR LINE TO PARKING BRAKE VALVE | ||
| 204 | A 3054270084 | SHIM |
| HAND BRAKE VALVE TO INSTRUMENT PANEL | ||
| 204 | A 3074270084 | SHIM |
| HAND BRAKE VALVE TO INSTRUMENT PANEL | ||
| 204 | A 3074270084 | SHIM |
| HAND BRAKE VALVE TO INSTRUMENT PANEL | ||
| 204 | A 3074270084 | SHIM |
| HAND BRAKE VALVE TO INSTRUMENT PANEL | ||
| 205 | A 3074270034 | COVERING |
| HAND BRAKE VALVE TO INSTRUMENT PANEL | ||
| 205 | A 3074270034 | COVERING |
| HAND BRAKE VALVE TO INSTRUMENT PANEL | ||
| 205 | A 3074270034 | COVERING |
| HAND BRAKE VALVE TO INSTRUMENT PANEL | ||
| 205C | A 3074270134 | COVERING |
| PARKING BRAKE | ||
| 205C | A 3074270134 | COVERING |
| PARKING BRAKE | ||
| 205E | N 007971002230 | SHEET METAL SCREW |
| HAND BRAKE VALVE TO INSTRUMENT PANEL | ||
| 205E | N 007971002230 | SHEET METAL SCREW |
| HAND BRAKE VALVE TO INSTRUMENT PANEL | ||
| 205E | N 007971002230 | SHEET METAL SCREW |
| HAND BRAKE VALVE TO INSTRUMENT PANEL | ||
| 206 | N 000965006009 | SCREW |
| HAND BRAKE VALVE TO INSTRUMENT PANEL | ||
| 206 | N 000965006009 | SCREW |
| HAND BRAKE VALVE TO INSTRUMENT PANEL | ||
| 207 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 207 | N 910113006001 | NUT |
| HAND BRAKE VALVE TO INSTRUMENT PANEL | ||
| 207 | N 910113006001 | NUT |
| HAND BRAKE VALVE TO INSTRUMENT PANEL | ||
| 208 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 208 | N 304017008016 | SCREW |
| PARKING BRAKE VALVE ON ELECTRICAL COMPARTMENT | ||
| 208F | N 912004008102 | LOCK WASHER |
| PARKING BRAKE VALVE ON ELECTRICAL COMPARTMENT | ||
| 209 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 209 | N 304017006020 | SCREW |
| PARKING BRAKE TO CAB | ||
| 209 | N 304017006020 | SCREW |
| PARKING BRAKE TO CAB | ||
| 209F | N 912004006102 | LOCK WASHER |
| PARKING BRAKE TO CAB | ||
| 209F | N 912004006102 | LOCK WASHER |
| PARKING BRAKE TO CAB | ||
| 209H | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 209H | N 009021006208 | WASHER |
| PARKING BRAKE TO CAB | ||
| 209L | N 000933004037 | SCREW |
| AT VALVE | ||
| 209N | N 912004004102 | LOCK WASHER |
| AT VALVE | ||
| 209P | N 009021004203 | WASHER |
| AT VALVE | ||
| 210 | A 0004318505 | BRAKE VALVE |
| TWO-CIRCUIT TRUCK-TRACTOR BRAKE VALVE | ||
| 212B | A 0009979941 | SEAL RING |
| Repalced by: N 007603016107 | ||
| 212B | N 007603016107 | SEAL RING |
| TO 000 431 85 05 | ||
| 212D | A 0004310050 | BUSHING |
| TO 000 431 85 05 | ||
| 212F | A 0004315587 | PROTECTIVE CAP |
| TO 000 431 85 05 | ||
| 212K | A 0029974148 | SEAL RING |
| 66X3,TO 000 431 85 05 | ||
| 213 | A 0005868643 | REPAIR KIT |
| TO 000 431 85 05 | ||
| 214 | N 074305022202 | NUT |
| AT TRUCK-TRACTOR BRAKE VALVE | ||
| 216 | A 0004290227 | THRUST RING |
| AT TRUCK-TRACTOR BRAKE VALVE | ||
| 218 | A 0009870446 | SEALING CORD |
| AT TRUCK-TRACTOR BRAKE VALVE | ||
| 219 | N 000908022001 | SCREW PLUG |
| Repalced by: N 000908022011 | ||
| 219 | N 000908022011 | SCREW PLUG |
| AT TRUCK-TRACTOR BRAKE VALVE | ||
| 220 | N 007603022102 | SEAL RING |
| AT TRUCK-TRACTOR BRAKE VALVE | ||
| 222 | A 0019972172 | FITTING |
| AT TRUCK-TRACTOR BRAKE VALVE | ||
| 223 | A 0009902970 | T-FITTING |
| AT TRUCK-TRACTOR BRAKE VALVE | ||
| 224 | A 0009902570 | T-FITTING |
| PRESSURE GAUGE | ||
| 224 | A 0009902570 | T-FITTING |
| PRESSURE GAUGE | ||
| 226 | A 0019903770 | T-FITTING |
| PRESSURE GAUGE | ||
| 226 | A 0009909870 | T-FITTING |
| AT TRUCK-TRACTOR BRAKE VALVE | ||
| 228 | N 007603022102 | SEAL RING |
| CONNECTIONS "21,22" | ||
| 230 | N 000908022001 | SCREW PLUG |
| Repalced by: N 000908022011 | ||
| 230 | N 000908022011 | SCREW PLUG |
| CONNECTIONS "21,22" | ||
| 232 | N 000933010105 | SCREW |
| TWO-CIRCUIT BRAKE VALVE TO SUBSTRUCTURE | ||
| 234 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 234 | N 009021010209 | WASHER |
| TWO-CIRCUIT BRAKE VALVE TO SUBSTRUCTURE | ||
| 238 | N 913004010011 | NUT |
| TWO-CIRCUIT BRAKE VALVE TO SUBSTRUCTURE | ||
| 244 | A 0009905370 | T-FITTING |
| CONNECTION TO STOP LIGHT SWITCH | ||
| 244 | A 0009905370 | T-FITTING |
| CONNECTION TO RETARDER STAGE I | ||
| A 0004311531 | TEST CONNECTION | |
| Repalced by: A 0004314831 | ||
| 246 | A 0004314831 | TEST CONNECTION |
| SUPPLY PRESSURE | ||
| WABCO | ||
| 246 | A 0004314531 | TEST CONNECTION |
| SUPPLY PRESSURE | ||
| SCHAEFER | ||
| 246 | A 0004312031 | TEST CONNECTION |
| SUPPLY PRESSURE | ||
| VOSS | ||
| 246 | A 0004316131 | TEST CONNECTION |
| SUPPLY PRESSURE | ||
| WIRA | ||
| A 0009979486 | PLUG | |
| 247 | A 0009902570 | T-FITTING |
| 248 | A 0019900970 | T-FITTING |
| 250 | A 0004313431 | TEST CONNECTION |
| FRONT AXLE BRAKE PRESSURE | ||
| A 0004311531 | TEST CONNECTION | |
| Repalced by: A 0004314831 | ||
| 250 | A 0004314831 | TEST CONNECTION |
| FRONT AXLE BRAKE PRESSURE | ||
| WABCO | ||
| 250 | A 0004314531 | TEST CONNECTION |
| FRONT AXLE BRAKE PRESSURE | ||
| SCHAEFER | ||
| 250 | A 0004312031 | TEST CONNECTION |
| FRONT AXLE BRAKE PRESSURE | ||
| VOSS | ||
| 250 | A 0004316131 | TEST CONNECTION |
| FRONT AXLE BRAKE PRESSURE | ||
| WIRA | ||
| A 0009979486 | PLUG | |
| 251 | A 0009905370 | T-FITTING |
| 252 | A 0009905270 | T-FITTING |
| BRANCH-OFF TO FRONT WHEELS | ||
| 254 | A 0039970572 | FITTING |
| LEFT AND RIGHT FRONT WHEEL BRAKE LINES | ||
| 256 | N 000125023006 | WASHER |
| FITTING TO SUBSTRUCTURE | ||
| 258 | N 074305022202 | NUT |
| FITTING TO SUBSTRUCTURE | ||
| 260 | N 915045014100 | SEAL RING |
| LEFT AND RIGHT FRONT WHEEL BRAKE LINES | ||
| 264 | A 3174200148 | BRAKE HOSE |
| Repalced by: A 0004299935 | ||
| 264 | A 0004299935 | BRAKE HOSE |
| LEFT AND RIGHT BRAKE CYLINDERS | ||
| 264 | A 3894205448 | BRAKE HOSE |
| Repalced by: A 0004299435 | ||
| 264 | A 0004299435 | BRAKE HOSE |
| LEFT AND RIGHT BRAKE CYLINDERS | ||
| 265 | A 0029971472 | FITTING |
| Repalced by: A 0049971772 | ||
| 265 | A 0049971772 | FITTING |
| Repalced by: A 0029906171 | ||
| 265 | A 0029906171 | FITTING |
| AT FRONT BRAKE HOSES | ||
| 265M | N 080705018002 | NUT |
| BRAKE HOSE TO BRACKET | ||
| 266 | A 0029971390 | LOOM TIE |
| Repalced by: N 916017016000 | ||
| 266 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 266 | N 000000000666 | CLAMP |
| 268 | A 0009970071 | FITTING |
| LEFT AND RIGHT BRAKE CYLINDERS | ||
| 269 | A 0029971572 | FITTING |
| LEFT AND RIGHT BRAKE CYLINDERS | ||
| 270 | N 007603016401 | SEAL RING |
| LEFT AND RIGHT BRAKE CYLINDERS | ||
| A 0004291027 | THRUST RING | |
| COMPRESSED AIR LINE TO LEFT AND RIGHT BRAKE CYLINDERS | ||
| N 915045014100 | SEAL RING | |
| COMPRESSED AIR LINE TO LEFT AND RIGHT BRAKE CYLINDERS | ||
| 275 | A 0009902770 | T-FITTING |
| DOOR-CLOSING-SYSTEM CONNECTION | ||
| A 0009909970 | T-FITTING | |
| DOOR-CLOSING-SYSTEM CONNECTION | ||
| A 0029976772 | FITTING | |
| DOOR-CLOSING-SYSTEM CONNECTION | ||
| 277 | A 0019901970 | T-FITTING |
| BRANCH-OFF TO FOUR-CIRCUIT PROTECTIVE VALVE,CONNECTION "1" | ||
| 277 | A 0019901970 | T-FITTING |
| BRANCH-OFF TO FOUR-CIRCUIT PROTECTIVE VALVE,CONNECTION "1" | ||
| 277 | A 0009907070 | T-FITTING |
| BRANCH-OFF TO FOUR-CIRCUIT PROTECTIVE VALVE,CONNECTION "1" | ||
| 279 | A 0009902370 | T-FITTING |
| 279 | A 0009902370 | T-FITTING |
| BRANCH-OFF TO FOUR-CIRCUIT PROTECTIVE VALVE,CONNECTION "21" | ||
| 279 | A 0009902370 | T-FITTING |
| BRANCH-OFF TO FOUR-CIRCUIT PROTECTIVE VALVE,CONNECTION "22" | ||
| 280 | A 0004291027 | THRUST RING |
| 281 | N 915045014100 | SEAL RING |
| 282 | A 0014315806 | VALVE |
| Repalced by: A 0014319306 | ||
| 282 | A 0014319306 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| BOSCH | ||
| A 0034304681 | GASKET KIT | |
| TO 001 431 58 06,BOSCH 62012 | ||
| 283 | A 0015868443 | REPAIR KIT |
| SEAL RING | ||
| TO 001 431 58 06,BOSCH 62005 | ||
| 284 | A 0025861743 | REPAIR KIT |
| BOOT | ||
| TO 001 431 58 06,BOSCH 62005 | ||
| A 0004304706 | GASKET KIT | |
| TO 001 431 93 06,BOSCH 62401 | ||
| 285 | A 0004300260 | REPAIR KIT |
| TO 001 431 93 06,BOSCH 62201 | ||
| 286 | A 0009970071 | FITTING |
| 288 | N 007603016103 | SEAL RING |
| 290 | A 0029971572 | FITTING |
| 292 | A 0009907370 | T-FITTING |
| 292 | A 0019901370 | T-FITTING |
| 294 | N 080705016003 | NUT |
| 296 | A 0004290927 | THRUST RING |
| 298 | A 0009971548 | SEAL RING |
| 300 | N 007603014106 | SEAL RING |
| 302 | A 0029973372 | FITTING |
| 304 | N 007603022102 | SEAL RING |
| 306 | A 0019902871 | ELBOW FITTING |
| 308 | N 074305022202 | NUT |
| 310 | A 0004290227 | THRUST RING |
| 312 | A 0009870446 | SEALING CORD |
| 315 | A 0004290444 | VALVE |
| Repalced by: A 0034290744 | ||
| 315 | A 0034290744 | VALVE |
| CHECK VALVE | ||
| 315E | A 0004290088 | VALVE SEAT RING |
| TO 000 429 04 44,003 429 07 44 | ||
| 315H | A 0004290049 | BUSHING |
| TO 000 429 04 44,003 429 07 44 | ||
| 316 | A 0005865942 | REPAIR KIT |
| TO 000 429 04 44 | ||
| 317 | A 0014296444 | VALVE |
| OVERFLOW VALVE | ||
| 321 | A 0019902870 | T-FITTING |
| PNEUM. SUSPENSION,ENGINE SHUT-OFF, SECOND.-CONSUMING UNIT AIR RESERVOIR | ||
| 330 | A 3024301605 | RESERVOIR |
| Repalced by: A 0034328901 | ||
| 330 | A 0034328901 | RESERVOIR |
| 40L | ||
| 330 | A 0034328901 | RESERVOIR |
| FRONT AXLE BRAKE CIRCUIT | ||
| 40L | ||
| 330 | A 0034328901 | RESERVOIR |
| CENTRAL AXLE BRAKE CIRCUIT,NO.1 | ||
| 40L | ||
| 334 | N 000908022001 | SCREW PLUG |
| Repalced by: N 000908022011 | ||
| 334 | N 000908022011 | SCREW PLUG |
| 336 | N 007603022102 | SEAL RING |
| 337 | A 0039972072 | FITTING |
| 338 | A 0019972172 | FITTING |
| 338 | A 0019972172 | FITTING |
| FRONT AXLE BRAKE CIRCUIT | ||
| 338 | A 0019972172 | FITTING |
| CENTRAL AXLE BRAKE CIRCUIT,NO.1 | ||
| 342 | N 007603022102 | SEAL RING |
| 344 | A 0004322407 | VALVE |
| AIR RESERVOIR | ||
| A 0005830296 | RING | |
| DRAIN VALVE | ||
| TO 000 432 08 07 | ||
| 348 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 348 | N 304017008021 | SCREW |
| AIR RESERVOIR TO SUBSTRUCTURE | ||
| 350 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 350 | N 009021008213 | WASHER |
| AIR RESERVOIR TO SUBSTRUCTURE | ||
| 352 | N 913004008005 | NUT |
| AIR RESERVOIR TO SUBSTRUCTURE | ||
| 354 | A 0009905270 | T-FITTING |
| BRANCH-OFF TO DOOR CLOSING SYSTEM | ||
| 355 | N 915020018000 | NUT |
| AT T-FITTING | ||
| 356 | N 915005010002 | LOCKING CONE |
| AT T-FITTING | ||
| 358 | A 3174302905 | RESERVOIR |
| CENTRAL AXLE BRAKE CIRCUIT,NO.1A, AND SECONDARY CONSUMING UNITS | ||
| 360 | A 0019972172 | FITTING |
| 362 | A 0009970171 | FITTING |
| 364 | N 000908022001 | SCREW PLUG |
| Repalced by: N 000908022011 | ||
| 364 | N 000908022011 | SCREW PLUG |
| 366 | N 007603022102 | SEAL RING |
| 368 | A 0019902871 | ELBOW FITTING |
| 368 | A 0019909971 | ELBOW FITTING |
| 370 | N 074305022202 | NUT |
| 372 | A 0004290227 | THRUST RING |
| 374 | A 0009870446 | SEALING CORD |
| 376 | N 007603022102 | SEAL RING |
| 378 | A 0004322407 | VALVE |
| AIR RESERVOIR | ||
| A 0005830296 | RING | |
| DRAIN | ||
| 382 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 382 | N 304017008021 | SCREW |
| AIR RESERVOIR TO SUBSTRUCTURE | ||
| 384 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 384 | N 009021008213 | WASHER |
| AIR RESERVOIR TO SUBSTRUCTURE | ||
| 386 | N 913004008005 | NUT |
| AIR RESERVOIR TO SUBSTRUCTURE | ||
| 390 | A 3224302205 | RESERVOIR |
| Repalced by: A 0034328801 | ||
| 390 | A 0034328801 | RESERVOIR |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| 20 L | ||
| 392 | N 007603022102 | SEAL RING |
| 396 | A 0029971172 | FITTING |
| 396 | A 0029971172 | FITTING |
| 397 | A 0019903770 | T-FITTING |
| 398 | N 074305022202 | NUT |
| 398D | A 0004290227 | THRUST RING |
| 398H | A 0009870446 | SEALING CORD |
| 399 | A 0004322407 | VALVE |
| AIR RESERVOIR | ||
| A 0005830296 | RING | |
| DRAIN VALVE | ||
| 400 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 400 | N 304017008021 | SCREW |
| AIR RESERVOIR TO SUBSTRUCTURE | ||
| 402 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 402 | N 009021008213 | WASHER |
| AIR RESERVOIR TO SUBSTRUCTURE | ||
| 404 | N 913004008005 | NUT |
| AIR RESERVOIR TO SUBSTRUCTURE | ||
| A 0004311531 | TEST CONNECTION | |
| Repalced by: A 0004314831 | ||
| 418 | A 0004314831 | TEST CONNECTION |
| WABCO | ||
| 418 | A 0004314531 | TEST CONNECTION |
| SCHAEFER | ||
| 418 | A 0004312031 | TEST CONNECTION |
| VOSS | ||
| 418 | A 0004316131 | TEST CONNECTION |
| WIRA | ||
| A 0009979486 | PLUG | |
| 418A | A 0009902570 | T-FITTING |
| 418B | A 0019972372 | FITTING |
| 418C | A 0004291027 | THRUST RING |
| 418F | N 915045014100 | SEAL RING |
| 422 | A 0019903470 | T-FITTING |
| TEST CONNECTION | ||
| 424 | A 0019972372 | FITTING |
| TWO-WAY VALVE | ||
| 424 | A 0019972172 | FITTING |

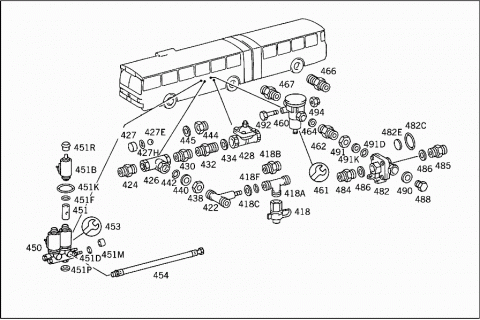

| 426 | A 0014292444 | VALVE |
| TWO-WAY VALVE,BUS STOP BRAKE | ||
| WABCO | ||
| 427 | A 0004290682 | VALVE |
| Repalced by: A 0004290782 | ||
| 427 | A 0004290782 | VALVE |
| Repalced by: A 0004291182 | ||
| 427 | A 0004291182 | VALVE BODY |
| TO 001 429 24 44,WABCO | ||
| 427E | A 0029810485 | BALL |
| TO 003 429 11 44,VOSS | ||
| 427H | A 0004290180 | GASKET |
| TO 003 429 11 44,VOSS | ||
| 428 | A 0007631152 | VALVE |
| CHECK VALVE,BUS STOP BRAKE | ||
| 430 | A 0009970171 | FITTING |
| TWO-WAY VALVE | ||
| 432 | A 0029977272 | FITTING |
| Repalced by: A 0049978972 | ||
| 432 | A 0049978972 | FITTING |
| 434 | N 007603022102 | SEAL RING |
| 434 | N 007603022102 | SEAL RING |
| 438 | N 074305022202 | NUT |
| 440 | A 0004290227 | THRUST RING |
| 442 | A 0009870446 | SEALING CORD |
| 444 | A 0009970271 | FITTING |
| TWO-WAY VALVE,CONNECTION "V" | ||
| 445 | N 915045014100 | SEAL RING |
| TWO-WAY VALVE,CONNECTION "V" | ||
| 450 | A 0019978636 | VALVE |
| Repalced by: A 0039971236 | ||
| 450 | A 0039971236 | VALVE |
| 3/2-WAY | ||
| 451 | A 0004311368 | VALVE PART |
| Repalced by: A 0004311668 | ||
| 451 | A 0004311668 | VALVE PART |
| A 0004311468 | VALVE PART | |
| Repalced by: A 0005533307 | ||
| 451B | A 0005533307 | VALVE |
| TO 003 997 12 36,WABCO 472 223 108 0 | ||
| 451D | N 007603006100 | SEAL RING |
| 451F | A 0109974448 | SEAL RING |
| TO 003 997 12 36,WABCO 472 223 108 0 | ||
| 451K | A 0079970248 | SEAL RING |
| 17.3X2.4 MM | ||
| 451M | A 0049970640 | SEAL RING |
| 7X12X11.5 MM | ||
| 451P | N 007603012405 | SEAL RING |
| 12X16 MM | ||
| 451R | A 0004319287 | PROTECTIVE CAP |
| Repalced by: A 0014310087 | ||
| 451R | A 0014310087 | PROTECTIVE CAP |
| 453 | A 0015863943 | REPAIR KIT |
| TO 001 997 86 36,WABCO 472 201 108 0 | ||
| 453 | A 0004305660 | REPAIR KIT |
| TO 003 997 12 36,WABCO 472 223 108 0 | ||
| 454 | A 3014290135 | BRAKE HOSE |
| FROM 3/2-WAY VALVE TO TWO-WAY VALVE, RIGHT | ||
| 460 | A 0014316306 | VALVE |
| Repalced by: A 0024311206 | ||
| 460 | A 0024311206 | VALVE |
| Repalced by: A 0034297644 | ||
| 460 | A 0034297644 | VALVE |
| PRESSURE LIMIT | ||
| KNORR | ||
| 461 | A 0025862043 | REPAIR KIT |
| Repalced by: A 0004200871 | ||
| 461 | A 0004200871 | REPAIR KIT |
| TO 001 431 63 06,002 431 12 06,BOSCH | ||
| 461 | A 0014302660 | REPAIR KIT |
| KNORR | ||
| 462 | A 0029979172 | FITTING |
| CONNECTION "1" | ||
| 464 | N 007603016401 | SEAL RING |
| CONNECTION "1" | ||
| 466 | A 0029979972 | FITTING |
| 467 | A 0029979572 | FITTING |
| 482 | A 0004294144 | VALVE |
| QUICK-RELEASE | ||
| 482C | A 0004291784 | SEAL RING |
| Repalced by: A 0159970448 | ||
| 482C | A 0159970448 | SEAL RING |
| TO 000 429 41 44 | ||
| 482E | A 0004290345 | DIAPHRAGM |
| TO 000 429 41 44 | ||
| 484 | A 0009970171 | FITTING |
| PRESSURE LIMIT VALVE | ||
| 485 | A 0019972172 | FITTING |
| QUICK-RELEASE VALVE | ||
| 486 | N 007603022102 | SEAL RING |
| AT FRONT AXLE | ||
| 488 | N 000908022001 | SCREW PLUG |
| Repalced by: N 000908022011 | ||
| 488 | N 000908022011 | SCREW PLUG |
| AT FRONT AXLE | ||
| 490 | N 007603022102 | SEAL RING |
| AT FRONT AXLE | ||
| 491 | N 074305022202 | NUT |
| 491D | A 0009870446 | SEALING CORD |
| 491K | A 0004290227 | THRUST RING |
| 492 | N 304014008004 | SCREW |
| PRESSURE-RELIEF VALVE AND QUICK-RELEASE VALVE TO SUBSTRUCTURE | ||
| 494 | N 913001008992 | NUT |
| PRESSURE-RELIEF VALVE AND QUICK-RELEASE VALVE TO SUBSTRUCTURE | ||
| 495 | A 0004291795 | AIR CLEANER |
| Repalced by: A 0004293895 | ||
| 495 | A 0004293895 | AIR CLEANER |
| 495 | A 0004293895 | AIR CLEANER |
| 495 | A 0004293895 | AIR CLEANER |
| 496 | A 0004290297 | FILTER ELEMENT |
| Repalced by: A 0025861643 | ||
| A 0004291397 | FILTER ELEMENT | |
| WABCO 020 0 | ||
| 497 | A 0109971445 | SEAL RING |
| WABCO 000 0,36.2X3.0 MM | ||
| A 0029974345 | SEAL RING | |
| WABCO 020 0,39.2X3.0 MM | ||
| A 0025861643 | REPAIR KIT | |
| WABCO 000 0 | ||
| 498 | A 0029971172 | FITTING |
| 498 | A 0029971172 | FITTING |
| 498 | A 0029971172 | FITTING |
| 499 | N 007603022102 | SEAL RING |
| 499 | N 007603022102 | SEAL RING |
| 499 | N 007603022102 | SEAL RING |

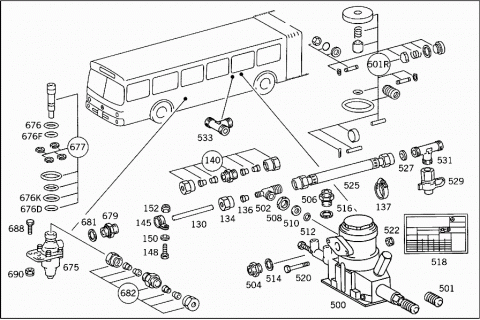

| 500 | A 0014317606 | BRAKE PRESSURE REGULATOR |
| Repalced by: A 0024310906 | ||
| 500 | A 0024310906 | VALVE |
| BRAKE POWER REGULATOR | ||
| 501 | A 0004317287 | PROTECTIVE CAP |
| 501R | A 0004300860 | REPAIR KIT |
| BRAKE POWER REGULATOR | ||
| 502 | A 0009902970 | T-FITTING |
| 504 | A 0019972172 | FITTING |
| 506 | A 0019972572 | FITTING |
| 508 | N 074305022202 | NUT |
| 510 | A 0004290227 | THRUST RING |
| 512 | A 0009870446 | SEALING CORD |
| 514 | N 007603022102 | SEAL RING |
| 516 | N 007603012405 | SEAL RING |
| 518 | A 3075843321 | GUIDE SIGN |
| LOAD-DEPENDING BRAKE | ||
| 518 | A 3075842426 | GUIDE SIGN |
| LOAD-DEPENDING BRAKE | ||
| A 3875840055 | ADHESIVE FOIL | |
| 520 | N 000933008116 | SCREW |
| Repalced by: N 000933008337 | ||
| 520 | N 000933008337 | SCREW |
| Repalced by: A 0099900101 | ||
| 520 | A 0099900101 | SCREW |
| BRAKE POWER REGULATOR TO SUBSTRUCTURE | ||
| 522 | N 913004008005 | NUT |
| BRAKE POWER REGULATOR TO SUBSTRUCTURE | ||
| 525 | A 3074201148 | BRAKE HOSE |
| Repalced by: A 0004298835 | ||
| 525 | A 0004298835 | BRAKE HOSE |
| FROM BRAKE POWER REGULATOR TO CENTRAL AXLE BRAKE CYLINDER,LEFT | ||
| 527 | N 915045014100 | SEAL RING |
| A 0004311531 | TEST CONNECTION | |
| Repalced by: A 0004314831 | ||
| 529 | A 0004314831 | TEST CONNECTION |
| CENTRAL AXLE BRAKE PRESSURE | ||
| WABCO | ||
| 529 | A 0004314531 | TEST CONNECTION |
| CENTRAL AXLE BRAKE PRESSURE | ||
| SCHAEFER | ||
| 529 | A 0004312031 | TEST CONNECTION |
| CENTRAL AXLE BRAKE PRESSURE | ||
| VOSS | ||
| 529 | A 0004316131 | TEST CONNECTION |
| CENTRAL AXLE BRAKE PRESSURE | ||
| WIRA | ||
| A 0009979486 | PLUG | |
| 531 | A 0009902570 | T-FITTING |
| 533 | A 0009902670 | T-FITTING |
| BRANCH-OFF LEADING TO PNEUMATIC SUSPENSION & 3/2-WAY VALVE | ||
| 536 | A 0014296844 | VALVE |
| RELAY | ||
| WABCO | ||
| 538 | A 0005865742 | REPAIR KIT |
| TO 001 429 68 44,WABCO | ||
| 540 | A 0009907771 | ELBOW FITTING |
| AT RELAY VALVE | ||
| A 0029971172 | FITTING | |
| AT RELAY VALVE | ||
| 542 | A 0029979572 | FITTING |
| AT RELAY VALVE | ||
| 543 | A 0029978172 | FITTING |
| AT RELAY VALVE | ||
| 543 | A 0029978172 | FITTING |
| AT RELAY VALVE | ||
| 544 | A 0019903570 | T-FITTING |
| AT RELAY VALVE | ||
| 546 | N 000908016001 | SCREW PLUG |
| AT RELAY VALVE | ||
| 548 | N 007603016401 | SEAL RING |
| AT RELAY VALVE | ||
| N 007603022102 | SEAL RING | |
| AT RELAY VALVE | ||
| 550 | N 074305022202 | NUT |
| AT RELAY VALVE | ||
| 552 | A 0004290227 | THRUST RING |
| AT RELAY VALVE | ||
| 554 | A 0009870446 | SEALING CORD |
| AT RELAY VALVE | ||
| 556 | N 080705016003 | NUT |
| AT RELAY VALVE | ||
| 558 | A 0004290927 | THRUST RING |
| AT RELAY VALVE | ||
| 560 | A 0009971548 | SEAL RING |
| AT RELAY VALVE | ||
| 561 | A 0004312031 | TEST CONNECTION |
| AT RELAY VALVE | ||
| VOSS | ||
| 561 | A 0004312031 | TEST CONNECTION |
| AT RELAY VALVE | ||
| VOSS | ||
| 561 | A 0004314531 | TEST CONNECTION |
| AT RELAY VALVE | ||
| SCHAEFER | ||
| 561 | A 0004314531 | TEST CONNECTION |
| AT RELAY VALVE | ||
| SCHAEFER | ||
| 561 | A 0004314831 | TEST CONNECTION |
| AT RELAY VALVE | ||
| WABCO | ||
| 561 | A 0004314831 | TEST CONNECTION |
| AT RELAY VALVE | ||
| WABCO | ||
| 561 | A 0004316131 | TEST CONNECTION |
| AT RELAY VALVE | ||
| WIRA | ||
| 561 | A 0004316131 | TEST CONNECTION |
| AT RELAY VALVE | ||
| WIRA | ||
| A 0009979486 | PLUG | |
| 562 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 562 | N 009021008213 | WASHER |
| RELAY VALVE TO SUBSTRUCTURE | ||
| 564 | N 913004008005 | NUT |
| RELAY VALVE TO SUBSTRUCTURE | ||
| 570 | A 3894205248 | BRAKE HOSE |
| Repalced by: A 0004299335 | ||
| 570 | A 0004299335 | BRAKE HOSE |
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FROM RELAY VALVE TO TWO-WAY VALVE, CENTRAL AXLE | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FROM LEFT TWO-WAY VALVE TO RIGHT TWOWAY VALVE,CENTRAL AXLE | ||
| 570 | A 0004299335 | BRAKE HOSE |
| FROM RELAY VALVE TO T-FITTING | ||
| 574 | A 3014200548 | BRAKE HOSE |
| Repalced by: A 0004298535 | ||
| 574 | A 0004298535 | BRAKE HOSE |
| FROM LEFT BRAKE CYLINDER TO RIGHT BRAKE CYLINDER | ||
| 576 | A 0009902470 | T-FITTING |
| LEFT BRAKE CYLINDER | ||
| 576 | A 0019905970 | T-FITTING |
| LEFT BRAKE CYLINDER | ||
| 578 | A 0009905871 | ELBOW FITTING |
| RIGHT BRAKE CYLINDER | ||
| 578 | A 0009908971 | ELBOW FITTING |
| RIGHT BRAKE CYLINDER | ||
| 580 | N 074305022202 | NUT |
| AT LEFT AND RIGHT DIAPHRAGM CYLINDERS | ||
| 580 | N 080705016003 | NUT |
| AT LEFT AND RIGHT DIAPHRAGM CYLINDERS | ||
| 582 | A 0004290227 | THRUST RING |
| AT LEFT AND RIGHT DIAPHRAGM CYLINDERS | ||
| 582 | A 0004290927 | THRUST RING |
| AT LEFT AND RIGHT DIAPHRAGM CYLINDERS | ||
| 584 | A 0009870446 | SEALING CORD |
| AT LEFT AND RIGHT DIAPHRAGM CYLINDERS | ||
| 584 | A 0009971548 | SEAL RING |
| AT LEFT AND RIGHT DIAPHRAGM CYLINDERS | ||
| 586 | A 0009909970 | T-FITTING |
| TWO-WAY VALVE,CONNECTION "V" | ||
| 588 | A 3074291540 | BRACKET |
| LEFT | ||
| A 3074291640 | BRACKET | |
| RIGHT | ||
| A 3074292740 | BRACKET | |
| 590 | N 912004008102 | LOCK WASHER |
| BRACKET TO REAR AXLE | ||
| 592 | N 000933008126 | SCREW |
| BRACKET TO REAR AXLE | ||
| 594 | N 916016015202 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 596 | N 000933006127 | SCREW |
| COMPRESSED AIR LINE TO BRACKET | ||
| 598 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 598 | N 910113006001 | NUT |
| COMPRESSED AIR LINE TO BRACKET | ||
| 600 | A 3014290135 | BRAKE HOSE |
| FROM TWO-WAY VALVE TO SPRING-LOAD ACCUMULATOR CYLINDER | ||
| 602 | N 916016008200 | CLAMP |
| 604 | A 0014292444 | VALVE |
| TWO-WAY VALVE,AT CENTRAL AXLE BRAKE CYLINDER,LEFT | ||
| WABCO | ||
| 605 | A 0004290682 | VALVE |
| Repalced by: A 0004290782 | ||
| 605 | A 0004290782 | VALVE |
| Repalced by: A 0004291182 | ||
| 605 | A 0004291182 | VALVE BODY |
| TO 001 429 24 44,WABCO | ||
| 605E | A 0029810485 | BALL |
| TO 003 429 11 44,VOSS | ||
| 605H | A 0004290180 | GASKET |
| TO 003 429 11 44,VOSS | ||
| 606 | A 0029971172 | FITTING |
| TWO-WAY VALVE,CONNECTION "V" | ||
| 607 | A 0009970171 | FITTING |
| TWO-WAY VALVE,EMERGENCY RELEASE DEVICE CONNECTION | ||
| 608 | A 0019972372 | FITTING |
| TWO-WAY VALVE,CONNECTION "Z" | ||
| 608 | A 0029979172 | FITTING |
| TWO-WAY VALVE,CONNECTION "Z" | ||
| 610 | N 007603022102 | SEAL RING |
| 612 | A 0014292444 | VALVE |
| TWO-WAY VALVE,AT CENTRAL AXLE BRAKE CYLINDER,RIGHT | ||
| WABCO | ||
| 613 | A 0004290682 | VALVE |
| Repalced by: A 0004290782 | ||
| 613 | A 0004290782 | VALVE |
| Repalced by: A 0004291182 | ||
| 613 | A 0004291182 | VALVE BODY |
| TO 001 429 24 44,WABCO | ||
| 614 | A 0029810485 | BALL |
| TO 003 429 11 44,VOSS | ||
| 615 | A 0004290180 | GASKET |
| TO 003 429 11 44,VOSS | ||
| 617 | A 0009909870 | T-FITTING |
| TWO-WAY VALVE,CONNECTION "Z" | ||
| 617 | A 0019901370 | T-FITTING |
| TWO-WAY VALVE,CONNECTION "Z" | ||
| 619 | A 0019901070 | T-FITTING |
| TWO-WAY VALVE,CONNECTION "V" | ||
| 621 | A 0009970171 | FITTING |
| TWO-WAY VALVE,EMERGENCY RELEASE DEVICE CONNECTION | ||
| 623 | N 074305022202 | NUT |
| 625 | A 0004290227 | THRUST RING |
| 627 | A 0009870446 | SEALING CORD |
| 629 | N 007603022102 | SEAL RING |
| 632 | N 074305022202 | NUT |
| TWO-WAY VALVE TO BRAKE CYLINDER | ||
| 632 | N 080705016003 | NUT |
| TWO-WAY VALVE TO BRAKE CYLINDER | ||
| 634 | A 0004290227 | THRUST RING |
| TWO-WAY VALVE TO BRAKE CYLINDER | ||
| 634 | A 0004290927 | THRUST RING |
| TWO-WAY VALVE TO BRAKE CYLINDER | ||
| 636 | A 0009870446 | SEALING CORD |
| TWO-WAY VALVE TO BRAKE CYLINDER | ||
| 636 | A 0009971548 | SEAL RING |
| TWO-WAY VALVE TO BRAKE CYLINDER | ||
| 638 | N 007603016401 | SEAL RING |
| TWO-WAY VALVE TO BRAKE CYLINDER | ||
| 640 | A 3224302205 | RESERVOIR |
| Repalced by: A 0034328801 | ||
| 640 | A 0034328801 | RESERVOIR |
| CONDENSATION TANK (WET AIR RESERVOIR) | ||
| 642 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 642 | N 304017008021 | SCREW |
| AIR RESERVOIR TO SUBSTRUCTURE | ||
| 644 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 644 | N 009021008213 | WASHER |
| AIR RESERVOIR TO SUBSTRUCTURE | ||
| 646 | N 913004008005 | NUT |
| AIR RESERVOIR TO SUBSTRUCTURE | ||
| 650 | A 0019902871 | ELBOW FITTING |
| 652 | N 074305022202 | NUT |
| 654 | A 0004290227 | THRUST RING |
| 656 | A 0009870446 | SEALING CORD |
| 658 | N 007603022102 | SEAL RING |
| 660 | A 0029971172 | FITTING |
| 664 | A 0019904371 | ELBOW FITTING |
| 666 | N 074305022202 | NUT |
| 668 | A 0004290227 | THRUST RING |
| 670 | A 0009870446 | SEALING CORD |
| 675 | A 0034293544 | VALVE |
| Repalced by: A 0004295444 | ||
| 675 | A 0004295444 | VALVE |
| AUTOMATIC DRAIN | ||
| 676 | A 0069979245 | SEAL RING |
| 17X3.8; TO 003 429 35 44 | ||
| 676 | A 0069979245 | SEAL RING |
| WABCO 434 300 100 0 | ||
| 676D | A 0009879746 | SEALING CORD |
| 9.2X3.5; TO 003 429 35 44 | ||
| 676F | A 0089973248 | SEAL RING |
| 22.3X2.4; TO 003 429 35 44 | ||
| 676F | A 0089973248 | SEAL RING |
| WABCO 434 300 100 0 | ||
| 676K | A 0079970248 | SEAL RING |
| 17.3X2.4; TO 003 429 35 44 | ||
| 676K | A 0079970248 | SEAL RING |
| WABCO 434 300 100 0 | ||
| A 0014300860 | REPAIR KIT | |
| TO 003 429 35 44 | ||
| A 0014300860 | REPAIR KIT | |
| WABCO 434 300 100 0 | ||
| 677 | A 0005868342 | REPAIR KIT |
| TO 000 429 54 44 | ||
| 677 | A 0005868342 | REPAIR KIT |
| WABCO 434 300 100 0 | ||
| 679 | A 0019972572 | FITTING |
| 681 | N 007603012405 | SEAL RING |
| 682 | A 0019972672 | FITTING |
| Repalced by: A 0039978972 | ||
| 682 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 682 | A 0029905971 | FITTING |
| 683 | N 915005006001 | LOCKING CONE |
| DRAIN VALVE | ||
| 685 | N 915020014000 | NUT |
| DRAIN VALVE | ||
| 688 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 688 | N 304017008021 | SCREW |
| DRAIN VALVE TO SUBSTRUCTURE | ||
| 690 | N 913004008005 | NUT |
| DRAIN VALVE TO SUBSTRUCTURE | ||
| 698 | A 0005516256 | TUBE |
| STEEL | ||
| 15 MM | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| AIR COMPRESSOR,HOSE,PRESSURE REGULATOR | ||
| 700 | A 0004291401 | LINE |
| BRASS | ||
| 15 MM | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| PRESSURE REGULATOR,BRAKE CYLINDER, TRAILER CONTROL VALVE | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| AIR RESERVOIR,CONNECTION TO FRONT CARRIAGE | ||
| 700 | A 0004291401 | LINE |
| AIR COMPRESSOR,HOSE,PRESSURE REGULATOR | ||
| 15 MM | ||
| 702 | N 915018015000 | UNION NUT |
| 704 | N 003861015004 | GLAND |
| 706 | A 0004291027 | THRUST RING |
| 708 | N 915045014100 | SEAL RING |
| 712 | A 0004292101 | LINE |
| BRASS | ||
| 12 MM | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| PRESSURE REGULATOR,RESERVOIR,TWO-WAY VALVE,TRAILER CONTROL VALVE | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| QUICK-RELEASE VALVE,OVERFLOW VALVE,AIR RESERVOIR | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| CONNECTING HOSE TO FRONT CARRIAGE | ||
| A 1109970481 | GROMMET | |
| 714 | N 915017012100 | UNION NUT |
| 714 | N 915017012100 | UNION NUT |
| 716 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 716 | A 0019901967 | SEAL CONE |
| 718 | A 0029971472 | FITTING |
| Repalced by: A 0049971772 | ||
| 718 | A 0049971772 | FITTING |
| Repalced by: A 0029906171 | ||
| 718 | A 0029906171 | FITTING |

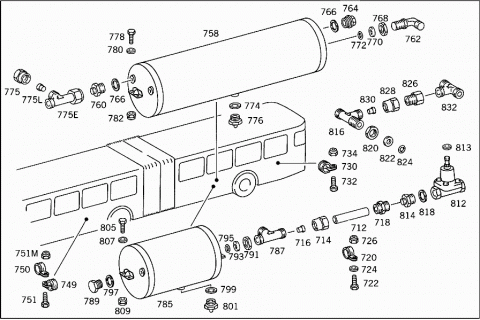

| 720 | N 916016012200 | CLAMP |
| COMPRSSED AIR LINE TO SUBSTRUCTURE | ||
| 722 | N 000933006127 | SCREW |
| COMPRSSED AIR LINE TO SUBSTRUCTURE | ||
| 724 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 724 | N 009021006208 | WASHER |
| COMPRSSED AIR LINE TO SUBSTRUCTURE | ||
| 726 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 726 | N 910113006001 | NUT |
| COMPRSSED AIR LINE TO SUBSTRUCTURE | ||
| 730 | A 0009957101 | CLAMP |
| Repalced by: N 916016038201 | ||
| 730 | N 916016038205 | CLAMP |
| COMPRESSED AIR LINE TO COOLING WATER LINE | ||
| 732 | N 000933006127 | SCREW |
| COMPRESSED AIR LINE TO COOLING WATER LINE | ||
| 734 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 734 | N 910113006001 | NUT |
| COMPRESSED AIR LINE TO COOLING WATER LINE | ||
| 736 | A 0004291201 | LINE |
| BRASS | ||
| 8 MM | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| OVERFLOW VALVE,3/2-WAY VALVE,HOSE, BRAKE CYLINDER | ||
| 738 | N 915017008100 | UNION NUT |
| 740 | N 003861008005 | GLAND |
| 741 | A 0004291101 | LINE |
| BRASS | ||
| 6 MM | ||
| 741 | A 0004291101 | LINE |
| ANTI-FREEZE DEVICE | ||
| 6 MM | ||
| 741B | N 915017006100 | UNION NUT |
| 741D | N 003861006007 | GLAND |
| 742 | N 916016008200 | CLAMP |
| 744 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 744 | N 304017008016 | SCREW |
| 746 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 746 | N 009021006208 | WASHER |
| 748 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 748 | N 910113006001 | NUT |
| 749 | N 916016008200 | CLAMP |
| COMPRESSED AIR LINE TO COMPRESSED AIR LINE | ||
| 750 | N 916016012200 | CLAMP |
| COMPRESSED AIR LINE TO COMPRESSED AIR LINE | ||
| 751 | N 000933006127 | SCREW |
| COMPRESSED AIR LINE TO COMPRESSED AIR LINE | ||
| 751M | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 751M | N 910113006001 | NUT |
| COMPRESSED AIR LINE TO COMPRESSED AIR LINE | ||
| 752 | A 3074201548 | BRAKE HOSE |
| Repalced by: A 0004299735 | ||
| 752 | A 0004299735 | BRAKE HOSE |
| CONNECTION FROM FRONT CARRIAGE TO REAR CARRIAGE | ||
| 752 | A 0004299735 | BRAKE HOSE |
| CONNECTION FROM FRONT CARRIAGE TO REAR CARRIAGE | ||
| 752 | A 3074201848 | BRAKE HOSE |
| Repalced by: A 0004298935 | ||
| 752 | A 0004298935 | BRAKE HOSE |
| CONNECTION FROM FRONT CARRIAGE TO REAR CARRIAGE | ||
| 752 | A 0004298935 | BRAKE HOSE |
| CONNECTION FROM FRONT CARRIAGE TO REAR CARRIAGE | ||
| 752 | A 3074201748 | BRAKE HOSE |
| Repalced by: A 0004299835 | ||
| 752 | A 0004299835 | BRAKE HOSE |
| SPRING LOAD ACCUMULATOR UNIT | ||
| 752 | A 3074202048 | BRAKE HOSE |
| SPRING LOAD ACCUMULATOR UNIT | ||
| 752 | A 3074202348 | BRAKE HOSE |
| Repalced by: A 0004299035 | ||
| 752 | A 0004299035 | BRAKE HOSE |
| SPRING LOAD ACCUMULATOR UNIT | ||
| 753 | A 3074291840 | BRACKET |
| Repalced by: A 3074292940 | ||
| 753 | A 3074292940 | BRACKET |
| BRAKE HOSE | ||
| A 3074292940 | BRACKET | |
| BRAKE HOSE | ||
| A 0019902771 | ELBOW FITTING | |
| BRAKE HOSE | ||
| A 0004313431 | TEST CONNECTION | |
| Repalced by: A 0004314831 | ||
| 754 | A 0004314831 | TEST CONNECTION |
| BRAKE SUPPLY PRESSURE | ||
| WABCO | ||
| 754 | A 0004312031 | TEST CONNECTION |
| BRAKE SUPPLY PRESSURE | ||
| VOSS | ||
| 754 | A 0004314531 | TEST CONNECTION |
| BRAKE SUPPLY PRESSURE | ||
| SCHAEFER | ||
| 754 | A 0004316131 | TEST CONNECTION |
| BRAKE SUPPLY PRESSURE | ||
| WIRA | ||
| A 0009979486 | PLUG | |
| 755 | A 0009905370 | T-FITTING |
| 756 | A 0019903470 | T-FITTING |
| 758 | A 3024301605 | RESERVOIR |
| Repalced by: A 0034328901 | ||
| 758 | A 0034328901 | RESERVOIR |
| SECONDARY CONSUMING UNIT AIR RESERVOIR | ||
| 40 L | ||
| 760 | A 0009970171 | FITTING |
| 760 | A 0009970171 | FITTING |
| 762 | A 0009907771 | ELBOW FITTING |
| 764 | N 000908022001 | SCREW PLUG |
| Repalced by: N 000908022011 | ||
| 764 | N 000908022011 | SCREW PLUG |
| 764 | N 000908022011 | SCREW PLUG |
| 766 | N 007603022102 | SEAL RING |
| 768 | N 074305022202 | NUT |
| 770 | A 0004290227 | THRUST RING |
| 772 | A 0009870446 | SEALING CORD |
| 774 | N 007603022102 | SEAL RING |
| 775 | N 915020014000 | NUT |
| DOOR-CLOSING-SYSTEM CONNECTION | ||
| 775E | A 0009906970 | T-FITTING |
| DOOR-CLOSING-SYSTEM CONNECTION | ||
| 775E | A 0009909970 | T-FITTING |
| DOOR-CLOSING-SYSTEM CONNECTION | ||
| 775L | N 915005006001 | LOCKING CONE |
| DOOR-CLOSING-SYSTEM CONNECTION | ||
| 776 | A 0004322407 | VALVE |
| AIR RESERVOIR | ||
| A 0005830296 | RING | |
| DRAIN VALVE | ||
| 778 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 778 | N 304017008021 | SCREW |
| AIR RESERVOIR TO SUBSTRUCTURE | ||
| 780 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 780 | N 009021008213 | WASHER |
| AIR RESERVOIR TO SUBSTRUCTURE | ||
| 782 | N 913004008005 | NUT |
| AIR RESERVOIR TO SUBSTRUCTURE | ||
| 785 | A 3224302205 | RESERVOIR |
| Repalced by: A 0034328801 | ||
| 785 | A 0034328801 | RESERVOIR |
| REAR AXLE BRAKE CIRCUIT AIR-RESERVOIR | ||
| 20 L | ||
| 787 | A 0019903470 | T-FITTING |
| 789 | N 000908022001 | SCREW PLUG |
| Repalced by: N 000908022011 | ||
| 789 | N 000908022011 | SCREW PLUG |
| 791 | N 074305022202 | NUT |
| 793 | A 0004290227 | THRUST RING |
| 795 | A 0009870446 | SEALING CORD |
| 797 | N 007603022102 | SEAL RING |
| 799 | N 007603022102 | SEAL RING |
| 801 | A 0004322407 | VALVE |
| AIR RESERVOIR | ||
| A 0005830296 | RING | |
| DRAIN VALVE | ||
| TO 000 432 08 07 | ||
| 805 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 805 | N 304017008021 | SCREW |
| AIR RESERVOIR TO SUBSTRUCTURE | ||
| 807 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 807 | N 009021008213 | WASHER |
| AIR RESERVOIR TO SUBSTRUCTURE | ||
| 809 | N 913004008005 | NUT |
| AIR RESERVOIR TO SUBSTRUCTURE | ||
| 812 | A 0014294944 | VALVE |
| (OVERFLOW VALVE) | ||
| WABCO | ||
| 812 | A 0024296744 | VALVE |
| (OVERFLOW VALVE) | ||
| GRAU | ||
| 812 | A 0034294844 | VALVE |
| (OVERFLOW VALVE) | ||
| KNORR | ||
| 813 | A 0004290545 | DIAPHRAGM |
| TO 001 429 49 44,WABCO | ||
| 813 | A 0004290945 | DIAPHRAGM |
| TO 003 429 48 44,KNORR | ||
| 814 | A 0029971172 | FITTING |
| 814 | A 0029971172 | FITTING |
| 816 | A 0019901070 | T-FITTING |
| 818 | N 007603022102 | SEAL RING |
| 818 | N 007603022102 | SEAL RING |
| 820 | N 074305022202 | NUT |
| 822 | A 0004290227 | THRUST RING |
| 824 | A 0009870446 | SEALING CORD |
| 826 | A 0039970672 | FITTING |
| 828 | N 915017012100 | UNION NUT |
| 830 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 830 | A 0019901967 | SEAL CONE |
| 832 | A 0009902670 | T-FITTING |
| BRANCH-OFF TO AIR SPRING ON REAR AXLE | ||
| 833 | A 0014292444 | VALVE |
| TWO-WAY QUICK-RELEASE VALVE | ||
| WABCO | ||
| 833 | A 0014292444 | VALVE |
| TWO-WAY QUICK-RELEASE VALVE | ||
| WABCO | ||
| 833 | A 0014292444 | VALVE |
| TWO-WAY QUICK-RELEASE VALVE | ||
| WABCO | ||
| 834 | A 0009970171 | FITTING |
| AT TWO-WAY VALVE | ||
| 834 | A 0009970171 | FITTING |
| AT TWO-WAY VALVE | ||
| 834D | N 007603022102 | SEAL RING |
| AT TWO-WAY VALVE | ||
| 834D | N 007603022102 | SEAL RING |
| AT TWO-WAY VALVE | ||
| 834F | A 0019972372 | FITTING |
| AT TWO-WAY VALVE | ||
| 834F | A 0019972372 | FITTING |
| AT TWO-WAY VALVE | ||
| 834K | N 074305022202 | NUT |
| TWO-WAY VALVE TO BRACKET | ||
| 834K | N 074305022202 | NUT |
| TWO-WAY VALVE TO BRACKET | ||
| 834N | A 0009970271 | FITTING |
| TWO-WAY VALVE,CONNECTION "V" | ||
| 834N | A 0009970271 | FITTING |
| TWO-WAY VALVE,CONNECTION "V" | ||
| 834R | N 915045014100 | SEAL RING |
| TWO-WAY VALVE,CONNECTION "V" | ||
| 834R | N 915045014100 | SEAL RING |
| TWO-WAY VALVE,CONNECTION "V" | ||
| 835 | A 0004294144 | VALVE |
| QUICK-RELEASE | ||
| 836 | A 0004291784 | SEAL RING |
| Repalced by: A 0159970448 | ||
| 836 | A 0159970448 | SEAL RING |
| TO 000 429 41 44 | ||
| 837 | A 0004290345 | DIAPHRAGM |
| TO 000 429 41 44 | ||
| 838 | A 0019902871 | ELBOW FITTING |
| 840 | N 000908022001 | SCREW PLUG |
| Repalced by: N 000908022011 | ||
| 840 | N 000908022011 | SCREW PLUG |
| 842 | N 007603022102 | SEAL RING |
| 844 | N 074305022202 | NUT |
| 846 | A 0004290227 | THRUST RING |
| 848 | A 0009870446 | SEALING CORD |
| 849 | N 074305022202 | NUT |
| QUICK-RELEASE VALVE TO BULKHEAD FITTING | ||
| 850 | A 0004290227 | THRUST RING |
| QUICK-RELEASE VALVE TO BULKHEAD FITTING | ||
| 851 | A 0009870446 | SEALING CORD |
| QUICK-RELEASE VALVE TO BULKHEAD FITTING | ||
| 854 | A 0039970572 | FITTING |
| 856 | N 074305022202 | NUT |
| FITTING TO PARTITION PANEL | ||
| 858 | A 3894205448 | BRAKE HOSE |
| Repalced by: A 0004299435 | ||
| 858 | A 0004299435 | BRAKE HOSE |
| FROM QUICK-RELEASE VALVE TO TWO-WAY VALVE ON THE RIGHT | ||
| 862 | A 0014313705 | BRAKE VALVE |
| (RELAY VALVE),TRAILER CONTROL | ||
| WABCO | ||
| 862 | A 0014311805 | BRAKE VALVE |
| (RELAY VALVE),TRAILER CONTROL | ||
| BOSCH | ||
| 862 | A 0014313405 | BRAKE VALVE |
| Repalced by: A 0014313705 | ||
| 862 | A 0014314805 | BRAKE VALVE |
| (RELAY VALVE),TRAILER CONTROL | ||
| GRAU | ||
| 863 | A 0015866043 | REPAIR KIT |
| Repalced by: A 0024306581 | ||
| 863 | A 0024306581 | REPAIR KIT |
| TO 001 431 37 05,WABCO | ||
| 863R | A 0024304781 | REPAIR KIT |
| VALVE KIT | ||
| TO 001 431 37 05,WABCO | ||
| 864 | A 0015868643 | REPAIR KIT |
| Repalced by: A 0004304606 | ||
| 864 | A 0004304606 | BRAKE VALVE |
| TO 001 431 18 05,BOSCH | ||
| 864R | A 0025865943 | REPAIR KIT |
| TO 001 431 48 05,GRAU | ||
| 865 | A 0015868043 | REPAIR KIT |
| TO 001 431 34 05,GRAU | ||
| 866 | A 0009906470 | T-FITTING |
| 866 | A 0009906470 | T-FITTING |
| 868 | A 0009908971 | ELBOW FITTING |
| Repalced by: A 0009906470 | ||
| 868 | A 0009906470 | T-FITTING |
| 869 | N 915020012000 | NUT |
| 869 | N 915020012000 | NUT |
| 869E | N 915005004001 | LOCKING CONE |
| 869E | N 915005004001 | LOCKING CONE |
| 870 | A 0029971572 | FITTING |
| 872 | A 0029978172 | FITTING |
| 874 | N 007603016401 | SEAL RING |
| 876 | N 080705016003 | NUT |
| 878 | A 0004290927 | THRUST RING |
| 880 | A 0009971548 | SEAL RING |
| 882 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 882 | N 009021008213 | WASHER |
| TRAILER CONTROL VALVE TO SUBSTRUCTURE | ||
| 884 | N 913004008005 | NUT |
| TRAILER CONTROL VALVE TO SUBSTRUCTURE | ||
| 886 | A 0019900170 | T-FITTING |
| TRAILER CONTROL VALVE,CONNECTION "43" | ||
| 888 | A 0009905871 | ELBOW FITTING |
| 890 | N 074305022202 | NUT |
| CONNECTOR TO SUBSTRUCTURE | ||
| 892 | N 000125023006 | WASHER |
| CONNECTOR TO SUBSTRUCTURE | ||
| 894 | A 3074201048 | BRAKE HOSE |
| Repalced by: A 0004298735 | ||
| 894 | A 0004298735 | BRAKE HOSE |
| FROM TRAILER CONTROL VALVE TO TWO-WAY VALVE ON THE LEFT | ||
| A 0004311531 | TEST CONNECTION | |
| Repalced by: A 0004314831 | ||
| 896 | A 0004314831 | TEST CONNECTION |
| REAR AXLE BRAKE PRESSURE | ||
| WABCO | ||
| 896 | A 0004312031 | TEST CONNECTION |
| REAR AXLE BRAKE PRESSURE | ||
| VOSS | ||
| 896 | A 0004314531 | TEST CONNECTION |
| REAR AXLE BRAKE PRESSURE | ||
| SCHAEFER | ||
| 896 | A 0004316131 | TEST CONNECTION |
| REAR AXLE BRAKE PRESSURE | ||
| WIRA | ||
| A 0009979486 | PLUG | |
| 897 | A 0009902570 | T-FITTING |
| 898 | A 0009902370 | T-FITTING |
| 900 | A 3074290340 | BRACKET |
| COMPRESSED AIR LINE | ||
| 902 | N 000933010111 | SCREW |
| BRACKET TO REAR AXLE | ||
| 903 | N 912004010102 | LOCK WASHER |
| BRACKET TO REAR AXLE | ||
| 904 | N 916016012200 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 905 | N 000933006127 | SCREW |
| COMPRESSED AIR LINE TO BRACKET | ||
| 906 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 906 | N 910113006001 | NUT |
| COMPRESSED AIR LINE TO BRACKET | ||
| 908 | N 916016015202 | CLAMP |
| LINE TO REAR AXLE | ||
| 910 | N 916016012201 | CLAMP |
| LINE TO REAR AXLE | ||
| 912 | N 912004008102 | LOCK WASHER |
| LINE TO REAR AXLE | ||
| 914 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 914 | N 304017008039 | SCREW |
| LINE TO REAR AXLE | ||
| 916 | A 0014292444 | VALVE |
| TWO-WAY VALVE,AT REAR AXLE BRAKE CYLINDER,LEFT | ||
| WABCO | ||
| 917 | A 0004290682 | VALVE |
| Repalced by: A 0004290782 | ||
| 917 | A 0004290782 | VALVE |
| Repalced by: A 0004291182 | ||
| 917 | A 0004291182 | VALVE BODY |
| TO 001 429 24 44,WABCO | ||
| 917E | A 0029810485 | BALL |
| TO 003 429 11 44,VOSS | ||
| 917H | A 0004290180 | GASKET |
| TO 003 429 11 44,VOSS | ||
| 918 | A 0029971172 | FITTING |
| TWO-WAY VALVE,CONNECTION "V" | ||
| 920 | A 0009970171 | FITTING |
| TWO-WAY VALVE,EMERGENCY RELEASE DEVICE CONNECTION | ||
| 922 | A 0019972372 | FITTING |
| TWO-WAY VALVE,CONNECTION "Z" | ||
| 922 | A 0029979172 | FITTING |
| TWO-WAY VALVE,CONNECTION "Z" | ||
| 924 | N 007603022102 | SEAL RING |
| 926 | A 0014292444 | VALVE |
| TWO-WAY VALVE,AT REAR AXLE BRAKE CYLINDER,RIGHT | ||
| WABCO | ||
| 927 | A 0004290682 | VALVE |
| Repalced by: A 0004290782 | ||
| 927 | A 0004290782 | VALVE |
| Repalced by: A 0004291182 | ||
| 927 | A 0004291182 | VALVE BODY |
| TO 001 429 24 44,WABCO | ||
| 927E | A 0029810485 | BALL |
| TO 003 429 11 44,VOSS | ||
| 927H | A 0004290180 | GASKET |
| TO 003 429 11 44,VOSS | ||
| 928 | A 0009909870 | T-FITTING |
| TWO-WAY VALVE,CONNECTION "Z" | ||
| 928 | A 0019901370 | T-FITTING |
| TWO-WAY VALVE,CONNECTION "Z" | ||
| 930 | A 0019901070 | T-FITTING |
| TWO-WAY VALVE,CONNECTION "V" | ||
| 932 | A 0009970171 | FITTING |
| TWO-WAY VALVE,EMERGENCY RELEASE DEVICE CONNECTION | ||
| 933 | N 074304022202 | FITTING |
| AT TWO-WAY VALVE | ||
| 933B | A 0004290227 | THRUST RING |
| AT TWO-WAY VALVE | ||
| 933C | A 0009870446 | SEALING CORD |
| AT TWO-WAY VALVE | ||
| 934 | N 007603022102 | SEAL RING |
| AT TWO-WAY VALVE | ||
| 936 | N 074305022202 | NUT |
| TWO-WAY VALVE TO BRAKE CYLINDER | ||
| 936 | N 080705016003 | NUT |
| TWO-WAY VALVE TO SPRING LOAD ACCUMULATOR CYLINDER | ||
| 938 | A 0004290227 | THRUST RING |
| TWO-WAY VALVE TO BRAKE CYLINDER | ||
| 938 | A 0004290927 | THRUST RING |
| TWO-WAY VALVE TO SPRING LOAD ACCUMULATOR CYLINDER | ||
| 940 | A 0009870446 | SEALING CORD |
| TWO-WAY VALVE TO BRAKE CYLINDER | ||
| 940 | A 0009971548 | SEAL RING |
| TWO-WAY VALVE TO SPRING LOAD ACCUMULATOR CYLINDER | ||
| 942 | N 007603022102 | SEAL RING |
| TWO-WAY VALVE TO BRAKE CYLINDER | ||
| 942 | N 007603016401 | SEAL RING |
| TWO-WAY VALVE TO SPRING LOAD ACCUMULATOR CYLINDER | ||
| 944 | A 0019972172 | FITTING |
| TWO-WAY VALVE TO BRAKE CYLINDER | ||
| 944 | A 0009970071 | FITTING |
| TWO-WAY VALVE TO SPRING LOAD ACCUMULATOR CYLINDER | ||
| 946 | A 0009909970 | T-FITTING |
| TWO-WAY VALVE | ||
| 948 | A 3014290135 | BRAKE HOSE |
| FROM TWO-WAY VALVE ON THE LEFT TO 3/2-WAY VALVE | ||
| 950 | A 0009907771 | ELBOW FITTING |
| AT AIR RESERVOIR | ||
| 950 | A 0019909971 | ELBOW FITTING |
| AT AIR RESERVOIR | ||
| 951 | A 0019902871 | ELBOW FITTING |
| AT AIR RESERVOIR | ||
| 951C | A 0009907070 | T-FITTING |
| AT AIR RESERVOIR | ||
| 951C | A 0009907070 | T-FITTING |
| AT AIR RESERVOIR | ||
| 951E | A 0019972372 | FITTING |
| AT AIR RESERVOIR | ||
| 952 | N 074305022202 | NUT |
| AT AIR RESERVOIR | ||
| 952 | N 074305022202 | NUT |
| AT AIR RESERVOIR | ||
| 952 | N 074305022202 | NUT |
| AT AIR RESERVOIR | ||
| 952 | N 074305022202 | NUT |
| AT AIR RESERVOIR | ||
| 954 | A 0004290227 | THRUST RING |
| AT AIR RESERVOIR | ||
| 954 | A 0004290227 | THRUST RING |
| AT AIR RESERVOIR | ||
| 954 | A 0004290227 | THRUST RING |
| AT AIR RESERVOIR | ||
| 954 | A 0004290227 | THRUST RING |
| AT AIR RESERVOIR | ||
| 956 | A 0009870446 | SEALING CORD |
| AT AIR RESERVOIR | ||
| 956 | A 0009870446 | SEALING CORD |
| AT AIR RESERVOIR | ||
| 956 | A 0009870446 | SEALING CORD |
| AT AIR RESERVOIR | ||
| 956 | A 0009870446 | SEALING CORD |
| AT AIR RESERVOIR | ||
| 958 | A 3014300005 | RESERVOIR |
| Repalced by: A 0034320201 | ||
| 958 | A 0034320201 | RESERVOIR |
| 1,5 L | ||
| 960 | A 0029971172 | FITTING |
| AT AIR RESERVOIR | ||
| 962 | A 0004322407 | VALVE |
| AIR RESERVOIR | ||
| A 0005830296 | RING | |
| DRAIN VALVE | ||
| 963 | N 000908022001 | SCREW PLUG |
| Repalced by: N 000908022011 | ||
| 963 | N 000908022011 | SCREW PLUG |
| AT AIR RESERVOIR | ||
| 964 | N 007603022102 | SEAL RING |
| AT AIR RESERVOIR | ||
| 964 | N 007603022102 | SEAL RING |
| AT AIR RESERVOIR | ||
| 965 | N 000125023006 | WASHER |
| AT AIR RESERVOIR | ||
| 965 | N 000125023006 | WASHER |
| AT AIR RESERVOIR | ||
| 965B | N 074305022202 | NUT |
| AIR RESERVOIR TO BRACKET | ||
| 966 | A 3074300070 | MUFFLER |
| 968 | N 000125023006 | WASHER |
| MUFFLER TO SUBSTRUCTURE | ||
| 970 | N 074305022202 | NUT |
| MUFFLER TO SUBSTRUCTURE | ||
| 972 | A 0014310006 | PRESSURE REGULATOR |
| Repalced by: A 0024314906 | ||
| 972 | A 0024314906 | PRESSURE REGULATOR |
| WABCO | ||
| 972 | A 0034313806 | PRESSURE REGULATOR |
| WABCO | ||
| 972B | A 0024314306 | PRESSURE REGULATOR |
| 972D | A 0014313406 | PRESSURE REGULATOR |
| 972F | A 0014311206 | PRESSURE REGULATOR |
| 972F | A 0024316206 | PRESSURE REGULATOR |
| Repalced by: A 0024316506 | ||
| 972F | A 0024316506 | PRESSURE REGULATOR |
| WABCO 975 300 156 0 | ||
| 974 | A 0015864343 | REPAIR KIT |
| Repalced by: A 0004301107 | ||
| 974 | A 0004301107 | REPAIR KIT |
| TO 001 431 00 06,WABCO 975 300 110 0 | ||
| 974R | A 0024304681 | REPAIR KIT |
| VALVE KIT | ||
| TO 001 431 00 06,WABCO 975 300 110 0 | ||
| A 0014306860 | REPAIR KIT | |
| TO 002 431 62 06,WABCO 975 300 156 0 | ||
| A 0014304960 | REPAIR KIT | |
| 002 431 49 06/ 65 06; WABCO | ||
| 975 | A 0015868543 | REPAIR KIT |
| Repalced by: A 0004301407 | ||
| 975 | A 0004301407 | REPAIR KIT |
| 975E | A 0025866043 | REPAIR KIT |
| 975R | A 0025866743 | REPAIR KIT |
| 975W | A 0004301768 | REPAIR KIT |
| 975X | A 0004307960 | REPAIR KIT |
| TIRE INFLATING CONNECTION | ||
| 976 | A 0009907771 | ELBOW FITTING |
| PRESSURE REGULATOR,CONNECTION "2" | ||
| 976 | A 0009905871 | ELBOW FITTING |
| PRESSURE REGULATOR,CONNECTION "2" | ||
| 978 | N 074305022202 | NUT |
| PRESSURE REGULATOR,CONNECTION "2" | ||
| 979 | A 0004290227 | THRUST RING |
| PRESSURE REGULATOR,CONNECTION "2" | ||
| 980 | A 0009870446 | SEALING CORD |
| PRESSURE REGULATOR,CONNECTION "2" | ||
| 982 | N 007603022102 | SEAL RING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 982 | N 007603022102 | SEAL RING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 983 | A 0019972372 | FITTING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 983 | A 0019972372 | FITTING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 983B | A 0009907070 | T-FITTING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 983B | A 0009907070 | T-FITTING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 983B | A 0009902570 | T-FITTING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 983B | A 0009902570 | T-FITTING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 983D | N 074305022202 | NUT |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 983D | N 074305022202 | NUT |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 983F | A 0004290227 | THRUST RING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 983F | A 0004290227 | THRUST RING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 983H | A 0009870446 | SEALING CORD |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 983L | A 0019972172 | FITTING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 983N | N 007603022102 | SEAL RING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 984 | A 0029976772 | FITTING |
| BRANCH-OFF TO ANTI-FREEZE DEVICE | ||
| 984 | A 0029976772 | FITTING |
| BRANCH-OFF TO ANTI-FREEZE DEVICE | ||
| 984D | A 0002760229 | NOZZLE |
| BRANCH-OFF TO ANTI-FREEZE DEVICE | ||
| 984D | A 0002760229 | NOZZLE |
| BRANCH-OFF TO ANTI-FREEZE DEVICE | ||
| 985 | A 3055910084 | SHIM |
| PRESSURE REGULATOR TO SUBSTRUCTURE | ||
| 986 | A 3219970240 | SEAL RING |
| PRESSURE REGULATOR TO SUBSTRUCTURE | ||
| 987 | N 000931008228 | SCREW |
| Repalced by: N 000933008134 | ||
| 987 | N 000933008134 | SCREW |
| PRESSURE REGULATOR TO SUBSTRUCTURE | ||
| 988 | N 913004008005 | NUT |
| PRESSURE REGULATOR TO SUBSTRUCTURE | ||
| 990 | N 900271015069 | HOSE |
| Repalced by: N 900271015037 | ||
| 990 | N 900271015037 | HOSE |
| FROM PRESSURE REGULATOR TO MUFFLER | ||
| 991 | N 916026016001 | CLAMP |
| Repalced by: A 0059970190 | ||
| 991 | A 0059970190 | LOOM TIE |
| 993 | A 0004297435 | BRAKE HOSE |
| Repalced by: A 0004297735 | ||
| 993 | A 0004297735 | BRAKE HOSE |
| FROM PRESSURE REGULATOR TO AIR COMPRESSOR | ||
| 993 | A 0004297835 | BRAKE HOSE |
| FROM PRESSURE REGULATOR TO AIR COMPRESSOR | ||
| 994 | A 3609950210 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 995 | N 000933006127 | SCREW |
| COMPRESSED AIR LINE TO BRACKET | ||
| 996 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 996 | N 913004006001 | NUT |
| COMPRESSED AIR LINE TO BRACKET | ||
| 998 | N 007603026104 | SEAL RING |
| COMPRESSED AIR LINE TO AIR COMPRESSOR | ||
| 999 | N 074299026203 | DOUBLE FITTING |
| COMPRESSED AIR LINE TO AIR COMPRESSOR | ||
| 999A | A 0004312315 | ANTI-FREEZE DEVICE |
| Repalced by: A 0004313115 | ||
| 999B | A 0004313115 | ANTI-FREEZE DEVICE |
| 999B | A 0004313115 | ANTI-FREEZE DEVICE |
| 999C | A 0009905478 | CONNECTOR |
| TO 000 431 23 15 | ||
| A 0049977945 | SEAL RING | |
| Repalced by: A 0179974148 | ||
| A 0179974148 | SEAL RING | |
| TO 000 431 31 15 | ||
| A 0004311864 | ACTUATING PART | |
| TO 000 431 31 15 | ||
| 999D | A 0019971441 | SEAL RING |
| TO 000 431 23 15 | ||
| A 0129972548 | SEAL RING | |
| TO 000 431 31 15 | ||
| A 0014312860 | SEAL RING | |
| TO 000 431 31 15 | ||
| A 0004312981 | VALVE DISC | |
| TO 000 431 31 15 | ||
| 999E | A 0004350390 | VALVE DISC |
| TO 000 431 23 15 | ||
| A 0129972648 | SEAL RING | |
| Repalced by: A 0029971640 | ||
| A 0029971640 | SEAL RING | |
| TO 000 431 31 15 | ||
| A 0004315634 | STRAINER | |
| TO 000 431 31 15 | ||
| A 0014317302 | RESERVOIR | |
| TO 000 431 31 15 | ||
| 999F | A 0004317086 | CUP |
| TO 000 431 23 15 | ||
| A 0049978045 | SEAL RING | |
| TO 000 431 31 15 | ||
| A 0004315734 | STRAINER | |
| TO 000 431 31 15 | ||
| A 0004316133 | FILLER CAP | |
| TO 000 431 31 15 | ||
| 999H | A 0069976545 | SEAL RING |
| TO 000 431 23 15 | ||
| 999K | A 0029971172 | FITTING |
| ANTI-FREEZE DEVICE | ||
| 999K | A 0029971172 | FITTING |
| ANTI-FREEZE DEVICE | ||
| 999K | A 0019972172 | FITTING |
| ANTI-FREEZE DEVICE | ||
| 999K | A 0019972172 | FITTING |
| ANTI-FREEZE DEVICE | ||
| 999L | N 007603022102 | SEAL RING |
| ANTI-FREEZE DEVICE | ||
| 999L | N 007603022102 | SEAL RING |
| ANTI-FREEZE DEVICE | ||
| 999M | A 0009905871 | ELBOW FITTING |
| ANTI-FREEZE DEVICE | ||
| 999M | A 0009905871 | ELBOW FITTING |
| ANTI-FREEZE DEVICE | ||
| 999N | N 074305022202 | NUT |
| ANTI-FREEZE DEVICE | ||
| 999N | N 074305022202 | NUT |
| ANTI-FREEZE DEVICE | ||
| 999P | A 0004290227 | THRUST RING |
| ANTI-FREEZE DEVICE | ||
| 999P | A 0004290227 | THRUST RING |
| ANTI-FREEZE DEVICE | ||
| 999Q | A 0009870446 | SEALING CORD |
| ANTI-FREEZE DEVICE | ||
| 999Q | A 0009870446 | SEALING CORD |
| ANTI-FREEZE DEVICE | ||
| 999R | A 0039979072 | FITTING |
| Repalced by: A 0029906071 | ||
| 999R | A 0029906071 | FITTING |
| 999R | A 0029906071 | FITTING |
| 999S | N 007603012405 | SEAL RING |
| ANTI-FREEZE DEVICE | ||
| 999S | N 007603012405 | SEAL RING |
| ANTI-FREEZE DEVICE | ||
| 999T | N 000931008228 | SCREW |
| Repalced by: N 000933008134 | ||
| 999T | N 000933008134 | SCREW |
| ANTI-FREEZE DEVICE TO BODY | ||
| 999T | N 000933008134 | SCREW |
| ANTI-FREEZE DEVICE TO BODY | ||
| 999U | N 913004008005 | NUT |
| ANTI-FREEZE DEVICE TO BODY | ||
| 999U | N 913004008005 | NUT |
| ANTI-FREEZE DEVICE TO BODY | ||
| 999W | N 005685002104 | CHAIN |
| ANTI-FREEZE DEVICE | ||
| 999X | N 005296020205 | RING |
| ANTI-FREEZE DEVICE | ||
| 999Y | N 007971002211 | SHEET METAL SCREW |
| 999Z | N 009021003107 | WASHER |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
