Transporto priemonė: O 305 G; VIN numerio dalis: 307101
Grupė: 30 CONTROL

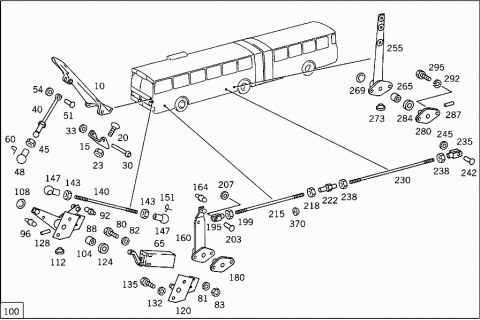

27629

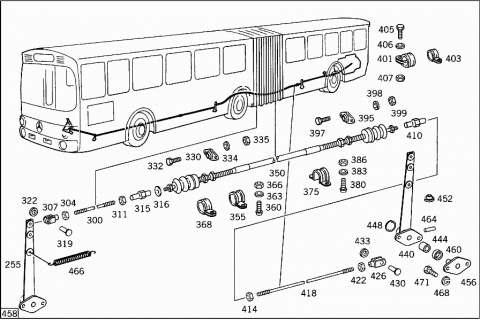

27630

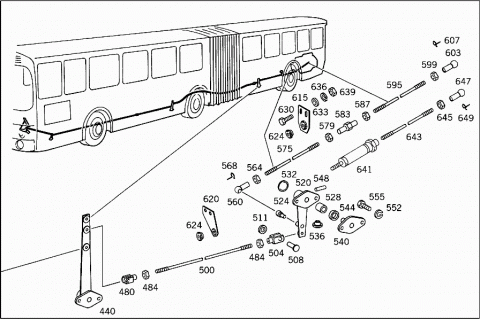

27631

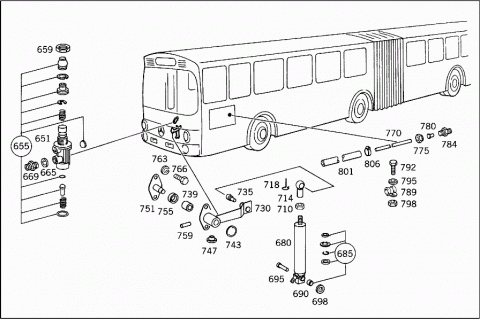

27632
# Kodas Pavadinimas
010 A 3073010002 PEDAL PLATE
ACCELERATOR PEDAL
015 A 3023010105 ARTICULATION PIECE
ACCELERATOR PEDAL
015 A 3023010305 ARTICULATION PIECE
ACCELERATOR PEDAL
020 N 000963008015 SCREW
ARTICULATION ELEMENT TO FLOOR
023 N 913004008004 NUT
ARTICULATION ELEMENT TO FLOOR
030 N 001434010120 PIN
ACCELERATOR PEDAL TO JOINT
033 N 000125010518 WASHER
Repalced by: N 000125010532
033 N 000125010532 WASHER
ACCELERATOR PEDAL TO JOINT
N 000094003219 COTTER PIN
ACCELERATOR PEDAL TO JOINT
040 A 3073003115 ROD
Repalced by: A 3073003015
040 A 3073003015 ROD
FROM PEDAL PLATE TO LEVER
040 A 3073000515 ROD
Repalced by: A 3073000415
040 A 3073000415 ROD
FROM PEDAL PLATE TO LEVER
045 N 000934008010 NUT
ROD TO LEVER
048 N 071805013203 BALL SOCKET
ROD TO LEVER
051 N 001434006099 PIN
ROD TO ACCELERATOR PEDAL
054 N 000125006421 WASHER
ROD TO ACCELERATOR PEDAL
N 000094001617 COTTER PIN
ROD TO ACCELERATOR PEDAL
060 N 071805013402 SECURING CLIP
ROD TO LEVER
065 A 0015454811 SWITCH
DOOR CONTROL LOCK
065 A 0015454811 SWITCH
DOOR CONTROL LOCK
A 0005400084 LEVER
OPERATING LEVER
A 0005400084 LEVER
OPERATING LEVER
080 N 000933004076 SCREW
SWITCH TO FLANGE PLATE
081 N 912004004102 LOCK WASHER
SWITCH TO FLANGE PLATE
082 N 007349004001 WASHER
SWITCH TO FLANGE PLATE
083 N 000934004006 NUT
SWITCH TO FLANGE PLATE
088 A 3073001628 LEVER
Repalced by: A 3073000228
088 A 3073000228 LEVER
(DOUBLE LEVER)
088 A 3073001628 LEVER
Repalced by: A 3073001228
088 A 3073001228 LEVER
(DOUBLE LEVER)
088 A 3073005428 LEVER
(DOUBLE LEVER)
088 A 3073001328 LEVER
Repalced by: A 3073002428
088 A 3073001328 LEVER
Repalced by: A 3073002428
088 A 3073002428 LEVER
Repalced by: A 3073003228
088 A 3073003228 LEVER
(DOUBLE LEVER)
088 A 3073003228 LEVER
AT CYLINDER
088 A 3073003828 LEVER
(DOUBLE LEVER)
088 A 3073003828 LEVER
(DOUBLE LEVER)
N 000933008116 SCREW
Repalced by: N 000933008337
N 000933008337 SCREW
Repalced by: A 0099900101
A 0099900101 SCREW
DOUBLE LEVER
M 8X28
N 000933008160 SCREW
Repalced by: N 304017008040
N 304017008040 SCREW
Repalced by: N 910105008010
N 910105008010 SCREW
DOUBLE LEVER
M 8X40
N 000934008010 NUT
DOUBLE LEVER
092 N 071803010202 BALL PIVOT
DOUBLE LEVER
096 N 071803013208 BALL PIVOT
DOUBLE LEVER
100 A 3053020528 STOP
104 A 3073010150 BUSHING
DOUBLE LEVER BEARING
104 A 3073010150 BUSHING
DOUBLE LEVER BEARING
108 N 000470020000 EXPANSION PLUG
DOUBLE LEVER BEARING
112 A 0009970488 GREASE NIPPLE
DOUBLE LEVER
112 A 0009970488 GREASE NIPPLE
DOUBLE LEVER
120 A 3073000074 PIN
(PIVOT PIN)
120 A 3053000574 PIN
(PIVOT PIN)
120 A 3073000274 PIN
(PIVOT PIN)
120 A 3073000274 PIN
(PIVOT PIN)
120 A 3073000374 PIN
(PIVOT PIN)
120 A 3073000374 PIN
(PIVOT PIN)
124 A 0089974046 SEAL RING
DOUBLE LEVER BEARING
128 N 000007003104 CYLINDRICAL PIN
DOUBLE LEVER BEARING
6X20 MM
128 N 000007003104 CYLINDRICAL PIN
DOUBLE LEVER BEARING
6X20 MM
132 N 912004008102 LOCK WASHER
PIN TO SUBSTRUCTURE
135 N 000933008147 SCREW
Repalced by: N 304017008021
135 N 304017008021 SCREW
PIN TO SUBSTRUCTURE
140 N 900331006619 PULL ROD
FROM DOUBLE LEVER TO INTERMEDIATE LEVER
140 N 900331006618 PULL ROD
FROM DOUBLE LEVER TO INTERMEDIATE LEVER
143 N 000934006007 NUT
PULL ROD
147 N 071805010204 BALL SOCKET
PULL ROD
151 N 071805010403 SECURING CLIP
PULL ROD
160 A 3073005825 LEVER
Repalced by: A 3073000725
160 A 3073000725 LEVER
(INTERMEDIATE LEVER)
I
164 N 071803010209 BALL PIVOT
Repalced by: A 3129910120
164 A 3129910120 BALL PIVOT
INTERMEDIATE LEVER
A 3073010150 BUSHING
INTERMEDIATE LEVER
N 000470020000 EXPANSION PLUG
INTERMEDIATE LEVER
A 0009970488 GREASE NIPPLE
INTERMEDIATE LEVER
180 A 3073000074 PIN
(PIVOT PIN)
A 0089974046 SEAL RING
INTERMEDIATE LEVER
N 000007003104 CYLINDRICAL PIN
INTERMEDIATE LEVER
N 912004008102 LOCK WASHER
PIN TO SUBSTRUCTURE
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
PIN TO SUBSTRUCTURE
A 3053000620 SHAFT
(REVERSING SHAFT)
I
N 071803010202 BALL PIVOT
CONTROL LEVER
A 3059910015 BALL PIVOT
CONTROL SHAFT
N 009045016001 SNAP RING
A 3053010097 BOOT
CONTROL SHAFT
N 009045024001 SNAP RING
N 071412010100 GREASE NIPPLE
N 912004012100 LOCK WASHER
REVERSING SHAFT TO SUBSTRUCTURE
N 000936012005 NUT
Repalced by: N 308675012000
N 308675012000 NUT
REVERSING SHAFT TO SUBSTRUCTURE
A 3073010022 YOKE
FROM CONTROL SHAFT I TO CONTRO SHAFT II
N 000934006007 NUT
FROM CONTROL SHAFT I TO CONTRO SHAFT II
N 900331006616 PULL ROD
FROM CONTROL SHAFT I TO CONTRO SHAFT II
A 3059910204 PIN
ROD TO LEVER
N 000125006421 WASHER
ROD TO LEVER
N 000094001617 COTTER PIN
ROD TO LEVER
A 3073000120 SHAFT
Repalced by: A 3073000420
A 3073000420 SHAFT
(REVERSING SHAFT)
I
N 071803010204 BALL PIVOT
CONTROL LEVER
A 3059910015 BALL PIVOT
CONTROL SHAFT
N 009045016001 SNAP RING
A 3053010097 BOOT
CONTROL SHAFT
N 009045024001 SNAP RING
N 071412010100 GREASE NIPPLE
N 912004012100 LOCK WASHER
REVERSING SHAFT TO SUBSTRUCTURE
N 000936012016 NUT
REVERSING SHAFT TO SUBSTRUCTURE
195 A 3073010022 YOKE
FROM LEVER I TO TURNBUCKLE NUT
N 071805010204 BALL SOCKET
199 N 000934006007 NUT
FROM LEVER I TO TURNBUCKLE NUT
N 071805010403 SECURING CLIP
LINK TO LEVER
N 071805010403 SECURING CLIP
LINK TO REVERSING SHAFT
203 A 3059910204 PIN
PULL ROD TO LEVER I
207 N 000125006421 WASHER
PULL ROD TO LEVER I
N 000094001617 COTTER PIN
PULL ROD TO LEVER I
215 N 900331006634 PULL ROD
FROM LEVER I TO TURNBUCKLE NUT
218 N 000934006012 NUT
L.H. THREAD
222 N 900333006001 TURNBUCKLE
PULL ROD
230 N 900331006625 PULL ROD
FROM TURNBUCKLE NUT TO LEVER II
235 A 3073010022 YOKE
FROM TURNBUCKLE NUT TO LEVER II
238 N 000934006007 NUT
FROM TURNBUCKLE NUT TO LEVER II
242 A 3059910204 PIN
PULL ROD TO LEVER II
245 N 000125006421 WASHER
PULL ROD TO LEVER II
N 000094001617 COTTER PIN
PULL ROD TO LEVER II
255 A 3073005725 LEVER
Repalced by: A 3073004725
255 A 3073004725 LEVER
(INTERMEDIATE LEVER)
II
265 A 3073010150 BUSHING
INTERMEDIATE LEVER
269 N 000470020000 EXPANSION PLUG
INTERMEDIATE LEVER
273 A 0009970488 GREASE NIPPLE
INTERMEDIATE LEVER
280 A 3073000074 PIN
INTERMEDIATE LEVER
284 A 0089974046 SEAL RING
INTERMEDIATE LEVER
287 N 000007003104 CYLINDRICAL PIN
INTERMEDIATE LEVER
292 N 912004008102 LOCK WASHER
PIN TO SUBSTRUCTURE
295 N 000933008147 SCREW
Repalced by: N 304017008021
295 N 304017008021 SCREW
PIN TO SUBSTRUCTURE
300 N 900331006629 PULL ROD
FROM LEVER II TO WIRE CABLE
304 N 000934006007 NUT
FROM LEVER II TO WIRE CABLE
307 A 3073010022 YOKE
FROM LEVER II TO WIRE CABLE
311 N 000934006012 NUT
L.H. THREAD
315 N 900333006001 TURNBUCKLE
FROM LEVER II TO WIRE CABLE
316 N 009021006205 WASHER
Repalced by: N 009021006208
316 N 009021006208 WASHER
FROM LEVER II TO WIRE CABLE
319 A 3059910204 PIN
WIRE CABLE TO LEVER
II
322 N 000125006421 WASHER
WIRE CABLE TO LEVER
II
N 000094001617 COTTER PIN
WIRE CABLE TO LEVER
II
330 A 0003010022 JOINT
WIRE CABLE
332 N 000933006121 SCREW
Repalced by: N 304017006020
332 N 304017006020 SCREW
JOINT TO BRACKET
334 N 009021006205 WASHER
Repalced by: N 009021006208
334 N 009021006208 WASHER
JOINT TO BRACKET
335 N 913004006003 NUT
Repalced by: N 910113006001
335 N 910113006001 NUT
JOINT TO BRACKET
350 A 3073000030 WIRE CABLE
Repalced by: A 3073000730
350 A 3073000730 WIRE CABLE
FROM FRONT CARRIAGE LEVER II TO REAR CARRIAGE LEVER I
A 0005467030 INSULATING HOSE
WIRE CABLE
A 0003010597 BOOT
Repalced by: A 0003010797
A 0003010797 BOOT
WIRE CABLE
355 N 916016013201 CLAMP
WIRE CABLE SO SUBSTRUCTURE IN FRONT OF,AND BEHIND,CENTRAL AXLE
360 N 000084006137 SCREW
WIRE CABLE SO SUBSTRUCTURE IN FRONT OF,AND BEHIND,CENTRAL AXLE
363 N 009021006205 WASHER
Repalced by: N 009021006208
363 N 009021006208 WASHER
WIRE CABLE SO SUBSTRUCTURE IN FRONT OF,AND BEHIND,CENTRAL AXLE
366 N 913004006003 NUT
Repalced by: N 910113006001
366 N 910113006001 NUT
WIRE CABLE SO SUBSTRUCTURE IN FRONT OF,AND BEHIND,CENTRAL AXLE
368 N 916016035205 CLAMP
WIRE CABLE SO SUBSTRUCTURE IN FRONT OF,AND BEHIND,CENTRAL AXLE
370 A 3013020050 BUSHING
ACCELERAT0R CONTROL LINKAGE
375 N 916016013201 CLAMP
WIRE CABLE TO REAR CARRIAGE SUBSTRUCTURE
380 N 000084006137 SCREW
WIRE CABLE TO REAR CARRIAGE SUBSTRUCTURE
383 N 009021006205 WASHER
Repalced by: N 009021006208
383 N 009021006208 WASHER
WIRE CABLE TO REAR CARRIAGE SUBSTRUCTURE
386 N 913004006003 NUT
Repalced by: N 910113006001
386 N 910113006001 NUT
WIRE CABLE TO REAR CARRIAGE SUBSTRUCTURE
395 A 0003010022 JOINT
WIRE CABLE
397 N 000933006121 SCREW
Repalced by: N 304017006020
397 N 304017006020 SCREW
JOINT TO BRACKET
398 N 009021006205 WASHER
Repalced by: N 009021006208
398 N 009021006208 WASHER
JOINT TO BRACKET
399 N 913004006003 NUT
Repalced by: N 910113006001
399 N 910113006001 NUT
JOINT TO BRACKET
401 N 916016038205 CLAMP
WIRE CABLE TO HEATING PIPE
38/20 MM
403 N 916016013201 CLAMP
WIRE CABLE TO HEATING PIPE
13/15 MM
405 N 000084006137 SCREW
WIRE CABLE TO HEATING PIPE
406 N 009021006205 WASHER
Repalced by: N 009021006208
406 N 009021006208 WASHER
WIRE CABLE TO HEATING PIPE
407 N 913004006003 NUT
Repalced by: N 910113006001
407 N 910113006001 NUT
WIRE CABLE TO HEATING PIPE
410 N 900333006001 TURNBUCKLE
FROM WIRE CABLE TO LEVER I
N 009021006205 WASHER
Repalced by: N 009021006208
N 009021006208 WASHER
FROM WIRE CABLE TO LEVER I
414 N 000934006012 NUT
L.H. THREAD
418 N 900331006630 PULL ROD
FROM WIRE CABLE TO LEVER I
422 N 000934006007 NUT
FROM WIRE CABLE TO LEVER I
426 A 3073010022 YOKE
FROM WIRE CABLE TO LEVER I
430 A 3059910204 PIN
PULL ROD TO LEVER I
433 N 000125006421 WASHER
PULL ROD TO LEVER I
N 000094001617 COTTER PIN
PULL ROD TO LEVER I
N 916016020201 CLAMP
WIRE CABLE TO BRACKET
440 A 3073005725 LEVER
Repalced by: A 3073004725
440 A 3073004725 LEVER
(INTERMEDIATE LEVER)
I
444 A 3073010150 BUSHING
INTERMEDIATE LEVER
448 N 000470020000 EXPANSION PLUG
INTERMEDIATE LEVER
452 A 0009970488 GREASE NIPPLE
INTERMEDIATE LEVER
456 A 3073000074 PIN
(PIVOT PIN)
456 A 3073000074 PIN
SEE FIG. NO.:
466
460 A 0089974046 SEAL RING
INTERMEDIATE LEVER
464 N 000007003104 CYLINDRICAL PIN
INTERMEDIATE LEVER
466 A 3059930810 SPRING
RELEASE SPRING
468 N 912004008102 LOCK WASHER
PIN TO SUBSTRUCTURE
471 N 000933008147 SCREW
Repalced by: N 304017008021
471 N 304017008021 SCREW
PIN TO SUBSTRUCTURE
480 A 3073010022 YOKE
PULL ROD TO LEVER I
484 N 000934006007 NUT
PULL ROD TO LEVER I
A 3059910204 PIN
PULL ROD TO LEVER I
N 000125006421 WASHER
PULL ROD TO LEVER I
N 000094001617 COTTER PIN
PULL ROD TO LEVER I
500 N 900331006623 PULL ROD
FROM LEVER I TO LEVER II
504 A 3073010022 YOKE
FROM LEVER I TO LEVER II
508 A 3059910204 PIN
PULL ROD TO LEVER II
511 N 000125006421 WASHER
PULL ROD TO LEVER II
N 000094001617 COTTER PIN
PULL ROD TO LEVER II
520 A 3073005625 LEVER
Repalced by: A 3073006425
520 A 3073001325 LEVER
Repalced by: A 3073006425
520 A 3073005325 LEVER
Repalced by: A 3073006425
520 A 3073000925 LEVER
Repalced by: A 3073006425
520 A 3073006425 LEVER
(INTERMEDIATE LEVER)
III
524 N 071803010202 BALL PIVOT
INTERMEDIATE LEVER
528 A 3073010150 BUSHING
INTERMEDIATE LEVER
532 N 000470020000 EXPANSION PLUG
INTERMEDIATE LEVER
536 A 0009970488 GREASE NIPPLE
INTERMEDIATE LEVER
540 A 3073000074 PIN
(PIVOT PIN)
544 A 0089974046 SEAL RING
INTERMEDIATE LEVER
548 N 000007003104 CYLINDRICAL PIN
INTERMEDIATE LEVER
552 N 912004008102 LOCK WASHER
PIN TO SUBSTRUCTURE
555 N 000933008147 SCREW
Repalced by: N 304017008021
555 N 304017008021 SCREW
PIN TO SUBSTRUCTURE
560 N 071805010204 BALL SOCKET
PULL ROD TO LEVER
564 N 000934006007 NUT
PULL ROD TO LEVER
568 N 071805010403 SECURING CLIP
PULL ROD TO LEVER
575 N 900331006618 PULL ROD
FROM INTERMEDIATE LEVER III TO REAR CONTROL
579 N 000934006007 NUT
PULL ROD
583 N 001480006200 TURNBUCKLE
PULL ROD
587 N 000934006012 NUT
L.H. THREAD
595 N 900331006630 PULL ROD
FROM TURNBUCKLE NUT TO ENGINE
599 N 000934006007 NUT
PULL ROD TO LEVER AT ENGINE
603 N 071805010204 BALL SOCKET
PULL ROD TO LEVER AT ENGINE
607 N 071805010403 SECURING CLIP
PULL ROD TO LEVER AT ENGINE
615 A 3053000240 BRACKET
ACCELERAT0R CONTROL LINKAGE
615 A 3073000740 BRACKET
ACCELERAT0R CONTROL LINKAGE
620 A 3073000040 BRACKET
ACCELERAT0R CONTROL LINKAGE
624 A 3013020050 BUSHING
ACCELERAT0R CONTROL LINKAGE
630 N 000933008212 SCREW
Repalced by: N 304017008016
630 N 304017008016 SCREW
BRACKET TO SUBSTRUCTURE
633 N 000125008418 WASHER
Repalced by: N 000125008443
633 N 000125008443 WASHER
BRACKET TO SUBSTRUCTURE
636 N 912004008102 LOCK WASHER
BRACKET TO SUBSTRUCTURE
639 N 000934008010 NUT
BRACKET TO SUBSTRUCTURE
641 A 3053001415 ROD
FROM CONTROL LEVER TO REAR CONTROL
643 N 900331006615 PULL ROD
FROM CONTROL LEVER TO REAR CONTROL
645 N 000934006012 NUT
FROM CONTROL LEVER TO REAR CONTROL
647 A 0009912422 BALL SOCKET
FROM CONTROL LEVER TO REAR CONTROL
649 N 071805010403 SECURING CLIP
FROM CONTROL LEVER TO REAR CONTROL
A 3013020050 BUSHING
ACCELERAT0R CONTROL LINKAGE
651 A 0004340501 VALVE
Repalced by: A 0004342301
651 A 0004342001 VALVE
Repalced by: A 0004342301
651 A 0004342301 VALVE
3/2-WAY VALVE
WABCO
651 A 0004342301 VALVE
3/2-WAY VALVE
WABCO
651 A 0004342101 VALVE
3/2-WAY VALVE
BOSCH
651 A 0004342101 VALVE
3/2-WAY VALVE
BOSCH
A 0059979248 SEAL RING
BOSCH
A 0059979248 SEAL RING
BOSCH
A 0014315193 SPRING
BOSCH
A 0014315193 SPRING
BOSCH
A 0004314034 STRAINER
BOSCH
A 0004314034 STRAINER
BOSCH
A 0003280191 CLEANER
WABCO
A 0003280191 CLEANER
WABCO
A 0079972548 SEAL RING
WABCO
A 0079972548 SEAL RING
WABCO
A 0004340586 CUP
WABCO
A 0004340586 CUP
WABCO
A 0009971977 HANDLE
WABCO
A 0009971977 HANDLE
WABCO
A 0025865343 REPAIR KIT
BOSCH
A 0025865343 REPAIR KIT
BOSCH
A 0025869843 REPAIR KIT
WABCO 463 013 11 20
A 0025869843 REPAIR KIT
WABCO 463 013 11 20
655 A 0005869743 REPAIR KIT
WABCO 463 013 01 00,463 013 01 20
659 N 080705026000 NUT
Repalced by: N 080705026003
659 N 080705026003 NUT
VALVE TO SUBSTRUCTURE
659 N 080705026003 NUT
VALVE TO SUBSTRUCTURE
N 000988026004 FITTED WASHER
VALVE TO SUBSTRUCTURE
N 000988026004 FITTED WASHER
VALVE TO SUBSTRUCTURE
665 N 007603012405 SEAL RING
3/2-WAY VALVE
665 N 007603012405 SEAL RING
3/2-WAY VALVE
669 A 0019972872 FITTING
Repalced by: A 0039979072
669 A 0039979072 FITTING
Repalced by: A 0029906071
669 A 0029906071 FITTING
3/2-WAY VALVE
669 A 0029906071 FITTING
3/2-WAY VALVE
680 A 0004301926 CYLINDER
Repalced by: A 0004301826
680 A 0004301826 CYLINDER
Repalced by: A 0004302726
680 A 0004302726 CYLINDER
Repalced by: A 0004303026
680 A 0004303026 CYLINDER
ENGINE SHUT-OFF
680 A 0004303026 CYLINDER
ENGINE SHUT-OFF
680 A 0004300226 CYLINDER
Repalced by: A 0004305326
680 A 0004305326 CYLINDER
Repalced by: A 0004306326
680 A 0004306326 CYLINDER
ENGINE SHUT-OFF
685 A 0015867443 REPAIR KIT
POWER CYLINDER
685 A 0015867443 REPAIR KIT
POWER CYLINDER
A 0004200651 REPAIR KIT
POWER CYLINDER
690 A 3073010053 SPACER TUBE
CYLINDER TO BRACKET
690 A 3073010053 SPACER TUBE
CYLINDER TO BRACKET
690 A 3073010253 SPACER TUBE
CYLINDER TO BRACKET
695 N 001434008096 PIN
CYLINDER TO BRACKET
8X45 MM
695 N 001444008220 PIN
CYLINDER TO BRACKET
8X70 MM
698 N 000125008418 WASHER
Repalced by: N 000125008443
698 N 000125008443 WASHER
CYLINDER TO BRACKET
N 000094002053 COTTER PIN
CYLINDER TO BRACKET
710 N 000934008010 NUT
AT CYLINDER
714 N 071805013203 BALL SOCKET
AT CYLINDER
718 N 071805013402 SECURING CLIP
AT CYLINDER
A 0039972872 FITTING
AT CYLINDER
N 007603012110 SEAL RING
AT CYLINDER
A 3012910241 STOP
ENGINE SHUT-OFF
N 000439008211 NUT
Repalced by: N 304035008001
N 304035008001 NUT
STOP TO CONTROL LEVER
730 A 3073005925 LEVER
Repalced by: A 3073001525
730 A 3073001525 LEVER
ENGINE SHUT-OFF
730 A 3073002828 LEVER
ENGINE SHUT-OFF
730 A 3073002828 LEVER
ENGINE SHUT-OFF
730 A 3073005425 LEVER
Repalced by: A 3073002025
730 A 3073002025 LEVER
ENGINE SHUT-OFF
730 A 3073003628 LEVER
ENGINE SHUT-OFF
730 A 3073005128 LEVER
ENGINE SHUT-OFF
735 N 071803013208 BALL PIVOT
SHUT-OFF LEVER
735 N 071803013208 BALL PIVOT
SHUT-OFF LEVER
739 A 3073010150 BUSHING
SHUT-OFF LEVER
739 A 3073010150 BUSHING
SHUT-OFF LEVER
743 N 000470020000 EXPANSION PLUG
SHUT-OFF LEVER
743 N 000470020000 EXPANSION PLUG
SHUT-OFF LEVER
747 A 0009970488 GREASE NIPPLE
SHUT-OFF LEVER
747 A 0009970488 GREASE NIPPLE
SHUT-OFF LEVER
751 A 3073000074 PIN
(PIVOT PIN)
751 A 3073000074 PIN
(PIVOT PIN)
755 A 0089974046 SEAL RING
SHUT-OFF LEVER
755 A 0089974046 SEAL RING
SHUT-OFF LEVER
759 N 000007003104 CYLINDRICAL PIN
SHUT-OFF LEVER
759 N 000007003104 CYLINDRICAL PIN
SHUT-OFF LEVER
763 N 912004008102 LOCK WASHER
PIN TO SUBSTRUCTURE
763 N 912004008102 LOCK WASHER
PIN TO SUBSTRUCTURE
766 N 000933008147 SCREW
Repalced by: N 304017008021
766 N 304017008021 SCREW
PIN TO SUBSTRUCTURE
766 N 304017008021 SCREW
PIN TO SUBSTRUCTURE
770 A 0004291101 LINE
6 MM
770 A 0004291101 LINE
FROM PNEUMATIC SUSPENSION BRANCH-OFF TO CONNECTOR I
6 MM
770 A 0004291101 LINE
FROM CONNECTOR I TO CONNECTOR II
6 MM
770 A 0004291101 LINE
FROM CONNECTOR TO VALVE
6 MM
770 A 0004291101 LINE
FROM CONNECTOR II TO CONNECTOR III
6 MM
770 A 0004291101 LINE
FROM VALVE TO HOSE
6 MM
775 N 915017006100 UNION NUT
LINE CONNECTIONS
780 N 003861006007 GLAND
LINE CONNECTIONS
784 A 0019972872 FITTING
Repalced by: A 0039979072
784 A 0039979072 FITTING
Repalced by: A 0029906071
784 A 0029906071 FITTING
LINE CONNECTIONS
A 0029971672 FITTING
LINE CONNECTIONS
789 N 916016006208 CLAMP
COMPRSSED AIR LINE TO SUBSTRUCTURE
N 916016008200 CLAMP
COMPRSSED AIR LINE TO SUBSTRUCTURE
792 N 000933006127 SCREW
COMPRSSED AIR LINE TO SUBSTRUCTURE
795 N 009021006205 WASHER
Repalced by: N 009021006208
795 N 009021006208 WASHER
COMPRSSED AIR LINE TO SUBSTRUCTURE
798 N 913004006003 NUT
Repalced by: N 910113006001
798 N 910113006001 NUT
COMPRSSED AIR LINE TO SUBSTRUCTURE
801 A 3024760226 HOSE
Repalced by: A 3578320723
801 A 3578320723 HOSE
COMPRESSED AIR LINE TO CYLINDER
806 N 900288012001 CLAMP
COMPRSSED AIR LINE TO SUBSTRUCTURE
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
