Transporto priemonė: O 305 G; VIN numerio dalis: 307101

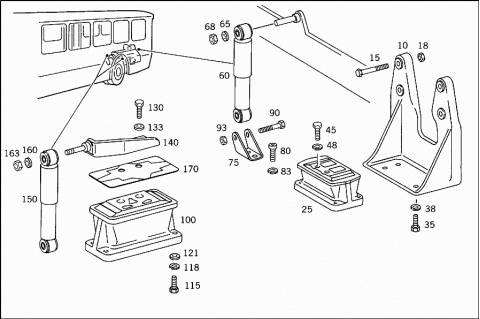

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3072420407 | BEARING BRACKET |
| ENGINE SHOCK ABSORBER | ||
| 010 | A 3072420607 | BEARING BRACKET |
| ENGINE SHOCK ABSORBER | ||
| 015 | N 000960014205 | SCREW |
| Repalced by: N 308765014006 | ||
| 015 | N 308765014006 | SCREW |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| 018 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 018 | N 910113014000 | NUT |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| 025 | A 3072400017 | RUBBER MOUNTING |
| REAR | ||
| 025 | A 3072400117 | RUBBER MOUNTING |
| REAR | ||
| 035 | N 000961012151 | SCREW |
| RUBBER MOUNTING TO BEARING BRACKET | ||
| M 12X30 | ||
| 038 | N 912004012100 | LOCK WASHER |
| RUBBER MOUNTING TO BEARING BRACKET | ||
| 045 | N 000961014054 | SCREW |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M 14X45 | ||
| 045 | N 000961014064 | SCREW |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M 14X50 | ||
| 048 | N 912004014100 | LOCK WASHER |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| 060 | A 3012400048 | ENGINE VIBRATION ABSORBER |
| Repalced by: A 0002402348 | ||
| 060 | A 0002402348 | ENGINE VIBRATION ABSORBER |
| REAR | ||
| A 0002410150 | BUSHING | |
| A 0003232644 | RUBBER BUFFER | |
| Repalced by: A 0003234385 | ||
| A 0003234385 | RUBBER MOUNTING | |
| 065 | N 000125013008 | WASHER |
| 068 | N 913004012008 | NUT |
| ENGINE SHOCK ABSORBER TO FRAME | ||
| 075 | A 4032230640 | BRACKET |
| ENGINE SHOCK ABSORBER | ||
| 080 | N 000912012165 | SCREW |
| BRACKET TO ENGINE SUPPORTING ARM | ||
| 083 | N 912004012100 | LOCK WASHER |
| BRACKET TO ENGINE SUPPORTING ARM | ||
| 090 | N 000960012246 | SCREW |
| Repalced by: N 000960012353 | ||
| 090 | N 000960012353 | SCREW |
| ENGINE SHOCK ABSORBER TO BRACKET | ||
| 093 | N 913004012008 | NUT |
| ENGINE SHOCK ABSORBER TO BRACKET | ||
| 100 | A 3012401218 | RUBBER MOUNTING |
| Repalced by: A 3002400418 | ||
| 100 | A 3002400418 | RUBBER MOUNTING |
| LEFT,CLUTCH END | ||
| 100 | A 3012401718 | RUBBER MOUNTING |
| Repalced by: A 3002400518 | ||
| 100 | A 3002400518 | RUBBER MOUNTING |
| LEFT,CLUTCH END | ||
| 100 | A 3002400618 | RUBBER MOUNTING |
| LEFT,CLUTCH END | ||
| 100 | A 3012400918 | RUBBER MOUNTING |
| Repalced by: A 3832401018 | ||
| 100 | A 3832401018 | RUBBER MOUNTING |
| RIGHT; CLUTCH END | ||
| 100 | A 3012401418 | RUBBER MOUNTING |
| Repalced by: A 3832401118 | ||
| 100 | A 3832401118 | RUBBER MOUNTING |
| RIGHT; CLUTCH END | ||
| 100 | A 3012401818 | RUBBER MOUNTING |
| Repalced by: A 3832401218 | ||
| 100 | A 3832401218 | RUBBER MOUNTING |
| RIGHT; CLUTCH END | ||
| 115 | N 000961012151 | SCREW |
| RUBBER MOUNTING TO CHASSIS | ||
| 118 | N 912004012100 | LOCK WASHER |
| RUBBER MOUNTING TO CHASSIS | ||
| 121 | N 000125013008 | WASHER |
| 130 | N 000961016088 | SCREW |
| Repalced by: N 000961016097 | ||
| 130 | N 000961016097 | SCREW |
| Repalced by: N 308676016005 | ||
| 130 | N 308676016005 | SCREW |
| RUBBER MOUNT & ENGINE SHOCK ABSORBER BRACKET TO BELL HOUSING SUPPORTING ARM | ||
| 133 | A 3019900640 | WASHER |
| RUBBER MOUNT & ENGINE SHOCK ABSORBER BRACKET TO BELL HOUSING SUPPORTING ARM | ||
| 140 | A 3012400040 | BRACKET |
| Repalced by: A 3012400240 | ||
| 140 | A 3012400240 | BRACKET |
| ENGINE SHOCK ABSORBER,LEFT | ||
| 140 | A 3012400140 | BRACKET |
| ENGINE SHOCK ABSORBER, RIGHT | ||
| 150 | A 3012400048 | ENGINE VIBRATION ABSORBER |
| Repalced by: A 0002402348 | ||
| 150 | A 0002402348 | ENGINE VIBRATION ABSORBER |
| REAR LEFT AND RIGHT | ||
| A 0002410150 | BUSHING | |
| A 0003232644 | RUBBER BUFFER | |
| Repalced by: A 0003234385 | ||
| A 0003234385 | RUBBER MOUNTING | |
| 160 | N 000125013008 | WASHER |
| 163 | N 913004012008 | NUT |
| ENGINE SHOCK ABSORBER TO SUPPORT AND TO BRACKET | ||
| 170 | A 3832420034 | SCREENING PLATE |
| RUBBER MOUNT & ENGINE SHOCK ABSORBER BRACKET TO BELL HOUSING SUPPORTING ARM | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR REAR SUPPORTING ARM, SEE AUTOMATIC TRANSMISSION UNIT PARTS LIST | ||
| 720.0 | ||
