Transporto priemonė: O 305 G; VIN numerio dalis: 307101

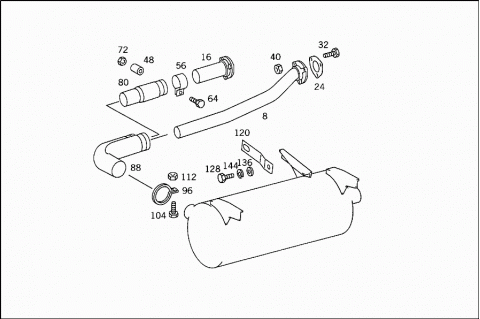

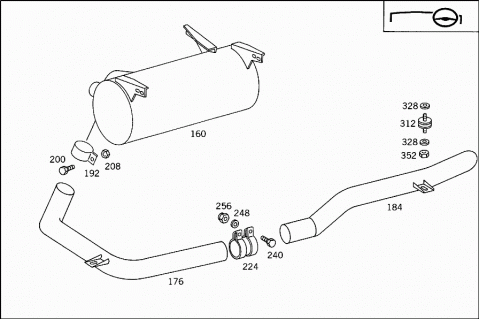

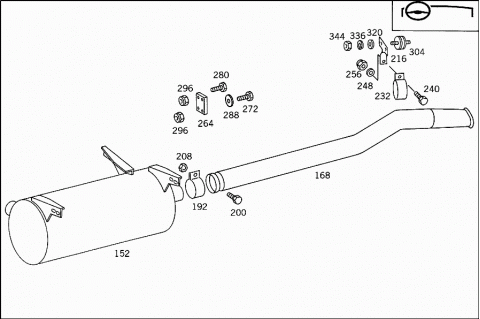

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 3074900319 | EXHAUST PIPE |
| LONG,AT EXHAUST MANIFOLD | ||
| 008 | A 3074900619 | EXHAUST PIPE |
| LONG,AT EXHAUST MANIFOLD | ||
| 016 | A 3074900219 | EXHAUST PIPE |
| SHORT,AT EXHAUST MANIFOLD | ||
| 016 | A 3074900519 | EXHAUST PIPE |
| SHORT,AT EXHAUST MANIFOLD | ||
| 024 | A 3074920080 | FLANGE GASKET |
| Repalced by: A 3124921080 | ||
| 024 | A 3124921080 | FLANGE GASKET |
| Repalced by: A 4424920280 | ||
| 024 | A 4424920280 | FLANGE GASKET |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 032 | N 000931010258 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 10X55 | ||
| 032 | N 304017010030 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 10X50 | ||
| 040 | N 999901010000 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 048 | A 3074920053 | SPACER TUBE |
| LEFT EXHAUST PIPE TO RIGHT EXHAUST PIPE | ||
| 056 | N 071555060500 | CLAMP |
| Repalced by: N 000000001642 | ||
| 056 | N 000000001642 | CLAMP |
| FRONT EXHAUST PIPE | ||
| 056 | N 071555063500 | CLAMP |
| EXHAUST HOSE TO EXHAUST PIPE | ||
| 064 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 064 | N 304017008034 | SCREW |
| FRONT EXHAUST PIPE | ||
| M 8 X 25 | ||
| 064 | N 304017008034 | SCREW |
| EXHAUST HOSE TO EXHAUST PIPE | ||
| M 8 X 25 | ||
| 064 | N 000931008248 | SCREW |
| Repalced by: N 304017008053 | ||
| 064 | N 304017008053 | SCREW |
| LEFT EXHAUST PIPE TO RIGHT EXHAUST PIPE | ||
| M 8 X 60 | ||
| 072 | N 000934008010 | NUT |
| FRONT EXHAUST PIPE | ||
| 072 | N 000934008010 | NUT |
| LEFT EXHAUST PIPE TO RIGHT EXHAUST PIPE | ||
| 072 | N 000934008010 | NUT |
| EXHAUST HOSE TO EXHAUST PIPE | ||
| 080 | A 3074900068 | CONNECTOR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 080 | A 3074920059 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 088 | A 3074900119 | EXHAUST PIPE |
| FRONT,REAR PART | ||
| 088 | A 3074900719 | EXHAUST PIPE |
| FRONT,REAR PART | ||
| 096 | N 071555078502 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 104 | N 000933010105 | SCREW |
| EXHAUST PIPE TO MUFFLER | ||
| 112 | N 000934010014 | NUT |
| EXHAUST PIPE TO MUFFLER | ||
| 120 | A 3074921541 | BRACKET |
| EXHAUST PIPE TO MUFFLER | ||
| 128 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 128 | N 304017006034 | SCREW |
| EXHAUST PIPE TO MUFFLER | ||
| M 6X10 | ||
| 136 | N 000125006421 | WASHER |
| EXHAUST PIPE TO MUFFLER | ||
| 144 | N 912004006102 | LOCK WASHER |
| EXHAUST PIPE TO MUFFLER | ||
| 152 | A 3074900901 | EXHAUST MUFFLER |
| Repalced by: A 3074901501 | ||
| 152 | A 3074901501 | EXHAUST MUFFLER |
| Repalced by: A 3074901601 | ||
| 152 | A 3074901601 | EXHAUST MUFFLER |
| 152 | A 3074901601 | EXHAUST MUFFLER |
| 160 | A 3074901001 | EXHAUST MUFFLER |
| 160 | A 3074901701 | EXHAUST MUFFLER |
| 168 | A 3074905021 | EXHAUST PIPE |
| REAR | ||
| 168 | A 3074905021 | EXHAUST PIPE |
| REAR | ||
| 176 | A 3074904821 | EXHAUST PIPE |
| REAR,FRONT PART | ||
| 184 | A 3074904921 | EXHAUST PIPE |
| REAR;REAR PART | ||
| 192 | N 071555078502 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 200 | N 000933010105 | SCREW |
| EXHAUST PIPE TO MUFFLER | ||
| 200 | N 000933010105 | SCREW |
| EXHAUST PIPE TO MUFFLER | ||
| 208 | N 000934010014 | NUT |
| EXHAUST PIPE TO MUFFLER | ||
| 208 | N 000934010014 | NUT |
| EXHAUST PIPE TO MUFFLER | ||
| 216 | A 3074921041 | BRACKET |
| REAR EXHAUST PIPE | ||
| 216 | A 3074921041 | BRACKET |
| REAR EXHAUST PIPE | ||
| 224 | A 3074900540 | BRACKET |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 232 | N 071555085502 | CLAMP |
| CLAMP TO BRACKET AND TO PIPE | ||
| 232 | N 071555085502 | CLAMP |
| CLAMP TO BRACKET AND TO PIPE | ||
| 240 | N 000933010145 | SCREW |
| CLAMP TO BRACKET | ||
| 240 | N 000933010145 | SCREW |
| CLAMP TO BRACKET | ||
| 248 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 248 | N 000125010532 | WASHER |
| CLAMP TO BRACKET | ||
| 248 | N 000125010532 | WASHER |
| CLAMP TO BRACKET | ||
| 256 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 256 | N 910113010000 | NUT |
| CLAMP TO BRACKET | ||
| 256 | N 910113010000 | NUT |
| CLAMP TO BRACKET | ||
| A 3054920082 | DAMPING PAD | |
| Repalced by: A 3025860049 | ||
| A 3179910840 | SPACER TUBE | |
| Repalced by: A 3025860049 | ||
| A 3174920018 | BASE PLATE | |
| Repalced by: A 3025860049 | ||
| A 3174920083 | INSULATION | |
| Repalced by: A 3025860049 | ||
| A 3025860049 | REPAIR KIT | |
| Repalced by: A 3024900037 | ||
| A 3024900037 | REPAIR KIT | |
| Repalced by: A 3054920182 | ||
| 264 | A 3054920182 | DAMPING PAD |
| Repalced by: A 3574920182 | ||
| 264 | A 3574920182 | DAMPING PAD |
| Repalced by: A 0004920082 | ||
| 264 | A 0004920082 | DAMPING PAD |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 272 | N 000931008266 | SCREW |
| DAMPING PAD TO SUBSTRUCTURE | ||
| M 8X40 | ||
| 272 | N 000931008244 | SCREW |
| DAMPING PAD TO SUBSTRUCTURE | ||
| 280 | N 000931008244 | SCREW |
| EXHAUST MUFFLER TO DAMPING PAD | ||
| M 8X45 | ||
| 280 | N 000931008246 | SCREW |
| Repalced by: N 304017008028 | ||
| 280 | N 304017008028 | SCREW |
| EXHAUST MUFFLER TO DAMPING PAD | ||
| M 8X50 | ||
| 288 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 288 | N 000125008443 | WASHER |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 296 | N 913004008005 | NUT |
| EXHAUST MUFFLER TO DAMPING PAD | ||
| 296 | N 913004008005 | NUT |
| DAMPING PAD TO SUBSTRUCTURE | ||
| 304 | A 3225040212 | RUBBER MOUNTING |
| REAR EXHAUST PIPE BRACKET TO BODY | ||
| 304 | A 3225040212 | RUBBER MOUNTING |
| REAR EXHAUST PIPE BRACKET TO BODY | ||
| 312 | A 0019875340 | RUBBER BUFFER |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 320 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 320 | N 000125008443 | WASHER |
| REAR EXHAUST PIPE BRACKET TO BODY | ||
| 320 | N 000125008443 | WASHER |
| REAR EXHAUST PIPE BRACKET TO BODY | ||
| 328 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 328 | N 000125010532 | WASHER |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 336 | N 912004008102 | LOCK WASHER |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 336 | N 912004008102 | LOCK WASHER |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 344 | N 000934008010 | NUT |
| REAR EXHAUST PIPE BRACKET TO BODY | ||
| 344 | N 000934008010 | NUT |
| REAR EXHAUST PIPE BRACKET TO BODY | ||
| 352 | N 913004010011 | NUT |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
