Transporto priemonė: O 305 G; VIN numerio dalis: 307101
Grupė: 47 FUEL SYSTEM

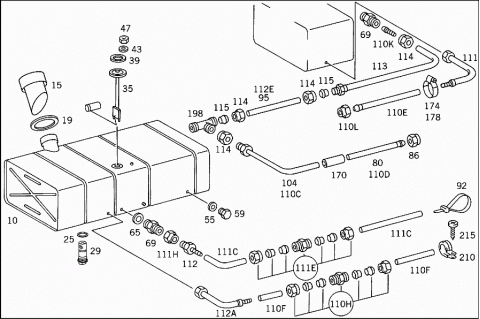

56256
56257
# Kodas Pavadinimas
010 A 3074700401 FUEL TANK
Repalced by: A 3074701401
010 A 3074701701 FUEL TANK
Repalced by: A 3074701401
010 A 3074701401 FUEL TANK
LESS SENDER UNIT
250 L.
015 A 3074710030 FILLER CAP
Repalced by: A 0004716630
015 A 0004716630 FILLER CAP
019 A 0004710980 GASKET
A 0004700993 VALVE
025 A 0029977245 SEAL RING
029 A 3604700006 FUEL STRAINER
Repalced by: A 3074700106
029 A 3074700106 FUEL STRAINER
035 A 0005426117 SENDER UNIT
039 A 3524710080 GASKET
Repalced by: A 4044710080
039 A 4044710080 GASKET
043 A 0669970640 SEAL RING
047 N 000934005008 NUT
055 N 007603014106 SEAL RING
CONNECTION OF HEATER UNIT AND FUEL LEAK LINE
059 N 007604014106 SCREW PLUG
Repalced by: N 007604014110
059 N 007604014110 SCREW PLUG
CONNECTION OF HEATER UNIT AND FUEL LEAK LINE
062 A 0019978390 LOOM TIE
LEAK LINE
065 N 007603014106 SEAL RING
CONNECTION OF FUEL LINES
069 N 915013008002 SCREW FITTING
Repalced by: A 4039971172
069 A 4039971172 FITTING
CONNECTION OF FUEL LINES
069 A 3079972472 FITTING
CONNECTION OF FUEL LINES
080 A 3404702165 LINE
WITH SEAL CONE
3000 MM
080 A 3404702165 LINE
FROM TANK TO FRONT HOSE,FEED & RETURN
3000 MM
080 A 3404702165 LINE
FROM T-FITTING TO HOSE;RETURN
3000 MM
086 N 915017010201 UNION NUT
095 A 0004290901 LINE
10 MM
095 A 0004290901 LINE
FROM FRONT HOSE TO HOSE BEHIND REAR AXLE
10 MM
104 A 3404702865 LINE
WITH FITTING
3000 MM
104 A 3404702865 LINE
HOSE BEHIND REAR AXLE,HOSE,FILTER;FEED
3000 MM
110 A 3404701465 LINE
WITH BANJO UNION
3000 MM
110 A 3404701465 LINE
FROM FUEL HOSE TO FUEL FILTER
3000 MM
110 A 3404701265 LINE
WITH BANJO UNION
1000 MM
110 A 3404701265 LINE
HOSE,PUMP,FILTER,INJECTION PUMP; FEED
1000 MM
110 A 3404701265 LINE
OVERFLOW VALVE,FUEL FILTER;RETURN
1000 MM
110 A 3404701265 LINE
WITH BANJO UNION
1000 MM
A 3074701765 LINE
Repalced by: A 3074709665
110A A 3074709665 LINE
RETURN LINE TO FUEL FILTER
110C A 3404702665 LINE
WITH FITTING
1000 MM
110C A 3404702665 LINE
HOSE,PUMP,FILTER,INJECTION PUMP; FEED
1000 MM
110C A 3404702665 LINE
OVERFLOW VALVE,FUEL FILTER;RETURN
1000 MM
110C A 3404702665 LINE
FROM T-FITTING TO ENGINE;FUEL LEAK
1000 MM
A 3404701965 LINE
WITH SEAL CONE
1000 MM
A 3404701965 LINE
T-FITTING,FUEL LEAK LINE,ENGINE
1000 MM
A 3404701965 LINE
WITH SEAL CONE
1000 MM
110D A 3404706165 LINE
WITH FITTING
1000 MM
110E A 3404705665 LINE
WITH SEAL CONE
3000 MM
110F A 0089979082 HOSE
Repalced by: A 0009872727
110F A 0009872727 PLASTIC PIPE
FUEL PIPING CONNECTION
8 MM
110H A 0039978972 FITTING
Repalced by: A 0029905971
110H A 0029905971 FITTING
(PARTS KIT),LINE RUPTURE
110K A 0019977672 FITTING
110L N 915017008201 UNION NUT
111 A 3074760124 CONNECTOR
111 A 3074760224 CONNECTOR
111C A 0019970652 HOSE
FROM TANK TO FEED & RETURN LINE SCREWCONNECTIONS
10 MM
111E A 0049971672 FITTING
(PARTS KIT),LINE RUPTURE
TO 001 997 06 52
111H N 915017010201 UNION NUT
112 A 0019974972 FITTING
FROM TANK TO FEED & RETURN LINE SCREWCONNECTIONS
112 N 915059008001 FITTING
FROM TANK TO FEED & RETURN LINE SCREWCONNECTIONS
112A A 0004760524 CONNECTOR
FROM RETURN LINE TO FUEL TANK
112C A 0049971672 FITTING
FUEL LINE TO FUEL LINE
A 3074702165 LINE
Repalced by: A 3074709865
A 3074702265 LINE
Repalced by: A 3074709865
A 3074702365 LINE
Repalced by: A 3074709865
A 3074702465 LINE
Repalced by: A 3074709865
A 3074702565 LINE
Repalced by: A 3074709865
A 3074703065 LINE
Repalced by: A 3074709865
A 3074705565 LINE
Repalced by: A 3074709865
A 3074702765 LINE
Repalced by: A 3074709665
112E A 0004293301 LINE
112E A 0004293301 LINE
FROM SCREW-CONNECTION TO T-FITTING
665 MM
112E A 0004293301 LINE
FROM T-FITTING TO CONNECTION POINT II
1050 MM
112E A 0004293301 LINE
FROM SCREW CONNECTION BEHIND REAR AXLE TO HOSE
360 MM
113 A 3074702766 LINE
WITH SEAL CONE
1000 MM
113 A 3074702766 LINE
FROM FUEL TANK TO CONNECTION POINT I
1000 MM
113 A 3074709865 LINE
WITH FITTING
1000 MM
113 A 3074709865 LINE
FROM FUEL TANK TO CONNECTION POINT I
1000 MM
113 A 3074709865 LINE
FROM SCREW CONNECTION BEHIND REAR AXLE TO HOSE
1000 MM
113 A 3074709865 LINE
FROM HOSE TO FEED PUMP
1000 MM
113 A 3074709865 LINE
FROM FEED PUMP TO RUBBER HOSE
1000 MM
113 A 3074709865 LINE
FROM FUEL HOSE TO FUEL FILTER
1000 MM
113 A 3074709865 LINE
FROM FUEL FILTER TO RUBBER HOSE
1000 MM
113 A 3074709865 LINE
FROM INJECTION PUMP TO RUBBER HOSE
1000 MM
113 A 3074709865 LINE
FROM RUBBER HOSE TO INJECTION PUMP
1000 MM
113A A 3074709765 LINE
WITH BANJO UNION
1000 MM
113A A 3074709765 LINE
FROM HOSE TO FEED PUMP
1000 MM
113A A 3074709765 LINE
FROM FEED PUMP TO RUBBER HOSE
1000 MM
113A A 3074709765 LINE
FROM FUEL HOSE TO FUEL FILTER
1000 MM
113A A 3074709765 LINE
FROM FUEL FILTER TO RUBBER HOSE
1000 MM
113A A 3074709765 LINE
FROM INJECTION PUMP TO RUBBER HOSE
1000 MM
113A A 3074709765 LINE
FROM RUBBER HOSE TO INJECTION PUMP
1000 MM
113A A 3074709765 LINE
FROM FUEL HOSE TO T-FITTING
1000 MM
113A A 3074709665 LINE
WITH BANJO UNION AND HOSE SECTION OFFSET BY 45 DEGREES
113A A 3074709665 LINE
FROM FUEL FILTER TO CONNECTOR
114 N 915017010100 UNION NUT
FUEL LINES
115 N 003861010009 GLAND
FUEL LINES
116 N 007603014106 SEAL RING
LINE TO FEED PUMP
116 N 007603014106 SEAL RING
FUEL LINE TO INJECTION PUMP AND TO FILTER
120 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
120 N 915036010108 HOLLOW SCREW
LINE TO FEED PUMP
120 N 915036010108 HOLLOW SCREW
FUEL LINE TO INJECTION PUMP AND TO FILTER
125 N 007603014106 SEAL RING
RETURN LINE TO FUEL FILTER
130 A 3529970772 FITTING
Repalced by: A 6159900263
130 A 6159900263 HOLLOW SCREW
RETURN LINE TO FUEL FILTER
170 A 3054760126 HOSE
TO CONNECT THE FUEL LINES
174 N 916017011000 CLAMP
Repalced by: N 916017011001
174 N 916017011001 CLAMP
Repalced by: N 000000000665
174 N 000000000665 CLAMP
FUEL HOSE TO FUEL LINE
178 N 916026016001 CLAMP
Repalced by: A 0059970190
178 A 0059970190 LOOM TIE
FUEL LINES
185 A 0039974582 HOSE
T-FITTING,FUEL PUMP,LINE,FILTER
270 MM
195 N 007619008001 T-FITTING
INJECTION PUMP,RETURN
195 N 007619008001 T-FITTING
FUEL LEAK LINE,FUEL FILTER
198 N 003908010002 T-FITTING
RETURN LINE
N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
N 915036010108 HOLLOW SCREW
FUEL LINE,OVERFLOW VALVE
202 N 007603014106 SEAL RING
FUEL LINE,OVERFLOW VALVE
204 A 3179950832 CLAMP
FUEL LINE
205 A 3125251089 BASE
Repalced by: A 3142030084
A 3142030084 SHIM
FUEL LINE
206 N 913004006003 NUT
Repalced by: N 910113006001
206 N 910113006001 NUT
FUEL LINE
207 N 000933006127 SCREW
FUEL LINE
M 6X25
210 N 916016010201 CLAMP
Repalced by: N 916016010211
210 N 916016010211 CLAMP
Repalced by: N 000000001045
210 N 000000001045 CLAMP
TANK-TO-FILTER LINES TO SUBSTRUCTURE
215 N 000933006127 SCREW
TANK-TO-FILTER LINES TO SUBSTRUCTURE
219 N 009021006205 WASHER
Repalced by: N 009021006208
219 N 009021006208 WASHER
TANK-TO-FILTER LINES TO SUBSTRUCTURE
223 N 913004006003 NUT
Repalced by: N 910113006001
223 N 910113006001 NUT
TANK-TO-FILTER LINES TO SUBSTRUCTURE
230 A 3129950232 CLAMP
Repalced by: A 4429955032
230 A 4429955032 CLAMP
HOSE-TO-FILTER LINES TO SUBSTRUCTURE
235 N 000933006183 SCREW
Repalced by: N 304017006016
235 N 304017006016 SCREW
HOSE-TO-FILTER LINES TO SUBSTRUCTURE
239 N 009021006205 WASHER
Repalced by: N 009021006208
239 N 009021006208 WASHER
HOSE-TO-FILTER LINES TO SUBSTRUCTURE
243 N 913004006002 NUT
Repalced by: N 913004006001
243 N 913004006001 NUT
HOSE-TO-FILTER LINES TO SUBSTRUCTURE
244 A 0019978390 LOOM TIE
FUEL LINES
280 MM
244 A 0019978490 LOOM TIE
FUEL LINES
367 MM
245 N 916016015202 CLAMP
HEATING LINE TO FRAME
246 N 009021006205 WASHER
Repalced by: N 009021006208
246 N 009021006208 WASHER
HEATING LINE TO FRAME
247 N 007981006215 SHEET METAL SCREW
HEATING LINE TO FRAME
250 A 0014774801 FUEL FILTER
Repalced by: A 0010921801
250 A 0010921801 FILTER
KNECHT
250 A 0014774901 FUEL FILTER
Repalced by: A 0010921901
250 A 0010921901 FILTER
HENGST
A 0004773308 COVER
Repalced by: A 0004773708
A 0004773708 COVER
Repalced by: A 0000922808
250A A 0000922808 FILTER HEAD
TO 001 477 48 01,001 092 18 01
250A A 0004773408 COVER
TO 001 477 49 01
A 0000923708 FILTER HEAD
TO 001 092 19 01
250C A 0004770605 HOUSING
TO 001 092 18 01,001 477 48 01
250D N 007603008109 SEAL RING
COVER TO HOUSING
250E N 000931008207 SCREW
Repalced by: N 304014008007
250E N 304014008007 SCREW
COVER TO HOUSING
TO 001 477 49 01,M 8X90
250E N 000931008251 SCREW
COVER TO HOUSING
TO 001 092 18 01,19 01,001 477 48 01
251 A 0004773072 SCREW
BREATHER
TO 001 477 49 01
251 A 0000741771 SCREW
BREATHER
TO 001 477 48 01
251 A 0000745171 SCREW
Repalced by: A 4420740071
251 A 4420740071 SCREW
BREATHER
TO 001 092 18 01,001 477 48 01
251A N 007603008109 SEAL RING
BREATHER
TO 001 092 18 01,001 477 48 01
251A N 007603008109 SEAL RING
BREATHER
TO 001 092 19 01
251A N 007603006108 SEAL RING
BREATHER
TO 001 477 48 01
252 N 007603014106 SEAL RING
LATERAL TOP
TO 001 092 18 01,001 477 48 01
253 N 007604014106 SCREW PLUG
Repalced by: N 007604014110
253 N 007604014110 SCREW PLUG
LATERAL TOP
TO 001 092 18 01,001 477 48 01
253 N 000906014000 SCREW PLUG
LATERAL TOP
TO 001 477 49 01
254 A 0004773580 SEAL RING
COVER TO HOUSING
A 0000922005 FILTER ELEMENT
Repalced by: A 0004774715
A 0000922705 FILTER ELEMENT
Repalced by: A 3524700092
A 0004774715 FILTER ELEMENT
Repalced by: A 3524700092
A 0004773815 FILTER ELEMENT
Repalced by: A 3524700092
255 A 3524700092 FILTER ELEMENT
Repalced by: A 0000901151
255 A 0000901151 FILTER ELEMENT
260 N 912004012100 LOCK WASHER
FUEL FILTER TO BRACKET
264 N 000933012077 SCREW
FUEL FILTER TO BRACKET
