Transporto priemonė: O 305 G; VIN numerio dalis: 307101
Grupė: 55 HYDRAULIC SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |

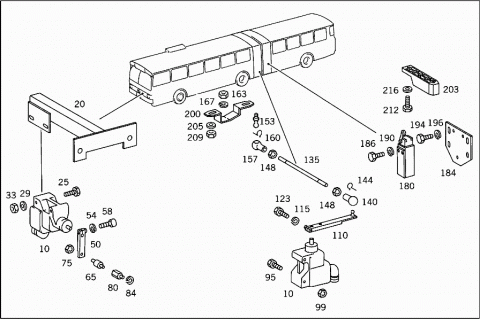

| JACKKNIFING AND DAMPING REGULATION | ||
| 010 | A 0045429217 | SENDER UNIT |
| Repalced by: A 0055428917 | ||
| 010 | A 0055428917 | SENDER UNIT |
| STEERING ANGLE | ||
| 010 | A 0055428917 | SENDER UNIT |
| JACKKNIFING ANGLE | ||
| 020 | A 3075500040 | BRACKET |
| STEERING ANGLE SENDER UNIT | ||
| 020 | A 3075500140 | BRACKET |
| STEERING ANGLE SENDER UNIT | ||
| 025 | N 000931006138 | SCREW |
| SENDER UNIT TO BRACKET | ||
| 029 | N 000125006421 | WASHER |
| SENDER UNIT TO BRACKET | ||
| 033 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 033 | N 910113006001 | NUT |
| SENDER UNIT TO BRACKET | ||
| 050 | A 0005420142 | LEVER |
| Repalced by: A 3075400184 | ||
| 050 | A 3075400184 | LEVER |
| STEERING ANGLE SENDER UNIT | ||
| 050 | A 3075400684 | LEVER |
| STEERING ANGLE SENDER UNIT | ||
| 054 | N 912004006102 | LOCK WASHER |
| 058 | N 000912006040 | SCREW |
| 065 | A 0009883011 | BUFFER |
| 065 | A 0009883111 | BUFFER |
| 075 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 075 | N 910113006001 | NUT |
| BUFFER TO SENDER UNIT | ||
| 080 | A 3075530074 | PIN |
| PITMAN ARM | ||
| 084 | N 912006008000 | LOCK WASHER |
| PIN TO PITMAN ARM | ||
| 095 | N 000931006187 | SCREW |
| Repalced by: N 304014006005 | ||
| 095 | N 304014006005 | SCREW |
| JACKKNIFING ANGLE SENDER UNIT TO SUBSTRUCTURE | ||
| 099 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 099 | N 910113006001 | NUT |
| JACKKNIFING ANGLE SENDER UNIT TO SUBSTRUCTURE | ||
| 110 | A 0005420042 | LEVER |
| Repalced by: A 3075400284 | ||
| 110 | A 3075400284 | LEVER |
| JACKKNIFING ANGLE | ||
| 115 | N 912004006102 | LOCK WASHER |
| 123 | N 000912006040 | SCREW |
| 135 | N 900331006615 | PULL ROD |
| Repalced by: A 3075500025 | ||
| 140 | N 071805010204 | BALL SOCKET |
| Repalced by: A 3075500025 | ||
| 144 | N 071805010403 | SECURING CLIP |
| Repalced by: A 3075500025 | ||
| 148 | N 000934006012 | NUT |
| Repalced by: A 3075500025 | ||
| 153 | N 071803010102 | BALL PIVOT |
| Repalced by: A 3075500025 | ||
| 157 | N 071805010204 | BALL SOCKET |
| Repalced by: A 3075500025 | ||
| 160 | N 071805010403 | SECURING CLIP |
| Repalced by: A 3075500025 | ||
| A 3075500025 | OPERATING ROD | |
| STEERING ANGLE SENDER UNIT | ||
| 163 | N 000934006012 | NUT |
| ANGLE JOINT TO BRACKET | ||
| 167 | N 912004006102 | LOCK WASHER |
| ANGLE JOINT TO BRACKET | ||
| 180 | A 0015455011 | SWITCH |
| (LIMIT VALUE FEELER) | ||
| A 0015455111 | SWITCH | |
| Repalced by: A 3075400044 | ||
| 180 | A 3075400044 | SWITCH |
| (LIMIT VALUE FEELER) | ||
| 184 | A 3075400021 | TRAY |
| SWITCH | ||
| 186 | N 000084004128 | SCREW |
| SWITCH TO BRACKET | ||
| 186 | N 000084004428 | SCREW |
| SWITCH TO MOUNTING PLATE | ||
| 186 | N 000084004139 | SCREW |
| SWITCH TO MOUNTING PLATE | ||
| 190 | N 912004004102 | LOCK WASHER |
| SWITCH TO BRACKET | ||
| 190 | N 912004004102 | LOCK WASHER |
| SWITCH TO MOUNTING PLATE | ||
| 194 | N 000084005402 | SCREW |
| PLATE TO BRACKET | ||
| 196 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 196 | N 000433005304 | WASHER |
| PLATE TO BRACKET | ||
| 200 | A 3055510386 | STOP |
| 203 | A 3075510086 | STOP |
| Repalced by: A 3075510186 | ||
| 203 | A 3075510186 | STOP |
| 205 | N 000125006421 | WASHER |
| STOP TO RING MOUNT | ||
| 209 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 209 | N 910113006001 | NUT |
| STOP TO RING MOUNT | ||
| 212 | N 000912006044 | SCREW |
| STOP TO RING MOUNT | ||
| 212 | N 000912006066 | SCREW |
| STOP TO RING MOUNT | ||
| 216 | N 000125006421 | WASHER |
| STOP TO RING MOUNT | ||

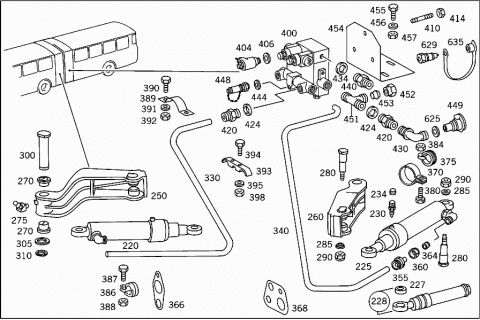

| 220 | A 3055500007 | CYLINDER |
| Repalced by: A 3055550207 | ||
| 220 | A 3055500207 | CYLINDER |
| Repalced by: A 3055500407 | ||
| 220 | A 3055500407 | CYLINDER |
| LEFT FRONT, RIGHT REAR | ||
| 225 | A 3055500107 | CYLINDER |
| Repalced by: A 3055500307 | ||
| 225 | A 3055500307 | CYLINDER |
| Repalced by: A 3055500507 | ||
| 225 | A 3055500507 | CYLINDER |
| RIGHT FRONT,LEFT REAR | ||
| 227 | A 0019812631 | JOINT BEARING |
| TO 305 550 00 07 - 05 07 | ||
| 228 | A 0005500025 | OPERATING ROD |
| PARTS KIT | ||
| TO 305 550 00 07 - 05 07 | ||
| 230 | A 0004310265 | VALVE |
| Repalced by: A 3075530107 | ||
| 230 | A 3075530107 | VALVE |
| BREATHER | ||
| TO 305 550 04 07,05 07 | ||
| 234 | A 3164210187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 234 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 234 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 234 | A 0004210887 | PROTECTIVE CAP |
| A 3075501185 | CONTROL ARM | |
| Repalced by: A 3075502185 | ||
| 250 | A 3075502185 | CONTROL ARM |
| LEFT FRONT | ||
| 250 | A 3075501085 | CONTROL ARM |
| Repalced by: A 3075502085 | ||
| 250 | A 3075502085 | CONTROL ARM |
| RIGHT FRONT | ||
| 260 | A 3075500885 | CONTROL ARM |
| Repalced by: A 3075500485 | ||
| 260 | A 3075500485 | CONTROL ARM |
| LEFT REAR | ||
| 260 | A 3075500985 | CONTROL ARM |
| Repalced by: A 3075500585 | ||
| 260 | A 3075500585 | CONTROL ARM |
| RIGHT REAR | ||
| 270 | A 0009921905 | BUSHING |
| OUTSIDE | ||
| 275 | N 071412008200 | GREASE NIPPLE |
| SUPPORTING ARM | ||
| 280 | A 3055530274 | PIN |
| DAMPING CYLINDER TO BEARING BRACKET AND TO CONTROL ARM | ||
| 285 | A 3055530076 | WASHER |
| DAMPING CYLINDER TO BEARING BRACKET AND TO CONTROL ARM | ||
| 290 | N 913001016004 | NUT |
| DAMPING CYLINDER TO BEARING BRACKET AND TO CONTROL ARM | ||
| 300 | A 3055530374 | PIN |
| CONTROL ARM TO BEARING BRACKET | ||
| 305 | A 3059900940 | WASHER |
| CONTROL ARM TO BEARING BRACKET | ||
| 3 MM | ||
| 305 | A 3059901040 | WASHER |
| CONTROL ARM TO BEARING BRACKET | ||
| 2 MM | ||
| 305 | A 3059901140 | WASHER |
| CONTROL ARM TO BEARING BRACKET | ||
| 1 MM | ||
| 310 | N 000471040002 | LOCK RING |
| CONTROL ARM TO BEARING BRACKET | ||
| 330 | A 0129973482 | HOSE |
| Repalced by: A 0129974182 | ||
| 330 | A 0129974182 | HOSE |
| Repalced by: A 0139974182 | ||
| 330 | A 0139974182 | HOSE |
| HIGH PRESSURE HOSE TO DAMPING CYLINDER FRONT CARRIAGE | ||
| 330 | A 3079971282 | HOSE |
| HIGH PRESSURE HOSE TO DAMPING CYLINDER FRONT CARRIAGE | ||
| 330 | A 0149974082 | HOSE |
| HIGH PRESSURE HOSE TO DAMPING CYLINDER FRONT CARRIAGE | ||
| 340 | A 0129973382 | HOSE |
| Repalced by: A 0139974082 | ||
| 340 | A 0139974082 | HOSE |
| HIGH PRESSURE HOSE TO DAMPING CYLINDER REAR CARRIAGE | ||
| 340 | A 3079971182 | HOSE |
| HIGH PRESSURE HOSE TO DAMPING CYLINDER REAR CARRIAGE | ||
| 340 | A 0149974182 | HOSE |
| HIGH PRESSURE HOSE TO DAMPING CYLINDER REAR CARRIAGE | ||
| 355 | A 3079970972 | FITTING |
| HIGH PRESSURE HOSE TO CONTROL BLOCK AND TO DAMPING CYLINDER | ||
| 360 | N 915017015100 | UNION NUT |
| HIGH PRESSURE HOSE TO CONTROL BLOCK AND TO DAMPING CYLINDER | ||
| 360 | N 915017022100 | UNION NUT |
| HIGH PRESSURE HOSE TO CONTROL BLOCK AND TO DAMPING CYLINDER | ||
| 364 | N 003861015004 | GLAND |
| HIGH PRESSURE HOSE TO CONTROL BLOCK AND TO DAMPING CYLINDER | ||
| 364 | N 003861022004 | GLAND |
| HIGH PRESSURE HOSE TO CONTROL BLOCK AND TO DAMPING CYLINDER | ||
| 366 | A 3075530340 | BRACKET |
| HEATING PIPE | ||
| 366 | A 3075530440 | BRACKET |
| HEATING PIPE | ||
| 368 | A 3075530640 | BRACKET |
| HIGH PRESSURE HOSE | ||
| 368 | A 3075530740 | BRACKET |
| HIGH PRESSURE HOSE | ||
| 370 | N 071555078502 | CLAMP |
| HIGH PRESSURE HOSE TO DAMPING CYLINDER ,REAR | ||
| 78.50 MM | ||
| 370 | N 071555078502 | CLAMP |
| HIGH PRESSURE HOSE TO DAMPING CYLINDER ,REAR | ||
| 78.50 MM | ||
| 370 | A 3079950044 | CLAMP |
| HIGH PRESSURE HOSE TO DAMPING CYLINDER ,REAR | ||
| 375 | N 916016030200 | CLAMP |
| HIGH PRESSURE HOSE TO DAMPING CYLINDER ,REAR | ||
| 30 MM | ||
| 380 | N 000933006127 | SCREW |
| HIGH PRESSURE HOSE TO DAMPING CYLINDER ,REAR | ||
| 384 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 384 | N 910113006001 | NUT |
| HIGH PRESSURE HOSE TO DAMPING CYLINDER ,REAR | ||
| 386 | N 916016028200 | CLAMP |
| HIGH PRESSURE HOSE TO DAMPING CYLINDER ,FRONT | ||
| 387 | N 000933008160 | SCREW |
| Repalced by: N 304017008040 | ||
| 387 | N 304017008040 | SCREW |
| Repalced by: N 910105008010 | ||
| 387 | N 910105008010 | SCREW |
| HIGH PRESSURE HOSE TO DAMPING CYLINDER ,FRONT | ||
| 388 | N 913004008005 | NUT |
| HIGH PRESSURE HOSE TO DAMPING CYLINDER ,FRONT | ||
| 389 | A 3079950010 | CLAMP |
| HIGH PRESSURE HOSE TO BRACKET | ||
| 390 | N 000933006127 | SCREW |
| HIGH PRESSURE HOSE TO BRACKET | ||
| 391 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 391 | N 009021006208 | WASHER |
| HIGH PRESSURE HOSE TO BRACKET | ||
| 392 | N 913001006003 | NUT |
| HIGH PRESSURE HOSE TO BRACKET | ||
| 393 | A 3075530140 | BRACKET |
| HIGH PRESSURE HOSE | ||
| 394 | N 000931006115 | SCREW |
| Repalced by: N 000933006151 | ||
| 394 | N 000933006151 | SCREW |
| BRACKET TO SUBSTRUCTURE | ||
| 395 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 395 | N 009021006208 | WASHER |
| BRACKET TO SUBSTRUCTURE | ||
| 398 | N 913001006003 | NUT |
| BRACKET TO SUBSTRUCTURE | ||
| 400 | A 0005532907 | VALVE |
| (CONTROL BLOCK) | ||
| 404 | A 0005533307 | VALVE |
| 406 | A 0079970248 | SEAL RING |
| 410 | N 000939010085 | STUD BOLT |
| CONTROL VALVE TO BRACKET | ||
| 414 | N 913004010011 | NUT |
| CONTROL VALVE TO BRACKET | ||
| 420 | N 003901022006 | SCREW-IN FITTING |
| CONTROL VALVE | ||
| 424 | N 007603026104 | SEAL RING |
| CONTROL VALVE | ||
| 430 | N 003952022100 | FITTING |
| CONTROL VALVE | ||
| 434 | N 007603012110 | SEAL RING |
| CONTROL VALVE | ||
| 12X17 | ||
| 440 | A 0019972572 | FITTING |
| CONTROL VALVE | ||
| 444 | N 007603014106 | SEAL RING |
| TEST CONNECTION | ||
| 14X20 | ||
| 448 | A 0005500126 | CONNECTOR |
| TEST CONNECTION | ||
| 449 | A 0005533826 | COUPLING HALF |
| CONTROL VALVE | ||
| 451 | N 003954022100 | FITTING |
| CONTROL VALVE | ||
| 452 | N 915017022100 | UNION NUT |
| CONTROL VALVE | ||
| 453 | N 003861022004 | GLAND |
| CONTROL VALVE | ||
| 454 | A 3075530840 | BRACKET |
| (CONTROL BLOCK) | ||
| 455 | N 000933012064 | SCREW |
| BRACKET TO SUBSTRUCTURE | ||
| 456 | N 009021013200 | WASHER |
| BRACKET TO SUBSTRUCTURE | ||
| 457 | N 913002012004 | NUT |
| BRACKET TO SUBSTRUCTURE | ||
| 460 | A 0129973282 | HOSE |
| FROM CONTROL VALVE TO SHUT-OFF COCK | ||

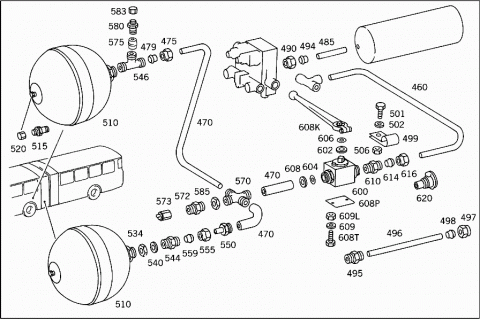

| 470 | A 0004291601 | LINE |
| PRIMER CASULE,SHUT-OFF VALVE | ||
| 22 MM | ||
| 475 | N 915017022100 | UNION NUT |
| 479 | N 003861022004 | GLAND |
| 485 | A 0004291201 | LINE |
| AIR RESERVOIR,CONTROL VALVE | ||
| 8 MM | ||
| 490 | N 915017008100 | UNION NUT |
| 494 | N 003861008005 | GLAND |
| 495 | A 0019972672 | FITTING |
| Repalced by: A 0039978972 | ||
| 495 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 495 | A 0029905971 | FITTING |
| COMPRESSED AIR LINE | ||
| 496 | A 0004291001 | LINE |
| FILLING CONNECTION | ||
| 12 MM | ||
| 497 | N 915017012100 | UNION NUT |
| 498 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 498 | A 0019901967 | SEAL CONE |
| 499 | N 916016008200 | CLAMP |
| COMPRESSED AIR LINE | ||
| 499 | N 916016012200 | CLAMP |
| COMPRESSED AIR LINE | ||
| 501 | N 000933006127 | SCREW |
| COMPRESSED AIR LINE | ||
| 502 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 502 | N 009021006208 | WASHER |
| COMPRESSED AIR LINE | ||
| 506 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 506 | N 910113006001 | NUT |
| COMPRESSED AIR LINE | ||
| 510 | A 0003200115 | AIR CELL |
| 5 L | ||
| 510 | A 0003200215 | AIR CELL |
| 5 L | ||
| 515 | A 0005533007 | VALVE |
| 520 | A 0009886535 | CAP |
| 530 | N 000439033201 | NUT |
| AIR CHAMBER TO SUBSTRUCTURE | ||
| 530 | N 000439036201 | NUT |
| AIR CHAMBER TO SUBSTRUCTURE | ||
| 540 | N 007603022102 | SEAL RING |
| LINE CONNECTION TO AIR RESERVOIR | ||
| 540 | N 007603026104 | SEAL RING |
| LINE CONNECTION TO AIR RESERVOIR | ||
| 26X32 | ||
| 544 | A 3079970772 | FITTING |
| LINE CONNECTION TO AIR RESERVOIR | ||
| 544 | N 003901022006 | SCREW-IN FITTING |
| LINE CONNECTION TO AIR RESERVOIR | ||
| 546 | N 003954022100 | FITTING |
| PRESSURE SWITCH CONNECTION | ||
| 550 | A 3079970972 | FITTING |
| LINE CONNECTION TO AIR RESERVOIR | ||
| 555 | N 915017015100 | UNION NUT |
| LINE CONNECTION TO AIR RESERVOIR | ||
| 559 | N 003861015004 | GLAND |
| LINE CONNECTION TO AIR RESERVOIR | ||
| 570 | N 003951022000 | FITTING |
| CROSS FITTING | ||
| 572 | A 3079971172 | FITTING |
| PRESSURE SWITCH CONNECTION | ||
| 573 | A 0015455614 | SWITCH |
| Repalced by: A 0015456914 | ||
| 573 | A 0015456914 | SWITCH |
| PRESSURE WARNING | ||
| 575 | A 3079970872 | FITTING |
| BREATHER CONNECTION | ||
| 580 | A 0004310265 | VALVE |
| Repalced by: A 3075530107 | ||
| 580 | A 3075530107 | VALVE |
| BREATHER | ||
| TO 307 997 08 72 | ||
| 583 | A 3164210187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 583 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 583 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 583 | A 0004210887 | PROTECTIVE CAP |
| 585 | N 915017022100 | UNION NUT |
| FITTING AND VALVE TO CROSS FITTING | ||
| 600 | A 0029974336 | VALVE |
| Repalced by: A 0029975436 | ||
| 600 | A 0039970736 | VALVE |
| Repalced by: A 0029975436 | ||
| 600 | A 0029975436 | VALVE |
| (SHUT OFF COCK) | ||
| 602 | A 0019970141 | SEAL RING |
| 604 | A 0019970241 | SEAL RING |
| 606 | A 0069971048 | SEAL RING |
| 15X2.5 | ||
| 608 | A 0069971148 | SEAL RING |
| 34X2.5 | ||
| 608K | A 0005530013 | LEVER |
| CHANGE-OVER COCK | ||
| 608P | A 3075840042 | BRACKET |
| CHANGE-OVER COCK | ||
| 608T | N 000933004045 | SCREW |
| CHANGE-OVER COCK | ||
| 609 | N 000433004307 | WASHER |
| CHANGE-OVER COCK | ||
| 609L | N 913004004002 | NUT |
| Repalced by: N 913002004001 | ||
| 609L | N 913002004001 | NUT |
| CHANGE-OVER COCK | ||
| 610 | N 003952022100 | FITTING |
| CHANGE-OVER COCK | ||
| 610 | N 003954022100 | FITTING |
| CHANGE-OVER COCK | ||
| 614 | N 003861022004 | GLAND |
| CHANGE-OVER COCK | ||
| 616 | N 915017022100 | UNION NUT |
| CHANGE-OVER COCK | ||
| 620 | A 3079971072 | FITTING |
| Repalced by: A 0005533826 | ||
| A 0019907968 | FITTING | |
| Repalced by: A 0005533826 | ||
| A 0005533726 | COUPLING HALF | |
| Repalced by: A 0005533826 | ||
| 620 | A 0005533826 | COUPLING HALF |
| FILLING CONNECTION | ||
| 625 | N 007603016103 | SEAL RING |
| FILLING CONNECTION | ||
| 16X22 | ||
| 629 | A 0005532426 | COUPLING HALF |
| FILLING CONNECTION | ||
| 635 | A 0009886335 | CAP |
| FILLING CONNECTION | ||
| 635 | A 0009886835 | CAP |
| FILLING CONNECTION | ||
| 660 | A 0004291795 | AIR CLEANER |
| Repalced by: A 0004293895 | ||
| 660 | A 0004293895 | AIR CLEANER |
| 665 | A 0004290297 | FILTER ELEMENT |
| Repalced by: A 0025861643 | ||
| 665 | A 0004291397 | FILTER ELEMENT |
| WABCO 020 0 | ||
| 669 | A 0109971445 | SEAL RING |
| WABCO 000 0,36.2X3.0 MM | ||
| 669 | A 0029974345 | SEAL RING |
| WABCO 020 0,39.2X3.0 MM | ||
| A 0025861643 | REPAIR KIT | |
| AIR CLEANER | ||
| WABCO 000 0 | ||
| 685 | N 007603022102 | SEAL RING |
| AIR CLEANER | ||
| 22X27 | ||
| 689 | A 0009970171 | FITTING |
| AIR CLEANER | ||
| 689 | A 0009970171 | FITTING |
| AIR CLEANER | ||
| 692 | A 0039978872 | FITTING |
| AIR CLEANER | ||
| 695 | A 0039970672 | FITTING |
| BULKHEAD FITTING | ||
| 698 | N 915017012100 | UNION NUT |
| BULKHEAD FITTING | ||
| 701 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 701 | A 0019901967 | SEAL CONE |
| BULKHEAD FITTING | ||
| 704 | A 3075530940 | BRACKET |
| LINE FILTER | ||
| 707 | N 080705018002 | NUT |
| IN-LINE FILTER TO BRACKET AT SUBSTRUCTURE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

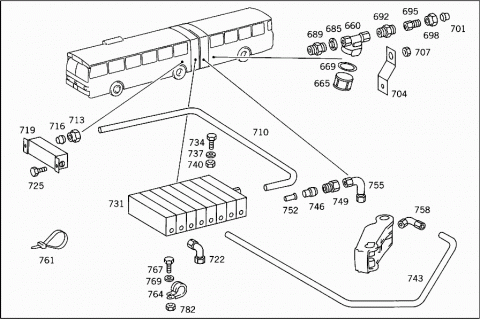

| CENTRAL LUBRICATION | ||
| 710 | A 0004293301 | LINE |
| FROM METERING DISTRIBUTOR TO PROGRESSIVE DISTRIBUTOR | ||
| 10X1 MM | ||
| 713 | N 915017010100 | UNION NUT |
| 716 | N 003861010009 | GLAND |
| 719 | A 0015736820 | DISTRIBUTOR |
| (METERING DISTRIBUTOR) | ||
| 722 | A 0005731630 | ELBOW |
| Repalced by: N 003952010102 | ||
| 722 | N 003952010102 | FITTING |
| METERING DISTRIBUTOR | ||
| 725 | N 000933006127 | SCREW |
| METERING DISTRIBUTOR | ||
| 731 | A 0015738120 | DISTRIBUTOR |
| Repalced by: A 0015739820 | ||
| 731 | A 0015739820 | DISTRIBUTOR |
| (PROGRESSIVE DISTRIBUTOR) | ||
| 734 | N 000931006115 | SCREW |
| Repalced by: N 000933006151 | ||
| 734 | N 000933006151 | SCREW |
| DISTRIBUTOR TO BRACKET AT SUBSTRUCTURE | ||
| 737 | N 000125006421 | WASHER |
| DISTRIBUTOR TO BRACKET AT SUBSTRUCTURE | ||
| 740 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 740 | N 910113006001 | NUT |
| DISTRIBUTOR TO BRACKET AT SUBSTRUCTURE | ||
| 743 | A 0139970282 | HOSE |
| FROM PROGRESSIVE DISTRIBUTOR TO RING MOUNT | ||
| 6 MM | ||
| 743 | A 0139970282 | HOSE |
| FROM PROGRESSIVE DISTRIBUTOR TO SUPPORTING ARM | ||
| 6 MM | ||
| 746 | A 0009905167 | SEAL CONE |
| PIPE LINE CONNECTION | ||
| 749 | A 0009908068 | FITTING |
| PIPE LINE CONNECTION | ||
| 752 | A 0005730353 | SPACER TUBE |
| PIPE LINE CONNECTION | ||
| 755 | A 0005732030 | ELBOW |
| RING MOUNT | ||
| 758 | A 0005730432 | CONNECTOR |
| Repalced by: A 0005731930 | ||
| 758 | A 0005731730 | ELBOW |
| Repalced by: A 0005731930 | ||
| 758 | A 0005731930 | ELBOW |
| SUPPORTING ARM | ||
| 761 | A 0019978390 | LOOM TIE |
| OIL LINES | ||
| 764 | N 916016006208 | CLAMP |
| OIL LINE TO BRACKET | ||
| 767 | N 000933006127 | SCREW |
| OIL LINE TO BRACKET | ||
| 769 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 769 | N 009021006208 | WASHER |
| OIL LINE TO BRACKET | ||
| 782 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 782 | N 913004006001 | NUT |
| OIL LINE TO BRACKET | ||
| N 916016042201 | CLAMP | |
| HIGH AND LOW PRESSURE HOSES TO SUBSTRUCTURE | ||
| N 916016028204 | CLAMP | |
| HIGH AND LOW PRESSURE HOSES TO SUBSTRUCTURE | ||
| N 916016022202 | CLAMP | |
| HIGH AND LOW PRESSURE HOSES TO SUBSTRUCTURE | ||
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| HIGH AND LOW PRESSURE HOSES TO SUBSTRUCTURE | ||
| N 913004008004 | NUT | |
| HIGH AND LOW PRESSURE HOSES TO SUBSTRUCTURE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
