Transporto priemonė: O 305 G; VIN numerio dalis: 307101
Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|

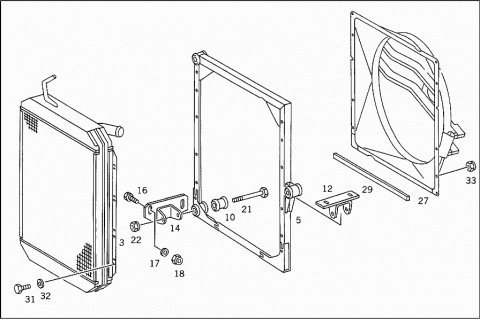

| 003 | A 3075010101 | RADIATOR |
| Repalced by: A 3075010801 | ||
| 003 | A 3075010801 | RADIATOR |
| 005 | A 3055000827 | SUPPORT |
| RADIATOR | ||
| A 3028880224 | MOUNTING | |
| Repalced by: A 0009884211 | ||
| A 3028880026 | SLEEVE | |
| Repalced by: A 0009884211 | ||
| 010 | A 0009884211 | BUFFER |
| 012 | A 3015000032 | STAY |
| RIGHT TOP AND LEFT BOTTOM | ||
| 014 | A 3075000032 | STAY |
| RIGHT BOTTOM | ||
| 016 | N 000933010105 | SCREW |
| STAY TO SUBSTRUCTURE | ||
| 017 | A 1169901140 | WASHER |
| STAY TO SUBSTRUCTURE | ||
| 018 | N 913004010011 | NUT |
| STAY TO SUBSTRUCTURE | ||
| 021 | N 000960012230 | SCREW |
| SUPPORT TO STAY | ||
| 022 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 022 | N 910113012003 | NUT |
| SUPPORT TO STAY | ||
| 027 | A 3055001027 | SUPPORT |
| FAN | ||
| 029 | A 3059870014 | RUBBER STRIP |
| 031 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 031 | N 304017008021 | SCREW |
| RADIATOR AND FAN SUPPORT TO BASE FRAME | ||
| 032 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 032 | N 000125008443 | WASHER |
| RADIATOR AND FAN SUPPORT TO BASE FRAME | ||
| 033 | N 913004008005 | NUT |
| RADIATOR AND FAN SUPPORT TO BASE FRAME | ||

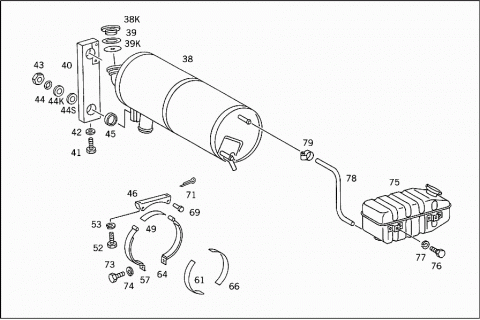

| 038 | A 3075002049 | TANK |
| COOLING WATER EXPANSION | ||
| 8.8 L | ||
| 038K | A 0005013415 | RADIATOR CAP |
| 039 | A 0005010480 | GASKET |
| O.D., | ||
| 52 MM | ||
| 039K | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| A 0009971839 | SIGHT GLASS | |
| Repalced by: A 0009971939 | ||
| 040 | A 0009971939 | SIGHT GLASS |
| 041 | N 000933008123 | SCREW |
| Repalced by: N 304017008008 | ||
| 041 | N 304017008008 | SCREW |
| 042 | A 0039978540 | SEAL RING |
| A 3079970472 | FITTING | |
| 043 | A 3079900051 | NUT |
| 044 | A 0039978248 | SEAL RING |
| 044K | A 0049976540 | SEAL RING |
| 044S | A 0009970426 | WASHER |
| 045 | A 0009910445 | RING |
| 046 | A 3055000046 | CLAMP |
| EXPANSION TANK,TOP | ||
| 049 | A 3059870114 | RUBBER STRIP |
| Repalced by: A 3029870814 | ||
| 049 | A 3029870814 | RUBBER STRIP |
| EXPANSION TANK TO BRACKET | ||
| 052 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 052 | N 304017008016 | SCREW |
| CLAMP TO SUBSTRUCTURE | ||
| 053 | N 912004008102 | LOCK WASHER |
| CLAMP TO SUBSTRUCTURE | ||
| 057 | A 3055000031 | BRACKET |
| EXPANSION TANK | ||
| 061 | A 3059870214 | RUBBER STRIP |
| Repalced by: A 3029870814 | ||
| 061 | A 3029870814 | RUBBER STRIP |
| EXPANSION TANK TO BRACKET | ||
| 064 | A 3055000131 | BRACKET |
| EXPANSION TANK | ||
| 066 | A 3059870314 | RUBBER STRIP |
| Repalced by: A 3029870814 | ||
| 066 | A 3029870814 | RUBBER STRIP |
| EXPANSION TANK TO BRACKET | ||
| 069 | N 001434006085 | PIN |
| BRACKET TO RETAINING CLAMP | ||
| 071 | N 000094001605 | COTTER PIN |
| BRACKET TO RETAINING CLAMP | ||
| 073 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 073 | N 304017008021 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| 074 | N 912004008102 | LOCK WASHER |
| EXPANSION TANK TO BRACKET | ||
| 075 | A 3075002149 | TANK |
| (ADDITIONAL TANK) | ||
| 3.25 L | ||
| 076 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 076 | N 304017008016 | SCREW |
| FROM ADDITIONAL TANK TO SUBSTRUCTURE | ||
| 077 | N 912004008102 | LOCK WASHER |
| FROM ADDITIONAL TANK TO SUBSTRUCTURE | ||
| 078 | N 900271008043 | HOSE |
| 8X17 | ||
| 078 | N 900271008043 | HOSE |
| FROM EXPANSION TANK TO ADDITIONAL TANK | ||
| 8X17 | ||
| 079 | N 916017011000 | CLAMP |
| Repalced by: N 916017011001 | ||
| 079 | N 916017011001 | CLAMP |
| Repalced by: N 000000000665 | ||
| 079 | N 000000000665 | CLAMP |

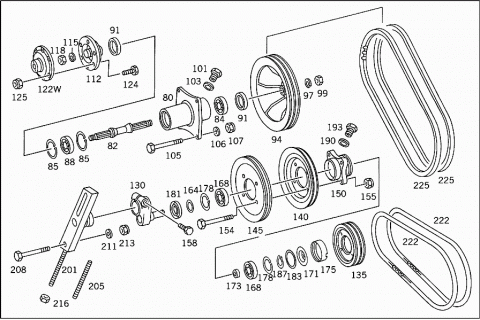

| 080 | A 3012050005 | BEARING BODY |
| FAN DRIVE | ||
| 082 | A 3012050002 | FAN SHAFT |
| FAN DRIVE | ||
| 084 | N 005412600304 | CYLINDR. ROLLER BEARING |
| FAN DRIVE | ||
| 084 | A 0059819701 | CYLINDR. ROLLER BEARING |
| FAN DRIVE | ||
| 085 | N 000472052000 | LOCK RING |
| FAN DRIVE | ||
| 088 | N 000625026304 | GROOVED BALL BEARING |
| FAN DRIVE | ||
| 091 | A 0019978447 | SEAL RING |
| FAN DRIVE | ||
| 094 | A 3052050710 | PULLEY |
| FAN DRIVE | ||
| 097 | N 912004016101 | LOCK WASHER |
| PULLEY TO FAN SHAFT | ||
| 099 | N 000439016203 | NUT |
| PULLEY TO FAN SHAFT | ||
| 101 | N 007604010102 | SCREW PLUG |
| LUBRICATION | ||
| 103 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 103 | N 007603010110 | SEAL RING |
| LUBRICATION | ||
| 105 | N 000931008248 | SCREW |
| Repalced by: N 304017008053 | ||
| 105 | N 304017008053 | SCREW |
| BEARING BODY TO SUPPORT | ||
| 106 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 106 | N 000125008443 | WASHER |
| BEARING BODY TO SUPPORT | ||
| 107 | N 913004008005 | NUT |
| BEARING BODY TO SUPPORT | ||
| 112 | A 3222050204 | HUB |
| FAN | ||
| 115 | N 912004016101 | LOCK WASHER |
| HUB TO FAN SHAFT | ||
| 118 | N 000439016203 | NUT |
| HUB TO FAN SHAFT | ||

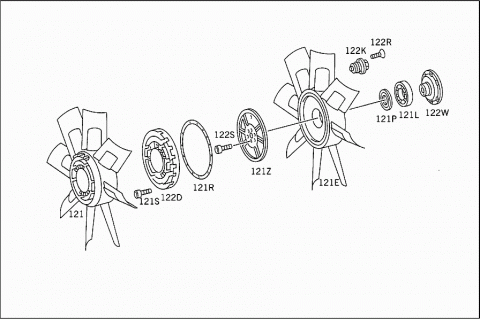

| 121 | A 3072050106 | FAN |
| 121E | A 0012050806 | FAN |
| N 912004016101 | LOCK WASHER | |
| 121L | A 0039812725 | BALL BEARING |
| Repalced by: A 0049810525 | ||
| 121L | A 0049810525 | BALL BEARING |
| 121P | A 0002060051 | SPACER RING |
| 121R | A 0002060080 | GASKET |
| Repalced by: A 0002060580 | ||
| 121R | A 0002060580 | GASKET |
| 121S | N 000912006040 | SCREW |
| 121Z | A 0002060428 | PRIMARY CUP |
| Repalced by: A 0002060628 | ||
| 121Z | A 0002060628 | PRIMARY CUP |
| 122D | A 0002061203 | COVER |
| 122K | A 0002000072 | CLAMPING PIECE |
| 122R | N 000965004021 | SCREW |
| 122S | A 0009907420 | SCREW |
| M 8X10 | ||
| 122W | A 0002060345 | FLANGE |
| A 0005831635 | RECEPTACLE | |
| Repalced by: A 0005831835 | ||
| A 0005831835 | RECEPTACLE | |
| 124 | N 000933008177 | SCREW |
| Repalced by: N 304017008024 | ||
| 124 | N 304017008024 | SCREW |
| FAN TO HUB | ||
| 125 | N 913004008005 | NUT |
| FAN TO HUB | ||
| 130 | A 3072000173 | LEVER |
| Repalced by: A 3072000573 | ||
| 130 | A 3072000573 | LEVER |
| TIGHTENER PULLEY | ||
| 135 | A 3072060010 | PULLEY |
| TWO-GROOVE | ||
| 140 | A 3012060210 | PULLEY |
| ONE-GROOVE,FLAT | ||
| 145 | A 3012060110 | PULLEY |
| ONE-GROOVE,ELBOWED | ||
| 150 | A 3012060113 | HUB |
| 154 | N 000931008244 | SCREW |
| PULLEY TO HUB | ||
| 155 | N 913004008004 | NUT |
| PULLEY TO HUB | ||
| 158 | N 000960012189 | SCREW |
| Repalced by: N 308676012031 | ||
| 158 | N 308676012031 | SCREW |
| Repalced by: N 308676012011 | ||
| 158 | N 308676012011 | SCREW |
| CLAMPING LEVER TO SUPPORT | ||
| 164 | A 3022050552 | SPACER WASHER |
| 0,2 MM | ||
| 164 | A 3022050652 | SPACER WASHER |
| 0,5 MM | ||
| 164 | A 3022050752 | SPACER WASHER |
| 1,0 MM | ||
| 168 | N 000625026304 | GROOVED BALL BEARING |
| 171 | A 3012060157 | EXPANSION PLUG |
| 173 | A 3012060053 | SPACER TUBE |
| 175 | A 3012060072 | NUT |
| 178 | N 000472052000 | LOCK RING |
| 181 | A 0019978547 | SEAL RING |
| BELT TIGHTENER PULLEY TO BELT TIGHTENER SPINDLE | ||
| 181 | A 0119975447 | SEAL RING |
| BELT TIGHTENER PULLEY TO BELT TIGHTENER SPINDLE | ||
| 183 | N 915035000012 | SEAL RING |
| 187 | N 000471020001 | LOCK RING |
| 190 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 190 | N 007603010110 | SEAL RING |
| 193 | N 007604010102 | SCREW PLUG |
| 201 | A 3052000439 | SUPPORT |
| CLAMPING LEVER | ||
| 205 | A 3019900005 | STUD |
| 208 | N 000931010264 | SCREW |
| SUPPORT TO FAN SUPPORT | ||
| 211 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 211 | N 000125010532 | WASHER |
| SUPPORT TO FAN SUPPORT | ||
| 211 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 211 | N 009021010209 | WASHER |
| SUPPORT TO FAN SUPPORT | ||
| 213 | N 913002010001 | NUT |
| SUPPORT TO FAN SUPPORT | ||
| 216 | N 000934012022 | NUT |
| SUPPORT TO FAN SUPPORT | ||
| 222 | A 0049972892 | V-BELT |
| Repalced by: A 0079975692 | ||
| 222 | A 0079975692 | V-BELT |
| Repalced by: A 0059973092 | ||
| 222 | A 0059973092 | V-BELT |
| TOOTHED;SET = 2 PIECES | ||
| 12,5X1693 | ||
| 222 | A 0059973092 | V-BELT |
| FROM VIBRATION DAMPER TO TIGHTENER PULLEY | ||
| 12,5X1693 | ||
| 225 | A 0019979492 | V-BELT |
| Repalced by: A 0079974992 | ||
| 225 | A 0079974992 | V-BELT |
| Repalced by: A 0059971392 | ||
| 225 | A 0059971392 | V-BELT |
| TOOTHED | ||
| 225 | A 0059971392 | V-BELT |
| FROM TIGHTENER PULLEY TO FAN PULLEY | ||
| A 0059973292 | V-BELT | |
| TOOTHED;SET = 2 PIECES | ||
| 12.5X1718 MM | ||
| A 0059971492 | V-BELT | |
| TOOTHED;SET = 2 PIECES | ||
| 12.5X1100 MM | ||
| A 0039970492 | V-BELT | |
| TOOTHED;SET = 2 PIECES | ||
| A 0039970192 | V-BELT | |
| Repalced by: A 0099976892 | ||
| A 0099976892 | V-BELT | |
| TOOTHED;SET = 2 PIECES | ||
| 12.5X1025 MM | ||
| A 0039975092 | V-BELT | |
| TOOTHED;SET = 2 PIECES | ||
| A 0079977992 | V-BELT | |
| TOOTHED;SET = 2 PIECES | ||
| A 0069972192 | V-BELT | |
| TOOTHED;SET = 2 PIECES | ||

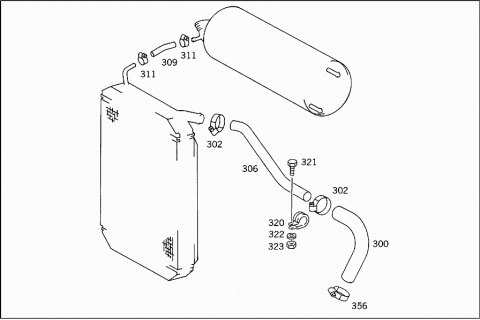

| 300 | A 3055011182 | HOSE |
| FROM THERMOSTAT TO COOLING WATER PIPE | ||
| 302 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 302 | N 000000000672 | CLAMP |
| 306 | A 3075017524 | COOLING WATER PIPE |
| FROM HOSE TO RADIATOR | ||
| 309 | N 900271012018 | HOSE |
| 12X21 | ||
| 309 | N 900271012018 | HOSE |
| FROM RADIATOR TO TANK | ||
| 12X21 | ||
| 311 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 311 | N 000000000666 | CLAMP |
| 312 | A 3055011082 | HOSE |
| FROM COOLING WATER LINE TO RADIATOR | ||
| 316 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 316 | N 000000000672 | CLAMP |
| 320 | N 916016048200 | CLAMP |
| COOLING WATER LINE TO SUBSTRUCTURE | ||
| 321 | N 000933006127 | SCREW |
| COOLING WATER LINE TO SUBSTRUCTURE | ||
| 322 | N 000125006421 | WASHER |
| COOLING WATER LINE TO SUBSTRUCTURE | ||
| 323 | N 913001006003 | NUT |
| COOLING WATER LINE TO SUBSTRUCTURE | ||

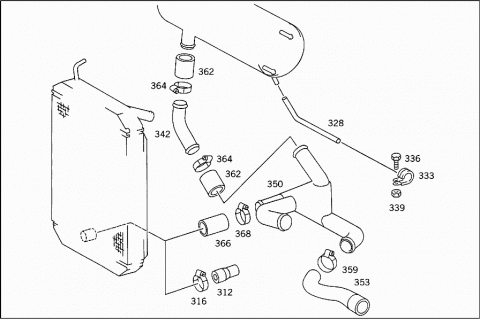

| 328 | A 3075010325 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 333 | N 916016012201 | CLAMP |
| DE-AERATION PIPE TO SUBSTRUCTURE | ||
| 336 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 336 | N 304017008021 | SCREW |
| DE-AERATION PIPE TO SUBSTRUCTURE | ||
| 339 | N 913004008004 | NUT |
| DE-AERATION PIPE TO SUBSTRUCTURE | ||
| 342 | A 3055013824 | COOLING WATER PIPE |
| FROM RESERVOIR TO BUBBLE SEPARATOR | ||
| 350 | A 3075001269 | SEPARATOR |
| 353 | A 3075010182 | HOSE |
| FROM BUBBLE SEPARATOR TO ENGINE | ||
| 356 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 356 | N 000000000672 | CLAMP |
| HOSE TO RADIATOR AND TO ENGINE | ||
| 359 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 359 | N 000000000671 | CLAMP |
| HOSE TO RADIATOR AN TO BUBBLE SEPARATOR | ||
| 362 | N 900271038026 | HOSE |
| 38X50 | ||
| 362 | N 900271038026 | HOSE |
| FROM PIPE TO EXPANSION TANK & BUBBLE SEPARATOR | ||
| 38X50 | ||
| 364 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 364 | N 000000000671 | CLAMP |
| 366 | N 900271045010 | HOSE |
| 45X57 | ||
| 366 | N 900271045010 | HOSE |
| FROM RADIATOR TO BUBBLE SEPARATOR | ||
| 45X57 | ||
| 368 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 368 | N 000000000671 | CLAMP |
| 370 | N 917003040003 | GASKET |
| Repalced by: N 917003040006 | ||
| 370 | N 917003040006 | GASKET |
| Repalced by: A 3559970149 | ||
| 370 | A 3559970149 | GASKET |
| AT ENGINE | ||
| 374 | A 3055010009 | OUTLET |
| Repalced by: A 3055000008 | ||
| 374 | A 3055000008 | OUTLET |
| AT ENGINE | ||
| 376 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 376 | N 304017010002 | SCREW |
| OUTLET TO ENGINE | ||
| 378 | N 000931010272 | SCREW |
| OUTLET TO ENGINE | ||
| 380 | N 000137010201 | SPRING WASHER |
| OUTLET TO ENGINE | ||
| 383 | A 3055011082 | HOSE |
| COOLING WATER LINE TO OUTLET | ||
| 386 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 386 | N 000000000672 | CLAMP |
| COOLING WATER LINE TO OUTLET | ||
| A 3075002972 | LINE | |
| OUTLET TO OIL COOLER,PART I | ||
| 391 | A 3075003572 | LINE |
| OUTLET TO OIL COOLER,PART I | ||
| 396 | A 3075010820 | BRACKET |
| COOLING WATER LINE PART I TO ENGINE | ||
| 399 | N 916016045200 | CLAMP |
| COOLING WATER LINE TO BRACKET | ||
| 401 | N 000933006127 | SCREW |
| COOLING WATER LINE TO BRACKET | ||
| 402 | N 913001006003 | NUT |
| COOLING WATER LINE TO BRACKET | ||
| 405 | N 900271045010 | HOSE |
| 45X57 MM | ||
| 405 | N 900271045010 | HOSE |
| CONNECTION OF COOLING WATER LINES | ||
| 45X57 MM | ||
| 409 | A 3075017724 | COOLING WATER PIPE |
| OUTLET TO OIL COOLER,PART II | ||
| 413 | A 3025010820 | BRACKET |
| Repalced by: A 6205243040 | ||
| 413 | A 6205243040 | BRACKET |
| COOLING WATER LINE PART II TO TRANSMISSION | ||
| 416 | N 916016045200 | CLAMP |
| COOLING WATER LINE TO BRACKET | ||
| 419 | N 000933006127 | SCREW |
| COOLING WATER LINE TO BRACKET | ||
| 421 | N 913004008004 | NUT |
| COOLING WATER LINE TO BRACKET | ||
| 423 | A 3025012482 | HOSE |
| COOLING WATER LINE TO PIPE SOCKET | ||
| 426 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 426 | N 000000000672 | CLAMP |
| COOLING WATER LINE TO PIPE SOCKET | ||
| 428 | A 0002711580 | GASKET |
| OIL COOLER INLET | ||
| 430 | A 3072711065 | PIPE SOCKET |
| OIL COOLER INLET | ||
| 432 | N 000137008204 | SPRING WASHER |
| PIPE SOCKET TO OIL COOLER | ||
| 433 | N 000931008246 | SCREW |
| Repalced by: N 304017008028 | ||
| 433 | N 304017008028 | SCREW |
| PIPE SOCKET TO OIL COOLER | ||
| 436 | A 0002711580 | GASKET |
| OIL COOLER OUTLET | ||
| 438 | A 3072710865 | PIPE SOCKET |
| OIL COOLER OUTLET | ||
| 441 | N 000137008204 | SPRING WASHER |
| PIPE SOCKET TO OIL COOLER | ||
| 443 | N 000931008047 | SCREW |
| Repalced by: N 304017008018 | ||
| 443 | N 304017008018 | SCREW |
| PIPE SOCKET TO OIL COOLER | ||
| 446 | A 3055011082 | HOSE |
| COOLING WATER LINE TO PIPE SOCKET | ||
| 448 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 448 | N 000000000672 | CLAMP |
| COOLING WATER LINE TO PIPE SOCKET | ||
| 452 | A 3075017824 | COOLING WATER PIPE |
| FROM OIL COOLER TO WATER PUMP; PART I | ||
| 454 | A 3075003472 | LINE |
| FROM OIL COOLER TO WATER PUMP; PART II | ||
| 455 | A 4032010880 | GASKET |
| Repalced by: A 4422010380 | ||
| 455 | A 4422010380 | GASKET |
| FROM COOLING WATER LINE TO WATER PUMP | ||
| 456 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 456 | N 304017008027 | SCREW |
| FROM COOLING WATER LINE TO WATER PUMP | ||
| 457 | N 000137008204 | SPRING WASHER |
| FROM COOLING WATER LINE TO WATER PUMP | ||
| 458 | N 916016045200 | CLAMP |
| COOLING WATER LINE TO SUCTION PIPE | ||
| 461 | N 000933006127 | SCREW |
| COOLING WATER LINE TO SUCTION PIPE | ||
| 462 | N 913001006003 | NUT |
| COOLING WATER LINE TO SUCTION PIPE | ||
| 466 | N 900271045010 | HOSE |
| 45X57 MM | ||
| 466 | N 900271045010 | HOSE |
| CONNECTION OF COOLING WATER LINES | ||
| 45X57 MM | ||
| 468 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 468 | N 000000000672 | CLAMP |
| CONNECTION OF COOLING WATER LINES | ||
| 471 | A 3075061059 | CONNECTING PIPE |
| COOLING-WATER-LINE-TO-RADIATOR DE-AERATION LINE | ||
| 476 | N 900271012018 | HOSE |
| 12X21 MM | ||
| 476 | N 900271012018 | HOSE |
| BREATHER LINE CONNECTION | ||
| 12X21 MM | ||
| 478 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 478 | N 000000000666 | CLAMP |
| 481 | N 916016012200 | CLAMP |
| DE-AERATION LINE TO BRACKET | ||
| 483 | N 000933006127 | SCREW |
| DE-AERATION LINE TO BRACKET | ||
| 484 | N 913001006003 | NUT |
| DE-AERATION LINE TO BRACKET | ||
| 491 | N 916016012200 | CLAMP |
| DE-AERATION LINE TO HEATING LINE | ||
| 494 | N 916016035205 | CLAMP |
| DE-AERATION LINE TO HEATING LINE | ||
| 496 | N 000933006127 | SCREW |
| DE-AERATION LINE TO HEATING LINE | ||
| 497 | N 913001006003 | NUT |
| DE-AERATION LINE TO HEATING LINE | ||
| 505 | A 0002033164 | VALVE |
| DE-AERATION | ||
| A 3058321414 | BRACKET | |
| DE-AERATION VALVE | ||
| 512 | N 000933005075 | SCREW |
| Repalced by: N 304017005002 | ||
| 512 | N 304017005002 | SCREW |
| VALVE TO BRACKET | ||
| 513 | N 912004005103 | LOCK WASHER |
| VALVE TO BRACKET | ||
| 514 | N 000934005008 | NUT |
| VALVE TO BRACKET | ||
| 516 | A 0129978282 | HOSE |
| AT FITTING | ||
| 518 | A 0019978390 | LOOM TIE |
| FOR HOSE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
