Transporto priemonė: O 305 G; VIN numerio dalis: 307101
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

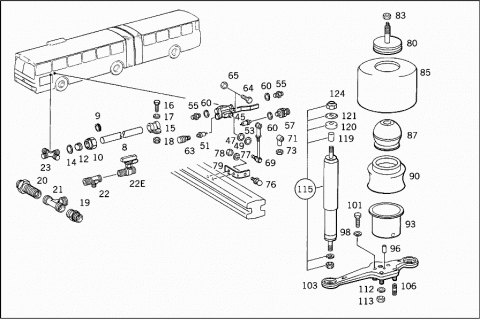

| 008 | A 0004291201 | LINE |
| COMPRESSED AIR | ||
| 8 MM | ||
| 009 | A 0009972581 | GROMMET |
| Repalced by: A 0009972481 | ||
| 009 | A 0009972481 | GROMMET |
| LINE MOUNTING | ||
| 010 | N 915017008100 | UNION NUT |
| LINE CONNECTIONS | ||
| 012 | N 003861008005 | GLAND |
| LINE CONNECTIONS | ||
| 014 | N 915045012100 | SEAL RING |
| Repalced by: N 007603012121 | ||
| 014 | N 007603012121 | SEAL RING |
| LINE CONNECTIONS | ||
| 015 | N 916016008200 | CLAMP |
| COMPRSSED AIR LINE TO SUBSTRUCTURE | ||
| 015 | N 916016012200 | CLAMP |
| COMPRSSED AIR LINE TO SUBSTRUCTURE | ||
| 016 | N 000933006127 | SCREW |
| COMPRSSED AIR LINE TO SUBSTRUCTURE | ||
| 017 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 017 | N 009021006208 | WASHER |
| COMPRSSED AIR LINE TO SUBSTRUCTURE | ||
| 018 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 018 | N 910113006001 | NUT |
| COMPRSSED AIR LINE TO SUBSTRUCTURE | ||
| 019 | A 0019972672 | FITTING |
| Repalced by: A 0039978972 | ||
| 019 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 019 | A 0029905971 | FITTING |
| BETWEEN THE LINES | ||
| 020 | A 0019972772 | FITTING |
| BETWEEN THE LINES | ||
| 021 | A 0009902670 | T-FITTING |
| BETWEEN THE LINES | ||
| A 0009901087 | CROSS FITTING | |
| BRANCH-OFF TO REAR AXLE LEVEL ADJUSTMENT VALVE | ||
| A 0029976772 | FITTING | |
| BRANCH-OFF TO REAR AXLE LEVEL ADJUSTMENT VALVE | ||
| 022 | A 0009902770 | T-FITTING |
| BETWEEN THE LINES | ||
| 022E | A 0004314831 | TEST CONNECTION |
| 022E | A 0004312031 | TEST CONNECTION |
| 022E | A 0004316131 | TEST CONNECTION |
| 022E | A 0004314531 | TEST CONNECTION |
| A 0009979486 | PLUG | |
| 023 | A 0009901087 | CROSS FITTING |
| 045 | A 0003282030 | VALVE |
| FRONT AXLE LEVEL ADJUSTMENT | ||
| 045 | A 0003282030 | VALVE |
| FRONT AXLE LEVEL ADJUSTMENT | ||
| 045 | A 0003282130 | VALVE |
| FRONT AXLE LEVEL ADJUSTMENT | ||
| 047 | A 0019970247 | SEAL RING |
| LEVEL ADJUSTMENT VALVE | ||
| 049 | A 0019970347 | SEAL RING |
| LEVEL ADJUSTMENT VALVE | ||
| 051 | A 0003281925 | VALVE |
| INTAKE | ||
| 053 | A 0003282025 | VALVE |
| Repalced by: A 0003282125 | ||
| 053 | A 0003282125 | VALVE |
| EXHAUST | ||
| A 0003280014 | SHAFT | |
| 87 MM | ||
| A 0003200027 | LEVER | |
| Repalced by: A 0003200127 | ||
| A 0003200127 | LEVER | |
| (PARTS KIT) | ||
| A 0003200467 | REPAIR KIT | |
| Repalced by: A 0003200258 | ||
| A 0003200258 | REPAIR KIT | |
| FRONT AXLE LEVEL ADJUSTMENT VALVE | ||
| 055 | A 0019972572 | FITTING |
| LEVEL ADJUSTMENT VALVE | ||
| 057 | A 0003272125 | VALVE |
| CHECK | ||
| 060 | N 007603012405 | SEAL RING |
| LEVEL ADJUSTMENT VALVE | ||
| 063 | A 0000750032 | FILTER |
| LEVEL ADJUSTMENT VALVE | ||
| 064 | N 000931008254 | SCREW |
| Repalced by: N 304014008002 | ||
| 064 | N 304014008002 | SCREW |
| LEVEL ADJUSTMENT VALVE TO BODY | ||
| 065 | N 913004008005 | NUT |
| LEVEL ADJUSTMENT VALVE TO BODY | ||
| 069 | A 3073200189 | ROD |
| FROM FRONT AXLE TO LEVEL ADJUSTMENT VALVE | ||
| 071 | A 0009912522 | BALL SOCKET |
| Repalced by: A 3579910622 | ||
| 071 | A 3579910622 | BALL SOCKET |
| 073 | N 000934008010 | NUT |
| 076 | N 071803013102 | BALL PIVOT |
| 077 | N 912004008102 | LOCK WASHER |
| ROD TO BEARING BRACKET | ||
| 078 | N 000934008010 | NUT |
| ROD TO BEARING BRACKET | ||
| 079 | A 3073270040 | BRACKET |
| Repalced by: A 3013270040 | ||
| 079 | A 3013270040 | BRACKET |
| LEVEL ADJUSTMENT | ||
| 080 | A 3073200035 | PLATE |
| TOP | ||
| 083 | N 000936022002 | NUT |
| PLATE TO SPRING CONSOLE | ||
| 085 | A 3073270001 | AIR SPRING BELLOWS |
| Repalced by: A 0003270101 | ||
| 085 | A 0003270101 | AIR SPRING BELLOWS |
| FRONT AXLE PNEUMATIC SUSPENSION | ||
| 085 | A 3073270101 | AIR SPRING BELLOWS |
| Repalced by: A 0003270201 | ||
| 085 | A 0003270201 | AIR SPRING BELLOWS |
| FRONT AXLE PNEUMATIC SUSPENSION | ||
| 085 | A 0003270301 | AIR SPRING BELLOWS |
| FRONT AXLE PNEUMATIC SUSPENSION | ||
| 087 | A 3053240308 | HELPER SPRING |
| FRONT AXLE | ||
| 090 | A 3073200175 | SPRING BRACKET |
| Repalced by: A 3573200134 | ||
| 090 | A 3573200134 | SUPPORT |
| FRONT AXLE AIR SPRING BELLOWS | ||
| 093 | A 3023200143 | BRACKET |
| FRONT AXLE AIR SPRING BELLOWS | ||
| 096 | N 001472010004 | GROOVED PIN |
| 098 | N 912004020100 | LOCK WASHER |
| BRACKET TO SUPPORT | ||
| 101 | N 000961020035 | SCREW |
| BRACKET TO SUPPORT | ||
| 103 | A 3053200070 | REAR SUBFRAME |
| Repalced by: A 3003200070 | ||
| 103 | A 3003200070 | REAR SUBFRAME |
| AIR SPRING BELLOWS | ||
| 106 | N 000939014029 | STUD BOLT |
| 112 | N 912004014100 | LOCK WASHER |
| SUPPORT TO FRONT AXLE | ||
| 113 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 113 | N 308673014001 | NUT |
| SUPPORT TO FRONT AXLE | ||
| 115 | A 3073230000 | SHOCK ABSORBER |
| Repalced by: A 3073230100 | ||
| 115 | A 3073230100 | SHOCK ABSORBER |
| Repalced by: A 3073260200 | ||
| 115 | A 3073260200 | SHOCK ABSORBER |
| Repalced by: A 3573260100 | ||
| 115 | A 3573260100 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 119 | A 3179911040 | SPACER TUBE |
| SHOCK ABSORBER TO SUBSTRUCTURE | ||
| 120 | A 3173230444 | RUBBER BUFFER |
| Repalced by: A 3073230044 | ||
| 120 | A 3073230044 | RUBBER BUFFER |
| SHOCK ABSORBER TO SUBSTRUCTURE | ||
| 121 | A 3173230667 | RETAINER |
| SHOCK ABSORBER TO SUBSTRUCTURE | ||
| 124 | N 913001014003 | NUT |
| SHOCK ABSORBER TO SUBSTRUCTURE | ||

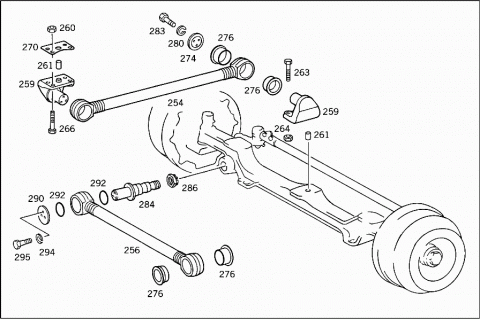

| 254 | A 3223301011 | THRUST ARM |
| Repalced by: A 3573303111 | ||
| 254 | A 3573303111 | THRUST ARM |
| LONGITUDINAL CONTROL ARM | ||
| 256 | A 3173300411 | THRUST ARM |
| Repalced by: A 3573304211 | ||
| 256 | A 3573304211 | THRUST ARM |
| TRANSVERSE CONTROL ARM | ||
| 259 | A 3073300013 | BEARING BRACKET |
| LONGITUDINAL & TRANSVERSE CONTROL ARMS | ||
| 261 | A 3173330174 | PIN |
| 263 | N 000960018111 | SCREW |
| BEARING BODY TO FRONT AXLE | ||
| 264 | N 913004018004 | NUT |
| BEARING BODY TO FRONT AXLE | ||
| 266 | N 000960018111 | SCREW |
| BEARING BODY TO SUBSTRUCTURE | ||
| M 18X70 | ||
| 266 | N 000960018109 | SCREW |
| BEARING BODY TO SUBSTRUCTURE | ||
| M 18X60 | ||
| 266 | N 000960018133 | SCREW |
| AS REQUIRED | ||
| M 18X75 | ||
| 266 | N 000960018133 | SCREW |
| BEARING BODY TO SUBSTRUCTURE | ||
| M 18X75 | ||
| 269 | N 913004018004 | NUT |
| BEARING BODY TO SUBSTRUCTURE | ||
| 270 | A 3013520084 | SHIM |
| Repalced by: A 3223330184 | ||
| 270 | A 3223330184 | SHIM |
| AS REQUIRED | ||
| 1.00 MM | ||
| 270 | A 3223330084 | SHIM |
| AS REQUIRED | ||
| 2.50 MM | ||
| 270 | A 3013520184 | SHIM |
| AS REQUIRED | ||
| 4.00 MM | ||
| 274 | A 3173330162 | THRUST WASHER |
| THRUST ARM TO BEARING BODY,TO BODY AND TO FRONT AXLE | ||
| 276 | A 3173331164 | RUBBER RING |
| THRUST ARM TO BEARING BODY,TO BODY AND TO FRONT AXLE | ||
| 280 | N 912004012100 | LOCK WASHER |
| THRUST ARM TO BEARING BODY,TO BODY AND TO FRONT AXLE | ||
| 283 | A 3079900014 | SCREW |
| THRUST ARM TO BEARING BODY,TO BODY AND TO FRONT AXLE | ||
| 284 | A 3073330030 | PIN |
| TRANSVERSE CONTROL ARM | ||
| 286 | N 000937040001 | NUT |
| PIN TO FRONT AXLE BEAM | ||
| N 000094006320 | COTTER PIN | |
| PIN TO FRONT AXLE BEAM | ||
| 290 | A 3173330162 | THRUST WASHER |
| PIN TO THRUST ARM | ||
| 292 | A 3173331164 | RUBBER RING |
| PIN TO THRUST ARM | ||
| 294 | N 912004012100 | LOCK WASHER |
| PIN TO THRUST ARM | ||
| 295 | A 3079900014 | SCREW |
| PIN TO THRUST ARM | ||

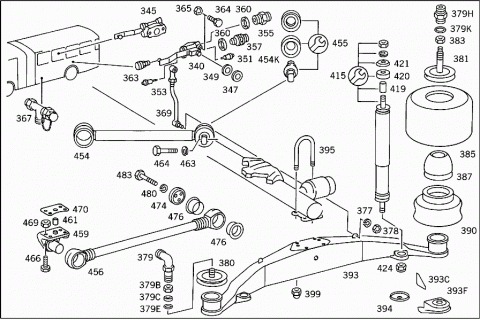

| 340 | A 0003282030 | VALVE |
| CENTRAL AXLE LEVEL ADJUSTMENT,LEFT | ||
| 345 | A 0003282130 | VALVE |
| CENTRAL AXLE LEVEL ADJUSTMENT,RIGHT | ||
| 347 | A 0019970247 | SEAL RING |
| LEVEL ADJUSTMENT VALVE | ||
| 349 | A 0019970347 | SEAL RING |
| LEVEL ADJUSTMENT VALVE | ||
| 351 | A 0003281925 | VALVE |
| INTAKE | ||
| 353 | A 0003282025 | VALVE |
| Repalced by: A 0003282125 | ||
| 353 | A 0003282125 | VALVE |
| EXHAUST | ||
| A 0003280014 | SHAFT | |
| 87 MM | ||
| A 0003200027 | LEVER | |
| Repalced by: A 0003200127 | ||
| A 0003200127 | LEVER | |
| (PARTS KIT) | ||
| A 0003200467 | REPAIR KIT | |
| Repalced by: A 0003200258 | ||
| A 0003200258 | REPAIR KIT | |
| CENTRAL AXLE LEVEL ADJUSTMENT VALVE | ||
| 355 | A 0019972572 | FITTING |
| CENTRAL AXLE LEVEL ADJUSTMENT VALVE | ||
| 357 | A 0003272125 | VALVE |
| CHECK | ||
| 360 | N 007603012405 | SEAL RING |
| CENTRAL AXLE LEVEL ADJUSTMENT VALVE | ||
| 363 | A 0000750032 | FILTER |
| CENTRAL AXLE LEVEL ADJUSTMENT VALVE | ||
| 364 | N 000931008254 | SCREW |
| Repalced by: N 304014008002 | ||
| 364 | N 304014008002 | SCREW |
| LEVEL ADJUSTMENT VALVE TO SUBSTRUCTURE | ||
| 365 | N 913004008004 | NUT |
| LEVEL ADJUSTMENT VALVE TO SUBSTRUCTURE | ||
| N 912004008102 | LOCK WASHER | |
| LEVEL ADJUSTMENT VALVE TO SUBSTRUCTURE | ||
| 367 | A 0014294344 | VALVE |
| Repalced by: A 0034294544 | ||
| 367 | A 0034294544 | VALVE |
| (TEST VALVE) | ||
| A 0019972672 | FITTING | |
| Repalced by: A 0039978972 | ||
| A 0039978972 | FITTING | |
| Repalced by: A 0029905971 | ||
| A 0029905971 | FITTING | |
| TEST VALVE | ||
| 369 | A 3073201189 | ROD |
| Repalced by: A 3073200889 | ||
| 369 | A 3073200889 | ROD |
| FROM CENTRAL AXLE TO LEVEL ADJUSTMENT VALVE | ||
| N 000934008010 | NUT | |
| N 071803013102 | BALL PIVOT | |
| 377 | N 912004008102 | LOCK WASHER |
| BALL PIVOT TO CENTRAL AXLE | ||
| 378 | N 000934008010 | NUT |
| BALL PIVOT TO CENTRAL AXLE | ||
| 379 | A 0009905471 | ELBOW FITTING |
| COMPRESSED AIR LINE TO RIGHT AIR SPRING BELLOWS | ||
| 379B | N 080705012003 | NUT |
| COMPRESSED AIR LINE TO RIGHT AIR SPRING BELLOWS | ||
| 379C | A 0004290827 | THRUST RING |
| COMPRESSED AIR LINE TO RIGHT AIR SPRING BELLOWS | ||
| 379E | A 0019875046 | SEALING CORD |
| COMPRESSED AIR LINE TO RIGHT AIR SPRING BELLOWS | ||
| N 915043008100 | SCREW CONNECTION | |
| COMPRESSED AIR LINE TO RIGHT AIR SPRING BELLOWS | ||
| N 915036010204 | HOLLOW SCREW | |
| Repalced by: N 915036010108 | ||
| N 915036010108 | HOLLOW SCREW | |
| COMPRESSED AIR LINE TO RIGHT AIR SPRING BELLOWS | ||
| N 007603012405 | SEAL RING | |
| COMPRESSED AIR LINE TO RIGHT AIR SPRING BELLOWS | ||
| 379H | A 0019972572 | FITTING |
| COMPRESSED AIR LINE TO LEFT AIR SPRING BELLOWS | ||
| 379K | N 007603012405 | SEAL RING |
| COMPRESSED AIR LINE TO LEFT AIR SPRING BELLOWS | ||
| N 915043008100 | SCREW CONNECTION | |
| COMPRESSED AIR LINE TO LEFT AIR SPRING BELLOWS | ||
| 380 | A 3053200035 | PLATE |
| CENTRAL AXLE,FRONT | ||
| 381 | A 3223200335 | PLATE |
| CENTRAL AXLE,REAR | ||
| A 3079940012 | LOCK | |
| PLATE TO SUBSTRUCTURE | ||
| 383 | N 000936022002 | NUT |
| PLATE TO SUBSTRUCTURE | ||
| 385 | A 3073270001 | AIR SPRING BELLOWS |
| Repalced by: A 0003270101 | ||
| 385 | A 0003270101 | AIR SPRING BELLOWS |
| CENTRAL AXLE PNEUMATIC SUSPENSION | ||
| 385 | A 3073270101 | AIR SPRING BELLOWS |
| Repalced by: A 0003270201 | ||
| 385 | A 0003270201 | AIR SPRING BELLOWS |
| CENTRAL AXLE PNEUMATIC SUSPENSION | ||
| 385 | A 0003270301 | AIR SPRING BELLOWS |
| CENTRAL AXLE PNEUMATIC SUSPENSION | ||
| 387 | A 3053240108 | HELPER SPRING |
| CENTRAL AXLE | ||
| 390 | A 3073200175 | SPRING BRACKET |
| Repalced by: A 3573200134 | ||
| 390 | A 3573200134 | SUPPORT |
| FRONT AXLE AIR SPRING BELLOWS | ||
| 393 | A 3073200775 | SPRING BRACKET |
| AIR SPRING BELLOWS | ||
| 393C | A 3053260095 | WEB |
| SHOCK ABSORBER | ||
| 393F | A 3073260040 | BRACKET |
| Repalced by: A 3053260240 | ||
| 393F | A 3053260240 | BRACKET |
| LEFT SHOCK ABSORBER | ||
| 393F | A 3073260140 | BRACKET |
| Repalced by: A 3053260340 | ||
| 393F | A 3053260340 | BRACKET |
| RIGHT SHOCK ABSORBER | ||
| 394 | A 3173230667 | RETAINER |
| REPAIR SIZE | ||
| 395 | A 3073510125 | U-BOLT |
| Repalced by: A 6003510125 | ||
| 395 | A 6003510125 | U-BOLT |
| SPRING BRACKET TO CENTRAL AXLE | ||
| A 3573250076 | WASHER | |
| Repalced by: A 3573250176 | ||
| A 3573250176 | WASHER | |
| Repalced by: A 3573250376 | ||
| A 3573250376 | WASHER | |
| SPRING BRACKET TO CENTRAL AXLE | ||
| 399 | N 913004024004 | NUT |
| SPRING BRACKET TO CENTRAL AXLE | ||
| 415 | A 3073260000 | SHOCK ABSORBER |
| Repalced by: A 3073260400 | ||
| 415 | A 3073260400 | SHOCK ABSORBER |
| Repalced by: A 3073260100 | ||
| 415 | A 3073260100 | SHOCK ABSORBER |
| Repalced by: A 3573260000 | ||
| 415 | A 3573260000 | SHOCK ABSORBER |
| Repalced by: A 3573200031 | ||
| 415 | A 3573200031 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| A 0003260062 | THRUST WASHER | |
| Repalced by: A 3173230667 | ||
| A 3173230667 | RETAINER | |
| 419 | A 3179911040 | SPACER TUBE |
| SHOCK ABSORBER TO SPRING BRACKET | ||
| 420 | A 3173230444 | RUBBER BUFFER |
| Repalced by: A 3073230044 | ||
| 420 | A 3073230044 | RUBBER BUFFER |
| SHOCK ABSORBER TO SPRING BRACKET | ||
| 421 | A 3173230667 | RETAINER |
| SHOCK ABSORBER TO SPRING BRACKET | ||
| 424 | N 913001014003 | NUT |
| SHOCK ABSORBER TO SPRING BRACKET | ||
| 454 | A 3073300111 | THRUST ARM |
| Repalced by: A 3573303611 | ||
| 454 | A 3573303611 | THRUST ARM |
| TOP | ||
| 454K | A 0003330132 | BALL CUP |
| TO 307 330 01 11 | ||
| 455 | A 0005860932 | REPAIR KIT |
| THRUST ARM | ||
| TO 307 330 01 11 | ||
| A 0003300075 | REPAIR KIT | |
| THRUST ARM | ||
| TO 357 330 36 11 | ||
| 456 | A 3173500606 | CONTROL ARM |
| Repalced by: A 3573303411 | ||
| 456 | A 3573303411 | THRUST ARM |
| BOTTOM | ||
| 459 | A 3073300013 | BEARING BRACKET |
| TOP AND BOTTOM | ||
| 461 | A 3173330174 | PIN |
| 463 | N 912004016101 | LOCK WASHER |
| THRUST ARM TO BEARING BODY,TO SUBSTRUCTURE,AND TO CENTRAL AXLE | ||
| 464 | N 000960016206 | SCREW |
| THRUST ARM TO BEARING BODY,TO SUBSTRUCTURE,AND TO CENTRAL AXLE | ||
| M 16X70 | ||
| 466 | N 000960018142 | SCREW |
| BEARING BODY TO SUBSTRUCTURE | ||
| M 18X65 | ||
| 469 | N 913004018004 | NUT |
| BEARING BODY TO SUBSTRUCTURE | ||
| 470 | A 3223330184 | SHIM |
| AS REQUIRED | ||
| 1.00 MM | ||
| 470 | A 3223330084 | SHIM |
| AS REQUIRED | ||
| 2.50 MM | ||
| 470 | A 3013520184 | SHIM |
| AS REQUIRED | ||
| 4.00 MM | ||
| 474 | A 3173330162 | THRUST WASHER |
| THRUST ARM TO BEARING BODY,TO SUBSTRUCTURE,AND TO CENTRAL AXLE | ||
| 476 | A 3173331164 | RUBBER RING |
| THRUST ARM TO BEARING BODY,TO SUBSTRUCTURE,AND TO CENTRAL AXLE | ||
| 480 | N 912004012100 | LOCK WASHER |
| THRUST ARM TO BEARING BODY,TO SUBSTRUCTURE,AND TO CENTRAL AXLE | ||
| 483 | A 3079900014 | SCREW |
| THRUST ARM TO BEARING BODY,TO SUBSTRUCTURE,AND TO CENTRAL AXLE | ||
| 540 | A 0003282030 | VALVE |
| REAR AXLE LEVEL ADJUSTMENT,LEFT | ||
| 545 | A 0003282130 | VALVE |
| REAR AXLE LEVEL ADJUSTMENT,RIGHT | ||
| A 0019970247 | SEAL RING | |
| LEVEL ADJUSTMENT VALVE | ||
| A 0019970347 | SEAL RING | |
| LEVEL ADJUSTMENT VALVE | ||
| A 0003281925 | VALVE | |
| INTAKE | ||
| A 0003282025 | VALVE | |
| Repalced by: A 0003282125 | ||
| A 0003282125 | VALVE | |
| EXHAUST | ||
| A 0003280014 | SHAFT | |
| 87 MM | ||
| A 0003200027 | LEVER | |
| Repalced by: A 0003200127 | ||
| A 0003200127 | LEVER | |
| (PARTS KIT) | ||
| A 0003200467 | REPAIR KIT | |
| Repalced by: A 0003200258 | ||
| A 0003200258 | REPAIR KIT | |
| REAR AXLE LEVEL ADJUSTMENT VALVE | ||
| 555 | A 0019972572 | FITTING |
| REAR AXLE LEVEL ADJUSTMENT VALVE | ||
| 557 | A 0003272125 | VALVE |
| CHECK | ||
| 560 | N 007603012405 | SEAL RING |
| REAR AXLE LEVEL ADJUSTMENT VALVE | ||
| 563 | A 0000750032 | FILTER |
| REAR AXLE LEVEL ADJUSTMENT VALVE | ||
| 564 | N 000931008254 | SCREW |
| Repalced by: N 304014008002 | ||
| 564 | N 304014008002 | SCREW |
| LEVEL ADJUSTMENT VALVE TO SUBSTRUCTURE | ||
| 565 | N 913004008004 | NUT |
| LEVEL ADJUSTMENT VALVE TO SUBSTRUCTURE | ||
| N 912004008102 | LOCK WASHER | |
| LEVEL ADJUSTMENT VALVE TO SUBSTRUCTURE | ||
| A 0034294544 | VALVE | |
| (TEST VALVE) | ||
| A 0039978972 | FITTING | |
| Repalced by: A 0029905971 | ||
| A 0029905971 | FITTING | |
| TEST VALVE | ||
| 569 | A 3073200289 | ROD |
| FROM REAR AXLE TO LEVEL ADJUSTMENT VALVE | ||
| 569 | A 3073200289 | ROD |
| FROM REAR AXLE TO LEVEL ADJUSTMENT VALVE | ||
| 569 | A 3073200389 | ROD |
| FROM REAR AXLE TO LEVEL ADJUSTMENT VALVE | ||
| 569 | A 3073200389 | ROD |
| FROM REAR AXLE TO LEVEL ADJUSTMENT VALVE | ||
| 571 | A 0009912522 | BALL SOCKET |
| Repalced by: A 3579910622 | ||
| 571 | A 3579910622 | BALL SOCKET |
| 573 | N 000934008010 | NUT |
| 576 | N 071803013102 | BALL PIVOT |
| 577 | N 912004008102 | LOCK WASHER |
| ROD TO BEARING BRACKET | ||
| 578 | N 000934008010 | NUT |
| ROD TO BEARING BRACKET | ||
| 579 | A 0009905471 | ELBOW FITTING |
| Repalced by: N 915043008100 | ||
| 579B | N 080705012003 | NUT |
| Repalced by: N 915043008100 | ||
| 579C | A 0004290827 | THRUST RING |
| Repalced by: N 915043008100 | ||
| 579E | A 0019875046 | SEALING CORD |
| Repalced by: N 915043008100 | ||
| N 915043008100 | SCREW CONNECTION | |
| COMPRESSED AIR LINE TO LEFT AIR SPRING BELLOWS | ||
| N 915036010204 | HOLLOW SCREW | |
| Repalced by: N 915036010108 | ||
| N 915036010108 | HOLLOW SCREW | |
| COMPRESSED AIR LINE TO LEFT AIR SPRING BELLOWS | ||
| N 007603012405 | SEAL RING | |
| COMPRESSED AIR LINE TO LEFT AIR SPRING BELLOWS | ||
| 579H | A 0019972572 | FITTING |
| COMPRESSED AIR LINE TO LEFT AIR SPRING BELLOWS | ||
| 579K | N 007603012405 | SEAL RING |
| COMPRESSED AIR LINE TO LEFT AIR SPRING BELLOWS | ||
| A 0009905471 | ELBOW FITTING | |
| Repalced by: N 915043008100 | ||
| N 080705012003 | NUT | |
| Repalced by: N 915043008100 | ||
| A 0004290827 | THRUST RING | |
| Repalced by: N 915043008100 | ||
| A 0019875046 | SEALING CORD | |
| Repalced by: N 915043008100 | ||
| N 915043008100 | SCREW CONNECTION | |
| COMPRESSED AIR LINE TO LEFT AIR SPRING BELLOWS | ||
| N 915036010204 | HOLLOW SCREW | |
| Repalced by: N 915036010108 | ||
| N 915036010108 | HOLLOW SCREW | |
| COMPRESSED AIR LINE TO LEFT AIR SPRING BELLOWS | ||
| N 007603012405 | SEAL RING | |
| COMPRESSED AIR LINE TO LEFT AIR SPRING BELLOWS | ||
| 580 | A 3053200035 | PLATE |
| REAR AXLE,FRONT | ||
| 581 | A 3223200335 | PLATE |
| REAR AXLE,REAR | ||
| A 3079940012 | LOCK | |
| REAR AXLE,FRONT | ||
| 583 | N 000936022002 | NUT |
| PLATE TO SPRING CONSOLE | ||
| 585 | A 3073270001 | AIR SPRING BELLOWS |
| Repalced by: A 0003270101 | ||
| 585 | A 0003270101 | AIR SPRING BELLOWS |
| REAR AXLE PNEUMATIC SUSPENSION | ||
| 585 | A 3073270101 | AIR SPRING BELLOWS |
| Repalced by: A 0003270201 | ||
| 585 | A 0003270201 | AIR SPRING BELLOWS |
| REAR AXLE PNEUMATIC SUSPENSION | ||
| 585 | A 0003270301 | AIR SPRING BELLOWS |
| REAR AXLE PNEUMATIC SUSPENSION | ||
| 587 | A 3053240108 | HELPER SPRING |
| REAR AXLE | ||
| 590 | A 3073200175 | SPRING BRACKET |
| Repalced by: A 3573200134 | ||
| 590 | A 3573200134 | SUPPORT |
| REAR AXLE AIR SPRING BELLOWS | ||
| 593 | A 3073200675 | SPRING BRACKET |
| AIR SPRING BELLOWS | ||
| 593C | A 3073260040 | BRACKET |
| Repalced by: A 3053260240 | ||
| 593C | A 3053260240 | BRACKET |
| LEFT SHOCK ABSORBER | ||
| 593C | A 3073260140 | BRACKET |
| Repalced by: A 3053260340 | ||
| 593C | A 3053260340 | BRACKET |
| RIGHT SHOCK ABSORBER | ||
| 593F | A 3053260095 | WEB |
| SHOCK ABSORBER | ||
| 594 | A 3173230667 | RETAINER |
| REPAIR SIZE | ||
| 595 | A 3073510125 | U-BOLT |
| Repalced by: A 6003510125 | ||
| 595 | A 6003510125 | U-BOLT |
| SPRING BRACKET TO REAR AXLE | ||
| A 3573250076 | WASHER | |
| Repalced by: A 3573250176 | ||
| A 3573250176 | WASHER | |
| Repalced by: A 3573250376 | ||
| A 3573250376 | WASHER | |
| SPRING BRACKET TO REAR AXLE | ||
| 599 | N 913004024004 | NUT |
| SPRING BRACKET TO REAR AXLE | ||
| A 3073200156 | SHIM | |
| SPRING BRACKET TO REAR AXLE | ||
| 615 | A 3073260000 | SHOCK ABSORBER |
| Repalced by: A 3073260400 | ||
| 615 | A 3073260400 | SHOCK ABSORBER |
| Repalced by: A 3073260100 | ||
| 615 | A 3073260100 | SHOCK ABSORBER |
| Repalced by: A 3573260000 | ||
| 615 | A 3573260000 | SHOCK ABSORBER |
| Repalced by: A 3573200031 | ||
| 615 | A 3573200031 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 615 | A 3073260100 | SHOCK ABSORBER |
| Repalced by: A 3573200131 | ||
| 615 | A 3573200131 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 615 | A 3573200131 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 615 | A 3073260300 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| A 0003260062 | THRUST WASHER | |
| Repalced by: A 3173230667 | ||
| A 3173230667 | RETAINER | |
| 619 | A 3179911040 | SPACER TUBE |
| SHOCK ABSORBER TO SUBSTRUCTURE | ||
| 620 | A 3173230444 | RUBBER BUFFER |
| Repalced by: A 3073230044 | ||
| 620 | A 3073230044 | RUBBER BUFFER |
| SHOCK ABSORBER TO SUBSTRUCTURE | ||
| 621 | A 3173230667 | RETAINER |
| SHOCK ABSORBER TO SUBSTRUCTURE | ||
| 624 | N 913001014003 | NUT |
| SHOCK ABSORBER TO SUBSTRUCTURE | ||
| 654 | A 3073300111 | THRUST ARM |
| Repalced by: A 3573303611 | ||
| 654 | A 3573303611 | THRUST ARM |
| TOP | ||
| 654K | A 0003330132 | BALL CUP |
| TO 307 330 01 11 | ||
| 655 | A 0005860932 | REPAIR KIT |
| THRUST ARM | ||
| TO 307 330 01 11 | ||
| A 0003300075 | REPAIR KIT | |
| THRUST ARM | ||
| TO 357 330 36 11 | ||
| 656 | A 3173500606 | CONTROL ARM |
| Repalced by: A 3573303411 | ||
| 656 | A 3573303411 | THRUST ARM |
| BOTTOM | ||
| 659 | A 3073300013 | BEARING BRACKET |
| TOP AND BOTTOM | ||
| 661 | A 3173330174 | PIN |
| 663 | A 3073330014 | BEARING |
| THRUST ARM | ||
| 665 | A 3073510074 | PIN |
| BEARING TO REAR AXLE | ||
| 666 | N 912004016101 | LOCK WASHER |
| BEARING TO REAR AXLE | ||
| 667 | N 000961016077 | SCREW |
| BEARING TO REAR AXLE | ||
| M 16X45 | ||
| 668 | N 912004016101 | LOCK WASHER |
| THRUST ARM TO BEARING BODY, SUBSTRUCTURE AND REAR AXLE | ||

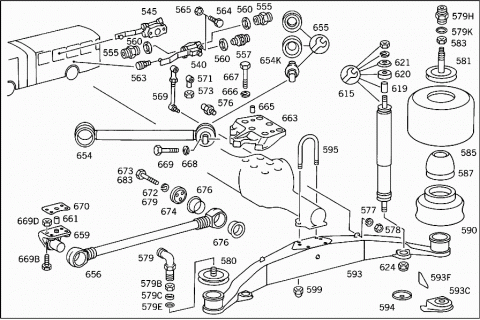

| 669 | N 000960016206 | SCREW |
| THRUST ARM TO BEARING BODY, SUBSTRUCTURE AND REAR AXLE | ||
| M 16X70 | ||
| 669B | N 000960018142 | SCREW |
| BEARING BODY TO SUBSTRUCTURE | ||
| M 18X65 | ||
| 669D | N 913004018004 | NUT |
| BEARING BODY TO SUBSTRUCTURE | ||
| 670 | A 3223330184 | SHIM |
| AS REQUIRED | ||
| 1.00 MM | ||
| 670 | A 3223330084 | SHIM |
| AS REQUIRED | ||
| 2.50 MM | ||
| 670 | A 3013520184 | SHIM |
| AS REQUIRED | ||
| 4.00 MM | ||
| 672 | N 912004012100 | LOCK WASHER |
| CONTROL ARM TO BEARING BRACKET | ||
| 673 | A 3079900014 | SCREW |
| CONTROL ARM TO BEARING BRACKET | ||
| 674 | A 3173330162 | THRUST WASHER |
| THRUST ARM TO BEARING BODY,TO SUBSTRUCTURE,AND TO SPRING BRACKET | ||
| 676 | A 3173331164 | RUBBER RING |
| THRUST ARM TO BEARING BODY,TO SUBSTRUCTURE,AND TO SPRING BRACKET | ||
| 679 | N 912004012100 | LOCK WASHER |
| THRUST ARM TO BEARING BODY,TO SUBSTRUCTURE,AND TO SPRING BRACKET | ||
| 683 | A 3079900014 | SCREW |
| THRUST ARM TO BEARING BODY,TO SUBSTRUCTURE,AND TO SPRING BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
