Transporto priemonė: O 305 G; VIN numerio dalis: 307101
Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR MERCEDES-BENZ POWER STEERING, SEE PARTS LIST | ||
| 765.2 | ||

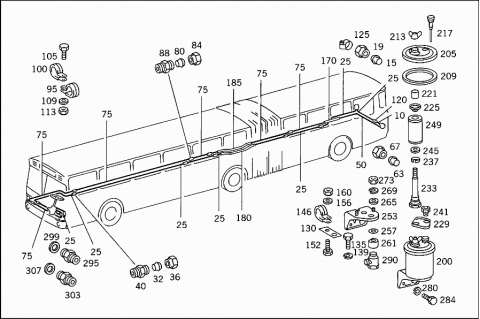

| 010 | A 3074664365 | LINE |
| Repalced by: A 0004291601 | ||
| 010 | A 0004291601 | LINE |
| FROM OIL TANK TO HOSE | ||
| A 3074664465 | LINE | |
| Repalced by: A 3074604524 | ||
| A 3074604524 | LINE | |
| FROM HOSE TO POWER STEERING PUMP | ||
| 015 | N 003861022004 | GLAND |
| 019 | N 915017022100 | UNION NUT |
| 025 | A 3074607024 | LINE |
| FROM STEERING TO CONNECTOR I | ||
| 025 | A 3074602688 | LINE |
| FROM STEERING TO CONNECTOR I | ||
| 025 | A 3074606624 | LINE |
| FROM CONNECTOR I TO CONNECTOR II | ||
| 025 | A 3074602788 | LINE |
| FROM CONNECTOR I TO CONNECTOR II | ||
| 025 | A 3074601824 | LINE |
| FROM CONNECTOR II TO CONNECTOR III | ||
| 025 | A 3074602888 | LINE |
| Repalced by: A 0004291601 | ||
| 025 | A 3074605224 | LINE |
| Repalced by: A 0004291601 | ||
| 025 | A 3074600488 | LINE |
| Repalced by: A 0004291601 | ||
| 025 | A 3074601488 | LINE |
| Repalced by: A 0004291601 | ||
| 025 | A 3074601888 | LINE |
| Repalced by: A 0004291601 | ||
| 025 | A 3074601788 | LINE |
| Repalced by: A 0004291601 | ||
| 025 | A 3074604224 | LINE |
| Repalced by: A 0004291601 | ||
| 025 | A 3074604324 | LINE |
| FROM CONNECTION FITTING V TO OIL TANK | ||
| 025 | A 3074665165 | LINE |
| FROM CONNECTOR III TO HIGH PRESSURE HOSE | ||
| 025 | A 0004291601 | LINE |
| LOW PRESSURE | ||
| 22 MM | ||
| 025 | A 0004291601 | LINE |
| FROM HOSE TO FITTING | ||
| 22 MM | ||
| 025 | A 0004291601 | LINE |
| FROM CONNECTION FITTING TO HOSE | ||
| 22 MM | ||
| 025 | A 0004291601 | LINE |
| FROM CONNECTION FITTING IV TO CONNECTION FITTING V | ||
| 22 MM | ||
| 032 | N 003861022004 | GLAND |
| 036 | N 915017022100 | UNION NUT |
| 040 | N 003902022001 | CONNECTION FITTING |
| 050 | A 3074664565 | LINE |
| Repalced by: A 3074604924 | ||
| 050 | A 3074604924 | LINE |
| FROM OIL PUMP TO HIGH PRESSURE HOSE | ||
| 050 | A 3074607988 | LINE |
| FROM POWER STEERING PUMP TO HOSE | ||
| N 003861015004 | GLAND | |
| N 915017015100 | UNION NUT | |
| 063 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 063 | A 0019901967 | SEAL CONE |
| 067 | N 915017012100 | UNION NUT |
| A 3529970671 | FITTING | |
| FROM POWER STEERING PUMP TO HOSE | ||
| N 003901022006 | SCREW-IN FITTING | |
| FROM POWER STEERING PUMP TO HOSE | ||
| N 007603016103 | SEAL RING | |
| FROM POWER STEERING PUMP TO HOSE | ||
| N 007603022102 | SEAL RING | |
| FROM POWER STEERING PUMP TO HOSE | ||
| 075 | A 3074605024 | LINE |
| Repalced by: A 0015516256 | ||
| 075 | A 3074601588 | LINE |
| Repalced by: A 0005516256 | ||
| 075 | A 3074601688 | LINE |
| Repalced by: A 0005516256 | ||
| 075 | A 3074601388 | LINE |
| Repalced by: A 0005516256 | ||
| 075 | A 3074600288 | LINE |
| Repalced by: A 0005516256 | ||
| 075 | A 3074600388 | LINE |
| Repalced by: A 0005516256 | ||
| A 3074601724 | LINE | |
| FROM CONNECTOR II TO CONNECTOR III | ||
| 075 | A 3074602588 | LINE |
| Repalced by: A 0005516256 | ||
| 075 | A 3074606524 | LINE |
| FROM CONNECTOR III TO HIGH PRESSURE HOSE | ||
| 075 | A 3074602488 | LINE |
| FROM CONNECTOR III TO HIGH PRESSURE HOSE | ||
| 075 | A 3074606924 | LINE |
| FROM CONNECTION FITTING IV TO HYDRAULIC STEERING | ||
| 075 | A 3074602388 | LINE |
| FROM CONNECTION FITTING IV TO HYDRAULIC STEERING | ||
| 075 | A 0005516256 | TUBE |
| HIGH PRESSURE | ||
| 15 MM | ||
| 075 | A 0005516256 | TUBE |
| FROM HOSE TO FITTING | ||
| 15 MM | ||
| 075 | A 0005516256 | TUBE |
| FROM CONNECTOR II TO CONNECTOR III | ||
| 15 MM | ||
| 075 | A 0005516256 | TUBE |
| FROM CONNECTOR I TO CONNECTOR II | ||
| 15 MM | ||
| 075 | A 0005516256 | TUBE |
| EXPANSION HOSE,HOSE IN ARTICULATION PIECE,STEERING | ||
| 15 MM | ||
| 080 | N 003861015004 | GLAND |
| 084 | N 915017015100 | UNION NUT |
| 088 | N 003902015002 | CONNECTION FITTING |
| 095 | N 916016022206 | CLAMP |
| LOW PRESSURE LINE TO SUBSTRUCTURE | ||
| 100 | N 916016015202 | CLAMP |
| HIGH PRESSURE LINE TO SUBSTRUCTURE | ||
| 105 | N 000933006127 | SCREW |
| 109 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 109 | N 009021006208 | WASHER |
| 113 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 113 | N 910113006001 | NUT |
| 120 | A 0069971182 | HOSE |
| FROM OIL TANK TO HYDRAULIC PUMP | ||
| 270 MM | ||
| 125 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 125 | N 000000000668 | CLAMP |
| 130 | A 3074660040 | BRACKET |
| HIGH PRESSURE LINE | ||
| 135 | N 000933016060 | SCREW |
| BRACKET TO ENGINE | ||
| 139 | N 912004016101 | LOCK WASHER |
| BRACKET TO ENGINE | ||
| 146 | N 916016015202 | CLAMP |
| LINE TO BRACKET | ||
| 152 | N 000933006127 | SCREW |
| LINE TO BRACKET | ||
| 156 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 156 | N 009021006208 | WASHER |
| LINE TO BRACKET | ||
| 160 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 160 | N 910113006001 | NUT |
| LINE TO BRACKET | ||
| 170 | A 3079970682 | HOSE |
| Repalced by: A 3059971082 | ||
| 170 | A 3059971082 | HOSE |
| HIGH PRESSURE | ||
| 170 | A 3059971682 | HOSE |
| HIGH PRESSURE | ||
| 170 | A 0139971182 | HOSE |
| HIGH PRESSURE | ||
| 180 | A 3079970582 | HOSE |
| LOW PRESSURE LINE IN ARTICULATION PIECE | ||
| 180 | A 3079971382 | HOSE |
| LOW PRESSURE LINE IN ARTICULATION PIECE | ||
| N 003910022000 | BULKHEAD FITTING | |
| N 080705030000 | NUT | |
| LOW PRESSURE LINE IN ARTICULATION PIECE | ||
| N 000125031001 | WASHER | |
| LOW PRESSURE LINE IN ARTICULATION PIECE | ||
| 185 | A 3079970482 | HOSE |
| HIGH PRESSURE LINE IN ARTICULATION PIECE | ||
| 200 | A 0004662602 | TANK |
| OIL | ||
| 205 | A 0004661305 | COVER |
| 209 | A 0004660260 | SEAL RING |
| 213 | N 000315008006 | NUT |
| 217 | A 0004660067 | OIL DIPSTICK |
| 221 | A 0009870643 | RUBBER SLEEVE |
| 225 | A 0004660675 | CENTERING RING |
| 229 | A 0004660037 | REINFORCEMENT |
| 233 | A 0014664465 | FILTER CARRIER |
| 237 | A 0004660153 | SPACER TUBE |
| 241 | A 0004660571 | FITTING |
| 245 | A 0004660275 | WASHER |
| Repalced by: A 9402680552 | ||
| 245 | A 9402680552 | SPACER WASHER |
| 249 | A 0004660604 | FILTER |
| 253 | A 0004660040 | BRACKET |
| Repalced by: A 0004660840 | ||
| 253 | A 0004660840 | BRACKET |
| A 0009879046 | SEALING CORD | |
| Repalced by: A 0029973245 | ||
| 257 | A 0029973245 | SEAL RING |
| Repalced by: A 0059970848 | ||
| 257 | A 0059970848 | SEAL RING |
| 22X3.5 MM | ||
| 261 | A 0004660458 | CONNECTOR |
| 265 | A 0099970145 | SEAL RING |
| 9.2X3.5 MM | ||
| 269 | N 912004008102 | LOCK WASHER |
| 273 | N 000934008010 | NUT |
| 280 | N 912004010102 | LOCK WASHER |
| OIL TANK TO BRACKET IN ENGINE COMPARTMENT | ||
| 284 | N 000933010128 | SCREW |
| OIL TANK TO BRACKET IN ENGINE COMPARTMENT | ||
| M 10X20 | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| OIL TANK TO BRACKET IN ENGINE COMPARTMENT | ||
| 290 | A 0009907168 | FITTING |
| AT OIL TANK | ||
| 295 | A 3529970571 | FITTING |
| LOW PRESSURE LINE TO STEERING | ||
| 299 | N 007603018101 | SEAL RING |
| LOW PRESSURE LINE TO STEERING | ||
| 303 | A 3529970671 | FITTING |
| HIGH PRESSURE LINE TO STEERING | ||
| 307 | N 007603016103 | SEAL RING |
| HIGH PRESSURE LINE TO STEERING | ||

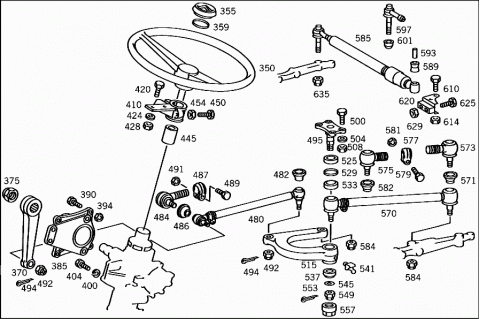

| 350 | A 3024640501 | STEERING WHEEL |
| Repalced by: A 3054640401 | ||
| 350 | A 3054640401 | STEERING WHEEL |
| 355 | A 0004641231 | CAP |
| Repalced by: A 0004642631 | ||
| 355 | A 0004642631 | CAP |
| 359 | A 0004640177 | PROTECTIVE RING |
| A 0004642631 | CAP | |
| 370 | A 3074630401 | PITMAN ARM |
| Repalced by: A 3074630801 | ||
| 370 | A 3074630801 | PITMAN ARM |
| 370 | A 3074630501 | PITMAN ARM |
| Repalced by: A 3074630901 | ||
| 370 | A 3074630901 | PITMAN ARM |
| 375 | N 000937042003 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| N 000094008014 | COTTER PIN | |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 385 | A 3074610040 | STEERING SUPPORT |
| A 3074610140 | STEERING SUPPORT | |
| 390 | N 000960014247 | SCREW |
| Repalced by: N 308676014013 | ||
| 390 | N 308676014013 | SCREW |
| STEERING SUPPORT TO SUBSTRUCTURE | ||
| N 000960014250 | SCREW | |
| Repalced by: N 000961014158 | ||
| N 000961014158 | SCREW | |
| Repalced by: N 308676014014 | ||
| N 308676014014 | SCREW | |
| STEERING SUPPORT TO SUBSTRUCTURE | ||
| 394 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 394 | N 910113014000 | NUT |
| STEERING SUPPORT TO SUBSTRUCTURE | ||
| 400 | N 912004016101 | LOCK WASHER |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| 404 | N 000961016036 | SCREW |
| Repalced by: N 308676016013 | ||
| 404 | N 308676016013 | SCREW |
| STEERING BOX ASSEMBLY TO STEERING SUPPORT | ||
| 410 | A 3074620021 | STEERING COLUMN BRACKET |
| 420 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 420 | N 304017008034 | SCREW |
| STEERING COLUMN BRACKET TO WINDOW SILL | ||
| 424 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 424 | N 009021008213 | WASHER |
| STEERING COLUMN BRACKET TO WINDOW SILL | ||
| 428 | N 913004008005 | NUT |
| STEERING COLUMN BRACKET TO WINDOW SILL | ||
| 445 | A 0009975282 | HOSE |
| CUSHIONING OF CONNECTOR IN STEERING COLUMN BRACKET | ||
| 450 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 450 | N 304017008043 | SCREW |
| CLAMPING PIECE TO STEERING COLUMN BRACKET | ||
| 454 | N 913004008005 | NUT |
| CLAMPING PIECE TO STEERING COLUMN BRACKET | ||
| 480 | A 3054600705 | DRAG LINK |
| Repalced by: A 3074600405 | ||
| 480 | A 3074600405 | DRAG LINK |
| FRONT | ||
| LEMFOERDER | ||
| 482 | A 0003301085 | BOOT |
| FIXED PART OF JOINT | ||
| A 0004633129 | BALL JOINT | |
| Repalced by: A 0004633429 | ||
| A 0004633429 | BALL JOINT | |
| Repalced by: A 0013300135 | ||
| 484 | A 0013300135 | JOINT |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 486 | A 0003301085 | BOOT |
| A 0004630117 | CLAMPING PIECE | |
| Repalced by: A 0003382445 | ||
| 487 | A 0003382445 | CLAMP |
| 489 | N 000960012296 | SCREW |
| 491 | A 0004630572 | NUT |
| Repalced by: N 913004012008 | ||
| 491 | N 913004012008 | NUT |
| 492 | N 000937020001 | NUT |
| DRAG LINK TO PITMAN ARM AND TO STEERING INTERMEDIATE ARM | ||
| 494 | N 000094004065 | COTTER PIN |
| DRAG LINK TO PITMAN ARM AND TO STEERING INTERMEDIATE ARM | ||
| 495 | A 3174630011 | TRUNNION BEARING |
| INTERMEDIATE LEVER | ||
| 500 | N 000961014054 | SCREW |
| PIVOT BEARING TO SUBSTRUCTURE | ||
| 504 | N 000433015005 | WASHER |
| PIVOT BEARING TO SUBSTRUCTURE | ||
| 508 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 508 | N 910113014000 | NUT |
| PIVOT BEARING TO SUBSTRUCTURE | ||
| 515 | A 3054630010 | STEERING INTERMEDIATE ARM |
| 515 | A 3054630110 | STEERING INTERMEDIATE ARM |
| 525 | N 006504042100 | RADIAL SEAL RING |
| Repalced by: A 0079976446 | ||
| 525 | A 0079976446 | SEAL RING |
| 529 | A 3174630052 | SPACER WASHER |
| 533 | N 000720030206 | TAPERED ROLLER BEARING |
| TOP | ||
| 537 | N 000720030205 | TAPERED ROLLER BEARING |
| Repalced by: A 0059819105 | ||
| 537 | A 0059819105 | TAPERED ROLLER BEARING |
| BOTTOM | ||
| 541 | N 071412010200 | GREASE NIPPLE |
| INTERMEDIATE LEVER | ||
| 545 | A 3174630062 | THRUST WASHER |
| INTERMEDIATE LEVER TO PIVOT BEARING | ||
| 549 | N 000937020001 | NUT |
| INTERMEDIATE LEVER TO PIVOT BEARING | ||
| 553 | N 000094004065 | COTTER PIN |
| INTERMEDIATE LEVER TO PIVOT BEARING | ||
| 557 | A 3214630033 | CAP |
| AT STEERING INTERMEDIATE ARM | ||
| 570 | A 3054600305 | DRAG LINK |
| Repalced by: A 3004600605 | ||
| 570 | A 3004600605 | DRAG LINK |
| REAR | ||
| LEMFOERDER | ||
| 570 | A 3004600705 | DRAG LINK |
| REAR | ||
| EHRENREICH | ||
| 571 | A 0003301085 | BOOT |
| FIXED PART OF JOINT | ||
| A 0003300248 | TIE ROD END | |
| Repalced by: A 0004632229 | ||
| A 0004632229 | BALL JOINT | |
| Repalced by: A 0004633429 | ||
| A 0004633429 | BALL JOINT | |
| Repalced by: A 0013300135 | ||
| 573 | A 0013300135 | JOINT |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 575 | A 0013300235 | JOINT |
| EHRENREICH | ||
| A 0003381645 | CLAMP | |
| Repalced by: A 4619955044 | ||
| 577 | A 4619955044 | CLAMP |
| "6245" | ||
| 579 | N 000960010035 | SCREW |
| 581 | A 0004630472 | NUT |
| Repalced by: N 913004010010 | ||
| 581 | N 913004010010 | NUT |
| Repalced by: N 910113010002 | ||
| 581 | N 910113010002 | NUT |
| 582 | A 0003301085 | BOOT |
| 584 | N 000937020001 | NUT |
| DRAG LINK TO INTERMEDIATE ARM & TO STEERING ARM | ||
| N 000094004065 | COTTER PIN | |
| DRAG LINK TO INTERMEDIATE ARM & TO STEERING ARM | ||
| 585 | A 3024630432 | SHOCK ABSORBER |
| Repalced by: A 0004635932 | ||
| 585 | A 0004635932 | SHOCK ABSORBER |
| Repalced by: A 0004636132 | ||
| 585 | A 0004636132 | SHOCK ABSORBER |
| STEERING | ||
| 589 | A 0004630065 | RUBBER RING |
| Repalced by: A 0004630565 | ||
| 589 | A 0004630565 | RUBBER RING |
| 593 | A 0004630050 | BUSHING |
| 597 | A 0004631729 | BALL JOINT |
| 601 | A 0003300185 | BOOT |
| Repalced by: A 0003300785 | ||
| 601 | A 0003300785 | BOOT |
| 610 | N 000960014121 | SCREW |
| Repalced by: N 308676014014 | ||
| 610 | N 308676014014 | SCREW |
| SHOCK ABSORBER TO FRONT AXLE | ||
| 614 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 614 | N 910113014000 | NUT |
| SHOCK ABSORBER TO FRONT AXLE | ||
| 620 | A 3024600235 | BRACKET |
| SHOCK ABSORBERS | ||
| 625 | N 000960012331 | SCREW |
| BRACKET TO FRONT AXLE | ||
| M 12X1,5X95 | ||
| 629 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 629 | N 910113012003 | NUT |
| BRACKET TO FRONT AXLE | ||
| 635 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 635 | N 910113014000 | NUT |
| SHOCK ABSORBER TO STEERING ARM | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
