Transporto priemonė: O 307; VIN numerio dalis: 307051
Grupė: 42 BRAKES

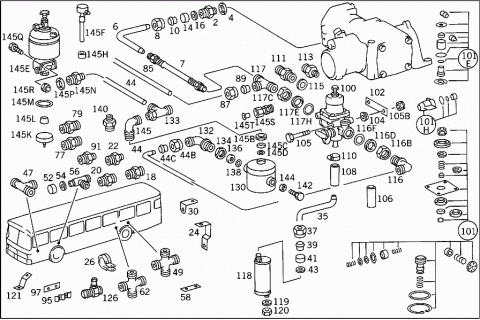

42737

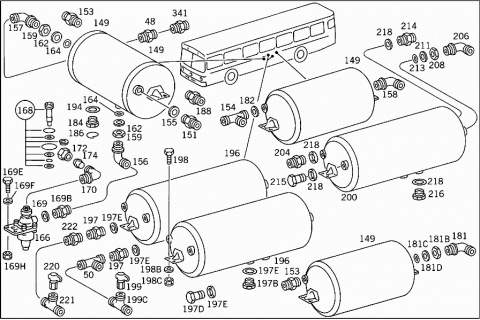

42738

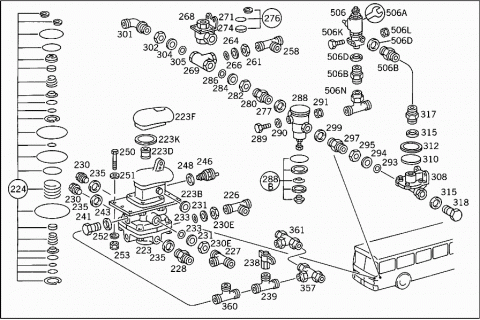

42739

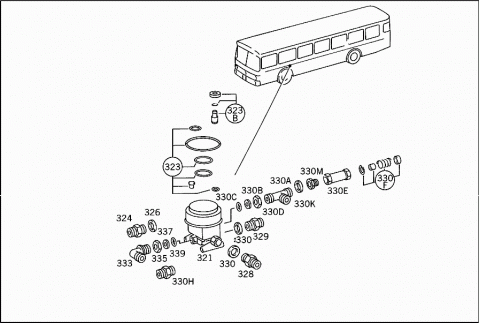

42740

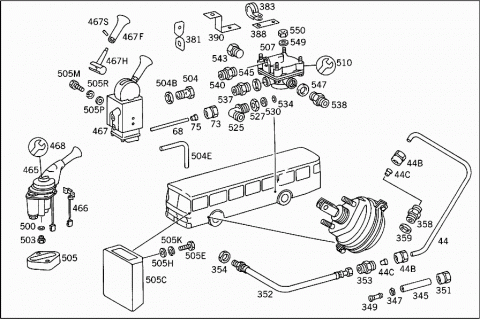

42741

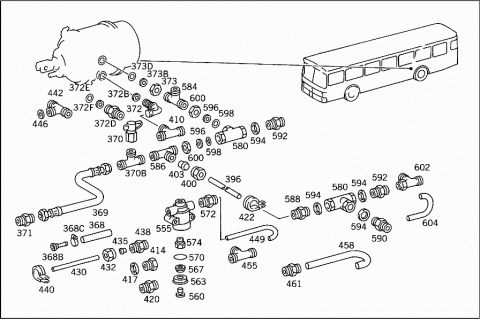

42742
# Kodas Pavadinimas
X XXXXXXXXXXXX PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL:
739.2
X XXXXXXXXXXXX PART NAME MISSING
FOR BRAKES,SEE UNIT STANDARD VERSION, MODEL:
740.2
002 A 0019972072 FITTING
Repalced by: N 074313018200
002 N 074313018201 FITTING
AT AIR COMPRESSOR
002 N 074299026203 DOUBLE FITTING
AT AIR COMPRESSOR
004 N 007603026104 SEAL RING
AT AIR COMPRESSOR
006 A 0004291501 LINE
18 MM
006 A 0005516256 TUBE
15 MM
007 A 0004297335 BRAKE HOSE
COMPRESSED AIR LINE
007 A 0004297435 BRAKE HOSE
Repalced by: A 0004297735
007 A 0004297735 BRAKE HOSE
COMPRESSED AIR LINE
007 A 0004297835 BRAKE HOSE
COMPRESSED AIR LINE
008 N 915018018000 UNION NUT
008 N 915018015000 UNION NUT
010 N 003861018003 GLAND
Repalced by: A 0019901167
010 A 0019901167 SEAL CONE
010 N 003861015004 GLAND
014 N 915065018101 THRUST RING
014 A 0004291027 THRUST RING
016 A 0004291584 SEAL RING
Repalced by: N 915045015100
016 N 915045015100 SEAL RING
016 N 915045014100 SEAL RING
018 A 0029974372 FITTING
A 3074290040 BRACKET
020 A 0029974372 FITTING
022 A 0019972072 FITTING
Repalced by: N 074313018200
022 N 074313018201 FITTING
024 A 3074290440 BRACKET
LINE TO SUBSTRUCTURE
A 3074290840 BRACKET
LINE TO SUBSTRUCTURE
026 A 0009954801 CLAMP
Repalced by: N 916016018201
026 N 916016018201 CLAMP
LINE TO SUBSTRUCTURE
A 3609950601 CLAMP
LINE TO SUBSTRUCTURE
N 000933014033 SCREW
LINE TO SUBSTRUCTURE
N 000084006162 SCREW
Repalced by: A 0029903712
A 0029903712 SCREW
Repalced by: N 000000001149
N 000000001149 SCREW
LINE TO SUBSTRUCTURE
N 000127010201 LOCK WASHER
LINE TO SUBSTRUCTURE
N 913004006003 NUT
Repalced by: N 910113006001
N 910113006001 NUT
LINE TO SUBSTRUCTURE
026 N 916016018201 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
A 3609950010 CLAMP
Repalced by: N 001593019001
N 001593019001 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
N 000084006118 SCREW
MOUNTING USED FOR COMPRESSED AIR LINES
N 000125006421 WASHER
MOUNTING USED FOR COMPRESSED AIR LINES
N 913004006003 NUT
Repalced by: N 910113006001
N 910113006001 NUT
MOUNTING USED FOR COMPRESSED AIR LINES
030 A 3074290640 BRACKET
030 A 3074290640 BRACKET
A 3074290740 BRACKET
Repalced by: A 3074291740
A 3074290940 BRACKET
Repalced by: A 3074291740
A 3074291740 BRACKET
N 916016018201 CLAMP
A 3609950010 CLAMP
Repalced by: N 001593019001
N 001593019001 CLAMP
A 3609950210 CLAMP
COMPRESSED AIR LINE TO BRACKET
N 000084006162 SCREW
Repalced by: A 0029903712
A 0029903712 SCREW
Repalced by: N 000000001149
N 000000001149 SCREW
COMPRESSED AIR LINE TO BRACKET
M 6X25
N 000933006127 SCREW
COMPRESSED AIR LINE TO BRACKET
M 6X25
N 913004006003 NUT
Repalced by: N 910113006001
N 910113006001 NUT
COMPRESSED AIR LINE TO BRACKET
035 A 0004291401 LINE
15 MM
037 N 915018015000 UNION NUT
039 N 003861015004 GLAND
041 A 0004291027 THRUST RING
043 N 915045014100 SEAL RING
044 A 0004292101 LINE
12 MM
044B N 915017012100 UNION NUT
044C N 003861012007 GLAND
Repalced by: A 0019901967
044C A 0019901967 SEAL CONE
A 0019972372 FITTING
BETWEEN THE LINES
A 0039970572 FITTING
A 0009970271 FITTING
BETWEEN THE LINES
A 0009905270 T-FITTING
BRANCH-OFF TO ANTI-FREEZE DEVICE
A 0019972172 FITTING
BETWEEN THE LINES
A 0029971472 FITTING
Repalced by: A 0049971772
A 0049971772 FITTING
Repalced by: A 0029906171
A 0029906171 FITTING
A 0029971172 FITTING
A 0029971672 FITTING
A 0009903070 T-FITTING
BETWEEN THE LINES
A 0009905370 T-FITTING
ENGINE SHUT-OFF
047 A 0019901970 T-FITTING
BRANCH-OFF TO BUS STOP BRAKE
A 0009907070 T-FITTING
BRANCH-OFF TO BUS STOP BRAKE
048 A 0029971672 FITTING
BETWEEN THE LINES
A 0019972372 FITTING
BETWEEN THE LINES
A 0004292037 DISTRIBUTOR
BRANCH-OFF TO AIR SPRING
049 A 0009901187 CROSS FITTING
BRANCH-OFF TO AIR SPRING
049 A 0009902287 CROSS FITTING
A 0039970672 FITTING
050 A 0009902370 T-FITTING
BRANCH-OFF LEADING TO AIR RESERVOIR & BRAKE VALVE
050 A 0009905270 T-FITTING
050 A 0009905270 T-FITTING
052 A 0004291027 THRUST RING
054 N 915045014100 SEAL RING
056 A 0009903170 T-FITTING
BRANCH-OFF LEADING TO SECOND.CONSUMING UNITS & EMERGENCY RELEASE DEVICE
056 A 0019902870 T-FITTING
BRANCH-OFF LEADING TO SECOND.CONSUMING UNITS & EMERGENCY RELEASE DEVICE
A 0039970672 FITTING
AT T-FITTING
N 915017012100 UNION NUT
AT T-FITTING
N 003861012007 GLAND
Repalced by: A 0019901967
A 0019901967 SEAL CONE
AT T-FITTING
058 A 3074290140 BRACKET
N 000933008212 SCREW
Repalced by: N 304017008016
N 304017008016 SCREW
N 912004008102 LOCK WASHER
N 913004006003 NUT
Repalced by: N 910113006001
N 910113006001 NUT
062 A 0009901087 CROSS FITTING
BRANCH-OFF TO AIR SPRING ON REAR AXLE
A 0009909970 T-FITTING
BRANCH-OFF TO AIR SPRING ON REAR AXLE
N 915020014000 NUT
BRANCH-OFF TO AIR SPRING ON REAR AXLE
N 915005006001 LOCKING CONE
BRANCH-OFF TO AIR SPRING ON REAR AXLE
A 0009902370 T-FITTING
BRANCH-OFF TO DOOR CLOSING SYSTEM
A 0009905270 T-FITTING
BRANCH-OFF TO DOOR CLOSING SYSTEM
A 0009902670 T-FITTING
BRANCH-OFF TO AIR SPRING
N 916016010201 CLAMP
Repalced by: N 916016010211
N 916016010211 CLAMP
Repalced by: N 000000001045
N 000000001045 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
10/15 MM
N 916016015202 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
15/15 MM
N 916016012200 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
12/15 MM
N 916016012201 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
12/20 MM
A 0009956301 CLAMP
Repalced by: N 916016012202
N 916016012202 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
12/12 MM
N 916016022206 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
22/15 MM
N 000933008212 SCREW
Repalced by: N 304017008016
N 304017008016 SCREW
MOUNTING USED FOR COMPRESSED AIR LINES
M 8X16
N 000084006137 SCREW
MOUNTING USED FOR COMPRESSED AIR LINES
M 6X20
N 000933006127 SCREW
MOUNTING USED FOR COMPRESSED AIR LINES
M 6X25
N 000084005134 SCREW
MOUNTING USED FOR COMPRESSED AIR LINES
M 5X20
N 009021006205 WASHER
Repalced by: N 009021006208
N 009021006208 WASHER
MOUNTING USED FOR COMPRESSED AIR LINES
N 000125006421 WASHER
MOUNTING USED FOR COMPRESSED AIR LINES
N 913004008004 NUT
MOUNTING USED FOR COMPRESSED AIR LINES
N 913004006003 NUT
Repalced by: N 910113006001
N 910113006001 NUT
MOUNTING USED FOR COMPRESSED AIR LINES
N 913004005001 NUT
MOUNTING USED FOR COMPRESSED AIR LINES
A 0004291201 LINE
8 MM
068 A 0089979082 HOSE
Repalced by: A 0009872727
068 A 0009872727 PLASTIC PIPE
5X8 MM
073 N 915017008100 UNION NUT
075 N 003861008005 GLAND
N 915052006021 BANJO UNION
HOSE WIDTH, / I.D.,
6/14 MM
A 0007630043 SLEEVE
Repalced by: N 915062006000
N 915062006000 SLEEVE
A 0039978972 FITTING
Repalced by: A 0029905971
A 0029905971 FITTING
(PARTS KIT),LINE RUPTURE
TO 008 997 90 82
A 0009972581 GROMMET
Repalced by: A 0009972481
A 0009972481 GROMMET
A 0009972681 GROMMET
Repalced by: A 0009972581
A 0009972581 GROMMET
Repalced by: A 0009972481
A 0009972481 GROMMET
077 A 0019972772 FITTING
079 A 0019972672 FITTING
Repalced by: A 0039978972
079 A 0039978972 FITTING
Repalced by: A 0029905971
079 A 0029905971 FITTING
BETWEEN THE LINES
A 0009902670 T-FITTING
BRANCH-OFF TO AIR SPRING ON FRONT AXLE
A 0009902670 T-FITTING
ENGINE SHUT-OFF
A 0009902670 T-FITTING
BRANCH-OFF TO AIR SPRING ON FRONT AXLE
A 0009906970 T-FITTING
BUS STOP BRAKE,THREE-WAY VALVE, BUS STOP BRAKE CYLINDER
A 0009906970 T-FITTING
BUS STOP BRAKE,THREE-WAY VALVE, BUS STOP BRAKE CYLINDER
A 0009902770 T-FITTING
BRANCH-OFF TO BUS STOP BRAKE
N 916016008200 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
8 MM
N 916016006208 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
6 MM
N 000084005134 SCREW
MOUNTING USED FOR COMPRESSED AIR LINES
N 000933006127 SCREW
MOUNTING USED FOR COMPRESSED AIR LINES
N 000125005317 WASHER
Repalced by: N 000433005304
N 000433005304 WASHER
MOUNTING USED FOR COMPRESSED AIR LINES
N 009021006205 WASHER
Repalced by: N 009021006208
N 009021006208 WASHER
MOUNTING USED FOR COMPRESSED AIR LINES
N 913004005001 NUT
MOUNTING USED FOR COMPRESSED AIR LINES
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
MOUNTING USED FOR COMPRESSED AIR LINES
085 A 0004291101 LINE
6 MM
A 0089976082 HOSE
Repalced by: A 0009872627
A 0009872627 PLASTIC PIPE
BLACK
4X6 MM
087 N 915017006100 UNION NUT
089 N 003861006007 GLAND
A 0009920105 BUSHING
Repalced by: N 915062004000
N 915062004000 SLEEVE
A 0009904388 BANJO UNION
Repalced by: N 915052004007
N 915052004026 BANJO UNION
HOSE WIDTH, / I.D.,
4/14 MM
N 915052006021 BANJO UNION
HOSE WIDTH, / I.D.,
6/14 MM
091 A 0019972872 FITTING
Repalced by: A 0039979072
091 A 0039979072 FITTING
Repalced by: A 0029906071
091 A 0029906071 FITTING
BETWEEN THE LINES
N 000084005114 SCREW
MOUNTING USED FOR COMPRESSED AIR LINES
N 000125005313 WASHER
MOUNTING USED FOR COMPRESSED AIR LINES
N 913001005001 NUT
MOUNTING USED FOR COMPRESSED AIR LINES
095 A 3129950033 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
097 A 3125421139 PLATE
MOUNTING USED FOR COMPRESSED AIR LINES
N 000084005112 SCREW
MOUNTING USED FOR COMPRESSED AIR LINES
A 0019978490 LOOM TIE
MOUNTING USED FOR COMPRESSED AIR LINES
A 3359970081 GROMMET
MOUNTING USED FOR COMPRESSED AIR LINES
A 0005467130 INSULATING HOSE
100 A 0014310006 PRESSURE REGULATOR
Repalced by: A 0024314906
100 A 0024314906 PRESSURE REGULATOR
WABCO
100 A 0024316206 PRESSURE REGULATOR
Repalced by: A 0024316506
100 A 0024316506 PRESSURE REGULATOR
WABCO
101 A 0015864343 REPAIR KIT
Repalced by: A 0004301107
101 A 0004301107 REPAIR KIT
TO 001 431 00 06,WABCO 975 300 110 0
A 0024304681 REPAIR KIT
VALVE KIT
TO 001 431 00 06,WABCO 975 300 110 0
A 0014306860 REPAIR KIT
TO 002 431 62 06,WABCO 975 300 156 0
A 0014304960 REPAIR KIT
TO 002 431 65 06,WABCO
101E A 0004301768 REPAIR KIT
101H A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
102 A 3055910084 SHIM
PRESSURE REGULATOR TO BRACKET
104 A 3219970240 SEAL RING
PRESSURE REGULATOR TO BRACKET
105 N 000931008228 SCREW
Repalced by: N 000933008134
105 N 000933008134 SCREW
PRESSURE REGULATOR TO BRACKET
105B N 913004008005 NUT
PRESSURE REGULATOR TO BRACKET
106 A 3029970282 HOSE
108 N 900271015037 HOSE
108 N 900271015037 HOSE
110 N 916026016001 CLAMP
Repalced by: A 0059970190
110 A 0059970190 LOOM TIE
A 0019972172 FITTING
111 A 0019972372 FITTING
PRESSURE REGULATOR,CONNECTION "1"
111 A 0019972372 FITTING
PRESSURE REGULATOR,CONNECTION "1"
113 A 0029971272 FITTING
115 N 007603022102 SEAL RING
PRESSURE REGULATOR,CONNECTION "1"
115 N 007603022102 SEAL RING
PRESSURE REGULATOR,CONNECTION "1"
A 0019902271 ELBOW FITTING
Repalced by: N 074301026202
N 074301026202 ELBOW FITTING
116 A 0009907771 ELBOW FITTING
AT PRESSURE REGULATOR
A 0009905871 ELBOW FITTING
AT PRESSURE REGULATOR
116B N 074305022202 NUT
AT PRESSURE REGULATOR
116D A 0004290227 THRUST RING
AT PRESSURE REGULATOR
116F A 0009870446 SEALING CORD
AT PRESSURE REGULATOR
117 A 0009907070 T-FITTING
PRESSURE REGULATOR,CONNECTION "1"
117 A 0009907070 T-FITTING
PRESSURE REGULATOR,CONNECTION "1"
A 0009902570 T-FITTING
PRESSURE REGULATOR,CONNECTION "1"
A 0009902570 T-FITTING
PRESSURE REGULATOR,CONNECTION "1"
117C N 074305022202 NUT
PRESSURE REGULATOR,CONNECTION "1"
117C N 074305022202 NUT
PRESSURE REGULATOR,CONNECTION "1"
117E A 0004290227 THRUST RING
PRESSURE REGULATOR,CONNECTION "1"
117E A 0004290227 THRUST RING
PRESSURE REGULATOR,CONNECTION "1"
117H A 0009870446 SEALING CORD
PRESSURE REGULATOR,CONNECTION "1"
117H A 0009870446 SEALING CORD
PRESSURE REGULATOR,CONNECTION "1"
A 0019972172 FITTING
PRESSURE REGULATOR,CONNECTION "1"
N 007603022102 SEAL RING
PRESSURE REGULATOR,CONNECTION "1"
118 A 0004300070 MUFFLER
Repalced by: A 3074300070
118 A 3074300070 MUFFLER
A 3059970582 HOSE
MUFFLER TO SUBSTRUCTURE
N 000084006162 SCREW
Repalced by: A 0029903712
A 0029903712 SCREW
Repalced by: N 000000001149
N 000000001149 SCREW
MUFFLER TO SUBSTRUCTURE
119 N 000125023006 WASHER
N 913004006003 NUT
Repalced by: N 910113006001
N 910113006001 NUT
120 N 074305022202 NUT
121 A 3074310640 BRACKET
121 A 3074290540 BRACKET
121 A 3074290540 BRACKET
121 A 3074290540 BRACKET
N 916016015202 CLAMP
N 000084006162 SCREW
Repalced by: A 0029903712
A 0029903712 SCREW
Repalced by: N 000000001149
N 000000001149 SCREW
N 913004006003 NUT
Repalced by: N 910113006001
N 910113006001 NUT
A 0019973872 FITTING
Repalced by: A 0009977172
A 0009977172 FITTING
REFILLING CONNECTION FOR SECONDARY CONSUMING UNITS
A 0009977172 FITTING
EMERGENCY RELEASE
A 0009977172 FITTING
EMERGENCY RELEASE
A 0009977172 FITTING
REFILLING CONNECTION FOR SECONDARY CONSUMING UNITS
N 080705012003 NUT
REFILLING CONNECTION FOR SECONDARY CONSUMING UNITS
N 080705012003 NUT
EMERGENCY RELEASE
N 080705012003 NUT
EMERGENCY RELEASE
N 080705012003 NUT
REFILLING CONNECTION FOR SECONDARY CONSUMING UNITS
A 3074310142 PLATE
REFILLING CONNECTION FOR SECONDARY CONSUMING UNITS
A 0004310731 TEST CONNECTION
REFILLING CONNECTION FOR SECONDARY CONSUMING UNITS
126 A 0004310531 TEST CONNECTION
126 A 0004310531 TEST CONNECTION
N 000125023006 WASHER
N 000125023006 WASHER
N 074305022202 NUT
N 074305022202 NUT
A 0009970271 FITTING
A 0009970271 FITTING
N 915045014100 SEAL RING
N 915045014100 SEAL RING
N 915020022000 NUT
N 915020022000 NUT
N 007603022102 SEAL RING
N 007603022102 SEAL RING
A 0004314431 TEST CONNECTION
Repalced by: A 0004310731
A 0004310731 TEST CONNECTION
A 0039978472 FITTING
TEST CONNECTION
N 080705018002 NUT
BULKHEAD FITTING TO BRACKET
N 000125019009 WASHER
BULKHEAD FITTING TO BRACKET
A 0039970672 FITTING
AT FITTING
N 915017012100 UNION NUT
AT FITTING
N 003861012007 GLAND
Repalced by: A 0019901967
A 0019901967 SEAL CONE
AT FITTING
N 915020018000 NUT
TO 000 431 44 31
N 915005010002 LOCKING CONE
TO 000 431 44 31
130 A 3204300405 RESERVOIR
Repalced by: A 0034328601
130 A 0034328601 RESERVOIR
130 A 0034328601 RESERVOIR
130 A 0034328601 RESERVOIR
130 A 3014300005 RESERVOIR
Repalced by: A 0034320201
130 A 0034320201 RESERVOIR
1,5 L
130 A 0034320201 RESERVOIR
1,5 L
130 A 0034320201 RESERVOIR
1,5 L
130 A 0034320201 RESERVOIR
1,5 L
132 A 0009905871 ELBOW FITTING
AT OUTSIDE AIR RESERVOIR
132 A 0009907771 ELBOW FITTING
AT OUTSIDE AIR RESERVOIR
132 A 0009907771 ELBOW FITTING
AT OUTSIDE AIR RESERVOIR
132 A 0009907771 ELBOW FITTING
AT OUTSIDE AIR RESERVOIR
133 A 0019900970 T-FITTING
AT OUTSIDE AIR RESERVOIR
134 N 074305022202 NUT
AT OUTSIDE AIR RESERVOIR
136 A 0004290227 THRUST RING
AT OUTSIDE AIR RESERVOIR
138 A 0009870446 SEALING CORD
AT OUTSIDE AIR RESERVOIR
140 A 0019972172 FITTING
AT OUTSIDE AIR RESERVOIR
140 A 0029971172 FITTING
AT OUTSIDE AIR RESERVOIR
142 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
142 N 000908022011 SCREW PLUG
AT OUTSIDE AIR RESERVOIR
144 N 007603022102 SEAL RING
AT OUTSIDE AIR RESERVOIR
144 N 007603022102 SEAL RING
AT OUTSIDE AIR RESERVOIR
A 0019909971 ELBOW FITTING
AT OUTSIDE AIR RESERVOIR
N 000125023006 WASHER
AT OUTSIDE AIR RESERVOIR
145 A 0019902871 ELBOW FITTING
AT OUTSIDE AIR RESERVOIR
145 A 0019902871 ELBOW FITTING
AT OUTSIDE AIR RESERVOIR
145B N 074305022202 NUT
AT OUTSIDE AIR RESERVOIR
145C A 0004290227 THRUST RING
AT OUTSIDE AIR RESERVOIR
145D A 0009870446 SEALING CORD
AT OUTSIDE AIR RESERVOIR
N 000908022001 SCREW PLUG
Repalced by: N 000908022011
N 000908022011 SCREW PLUG
AT OUTSIDE AIR RESERVOIR
A 0009902570 T-FITTING
AT OUTSIDE AIR RESERVOIR
N 074305022202 NUT
AT OUTSIDE AIR RESERVOIR
A 0009902570 T-FITTING
AT OUTSIDE AIR RESERVOIR
A 0004290227 THRUST RING
AT OUTSIDE AIR RESERVOIR
A 0009870446 SEALING CORD
AT OUTSIDE AIR RESERVOIR
N 007603022102 SEAL RING
AT OUTSIDE AIR RESERVOIR
A 0019972372 FITTING
AT OUTSIDE AIR RESERVOIR
N 007603022102 SEAL RING
AT OUTSIDE AIR RESERVOIR
DICHTRING
N 000125023006 WASHER
AT OUTSIDE AIR RESERVOIR
N 000125023006 WASHER
AT OUTSIDE AIR RESERVOIR
A 0004322407 VALVE
AIR RESERVOIR
A 0005830296 RING
DRAIN VALVE
TO 000 432 08 07
N 074305022202 NUT
AIR RESERVOIR TO BRACKET
N 074305022202 NUT
AIR RESERVOIR TO BRACKET
N 074305022202 NUT
AIR RESERVOIR TO BRACKET
A 0005830296 RING
N 000933010128 SCREW
N 913004010011 NUT
145E A 0004312315 ANTI-FREEZE DEVICE
Repalced by: A 0004313115
145E A 0004313115 ANTI-FREEZE DEVICE
145E A 0004313115 ANTI-FREEZE DEVICE
A 0049977945 SEAL RING
Repalced by: A 0179974148
A 0179974148 SEAL RING
TO 000 431 31 15
A 0004311864 ACTUATING PART
TO 000 431 31 15
145F A 0009905478 CONNECTOR
TO 000 431 23 15
A 0129972548 SEAL RING
TO 000 431 31 15
145H A 0019971441 SEAL RING
TO 000 431 23 15
A 0014312860 SEAL RING
TO 000 431 31 15
A 0004312981 VALVE DISC
TO 000 431 31 15
145K A 0004350390 VALVE DISC
TO 000 431 23 15
145L A 0004317086 CUP
TO 000 431 23 15
A 0129972648 SEAL RING
Repalced by: A 0029971640
A 0029971640 SEAL RING
TO 000 431 31 15
145M A 0069976545 SEAL RING
TO 000 431 23 15
A 0004315634 STRAINER
TO 000 431 31 15
A 0014317302 RESERVOIR
TO 000 431 31 15
A 0049978045 SEAL RING
TO 000 431 31 15
A 0004315734 STRAINER
TO 000 431 31 15
A 0004316133 FILLER CAP
TO 000 431 31 15
A 3074311940 BRACKET
ANTI-FREEZE DEVICE
N 000933008130 SCREW
Repalced by: N 304017008039
N 304017008039 SCREW
BRACKET TO BRACKET
M 8X12
N 000934008010 NUT
BRACKET TO BRACKET
145N A 0029971172 FITTING
145N A 0029971172 FITTING
A 0019972172 FITTING
ANTI-FREEZE DEVICE
A 0019972172 FITTING
ANTI-FREEZE DEVICE
A 0009905871 ELBOW FITTING
ANTI-FREEZE DEVICE
A 0009905871 ELBOW FITTING
ANTI-FREEZE DEVICE
A 0004290227 THRUST RING
ANTI-FREEZE DEVICE
A 0004290227 THRUST RING
ANTI-FREEZE DEVICE
A 0009870446 SEALING CORD
ANTI-FREEZE DEVICE
A 0009870446 SEALING CORD
ANTI-FREEZE DEVICE
N 074305022202 NUT
ANTI-FREEZE DEVICE
N 074305022202 NUT
ANTI-FREEZE DEVICE
145P N 007603022102 SEAL RING
145P N 007603022102 SEAL RING
145P N 007603022102 SEAL RING
145P N 007603022102 SEAL RING
145P N 007603022102 SEAL RING
A 0019972872 FITTING
Repalced by: A 0039979072
A 0039979072 FITTING
Repalced by: A 0029906071
A 0029906071 FITTING
A 0029906071 FITTING
N 007603012405 SEAL RING
N 007603012405 SEAL RING
145Q N 000931008228 SCREW
Repalced by: N 000933008134
145Q N 000933008134 SCREW
ANTI-FREEZE DEVICE TO SUBSTRUCTURE
145R N 913004008005 NUT
ANTI-FREEZE DEVICE TO SUBSTRUCTURE
145S A 0029976772 FITTING
BRANCH-OFF TO ANTI-FREEZE DEVICE
145S A 0029976772 FITTING
BRANCH-OFF TO ANTI-FREEZE DEVICE
145T A 0002760229 NOZZLE
BRANCH-OFF TO ANTI-FREEZE DEVICE
145T A 0002760229 NOZZLE
BRANCH-OFF TO ANTI-FREEZE DEVICE
A 3074300110 CHAIN
N 007971002221 SHEET METAL SCREW
N 009021003107 WASHER
N 009021003107 WASHER
N 916016015202 CLAMP
COMPRESSED AIR LINE TO BRACKET
N 000084006162 SCREW
Repalced by: A 0029903712
A 0029903712 SCREW
Repalced by: N 000000001149
N 000000001149 SCREW
COMPRESSED AIR LINE TO BRACKET
N 000084005134 SCREW
N 009021006205 WASHER
Repalced by: N 009021006208
N 009021006208 WASHER
COMPRESSED AIR LINE TO BRACKET
N 009021005202 WASHER
Repalced by: N 009021005205
N 009021005205 WASHER
N 913004006003 NUT
Repalced by: N 910113006001
N 910113006001 NUT
COMPRESSED AIR LINE TO BRACKET
N 913004005001 NUT
149 A 3224302205 RESERVOIR
Repalced by: A 0034328801
149 A 0034328801 RESERVOIR
CONDENSATION TANK (WET AIR RESERVOIR)
20 L
149 A 0034328801 RESERVOIR
SECONDARY CONSUMING UNITS
20 L
149 A 0034328801 RESERVOIR
CONDENSATION TANK (WET AIR RESERVOIR)
20 L
149 A 0034328801 RESERVOIR
REAR AXLE BRAKE CIRCUIT
20 L
149 A 0034328801 RESERVOIR
FRONT AXLE BRAKE CIRCUIT
20 L
A 3079970372 FITTING
AT AIR RESERVOIR
A 0019972172 FITTING
AT AIR RESERVOIR
151 A 0029971172 FITTING
AT AIR RESERVOIR
A 0009970271 FITTING
AT AIR RESERVOIR
153 A 0009970171 FITTING
AT AIR RESERVOIR
153 A 0009970171 FITTING
AT AIR RESERVOIR
A 0009902570 T-FITTING
154 A 0019903770 T-FITTING
155 N 007603022102 SEAL RING
AT AIR RESERVOIR
A 0009905471 ELBOW FITTING
AT AIR RESERVOIR
156 A 0019904371 ELBOW FITTING
157 A 0009905871 ELBOW FITTING
AT AIR RESERVOIR
158 A 0019902871 ELBOW FITTING
AT AIR RESERVOIR
158 A 0019902871 ELBOW FITTING
AT AIR RESERVOIR
158 A 0019902871 ELBOW FITTING
AT AIR RESERVOIR
158 A 0019902871 ELBOW FITTING
AT AIR RESERVOIR
A 0019909971 ELBOW FITTING
A 0019909971 ELBOW FITTING
159 N 074305022202 NUT
AT AIR RESERVOIR
N 080705012003 NUT
AT AIR RESERVOIR
A 0019875046 SEALING CORD
AT AIR RESERVOIR
A 0004290827 THRUST RING
AT AIR RESERVOIR
162 A 0004290227 THRUST RING
AT AIR RESERVOIR
164 A 0009870446 SEALING CORD
AT AIR RESERVOIR
166 A 0034293544 VALVE
Repalced by: A 0004295444
166 A 0004295444 VALVE
AUTOMATIC DRAIN
A 0069979245 SEAL RING
17X3.8,TO 003 429 35 44
A 0009879746 SEALING CORD
9.2X3.5,TO 003 429 35 44
A 0089973248 SEAL RING
223X2.4,TO 003 429 35 44
A 0079970248 SEAL RING
17.3X2.4,TO 003 429 35 44
A 0014300860 REPAIR KIT
TO 003 429 35 44
168 A 0005868342 REPAIR KIT
TO 000 429 54 44
169 N 007603012405 SEAL RING
169B A 0019972572 FITTING
169E N 000933008147 SCREW
Repalced by: N 304017008021
169E N 304017008021 SCREW
AIR RESERVOIR TO SUBSTRUCTURE
169F N 009021008205 WASHER
Repalced by: N 009021008213
169F N 009021008213 WASHER
AIR RESERVOIR TO SUBSTRUCTURE
169H N 913004008005 NUT
AIR RESERVOIR TO SUBSTRUCTURE
170 A 0009909271 ELBOW FITTING
CONTROL LINE CONNECTION TO DOOR CLOSING SYSTEM
A 0019972672 FITTING
Repalced by: A 0039978972
A 0039978972 FITTING
Repalced by: A 0029905971
A 0029905971 FITTING
CONTROL LINE CONNECTION TO DOOR CLOSING SYSTEM
A 0029905971 FITTING
CONTROL LINE CONNECTION TO DOOR CLOSING SYSTEM
172 N 915020014000 NUT
CONTROL LINE CONNECTION TO DOOR CLOSING SYSTEM
174 N 915005006000 LOCKING CONE
CONTROL LINE CONNECTION TO DOOR CLOSING SYSTEM
N 000125015013 WASHER
Repalced by: N 000125015019
N 000125015019 WASHER
CONTROL LINE CONNECTION TO DOOR CLOSING SYSTEM
N 080705014002 NUT
CONTROL LINE CONNECTION TO DOOR CLOSING SYSTEM
A 0009909970 T-FITTING
CONTROL LINE CONNECTION TO DOOR CLOSING SYSTEM
A 0014294744 VALVE
CONTROL LINE CONNECTION TO DOOR CLOSING SYSTEM
A 0015862042 REPAIR KIT
CONTROL LINE CONNECTION TO DOOR CLOSING SYSTEM
A 0009970171 FITTING
CONTROL LINE CONNECTION TO DOOR CLOSING SYSTEM
N 007603022102 SEAL RING
CONTROL LINE CONNECTION TO DOOR CLOSING SYSTEM
181 A 0009905871 ELBOW FITTING
AT AIR RESERVOIR
181B N 074305022202 NUT
AT AIR RESERVOIR
181C A 0004290227 THRUST RING
AT AIR RESERVOIR
181D A 0009870446 SEALING CORD
AT AIR RESERVOIR
A 0019972172 FITTING
A 0009902570 T-FITTING
182 N 007603022102 SEAL RING
184 A 0004322407 VALVE
AIR RESERVOIR
186 A 0005830296 RING
DRAIN VALVE
TO 000 432 08 07
188 A 0009970171 FITTING
M 14X1.5/M 22X1.5
A 0039972072 FITTING
M 12X1.5/M 22X1.5
A 0005830296 RING
DRAIN
194 N 007603022102 SEAL RING
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
AIR RESERVOIR TO SUBSTRUCTURE
N 000125008418 WASHER
Repalced by: N 000125008443
N 000125008443 WASHER
AIR RESERVOIR TO SUBSTRUCTURE
N 913001008003 NUT
AIR RESERVOIR TO SUBSTRUCTURE
196 A 3024301605 RESERVOIR
Repalced by: A 0034328901
196 A 0034328901 RESERVOIR
FRONT AND REAR BRAKE CIRCUITS
40 L
A 0019972172 FITTING
A 0019972172 FITTING
A 0019972172 FITTING
A 0029971172 FITTING
A 0029971172 FITTING
A 0039972072 FITTING
197 A 0029971572 FITTING
197 A 0029971572 FITTING
197 A 0029971572 FITTING
A 0019903770 T-FITTING
N 074305022202 NUT
A 0004290227 THRUST RING
A 0009870446 SEALING CORD
N 000908022001 SCREW PLUG
Repalced by: N 000908022011
N 000908022011 SCREW PLUG
197B A 0004322407 VALVE
AIR RESERVOIR
A 0005830296 RING
DRAIN VALVE
TO 000 432 08 07
197D N 000908022001 SCREW PLUG
Repalced by: N 000908022011
197D N 000908022011 SCREW PLUG
AT OUTSIDE AIR RESERVOIR
197E N 007603022102 SEAL RING
AT OUTSIDE AIR RESERVOIR
198 N 000933008147 SCREW
Repalced by: N 304017008021
198 N 304017008021 SCREW
AIR RESERVOIR TO SUBSTRUCTURE
198B N 000125008418 WASHER
Repalced by: N 000125008443
198B N 000125008443 WASHER
AIR RESERVOIR TO SUBSTRUCTURE
198C N 913001008003 NUT
AIR RESERVOIR TO SUBSTRUCTURE
A 0004313431 TEST CONNECTION
Repalced by: A 0004314831
199 A 0004314831 TEST CONNECTION
WABCO
199 A 0004314531 TEST CONNECTION
SCHAEFER
199 A 0004312031 TEST CONNECTION
VOSS
199 A 0004316131 TEST CONNECTION
WIRA
A 0009979486 PLUG
199C A 0009905370 T-FITTING
A 0029971672 FITTING
A 0029971672 FITTING
200 A 3174302905 RESERVOIR
REAR AXLE BRAKE CIRCUIT AND SECONDARY CONSUMING UNITS
2X20 L
200 A 3174302905 RESERVOIR
REAR AXLE BRAKE CIRCUIT AND SECONDARY CONSUMING UNITS
2X20 L
204 A 0019972172 FITTING
AT AIR RESERVOIR
204 A 0019972172 FITTING
AT AIR RESERVOIR
206 A 0009905871 ELBOW FITTING
AT AIR RESERVOIR
206 A 0009905871 ELBOW FITTING
AT AIR RESERVOIR
206 A 0019902871 ELBOW FITTING
AT AIR RESERVOIR
206 A 0019902871 ELBOW FITTING
AT AIR RESERVOIR
208 N 074305022202 NUT
AT AIR RESERVOIR
211 A 0004290227 THRUST RING
AT AIR RESERVOIR
213 A 0009870446 SEALING CORD
AT AIR RESERVOIR
A 0029971172 FITTING
AT AIR RESERVOIR
A 0029971172 FITTING
AT AIR RESERVOIR
214 A 0009970171 FITTING
AT AIR RESERVOIR
214 A 0009970171 FITTING
AT AIR RESERVOIR
215 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
215 N 000908022011 SCREW PLUG
AT AIR RESERVOIR
215 N 000908022011 SCREW PLUG
AT AIR RESERVOIR
216 A 0004322407 VALVE
AIR RESERVOIR
A 0005830296 RING
DRAIN VALVE
TO 000 432 08 07
218 N 007603022102 SEAL RING
218 N 007603022102 SEAL RING
220 A 0004311531 TEST CONNECTION
Repalced by: A 0004314831
220 A 0004314831 TEST CONNECTION
AT THRU-THREAD FITTING
WABCO
220 A 0004314531 TEST CONNECTION
AT THRU-THREAD FITTING
SCHAEFER
220 A 0004312031 TEST CONNECTION
AT THRU-THREAD FITTING
VOSS
220 A 0004316131 TEST CONNECTION
AT THRU-THREAD FITTING
WIRA
A 0009979486 PLUG
221 A 0009902570 T-FITTING
A 0019972372 FITTING
222 A 0029971672 FITTING
222 A 0029971672 FITTING
223 A 0014314105 BRAKE VALVE
Repalced by: A 0004318505
223 A 0004318505 BRAKE VALVE
223B A 0009979941 SEAL RING
Repalced by: N 007603016107
223B N 007603016107 SEAL RING
TO 001 431 41 05,000 431 85 05
223D A 0004310050 BUSHING
TO 001 431 41 05,000 431 85 05
223F A 0004315587 PROTECTIVE CAP
223K A 0029974148 SEAL RING
TO 001 431 41 05,000 431 85 05
224 A 0005868643 REPAIR KIT
TO 001 431 41 05,000 431 85 05
226 A 0009902570 T-FITTING
AT BRAKE VALVE
226 A 0009902570 T-FITTING
AT BRAKE VALVE
226 A 0009902570 T-FITTING
AT BRAKE VALVE
226 A 0009902570 T-FITTING
AT BRAKE VALVE
226 A 0009902570 T-FITTING
AT BRAKE VALVE
227 A 0019903770 T-FITTING
AT BRAKE VALVE
227 A 0019903770 T-FITTING
AT BRAKE VALVE
227 A 0019903770 T-FITTING
AT BRAKE VALVE
228 A 0019972172 FITTING
AT BRAKE VALVE
228 A 0019972172 FITTING
AT BRAKE VALVE
228 A 0029971172 FITTING
AT BRAKE VALVE
A 0009902970 T-FITTING
AT BRAKE VALVE
A 0009905170 T-FITTING
AT BRAKE VALVE
230 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
230 N 000908022011 SCREW PLUG
AT BRAKE VALVE
230 N 000908022011 SCREW PLUG
AT BRAKE VALVE
230E N 074305022202 NUT
AT BRAKE VALVE
231 A 0004290227 THRUST RING
AT BRAKE VALVE
233 A 0009870446 SEALING CORD
AT BRAKE VALVE
N 000908022001 SCREW PLUG
Repalced by: N 000908022011
N 000908022011 SCREW PLUG
AT BRAKE VALVE
235 N 007603022102 SEAL RING
AT BRAKE VALVE
A 0039972072 FITTING
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"21"
N 000908022001 SCREW PLUG
Repalced by: N 000908022011
N 000908022011 SCREW PLUG
TWO-CIRCUIT BRAKE CYLINDER;CONNECTION:
"21,22"
A 0004313431 TEST CONNECTION
Repalced by: A 0004314831
238 A 0004314831 TEST CONNECTION
BRANCH-OFF TO DIAPHRAGM CYLINDER
WABCO
238 A 0004314531 TEST CONNECTION
BRANCH-OFF TO DIAPHRAGM CYLINDER
SCHAEFER
238 A 0004312031 TEST CONNECTION
BRANCH-OFF TO DIAPHRAGM CYLINDER
VOSS
238 A 0004316131 TEST CONNECTION
BRANCH-OFF TO DIAPHRAGM CYLINDER
WIRA
A 0009979486 PLUG
239 A 0009905370 T-FITTING
BRANCH-OFF TO DIAPHRAGM CYLINDER
239 A 0009905370 T-FITTING
BRANCH-OFF TO DIAPHRAGM CYLINDER
241 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
241 N 000908022011 SCREW PLUG
243 N 007603022102 SEAL RING
246 A 0005457909 SWITCH
Repalced by: A 0005459009
246 A 0005459009 SWITCH
Repalced by: A 0015451109
246 A 0015451109 SWITCH
Repalced by: A 0015452709
246 A 0015452709 SWITCH
HAND BRAKE VALVE
248 N 007603012405 SEAL RING
250 N 000933010105 SCREW
BRAKE VALVE TO SUBSTRUCTURE
251 N 009021010202 WASHER
Repalced by: N 009021010209
251 N 009021010209 WASHER
BRAKE VALVE TO SUBSTRUCTURE
252 N 912004010102 LOCK WASHER
BRAKE VALVE TO SUBSTRUCTURE
253 N 913004010011 NUT
BRAKE VALVE TO SUBSTRUCTURE
A 0004311531 TEST CONNECTION
Repalced by: A 0004314831
A 0004314831 TEST CONNECTION
40-LITER AIR RESERVOIR
WABCO
A 0004314531 TEST CONNECTION
40-LITER AIR RESERVOIR
SCHAEFER
A 0004312031 TEST CONNECTION
40-LITER AIR RESERVOIR
VOSS
A 0004316131 TEST CONNECTION
40-LITER AIR RESERVOIR
WIRA
A 0009979486 PLUG
A 0009902570 T-FITTING
A 0019972172 FITTING
N 007603022102 SEAL RING
258 A 0009902570 T-FITTING
CONNECTION "Z"
258 A 0009902570 T-FITTING
CONNECTION "Z"
258 A 0009902570 T-FITTING
CONNECTION "Z"
A 0019903770 T-FITTING
A 0009902970 T-FITTING
261 N 074305022202 NUT
264 A 0004290227 THRUST RING
266 A 0009870446 SEALING CORD
268 A 0004294044 VALVE
Repalced by: A 0004299244
268 A 0004299244 VALVE
269 A 0014292444 VALVE
TWO-WAY
WABCO
A 0004290682 VALVE
Repalced by: A 0004290782
A 0004290782 VALVE
Repalced by: A 0004291182
A 0004291182 VALVE BODY
TO 001 429 24 44,WABCO
A 0029810485 BALL
TO 003 429 11 44,VOSS
A 0004290180 GASKET
TO 003 429 11 44,VOSS
271 A 0019872046 SEALING CORD
274 A 0004290245 DIAPHRAGM
276 A 0015868343 REPAIR KIT
277 N 007603016401 SEAL RING
280 A 0019972372 FITTING
280 A 0029979172 FITTING
282 N 074305022202 NUT
284 A 0004290227 THRUST RING
286 A 0009870446 SEALING CORD
A 0004317506 VALVE
Repalced by: A 0024311206
288 A 0014316306 VALVE
Repalced by: A 0024311206
288 A 0024311206 VALVE
Repalced by: A 0034297644
288 A 0034297644 VALVE
PRESSURE LIMIT
KNORR
288B A 0025862043 REPAIR KIT
Repalced by: A 0004200871
288B A 0004200871 REPAIR KIT
TO 001 431 63 06,002 431 12 06,BOSCH
288B A 0014302660 REPAIR KIT
KNORR
N 000933008152 SCREW
Repalced by: N 304017008027
N 304017008027 SCREW
VALVE TO BRACKET
289 N 304014008004 SCREW
VALVE TO BRACKET
290 N 000125008418 WASHER
Repalced by: N 000125008443
290 N 000125008443 WASHER
VALVE TO BRACKET
291 N 913004008005 NUT
FROM QUICK-RELEASE VALVE TO TWO-WAY VALVE
293 A 0009870446 SEALING CORD
FROM QUICK-RELEASE VALVE TO TWO-WAY VALVE
294 A 0004290227 THRUST RING
FROM QUICK-RELEASE VALVE TO TWO-WAY VALVE
295 N 074305022202 NUT
FROM QUICK-RELEASE VALVE TO TWO-WAY VALVE
A 0019972372 FITTING
FROM QUICK-RELEASE VALVE TO TWO-WAY VALVE
297 A 0029979172 FITTING
FROM QUICK-RELEASE VALVE TO TWO-WAY VALVE
299 N 007603016401 SEAL RING
A 0019972172 FITTING
FROM QUICK-RELEASE VALVE TO TWO-WAY VALVE
301 A 0009905871 ELBOW FITTING
FROM QUICK-RELEASE VALVE TO TWO-WAY VALVE
301 A 0009905871 ELBOW FITTING
FROM QUICK-RELEASE VALVE TO TWO-WAY VALVE
302 N 074305022202 NUT
304 A 0004290227 THRUST RING
305 A 0009870446 SEALING CORD
308 A 0004294144 VALVE
FROM QUICK-RELEASE VALVE TO TWO-WAY VALVE
308 A 0004294144 VALVE
FROM QUICK-RELEASE VALVE TO TWO-WAY VALVE
310 A 0004290345 DIAPHRAGM
310 A 0004290345 DIAPHRAGM
312 A 0004291784 SEAL RING
Repalced by: A 0159970448
312 A 0159970448 SEAL RING
312 A 0159970448 SEAL RING
315 N 007603022102 SEAL RING
FROM QUICK-RELEASE VALVE TO TWO-WAY VALVE
317 A 0009970171 FITTING
FROM QUICK-RELEASE VALVE TO TWO-WAY VALVE
317 A 0009970171 FITTING
FROM QUICK-RELEASE VALVE TO TWO-WAY VALVE
318 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
318 N 000908022011 SCREW PLUG
A 0039971272 FITTING
AT T-FITTING
N 915017012100 UNION NUT
AT T-FITTING
N 003861012007 GLAND
Repalced by: A 0019901967
A 0019901967 SEAL CONE
AT T-FITTING
A 0004291795 AIR CLEANER
Repalced by: A 0004293895
A 0004293895 AIR CLEANER
A 0004293895 AIR CLEANER
A 0004290297 FILTER ELEMENT
Repalced by: A 0025861643
A 0004291397 FILTER ELEMENT
WABCO 020 0;TO 000 429 38 95
A 0109971445 SEAL RING
WABCO 000 0,36.2X3.0 MM
A 0029974345 SEAL RING
WABCO 020 0,39.2X3.0 MM
A 0025861643 REPAIR KIT
WABCO 000 0;TO 000 429 17 95
A 0029971172 FITTING
N 007603022102 SEAL RING
321 A 0014312306 VALVE
Repalced by: A 0014315806
321 A 0014311506 VALVE
Repalced by: A 0014315806
321 A 0014315806 VALVE
Repalced by: A 0014319306
321 A 0014319306 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
BOSCH
A 0025864043 REPAIR KIT
SEAL RING
TO 001 431 15 06,BOSCH 62001
A 0025863943 REPAIR KIT
BOOT
TO 001 431 15 06,BOSCH 62001
A 0015861443 REPAIR KIT
Repalced by: A 0034300681
A 0034300681 REPAIR KIT
TO 001 431 23 06,WABCO
A 0034304681 GASKET KIT
TO 001 431 58 06,BOSCH 62012
323 A 0015868443 REPAIR KIT
SEAL RING
BOSCH 62005
323B A 0025861743 REPAIR KIT
BOOT
BOSCH 62001,62005
A 0025865942 REPAIR KIT
TO 001 431 30 06,WABCO
A 0004304706 GASKET KIT
TO 001 431 93 06,BOSCH 62401
A 0004300260 REPAIR KIT
TO 001 431 93 06,BOSCH 62201
324 A 0019972172 FITTING
AT FOUR-CIRCUIT PROTECTIVE VALVE
324 A 0029971172 FITTING
AT FOUR-CIRCUIT PROTECTIVE VALVE
A 0019972372 FITTING
AT FOUR-CIRCUIT PROTECTIVE VALVE
326 N 007603022102 SEAL RING
AT FOUR-CIRCUIT PROTECTIVE VALVE
328 A 0009970071 FITTING
AT FOUR-CIRCUIT PROTECTIVE VALVE
328 A 0009970071 FITTING
AT FOUR-CIRCUIT PROTECTIVE VALVE
329 A 0029971572 FITTING
AT FOUR-CIRCUIT PROTECTIVE VALVE
330 N 007603016103 SEAL RING
AT FOUR-CIRCUIT PROTECTIVE VALVE
330A A 0009907370 T-FITTING
AT FOUR-CIRCUIT PROTECTIVE VALVE
330A A 0019901370 T-FITTING
AT FOUR-CIRCUIT PROTECTIVE VALVE
330B A 0004290927 THRUST RING
AT FOUR-CIRCUIT PROTECTIVE VALVE
330C A 0009971548 SEAL RING
AT FOUR-CIRCUIT PROTECTIVE VALVE
330D N 080705016003 NUT
AT FOUR-CIRCUIT PROTECTIVE VALVE
330E A 0004290444 VALVE
Repalced by: A 0034290744
330E A 0034290744 VALVE
CHECK
A 0004290088 VALVE SEAT RING
TO 000 429 04 44,003 429 07 44
A 0004290049 BUSHING
TO 000 429 04 44,003 429 07 44
330F A 0005865942 REPAIR KIT
TO 000 429 04 44
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
330E
330H A 0019972172 FITTING
AT FOUR-CIRCUIT PROTECTIVE VALVE
330H A 0019972172 FITTING
AT FOUR-CIRCUIT PROTECTIVE VALVE
330K N 007603014106 SEAL RING
AT FOUR-CIRCUIT PROTECTIVE VALVE
330M A 0029973372 FITTING
AT FOUR-CIRCUIT PROTECTIVE VALVE
A 0029971172 FITTING
AT FOUR-CIRCUIT PROTECTIVE VALVE
N 007603022102 SEAL RING
AT FOUR-CIRCUIT PROTECTIVE VALVE
N 007603022102 SEAL RING
AT FOUR-CIRCUIT PROTECTIVE VALVE
A 0009905871 ELBOW FITTING
AT FOUR-CIRCUIT PROTECTIVE VALVE
333 A 0019902871 ELBOW FITTING
AT FOUR-CIRCUIT PROTECTIVE VALVE
335 N 074305022202 NUT
AT FOUR-CIRCUIT PROTECTIVE VALVE
335 N 074305022202 NUT
AT FOUR-CIRCUIT PROTECTIVE VALVE
337 A 0004290227 THRUST RING
AT FOUR-CIRCUIT PROTECTIVE VALVE
339 A 0009870446 SEALING CORD
AT FOUR-CIRCUIT PROTECTIVE VALVE
341 A 0029971672 FITTING
A 0004292535 BRAKE HOSE
Repalced by: N 074310013002
A 3074200648 BRAKE HOSE
Repalced by: N 074310013002
A 3074200548 BRAKE HOSE
Repalced by: N 074310013002
345 N 916027013006 HOSE
A 0009950565 CLAMP
Repalced by: A 0029973890
A 0029973890 LOOM TIE
Repalced by: A 0009971390
347 N 916017020000 CLAMP
Repalced by: N 000000000667
347 N 000000000667 CLAMP
349 A 0029971872 FITTING
351 N 915017015200 UNION NUT
352 A 3174200148 BRAKE HOSE
Repalced by: A 0004299935
352 A 0004299935 BRAKE HOSE
LEFT AND RIGHT BRAKE CYLINDERS
352 A 3894205448 BRAKE HOSE
Repalced by: A 0004299435
352 A 0004299435 BRAKE HOSE
LEFT AND RIGHT BRAKE CYLINDERS
353 A 0029971472 FITTING
Repalced by: A 0049971772
353 A 0049971772 FITTING
Repalced by: A 0029906171
353 A 0029906171 FITTING
AT FRONT BRAKE HOSES
354 N 080705018002 NUT
BRAKE HOSE TO BRACKET
A 3074201037 LINE
Repalced by: A 3434293608
A 3074201137 LINE
Repalced by: A 3434293608
A 3434293608 LINE
FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS
N 915018015000 UNION NUT
N 003861015004 GLAND
N 915045014100 SEAL RING
357 A 0009902370 T-FITTING
BRANCH-OFF TO FRONT DIAPHRAGM CYLINDERS
A 0019972172 FITTING
FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS
N 007603022102 SEAL RING
A 0009970071 FITTING
FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS
358 A 0029971572 FITTING
AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
359 N 007603016401 SEAL RING
A 0009902570 T-FITTING
CONNECTION TO STOP LIGHT SWITCH
360 A 0009905370 T-FITTING
CONNECTION TO STOP LIGHT SWITCH
361 A 0009902370 T-FITTING
BRANCH-OFF TO FRONT WHEELS
361 A 0009902370 T-FITTING
BRANCH-OFF TO FRONT WHEELS
361 A 0009902370 T-FITTING
BRANCH-OFF TO FRONT WHEELS
A 0009905270 T-FITTING
BRANCH-OFF TO FRONT WHEELS
A 0019972372 FITTING
AT FRONT BRAKE HOSES
A 0039970572 FITTING
N 000125023006 WASHER
N 074305022201 NUT
A 3054200148 BRAKE HOSE
Repalced by: N 074310013002
368 N 916027013006 HOSE
368B A 0029971872 FITTING
N 074306000002 CLAMP
368C A 0009950565 CLAMP
Repalced by: A 0029973890
368C A 0029973890 LOOM TIE
Repalced by: A 0009971390
368C N 916017020000 CLAMP
Repalced by: N 000000000667
368C N 000000000667 CLAMP
369 A 3074201048 BRAKE HOSE
Repalced by: A 0004298735
369 A 0004298735 BRAKE HOSE
TO REAR AXLE
369 A 0004298735 BRAKE HOSE
TO REAR AXLE
369 A 0004298735 BRAKE HOSE
TO REAR AXLE
369 A 3894205448 BRAKE HOSE
Repalced by: A 0004299435
369 A 0004299435 BRAKE HOSE
TO REAR AXLE
369 A 3074200948 BRAKE HOSE
Repalced by: A 0004298635
369 A 0004298635 BRAKE HOSE
TO REAR AXLE
N 080705018002 NUT
BRAKE HOSE TO BRACKET
N 009021019101 WASHER
BRAKE HOSE TO BRACKET
A 0004311531 TEST CONNECTION
Repalced by: A 0004314831
370 A 0004314831 TEST CONNECTION
WABCO
370 A 0004314531 TEST CONNECTION
SCHAEFER
370 A 0004312031 TEST CONNECTION
VOSS
370 A 0004316131 TEST CONNECTION
WIRA
370 A 0004316131 TEST CONNECTION
WIRA
A 0009979486 PLUG
370B A 0009902570 T-FITTING
370B A 0009902570 T-FITTING
371 A 0019972372 FITTING
BRAKE HOSE CONNECTION
371 A 0019972372 FITTING
BRAKE HOSE CONNECTION
371 A 0019972372 FITTING
BRAKE HOSE CONNECTION
A 0004313431 TEST CONNECTION
Repalced by: A 0004314831
A 0004314831 TEST CONNECTION
WABCO
A 0004314531 TEST CONNECTION
SCHAEFER
A 0004312031 TEST CONNECTION
VOSS
A 0004316131 TEST CONNECTION
WIRA
A 0009979486 PLUG
A 0009905370 T-FITTING
372 A 0009905871 ELBOW FITTING
372B N 007603022102 SEAL RING
AT LEFT AND RIGHT REAR DIAPHRAGM CYLINDERS
372B N 007603016401 SEAL RING
AT LEFT AND RIGHT REAR DIAPHRAGM CYLINDERS
372D A 0019972172 FITTING
AT LEFT AND RIGHT REAR DIAPHRAGM CYLINDERS
372D A 0019972172 FITTING
AT LEFT AND RIGHT REAR DIAPHRAGM CYLINDERS
372D A 0019972172 FITTING
AT LEFT AND RIGHT REAR DIAPHRAGM CYLINDERS
A 0009970071 FITTING
AT LEFT AND RIGHT REAR DIAPHRAGM CYLINDERS
A 0009970071 FITTING
AT LEFT AND RIGHT REAR DIAPHRAGM CYLINDERS
A 0029971172 FITTING
AT LEFT AND RIGHT REAR DIAPHRAGM CYLINDERS
A 0029971572 FITTING
AT LEFT AND RIGHT REAR DIAPHRAGM CYLINDERS
372E N 915045014100 SEAL RING
AT LEFT AND RIGHT REAR DIAPHRAGM CYLINDERS
372F A 0004291027 THRUST RING
AT LEFT AND RIGHT REAR DIAPHRAGM CYLINDERS
373 N 074305022202 NUT
373B A 0004290227 THRUST RING
373D A 0009870446 SEALING CORD
N 915045014100 SEAL RING
MOUNTING USED FOR COMPRESSED AIR LINES
A 0004291027 THRUST RING
MOUNTING USED FOR COMPRESSED AIR LINES
381 A 3074290240 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
383 A 0009954701 CLAMP
Repalced by: N 916016015202
383 N 916016015202 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
15/15 MM
383 N 916016012201 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
12/20 MM
N 000084006162 SCREW
Repalced by: A 0029903712
A 0029903712 SCREW
Repalced by: N 000000001149
N 000000001149 SCREW
MOUNTING USED FOR COMPRESSED AIR LINES
M 6X25
N 000084006120 SCREW
MOUNTING USED FOR COMPRESSED AIR LINES
M 6X30
N 000933006102 SCREW
COMPRESSED AIR LINE TO BRACKET
M 6X15
N 000933006127 SCREW
MOUNTING USED FOR COMPRESSED AIR LINES
M 6X25
N 000933008130 SCREW
Repalced by: N 304017008039
N 304017008039 SCREW
MOUNTING USED FOR COMPRESSED AIR LINES
M 8X12
N 000125006404 WASHER
MOUNTING USED FOR COMPRESSED AIR LINES
N 000125006421 WASHER
MOUNTING USED FOR COMPRESSED AIR LINES
N 912004008102 LOCK WASHER
MOUNTING USED FOR COMPRESSED AIR LINES
N 913004006003 NUT
Repalced by: N 910113006001
N 910113006001 NUT
MOUNTING USED FOR COMPRESSED AIR LINES
388 A 3074290140 BRACKET
390 A 3074290340 BRACKET
A 0009957101 CLAMP
Repalced by: N 916016038201
N 916016038205 CLAMP
38/20 MM
N 916016015202 CLAMP
15/15 MM
N 916016008200 CLAMP
8/15 MM
N 000933010111 SCREW
M 10X12
N 000933008212 SCREW
Repalced by: N 304017008016
N 304017008016 SCREW
M 8X16
N 000933008130 SCREW
Repalced by: N 304017008039
N 304017008039 SCREW
M 8X12
N 000084006120 SCREW
M 6X30
N 000084005134 SCREW
N 912004010102 LOCK WASHER
N 913004006003 NUT
Repalced by: N 910113006001
N 910113006001 NUT
N 913004005001 NUT
396 A 0004291401 LINE
15 MM
396 A 0004292101 LINE
12 MM
400 N 915018015000 UNION NUT
400 N 915017012100 UNION NUT
403 N 003861015004 GLAND
403 N 003861012007 GLAND
Repalced by: A 0019901967
403 A 0019901967 SEAL CONE
A 0004291027 THRUST RING
N 915045014100 SEAL RING
410 A 0009902370 T-FITTING
410 A 0009902570 T-FITTING
414 A 0009970271 FITTING
417 N 915045014100 SEAL RING
420 A 0029971472 FITTING
Repalced by: A 0049971772
420 A 0049971772 FITTING
Repalced by: A 0029906171
420 A 0029906171 FITTING
420 A 0019972172 FITTING
420 A 0029971172 FITTING
N 007603022102 SEAL RING
A 0009907070 T-FITTING
CHECK VALVE
A 0019904070 T-FITTING
CHECK VALVE
A 0019902870 T-FITTING
BRANCH-OFF TO HAND BRAKE VALVE
422 N 916016012201 CLAMP
N 000933008130 SCREW
Repalced by: N 304017008039
N 304017008039 SCREW
N 912004008102 LOCK WASHER
N 916016015202 CLAMP
15 MM
430 A 0004291201 LINE
BETWEEN THE LINES
432 N 915017008100 UNION NUT
BETWEEN THE LINES
435 N 003861008005 GLAND
BETWEEN THE LINES
A 0019972772 FITTING
BETWEEN THE LINES
438 A 0019972672 FITTING
Repalced by: A 0039978972
438 A 0039978972 FITTING
Repalced by: A 0029905971
438 A 0029905971 FITTING
BETWEEN THE LINES
A 0009972581 GROMMET
Repalced by: A 0009972481
A 0009972481 GROMMET
COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE
440 N 916016008200 CLAMP
COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE
8 MM
N 000084006120 SCREW
COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE
M 6X30
N 000933006127 SCREW
COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE
M 6X25
N 000084005114 SCREW
COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE
N 000084006162 SCREW
Repalced by: A 0029903712
A 0029903712 SCREW
Repalced by: N 000000001149
N 000000001149 SCREW
COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE
M 6X25
N 009021006205 WASHER
Repalced by: N 009021006208
N 009021006208 WASHER
COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE
N 913001005001 NUT
COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE
N 913004006003 NUT
Repalced by: N 910113006001
N 910113006001 NUT
COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE
N 000084005134 SCREW
COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE
N 000125005313 WASHER
COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE
N 009021005202 WASHER
Repalced by: N 009021005205
N 009021005205 WASHER
COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE
N 913001005001 NUT
COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE
442 A 0009902770 T-FITTING
CONNECTION TO RELEASE PRESSURE SWITCH
A 0009902570 T-FITTING
A 0009902670 T-FITTING
AUTOMATIC DRAIN VALVE BRANCH-OFF
A 0029971172 FITTING
TO CONNECT BRAKE HOSE OR T-FITTING
A 0029971172 FITTING
TO CONNECT BRAKE HOSE OR T-FITTING
A 0019972172 FITTING
446 N 915045014100 SEAL RING
A 0004292535 BRAKE HOSE
Repalced by: N 074310013002
A 3074200648 BRAKE HOSE
Repalced by: N 074310013002
A 3074200148 BRAKE HOSE
Repalced by: N 074310013002
449 N 916027013006 HOSE
A 0009950565 CLAMP
Repalced by: A 0029973890
A 0029973890 LOOM TIE
Repalced by: A 0009971390
N 916017020000 CLAMP
Repalced by: N 000000000667
N 000000000667 CLAMP
A 0029971872 FITTING
N 915017015200 UNION NUT
A 3074200948 BRAKE HOSE
Repalced by: A 0004298635
A 0004298635 BRAKE HOSE
SPRING-LOAD ACCUMULATOR CYLINDER TWOWAY VALVE,RIGHT
A 3014200548 BRAKE HOSE
Repalced by: A 0004298535
A 0004298535 BRAKE HOSE
SPRING-LOAD ACCUMULATOR CYLINDER TWOWAY VALVE,RIGHT
A 3894205448 BRAKE HOSE
Repalced by: A 0004299435
A 0004299435 BRAKE HOSE
SPRING-LOAD ACCUMULATOR CYLINDER TWOWAY VALVE,RIGHT
455 A 0009902470 T-FITTING
455 A 0009902370 T-FITTING
A 0004290227 THRUST RING
N 074305022202 NUT
A 3074200148 BRAKE HOSE
Repalced by: N 074310013002
N 916027013006 HOSE
N 916027013006 HOSE
458 N 074310013019 HOSE
N 915065015101 THRUST RING
N 915045014100 SEAL RING
461 A 0019972372 FITTING
N 074306000002 CLAMP
A 0009950565 CLAMP
Repalced by: A 0029973890
A 0029973890 LOOM TIE
Repalced by: A 0009971390
N 916017020000 CLAMP
Repalced by: N 000000000667
N 000000000667 CLAMP
A 0019972172 FITTING
N 007603022102 SEAL RING
465 A 0004305481 VALVE
HAND BRAKE VALVE
465 A 0004305481 VALVE
HAND BRAKE VALVE
465 A 0004306481 VALVE
HAND BRAKE VALVE
465 A 0014300481 VALVE
465 A 0014300481 VALVE
465 A 0014300481 VALVE
A 0014303281 VALVE
HAND BRAKE VALVE
466 A 0015454314 SWITCH
TO 001 430 04 81
467 A 0014305281 VALVE
HAND BRAKE VALVE
467 A 0014305281 VALVE
HAND BRAKE VALVE
467 A 0014305281 VALVE
HAND BRAKE VALVE
A 0014310887 PROTECTIVE CAP
TO 001 430 32 81,52 81
A 0009972277 HANDLE
Repalced by: A 0009972777
467F A 0009972777 HANDLE
TO 001 430 52 81,001 430 32 81
467H A 0004312139 LEVER
Repalced by: A 0034302881
467H A 0034302881 REPAIR KIT
HAND BRAKE LEVER
TO 001 430 32 81,001 430 52 81
467S A 0009910855 PIN
TO 001 430 32 81,001 430 52 81
A 3074200068 SUPPORT
TO 001 430 52 81
468 A 0015861343 REPAIR KIT
TO 000 430 54 81
468 A 0015861343 REPAIR KIT
TO 000 430 54 81
A 0005868043 REPAIR KIT
Repalced by: A 0004305760
A 0004305760 REPAIR KIT
TO 000 430 64 81
A 0025867243 REPAIR KIT
Repalced by: A 0034303381
A 0034303381 REPAIR KIT
TO 001 430 52 81,001 430 32 81
500 N 007603014405 SEAL RING
HAND BRAKE VALVE
500 N 007603014405 SEAL RING
HAND BRAKE VALVE
500 N 007603014405 SEAL RING
HAND BRAKE VALVE
503 A 0019973072 FITTING
HAND BRAKE VALVE
503 A 0019973072 FITTING
HAND BRAKE VALVE
503 A 0019973072 FITTING
HAND BRAKE VALVE
504 N 915011008102 HOLLOW SCREW
PARKING BRAKE VALVE,CONNECTIONS:
"11,12,21,23"
504 N 915011008102 HOLLOW SCREW
PARKING BRAKE VALVE,CONNECTIONS:
"11,12,21,23"
504 N 915011008102 HOLLOW SCREW
PARKING BRAKE VALVE,CONNECTIONS:
"11,12,21,23"
504B N 007603014405 SEAL RING
PARKING BRAKE VALVE,CONNECTIONS:
"11,12,21,23"
504B N 007603014405 SEAL RING
PARKING BRAKE VALVE,CONNECTIONS:
"11,12,21,23"
504B N 007603014405 SEAL RING
PARKING BRAKE VALVE,CONNECTIONS:
"11,12,21,23"
504E A 0019970652 HOSE
BLEEDING
10X750 MM
504E A 0019970652 HOSE
BLEEDING
10X750 MM
504E A 0019970652 HOSE
BLEEDING
10X750 MM
504E A 0019970652 HOSE
BLEEDING
10X750 MM
A 0049971672 FITTING
(PARTS KIT),LINE RUPTURE
TO 001 997 06 52
N 000933008145 SCREW
PARKING BRAKE VALVE ON ELECTRICAL COMPARTMENT
N 912004008102 LOCK WASHER
PARKING BRAKE VALVE ON ELECTRICAL COMPARTMENT
505 A 3054270084 SHIM
HAND BRAKE VALVE
505 A 3054270084 SHIM
HAND BRAKE VALVE
505 A 3054270084 SHIM
HAND BRAKE VALVE
A 3074270084 SHIM
HAND BRAKE VALVE TO INSTRUMENT PANEL
A 3074270084 SHIM
HAND BRAKE VALVE TO INSTRUMENT PANEL
A 3074270084 SHIM
HAND BRAKE VALVE TO INSTRUMENT PANEL
A 3074270034 COVERING
HAND BRAKE VALVE TO INSTRUMENT PANEL
A 3074270034 COVERING
HAND BRAKE VALVE TO INSTRUMENT PANEL
A 3074270034 COVERING
HAND BRAKE VALVE TO INSTRUMENT PANEL
505C A 3074270134 COVERING
HAND BRAKE VALVE TO INSTRUMENT PANEL
505C A 3074270134 COVERING
HAND BRAKE VALVE TO INSTRUMENT PANEL
505C A 3074270134 COVERING
HAND BRAKE VALVE TO INSTRUMENT PANEL
N 007971002230 SHEET METAL SCREW
HAND BRAKE VALVE TO INSTRUMENT PANEL
N 007971002230 SHEET METAL SCREW
HAND BRAKE VALVE TO INSTRUMENT PANEL
N 007971002230 SHEET METAL SCREW
HAND BRAKE VALVE TO INSTRUMENT PANEL
505E N 000933004037 SCREW
PROTECTIVE PLATE TO HOUSING
505E N 000933004037 SCREW
PROTECTIVE PLATE TO HOUSING
505H N 009021004108 WASHER
Repalced by: N 009021004207
505H N 009021004207 WASHER
PROTECTIVE PLATE TO HOUSING
505H N 009021004207 WASHER
PROTECTIVE PLATE TO HOUSING
505K N 912004004102 LOCK WASHER
PROTECTIVE PLATE TO HOUSING
505K N 912004004102 LOCK WASHER
PROTECTIVE PLATE TO HOUSING
N 000087006127 SCREW
HAND BRAKE VALVE
N 000965006009 SCREW
HAND BRAKE VALVE
N 000965006009 SCREW
HAND BRAKE VALVE
505M N 000933006121 SCREW
Repalced by: N 304017006020
505M N 304017006020 SCREW
HAND BRAKE VALVE
505M N 304017006020 SCREW
HAND BRAKE VALVE
505P N 009021006205 WASHER
Repalced by: N 009021006208
505P N 009021006208 WASHER
HAND BRAKE VALVE
505P N 009021006208 WASHER
HAND BRAKE VALVE
505R N 912004006102 LOCK WASHER
HAND BRAKE VALVE
505R N 912004006102 LOCK WASHER
HAND BRAKE VALVE
N 913004006003 NUT
Repalced by: N 910113006001
N 910113006001 NUT
HAND BRAKE VALVE
N 910113006001 NUT
HAND BRAKE VALVE
506 A 0019978536 VALVE
Repalced by: A 0039971136
506 A 0039971136 VALVE
Repalced by: A 0039975336
506 A 0039975336 VALVE
3/2-WAY
506 A 0039975336 VALVE
3/2-WAY
506 A 0039975336 VALVE
3/2-WAY
506 A 0039975336 VALVE
3/2-WAY
A 0109974448 SEAL RING
TO 003 997 11 36,WABCO 472 123 108 0
A 0079970248 SEAL RING
17.3X2.4 MM
A 0049970640 SEAL RING
7X12X11.5
N 007603006100 SEAL RING
6X10 MM
A 0004311368 VALVE PART
Repalced by: A 0004311668
A 0004311668 VALVE PART
A 0004311468 VALVE PART
Repalced by: A 0005533307
A 0005533307 VALVE
TO 003 997 11 36
A 0004319287 PROTECTIVE CAP
Repalced by: A 0014310087
A 0014310087 PROTECTIVE CAP
TO 003 997 11 36,001 997 85 36
506A A 0004305660 REPAIR KIT
TO 003 997 11 36,WABCO 472 123 108 0
506B A 0019972572 FITTING
3/2-WAY
506B A 0019972572 FITTING
3/2-WAY
506B A 0019972572 FITTING
3/2-WAY
506B A 0019972572 FITTING
3/2-WAY
506D N 007603012405 SEAL RING
3/2-WAY
506D N 007603012405 SEAL RING
3/2-WAY
506D N 007603012405 SEAL RING
3/2-WAY
506D N 007603012405 SEAL RING
3/2-WAY
506K N 000931008246 SCREW
Repalced by: N 304017008028
506K N 304017008028 SCREW
3/2-WAY VALVE TO SUBSTRUCTURE
506K N 304017008028 SCREW
3/2-WAY VALVE TO SUBSTRUCTURE
506K N 304017008028 SCREW
3/2-WAY VALVE TO SUBSTRUCTURE
506K N 304017008028 SCREW
3/2-WAY VALVE TO SUBSTRUCTURE
506L N 913004008005 NUT
3/2-WAY VALVE TO SUBSTRUCTURE
506L N 913004008005 NUT
3/2-WAY VALVE TO SUBSTRUCTURE
506L N 913004008005 NUT
3/2-WAY VALVE TO SUBSTRUCTURE
506L N 913004008005 NUT
3/2-WAY VALVE TO SUBSTRUCTURE
506N A 0009906970 T-FITTING
THREE-WAY VALVE,CONNECTION:
"1"
506N A 0009906970 T-FITTING
THREE-WAY VALVE,CONNECTION:
"1"
506N A 0009906970 T-FITTING
THREE-WAY VALVE,CONNECTION:
"1"
506N A 0009906970 T-FITTING
THREE-WAY VALVE,CONNECTION:
"1"
507 A 0004296544 VALVE
Repalced by: A 0014296844
507 A 0014296844 VALVE
(RELAY VALVE)
WABCO
507 A 0014292044 VALVE
Repalced by: A 0034291644
507 A 0034291644 VALVE
(RELAY VALVE)
BOSCH
507 A 0014299144 VALVE
(RELAY VALVE)
GRAU
507 A 0024290744 VALVE
Repalced by: A 0034295344
507 A 0034295344 VALVE
(RELAY VALVE)
KNORR
A 0059972648 SEAL RING
22.3X2.4 MM;TO 001 429 91 44,GRAU
A 0004312788 VALVE SEAT
TO 001 429 91 44,GRAU
A 0059972748 SEAL RING
80X3 MM;TO 000 429 28 95, GRAU
A 0014311660 SEAL RING
TO 001 429 91 44,GRAU
A 0014311760 SEAL RING
TO 001 429 91 44,GRAU
A 0004311980 GASKET
TO 001 429 91 44,GRAU
510 A 0005865742 REPAIR KIT
TO 001 429 68 44,WABCO
A 0015862742 REPAIR KIT
TO 001 429 20 44,WABCO
A 0025863542 REPAIR KIT
TO 002 429 07 44,003 429 53 44,KNORR
A 0025865742 REPAIR KIT
Repalced by: A 0004301109
A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 003 429 16 44,BOSCH
A 0025865642 REPAIR KIT
Repalced by: A 0004201071
A 0004201071 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; UP TO 03.82
A 0004201271 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; FROM 04.82
525 A 0009905871 ELBOW FITTING
AT RELAY VALVE
525 A 0009905871 ELBOW FITTING
AT RELAY VALVE
527 N 074305022202 NUT
AT RELAY VALVE
527 N 074305022202 NUT
AT RELAY VALVE
530 A 0004290227 THRUST RING
AT RELAY VALVE
530 A 0004290227 THRUST RING
AT RELAY VALVE
534 A 0009870446 SEALING CORD
AT RELAY VALVE
534 A 0009870446 SEALING CORD
AT RELAY VALVE
A 0019972172 FITTING
AT RELAY VALVE
537 A 0029971172 FITTING
AT RELAY VALVE
538 A 0029971572 FITTING
AT RELAY VALVE
A 0009970171 FITTING
AT RELAY VALVE
540 A 0029979572 FITTING
AT RELAY VALVE
N 000908022001 SCREW PLUG
Repalced by: N 000908022011
N 000908022011 SCREW PLUG
AT RELAY VALVE
A 0029978172 FITTING
AT RELAY VALVE
A 0029978172 FITTING
AT RELAY VALVE
543 N 000908016001 SCREW PLUG
AT RELAY VALVE
543 N 000908016001 SCREW PLUG
AT RELAY VALVE
543 N 000908016001 SCREW PLUG
AT RELAY VALVE
543 N 000908016001 SCREW PLUG
AT RELAY VALVE
545 N 007603022102 SEAL RING
AT RELAY VALVE
547 N 007603016401 SEAL RING
AT RELAY VALVE
A 0004312031 TEST CONNECTION
AT RELAY VALVE
VOSS
A 0004312031 TEST CONNECTION
AT RELAY VALVE
VOSS
A 0004314531 TEST CONNECTION
AT RELAY VALVE
SCHAEFER
A 0004314531 TEST CONNECTION
AT RELAY VALVE
SCHAEFER
A 0004314831 TEST CONNECTION
AT RELAY VALVE
WABCO
A 0004314831 TEST CONNECTION
AT RELAY VALVE
WABCO
A 0004316131 TEST CONNECTION
AT RELAY VALVE
WIRA
A 0004316131 TEST CONNECTION
AT RELAY VALVE
WIRA
A 0009979486 PLUG
549 N 009021008205 WASHER
Repalced by: N 009021008213
549 N 009021008213 WASHER
RELAY VALVE TO BRACKET
550 N 913004008005 NUT
RELAY VALVE TO BRACKET
555 A 0014292744 VALVE
FROM TWO-WAY VALVE TO SPRING-LOAD ACCUMULATOR CYLINDER
560 A 0004290191 VALVE CONE
563 A 0004290445 DIAPHRAGM
567 A 0004290091 VALVE CONE
570 A 0069976645 SEAL RING
572 A 0009970071 FITTING
FROM TWO-WAY VALVE TO SPRING-LOAD ACCUMULATOR CYLINDER
574 A 0019972572 FITTING
N 007603016401 SEAL RING
N 007603012405 SEAL RING
N 000908016001 SCREW PLUG
N 000931008248 SCREW
Repalced by: N 304017008053
N 304017008053 SCREW
N 912004008102 LOCK WASHER
N 000934008010 NUT
580 A 0014292444 VALVE
TWO-WAY
WABCO
A 0004290682 VALVE
Repalced by: A 0004290782
A 0004290782 VALVE
Repalced by: A 0004291182
A 0004291182 VALVE BODY
TO 001 429 24 44,WABCO
A 0029810485 BALL
TO 003 429 11 44,VOSS
A 0004290180 GASKET
TO 003 429 11 44,VOSS
584 A 0009909870 T-FITTING
AT TWO-WAY VALVE
A 0019901370 T-FITTING
AT TWO-WAY VALVE
A 0009902470 T-FITTING
AT TWO-WAY VALVE
586 A 0019901070 T-FITTING
AT TWO-WAY VALVE
A 0019972172 FITTING
AT TWO-WAY VALVE
588 A 0029971172 FITTING
AT TWO-WAY VALVE
590 A 0019972372 FITTING
AT TWO-WAY VALVE
A 0029979172 FITTING
AT TWO-WAY VALVE
592 A 0009970171 FITTING
AT TWO-WAY VALVE
594 N 007603022102 SEAL RING
AT TWO-WAY VALVE
594 N 007603016401 SEAL RING
AT TWO-WAY VALVE
596 A 0004290227 THRUST RING
AT TWO-WAY VALVE
596 A 0004290227 THRUST RING
AT TWO-WAY VALVE
A 0004290927 THRUST RING
AT TWO-WAY VALVE
598 A 0009870446 SEALING CORD
AT TWO-WAY VALVE
598 A 0009870446 SEALING CORD
AT TWO-WAY VALVE
A 0009971548 SEAL RING
AT TWO-WAY VALVE
600 N 074305022202 NUT
AT TWO-WAY VALVE
600 N 074305022202 NUT
AT TWO-WAY VALVE
N 080705016003 NUT
AT TWO-WAY VALVE
602 A 0009909970 T-FITTING
FROM 3/2-WAY VALVE TO TWO-WAY VALVE, RIGHT
604 A 3014290135 BRAKE HOSE
FROM 3/2-WAY VALVE TO TWO-WAY VALVE, RIGHT
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
