Transporto priemonė: O 307; VIN numerio dalis: 307051

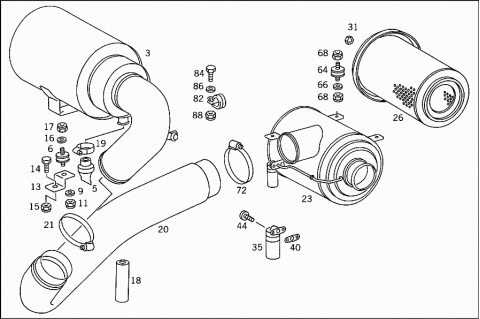

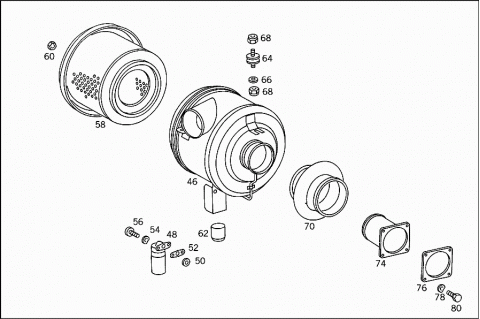

Grupė: 52 CHASSIS SHEET METAL
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 0060947502 | AIR CLEANER |
| CYCLONE | ||
| 003 | A 0080944202 | AIR CLEANER |
| 003 | A 0080944202 | AIR CLEANER |
| 003 | A 0100940602 | AIR CLEANER |
| CYCLONE | ||
| 003 | A 0100940602 | AIR CLEANER |
| CYCLONE | ||
| 003 | A 0100940602 | AIR CLEANER |
| CYCLONE | ||
| 003 | A 0100942302 | AIR CLEANER |
| CYCLONE | ||
| 003 | A 0100942302 | AIR CLEANER |
| CYCLONE | ||
| 005 | A 0000940665 | VALVE |
| 006 | A 3225040212 | RUBBER MOUNTING |
| RUBBER MOUNTING TO AIR CLEANER | ||
| 009 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 009 | N 009021008213 | WASHER |
| AIR CLEANER TO BRACKET | ||
| 011 | N 913001008003 | NUT |
| AIR CLEANER TO BRACKET | ||
| 013 | A 3055280340 | BRACKET |
| AIR CLEANER TO BRACKET | ||
| 014 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 014 | N 304017008021 | SCREW |
| AIR CLEANER TO BRACKET | ||
| 015 | N 913001008003 | NUT |
| AIR CLEANER TO BRACKET | ||
| 016 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 016 | N 009021008213 | WASHER |
| AIR CLEANER TO BRACKET | ||
| 017 | N 913001008003 | NUT |
| AIR CLEANER TO BRACKET | ||
| 018 | A 3059970182 | HOSE |
| HOSE TO AIR CLEANER AND TO MUFFLER | ||
| 019 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 019 | N 000000000668 | CLAMP |
| HOSE TO AIR CLEANER AND TO MUFFLER | ||
| 020 | A 3075280208 | AIR INTAKE PIPE |
| FROM AIR CLEANER TO MUFFLER | ||
| 020 | A 3075281308 | AIR INTAKE PIPE |
| FROM AIR CLEANER TO MUFFLER | ||
| 020 | A 3075280108 | AIR INTAKE PIPE |
| FROM AIR CLEANER TO MUFFLER | ||
| 020 | A 3075281208 | AIR INTAKE PIPE |
| FROM AIR CLEANER TO MUFFLER | ||
| 021 | N 916017110001 | CLAMP |
| Repalced by: A 0059971490 | ||
| 021 | A 0059971490 | LOOM TIE |
| AIR INTAKE PIPE TO AIR CLEANER | ||
| 023 | A 0060947602 | AIR CLEANER |
| 026 | A 0010941004 | FILTER ELEMENT |
| 031 | N 000985010009 | NUT |
| 035 | A 0000940168 | VACUUM BOX |
| Repalced by: A 0000941268 | ||
| 035 | A 0000941268 | VACUUM BOX |
| 040 | A 0010941180 | GASKET |
| 044 | N 000084006207 | SCREW |
| 046 | A 0090944802 | AIR CLEANER |
| 048 | A 0000941868 | MAINTENANCE INDICATOR |
| 050 | A 0000940276 | WASHER |
| FELT | ||
| 052 | A 0010941180 | GASKET |
| 054 | N 000137006204 | SPRING WASHER |
| 056 | N 000084006426 | SCREW |
| 058 | A 0010949304 | FILTER ELEMENT |
| 060 | A 0009901550 | NUT |
| 062 | A 0000940089 | CAP |
| FROM WARNING INDICATOR TO AIR CLEANER | ||
| 064 | A 3225040212 | RUBBER MOUNTING |
| RUBBER MOUNTING TO AIR CLEANER | ||
| 066 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 066 | N 009021008213 | WASHER |
| RUBBER MOUNTING TO AIR CLEANER | ||
| 068 | N 913004008005 | NUT |
| RUBBER MOUNTING TO AIR CLEANER | ||
| 070 | A 3460940091 | BOOT |
| 070 | A 3075280191 | BOOT |
| FROM AIR CLEANER TO AIR INTAKE PIPE | ||
| 072 | N 916017110001 | CLAMP |
| Repalced by: A 0059971490 | ||
| 072 | A 0059971490 | LOOM TIE |
| BOOT TO AIR CLEANER AND TO AIR INTAKE PIPE | ||
| 074 | A 3075200101 | AIR INTAKE PIPE |
| FROM AIR INTAKE PIPE TO ENGINE | ||
| 076 | A 3075280080 | GASKET |
| Repalced by: A 4471410580 | ||
| 076 | A 4471410580 | GASKET |
| FROM AIR INTAKE PIPE TO ENGINE | ||
| 078 | N 912004008102 | LOCK WASHER |
| FROM AIR INTAKE PIPE TO ENGINE | ||
| 080 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 080 | N 304017008027 | SCREW |
| FROM AIR INTAKE PIPE TO ENGINE | ||
| 082 | N 916016025200 | CLAMP |
| CYLINDER CRANKCASE BREATHING | ||
| 084 | N 000933006127 | SCREW |
| CYLINDER CRANKCASE BREATHING | ||
| 086 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 086 | N 009021006208 | WASHER |
| 088 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 088 | N 910113006001 | NUT |
| CYLINDER CRANKCASE BREATHING | ||
