Transporto priemonė: O 307; VIN numerio dalis: 307051

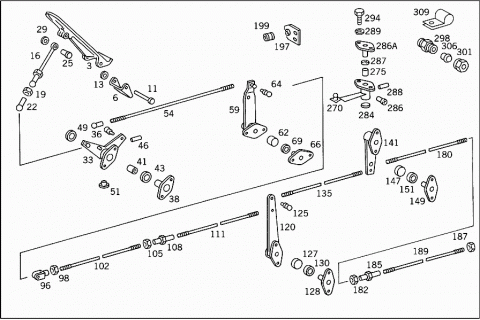

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 3023010002 | PEDAL PLATE |
| Repalced by: A 3073010002 | ||
| 003 | A 3073010002 | PEDAL PLATE |
| ACCELERATOR PEDAL | ||
| 006 | A 3023010105 | ARTICULATION PIECE |
| ACCELERATOR PEDAL | ||
| 006 | A 3023010105 | ARTICULATION PIECE |
| ACCELERATOR PEDAL | ||
| 006 | A 3023010305 | ARTICULATION PIECE |
| ACCELERATOR PEDAL | ||
| N 000963008015 | SCREW | |
| ARTICULATION ELEMENT TO FLOOR | ||
| N 913004008004 | NUT | |
| ARTICULATION ELEMENT TO FLOOR | ||
| 011 | N 001434010058 | PIN |
| ACCELERATOR PEDAL TO JOINT | ||
| 013 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 013 | N 000125010532 | WASHER |
| ACCELERATOR PEDAL TO JOINT | ||
| N 000094003219 | COTTER PIN | |
| ACCELERATOR PEDAL TO JOINT | ||
| 016 | A 3073000315 | ROD |
| Repalced by: A 3073000215 | ||
| 016 | A 3073000215 | ROD |
| CONTROL | ||
| 016 | A 3073003015 | ROD |
| CONTROL | ||
| 016 | A 3073003015 | ROD |
| CONTROL | ||
| 016 | A 3073000515 | ROD |
| Repalced by: A 3073000415 | ||
| 016 | A 3073000415 | ROD |
| CONTROL | ||
| 019 | N 000934008010 | NUT |
| 022 | N 071805013203 | BALL SOCKET |
| 025 | N 001434006099 | PIN |
| ROD TO PEDAL PLATE | ||
| 029 | N 000125006421 | WASHER |
| ROD TO PEDAL PLATE | ||
| N 000094001617 | COTTER PIN | |
| ROD TO PEDAL PLATE | ||
| N 071805013402 | SECURING CLIP | |
| ROD TO LEVER | ||
| 033 | A 3073000628 | LEVER |
| Repalced by: A 3073001228 | ||
| 033 | A 3073000628 | LEVER |
| Repalced by: A 3073000228 | ||
| 033 | A 3073000228 | LEVER |
| (DOUBLE LEVER) | ||
| 033 | A 3073000228 | LEVER |
| (DOUBLE LEVER) | ||
| 033 | A 3073003028 | LEVER |
| (DOUBLE LEVER) | ||
| 033 | A 3073001228 | LEVER |
| (DOUBLE LEVER) | ||
| 033 | A 3073005428 | LEVER |
| (DOUBLE LEVER) | ||
| 036 | N 071803010209 | BALL PIVOT |
| Repalced by: A 3129910120 | ||
| 036 | A 3129910120 | BALL PIVOT |
| RIVETED | ||
| 036 | A 3129910120 | BALL PIVOT |
| RIVETED | ||
| 036 | A 3129910120 | BALL PIVOT |
| RIVETED | ||
| N 071803013208 | BALL PIVOT | |
| RIVETED | ||
| 038 | A 3073000074 | PIN |
| DOUBLE LEVER | ||
| 038 | A 3073000074 | PIN |
| DOUBLE LEVER | ||
| 038 | A 3053000574 | PIN |
| DOUBLE LEVER | ||
| 041 | A 3073010150 | BUSHING |
| DOUBLE LEVER | ||
| 041 | A 3073010150 | BUSHING |
| DOUBLE LEVER | ||
| 041 | A 3073010150 | BUSHING |
| DOUBLE LEVER | ||
| 043 | A 0089974046 | SEAL RING |
| DOUBLE LEVER | ||
| 046 | N 000007003104 | CYLINDRICAL PIN |
| DOUBLE LEVER | ||
| 3X20 MM | ||
| 046 | N 000007003104 | CYLINDRICAL PIN |
| DOUBLE LEVER | ||
| 3X20 MM | ||
| 046 | N 000007003104 | CYLINDRICAL PIN |
| DOUBLE LEVER | ||
| 3X20 MM | ||
| 049 | N 000470020000 | EXPANSION PLUG |
| DOUBLE LEVER | ||
| 051 | A 0009970488 | GREASE NIPPLE |
| DOUBLE LEVER | ||
| 051 | A 0009970488 | GREASE NIPPLE |
| DOUBLE LEVER | ||
| 051 | A 0009970488 | GREASE NIPPLE |
| DOUBLE LEVER | ||
| N 912004008102 | LOCK WASHER | |
| CONTROL | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| CONTROL | ||
| 054 | N 900331006619 | PULL ROD |
| CONTROL | ||
| 054 | N 900331006619 | PULL ROD |
| CONTROL | ||
| 054 | N 900331006618 | PULL ROD |
| CONTROL | ||
| N 000934006007 | NUT | |
| CONTROL | ||
| N 071805010403 | SECURING CLIP | |
| CONTROL | ||
| 059 | A 3073000825 | LEVER |
| Repalced by: A 3073000725 | ||
| 059 | A 3073005825 | LEVER |
| Repalced by: A 3073000725 | ||
| 059 | A 3073000725 | LEVER |
| CONTROL | ||
| I | ||
| 059 | A 3073000725 | LEVER |
| CONTROL | ||
| I | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 066 | ||
| 062 | A 3073010150 | BUSHING |
| 062 | A 3073010150 | BUSHING |
| 064 | N 071803010209 | BALL PIVOT |
| Repalced by: A 3129910120 | ||
| 064 | A 3129910120 | BALL PIVOT |
| 064 | A 3129910120 | BALL PIVOT |
| N 000470020000 | EXPANSION PLUG | |
| N 000470020000 | EXPANSION PLUG | |
| A 0009970488 | GREASE NIPPLE | |
| A 0009970488 | GREASE NIPPLE | |
| 066 | A 3073000074 | PIN |
| (PIVOT PIN) | ||
| 066 | A 3073000074 | PIN |
| (PIVOT PIN) | ||
| 069 | A 0089974046 | SEAL RING |
| 069 | A 0089974046 | SEAL RING |
| N 000007003104 | CYLINDRICAL PIN | |
| N 000007003104 | CYLINDRICAL PIN | |
| N 912004008102 | LOCK WASHER | |
| SUBSTRUCTURE | ||
| N 912004008102 | LOCK WASHER | |
| SUBSTRUCTURE | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| SUBSTRUCTURE | ||
| N 304017008021 | SCREW | |
| SUBSTRUCTURE | ||

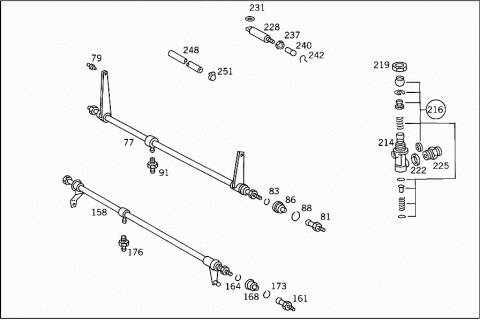

| 077 | A 3053000420 | SHAFT |
| (REVERSING SHAFT) | ||
| I | ||
| 079 | N 071803010209 | BALL PIVOT |
| Repalced by: A 3129910120 | ||
| 079 | A 3129910120 | BALL PIVOT |
| CONTROL LEVER | ||
| 081 | A 3059910015 | BALL PIVOT |
| CONTROL SHAFT | ||
| 083 | N 009045016001 | SNAP RING |
| 086 | A 3053010097 | BOOT |
| CONTROL SHAFT | ||
| 088 | N 009045024001 | SNAP RING |
| 091 | N 071412010100 | GREASE NIPPLE |
| N 912004012100 | LOCK WASHER | |
| REVERSING SHAFT TO SUBSTRUCTURE | ||
| N 000936012005 | NUT | |
| Repalced by: N 308675012000 | ||
| N 308675012000 | NUT | |
| REVERSING SHAFT TO SUBSTRUCTURE | ||
| N 071805010403 | SECURING CLIP | |
| ROD TO INTERMEDIATE LEVER | ||
| 096 | A 3073010022 | YOKE |
| FROM INTERMEDIATE LEVER TO TURNBUCKLE NUT | ||
| 098 | N 000934006007 | NUT |
| FROM INTERMEDIATE LEVER TO TURNBUCKLE NUT | ||
| 102 | N 900331006634 | PULL ROD |
| FROM INTERMEDIATE LEVER TO TURNBUCKLE NUT | ||
| 102 | N 900331006636 | PULL ROD |
| FROM INTERMEDIATE LEVER TO TURNBUCKLE NUT | ||
| 105 | N 000934006012 | NUT |
| FROM INTERMEDIATE LEVER TO TURNBUCKLE NUT | ||
| 108 | N 900333006001 | TURNBUCKLE |
| 111 | N 900331006625 | PULL ROD |
| LEVER TO SHAFT | ||
| 111 | N 900331006628 | PULL ROD |
| LEVER TO SHAFT | ||
| A 3073010022 | YOKE | |
| LEVER TO SHAFT | ||
| N 000934006007 | NUT | |
| LEVER TO SHAFT | ||
| A 3059910204 | PIN | |
| LEVER TO SHAFT | ||
| N 000125006421 | WASHER | |
| LEVER TO SHAFT | ||
| N 000094001617 | COTTER PIN | |
| LEVER TO SHAFT | ||
| 120 | A 3073001225 | LEVER |
| Repalced by: A 3073001125 | ||
| 120 | A 3073005525 | LEVER |
| Repalced by: A 3073001125 | ||
| 120 | A 3073001125 | LEVER |
| Repalced by: A 3073004725 | ||
| 120 | A 3073004725 | LEVER |
| CONTROL | ||
| II | ||
| 120 | A 3073001025 | LEVER |
| Repalced by: A 3073007625 | ||
| 120 | A 3073005325 | LEVER |
| Repalced by: A 3073007625 | ||
| 120 | A 3073000925 | LEVER |
| Repalced by: A 3073007625 | ||
| 120 | A 3073007625 | LEVER |
| CONTROL | ||
| II | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 128 | ||
| 125 | N 071803010209 | BALL PIVOT |
| Repalced by: A 3129910120 | ||
| 125 | A 3129910120 | BALL PIVOT |
| TO 307 300 09 25 | ||
| 127 | A 3073010150 | BUSHING |
| CONTROL | ||
| N 000470020000 | EXPANSION PLUG | |
| CONTROL | ||
| A 0009970488 | GREASE NIPPLE | |
| CONTROL | ||
| 128 | A 3073000074 | PIN |
| (PIVOT PIN) | ||
| 130 | A 0089974046 | SEAL RING |
| CONTROL | ||
| N 000007003104 | CYLINDRICAL PIN | |
| CONTROL | ||
| N 912004008102 | LOCK WASHER | |
| CONTROL | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| CONTROL | ||
| 135 | N 900331006623 | PULL ROD |
| CONTROL | ||
| N 000934006007 | NUT | |
| CONTROL | ||
| A 3073010022 | YOKE | |
| CONTROL | ||
| A 3059910204 | PIN | |
| CONTROL | ||
| N 000125006421 | WASHER | |
| CONTROL | ||
| N 000094001617 | COTTER PIN | |
| CONTROL | ||
| 141 | A 3073001425 | LEVER |
| Repalced by: A 3073006425 | ||
| 141 | A 3073005625 | LEVER |
| Repalced by: A 3073006425 | ||
| 141 | A 3073001325 | LEVER |
| Repalced by: A 3073006425 | ||
| 141 | A 3073006425 | LEVER |
| CONTROL | ||
| III | ||
| 141 | A 3073006425 | LEVER |
| CONTROL | ||
| III | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 149 | ||
| N 071803010209 | BALL PIVOT | |
| Repalced by: A 3129910120 | ||
| A 3129910120 | BALL PIVOT | |
| CONTROL | ||
| A 3129910120 | BALL PIVOT | |
| CONTROL | ||
| 147 | A 3073010150 | BUSHING |
| CONTROL | ||
| 147 | A 3073010150 | BUSHING |
| CONTROL | ||
| N 000470020000 | EXPANSION PLUG | |
| CONTROL | ||
| N 000470020000 | EXPANSION PLUG | |
| CONTROL | ||
| A 0009970488 | GREASE NIPPLE | |
| CONTROL | ||
| A 0009970488 | GREASE NIPPLE | |
| CONTROL | ||
| 149 | A 3073000074 | PIN |
| (PIVOT PIN) | ||
| 149 | A 3073000074 | PIN |
| (PIVOT PIN) | ||
| 151 | A 0089974046 | SEAL RING |
| CONTROL | ||
| 151 | A 0089974046 | SEAL RING |
| CONTROL | ||
| N 000007003104 | CYLINDRICAL PIN | |
| CONTROL | ||
| N 000007003104 | CYLINDRICAL PIN | |
| CONTROL | ||
| N 912004008102 | LOCK WASHER | |
| CONTROL | ||
| N 912004008102 | LOCK WASHER | |
| CONTROL | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| CONTROL | ||
| N 304017008021 | SCREW | |
| CONTROL | ||
| 158 | A 3073000120 | SHAFT |
| Repalced by: A 3073000420 | ||
| 158 | A 3073000420 | SHAFT |
| (REVERSING SHAFT) | ||
| II | ||
| N 071803010209 | BALL PIVOT | |
| Repalced by: A 3129910120 | ||
| A 3129910120 | BALL PIVOT | |
| CONTROL LEVER | ||
| 161 | A 3059910015 | BALL PIVOT |
| CONTROL SHAFT | ||
| 164 | N 009045016001 | SNAP RING |
| 168 | A 3053010097 | BOOT |
| CONTROL SHAFT | ||
| 173 | N 009045024001 | SNAP RING |
| 176 | N 071412010100 | GREASE NIPPLE |
| N 912004012100 | LOCK WASHER | |
| REVERSING SHAFT TO SUBSTRUCTURE | ||
| N 000936012005 | NUT | |
| Repalced by: N 308675012000 | ||
| N 308675012000 | NUT | |
| REVERSING SHAFT TO SUBSTRUCTURE | ||
| N 071805010204 | BALL SOCKET | |
| FROM INTERMEDIATE LEVER TO TURNBUCKLE NUT | ||
| N 000934006007 | NUT | |
| FROM INTERMEDIATE LEVER TO TURNBUCKLE NUT | ||
| N 071805010403 | SECURING CLIP | |
| FROM INTERMEDIATE LEVER TO TURNBUCKLE NUT | ||
| 180 | N 900331006631 | PULL ROD |
| FROM INTERMEDIATE LEVER TO TURNBUCKLE NUT | ||
| 180 | N 900331006630 | PULL ROD |
| FROM INTERMEDIATE LEVER TO TURNBUCKLE NUT | ||
| 182 | N 000934006007 | NUT |
| FROM INTERMEDIATE LEVER TO TURNBUCKLE NUT | ||
| 185 | N 001480006200 | TURNBUCKLE |
| PULL ROD | ||
| 187 | N 000934006012 | NUT |
| PULL ROD | ||
| 189 | N 900331006618 | PULL ROD |
| FROM TURNBUCKLE NUT TO ENGINE | ||
| 189 | N 900331006617 | PULL ROD |
| FROM TURNBUCKLE NUT TO ENGINE | ||
| N 000934006007 | NUT | |
| FROM TURNBUCKLE NUT TO ENGINE | ||
| N 071805010204 | BALL SOCKET | |
| FROM TURNBUCKLE NUT TO ENGINE | ||
| N 071805010403 | SECURING CLIP | |
| FROM TURNBUCKLE NUT TO ENGINE | ||
| 197 | A 3053000240 | BRACKET |
| CONTROL | ||
| 197 | A 3053000240 | BRACKET |
| CONTROL | ||
| 197 | A 3053000240 | BRACKET |
| CONTROL | ||
| 197 | A 3073000040 | BRACKET |
| CONTROL | ||
| 197 | A 3073000040 | BRACKET |
| CONTROL | ||
| 197 | A 3073000740 | BRACKET |
| CONTROL | ||
| 199 | A 3013020050 | BUSHING |
| N 000933008212 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| SUBSTRUCTURE | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| SUBSTRUCTURE | ||
| N 912004008102 | LOCK WASHER | |
| SUBSTRUCTURE | ||
| N 000934008010 | NUT | |
| SUBSTRUCTURE | ||
| A 3013020050 | BUSHING | |
| CONTROL | ||
| 214 | A 0004340501 | VALVE |
| Repalced by: A 0004342301 | ||
| 214 | A 0004342001 | VALVE |
| Repalced by: A 0004342301 | ||
| 214 | A 0004342301 | VALVE |
| ENGINE SHUT-OFF | ||
| WABCO | ||
| 214 | A 0004342301 | VALVE |
| ENGINE SHUT-OFF | ||
| WABCO | ||
| 214 | A 0004342301 | VALVE |
| ENGINE SHUT-OFF | ||
| WABCO | ||
| 214 | A 0004342101 | VALVE |
| ENGINE SHUT-OFF | ||
| BOSCH | ||
| 214 | A 0004342101 | VALVE |
| ENGINE SHUT-OFF | ||
| BOSCH | ||
| 214 | A 0004342101 | VALVE |
| ENGINE SHUT-OFF | ||
| BOSCH | ||
| A 0059979248 | SEAL RING | |
| BOSCH | ||
| A 0079972548 | SEAL RING | |
| WABCO | ||
| A 0014315193 | SPRING | |
| BOSCH | ||
| A 0004314034 | STRAINER | |
| BOSCH | ||
| A 0003280191 | CLEANER | |
| WABCO | ||
| A 0004340586 | CUP | |
| WABCO | ||
| A 0009971977 | HANDLE | |
| WABCO | ||
| 216 | A 0025865343 | REPAIR KIT |
| BOSCH | ||
| 216 | A 0005869743 | REPAIR KIT |
| WABCO 463 013 01 00,463 013 01 20 | ||
| 216 | A 0025869843 | REPAIR KIT |
| WABCO 463 013 11 20 | ||
| 219 | N 080705026000 | NUT |
| Repalced by: N 080705026003 | ||
| 219 | N 080705026003 | NUT |
| VENT VALVE TO SUBSTRUCTURE | ||
| 219 | N 080705026003 | NUT |
| VENT VALVE TO SUBSTRUCTURE | ||
| 219 | N 080705026003 | NUT |
| VENT VALVE TO SUBSTRUCTURE | ||
| N 000988026004 | FITTED WASHER | |
| VENT VALVE TO SUBSTRUCTURE | ||
| N 000988026004 | FITTED WASHER | |
| VENT VALVE TO SUBSTRUCTURE | ||
| N 000988026004 | FITTED WASHER | |
| VENT VALVE TO SUBSTRUCTURE | ||
| 222 | N 007603012405 | SEAL RING |
| SUBSTRUCTURE | ||
| 222 | N 007603012405 | SEAL RING |
| SUBSTRUCTURE | ||
| 222 | N 007603012405 | SEAL RING |
| SUBSTRUCTURE | ||
| 225 | A 0019972872 | FITTING |
| Repalced by: A 0039979072 | ||
| 225 | A 0039979072 | FITTING |
| Repalced by: A 0029906071 | ||
| 225 | A 0029906071 | FITTING |
| 3/2-WAY VALVE | ||
| 225 | A 0029906071 | FITTING |
| 3/2-WAY VALVE | ||
| 225 | A 0029906071 | FITTING |
| 3/2-WAY VALVE | ||
| 228 | A 0004301926 | CYLINDER |
| Repalced by: A 0004301826 | ||
| 228 | A 0004301826 | CYLINDER |
| Repalced by: A 0004302726 | ||
| 228 | A 0004302726 | CYLINDER |
| Repalced by: A 0004303026 | ||
| 228 | A 0004303026 | CYLINDER |
| ENGINE SHUT-OFF | ||
| 228 | A 0004303026 | CYLINDER |
| ENGINE SHUT-OFF | ||
| 228 | A 0004303026 | CYLINDER |
| ENGINE SHUT-OFF | ||
| 228 | A 0004300226 | CYLINDER |
| Repalced by: A 0004305326 | ||
| 228 | A 0004305326 | CYLINDER |
| Repalced by: A 0004306326 | ||
| 228 | A 0004306326 | CYLINDER |
| ENGINE SHUT-OFF | ||
| A 0015867443 | REPAIR KIT | |
| POWER CYLINDER | ||
| A 0015867443 | REPAIR KIT | |
| POWER CYLINDER | ||
| A 0015867443 | REPAIR KIT | |
| POWER CYLINDER | ||
| A 0004200651 | REPAIR KIT | |
| POWER CYLINDER | ||
| 231 | A 3073010053 | SPACER TUBE |
| ENGINE SHUT-OFF | ||
| 231 | A 3073010053 | SPACER TUBE |
| ENGINE SHUT-OFF | ||
| 231 | A 3073010053 | SPACER TUBE |
| ENGINE SHUT-OFF | ||
| 231 | A 3073010253 | SPACER TUBE |
| ENGINE SHUT-OFF | ||
| N 001434008096 | PIN | |
| CYLINDER TO BRACKET | ||
| 8X45 MM | ||
| N 001434008096 | PIN | |
| CYLINDER TO BRACKET | ||
| 8X45 MM | ||
| N 001444008220 | PIN | |
| CYLINDER TO BRACKET | ||
| 8X70 MM | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| CYLINDER TO BRACKET | ||
| N 000094002059 | COTTER PIN | |
| CYLINDER TO BRACKET | ||
| 237 | N 000934008010 | NUT |
| AT CYLINDER | ||
| 240 | N 071805013203 | BALL SOCKET |
| AT CYLINDER | ||
| 242 | N 071805013402 | SECURING CLIP |
| AT CYLINDER | ||
| A 0039972872 | FITTING | |
| AT CYLINDER | ||
| N 007603012110 | SEAL RING | |
| AT CYLINDER | ||
| A 3012910241 | STOP | |
| ENGINE SHUT-OFF | ||
| A 3012910241 | STOP | |
| ENGINE SHUT-OFF | ||
| N 000439008211 | NUT | |
| Repalced by: N 304035008001 | ||
| N 304035008001 | NUT | |
| STOP TO LEVER | ||
| N 304035008001 | NUT | |
| STOP TO LEVER | ||
| 248 | A 3024760226 | HOSE |
| Repalced by: A 3578320723 | ||
| 248 | A 3578320723 | HOSE |
| ENGINE SHUT-OFF | ||
| 251 | N 900288012001 | CLAMP |
| ENGINE SHUT-OFF | ||
| 270 | A 3073001625 | LEVER |
| Repalced by: A 3073001525 | ||
| 270 | A 3073005925 | LEVER |
| Repalced by: A 3073001525 | ||
| 270 | A 3073001525 | LEVER |
| ENGINE SHUT-OFF | ||
| 270 | A 3073001525 | LEVER |
| ENGINE SHUT-OFF | ||
| 270 | A 3073002828 | LEVER |
| ENGINE SHUT-OFF | ||
| 270 | A 3073002125 | LEVER |
| Repalced by: A 3073002025 | ||
| 270 | A 3073005425 | LEVER |
| Repalced by: A 3073002025 | ||
| 270 | A 3073002025 | LEVER |
| ENGINE SHUT-OFF | ||
| 270 | A 3073003628 | LEVER |
| ENGINE SHUT-OFF | ||
| 270 | A 3073005128 | LEVER |
| ENGINE SHUT-OFF | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 286A | ||
| N 071803013208 | BALL PIVOT | |
| ENGINE SHUT-OFF | ||
| N 071803013208 | BALL PIVOT | |
| ENGINE SHUT-OFF | ||
| N 071803013208 | BALL PIVOT | |
| ENGINE SHUT-OFF | ||
| 275 | A 3073010150 | BUSHING |
| ENGINE SHUT-OFF | ||
| 275 | A 3073010150 | BUSHING |
| ENGINE SHUT-OFF | ||
| 275 | A 3073010150 | BUSHING |
| ENGINE SHUT-OFF | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 287 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 288 | ||
| 284 | N 000470020000 | EXPANSION PLUG |
| ENGINE SHUT-OFF | ||
| 284 | N 000470020000 | EXPANSION PLUG |
| ENGINE SHUT-OFF | ||
| 284 | N 000470020000 | EXPANSION PLUG |
| ENGINE SHUT-OFF | ||
| 286 | A 0009970488 | GREASE NIPPLE |
| ENGINE SHUT-OFF | ||
| 286 | A 0009970488 | GREASE NIPPLE |
| ENGINE SHUT-OFF | ||
| 286 | A 0009970488 | GREASE NIPPLE |
| ENGINE SHUT-OFF | ||
| 286A | A 3073000074 | PIN |
| (PIVOT PIN) | ||
| 286A | A 3073000074 | PIN |
| (PIVOT PIN) | ||
| 286A | A 3073000074 | PIN |
| (PIVOT PIN) | ||
| 287 | A 0089974046 | SEAL RING |
| PIVOT PIN | ||
| 287 | A 0089974046 | SEAL RING |
| PIVOT PIN | ||
| 287 | A 0089974046 | SEAL RING |
| PIVOT PIN | ||
| 288 | N 000007003104 | CYLINDRICAL PIN |
| PIVOT PIN | ||
| 288 | N 000007003104 | CYLINDRICAL PIN |
| PIVOT PIN | ||
| 288 | N 000007003104 | CYLINDRICAL PIN |
| PIVOT PIN | ||
| 289 | N 912004008102 | LOCK WASHER |
| ENGINE SHUT-OFF | ||
| 294 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 294 | N 304017008021 | SCREW |
| ENGINE SHUT-OFF | ||
| A 0004291101 | LINE | |
| ENGINE SHUT-OFF | ||
| 6 MM | ||
| A 0029971672 | FITTING | |
| LINE CONNECTIONS | ||
| A 0029971672 | FITTING | |
| LINE CONNECTIONS | ||
| A 0029971672 | FITTING | |
| LINE CONNECTIONS | ||
| 298 | A 0019972872 | FITTING |
| Repalced by: A 0039979072 | ||
| 298 | A 0039979072 | FITTING |
| Repalced by: A 0029906071 | ||
| 298 | A 0029906071 | FITTING |
| LINE CONNECTIONS | ||
| A 0029976772 | FITTING | |
| LINE CONNECTIONS | ||
| A 0029976772 | FITTING | |
| LINE CONNECTIONS | ||
| 301 | N 915017006100 | UNION NUT |
| LINE CONNECTIONS | ||
| 306 | N 003861006007 | GLAND |
| LINE CONNECTIONS | ||
| N 916016006208 | CLAMP | |
| LINE MOUNTING | ||
| N 916016008200 | CLAMP | |
| LINE MOUNTING | ||
| N 000933006127 | SCREW | |
| LINE MOUNTING | ||
| N 913004006003 | NUT | |
| Repalced by: N 910113006001 | ||
| N 910113006001 | NUT | |
| LINE MOUNTING | ||
| N 009021006205 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| LINE MOUNTING | ||
| 309 | A 0009954501 | CLAMP |
| Repalced by: N 916016006200 | ||
| 309 | N 916016006200 | CLAMP |
| LINE MOUNTING | ||
| N 000084005134 | SCREW | |
| LINE MOUNTING | ||
| N 009021005202 | WASHER | |
| Repalced by: N 009021005205 | ||
| N 009021005205 | WASHER | |
| LINE MOUNTING | ||
| N 913004005001 | NUT | |
| LINE MOUNTING | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
