Transporto priemonė: O 307; VIN numerio dalis: 307051
Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS

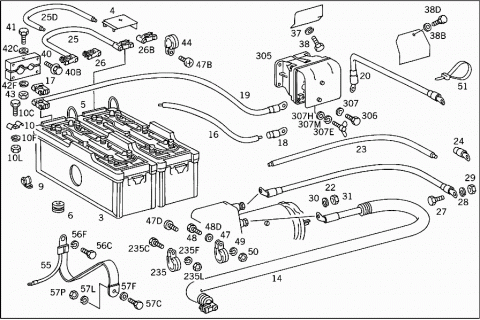

69493
69494

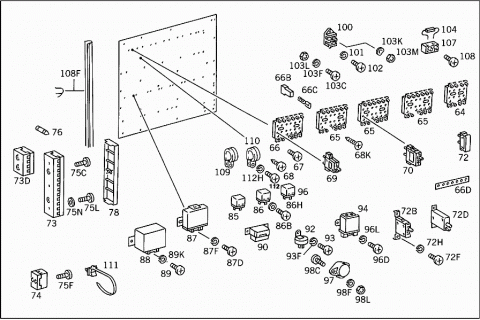

69495

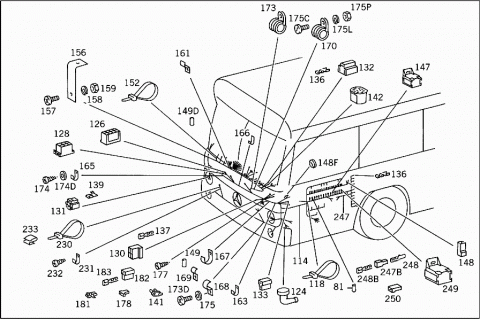

69496
69497
69498

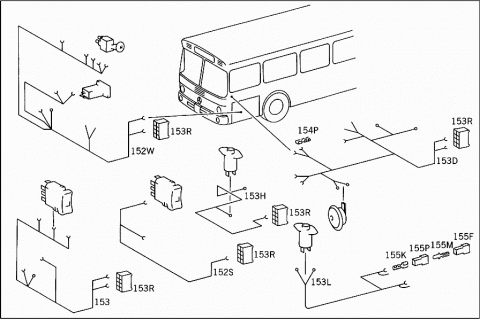

69499

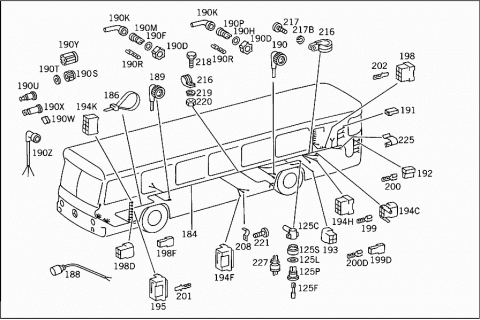

69500

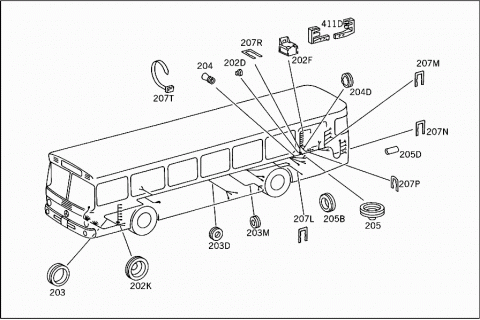

69501
69502

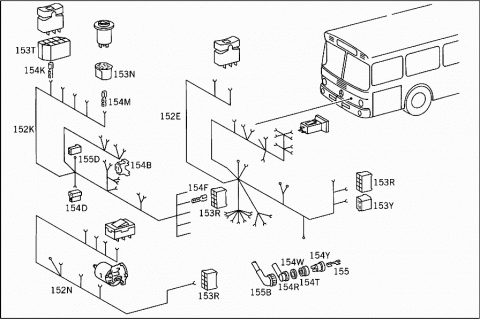

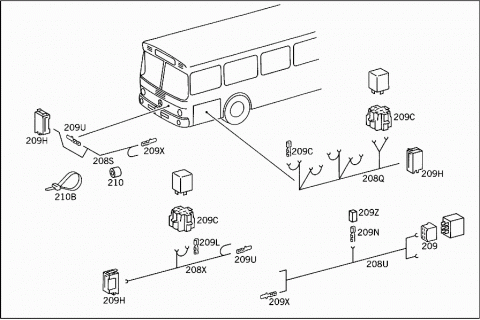

69503
69504

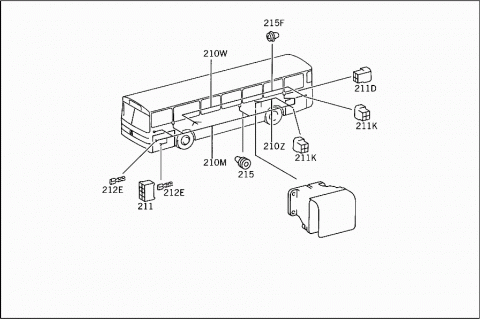

69505
69506
69507
69508

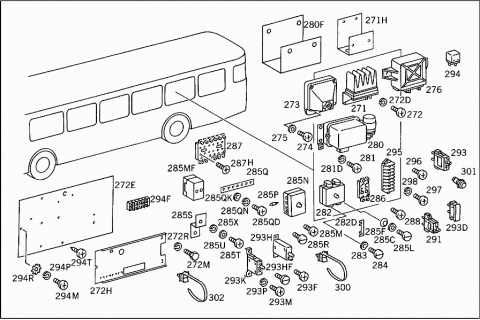

69509
69510
69511
69512
69513
# Kodas Pavadinimas

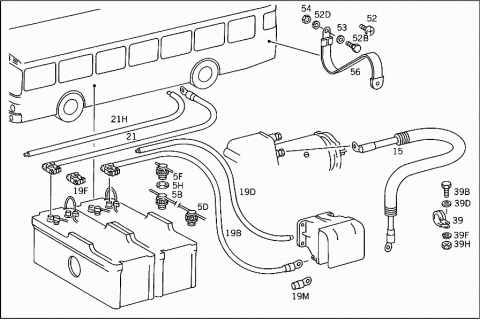

003 A 0005418101 BATTERY
Repalced by: A 0015419701
003 A 0015419701 BATTERY
Repalced by: A 0025411701
003 A 0025411701 BATTERY
12V/143 AH
003 A 0025411701 BATTERY
12V/143 AH
003 A 0025412001 BATTERY
Repalced by: A 0025413901
003 A 0025413901 BATTERY
Repalced by: A 0045414401
003 A 0045414401 BATTERY
12V/225AH
003 A 0045414401 BATTERY
12V/225AH
003 A 0015412201 BATTERY
Repalced by: A 0035411801
003 A 0035411801 BATTERY
Repalced by: A 0025412301
003 A 0025412301 BATTERY
12 V/135 AH
003 A 0025413701 BATTERY
Repalced by: A 0045415101
003 A 0045415101 BATTERY
12V/165AH
004 A 0005462235 BOOT
Repalced by: A 0005464335
004 A 0005464335 BOOT
Repalced by: A 0005464635
004 A 0005464635 BOOT
POS. POLE
005 A 0005410047 VENT
BATTERY
005 A 0005410047 VENT
BATTERY
005B A 0005410747 VENT
BATTERY
005D A 0005410282 HOSE
BLEEDING
11X7 MM
005F A 0005410847 VENT
BATTERY
005H A 0019971341 SEAL RING
Repalced by: A 0005410160
005H A 0005410160 SEAL RING
006 A 0009972181 GROMMET
Repalced by: A 0009972081
006 A 0009972081 GROMMET
VENT THROUGH BATTERY COMPARTMENT BOTTOM
009 N 916016006208 CLAMP
BREATHER TO BATTERY COMPARTMENT BOTTOM
010 A 3179950832 CLAMP
BREATHER TO BATTERY COMPARTMENT BOTTOM
010C N 000933006103 SCREW
Repalced by: N 304017006018
010C N 304017006018 SCREW
CLAMP MOUNTING
010F N 912004006102 LOCK WASHER
CLAMP MOUNTING
010L N 000934006007 NUT
CLAMP MOUNTING
A 0005410060 SEAL RING
POS. POLE
014 A 3075400130 POS.CABLE
Repalced by: A 0005460413
A 0005460413 ELECTRIC CABLE
FROM BATTERY TO STARTING MOTOR
A 0005460413 ELECTRIC CABLE
FROM BATTERY TO STARTING MOTOR
A 0005460413 ELECTRIC CABLE
FROM BATTERY TO STARTING MOTOR
A 0005469330 INSULATING HOSE
A 3075460240 CABLE SHOE
A 3075460044 CLAMPING PIECE
014 A 3075400330 POS.CABLE
Repalced by: N 072551095880
015 A 3055401130 POS.CABLE
Repalced by: A 0005460413
015 A 3075401430 POS.CABLE
Repalced by: A 0005460413
A 0005460413 ELECTRIC CABLE
FROM BATTERY MASTER SWITCH TO STARTING MOTOR
A 0005469330 INSULATING HOSE
FROM BATTERY MASTER SWITCH TO STARTING MOTOR
A 3075460240 CABLE SHOE
FROM BATTERY MASTER SWITCH TO STARTING MOTOR
A 3075460240 CABLE SHOE
FROM BATTERY MASTER SWITCH TO STARTING MOTOR
A 3075460540 CABLE SHOE
FROM BATTERY MASTER SWITCH TO STARTING MOTOR
015 A 3075401030 POS.CABLE
Repalced by: N 922002095000
015 A 3075401530 POS.CABLE
Repalced by: N 922002095000
A 3075400331 NEG. CABLE
Repalced by: N 072551095880
A 3075400131 NEG. CABLE
Repalced by: N 072551095880
016 N 072551095880 ELECTRIC CABLE
Repalced by: N 922002095000
016 N 922002095000 ELECTRIC CABLE
016 N 922002095000 ELECTRIC CABLE
FROM BATTERY MASTER SWITCH TO STARTING MOTOR
016 N 922002095000 ELECTRIC CABLE
(NEG.CABLE) FROM BATTERY TO BATTERY MASTER SWITCH
016 N 922002095000 ELECTRIC CABLE
016 N 922002095000 ELECTRIC CABLE
FROM BATTERY TO BATTERY MASTER SWITCH
016 N 922002095000 ELECTRIC CABLE
(POS.CABLE) FROM BATTERY TO STARTING MOTOR
016 N 922002095000 ELECTRIC CABLE
(POS.CABLE),FROM BATTER MASTER SWITCH TO STARTING MOTOR
016 N 922002095000 ELECTRIC CABLE
(NEG.CABLE),FROM BATTERY MASTER SWITCH TO STARTING MOTOR
017 N 072332015100 SOLDERING TERMINAL
POS. POLE
017 N 072332015200 SOLDERING TERMINAL
NEG.POLE
018 N 046234010006 CABLE SHOE
BATTERY CABLE
10 MM
N 046234012006 CABLE SHOE
FROM BATTERY MASTER SWITCH TO STARTING MOTOR
12 MM
N 040621022200 INSULATING HOSE
FROM BATTERY MASTER SWITCH TO STARTING MOTOR
019 A 3055400431 NEG. CABLE
Repalced by: N 922002095000
019 N 922002095000 ELECTRIC CABLE
FROM BATTERY TO BATTERY MASTER SWITCH
N 072332015200 SOLDERING TERMINAL
FROM BATTERY TO BATTERY MASTER SWITCH
019B A 3055401330 POS.CABLE
Repalced by: N 922002095000
019B N 922002095000 ELECTRIC CABLE
FROM BATTERY TO BATTERY MASTER SWITCH
550 MM
N 072332015100 SOLDERING TERMINAL
FROM BATTERY TO BATTERY MASTER SWITCH
N 046234010006 CABLE SHOE
FROM BATTERY TO BATTERY MASTER SWITCH
N 046234010006 CABLE SHOE
FROM BATTERY TO BATTERY MASTER SWITCH
019B A 3075400830 POS.CABLE
Repalced by: N 072551095880
019D N 072551095880 ELECTRIC CABLE
Repalced by: N 922002095000
019D N 922002095000 ELECTRIC CABLE
FROM BATTERY TO BATTERY MASTER SWITCH
019F N 072332015100 SOLDERING TERMINAL
FROM BATTERY TO BATTERY MASTER SWITCH
019M N 046234010006 CABLE SHOE
FROM BATTERY TO BATTERY MASTER SWITCH
020 A 3055400231 NEG. CABLE
Repalced by: N 922002095000
020 N 922002095000 ELECTRIC CABLE
FROM BATTERY MASTER SWITCH TO FRAME
020 N 922002095000 ELECTRIC CABLE
FROM BATTERY MASTER SWITCH TO FRAME
020 N 922002095000 ELECTRIC CABLE
FROM BATTERY MASTER SWITCH TO FRAME
N 046234010006 CABLE SHOE
FROM BATTERY MASTER SWITCH TO FRAME
021 A 3055401031 NEG. CABLE
Repalced by: N 922002095000
021 N 922002095000 ELECTRIC CABLE
FROM BATTERY TO FRAME
021 N 922002095000 ELECTRIC CABLE
FROM BATTERY TO FRAME
N 072332015200 SOLDERING TERMINAL
FROM BATTERY TO FRAME
N 046234010006 CABLE SHOE
FROM BATTERY TO FRAME
021 A 3075401131 NEG. CABLE
Repalced by: N 072551095880
021H N 072551095880 ELECTRIC CABLE
FROM BATTERY TO FRAME
021H N 072551095880 ELECTRIC CABLE
FROM BATTERY TO FRAME
022 A 3075400831 NEG. CABLE
Repalced by: N 072551095880
N 072551095880 ELECTRIC CABLE
Repalced by: N 922002095000
022 N 922002095000 ELECTRIC CABLE
FROM FRAME TO STARTING MOTOR
022 N 922002095000 ELECTRIC CABLE
FROM FRAME TO STARTING MOTOR
022 A 3075401331 NEG. CABLE
Repalced by: N 072551095880
022 A 3075400231 NEG. CABLE
Repalced by: N 072551095880
023 N 072551095880 ELECTRIC CABLE
Repalced by: N 922002095000
N 922002095000 ELECTRIC CABLE
FROM FRAME TO STARTING MOTOR
024 N 046234010006 CABLE SHOE
FROM FRAME TO STARTING MOTOR
025 A 3075400230 POS.CABLE
Repalced by: N 072551095880
025 N 072551095880 ELECTRIC CABLE
Repalced by: N 922002095000
025 N 922002095000 ELECTRIC CABLE
FROM BATTERY I TO BATTERY II
025 N 922002095000 ELECTRIC CABLE
FROM BATTERY I TO BATTERY II
025 A 3055400430 POS.CABLE
Repalced by: N 072551095880
N 072551095880 ELECTRIC CABLE
Repalced by: N 922002095000
N 922002095000 ELECTRIC CABLE
FROM BATTERY I TO BATTERY II
N 922002095000 ELECTRIC CABLE
FROM BATTERY I TO BATTERY II
N 922002095000 ELECTRIC CABLE
FROM BATTERY I TO BATTERY II
N 072332015100 SOLDERING TERMINAL
POS. POLE
N 072332015100 SOLDERING TERMINAL
POS. POLE
N 072332015100 SOLDERING TERMINAL
POS. POLE
N 072332015200 SOLDERING TERMINAL
NEG.POLE
N 072332015200 SOLDERING TERMINAL
NEG.POLE
N 072332015200 SOLDERING TERMINAL
NEG.POLE
025 A 3055400530 POS.CABLE
Repalced by: N 072551095880
025D N 072551095880 ELECTRIC CABLE
Repalced by: N 922002095000
N 922002095000 ELECTRIC CABLE
(POS.CABLE),FROM BATTERY I TO BATTERY II
026 N 072332015100 SOLDERING TERMINAL
POS. POLE
026B N 072332015200 SOLDERING TERMINAL
NEG.POLE
027 N 000933010129 SCREW
Repalced by: N 304017010002
027 N 304017010002 SCREW
NEG. CABLE TO LATTICE FRAME
028 N 912004010102 LOCK WASHER
NEG. CABLE TO LATTICE FRAME
029 N 000934010014 NUT
NEG. CABLE TO LATTICE FRAME
030 N 912004006102 LOCK WASHER
BATTERY CABLE TO STARTING MOTOR
030 N 912004012100 LOCK WASHER
BATTERY CABLE TO STARTING MOTOR
030 N 912004010102 LOCK WASHER
BATTERY CABLE TO STARTING MOTOR
031 N 000934006007 NUT
BATTERY CABLE TO STARTING MOTOR
031 N 000934012021 NUT
BATTERY CABLE TO STARTING MOTOR
031 N 000934010014 NUT
BATTERY CABLE TO STARTING MOTOR
A 3075400073 BRACKET
HORN TO BRACKET
A 3075460843 BRACKET
HORN TO BRACKET
A 3075400173 BRACKET
HORN TO BRACKET
037 N 912004006102 LOCK WASHER
BRACKET MOUNTING
038 N 900162006102 SCREW
BRACKET MOUNTING
038B N 000125017010 WASHER
Repalced by: N 000125017016
038B N 000125017016 WASHER
BRACKET MOUNTING
038D N 000933016060 SCREW
BRACKET MOUNTING
039 N 916016045200 CLAMP
BATTERY POS. CABLE TO BRACKET
039B N 000933006102 SCREW
BATTERY POS. CABLE TO BRACKET
039D N 000125006421 WASHER
BATTERY POS. CABLE TO BRACKET
039F N 912004006102 LOCK WASHER
BATTERY POS. CABLE TO BRACKET
039H N 000934006007 NUT
BATTERY POS. CABLE TO BRACKET
040 A 3075460344 CLAMPING PIECE
Repalced by: A 3055460644
040 A 3055460644 CLAMPING PIECE
BATTERY CABLE
040 A 3075460244 CLAMPING PIECE
BATTERY CABLE
040 A 3075460444 CLAMPING PIECE
BATTERY CABLE
040 A 3075460444 CLAMPING PIECE
BATTERY CABLE
040 A 3075460544 CLAMPING PIECE
BATTERY CABLE
040 A 3075460544 CLAMPING PIECE
BATTERY CABLE
040B N 914007006005 COMBINATION BOLT
CLAMPING PIECE TO BRACKET
040B N 914007006006 COMBINATION BOLT
CLAMPING PIECE TO BRACKET
041 N 000931006226 SCREW
Repalced by: N 304014006004
041 N 304014006004 SCREW
CLAMPING PIECE TO BRACKET
042C N 009021006205 WASHER
Repalced by: N 009021006208
042C N 009021006208 WASHER
CLAMPING PIECE TO BRACKET
042F N 912004006102 LOCK WASHER
CLAMPING PIECE TO BRACKET
043 N 000934006007 NUT
CLAMPING PIECE TO BRACKET
044 N 916016018201 CLAMP
044 N 916016020201 CLAMP
044 N 916016022206 CLAMP
044 N 916016032201 CLAMP
047 N 916016035205 CLAMP
047 N 916016038205 CLAMP
38 MM
047 N 916016050201 CLAMP
047B N 007981005214 SHEET METAL SCREW
N 900162006102 SCREW
N 000933006122 SCREW
Repalced by: N 304017006034
N 304017006034 SCREW
047D N 000933006102 SCREW
CLAMP
18 MM
048 N 000933006121 SCREW
Repalced by: N 304017006020
048 N 304017006020 SCREW
048 N 000933008212 SCREW
Repalced by: N 304017008016
048 N 304017008016 SCREW
048D N 000125006421 WASHER
CLAMP MOUNTING
049 N 912004006102 LOCK WASHER
CLAMP MOUNTING
049 N 912004008102 LOCK WASHER
CLAMP MOUNTING
050 N 000934006007 NUT
CLAMP MOUNTING
050 N 000934008010 NUT
CLAMP MOUNTING
051 A 0019979590 LOOM TIE
Repalced by: A 0019978390
051 A 0019978390 LOOM TIE
BATTERY CABLE
052 N 007985008152 SCREW
GROUND CABLE TO ENGINE REAR SUSPENSION
052B N 000933008152 SCREW
Repalced by: N 304017008027
052B N 304017008027 SCREW
GROUND CABLE TO ENGINE REAR SUSPENSION
052D N 912004008102 LOCK WASHER
GROUND CABLE TO ENGINE REAR SUSPENSION
053 N 009021015200 WASHER
GROUND CABLE TO ENGINE REAR SUSPENSION
054 N 000934008010 NUT
GROUND CABLE TO ENGINE REAR SUSPENSION
055 A 4071500232 GROUND CABLE
GROUND TO ENGINE AND TO FRAME
055 A 4071500332 GROUND CABLE
GROUND TO ENGINE AND TO FRAME
056 A 3055400041 GROUND STRAP
FROM ENGINE TO FRAME
056 A 3075400041 GROUND STRAP
FROM ENGINE TO FRAME
056C N 000933014033 SCREW
GROUND CABLE TO ENGINE REAR SUSPENSION
056F N 912006014001 LOCK WASHER
GROUND CABLE TO ENGINE REAR SUSPENSION
057C N 000933010129 SCREW
Repalced by: N 304017010002
057C N 304017010002 SCREW
GROUND CABLE TO LATTICE FRAME
057F N 000125010518 WASHER
Repalced by: N 000125010532
057F N 000125010532 WASHER
GROUND CABLE TO LATTICE FRAME
057L N 912006010002 LOCK WASHER
GROUND CABLE TO LATTICE FRAME
057P N 000934010014 NUT
GROUND CABLE TO LATTICE FRAME
058 A 3055280082 HOSE
Repalced by: A 3025280082
058 A 3025280082 HOSE
FROM ALTERNATOR INTAKE ELBOW TO INTAKE CASE
061 A 3055281208 AIR INTAKE PIPE
ALTERNATOR BREATHING
062 N 900262009100 LOOM TIE
ALTERNATOR BREATHING
063 N 900263009000 STRAP
AIR HOSE TO ELBOW AND TO INTAKE CASE
570 MM
063D N 916017060000 CLAMP
Repalced by: N 000000000673
063D N 000000000673 CLAMP
AIR HOSE TO ELBOW AND TO INTAKE CASE
064 A 0005451560 JUNCTION BOX
QUADRUPLE
065 A 0005451460 JUNCTION BOX
SIXFOLD
066 A 0005452360 JUNCTION BOX
SIXFOLD;CONNECTION OF AUTOMATIC FUSE HAVING 5-MM BALL PIN
066 A 0005453060 JUNCTION BOX
AUTOMATIC FUSE
066 A 0005453060 JUNCTION BOX
AUTOMATIC FUSE
066 A 0005453060 JUNCTION BOX
AUTOMATIC FUSE
066 A 0005453060 JUNCTION BOX
AUTOMATIC FUSE
066 A 0005453260 JUNCTION BOX
AUTOMATIC FUSE
066 A 0005453260 JUNCTION BOX
AUTOMATIC FUSE
066 A 0005453360 JUNCTION BOX
AUTOMATIC FUSE
066B A 0025451128 PIN BUSHING HOUSING
UNIPOLAR
066C A 0005453726 PIN BUSHING
Repalced by: A 0075458426
066C A 0075458426 PIN BUSHING
WITH DETENT AND WITH CATCH FOR HOUSING
2.5 MM2
066D A 3055450302 CONTACT RAIL
Repalced by: A 3055450602
066D A 3055450602 CONTACT RAIL
Repalced by: A 6005450202
066D A 6005450202 CONTACT RAIL
AUTOMATIC CUT-OUT CONNECTION
117 MM
067 N 000084005106 SCREW
JUNCTION BOX TO SWITCHBOARD
068 N 007981003203 SHEET METAL SCREW
JUNCTION BOX TO SWITCHBOARD
068K N 000966005007 SCREW
JUNCTION BOX TO SWITCHBOARD
M 5X16
069 A 0005453934 FUSE
EXCEPT FOR BLINKER SYSTEM
8 A
070 A 0005455934 FUSE
BLINKER SYSTEM
8 A
070 A 0005454034 FUSE
INTERIOR LIGHTING
15 A
070 A 0005454034 FUSE
FRONT END HEATING
15 A
070 A 0005456234 FUSE
BATTERY NEG.TERMINAL 31A AND INTERIOR LIGHTING
20 A
072 A 0005452545 BLIND PLUG
JUNCTION BOX
A 0015455634 FUSE
5 A
A 0015455634 FUSE
5 A
072B A 0015451034 FUSE
EXCEPT FOR BLINKER SYSTEM
8A
072B A 0015451034 FUSE
EXCEPT FOR BLINKER SYSTEM
8A
072B A 0015451034 FUSE
EXCEPT FOR BLINKER SYSTEM
8A
072B A 0015453134 FUSE
THERMAL
16 A
072B A 0015453134 FUSE
THERMAL
16 A
072B A 0015453134 FUSE
THERMAL
16 A
072D A 0015452734 FUSE
BLINKER SYSTEM
8 A
072D A 0015452734 FUSE
BLINKER SYSTEM
8 A
072D A 0015452734 FUSE
BLINKER SYSTEM
8 A
072F N 007985004149 SCREW
Repalced by: N 000000001933
072F N 000000001933 SCREW
OVERLOAD PROTECTOR
M 4X8
072F N 000084004151 SCREW
OVERLOAD PROTECTOR
M 4X6
072H N 912004004102 LOCK WASHER
OVERLOAD PROTECTOR
073 A 3075450001 FUSE BOX
12-POLE; TERMINALS 1-3;4-5;6-7;8-12 SHUNTED
073 A 3075450001 FUSE BOX
12-POLE; TERMINALS 1-3;4-5;6-7;8-12 SHUNTED
073 A 3075450001 FUSE BOX
12-POLE; TERMINALS 1-3;4-5;6-7;8-12 SHUNTED
073 A 3055450001 FUSE BOX
12-POLE; TERMINALS 1-12 SHUNTED
9
073 A 3055450101 FUSE BOX
12-POLE; TERMINALS 1-2-3;4-5-6-7-8; 9-10;11-12 SHUNTED
073 A 0015450701 FUSE BOX
12-POLE; TERMINALS 1-2;3-4;5-8;9-11 SHUNTED
073 A 0005459801 FUSE BOX
12-POLE; TERMINALS 1-4;5-6 SHUNTED
073 A 0015451501 FUSE BOX
12-POLE; TERMINALS 1-4,5-12 SHUNTED
073 A 0015451601 FUSE BOX
12-POLE; TERMINALS 1-4;5-6,7-10,11-12 SHUNTED
073 A 0015451701 FUSE BOX
12-POLE; TERMINALS 11-12 SHUNTED
073D A 3545450001 FUSE BOX
4-POLE
074 A 0005456201 FUSE BOX
Repalced by: A 0005459901
074 A 0005459901 FUSE BOX
BIPOLAR
074 A 0005459901 FUSE BOX
BIPOLAR
074 A 0005459901 FUSE BOX
BIPOLAR
075C N 007985005504 SCREW
FUSE BOX
M 5X12
075C N 007985005504 SCREW
FUSE BOX
M 5X12
075C N 007985005504 SCREW
FUSE BOX
M 5X12
075F N 000084005180 SCREW
Repalced by: N 007985005175
075F N 007985005175 SCREW
FUSE BOX
075F N 007985005175 SCREW
FUSE BOX
075F N 007985005175 SCREW
FUSE BOX
075L N 007985004136 SCREW
CABLE TO FUSE BOX
075L N 007985004136 SCREW
CABLE TO FUSE BOX
075N N 006797004132 TOOTHED WASHER
CABLE TO FUSE BOX
075N N 006797004132 TOOTHED WASHER
CABLE TO FUSE BOX
076 A 0005458234 FUSE
Repalced by: N 072581008101
076 N 072581008101 FUSE
8A
076 N 072581008101 FUSE
8A
076 A 0005458334 FUSE
16A
078 A 0005451203 CAP
FUSE BOX
078 A 0005451203 CAP
FUSE BOX
078 A 0005451203 CAP
FUSE BOX
081 A 0009970581 GROMMET
5 MM
085 A 0005455405 RELAY
Repalced by: A 0035459605
085 A 0005458405 RELAY
BATTERY MASTER SWITCH
085 A 0005458405 RELAY
WEBASTO HEATER
085 A 0005458405 RELAY
FOGLAMPS
085 A 0005458405 RELAY
INTERIOR LIGHTING
085 A 0005458405 RELAY
MAIN INSTRUMENT PANEL
085 A 0005458405 RELAY
MAIN INSTRUMENT PANEL
085 A 0005458405 RELAY
TERMINALS:
15/58
085 A 0005458405 RELAY
IGNITION
085 A 0005458405 RELAY
AUTOMATIC OIL REPLENISHMENT
085 A 0005458405 RELAY
UNDERSEAT HEATING
085 A 0005458405 RELAY
STOP SIGN
085 A 0005458405 RELAY
SERIES RESISTOR
085 A 0005458405 RELAY
WINDSHIELD WIPER O F F O N
085 A 0005458405 RELAY
WINDSHIELD WIPER,"SLOW-FAST"
085 A 0005458405 RELAY
ECONOMY SWITCHING
085 A 0005458405 RELAY
ECONOMY SWITCHING
085 A 0005458405 RELAY
COUNTER LIGHTING
086 A 0005457205 RELAY
BLINKER LIGHT
086 A 0005457205 RELAY
BLINKER LIGHT
086 A 0005457205 RELAY
BLINKER LIGHT
086 A 0005457205 RELAY
BLINKER LIGHT
086 A 0005459205 RELAY
AUTOMATIC OIL REPLENISHMENT
086B N 007985005504 SCREW
MAIN INSTRUMENT PANEL
M 5X12
086H N 000125005312 WASHER
MAIN INSTRUMENT PANEL
A 0115457028 PLUG
SHUNTING AT STANDSTILL RELAY
087 A 0025440632 SENDER UNIT
Repalced by: A 0025448132
087 A 0025448132 SENDER UNIT
HAZARD WARNING LIGHT
087 A 0025440532 SENDER UNIT
Repalced by: A 0025448032
087 A 0025448032 SENDER UNIT
HAZARD WARNING LIGHT
087 A 0025448032 SENDER UNIT
HAZARD WARNING LIGHT
087 A 0025448032 SENDER UNIT
HAZARD WARNING LIGHT
087 A 0025448032 SENDER UNIT
HAZARD WARNING LIGHT
087 A 0015448832 SENDER UNIT
HAZARD WARNING LIGHT
087 A 0015448832 SENDER UNIT
HAZARD WARNING LIGHT
087 A 0015448832 SENDER UNIT
HAZARD WARNING LIGHT
087 A 0015448832 SENDER UNIT
HAZARD WARNING LIGHT
087D N 007985005193 SCREW
HAZARD WARNING LIGHT SENDER UNIT TO APPARATUS PLATE
M 5X10
087F N 912004005103 LOCK WASHER
HAZARD WARNING LIGHT SENDER UNIT TO APPARATUS PLATE
087F N 912004005103 LOCK WASHER
HAZARD WARNING LIGHT SENDER UNIT TO APPARATUS PLATE
088 A 0055450624 SENDER UNIT
Repalced by: A 0225452532
088 A 0225452532 CONTROL UNIT
WIPER INTERMITTENT ACTION
088 A 0055451424 SENDER UNIT
WIPER INTERMITTENT ACTION
088 A 0055451424 SENDER UNIT
WIPER INTERMITTENT ACTION
088 A 0055451624 SENDER UNIT
WIPER INTERMITTENT ACTION
088 A 0055451624 SENDER UNIT
WIPER INTERMITTENT ACTION
089 N 007985005193 SCREW
WIPER PULSE SENDER UNIT
M 5X10
089K N 912004005103 LOCK WASHER
WIPER PULSE SENDER UNIT
090 A 0005400924 DIODE
DIODES
TYP: AK 336.7
090 A 0005400424 CASE
DIODES
TYP: AK 336.1
090 A 0005400424 CASE
DIODES
TYP: AK 336.1
090 A 0005400024 DIODE BOX
DIODES
TYP: AK 336.1
090 A 0005400024 DIODE BOX
DIODES
TYP: AK 336.1
092 A 0005400624 DIODE CASE
DIODES
1 A
093 N 007985005193 SCREW
MAIN INSTRUMENT PANEL
093F N 912004005103 LOCK WASHER
MAIN INSTRUMENT PANEL
094 A 0005456205 RELAY
TIME-LAG
096 A 0005455805 RELAY
Repalced by: A 0035459805
096 A 0035459805 RELAY
STOP LIGHT SWITCH
096 A 0035459805 RELAY
STOP LIGHT SWITCH
096D N 914025005100 COMBINATION BOLT
Repalced by: N 007985005172
096D N 007985005193 SCREW
RELAY
096L N 912004005103 LOCK WASHER
RELAY
A 0008210324 PLUG SOCKET
Repalced by: A 0008210624
097 A 0008210624 PLUG SOCKET
MAIN INSTRUMENT PANEL
097 A 0008210624 PLUG SOCKET
MAIN INSTRUMENT PANEL
098C N 007985004111 SCREW
Repalced by: N 007985004136
098C N 007985004136 SCREW
PLUG SOCKET
098F N 912004004102 LOCK WASHER
PLUG SOCKET
098L N 000934004006 NUT
PLUG SOCKET
100 A 0005468041 CABLE CONNECTOR
BIPOLAR
100 A 0005468041 CABLE CONNECTOR
BIPOLAR
100 A 0005468041 CABLE CONNECTOR
BIPOLAR
100 A 0005468041 CABLE CONNECTOR
BIPOLAR
101 N 912004006102 LOCK WASHER
LINES
101 N 912004006102 LOCK WASHER
LINES
102 N 007985006161 SCREW
Repalced by: N 007985006580
102 N 007985006580 SCREW
LINES
102 N 007985006580 SCREW
LINES
103C N 007985004165 SCREW
CABLE CONNECTOR TO MAIN INSTRUMENT PANEL
103C N 007985004165 SCREW
CABLE CONNECTOR TO MAIN INSTRUMENT PANEL
103F N 912004004102 LOCK WASHER
CABLE CONNECTOR TO MAIN INSTRUMENT PANEL
103F N 912004004102 LOCK WASHER
CABLE CONNECTOR TO MAIN INSTRUMENT PANEL
103L N 007985004151 SCREW
CABLE CONNECTOR TO MAIN INSTRUMENT PANEL
103L N 007985004151 SCREW
CABLE CONNECTOR TO MAIN INSTRUMENT PANEL
103K N 000137008204 SPRING WASHER
TERMINAL
30
103M N 000934008010 NUT
TERMINAL
30
A 3055450018 RESISTOR
Repalced by: A 0015450418
104 A 0015450418 RESISTOR
FOR DIMMING STOP-SIGN TELL-TALE LAMP
104 A 0015450418 RESISTOR
FOR DIMMING STOP-SIGN TELL-TALE LAMP
104 A 0015450418 RESISTOR
FOR DIMMING STOP-SIGN TELL-TALE LAMP
107 A 0015461041 CABLE CONNECTOR
BIPOLAR
107 A 0015461041 CABLE CONNECTOR
BIPOLAR
107 A 0015461041 CABLE CONNECTOR
BIPOLAR
108 N 007985004149 SCREW
Repalced by: N 000000001933
108 N 000000001933 SCREW
CABLE CONNECTOR
M 4X25
108F A 0009870772 EDGE GUARD SECTION
ELECTRICAL COMPARTMENT
109 N 916016022206 CLAMP
CABLE HARNESS MOUNTING
109 N 916016008200 CLAMP
CABLE HARNESS TO MAIN INSTRUMENT PANEL
109 N 916016010201 CLAMP
Repalced by: N 916016010211
109 N 916016010211 CLAMP
Repalced by: N 000000001045
109 N 000000001045 CLAMP
CABLE HARNESS TO MAIN INSTRUMENT PANEL
109 N 916016012201 CLAMP
CABLE HARNESS TO MAIN INSTRUMENT PANEL
110 N 916016015202 CLAMP
CABLE HARNESS TO MAIN INSTRUMENT PANEL
110 N 916016020201 CLAMP
CABLE HARNESS TO MAIN INSTRUMENT PANEL
110 N 916016022202 CLAMP
CABLE HARNESS TO MAIN INSTRUMENT PANEL
110 N 916016025201 CLAMP
CABLE HARNESS TO MAIN INSTRUMENT PANEL
110 N 916016028204 CLAMP
CABLE HARNESS TO MAIN INSTRUMENT PANEL
110 N 916016032201 CLAMP
CABLE HARNESS TO MAIN INSTRUMENT PANEL
110 N 916016038205 CLAMP
CABLE HARNESS TO MAIN INSTRUMENT PANEL
111 A 0005461143 BRACKET
CABLE HARNESS TO MAIN INSTRUMENT PANEL
111 A 0005461143 BRACKET
CABLE HARNESS TO MAIN INSTRUMENT PANEL
111 A 0005461143 BRACKET
CABLE HARNESS TO MAIN INSTRUMENT PANEL
111 A 0005461143 BRACKET
CABLE HARNESS MOUNTING
112 N 007985006157 SCREW
Repalced by: N 000000001145
112 N 000000001145 SCREW
CLAMP MOUNTING
M 6X12
112H N 912004006102 LOCK WASHER

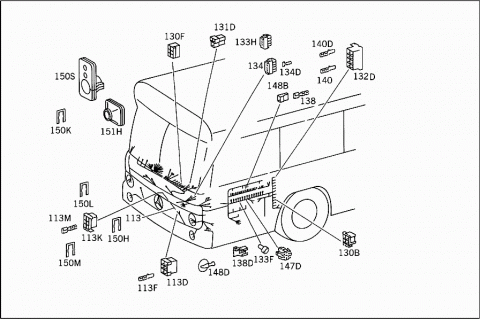

113 A 3055408609 CABLE HARNESS
FROM FRONT END MOUNTED CABLE HARNESS TO WINDSHIELD WIPER MOTOR
113D A 0015456028 PLUG HOUSING
6-POLE
113F A 0015458628 PLUG
LESS DETENT,BUT WITH CATCH FOR HOUSING
2.5 MM2
113F A 0025450628 PLUG
WITH DETENT AND WITH CATCH FOR HOUSING
2.5 MM2
113K A 0015458128 PIN BUSHING HOUSING
6-POLE
113M A 0005453726 PIN BUSHING
Repalced by: A 0075458426
113M A 0075458426 PIN BUSHING
WITH DETENT AND WITH CATCH FOR HOUSING
2.5 MM2
114 A 3075400205 CABLE HARNESS
MAIN CABLE,FRONT END
114 A 3055408305 CABLE HARNESS
MAIN CABLE,FRONT END
114 A 3055406706 CABLE HARNESS
MAIN CABLE,FRONT END
114 A 3055404110 CABLE HARNESS
MAIN CABLE,FRONT END
114 A 3055406107 CABLE HARNESS
MAIN CABLE,FRONT END
114 A 3055407007 CABLE HARNESS
MAIN CABLE,FRONT END
114 A 3055407007 CABLE HARNESS
MAIN CABLE,FRONT END
114 A 3055407834 CABLE HARNESS
MAIN CABLE,FRONT END
114 A 3055407834 CABLE HARNESS
MAIN CABLE,FRONT END
114 A 3055402433 ELECTRIC CABLE
MAIN CABLE,FRONT END
114 A 3055402433 ELECTRIC CABLE
MAIN CABLE,FRONT END
114 A 3075401305 CABLE HARNESS
Repalced by: A 3055409105
114 A 3055409105 CABLE HARNESS
MAIN CABLE,FRONT END
114 A 3055403406 CABLE HARNESS
MAIN CABLE,FRONT END
114 A 3055408706 CABLE HARNESS
MAIN CABLE,FRONT END
114 A 3055407810 CABLE HARNESS
MAIN CABLE,FRONT END
114 A 3075401405 CABLE HARNESS
Repalced by: A 3055409605
114 A 3055409605 CABLE HARNESS
MAIN CABLE,FRONT END
114 A 3055408710 CABLE HARNESS
MAIN CABLE,FRONT END
114 A 3055408432 ELECTRIC CABLE
MAIN CABLE,FRONT END
114 A 3075401605 CABLE HARNESS
MAIN CABLE,FRONT END
114 A 3075404305 CABLE HARNESS
MAIN CABLE,FRONT END
114 A 3075405805 CABLE HARNESS
MAIN CABLE,FRONT END
114 A 3075408905 CABLE HARNESS
MAIN CABLE,FRONT END
114 A 3075401506 CABLE HARNESS
MAIN CABLE,FRONT END
114 A 3075400207 CABLE HARNESS
MAIN CABLE,FRONT END
114 A 3075400607 CABLE HARNESS
MAIN CABLE,FRONT END
114 A 3075401407 CABLE HARNESS
MAIN CABLE,FRONT END
114 A 3075407205 CABLE HARNESS
MAIN CABLE,FRONT END
114 A 3075401906 CABLE HARNESS
MAIN CABLE,FRONT END
118 A 0019978390 LOOM TIE
280 MM
118 A 0019978490 LOOM TIE
360 MM
A 0005400481 PLUG SOCKET
Repalced by: A 3805400181
124 A 3805400181 PLUG SOCKET
Repalced by: A 3805402181
124 A 3805402181 PLUG SOCKET
REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES
M 24X1
124 A 0005400581 PLUG SOCKET
Repalced by: A 3805400281
124 A 3805400281 PLUG SOCKET
Repalced by: A 3805402281
124 A 3805402281 PLUG SOCKET
REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES
M27X1
A 3805402781 PLUG SOCKET
(PARTS KIT),BIPOLAR SCREW CONNECTION, FOR CORRUGATED TUBE
M 27X1
125C A 3805460335 BOOT
PRESSURE SWITCH SCREW-CONNECTION
TO M 27X1,M 24X1
125C A 6015460335 BOOT
PRESSURE SWITCH SCREW-CONNECTION
TO M 27X1,M 24X1
125C A 3805460135 BOOT
PRESSURE SWITCH SCREW-CONNECTION
TO M 27X1
125F A 0015454826 ROUND PIN BUSHING
PRESSURE SWITCH SCREW-CONNECTION
TO M 27X1,M 24X1
125L A 0009906840 WASHER
PRESSURE SWITCH SCREW-CONNECTION
TO M 24X1
125L A 3809900140 WASHER
PRESSURE SWITCH SCREW-CONNECTION
TO M 27X1
125P A 3805450026 PLUG SOCKET
PRESSURE SWITCH SCREW-CONNECTION
TO M 24X1
125P A 3805450226 PLUG SOCKET
PRESSURE SWITCH SCREW-CONNECTION
TO M 27X1
125S A 0009902054 NUT
PRESSURE SWITCH SCREW-CONNECTION
M 24X1
125S A 0009903654 NUT
PRESSURE SWITCH SCREW-CONNECTION
M27X1
126 A 0015458328 PIN BUSHING HOUSING
8-POLE
128 A 0015458128 PIN BUSHING HOUSING
6-POLE
130 A 0015458428 PIN BUSHING HOUSING
4-POLE
130B A 0015454128 PIN BUSHING HOUSING
4-POLE
130B A 0015454128 PIN BUSHING HOUSING
4-POLE
130F A 0075450528 PIN BUSHING HOUSING
(PIN BUSHING HOUSING),6-POLE
130F A 0075450528 PIN BUSHING HOUSING
(PIN BUSHING HOUSING),6-POLE
131 A 0015458528 PIN BUSHING HOUSING
3-POLE
131D A 0055456428 PIN BUSHING HOUSING
3-POLE
132 A 0065456828 PIN BUSHING HOUSING
3-POLE
132D A 0015458228 PLUG HOUSING
8-POLE
132D A 0015458228 PLUG HOUSING
8-POLE
133 A 0015457928 PIN BUSHING HOUSING
BIPOLAR
133 A 0015458728 PIN BUSHING HOUSING
BIPOLAR
A 0025451128 PIN BUSHING HOUSING
UNIPOLAR
133F A 0005467741 CABLE CONNECTOR
1,5 - 6,6 MM2
133F A 0015466641 CABLE CONNECTOR
6-10 MM2
133F A 0015466641 CABLE CONNECTOR
6-10 MM2
A 0105450728 PIN BUSHING HOUSING
A 0105450728 PIN BUSHING HOUSING
133H A 0115452628 PLUG HOUSING
AUTOMATIC TRANSMISSION GEAR SELECTOR SWITCH
133H A 0115452628 PLUG HOUSING
4-POLE
134 A 0115452728 PLUG HOUSING
AUTOMATIC TRANSMISSION GEAR SELECTOR SWITCH
134 A 0115452728 PLUG HOUSING
5-POLE
134D A 0115452928 PIN BUSHING
AUTOMATIC TRANSMISSION GEAR SELECTOR SWITCH
A 0105457128 PIN BUSHING HOUSING
3-POLE
A 0105457128 PIN BUSHING HOUSING
3-POLE
136 A 0005454526 PIN BUSHING
Repalced by: A 0005453726
136 A 0005453726 PIN BUSHING
Repalced by: A 0075458426
136 A 0075458426 PIN BUSHING
WITH DETENT AND WITH CATCH FOR HOUSING
2.5 MM2
137 A 0005453826 PIN BUSHING
LESS DETENT,BUT WITH CATCH FOR HOUSING
2.5 MM2
137 A 0005454026 PIN BUSHING
LESS DETENT,BUT WITH CATCH FOR HOUSING
4-6 MM2
138 A 0005453626 PIN BUSHING
Repalced by: A 0075457426
138 A 0075457426 PIN BUSHING
LESS DETENT,BUT WITH CATCH FOR HOUSING
4 MM2
138D A 0005454626 PIN BUSHING
BATTERY-TO-CAB-REAR-CROSS-MEMBER NEG. CABLE
4-6 MM2
139 A 0005457926 PIN BUSHING
LESS DETENT,BUT WITH CATCH FOR HOUSING
1-2.5 MM2
140 A 0025450628 PLUG
WITH DETENT AND WITH CATCH FOR HOUSING
2.5 MM2
140D A 0025451428 PLUG
LESS DETENT,BUT WITH CATCH FOR HOUSING
4-6 MM2
141 A 0008270226 PLUG
BIPOLAR
142 A 0055450328 PLUG
Repalced by: A 0065455528
142 A 0065455528 PIN BUSHING HOUSING
10-POLE
147 A 0065451428 PIN BUSHING HOUSING
MICRO-RELAY
147D A 0065450728 PIN BUSHING HOUSING
RELAY
148 A 0005451745 BOOT
PIN BUSHING
148B A 0005453545 BOOT
PIN BUSHING
A 0005469240 CABLE SHOE
Repalced by: N 900261004001
N 900261004001 CABLE SHOE
SPRING-LOADED-BRAKE EMERGENCY RELEASE PRESSURE
148D A 3149970181 GROMMET
HEADLAMP
148F A 0009972281 GROMMET
HEATED OUTSIDE REARVIEW MIRROR
6 MM
149 A 0009970381 GROMMET
PIN BUSHING
3X25 MM
149D A 0009970681 GROMMET
PIN BUSHING
7.5X30 MM
A 0005467130 INSULATING HOSE
A 0005461730 INSULATING HOSE
12 MM
A 0005461830 INSULATING HOSE
17 MM
A 0005461930 INSULATING HOSE
23 MM
150H A 3879940042 LOCK
INSULATING HOSE TO CABLE HARNESS
8.5 MM
150K A 3879940142 LOCK
INSULATING HOSE TO CABLE HARNESS
12 MM
150L A 3879940242 LOCK
INSULATING HOSE TO CABLE HARNESS
17 MM
150M A 3879940342 LOCK
INSULATING HOSE TO CABLE HARNESS
23 MM
150S A 3079970181 GROMMET
ELECTRICAL COMPARTMENT
N 007331005209 RIVET
ELECTRICAL COMPARTMENT
151H A 3079970281 GROMMET
PASSAGE OF MAIN CABLE HARNESS
A 0019979490 LOOM TIE
Repalced by: A 0019978390
A 0019979590 LOOM TIE
Repalced by: A 0019978390
152 A 0019978390 LOOM TIE
CABLE HARNESS MOUNTING
280 MM
152E A 3055406136 ELECTRIC CABLE
FROM ELECTRICAL COMPARTMENT PLUGCONNECTION TO INDICATING INSTRUMENTS
152E A 3055406136 ELECTRIC CABLE
FROM ELECTRICAL COMPARTMENT PLUGCONNECTION TO INDICATING INSTRUMENTS
152K A 3055406436 ELECTRIC CABLE
FROM ELECTRICAL COMPARTMENT PLUG-CONNECTION TO RIGHT HEADLAMP & SWITCHBOX
152K A 3055406436 ELECTRIC CABLE
FROM ELECTRICAL COMPARTMENT PLUG-CONNECTION TO RIGHT HEADLAMP & SWITCHBOX
152N A 3055406636 ELECTRIC CABLE
FROM ELECTRICAL COMPARTMENT PLUGCONNECTION TO WINDSHIELD WIPER SWITCH
152N A 3055406636 ELECTRIC CABLE
FROM ELECTRICAL COMPARTMENT PLUGCONNECTION TO WINDSHIELD WIPER SWITCH
152S A 3055406836 ELECTRIC CABLE
FROM ELECTRICAL COMPARTMENT PLUGCONNECTION TO WEBASTO HEATER SWITCH
152S A 3055406836 ELECTRIC CABLE
FROM ELECTRICAL COMPARTMENT PLUGCONNECTION TO WEBASTO HEATER SWITCH
152W A 3055408836 ELECTRIC CABLE
FROM ELECTRICAL APPARATUS COMPARTMENT PLUG-CONNECTION TO DOOR CONTROL
152W A 3055408836 ELECTRIC CABLE
FROM ELECTRICAL APPARATUS COMPARTMENT PLUG-CONNECTION TO DOOR CONTROL
153 A 3055401837 ELECTRIC CABLE
FROM ELECTRICAL COMPARTMENT PLUGCONNECTION TO HEATER SWITCH
153 A 3055401837 ELECTRIC CABLE
FROM ELECTRICAL COMPARTMENT PLUGCONNECTION TO HEATER SWITCH
153D A 3055409436 ELECTRIC CABLE
FROM ELECTRICAL COMPARTMENT PLUGCONNECTION TO FOGLAMP & LEFT HEADLAMP
153D A 3055409436 ELECTRIC CABLE
FROM ELECTRICAL COMPARTMENT PLUGCONNECTION TO FOGLAMP & LEFT HEADLAMP
153H A 3055409536 ELECTRIC CABLE
FROM ELEC. COMPARTMT. TO CLUTCH-FLUID/ EXHAUST-BRAKE-FOOT-CONTROL SWITCHES
153H A 3055409536 ELECTRIC CABLE
FROM ELEC. COMPARTMT. TO CLUTCH-FLUID/ EXHAUST-BRAKE-FOOT-CONTROL SWITCHES
153L A 3075401427 ELECTRIC CABLE
FROM ELEC. COMPARTMT. TO CLUTCH-FLUID/ EXHAUST-BRAKE-FOOT-CONTROL SWITCHES
153N A 0065455528 PIN BUSHING HOUSING
10-POLE
153R A 0015458328 PIN BUSHING HOUSING
8-POLE
153T A 6115450028 PIN BUSHING HOUSING
8-POLE
153Y A 0015458428 PIN BUSHING HOUSING
4-POLE
153Y A 0125452128 PIN BUSHING HOUSING
4-POLE
154B A 0015458528 PIN BUSHING HOUSING
3-POLE
154D A 0015458728 PIN BUSHING HOUSING
BIPOLAR
154F A 0005454026 PIN BUSHING
LESS DETENT,BUT WITH CATCH FOR HOUSING
4-6 MM2
154K A 0025454026 FLAT PIN BUSHING
Repalced by: A 0035455326
154K A 0035455326 PIN BUSHING
WITH DETENT AND WITH CATCH FOR HOUSING
4-6 MM2
154M A 0005453826 PIN BUSHING
LESS DETENT,BUT WITH CATCH FOR HOUSING
2.5 MM2
154M A 0005453726 PIN BUSHING
Repalced by: A 0075458426
154M A 0075458426 PIN BUSHING
WITH DETENT AND WITH CATCH FOR HOUSING
2.5 MM2
154P A 0005457926 PIN BUSHING
OFFSET
1-2.5 MM2
154R A 3805460335 BOOT
PRESSURE SWITCH SCREW-CONNECTION
TO M 27X1,M 24X1
154R A 6015460335 BOOT
PRESSURE SWITCH SCREW-CONNECTION
TO M 27X1,M 24X1
154T A 0009903654 NUT
PRESSURE SWITCH SCREW-CONNECTION
M 27X1
154T A 0009902054 NUT
PRESSURE SWITCH SCREW-CONNECTION
M 24X1
154W A 3809900140 WASHER
PRESSURE SWITCH SCREW-CONNECTION
TO M 27X1
154W A 0009906840 WASHER
PRESSURE SWITCH SCREW-CONNECTION
TO M 24X1
154Y A 3805450226 PLUG SOCKET
PRESSURE SWITCH SCREW-CONNECTION
TO M 27X1
154Y A 3805450026 PLUG SOCKET
PRESSURE SWITCH SCREW-CONNECTION
TO M 24X1
155 A 0015454826 ROUND PIN BUSHING
PRESSURE SWITCH SCREW-CONNECTION
TO M 27X1,M 24X1
155B A 3805400281 PLUG SOCKET
Repalced by: A 3805402281
155B A 3805402281 PLUG SOCKET
REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES
M 27X1
155B A 3805400181 PLUG SOCKET
Repalced by: A 3805402181
155B A 3805402181 PLUG SOCKET
REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES
M 24X1
155D A 0005451745 BOOT
155F A 0025451328 PIN BUSHING HOUSING
FROM WINDSHIELD WASHER PLUG-CONNECTION TO PUMP
155K A 0005454526 PIN BUSHING
Repalced by: A 0005453726
155K A 0005453726 PIN BUSHING
Repalced by: A 0075458426
155K A 0075458426 PIN BUSHING
FROM WINDSHIELD WASHER PLUG-CONNECTION TO PUMP
155M A 0025450628 PLUG
FROM WINDSHIELD WASHER PLUG-CONNECTION TO PUMP
155P A 0005451645 BOOT
FROM WINDSHIELD WASHER PLUG-CONNECTION TO PUMP
156 A 3028323514 BRACKET
MAIN CABLE HARNESS TO INSTRUMENT PANEL
157 N 007985006157 SCREW
Repalced by: N 000000001145
157 N 000000001145 SCREW
MAIN CABLE HARNESS TO INSTRUMENT PANEL
158 N 912004006102 LOCK WASHER
MAIN CABLE HARNESS TO INSTRUMENT PANEL
159 N 000934006007 NUT
MAIN CABLE HARNESS TO INSTRUMENT PANEL
161 A 3229950220 CLAMP
CABLE HARNESS MOUNTING
38 MM
163 A 3055460175 CLAMP
Repalced by: A 3609950010
163 A 3609950010 CLAMP
Repalced by: N 001593019001
163 N 001593019001 CLAMP
CABLE HARNESS MOUNTING
18 MM
163 A 3055460075 CLAMP
CABLE HARNESS MOUNTING
10 MM
165 A 3025460375 CLAMP
CABLE HARNESS MOUNTING
12 MM
166 A 3025460175 CLAMP
CABLE HARNESS MOUNTING
20 MM
166 A 3025460175 CLAMP
CABLE HARNESS MOUNTING
20 MM
167 A 3025460275 CLAMP
CABLE HARNESS MOUNTING
34 MM
167 A 3025460275 CLAMP
CABLE HARNESS MOUNTING
34 MM
168 A 3529950020 CLAMP
CABLE HARNESS MOUNTING
32 MM
169 N 900285008100 CLAMP
CABLE HARNESS MOUNTING
22 MM
170 N 916016025201 CLAMP
CABLE HARNESS MOUNTING
173 N 916016028204 CLAMP
CABLE HARNESS MOUNTING
173 N 916016028200 CLAMP
CABLE HARNESS MOUNTING
173D N 007981003219 SHEET METAL SCREW
CLAMP MOUNTING
173D N 007981005211 SHEET METAL SCREW
CLAMP MOUNTING
174 N 007981005233 SHEET METAL SCREW
CLAMP MOUNTING
174D N 000125006421 WASHER
CLAMP MOUNTING
175 N 000125006421 WASHER
CLAMP MOUNTING
175C N 000084006197 SCREW
CLAMP MOUNTING
175L N 912004006102 LOCK WASHER
CLAMP MOUNTING
175P N 000934006007 NUT
CLAMP MOUNTING
A 3055461443 BRACKET
STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION TO WINDOW SILL
A 3055461443 BRACKET
STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION TO WINDOW SILL
177 N 007981005211 SHEET METAL SCREW
STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION TO WINDOW SILL
A 3075400427 ELECTRIC CABLE
FROM FRONT END MOUNTED MAIN CABLE HARNESS TO STARTER PUSH BUTTON
178 A 0025451328 PIN BUSHING HOUSING
UNIPOLAR
181 A 0025450628 PLUG
WITH DETENT AND WITH CATCH FOR HOUSING
2.5 MM2
182 A 0015458728 PIN BUSHING HOUSING
BIPOLAR
183 A 0005453726 PIN BUSHING
Repalced by: A 0075458426
183 A 0075458426 PIN BUSHING
WITH DETENT AND WITH CATCH FOR HOUSING
2.5 MM2
183 A 0005453826 PIN BUSHING
LESS DETENT,BUT WITH CATCH FOR HOUSING
2.5 MM2
184 A 3075400305 CABLE HARNESS
MAIN CABLE,REAR END
184 A 3055408505 CABLE HARNESS
MAIN CABLE,REAR END
184 A 3055401806 CABLE HARNESS
MAIN CABLE,REAR END
184 A 3055407206 CABLE HARNESS
MAIN CABLE,REAR END
184 A 3055402908 CABLE HARNESS
MAIN CABLE,REAR END
184 A 3055402034 CABLE HARNESS
MAIN CABLE,REAR END
184 A 3055402034 CABLE HARNESS
MAIN CABLE,REAR END
184 A 3055402033 ELECTRIC CABLE
MAIN CABLE,REAR END
184 A 3055402033 ELECTRIC CABLE
MAIN CABLE,REAR END
184 A 3075400905 CABLE HARNESS
MAIN CABLE,REAR END
184 A 3055408206 CABLE HARNESS
MAIN CABLE,REAR END
184 A 3075401005 CABLE HARNESS
MAIN CABLE,REAR END
184 A 3075406205 CABLE HARNESS
MAIN CABLE,REAR END
184 A 3055402035 ELECTRIC CABLE
MAIN CABLE,REAR END
184 A 3055409636 ELECTRIC CABLE
MAIN CABLE,REAR END
184 A 3075401805 CABLE HARNESS
MAIN CABLE,REAR END
184 A 3075404805 CABLE HARNESS
MAIN CABLE,REAR END
184 A 3075406705 CABLE HARNESS
MAIN CABLE,REAR END
184 A 3075409205 CABLE HARNESS
MAIN CABLE,REAR END
184 A 3075400206 CABLE HARNESS
MAIN CABLE,REAR END
184 A 3075400707 CABLE HARNESS
MAIN CABLE,REAR END
184 A 3075403206 CABLE HARNESS
MAIN CABLE,REAR END
184 A 3075405305 CABLE HARNESS
MAIN CABLE,REAR END
184 A 3075407005 CABLE HARNESS
MAIN CABLE,REAR END
186 A 0019978390 LOOM TIE
280 MM
186 A 0019978490 LOOM TIE
376 MM
188 A 3055400281 PLUG SOCKET
4-POLE
A 0005400481 PLUG SOCKET
Repalced by: A 3805400181
189 A 3805400181 PLUG SOCKET
Repalced by: A 3805402181
189 A 3805402181 PLUG SOCKET
REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES
M 24X1
A 0005400581 PLUG SOCKET
Repalced by: A 3805400281
190 A 3805400281 PLUG SOCKET
Repalced by: A 3805402281
190 A 3805402281 PLUG SOCKET
REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES
M 27X1
190D A 0009902054 NUT
PRESSURE SWITCH SCREW-CONNECTION
M 24X1
190D A 0009903654 NUT
PRESSURE SWITCH SCREW-CONNECTION
M 27X1
190F A 0009906840 WASHER
PRESSURE SWITCH SCREW-CONNECTION
TO M 24X1
190H A 3809900140 WASHER
PRESSURE SWITCH SCREW-CONNECTION
TO M 27X1
190K A 3805460335 BOOT
PRESSURE SWITCH SCREW-CONNECTION
TO M 27X1,M 24X1
190K A 6015460335 BOOT
PRESSURE SWITCH SCREW-CONNECTION
TO M 27X1,M 24X1
190M A 3805450026 PLUG SOCKET
PRESSURE SWITCH SCREW-CONNECTION
TO M 24X1
190P A 3805450226 PLUG SOCKET
PRESSURE SWITCH SCREW-CONNECTION
TO M 27X1
190R A 0015454826 ROUND PIN BUSHING
PRESSURE SWITCH SCREW-CONNECTION
TO M 27X1,M 24X1
190S A 3019900154 NUT
TACHOGRAPH SENDER UNIT
190S A 0005421572 NUT
TACHOGRAPH SENDER UNIT
190T A 3019901440 WASHER
TACHOGRAPH SENDER UNIT
190U A 3015460035 BOOT
TACHOGRAPH SENDER UNIT
190U A 3055460135 BOOT
TACHOGRAPH SENDER UNIT
190W A 0029978590 LOOM TIE
TACHOGRAPH SENDER UNIT
190X A 0095451928 PIN BUSHING HOUSING
TACHOGRAPH SENDER UNIT
190X A 0125450928 PIN BUSHING HOUSING
TACHOGRAPH SENDER UNIT
190Y A 3055460035 BOOT
TACHOGRAPH SENDER UNIT CONNECTION
190Y A 3055460035 BOOT
TACHOGRAPH SENDER UNIT CONNECTION
190Z A 3075400181 PLUG SOCKET
STARTER NON-REPEAT AND BACK-UP LIGHT SWITCH
M 30X1
190Z A 3075400181 PLUG SOCKET
STARTER NON-REPEAT AND BACK-UP LIGHT SWITCH
M 30X1
A 0009970203 PLUG
A 3805400062 INTERMEDIATE PIECE
191 A 0025451128 PIN BUSHING HOUSING
UNIPOLAR
191 A 0025451128 PIN BUSHING HOUSING
UNIPOLAR
191 A 0025451128 PIN BUSHING HOUSING
UNIPOLAR
192 A 0015458728 PIN BUSHING HOUSING
BIPOLAR
A 0055456428 PIN BUSHING HOUSING
3-POLE
193 A 0015458428 PIN BUSHING HOUSING
4-POLE
194C A 0015454128 PIN BUSHING HOUSING
4-POLE
194F A 0015458128 PIN BUSHING HOUSING
6-POLE
194H A 0075450528 PIN BUSHING HOUSING
6-POLE
194K A 0015458328 PIN BUSHING HOUSING
8-POLE
195 A 0015458228 PLUG HOUSING
8-POLE
198 A 0015456028 PLUG HOUSING
6-POLE
198D A 0025451228 PLUG HOUSING
4-POLE
198D A 0025451228 PLUG HOUSING
4-POLE
198F A 0025451328 PIN BUSHING HOUSING
UNIPOLAR
198F A 0025451328 PIN BUSHING HOUSING
UNIPOLAR
199 A 0005454526 PIN BUSHING
Repalced by: A 0005453726
199 A 0005453726 PIN BUSHING
Repalced by: A 0075458426
199 A 0075458426 PIN BUSHING
WITH DETENT;LESS CATCH FOR HOUSING
2.5 MM2
199D A 0005451745 BOOT
PIN BUSHING
200 A 0005454026 PIN BUSHING
LESS DETENT,BUT WITH CATCH FOR HOUSING
4-6 MM2
200D A 0005454626 PIN BUSHING
WITH DETENT;LESS CATCH FOR HOUSING
4-6 MM2
201 A 0015458628 PLUG
LESS DETENT,BUT WITH CATCH FOR HOUSING
2.5 MM2
202 A 0025451428 PLUG
LESS DETENT,BUT WITH CATCH FOR HOUSING
4-6 MM2
202D A 0005467741 CABLE CONNECTOR
1,5 - 6,6 MM2
202D A 0015466641 CABLE CONNECTOR
6-10 MM2
202F A 0065451428 PIN BUSHING HOUSING
MICRO-RELAY
202K A 3229970281 GROMMET
FRONT CABLE CONNECTOR
23 MM
202K A 3229970281 GROMMET
FRONT CABLE CONNECTOR
23 MM
202K A 3229970281 GROMMET
FRONT CABLE CONNECTOR
23 MM
A 1009970081 GROMMET
FRONT CABLE CONNECTOR
35 MM
203 A 3219970381 GROMMET
FRONT CABLE CONNECTOR
48 MM
203D A 1869970481 GROMMET
UNDERSEAT HEATING
203D A 1869970481 GROMMET
UNDERSEAT HEATING
A 3109970081 GROMMET
UNDERSEAT HEATING
6 MM
A 0009972281 GROMMET
UNDERSEAT HEATING
A 0009972281 GROMMET
UNDERSEAT HEATING
203M A 3149970381 GROMMET
Repalced by: A 3359970081
203M A 3359970081 GROMMET
BATTERY MASTER SWITCH
203M A 3359970081 GROMMET
WEBASTO HEATER
203M A 0009973081 GROMMET
BATTERY MASTER SWITCH
203M A 0009973081 GROMMET
BATTERY MASTER SWITCH
A 3029970281 GROMMET
204 A 0005461237 GROMMET
AUTOMATIC TRANSMISSION
204D A 3219970281 GROMMET
Repalced by: A 3359970081
204D A 3359970081 GROMMET
REAR CABLE CONNECTOR
20 MM
204D A 3359970081 GROMMET
REAR CABLE CONNECTOR
20 MM
204D A 3359970081 GROMMET
REAR CABLE CONNECTOR
20 MM
205 A 3079970081 GROMMET
ELECTRICAL COMPARTMENT
18 MM
205B A 0009970181 GROMMET
CABLE SHOE
205D A 0009970281 GROMMET
Repalced by: A 0009970381
205D A 0009970381 GROMMET
CABLE SHOE
3 MM
205D A 0009970581 GROMMET
CABLE SHOE
5 MM
205D A 0009970681 GROMMET
CABLE SHOE
205D A 0009970681 GROMMET
CABLE SHOE
205D A 0009970781 GROMMET
CABLE SHOE
10X35 MM
A 3805460037 GROMMET
A 6019972081 GROMMET
205D A 0009971981 GROMMET
Repalced by: A 0009972081
205D A 0009972081 GROMMET
6 MM
A 3805461937 GROMMET
A 0005467130 INSULATING HOSE
A 0005461730 INSULATING HOSE
12 MM
A 0005461830 INSULATING HOSE
17 MM
A 0005461930 INSULATING HOSE
23 MM
A 0005462130 INSULATING HOSE
37 MM
207L A 3879940042 LOCK
INSULATING HOSE TO CABLE HARNESS
8.5 MM
207M A 3879940142 LOCK
INSULATING HOSE TO CABLE HARNESS
12 MM
207N A 3879940242 LOCK
INSULATING HOSE TO CABLE HARNESS
17 MM
207P A 3879940342 LOCK
INSULATING HOSE TO CABLE HARNESS
23 MM
207R A 3879940442 LOCK
INSULATING HOSE TO CABLE HARNESS
37 MM
A 0005451745 BOOT
MAIN CABLE,REAR END
207T A 0019978390 LOOM TIE
CABLE HARNESS MOUNTING
A 0005421572 NUT
ADDITIONAL WORK ON REAR END MAIN CABLE HARNESS
A 0005463435 BOOT
ADDITIONAL WORK ON REAR END MAIN CABLE HARNESS
A 0125450928 PIN BUSHING HOUSING
ADDITIONAL WORK ON REAR END MAIN CABLE HARNESS
A 0029978590 CLIP
ADDITIONAL WORK ON REAR END MAIN CABLE HARNESS
208 N 072571001004 CLAMP
CABLE HARNESS MOUNTING

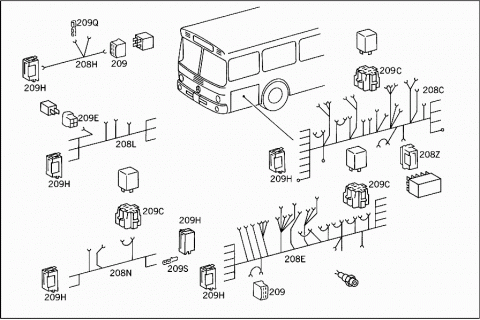

208C A 3055406936 ELECTRIC CABLE
ELECTRICAL COMPARTMENT
208C A 3055406936 ELECTRIC CABLE
ELECTRICAL COMPARTMENT
208E A 3055407036 ELECTRIC CABLE
ELEC.COMPTMT.,FRONT/REAR-END CONNECT., LIGHTG./BLINKER-SENDER-UNIT BRANCH-OFF
208E A 3055407036 ELECTRIC CABLE
ELEC.COMPTMT.,FRONT/REAR-END CONNECT., LIGHTG./BLINKER-SENDER-UNIT BRANCH-OFF
208H A 3055407136 ELECTRIC CABLE
FROM FRONT ELECTR. COMPARTMENT PLUGCONNECTION TO WIPER PULSE SENDER UNIT
208H A 3055407136 ELECTRIC CABLE
FROM FRONT ELECTR. COMPARTMENT PLUGCONNECTION TO WIPER PULSE SENDER UNIT
208L A 3055407236 ELECTRIC CABLE
ELECTR.COMPARTMENT,FRONT/REAR-END CONNECTION,STARTING INTERLOCK BRANCH-OFF
208L A 3055407236 ELECTRIC CABLE
ELECTR.COMPARTMENT,FRONT/REAR-END CONNECTION,STARTING INTERLOCK BRANCH-OFF
208N A 3055407336 ELECTRIC CABLE
Repalced by: A 3075402435
208N A 3075402435 ELECTRIC CABLE
ELECTRICAL COMPARTMENT,FRONT/REAR-END CONNECTION,WEBASTO HEATER BRANCH-OFF
208N A 3075402435 ELECTRIC CABLE
ELECTRICAL COMPARTMENT,FRONT/REAR-END CONNECTION,WEBASTO HEATER BRANCH-OFF
208Q A 3075401527 ELECTRIC CABLE
ELECTRICAL COMPARTMENT,REAR END PLUGCONNECTION,UNDERSEAT HEATER BRANCH-OFF
208S A 3055407436 ELECTRIC CABLE
ELECTR. COMPARTMENT,FRONT-END/REAR-END CONNECTION,STOP SIGN SYSTEM BRANCH-OFF
208S A 3055407436 ELECTRIC CABLE
ELECTR. COMPARTMENT,FRONT-END/REAR-END CONNECTION,STOP SIGN SYSTEM BRANCH-OFF
208U A 3055407536 ELECTRIC CABLE
ELECTRICAL COMPARTMENT,FRONT END PLUGCONNECTION,CLUTCH FLUID BRANCH-OFF
208U A 3055407536 ELECTRIC CABLE
ELECTRICAL COMPARTMENT,FRONT END PLUGCONNECTION,CLUTCH FLUID BRANCH-OFF
208X A 3055407636 ELECTRIC CABLE
ELECTR.COMPARTMENT,FRONT/REAR-END CONNECT.,EXHAUST BRAKE SWITCH BRANCH-OFF
208X A 3055407636 ELECTRIC CABLE
ELECTR.COMPARTMENT,FRONT/REAR-END CONNECT.,EXHAUST BRAKE SWITCH BRANCH-OFF
208Z A 0015458328 PIN BUSHING HOUSING
8-POLE
209 A 0075450528 PIN BUSHING HOUSING
6-POLE
209C A 0065450728 PIN BUSHING HOUSING
5-POLE
209E A 0015458428 PIN BUSHING HOUSING
4-POLE
209H A 3575450028 PLUG HOUSING
8-POLE
209L A 0005454026 PIN BUSHING
LESS DETENT,BUT WITH CATCH FOR HOUSING
4-6 MM2
209N A 0025454026 FLAT PIN BUSHING
Repalced by: A 0035455326
209N A 0035455326 PIN BUSHING
WITH DETENT AND WITH CATCH FOR HOUSING
4-6 MM2
209Q A 0005453826 PIN BUSHING
LESS DETENT,BUT WITH CATCH FOR HOUSING
2.5 MM2
209S A 0005453726 PIN BUSHING
Repalced by: A 0075458426
209S A 0075458426 PIN BUSHING
WITH DETENT AND WITH CATCH FOR HOUSING
2.5 MM2
209U A 0025451428 PLUG
LESS DETENT,BUT WITH CATCH FOR HOUSING
4-6 MM2
209X A 0025450628 PLUG
WITH DETENT AND WITH CATCH FOR HOUSING
2.5 MM2
209Z A 0005453545 BOOT
210 A 0009970681 GROMMET
210 A 0009970781 GROMMET
210B A 0019978490 LOOM TIE
376 MM
210D A 3055408936 ELECTRIC CABLE
Repalced by: A 3175406608
210D A 3175406608 CABLE HARNESS
FROM ELECTR. COMPARTMENT TO SECONDARY INSTRUM.-PANEL/TAIL-LAMP PLUG-CONNECT.
210D A 3175406608 CABLE HARNESS
FROM ELECTR. COMPARTMENT TO SECONDARY INSTRUM.-PANEL/TAIL-LAMP PLUG-CONNECT.
210D A 3075409408 CABLE HARNESS
FROM ELECTR. COMPARTMENT TO SECONDARY INSTRUM.-PANEL/TAIL-LAMP PLUG-CONNECT.
210F A 3055409036 ELECTRIC CABLE
Repalced by: A 3075402835
A 3075402835 ELECTRIC CABLE
FROM ELEC. COMPTMT. PLUG-CONNECTION TO FUEL GAUGE SENDER UNIT/SOLENOID VALVES
A 3075402835 ELECTRIC CABLE
FROM ELEC. COMPTMT. PLUG-CONNECTION TO FUEL GAUGE SENDER UNIT/SOLENOID VALVES
210K A 3075401327 ELECTRIC CABLE
FROM ELEC. COMPTMT. PLUG-CONNECTION TO FUEL GAUGE SENDER UNIT/SOLENOID VALVES
210M A 3075406409 CABLE HARNESS
FROM ELECTRICAL COMPARTMENT PLUGCONNECTION TO UNDERSEAT HEATER
210P A 3055409136 ELECTRIC CABLE
FROM ELECTRICAL COMPARTMENT PLUGCONNECTION TO WEBASTO HEATER
210P A 3055409136 ELECTRIC CABLE
FROM ELECTRICAL COMPARTMENT PLUGCONNECTION TO WEBASTO HEATER
210P A 3075401227 ELECTRIC CABLE
FROM ELECTRICAL COMPARTMENT PLUGCONNECTION TO WEBASTO HEATER
210R A 3055405637 ELECTRIC CABLE
SECONDARY INSTRUMENT PANEL CABLE HARNESS
210R A 3055405637 ELECTRIC CABLE
SECONDARY INSTRUMENT PANEL CABLE HARNESS
210T A 3055409236 ELECTRIC CABLE
Repalced by: A 3175405808
210T A 3175405808 CABLE HARNESS
FROM SECONDARY INSTRUMENT PANEL PLUGCONNECTION TO BACK-UP LAMP SWITCH
210T A 3175405808 CABLE HARNESS
FROM SECONDARY INSTRUMENT PANEL PLUGCONNECTION TO BACK-UP LAMP SWITCH
210T A 3075401027 ELECTRIC CABLE
Repalced by: A 3805402681
210T A 3805402681 PLUG SOCKET
FROM SECONDARY INSTRUMENT PANEL PLUGCONNECTION TO BACK-UP LAMP SWITCH
210W A 3055409336 ELECTRIC CABLE
FROM SECONDARY INSTRUMENT PANEL PLUGCONNECTION TO BATTERY MASTER SWITCH
210W A 3055409336 ELECTRIC CABLE
FROM SECONDARY INSTRUMENT PANEL PLUGCONNECTION TO BATTERY MASTER SWITCH
210Z A 3075401127 ELECTRIC CABLE
FROM SECONDARY INSTRUMENT PANEL PLUGCONNECTION TO BATTERY MASTER SWITCH
211 A 0015458328 PIN BUSHING HOUSING
8-POLE
211B A 0075450528 PIN BUSHING HOUSING
6-POLE
211C A 0065451428 PIN BUSHING HOUSING
5-POLE
211D A 0015458428 PIN BUSHING HOUSING
4-POLE
211F A 0125452128 PIN BUSHING HOUSING
4-POLE
211K A 0125452228 PIN BUSHING HOUSING
4-POLE
211M A 0025451228 PLUG HOUSING
4-POLE
211P A 0015454128 PIN BUSHING HOUSING
4-POLE
A 0015458728 PIN BUSHING HOUSING
BIPOLAR
211T A 0025451128 PIN BUSHING HOUSING
UNIPOLAR
211W A 3575450028 PLUG HOUSING
8-POLE
211Y A 0025451328 PIN BUSHING HOUSING
UNIPOLAR
212C A 0005454026 PIN BUSHING
LESS DETENT,BUT WITH CATCH FOR HOUSING
4-6 MM2
212C A 0025454026 FLAT PIN BUSHING
Repalced by: A 0035455326
212C A 0035455326 PIN BUSHING
WITH DETENT AND WITH CATCH FOR HOUSING
4-6 MM2
212E A 0005453826 PIN BUSHING
LESS DETENT,BUT WITH CATCH FOR HOUSING
2.5 MM2
212E A 0005453726 PIN BUSHING
Repalced by: A 0075458426
212E A 0075458426 PIN BUSHING
WITH DETENT AND WITH CATCH FOR HOUSING
2.5 MM2
212H A 0025450628 PLUG
WITH DETENT AND WITH CATCH FOR HOUSING
2.5 MM2
212H A 0025451428 PLUG
LESS DETENT,BUT WITH CATCH FOR HOUSING
4
212L A 0005451745 BOOT
PIN BUSHING
A 3805402781 PLUG SOCKET
(PARTS KIT),BIPOLAR SCREW CONNECTION, FOR CORRUGATED TUBE
M 27X1
A 3805402681 PLUG SOCKET
(PARTS KIT),BIPOLAR SCREW CONNECTION, FOR CORRUGATED TUBE
M 24X1
212N A 3805460135 BOOT
PRESSURE SWITCH SCREW-CONNECTION
TO M 27X1,M 24X1
212Q A 0009903654 NUT
PRESSURE SWITCH SCREW-CONNECTION
M 27X1
212Q A 0009902054 NUT
PRESSURE SWITCH SCREW-CONNECTION
M 24X1
212S A 3809900140 WASHER
PRESSURE SWITCH SCREW-CONNECTION
TO M 27X1
212S A 0009906840 WASHER
PRESSURE SWITCH SCREW-CONNECTION
TO M 24X1
212U A 3805450226 PLUG SOCKET
PRESSURE SWITCH SCREW-CONNECTION
TO M 27X1
212U A 3805450026 PLUG SOCKET
PRESSURE SWITCH SCREW-CONNECTION
TO M 24X1
212X A 0015454826 ROUND PIN BUSHING
PRESSURE SWITCH SCREW-CONNECTION
TO M 27X1,M 24X1
212Z A 3879940042 LOCK
TACHOGRAPH SENDER UNIT
213 A 3055460135 BOOT
TACHOGRAPH SENDER UNIT
213E A 0005421572 NUT
TACHOGRAPH SENDER UNIT
213K A 3019901440 WASHER
TACHOGRAPH SENDER UNIT
213N A 0125450928 PIN BUSHING HOUSING
TACHOGRAPH SENDER UNIT
214 A 0009970081 GROMMET
214 A 0009970181 GROMMET
214 A 0009970381 GROMMET
214 A 0009970681 GROMMET
214 A 0009970781 GROMMET
214H A 0009973081 GROMMET
214N A 1869970781 GROMMET
214T A 3079970081 GROMMET
215 A 3109970081 GROMMET
215F A 3359970081 GROMMET
215P A 6019972081 GROMMET
215P A 6019972381 GROMMET
Repalced by: A 3819970881
215P A 3819970881 GROMMET
215R A 0019978390 LOOM TIE
280 MM
215R A 0019978490 LOOM TIE
376 MM
215S A 0055429417 SENDER UNIT
TACHOGRAPH ADJUSTABLE
215S A 0065424617 SENDER UNIT
TACHOGRAPH ADJUSTABLE
215SE A 0035422317 SENDER UNIT
ELECTRONIC TACHOGRAPH
0.9453
215SE A 0035421517 SENDER UNIT
ELECTRONIC TACHOGRAPH
0.7276
216 N 916016012201 CLAMP
BATTERY MASTER SWITCH BRANCH-OFF
216 N 916016032201 CLAMP
217 N 007985006157 SCREW
Repalced by: N 000000001145
217 N 000000001145 SCREW
217B N 912004006102 LOCK WASHER
218 N 000933005059 SCREW
219 N 912004005103 LOCK WASHER
BATTERY MASTER SWITCH BRANCH-OFF
220 N 000934005008 NUT
BATTERY MASTER SWITCH BRANCH-OFF
221 N 007981004233 SHEET METAL SCREW
Repalced by: N 000000000460
221 N 000000000460 SHEET METAL SCREW
BATTERY MASTER SWITCH BRANCH-OFF
6 MM
225 A 0009881678 CLIP
ENGINE COMPARTMENT LAMP BRANCH-OFF
227 A 0065457328 PLUG
SPRING-LOADED BRAKE,RELEASE PRESSURE
A 3055401627 ELECTRIC CABLE
WEBASTO HEATER THERMOSTAT
230 A 0019978490 LOOM TIE
DOOR PUSH BUTTON BRANCH-OFF TO BODY
231 A 3055460075 CLAMP
DOOR PUSH BUTTON BRANCH-OFF TO BODY
232 N 007981004279 SHEET METAL SCREW
DOOR PUSH BUTTON BRANCH-OFF TO BODY
233 A 0009881878 CLIP
DOOR PUSH BUTTON BRANCH-OFF TO BODY
N 072571001012 CLAMP
DOOR PUSH BUTTON BRANCH-OFF TO BODY
235 N 916016035205 CLAMP
POS. CABLE TO BRACKET AT SUBSTRUCTURE
235C N 000933006121 SCREW
Repalced by: N 304017006020
235C N 304017006020 SCREW
CLAMP MOUNTING
235F N 912004006102 LOCK WASHER
CLAMP MOUNTING
235L N 000934006007 NUT
CLAMP MOUNTING
236 A 3075401109 CABLE HARNESS
ENGINE
236 A 3075402109 CABLE HARNESS
ENGINE
236 A 3055401508 CABLE HARNESS
ENGINE
236 A 3055401508 CABLE HARNESS
ENGINE
236B A 3055404207 CABLE HARNESS
ENGINE
236B A 3055404207 CABLE HARNESS
ENGINE
A 3075400509 CABLE HARNESS
Repalced by: A 3055408709
236B A 3055408709 CABLE HARNESS
ENGINE
236B A 3055401608 CABLE HARNESS
Repalced by: A 3055401508
236B A 3055401508 CABLE HARNESS
ENGINE
236B A 3055401508 CABLE HARNESS
ENGINE
236B A 3055401508 CABLE HARNESS
ENGINE
236B A 3055402134 CABLE HARNESS
ENGINE
236B A 3055402134 CABLE HARNESS
ENGINE
236F A 3055406037 ELECTRIC CABLE
Repalced by: A 3055405937
236F A 3055405937 ELECTRIC CABLE
Repalced by: A 3175407008
236F A 3175407008 CABLE HARNESS
ENGINE
237 A 0045457528 PLUG
REGULATOR AND CUT-OUT
237H A 0015458328 PIN BUSHING HOUSING
8-POLE
238 A 0015458228 PLUG HOUSING
8-POLE
239 A 0015456028 PLUG HOUSING
6-POLE
239 A 0015456028 PLUG HOUSING
6-POLE
241 A 0015458128 PIN BUSHING HOUSING
6-POLE
241 A 0015458128 PIN BUSHING HOUSING
6-POLE
241 A 0015458128 PIN BUSHING HOUSING
6-POLE
241 A 0015458128 PIN BUSHING HOUSING
6-POLE
242C A 0015458728 PIN BUSHING HOUSING
BIPOLAR
242D A 0025451128 PIN BUSHING HOUSING
UNIPOLAR
242F A 0015458628 PLUG
LESS DETENT,BUT WITH CATCH FOR HOUSING
2.5 MM2
242F A 0025450628 PLUG
WITH DETENT AND WITH CATCH FOR HOUSING
2.5 MM2
242H A 0025451428 PLUG
LESS DETENT,BUT WITH CATCH FOR HOUSING
4-6 MM2
243 A 0005453726 PIN BUSHING
Repalced by: A 0075458426
243 A 0075458426 PIN BUSHING
WITH DETENT AND WITH CATCH FOR HOUSING
1-2,5 MM2
243B A 0005453826 PIN BUSHING
LESS DETENT,BUT WITH CATCH FOR HOUSING
2.5 MM2
243D A 0005451745 BOOT
PIN BUSHING
244 A 0005454026 PIN BUSHING
LESS DETENT,BUT WITH CATCH FOR HOUSING
4-6 MM2
245 A 0005454526 PIN BUSHING
Repalced by: A 0005453726
245 A 0005453726 PIN BUSHING
Repalced by: A 0075458426
245 A 0075458426 PIN BUSHING
WITH DETENT;LESS CATCH FOR HOUSING
2.5 MM2
245 A 0005454626 PIN BUSHING
WITH DETENT;LESS CATCH FOR HOUSING
4-6 MM2
A 0005468240 CABLE SHOE
ALTERNATOR
246 A 3075400085 PROTECTIVE TUBE
Repalced by: A 3075400185
246B A 3075400185 PROTECTIVE TUBE
Repalced by: A 3575400285
246B A 3575400285 PROTECTIVE TUBE
246D A 0005461630 INSULATING HOSE
10 MM
246F A 0005461830 INSULATING HOSE
17 MM
246H A 0005461930 INSULATING HOSE
23 MM
246K A 3079970081 GROMMET
ENGINE
70 MM
246M A 0009970281 GROMMET
Repalced by: A 0009970381
246M A 0009970381 GROMMET
CABLE SHOE
3 MM
246M A 0009970781 GROMMET
CABLE SHOE
10 MM
246N A 0079975281 GROMMET
246P A 0019978390 LOOM TIE
280 MM
247 A 3055402408 CABLE HARNESS
FROM RELAY TO FUSE AND TO GROUND
247 A 3055402408 CABLE HARNESS
FROM RELAY TO FUSE AND TO GROUND
247B A 0025451328 PIN BUSHING HOUSING
UNIPOLAR
248 A 0025450628 PLUG
WITH DETENT AND WITH CATCH FOR HOUSING
2.5 MM2
248B A 0005453726 PIN BUSHING
Repalced by: A 0075458426
248B A 0075458426 PIN BUSHING
WITH DETENT AND WITH CATCH FOR HOUSING
2.5 M2
248B A 0005453826 PIN BUSHING
LESS DETENT,BUT WITH CATCH FOR HOUSING
2.5 MM2
249 A 0065451428 PIN BUSHING HOUSING
MICRO-RELAY
250 A 0005451745 BOOT
PIN BUSHING
251C N 000125013008 WASHER
251F N 000933012058 SCREW
CABLE CONDUIT TO ENGINE UPPER SUSPENSION
251L N 000125015013 WASHER
Repalced by: N 000125015019
251L N 000125015019 WASHER
CABLE CONDUIT TO ENGINE UPPER SUSPENSION
251P N 000933014001 SCREW
CABLE CONDUIT TO ENGINE UPPER SUSPENSION
A 0009952101 CLAMP
Repalced by: N 916016012200
251S N 916016012200 CLAMP
ALTERNATOR BRANCH-OFF
251S N 916016020201 CLAMP
ALTERNATOR BRANCH-OFF
251S N 916016028204 CLAMP
ALTERNATOR BRANCH-OFF
251T N 000934005008 NUT
CABLE TO ALTERNATOR
251T N 000934006007 NUT
CABLE TO ALTERNATOR
251T N 000934008010 NUT
CABLE TO ALTERNATOR
251TC N 000137005203 SPRING WASHER
CABLE TO ALTERNATOR
251TC N 000137006204 SPRING WASHER
CABLE TO ALTERNATOR
251TC N 000137008204 SPRING WASHER
CABLE TO ALTERNATOR
251U N 000000001147 SCREW
ALTERNATOR BRANCH-OFF
M 6X20
252 A 3075460343 BRACKET
STARTING MOTOR BRANCH-OFF TO TIMING CASE
253C N 000931010264 SCREW
STARTING MOTOR BRANCH-OFF TO TIMING CASE
253F N 000125010518 WASHER
Repalced by: N 000125010532
253F N 000125010532 WASHER
STARTING MOTOR BRANCH-OFF TO TIMING CASE
253L N 916016022206 CLAMP
STARTING MOTOR BRANCH-OFF TO TIMING CASE
253P N 000933006103 SCREW
Repalced by: N 304017006018
253P N 304017006018 SCREW
STARTING MOTOR BRANCH-OFF TO TIMING CASE
253S N 912004006102 LOCK WASHER
STARTING MOTOR BRANCH-OFF TO TIMING CASE
253W N 000934006007 NUT
STARTING MOTOR BRANCH-OFF TO TIMING CASE
254 N 916016022206 CLAMP
STARTING CABLE
254C N 916016035205 CLAMP
CABLE HARNESS MOUNTING
35 MM
254F N 007985006193 SCREW
Repalced by: N 000000001146
254F N 000000001146 SCREW
CLAMP MOUNTING
254L N 912004006102 LOCK WASHER
CLAMP MOUNTING
254P N 000934006007 NUT
CLAMP MOUNTING
255 A 3055400673 BRACKET
BRANCH-OFF TO OIL PRESSURE SENDER UNIT
256 N 000933014033 SCREW
BRACKET MOUNTING
258 N 916016010201 CLAMP
Repalced by: N 916016010211
258 N 916016010211 CLAMP
Repalced by: N 000000001045
258 N 000000001045 CLAMP
BRANCH-OFF TO OIL PRESSURE SENDER UNIT
258 N 916016006208 CLAMP
BRANCH-OFF TO OIL PRESSURE SENDER UNIT
259 N 007985006161 SCREW
Repalced by: N 007985006580
259 N 007985006580 SCREW
BRANCH-OFF TO OIL PRESSURE SENDER UNIT
M 6X10
259D N 912004006102 LOCK WASHER
BRANCH-OFF TO OIL PRESSURE SENDER UNIT
261 A 3144290240 BRACKET
Repalced by: A 3812950440
261 A 3812950440 BRACKET
ENGINE CABLE HARNESS BRANCH-OFF TO AUXILIARY INSTRUMENT PANEL
263 N 916016038205 CLAMP
ENGINE CABLE HARNESS BRANCH-OFF TO AUXILIARY INSTRUMENT PANEL
38 MM
266 N 916016022206 CLAMP
ENGINE CABLE HARNESS BRANCH-OFF TO AUXILIARY INSTRUMENT PANEL
267 N 000000001147 SCREW
ENGINE CABLE HARNESS BRANCH-OFF TO AUXILIARY INSTRUMENT PANEL
M 6X20
268 N 000125006421 WASHER
ENGINE CABLE HARNESS BRANCH-OFF TO AUXILIARY INSTRUMENT PANEL
269 N 912004006102 LOCK WASHER
ENGINE CABLE HARNESS BRANCH-OFF TO AUXILIARY INSTRUMENT PANEL
270 N 000934006007 NUT
ENGINE CABLE HARNESS BRANCH-OFF TO AUXILIARY INSTRUMENT PANEL
271 A 0005454732 CONTROL UNIT
Repalced by: A 0025457132
271 A 0025457132 CONTROL UNIT
OVERLOAD PROTECTOR
271H A 3055401473 BRACKET
OVERLOAD PROTECTOR
272 N 007985006161 SCREW
Repalced by: N 007985006580
272 N 007985006580 SCREW
SECONDARY SWITCHBOARD
272D N 912004006102 LOCK WASHER
SECONDARY SWITCHBOARD
272E A 3078270843 APPARATUS PANEL
SECONDARY SWITCHBOARD
272E A 3078270843 APPARATUS PANEL
SECONDARY SWITCHBOARD
272H A 3055400342 PLATE
Repalced by: A 3055400642
A 3055400642 PLATE
SECONDARY SWITCHBOARD
A 3055400642 PLATE
SECONDARY SWITCHBOARD
272M N 007985006538 SCREW
APPARATUS PLATE
M 6X18
272R N 912004006102 LOCK WASHER
APPARATUS PLATE
273 A 0021540506 REGULATOR AND CUT-OUT
TRANSISTOR
273 A 0021540506 REGULATOR AND CUT-OUT
TRANSISTOR
274 N 007985006157 SCREW
Repalced by: N 000000001145
274 N 000000001145 SCREW
REGULATOR MOUNTING
275 N 000137006204 SPRING WASHER
REGULATOR MOUNTING
276 A 0005453305 RELAY
TIME-LAG
276 A 0005453305 RELAY
TIME-LAG
280 A 0005426419 RELAY
DECLUTCHING START UNIT
24 V,20 A
280 A 0005426419 RELAY
DECLUTCHING START UNIT
24 V,20 A
280 A 0005426419 RELAY
DECLUTCHING START UNIT
24 V,20 A
280 A 0005426419 RELAY
DECLUTCHING START UNIT
24 V,20 A
280 A 0015424819 RELAY
DECLUTCHING START UNIT
280 A 0015424819 RELAY
DECLUTCHING START UNIT
280 A 0015424819 RELAY
DECLUTCHING START UNIT
280 A 0015424819 RELAY
DECLUTCHING START UNIT
280F A 3055401673 BRACKET
DECLUTCHING START UNIT
281 N 007985005193 SCREW
SECONDARY SWITCHBOARD
281D N 912004005103 LOCK WASHER
SECONDARY SWITCHBOARD
282 A 0005457701 FUSE BOX
BIPOLAR
282D A 0005452534 FUSE
50A
282D A 0005450334 FUSE
80 A
283 N 000137006204 SPRING WASHER
FUSE BOX
284 N 000084006132 SCREW
FUSE BOX
285C N 006902005100 WASHER
Repalced by: N 000125006421
285C N 000125006421 WASHER
FUSE BOX
285F N 002093010100 DISC SPRING
FUSE BOX
285L N 000084005402 SCREW
FUSE BOX
285L N 000084005402 SCREW
FUSE BOX
285M N 007985005175 SCREW
FUSE BOX
285MF A 0005456201 FUSE BOX
Repalced by: A 0005459901
285MF A 0005459901 FUSE BOX
BIPOLAR
285N A 0005459301 FUSE BOX
4-POLE
285P A 0005458334 FUSE
16 A
285P A 0005458334 FUSE
16 A
285P A 0005458234 FUSE
Repalced by: N 072581008101
285P N 072581008101 FUSE
8 A
285P N 072581008101 FUSE
8 A
285P A 0015453634 FUSE
1 A
A 0005459834 FUSE
0.5 A
285P N 072581025100 FUSE
Repalced by: A 0015457534
285P A 0015457534 FUSE
25A
285Q A 3055450302 CONTACT RAIL
Repalced by: A 3055450602
285Q A 3055450602 CONTACT RAIL
Repalced by: A 6005450202
285Q A 6005450202 CONTACT RAIL
FUSE-TO-FUSE CONNECTING LINE
285QD N 007985004149 SCREW
Repalced by: N 000000001933
285QD N 000000001933 SCREW
FUSE-TO-FUSE CONNECTING LINE
M 4X8
285QK N 000137008204 SPRING WASHER
CABLE TO ALTERNATOR
285QN N 912004004102 LOCK WASHER
FUSE-TO-FUSE CONNECTING LINE
285R N 000084004425 SCREW
SECONDARY SWITCHBOARD
285S A 3055452140 BRACKET
FUSE BOX
285S A 3055452140 BRACKET
FUSE BOX
285S A 3055452040 BRACKET
FUSE BOX
285S A 3055452040 BRACKET
FUSE BOX
285T N 007985005504 SCREW
BRACKET
285U N 000125005317 WASHER
Repalced by: N 000433005304
285U N 000433005304 WASHER
BRACKET
285X N 912004005103 LOCK WASHER
BRACKET
286 A 0005452260 JUNCTION BOX
DOUBLE;CONNECTION OF AUTOMATIC FUSE HAVING 5-MM BALL PIN
286 A 0005451660 JUNCTION BOX
DOUBLE
286 A 0005451660 JUNCTION BOX
DOUBLE
287 A 0005453260 JUNCTION BOX
AUTOMATIC FUSE
287 A 0005453260 JUNCTION BOX
AUTOMATIC FUSE
287 A 0005453360 JUNCTION BOX
AUTOMATIC FUSE
287H N 000966005007 SCREW
JUNCTION BOX
M 5X16
288 N 000084004164 SCREW
SECONDARY SWITCHBOARD
288 N 000084004164 SCREW
SECONDARY SWITCHBOARD
291 A 0005455934 FUSE
HAZARD WARNING LIGHT
8A
293 A 0005453934 FUSE
WIRELESS PLANT
8A
293 A 0005456834 FUSE
OIL REFILLING
16 A
293 A 0005456834 FUSE
OIL REFILLING
16 A
293D A 0005452545 BLIND PLUG
JUNCTION BOX
293D A 0005452545 BLIND PLUG
JUNCTION BOX
293F N 007981003203 SHEET METAL SCREW
FUSE
293H A 0015451034 FUSE
8 A
293H A 0015451034 FUSE
8 A
293H A 0015453134 FUSE
16 A
293H A 0015453134 FUSE
16 A
293H A 0015453234 FUSE
20A
293H A 0015453234 FUSE
20A
293H A 0015453234 FUSE
20A
293H A 0015452734 FUSE
BLINKER SENDER UNIT
8 A
293H A 0015452734 FUSE
BLINKER SENDER UNIT
8 A
293H A 0015452734 FUSE
BLINKER SENDER UNIT
8 A
293HF N 000084004151 SCREW
AUTOMATIC FUSE
293K A 0015452434 FUSE
AUTOMATIC OIL REPLENISHMENT
0.5 A
293K A 0015452434 FUSE
MAGNETIC
0.5 A
293M N 007985004149 SCREW
Repalced by: N 000000001933
293M N 000000001933 SCREW
OVERLOAD PROTECTOR MOUNTING
M 4X8
293P N 912004004102 LOCK WASHER
OVERLOAD PROTECTOR MOUNTING
294 A 0005455405 RELAY
Repalced by: A 0035459605
294 A 0005458405 RELAY
EMERGENCY LIGHT
294 A 0005458405 RELAY
BATTERY MASTER SWITCH
294F A 0005465741 CABLE CONNECTOR
SECONDARY SWITCHBOARD
294F A 0005465741 CABLE CONNECTOR
SECONDARY SWITCHBOARD
294M N 007985004130 SCREW
SECONDARY SWITCHBOARD
M 4X20
294P N 912004004102 LOCK WASHER
SECONDARY SWITCHBOARD
294R N 006797004132 TOOTHED WASHER
SECONDARY SWITCHBOARD
294T N 007981004245 SHEET METAL SCREW
Repalced by: N 007981004339
294T N 007981004339 SHEET METAL SCREW
Repalced by: N 000000000459
294T N 000000000459 SCREW
RELAY SOCKET TO APPARATUS PLATE
295 A 0005463241 CABLE CONNECTOR
8-POLE
296 N 007985004111 SCREW
Repalced by: N 007985004136
296 N 007985004136 SCREW
CABLE CONNECTOR
297 N 007985004107 SCREW
CABLE HARNESS MOUNTING
298 N 912004004102 LOCK WASHER
CABLE HARNESS MOUNTING
300 A 0005461143 BRACKET
CABLE HARNESS MOUNTING
A 0008210324 PLUG SOCKET
Repalced by: A 0008210624
301 A 0008210624 PLUG SOCKET
SECONDARY SWITCHBOARD
301 A 0008210624 PLUG SOCKET
SECONDARY SWITCHBOARD
301 A 0008210624 PLUG SOCKET
SECONDARY SWITCHBOARD
301 A 0005456026 PLUG SOCKET
Repalced by: A 0005454426
301 A 0005454426 PLUG SOCKET
Repalced by: A 0015458526
301 A 0005453926 PLUG SOCKET
Repalced by: A 0015458526
301 A 0005453526 PLUG SOCKET
Repalced by: A 0015458526
301 A 0015458526 PLUG SOCKET
SECONDARY SWITCHBOARD
301 A 0015458526 PLUG SOCKET
SECONDARY SWITCHBOARD
302 A 0005461143 BRACKET
CABLE HARNESS MOUNTING
305 A 0005454008 SWITCH
BATTERY MASTER SWITCH
305 A 0005454008 SWITCH
BATTERY MASTER SWITCH
305 A 0005454008 SWITCH
BATTERY MASTER SWITCH
305 A 0005454008 SWITCH
BATTERY MASTER SWITCH
305 A 0005427219 RELAY
BATTERY MASTER SWITCH
305 A 0005427219 RELAY
BATTERY MASTER SWITCH
305 A 0005427219 RELAY
BATTERY MASTER SWITCH
305 A 0005427219 RELAY
BATTERY MASTER SWITCH
306 N 000933008145 SCREW
BATTERY MASTER SWITCH
306 N 000933008153 SCREW
Repalced by: N 304017008034
306 N 304017008034 SCREW
BATTERY MASTER SWITCH
307 N 000137008204 SPRING WASHER
BATTERY MASTER SWITCH
307E N 000316006036 SCREW
M 6X16
307H N 000125006421 WASHER
307M N 912004006102 LOCK WASHER
A 0035458224 SWITCH,AUTOMATIC
Repalced by: A 0035458424
308 A 0035458424 SWITCH,AUTOMATIC
Repalced by: A 0055459024
308 A 0055459024 SWITCH,AUTOMATIC
STEERING COLUMN MOUNTED
A 0005455537 BUTTON
TO 005 545 90 24
A 0005452637 BUTTON
309 A 3055450073 LOCK
PUSH BUTTON SWITCH
311 A 0025422220 HORN
Repalced by: A 0035420520
311 A 0035420520 HORN
Repalced by: A 0045424420
311 A 0045424420 HORN
312C N 000933010129 SCREW
Repalced by: N 304017010002
312C N 304017010002 SCREW
HORN MOUNTING
312F N 000125010518 WASHER
Repalced by: N 000125010532
312F N 000125010532 WASHER
HORN MOUNTING
312L N 912004010102 LOCK WASHER
HORN MOUNTING
312P N 000934010014 NUT
HORN MOUNTING
313C N 000084004151 SCREW
ELECTRIC CABLE TO HORN
313F N 912004004102 LOCK WASHER
ELECTRIC CABLE TO HORN
A 0005454509 SWITCH
Repalced by: A 0005456009
314 A 0005456009 SWITCH
AT COMPRESSED AIR LINE T-FITTING
0.1-0.5 BAR
A 0005455009 SWITCH
Repalced by: A 0005455909
315 A 0005455909 SWITCH
CLUTCH FLUID PRESSURE
2-5 BAR
316C A 0005455209 SWITCH
Repalced by: A 0005457909
316C A 0005457909 SWITCH
Repalced by: A 0005459009
316C A 0005459009 SWITCH
Repalced by: A 0015451109
316C A 0015451109 SWITCH
Repalced by: A 0015452709
316C A 0015452709 SWITCH
EXHAUST BRAKE
M 12
316F N 007603012405 SEAL RING
316H A 0005452008 SWITCH
EXHAUST BRAKE FOOT-OPERATED SWITCH
317 A 0005455414 SWITCH
Repalced by: A 0005457914
317 A 0005457914 SWITCH
SPRING-LOADED-BRAKE SUPPLY PRESSURE
5.7 BAR
317 A 0005457914 SWITCH
SPRING-LOADED-BRAKE-UNIT RELEASE PRESSURE
5.7 BAR
317 A 0015455714 SWITCH
SPRING-LOADED-BRAKE EMERGENCY RELEASE
2.5 BAR
317 A 0015455714 SWITCH
SPRING-LOADED-BRAKE EMERGENCY RELEASE
2.5 BAR
317 A 0015455714 SWITCH
SPRING-LOADED-BRAKE EMERGENCY RELEASE
2.5 BAR
319 A 3055407909 CABLE HARNESS
TELL-TALE LAMP
319 A 3055407909 CABLE HARNESS
TELL-TALE LAMP
319 A 3055407909 CABLE HARNESS
TELL-TALE LAMP
319D A 0015457928 PIN BUSHING HOUSING
BIPOLAR
319F A 0025450628 PLUG
WITH DETENT AND WITH CATCH FOR HOUSING
2.5 MM2
319H A 0025451128 PIN BUSHING HOUSING
UNIPOLAR
319K A 0005453726 PIN BUSHING
Repalced by: A 0075458426
319K A 0075458426 PIN BUSHING
WITH DETENT AND WITH CATCH FOR HOUSING
2.5 MM2
319K A 0005453826 PIN BUSHING
LESS DETENT,BUT WITH CATCH FOR HOUSING
2.5 MM2
A 0015451915 TELL-TALE LAMP
Repalced by: A 0015453015
321 A 0015453015 TELL-TALE LAMP
LESS LENS
321 A 0015453015 TELL-TALE LAMP
LESS LENS
321 A 0015453015 TELL-TALE LAMP
LESS LENS
322 A 0015452690 LENS
RED
322 A 0015452690 LENS
RED
322 A 0015452690 LENS
RED
323 A 0015452790 LENS
AMBER
323 A 0015452790 LENS
AMBER
323 A 0015452790 LENS
AMBER
323 A 0015452790 LENS
AMBER
324 N 072601024900 BULB
TELL-TALE LAMP
325 A 0015451314 SWITCH
DOOR OPERATION, OUTSIDE
330 A 0005455914 SWITCH
Repalced by: A 0025455514
331 A 0005456014 SWITCH
Repalced by: A 0025455614
A 0025455514 SWITCH
FRONT DOOR
A 0025455514 SWITCH
FRONT DOOR
A 0025455614 SWITCH
REAR DOOR
A 0025455614 SWITCH
REAR DOOR
331K A 0005454737 BUTTON
A 0005452272 NUT
PUSH BUTTON SWITCH
A 0005452272 NUT
PUSH BUTTON SWITCH
332 A 3169880135 CAP
BLIND ELEMENT
332 A 3169880135 CAP
REAR FOGLAMP
333 A 0018215751 SWITCH
STARTING
333 A 0018215751 SWITCH
STARTING
333 A 0018215751 SWITCH
BATTERY MASTER SWITCH
333 A 0018215751 SWITCH
STARTING
333 A 0018215751 SWITCH
STARTING
334 A 0015457514 SWITCH
STARTING
"START"
334 A 0015457514 SWITCH
STARTING
"START"
334 A 0015457514 SWITCH
STARTING
"START"
N 072601024801 BULB
SWITCH
334 A 0015457314 SWITCH
Repalced by: A 0055451714
334 A 0055451714 SWITCH
BATTERY MASTER SWITCH
334 A 0055451714 SWITCH
BATTERY MASTER SWITCH
334 A 0055451714 SWITCH
BATTERY MASTER SWITCH
336 A 0015456507 SWITCH
Repalced by: A 0015458107
336 A 0015458107 SWITCH
BUS STOP BRAKE
336 A 0015458107 SWITCH
BUS STOP BRAKE
336 A 0015458107 SWITCH
BUS STOP BRAKE
336F A 0005455237 BUTTON
A 0035453024 SWITCH,AUTOMATIC
Repalced by: A 0045450224
337 A 0045450224 SWITCH
HAZARD WARNING LIGHT
337 A 0045450224 SWITCH
337 A 0045450224 SWITCH
WEBASTO HEATER
337 A 0045450224 SWITCH
337 A 0045450224 SWITCH
340 A 0005453637 BUTTON
HAZARD WARNING LIGHT
340 A 0005453637 BUTTON
RED
341 A 0005453337 BUTTON
Repalced by: A 0005454937
341 A 0005454937 BUTTON
WEBASTO HEATER
341 A 0005454937 BUTTON
GREEN
342 N 072601024801 BULB
SWITCH
342 N 072601024801 BULB
SWITCH
342K A 0009872744 EXPANSION PLUG
ENGINE SHUT-OFF
342K A 0009872744 EXPANSION PLUG
AT INSTRUMENT PANEL
342K A 0009872744 EXPANSION PLUG
ENGINE SHUT-OFF
342K A 0009872744 EXPANSION PLUG
ENGINE SHUT-OFF
343 A 0015450907 SWITCH
HEATING
343 A 0015450907 SWITCH
HEATING
343 A 0015450907 SWITCH
HEATING
343 A 0015450907 SWITCH
HEATING
344 A 0009979686 PLUG
HEATING
344 A 0009979686 PLUG
BLIND ELEMENT
344 A 0009979686 PLUG
BLIND ELEMENT
344 A 0009979686 PLUG
BLIND ELEMENT
345 A 0015457414 SWITCH
Repalced by: A 0045459614
345 A 0045459614 SWITCH
ENGINE STOP
346 A 0015452007 SWITCH
AT INSTRUMENT PANEL
346 A 0015452007 SWITCH
RETARDER DIRECT
346 A 0015452007 SWITCH
AT INSTRUMENT PANEL
346 A 0015452007 SWITCH
RETARDER
346 A 0015452007 SWITCH
AT INSTRUMENT PANEL
346 A 0015452007 SWITCH
DOOR WING II CHECKED
346 A 0015452007 SWITCH
AT INSTRUMENT PANEL
346 A 0015452007 SWITCH
FOGLAMP
346 A 0015452007 SWITCH
AT INSTRUMENT PANEL
346 A 0015452007 SWITCH
COUNTER LIGHTING
346 A 0015452007 SWITCH
AT INSTRUMENT PANEL
346 A 0015452007 SWITCH
INTERIOR LIGHTING
346 A 0015452007 SWITCH
AT INSTRUMENT PANEL
346 A 0015452007 SWITCH
WINDSHIELD WIPER,"SLOW-FAST"
346 A 0015452007 SWITCH
AT INSTRUMENT PANEL
346 A 0015452007 SWITCH
WINDSHIELD WIPER O F F O N
346 A 0015452007 SWITCH
AT INSTRUMENT PANEL
346 A 0015452007 SWITCH
WIPER INTERMITTENT ACTION RELAY
346 A 0015452007 SWITCH
AT INSTRUMENT PANEL
346 A 0015452007 SWITCH
PANE WASHER
346 A 0015452007 SWITCH
WINDSHIELD WIPER O F F O N
346 A 0015452007 SWITCH
AT INSTRUMENT PANEL
346 A 0015452007 SWITCH
AT INSTRUMENT PANEL
346A A 0015455107 SWITCH
WINDSHIELD WIPER O F F O N
346A A 0015455107 SWITCH
346A A 0015455107 SWITCH
346A A 0015455107 SWITCH
COUNTER LIGHTING
346A A 0015455107 SWITCH
HEATED OUTSIDE REARVIEW MIRROR
346A A 0015455107 SWITCH
ELECTRICALLY HEATED DRIVER'S WINDOW
346B A 0015452107 BLIND ELEMENT
346B A 0015452107 BLIND ELEMENT
346B A 0015452107 BLIND ELEMENT
346B A 0015452107 BLIND ELEMENT
346B A 0015452107 BLIND ELEMENT
346D A 0015452207 SWITCH
PANE WASHER
346D A 0015452207 SWITCH
PANE WASHER
346D A 0015452207 SWITCH
PANE WASHER
346D A 0015452207 SWITCH
PANE WASHER
346D A 0015454307 SWITCH
PANE WASHER
348 A 3055450491 ORNAMENTAL COVER
PUSH BUTTON SWITCH
348D A 6115400066 ADAPTER FRAME
(ROCKER SWITCH)
348D A 6115400066 ADAPTER FRAME
(ROCKER SWITCH)
348H A 0025451407 SWITCH
Repalced by: A 0025457007
348H A 0025457007 SWITCH
FRONT END HEATING,STEPS 1 AND 2
348H A 0025457007 SWITCH
FRONT END HEATING,STEPS 1 AND 2
348H A 0025457007 SWITCH
UNDERSEAT HEATING,STAGES 1 AND 2
348H A 0025457007 SWITCH
FRONT END HEATING,STEPS 1 AND 2
348L A 0025453007 SWITCH
Repalced by: A 0025457407
348L A 0025457407 SWITCH
Repalced by: A 0035453807
348L A 0035453807 SWITCH
FRONT END HEATING,STEP 3
348L A 0035453807 SWITCH
FRONT END HEATING,STEP 3
348N A 0025450607 SWITCH
Repalced by: A 0025454407
348N A 0025454407 SWITCH
PANE WASHER
348N A 0025454407 SWITCH
PANE WASHER
348R A 0025451207 SWITCH
Repalced by: A 0025456907
348R A 0025456907 SWITCH
EXHAUST BRAKE,"OFF"
348R A 0025456907 SWITCH
EXHAUST BRAKE,"OFF"
348R A 0025456907 SWITCH
WINDSHIELD WIPER O F F O N
348R A 0025456907 SWITCH
EXHAUST BRAKE,"OFF"
348R A 0025456907 SWITCH
WINDSHIELD WIPER,"SLOW-FAST"
348R A 0025456907 SWITCH
EXHAUST BRAKE,"OFF"
348R A 0025456907 SWITCH
EXHAUST BRAKE DIRECT CONTROL
348R A 0025456907 SWITCH
EXHAUST BRAKE,"OFF"
348R A 0025456907 SWITCH
ELECTRICALLY HEATED DRIVER'S WINDOW
348R A 0025456907 SWITCH
HEATED OUTSIDE REARVIEW MIRROR
348R A 0025456907 SWITCH
COUNTER LIGHTING
348R A 0025456907 SWITCH
FOGLAMP
348R A 0025456907 SWITCH
EXHAUST BRAKE,"OFF"
348R A 0025456907 SWITCH
INTERIOR LIGHTING
348R A 0025456907 SWITCH
WIPER INTERMITTENT ACTION
348R A 0025456907 SWITCH
EXHAUST BRAKE,"OFF"
348R A 0025456907 SWITCH
DOOR WING I CHECKED
349 A 0035423005 TEMPERATURE GAUGE
Repalced by: A 0035426705
349 A 0035426705 TEMPERATURE GAUGE
AT INSTRUMENT PANEL
353 A 0015429502 OIL PRESSURE GAUGE
AT INSTRUMENT PANEL
354 A 3055450391 ORNAMENTAL COVER
FUEL GAUGE
354 A 3055450391 ORNAMENTAL COVER
TRANSMISSION OIL TEMPERATURE GAUGE
356 A 0015421703 FUEL GAUGE DASH UNIT
Repalced by: A 0025424203
356 A 0025424203 FUEL GAUGE DASH UNIT
AT INSTRUMENT PANEL
356 A 0025424203 FUEL GAUGE DASH UNIT
AT INSTRUMENT PANEL
356 A 0025424203 FUEL GAUGE DASH UNIT
AT INSTRUMENT PANEL
358 A 0005459115 TELL-TALE LAMP
SPRING-LOADED BRAKE
358 A 0005459115 TELL-TALE LAMP
RED
358 A 0005459115 TELL-TALE LAMP
RED
358 A 0005459115 TELL-TALE LAMP
CHARGE CONTROL
358 A 0005459115 TELL-TALE LAMP
RED
358 A 0005459115 TELL-TALE LAMP
RED
358 A 0005459115 TELL-TALE LAMP
OIL SUPPLY
358 A 0005459115 TELL-TALE LAMP
RED
358 A 0005459115 TELL-TALE LAMP
RED
358 A 0005459115 TELL-TALE LAMP
CLUTCH ACTUATION
358 A 0005459115 TELL-TALE LAMP
RED
358 A 0005459115 TELL-TALE LAMP
RED
360 A 0005459315 TELL-TALE LAMP
BLUE;BRIGHT LIGHT CONTROL
360 A 0005459315 TELL-TALE LAMP
BLUE;BRIGHT LIGHT CONTROL
360 A 0005459315 TELL-TALE LAMP
BLUE;BRIGHT LIGHT CONTROL
362 A 0015451115 TELL-TALE LAMP
LIGHT GREEN;BLINKER CONTROL
362 A 0015451115 TELL-TALE LAMP
LIGHT GREEN;BLINKER CONTROL
362 A 0015451115 TELL-TALE LAMP
LIGHT GREEN;BLINKER CONTROL
363 A 0005456214 SWITCH
FAILURE INDICATOR CONTROL
363 A 0005456214 SWITCH
FAILURE INDICATOR CONTROL
363 A 0005456214 SWITCH
FAILURE INDICATOR CONTROL
364 A 0015450615 TELL-TALE LAMP
Repalced by: A 0005451630
364 A 0005451630 SHELL
LESS LENS
A 0005452319 SOCKET
A 0005452319 SOCKET
364 A 3075420032 TELL-TALE LAMP
TELL-TALE LAMP
364 A 3075420032 TELL-TALE LAMP
LESS LENS
364 A 3075420032 TELL-TALE LAMP
LESS LENS
364 A 3075420032 TELL-TALE LAMP
BLIND ELEMENT
364 A 3075420032 TELL-TALE LAMP
LESS LENS
364 A 3075420032 TELL-TALE LAMP
LESS LENS
364D A 0025457090 LENS
FAILURE
364D A 0025457090 LENS
FAILURE
364D A 0025459290 LENS
FAILURE
364F A 0025455990 LENS
OIL SUPPLY
364F A 0025455990 LENS
OIL SUPPLY
364F A 0025458590 LENS
OIL SUPPLY
365 A 0005450190 LENS
CHARGE CONTROL
365 A 0005450190 LENS
CHARGE CONTROL
365 A 0025459790 LENS
CHARGE CONTROL
365 A 0025459790 LENS
CHARGE CONTROL
365 A 0025459790 LENS
CHARGE CONTROL
365D A 0005451190 LENS
HIGH BEAM
365D A 0005451190 LENS
HIGH BEAM
365D A 0035450190 LENS
HIGH BEAM
365D A 0035450190 LENS
HIGH BEAM
365D A 0035450190 LENS
HIGH BEAM
365F A 0005451290 LENS
BLINKER CONTROL
365F A 0005451290 LENS
BLINKER CONTROL
365F A 0035450290 LENS
BLINKER CONTROL
365F A 0035450290 LENS
BLINKER CONTROL
365F A 0035450290 LENS
BLINKER CONTROL
365H A 0025455890 LENS
STOP SIGN
365H A 0025455890 LENS
STOP SIGN
365H A 0025458390 LENS
STOP SIGN
365K A 0025456190 LENS
PARKING BRAKE
365K A 0025456190 LENS
PARKING BRAKE
365K A 0025458790 LENS
PARKING BRAKE
365K A 0025458790 LENS
PARKING BRAKE
366 A 0025457490 LENS
CLUTCH FLUID PRESSURE
366 A 0025457490 LENS
CLUTCH FLUID PRESSURE
366 A 0025459390 LENS
CLUTCH FLUID PRESSURE
366 A 0025459390 LENS
CLUTCH FLUID PRESSURE
366 A 0025459390 LENS
CLUTCH FLUID PRESSURE
366D A 0025456890 LENS
ELECTRICALLY HEATED DRIVER'S WINDOW
366D A 0025459590 LENS
ELECTRICALLY HEATED DRIVER'S WINDOW
366E A 3075450090 LENS
COVERING USED FOR LENS WITH SYMBOL
366E A 3075450090 LENS
COVERING USED FOR LENS WITH SYMBOL
366E A 3075450090 LENS
COVERING USED FOR LENS WITH SYMBOL
366F A 3075450190 BLIND ELEMENT
366F A 3075450190 BLIND ELEMENT
366F A 3075450190 BLIND ELEMENT
366F A 0009973535 PLUG
TELL-TALE LAMP
366L N 072601024801 BULB
TELL-TALE LAMP
366L A 3075440094 BULB
TELL-TALE LAMP
24V 0.1A
366L A 3075440094 BULB
TELL-TALE LAMP
24V 0.1A
366L A 3075440094 BULB
TELL-TALE LAMP
24V 0.1A
367 A 0005454213 SWITCH BOX
AT INSTRUMENT PANEL
367 A 0005454213 SWITCH BOX
AT INSTRUMENT PANEL
367 A 0005454213 SWITCH BOX
AT INSTRUMENT PANEL
367D A 3075450076 WASHER
SWITCH BOX TO INSTRUMENT PANEL
367D A 3075450076 WASHER
SWITCH BOX TO INSTRUMENT PANEL
367D A 3075450076 WASHER
SWITCH BOX TO INSTRUMENT PANEL
A 0005450676 WASHER
SWITCH BOX TO INSTRUMENT PANEL
A 0005450676 WASHER
SWITCH BOX TO INSTRUMENT PANEL
A 0005450676 WASHER
SWITCH BOX TO INSTRUMENT PANEL
367M A 0005451172 NUT
SWITCH BOX TO INSTRUMENT PANEL
367M A 0005451172 NUT
SWITCH BOX TO INSTRUMENT PANEL
367M A 0005451172 NUT
SWITCH BOX TO INSTRUMENT PANEL
370 A 0005450488 TUMBLER
TO SWITCH BOX
370 A 0005450488 TUMBLER
TO SWITCH BOX
370 A 0005450488 TUMBLER
TO SWITCH BOX
372 A 0007663506 KEY
TO SWITCH BOX
372 A 0007663506 KEY
TO SWITCH BOX
372 A 0007663506 KEY
TO SWITCH BOX
383 A 0005453013 SWITCH
(IGNITION AND LIGHT SWITH)
383 A 0005453013 SWITCH
(IGNITION AND LIGHT SWITH)
383 A 0005453013 SWITCH
(IGNITION AND LIGHT SWITH)
386 A 0005450376 WASHER
IGNITION SWITCH TO INSTRUMENT PANEL
386 A 0005450376 WASHER
IGNITION SWITCH TO INSTRUMENT PANEL
386 A 0005450376 WASHER
IGNITION SWITCH TO INSTRUMENT PANEL
389 A 0005451072 NUT
IGNITION SWITCH TO INSTRUMENT PANEL
389 A 0005451072 NUT
IGNITION SWITCH TO INSTRUMENT PANEL
389 A 0005451072 NUT
IGNITION SWITCH TO INSTRUMENT PANEL
393 A 0005451235 KEY
IGNITION AND LIGHT SWITCH
A 0005830296 RING
IGNITION AND LIGHT SWITCH
A 0005830296 RING
IGNITION AND LIGHT SWITCH
A 0005830296 RING
IGNITION AND LIGHT SWITCH
397 A 0015420008 AIR PRESSURE GAUGE
AT INSTRUMENT PANEL
398 N 072601024801 BULB
TELL-TALE LAMP
2 W
398C A 0035458890 LENS
ELECTRICALLY HEATED DRIVER'S WINDOW
398L A 0045452190 LENS
HEATED OUTSIDE REARVIEW MIRROR
398R A 0045453190 LENS
Repalced by: A 0045455790
398R A 0045455790 LENS
EXHAUST BRAKE DIRECT CONTROL
398R A 0045455790 LENS
EXHAUST BRAKE DIRECT CONTROL
398U A 0045450290 LENS
EXHAUST BRAKE,"OFF"
398U A 0045450290 LENS
EXHAUST BRAKE,"OFF"
399 A 0045452990 LENS
Repalced by: A 0055455490
A 0055455490 LENS
FOGLAMP
A 0055455490 LENS
FOGLAMP
399E A 0045453390 LENS
COUNTER LIGHTING
399N A 0045450990 LENS
INTERIOR LIGHTING
399S A 0045453490 LENS
WINDSHIELD WIPER,"SLOW-FAST"
399S A 0045453490 LENS
WINDSHIELD WIPER,"SLOW-FAST"
400 A 0045453590 LENS
WINDSHIELD WIPER O F F O N
400 A 0045453590 LENS
WINDSHIELD WIPER O F F O N
400F A 0045453690 LENS
Repalced by: A 0045455490
400F A 0045455490 LENS
WIPER INTERMITTENT ACTION
400F A 0045455490 LENS
WIPER INTERMITTENT ACTION
400N A 0045453790 LENS
PANE WASHER
400N A 0045453790 LENS
PANE WASHER
400T A 0045452690 LENS
FRONT BLOWER
401 A 0045450490 LENS
FRONT END HEATING
A 0045455690 LENS
DOOR WING I CHECKED
401L A 3575420090 BLIND CAP
(ROCKER SWITCH)
402 A 3055450022 SWITCH
SPRING-LOADED-BRAKE EMERGENCY RELEASE PRESSURE
403 A 0135456128 PLUG
Repalced by: A 0125451428
403 A 0125451428 PLUG
SWITCH LIGHTING MULTIWAY CONNECTOR
404 N 007981003260 SHEET METAL SCREW
Repalced by: N 007981003323
404 N 007981003335 SHEET METAL SCREW
Repalced by: N 007981003203
404 N 007981003203 SHEET METAL SCREW
MULTIWAY CONNECTOR
406 A 0005454426 PLUG SOCKET
Repalced by: A 0015458526
406 A 0005453526 PLUG SOCKET
Repalced by: A 0015458526
406 A 0005453926 PLUG SOCKET
Repalced by: A 0015458526
406 A 0015458526 PLUG SOCKET
AT INSTRUMENT PANEL
409 A 0065424310 TACHOGRAPH
Repalced by: A 0055424410
409 A 0055424410 TACHOGRAPH
ONE-DAY REGISTRATION; READING IN KILOMETERS; MEASURING RANGE,100KM/H
409 A 0085421910 TACHOGRAPH
ONE-DAY REGISTRATION;READING IN KILOMETERS;MEASURING RANGE,125KM/H
409 A 0095427310 TACHOGRAPH
ONE-DAY REGISTRATION;READING IN KILOMETERS;MEASURING RANGE,125KM/H
409 A 0105425110 TACHOGRAPH
Repalced by: A 0125425510
409 A 0125425510 TACHOGRAPH
ONE-DAY REGISTRATION;READING IN KILOMETERS;MEASURING RANGE,125KM/H
409 A 0105424710 TACHOGRAPH
Repalced by: A 0125429110
409 A 0125429110 TACHOGRAPH
ONE-DAY REGISTRATION;READING IN KILOMETERS;MEASURING RANGE,125KM/H
A 0005424894 DIAGRAM PAPER
SET = 100 PIECES
TO 006 542 43 10
A 0005423894 DIAGRAM PAPER
Repalced by: A 0005427594
A 0005427594 DIAGRAM PAPER
SET = 100 PIECES
TO 010 542 51 10, 012 542 55 10
A 0005423394 DIAGRAM PAPER
SET = 100 PIECES
TO 008 542 19 10,009 542 73 10
A 0005423394 DIAGRAM PAPER
SET = 100 PIECES
TO 010 542 47 10
409F A 0005420481 GROMMET
TACHOGRAFH TO INSTRUMENT PANEL
409K A 0005421347 COUPLER
410 N 072601024801 BULB
2 W
410 A 0015442694 BULB
TACHOGRAPH ADJUSTABLE
A 0005420390 BLIND CAP
LEAD SEALING
411 A 0005420285 PROTECTIVE PLATE
LEAD SEALING
411B N 007971002206 SHEET METAL SCREW
LEAD SEALING
411D A 0005450940 BRACKET
LEAD SEALING OF ELECTRICAL COMPARTMENT CONNECTION POINT
411D A 0005450940 BRACKET
STANDSTILL SWITCH LEAD SEALING
411D A 0005450940 BRACKET
LEAD SEALING OF ELECTRICAL COMPARTMENT CONNECTION POINT
411D A 0005451640 BRACKET
LEAD SEALING OF ELECTRICAL COMPARTMENT CONNECTION POINT
411D A 0005451640 BRACKET
LEAD SEALING OF ELECTRICAL COMPARTMENT CONNECTION POINT
412 A 0005425830 ANGLE DRIVE
Repalced by: A 0025422330
412 A 0025422330 ANGLE DRIVE
USED WITH REAR AXLE RATIO 28:21X3.48 AND WITH 10.00-20 TIRES
412 A 0015421930 ANGLE DRIVE
USED WITH REAR AXLE RATIO 28:21X3.48 AND WITH 10.00-20 TIRES
412 A 0025425130 ANGLE DRIVE
USED WITH REAR AXLE RATIO 28:21X3.48 AND WITH 10.00-20 TIRES
416 A 0035424907 FLEXIBLE SHAFT
5000 MM
416 A 0045421207 FLEXIBLE SHAFT
4860 MM
416 A 0035426407 FLEXIBLE SHAFT
5250 MM
416 A 0045421407 FLEXIBLE SHAFT
5100 MM
416 A 0045421507 FLEXIBLE SHAFT
416 A 0045425507 FLEXIBLE SHAFT
250 MM
419 A 0005420847 COUPLER
419 A 0005420147 COUPLER
Repalced by: A 0005423147
419 A 0005423147 COUPLER
Repalced by: A 0005421247
419 A 0005421247 COUPLER
FLEXIBLE SHAFT
419 A 0005421247 COUPLER
FLEXIBLE SHAFT
425 A 0005420746 CONNECTOR
425 A 0005420246 CONNECTOR
Repalced by: A 0005423147
425 A 0005423147 COUPLER
Repalced by: A 0005421247
425 A 0005421247 COUPLER
FLEXIBLE SHAFT
425 A 0005421247 COUPLER
FLEXIBLE SHAFT
432 A 3055460585 PROTECTIVE TUBE
Repalced by: A 3075460185
432 A 3055460685 PROTECTIVE TUBE
Repalced by: A 3055460185
432 A 3075460285 PROTECTIVE TUBE
Repalced by: A 3055460185
432 A 3055460185 PROTECTIVE TUBE
Repalced by: A 3055460385
432 A 3055460385 PROTECTIVE TUBE
FLEXIBLE SHAFT
4000 MM
436 A 3059970140 SEAL RING
FLEXIBLE SHAFT
440 A 3059950120 CLAMP
FLEXIBLE SHAFT
441C N 007985006157 SCREW
Repalced by: N 000000001145
441C N 000000001145 SCREW
CLAMP MOUNTING
441F N 000125006421 WASHER
CLAMP MOUNTING
441L N 912004006102 LOCK WASHER
CLAMP MOUNTING
441P N 000934006007 NUT
CLAMP MOUNTING
A 0019979590 LOOM TIE
Repalced by: A 0019978390
441R A 0019978390 LOOM TIE
FLEXIBLE SHAFT MOUNTING
442 N 916016035205 CLAMP
FLEXIBLE SHAFT MOUNTING
443 A 3219970081 GROMMET
Repalced by: A 3359970081
443 A 3359970081 GROMMET
FLEXIBLE SHAFT THRU FIRE WALL
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
