Transporto priemonė: O 307; VIN numerio dalis: 307051

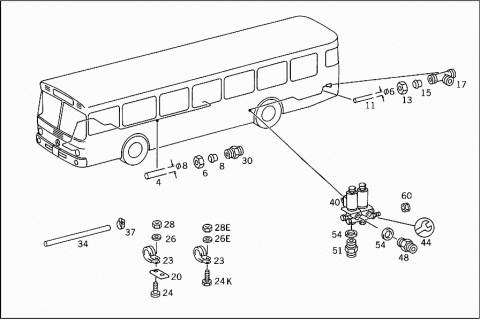

Grupė: 43 EXHAUST BRAKE

#	Kodas	Pavadinimas
004	A 0004291201	LINE
		8 MM
006	N 915017008100	UNION NUT
008	N 003861008005	GLAND
011	A 0004291101	LINE
		6 MM
013	N 915017006100	UNION NUT
015	N 003861006007	GLAND
017	A 0009903470	T-FITTING
017	A 0009903470	T-FITTING
020	A 3074290140	BRACKET
023	N 916016006208	CLAMP
		COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE
023	N 916016008200	CLAMP
		COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE
024	N 000084005134	SCREW
		COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE
	N 000084005114	SCREW
		COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE
024K	N 000933006127	SCREW
		COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE
026	N 009021005202	WASHER
	Repalced by: N 009021005205
026	N 009021005205	WASHER
		COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE
026E	N 000125005317	WASHER
	Repalced by: N 000433005304
026E	N 000433005304	WASHER
		COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE
	N 009021006205	WASHER
	Repalced by: N 009021006208
	N 009021006208	WASHER
		COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE
028	N 913004005001	NUT
		COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE
028E	N 913004006003	NUT
	Repalced by: N 910113006001
028E	N 910113006001	NUT
		COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE
030	A 0019972872	FITTING
	Repalced by: A 0039979072
030	A 0039979072	FITTING
	Repalced by: A 0029906071
030	A 0029906071	FITTING
		COMPRESSED AIR LINES TO BRACKET AT SUBSTRUCTURE
034	A 3525420035	HOSE
	Repalced by: A 3074290035
034	A 3074290035	BRAKE HOSE
034	A 3024760226	HOSE
	Repalced by: A 3578320723
034	A 3578320723	HOSE
		325 MM
034	A 3074340081	HOSE
	Repalced by: A 0004295135
034	A 0004295135	BRAKE HOSE
		40 MM
037	N 900288012001	CLAMP
040	A 0019974736	VALVE
	Repalced by: A 0019978636
040	A 0019978636	VALVE
	Repalced by: A 0039971236
040	A 0039971236	VALVE
		(SOLENOID VALVE),SECONDARY CONSUMING UNITS,EMERGENCY RELEASE DEVICE
040	A 0039971236	VALVE
		(SOLENOID VALVE),SECONDARY CONSUMING UNITS,EMERGENCY RELEASE DEVICE
	A 0004311368	VALVE PART
	Repalced by: A 0004311668
	A 0004311668	VALVE PART
	A 0004311468	VALVE PART
		TO 003 997 12 36
	N 007603006100	SEAL RING
		6X10 MM
	A 0079970248	SEAL RING
		17.3X2.4 MM
	A 0109974448	SEAL RING
		TO 003 997 12 36,003 997 13 36
	T YYYYYYYYYYYY	PART NAME MISSING
		WABCO 472 223 108 0,472 323 108 0
	A 0049970640	SEAL RING
		7X12X11.5 MM
	N 007603012405	SEAL RING
		TO 001 997 86 36,WABCO 472 201 108 0
	A 0004319287	PROTECTIVE CAP
	Repalced by: A 0014310087
	A 0014310087	PROTECTIVE CAP
		TO 001 997 86 36,003 997 12 36
044	A 0015863943	REPAIR KIT
		TO 001 997 47 36,WABCO 472 200 104 0
	T YYYYYYYYYYYY	PART NAME MISSING
		TO 001 997 86 36,WABCO 472 201 108 0
048	A 0019972572	FITTING
		SOLENOID VALVE TO BRACKET AT SUBSTRUCTURE
	A 0004305660	REPAIR KIT
		TO 003 997 12 36,WABCO 472 223 108 0
	A 0004305660	REPAIR KIT
		TO 003 997 13 36,WABCO 472 323 108 0
051	A 0019972872	FITTING
	Repalced by: A 0039979072
051	A 0039979072	FITTING
	Repalced by: A 0029906071
051	A 0029906071	FITTING
		SOLENOID VALVE TO BRACKET AT SUBSTRUCTURE
054	N 007603012405	SEAL RING
		SOLENOID VALVE TO BRACKET AT SUBSTRUCTURE
	A 0019972872	FITTING
	Repalced by: A 0039979072
	A 0039979072	FITTING
	Repalced by: A 0029906071
	A 0029906071	FITTING
060	N 913004008005	NUT
		SOLENOID VALVE TO BRACKET AT SUBSTRUCTURE
