Transporto priemonė: O 307; VIN numerio dalis: 307051
Grupė: 47 FUEL SYSTEM

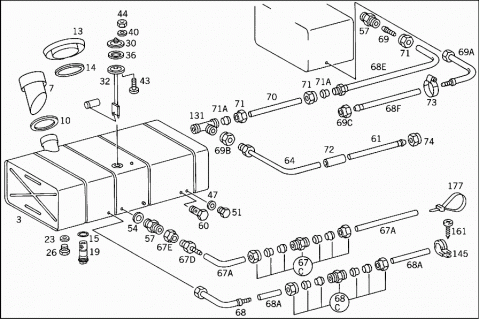

56254
56255
# Kodas Pavadinimas
003 A 3174701801 FUEL TANK
Repalced by: A 3074702801
003 A 3054700201 FUEL TANK
Repalced by: A 3074702801
003 A 3074702501 FUEL TANK
Repalced by: A 3074702801
003 A 3074702801 FUEL TANK
200 L.
003 A 3074702801 FUEL TANK
200 L.
003 A 3174700601 FUEL TANK
Repalced by: A 3074702701
003 A 3054700501 FUEL TANK
Repalced by: A 3074702701
003 A 3074702701 FUEL TANK
200 L.
003 A 3074701401 FUEL TANK
250 L
003 A 3054700301 FUEL TANK
Repalced by: A 3074703101
003 A 3054700401 FUEL TANK
Repalced by: A 3074703101
003 A 3074703101 FUEL TANK
LESS SENDER UNIT
215 L
007 A 0004714830 FILLER CAP
Repalced by: A 0004716630
007 A 3074710030 FILLER CAP
Repalced by: A 0004716630
007 A 3074710130 FILLER CAP
Repalced by: A 0004716630
007 A 0004716630 FILLER CAP
007 A 0004716630 FILLER CAP
010 A 0004710980 GASKET
010 A 0004710980 GASKET
A 0004700993 VALVE
A 0004700993 VALVE
013 A 3044700005 FILLER CAP
Repalced by: A 3094700005
013 A 3094700005 FILLER CAP
014 A 3049970340 SEAL RING
015 N 915035000010 SEAL RING
FUEL STRAINER SCREEN TO FUEL TANK
015 N 007603035300 SEAL RING
FUEL STRAINER SCREEN TO FUEL TANK
015 A 0029977245 SEAL RING
FUEL STRAINER SCREEN TO FUEL TANK
019 A 3204700006 FUEL STRAINER
Repalced by: A 3604700006
019 A 3214700006 FUEL STRAINER
Repalced by: A 3604700006
019 A 3604700006 FUEL STRAINER
Repalced by: A 3074700106
019 A 3074700106 FUEL STRAINER
023 N 007603014106 SEAL RING
026 N 007604014106 SCREW PLUG
Repalced by: N 007604014110
026 N 007604014110 SCREW PLUG
030 A 3224710032 COVER
AT TANK
032 A 0005426117 SENDER UNIT
FUEL GAUGE
032 A 0005422917 SENDER UNIT
FUEL GAUGE
036 A 3524710080 GASKET
Repalced by: A 4044710080
036 A 4044710080 GASKET
COVER TO TANK
040 A 0669970640 SEAL RING
COVER TO TANK
043 N 000084005180 SCREW
Repalced by: N 007985005175
043 N 007985005175 SCREW
COVER TO TANK
044 N 000934005008 NUT
COVER TO TANK
047 N 007603014106 SEAL RING
CONNECTION OF HEATER UNIT AND FUEL LEAK LINE
051 N 007604014106 SCREW PLUG
Repalced by: N 007604014110
051 N 007604014110 SCREW PLUG
CONNECTION OF HEATER UNIT AND FUEL LEAK LINE
054 N 007603014106 SEAL RING
FUEL LINE TO TANK
057 N 915013008002 SCREW FITTING
Repalced by: A 4039971172
057 A 4039971172 FITTING
FUEL LINE TO TANK
N 915006006003 DOUBLE FITTING
FUEL LINE TO TANK
060 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
060 N 915036010108 HOLLOW SCREW
FUEL LINE TO TANK
061 A 3404702165 LINE
WITH SEAL CONE
3000 MM
061 A 3404702165 LINE
FROM FUEL TANK TO RUBBER HOSE;FEED
3000 MM
061 A 3404702165 LINE
FROM CONNECTOR I TO CONNECTOR II
3000 MM
061 A 3404702165 LINE
FROM T-FITTING TO HOSE;RETURN
3000 MM
061 A 3404702165 LINE
FROM CONNECTOR II TO CONNECTOR III
3000 MM
061 A 3404702165 LINE
FROM HOSE TO TANK
3000 MM
061 A 3404701965 LINE
WITH SEAL CONE
1000 MM
061 A 3404701965 LINE
FROM FUEL TANK TO CONNECTOR I
1000 MM
061 A 3404701965 LINE
FROM FUEL HOSE TO FUEL FILTER
1000 MM
061 A 3404701965 LINE
FROM FUEL FILTER TO CONNECTOR
1000 MM
061 A 3404701965 LINE
FROM FITTING TO RUBBER HOSE
1000 MM
061 A 3404701965 LINE
FROM CONNECTOR TO T-FITTING
1000 MM
061 A 3404701965 LINE
T-FITTING,FUEL LEAK LINE,ENGINE
1000 MM
061 A 3404701965 LINE
FROM SCREW CONNECTION TO TANK
1000 MM
064 A 3404702865 LINE
Repalced by: A 3404702665
064 A 3404702665 LINE
WITH FITTING
064 A 3404702665 LINE
FROM HOSE BEHIND REAR AXLE TO FUEL HOSE
064 A 3404702665 LINE
FROM FUEL TANK TO CONNECTOR I
064 A 3404702665 LINE
FROM CONNECTION POINT III TO FUEL HOSE
064 A 3404702665 LINE
FROM FUEL HOSE TO FEED PUMP
064 A 3404702665 LINE
FROM FEED PUMP TO RUBBER HOSE
064 A 3404702665 LINE
FROM FUEL HOSE TO FUEL FILTER
064 A 3404702665 LINE
FROM FUEL FILTER TO RUBBER HOSE
064 A 3404702665 LINE
FROM FITTING TO RUBBER HOSE
064 A 3404702665 LINE
FROM FUEL HOSE TO INJECTION PUMP
064 A 3404702665 LINE
T-FITTING,FUEL LEAK LINE,ENGINE
064 A 3404702665 LINE
FROM SCREW CONNECTION TO TANK
064 A 3074702766 LINE
FROM FUEL TANK TO CONNECTION POINT I
064 A 3074709865 LINE
WITH FITTING
1000 MM
064 A 3074709865 LINE
FROM FUEL TANK TO CONNECTION POINT I
1000 MM
064 A 3074709865 LINE
FROM CONNECTION POINT I TO CONNECTING HOSE,FEED
1000 MM
064 A 3074709865 LINE
FROM FUEL HOSE TO FEED PUMP
1000 MM
064 A 3074709865 LINE
FROM FEED PUMP TO FUEL FILTER
1000 MM
064 A 3074709865 LINE
FROM FUEL FILTER TO INJECTION PUMP
1000 MM
064 A 3074709865 LINE
FROM PUMP OVERFLOW VALVE TO CONNECTING HOSE, RETURN
1000 MM
064 A 3074709865 LINE
FROM CONNECTING HOSE TO T-FITTING, RETURN
1000 MM
067 A 3404701265 LINE
WITH BANJO UNION
1000 MM
067 A 3404701265 LINE
FROM FUEL HOSE TO FEED PUMP
1000 MM
067 A 3404701265 LINE
FROM FEED PUMP TO RUBBER HOSE
1000 MM
067 A 3404701265 LINE
FROM FUEL FILTER TO CONNECTOR
1000 MM
067 A 3404701265 LINE
FROM FUEL HOSE TO INJECTION PUMP
1000 MM
067 A 3404701265 LINE
FROM INJECTION PUMP TO FUEL HOSE; RETURN
1000 MM
067 A 3404701265 LINE
FROM FUEL FILTER TO CONNECTION FITTING,RETURN
1000 MM
067 A 3404701465 LINE
WITH BANJO UNION
3000 MM
067 A 3404701465 LINE
FROM FUEL HOSE TO FUEL FILTER
3000 MM
067 A 3404701465 LINE
FILTER TO RUBBER HOSE
3000 MM
067 A 3404701465 LINE
FROM FUEL FILTER TO CONNECTION FITTING,RETURN
3000 MM
067 A 3404701465 LINE
FROM FUEL FILTER TO RUBBER HOSE
3000 MM
067 A 3074709765 LINE
WITH BANJO UNION
1000 MM
067 A 3074709765 LINE
FROM FUEL HOSE TO FEED PUMP
1000 MM
067 A 3074709765 LINE
FROM FEED PUMP TO FUEL FILTER
1000 MM
067 A 3074709765 LINE
FROM FUEL FILTER TO INJECTION PUMP
1000 MM
067 A 3074709765 LINE
FROM PUMP OVERFLOW VALVE TO CONNECTING HOSE, RETURN
1000 MM
067 A 3074709765 LINE
FROM CONNECTING HOSE TO T-FITTING, RETURN
1000 MM
067 A 3074709765 LINE
FROM TANK TO FRONT HOSE,FEED & RETURN
1000 MM
067A A 0019970652 HOSE
8X10 MM
067A A 0019970652 HOSE
FROM TANK TO FEED & RETURN LINE SCREWCONNECTIONS
8X10 MM
067A A 0019970652 HOSE
FROM TANK TO FRONT HOSE,FEED & RETURN
8X10 MM
067A A 0019970652 HOSE
FROM FUEL-OIL TANK TO HEATER
8X10 MM
067C A 0049971672 FITTING
(PARTS KIT),LINE RUPTURE
TO 001 997 06 52
A 0039971572 FITTING
Repalced by: N 915059008000
067D N 915059008001 FITTING
THREADED
067D A 0019974972 FITTING
WITH SEAL CONE
067D A 0019974972 FITTING
WITH SEAL CONE
067E N 915017010201 UNION NUT
068 A 3074760024 CONNECTOR
Repalced by: A 3574760024
068 A 3574760024 CONNECTOR
068A A 0089979082 HOSE
Repalced by: A 0009872727
068A A 0009872727 PLASTIC PIPE
6X8 MM
068A A 0009872727 PLASTIC PIPE
FROM FUEL-OIL TANK TO HEATER
6X8 MM
068A A 0009872727 PLASTIC PIPE
FROM FUEL-OIL TANK TO HEATER, FEED AND RETURN
6X8 MM
068A A 0009872727 PLASTIC PIPE
FROM HEATER UNIT TO FUEL-OIL TANK
6X8 MM
068C A 0039978972 FITTING
Repalced by: A 0029905971
068C A 0029905971 FITTING
(PARTS KIT),LINE RUPTURE
068E A 3404706165 LINE
FUEL PIPING CONNECTION
068F A 3404705665 LINE
FUEL PIPING CONNECTION
069 A 0019977672 FITTING
WITH SEAL CONE
069 A 0019977672 FITTING
WITH SEAL CONE
069A A 3074760124 CONNECTOR
069A A 3074760224 CONNECTOR
069B N 915017008200 UNION NUT
N 915052008018 BANJO UNION
A 0004760524 ELBOW FITTING
A 3074701765 LINE
Repalced by: A 3074709665
A 3074701965 LINE
Repalced by: A 3074709665
069C A 3074709665 LINE
FROM FUEL FILTER TO CONNECTION FITTING,RETURN
A 3404761402 LINE
Repalced by: A 0004290901
A 3404761202 LINE
Repalced by: A 0004290901
070 A 0004290901 LINE
FROM T-FITTING TO CONNECTION POINT I, RETURN
10X0.7 MM
070 A 0004293301 LINE
FEED LINE AND RETURN LINE
10X1 MM
070 A 0004293301 LINE
FROM T-FITTING TO CONNECTION POINT I, RETURN
10X1 MM
071 N 915017010100 UNION NUT
FEED LINE AND RETURN LINE
071A N 003861010009 GLAND
FEED LINE AND RETURN LINE
072 A 3124760026 HOSE
Repalced by: A 3054760126
072 A 3054760126 HOSE
TO CONNECT THE FUEL LINES
073 N 916017011000 CLAMP
Repalced by: N 916017011001
073 N 916017011001 CLAMP
Repalced by: N 000000000665
073 N 000000000665 CLAMP
TO CONNECT THE FUEL LINES
074 N 915017010201 UNION NUT
FUEL LINE
076 A 0039974582 HOSE
FUEL HOSE
077 N 003908010002 T-FITTING
INJECTION PUMP OVERFLOW LINE
N 003902010002 CONNECTION FITTING
Repalced by: A 0049971672
078 A 0049971672 FITTING
FUEL LINE LEADING TO FILTER
081 N 915006008002 DOUBLE FITTING
FOR FEED LINE
083 N 007603014106 SEAL RING
FOR FEED LINE
083 N 007603014106 SEAL RING
INJECTION PUMP OVERFLOW LINE
086 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
086 N 915036010108 HOLLOW SCREW
FOR FEED LINE
086 N 915036010108 HOLLOW SCREW
INJECTION PUMP OVERFLOW LINE
N 915013008002 SCREW FITTING
Repalced by: A 4039971172
087 A 4039971172 FITTING
FOR FEED LINE
087 N 915006006003 DOUBLE FITTING
FOR FEED LINE
088 A 0019978390 LOOM TIE
TO CONNECT THE FUEL LINES
280 MM
089 A 3244770001 FUEL FILTER
Repalced by: A 0014779801
089 A 0014779801 FUEL FILTER
093 A 0004772708 COVER
BOSCH
096 A 0004772808 COVER
Repalced by: A 0004774108
096 A 0004774108 COVER
KNECHT
098 A 0004773180 SEAL RING
TO 324 477 00 01;001 477 98 01
102 N 000931008251 SCREW
M 8X75
105 N 007603008109 SEAL RING
107 A 0000741771 SCREW
(BREATHER SCREW)
M 6
109 N 007603006106 SEAL RING
109 N 007603008109 SEAL RING
TO 001 477 98 01
112 A 0009976430 SCREW PLUG
Repalced by: N 007604018101
112 N 007604018101 SCREW PLUG
FOR BOSCH FILTER ONLY
115 N 007603018101 SEAL RING
FOR BOSCH FILTER ONLY
117 N 007604014106 SCREW PLUG
Repalced by: N 007604014110
117 N 007604014110 SCREW PLUG
LATERAL TOP
119 N 007603014106 SEAL RING
LATERAL TOP
122 A 0004773115 FILTER ELEMENT
Repalced by: A 3554700092
122 A 3554700092 FILTER ELEMENT
Repalced by: A 4220900051
122 A 4220900051 FILTER ELEMENT
Repalced by: A 0000901451
122 A 0000901451 FILTER ELEMENT
122A A 4220900007 HOUSING
TO 001 477 98 01
A 0014774801 FUEL FILTER
Repalced by: A 0010921801
123 A 0010921801 FILTER
KNECHT
A 0014774901 FUEL FILTER
Repalced by: A 0010921901
123 A 0010921901 FILTER
HENGST
A 0004773308 COVER
Repalced by: A 0004773708
A 0004773708 COVER
Repalced by: A 0000922808
123A A 0000922808 FILTER HEAD
TO 001 477 48 01,001 092 18 01
123A A 0004773408 COVER
TO 001 477 49 01
A 0000923708 FILTER HEAD
TO 001 092 19 01
123C N 000931008251 SCREW
COVER TO HOUSING
TO 001 477 48 01,001 092 18 01,M 8X75
123C N 000931008251 SCREW
COVER TO HOUSING
TO 001 092 19 01
123C N 000931008207 SCREW
Repalced by: N 304014008007
123C N 304014008007 SCREW
COVER TO HOUSING
TO 001 477 49 01/M 8X90
123D N 007603008109 SEAL RING
COVER TO HOUSING
123F A 0004770605 HOUSING
TO 001 092 18 01,001 477 48 01
124 A 1009970040 SEAL RING
Repalced by: A 0004773580
124 A 0004773580 SEAL RING
COVER TO HOUSING
124A A 0000745171 SCREW
Repalced by: A 4420740071
124A A 4420740071 SCREW
BREATHER
TO 001 477 48 01,001 092 18 01, M 8
124A A 0000741771 SCREW
BREATHER
TO 001 477 48 01, M6
124A A 0004773072 SCREW
BREATHER
TO 001 477 49 01,M6
124C N 007603006108 SEAL RING
BREATHER
TO 001 477 48 01
124C N 007603008109 SEAL RING
BREATHER
TO 001 477 48 01,001 092 18 01
124C N 007603008109 SEAL RING
BREATHER
TO 001 092 19 01
124C N 007603006101 SEAL RING
BREATHER
TO 001 477 49 01
125 N 007603014106 SEAL RING
LATERAL TOP
TO 001 477 48 01,001 092 18 01
125A N 007604014106 SCREW PLUG
Repalced by: N 007604014110
125A N 007604014110 SCREW PLUG
TO 001 477 48 01,001 092 18 01
125A N 000906014000 SCREW PLUG
TO 001 477 49 01
A 0004773815 FILTER ELEMENT
Repalced by: A 3524700092
125C A 3524700092 FILTER ELEMENT
Repalced by: A 0000901151
125C A 0000901151 FILTER ELEMENT
125E N 912004012100 LOCK WASHER
FUEL FILTER TO SUBSTRUCTURE
125F N 000933012077 SCREW
FUEL FILTER TO SUBSTRUCTURE
M 12X35
126 A 0039974482 HOSE
FUEL LINES
127 N 007603014106 SEAL RING
FUEL HOSE TO FUEL PUMP
128 N 007604014106 SCREW PLUG
Repalced by: N 007604014110
128 N 007604014110 SCREW PLUG
FUEL HOSE TO FUEL PUMP
129 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
129 N 915036010108 HOLLOW SCREW
FUEL HOSE TO FUEL PUMP
129A N 007603014106 SEAL RING
RETURN LINE
130 A 3179950832 CLAMP
FUEL LINE
130A A 3125251089 BASE
Repalced by: A 3142030084
A 3142030084 SHIM
FUEL LINE
130C N 913004006003 NUT
Repalced by: N 910113006001
130C N 910113006001 NUT
FUEL LINE
130D N 000933006127 SCREW
FUEL LINE
M 6X25
131 N 003908010002 T-FITTING
RETURN LINE
131 N 003908010002 T-FITTING
RETURN LINE
133 N 007603014106 SEAL RING
RETURN LINE TO FUEL FILTER
134 A 3529970772 HOLLOW SCREW
Repalced by: A 6159900263
134 A 6159900263 HOLLOW SCREW
RETURN LINE TO FUEL FILTER
145 N 916016010201 CLAMP
Repalced by: N 916016010211
145 N 916016010211 CLAMP
Repalced by: N 000000001045
145 N 000000001045 CLAMP
FEED LINE AND RETURN LINE
150 A 3129950232 CLAMP
Repalced by: A 4429955032
150 A 4429955032 CLAMP
FEED LINE AND RETURN LINE
156 N 000933006127 SCREW
FEED LINE AND RETURN LINE
M 6X25
156 N 000933006183 SCREW
Repalced by: N 304017006016
156 N 304017006016 SCREW
FEED LINE AND RETURN LINE
M 6X16
161 N 007981004233 SHEET METAL SCREW
Repalced by: N 000000000460
161 N 000000000460 SHEET METAL SCREW
FEED LINE AND RETURN LINE
167 N 009021006205 WASHER
Repalced by: N 009021006208
167 N 009021006208 WASHER
FEED LINE AND RETURN LINE
171 N 913004006002 NUT
Repalced by: N 913004006001
171 N 913004006001 NUT
FEED LINE AND RETURN LINE
177 A 0019978390 LOOM TIE
FUEL LINES
280 MM
177 A 0019978490 LOOM TIE
FUEL LINES
376 MM
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
