Transporto priemonė: O 307; VIN numerio dalis: 307051

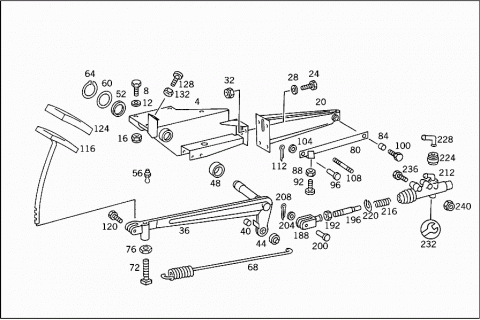

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 3072900519 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 008 | N 000933010105 | SCREW |
| PEDAL BEARING BRACKET TO SUBSTRUCTURE | ||
| 012 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 012 | N 000125010532 | WASHER |
| PEDAL BEARING BRACKET TO SUBSTRUCTURE | ||
| 016 | N 913004010011 | NUT |
| PEDAL BEARING BRACKET TO SUBSTRUCTURE | ||
| 020 | A 3072900333 | BRACKET |
| Repalced by: A 3072900533 | ||
| 020 | A 3072900533 | BRACKET |
| PEDAL ASSEMBLY | ||
| 024 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 024 | N 304017008034 | SCREW |
| BRACKET TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 028 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 028 | N 000125008443 | WASHER |
| BRACKET TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 032 | N 913004008005 | NUT |
| BRACKET TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 036 | A 3072900216 | PEDAL |
| Repalced by: A 3072900416 | ||
| 036 | A 3072900416 | PEDAL |
| CLUTCH | ||
| 040 | A 3072910250 | BUSHING |
| 044 | A 0009817031 | JOINT BEARING |
| 048 | A 0049814310 | NEEDLE BEARING |
| Repalced by: A 0059813110 | ||
| 048 | A 0059813110 | NEEDLE BEARING |
| PEDAL BEARING | ||
| 052 | A 0119972746 | SEAL RING |
| PEDAL BEARING | ||
| 056 | N 071412010100 | GREASE NIPPLE |
| PEDAL BEARING | ||
| 060 | A 3079900040 | WASHER |
| PEDAL TO BEARING BRACKET | ||
| 064 | N 000471025002 | LOCK RING |
| PEDAL TO BEARING BRACKET | ||
| 068 | A 3079930210 | SPRING |
| CLUTCH PEDAL RELEASE SPRING | ||
| 072 | A 3049900022 | SCREW |
| SPRING TO CLUTCH PEDAL | ||
| 076 | N 080705018002 | NUT |
| SPRING TO CLUTCH PEDAL | ||
| 080 | A 3072901643 | CONNECTOR |
| Repalced by: A 3072901843 | ||
| 080 | A 3072901843 | CONNECTOR |
| BRACKET TO PEDAL BEARING BRACKET | ||
| 084 | A 3072910250 | BUSHING |
| 088 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 088 | N 304035008001 | NUT |
| 092 | A 3012910241 | STOP |
| 096 | A 0009913207 | PIN |
| CONNECTOR TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 100 | A 3079900114 | SCREW |
| CONNECTOR TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 104 | N 000125013008 | WASHER |
| 108 | N 000939010064 | STUD BOLT |
| CONNECTOR TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 112 | N 000094004051 | COTTER PIN |
| CONNECTOR TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 112 | N 000094002077 | COTTER PIN |
| CONNECTOR TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 116 | A 3072900524 | PEDAL PLATE |
| CLUTCH | ||
| 120 | N 000933010105 | SCREW |
| PEDAL PLATE TO PEDAL | ||
| 124 | A 3052910182 | PAD |
| PEDAL PLATE | ||
| 128 | A 3012910241 | STOP |
| CLUTCH PEDAL | ||
| 132 | N 000934008010 | NUT |
| STOP TO BEARING BRACKET | ||

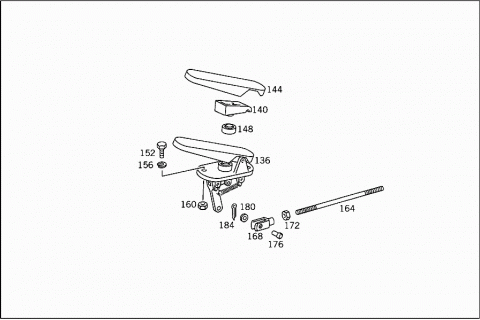

| 136 | A 0002920001 | PEDAL |
| BRAKE | ||
| 140 | A 0002920049 | BEARING |
| BRAKE PEDAL | ||
| 144 | A 0002920082 | PAD |
| BRAKE PEDAL | ||
| 148 | A 0002920097 | BOOT |
| BRAKE PEDAL | ||
| A 0002920050 | BUSHING | |
| BRAKE PEDAL | ||
| A 0002920087 | SPRING | |
| BRAKE PEDAL | ||
| 152 | N 000933008160 | SCREW |
| Repalced by: N 304017008040 | ||
| 152 | N 304017008040 | SCREW |
| Repalced by: N 910105008010 | ||
| 152 | N 910105008010 | SCREW |
| Repalced by: N 910143008005 | ||
| 152 | N 910143008005 | SCREW |
| BRAKE PEDAL TO SUBSTRUCTURE | ||
| 156 | N 912004008102 | LOCK WASHER |
| BRAKE PEDAL TO SUBSTRUCTURE | ||
| 160 | N 000934008010 | NUT |
| BRAKE PEDAL TO SUBSTRUCTURE | ||
| 164 | N 900331012328 | PULL ROD |
| FROM BRAKE PEDAL TO BRAKE VALVE | ||
| 168 | N 071752012005 | YOKE |
| FROM BRAKE PEDAL TO BRAKE VALVE | ||
| 172 | N 000934012021 | NUT |
| FROM BRAKE PEDAL TO BRAKE VALVE | ||
| 176 | A 0009912307 | PIN |
| PULL ROD TO BRAKE PEDAL AND TO BRAKE VALVE | ||
| 180 | N 000433013005 | WASHER |
| Repalced by: N 000433013010 | ||
| 180 | N 000433013010 | WASHER |
| PULL ROD TO BRAKE PEDAL AND TO BRAKE VALVE | ||
| 184 | N 000094004065 | COTTER PIN |
| PULL ROD TO BRAKE PEDAL AND TO BRAKE VALVE | ||
| A 3072900039 | ROD | |
| 188 | A 0009961801 | YOKE |
| Repalced by: A 3079960201 | ||
| 188 | A 3079960201 | YOKE |
| MASTER CYLINDER | ||
| 192 | N 900071010202 | NUT |
| YOKE TO ROD | ||
| 196 | A 3072950033 | ROD |
| FROM CLUTCH PEDAL TO MASTER CYLINDER | ||
| 200 | A 0009913207 | PIN |
| PISTON ROD TO LEVER | ||
| 200 | A 3012910174 | PIN |
| PISTON ROD TO LEVER | ||
| 204 | N 000125013008 | WASHER |
| 204 | A 3019900740 | WASHER |
| PISTON ROD TO LEVER | ||
| 208 | N 000094004051 | COTTER PIN |
| PISTON ROD TO LEVER | ||
| 208 | N 000094003226 | COTTER PIN |
| PISTON ROD TO LEVER | ||
| 212 | A 0002958206 | MASTER CYLINDER |
| CLUTCH | ||
| 216 | A 0049936001 | SPRING |
| A 0019979040 | SEAL RING | |
| 220 | N 000472024000 | LOCK RING |
| A 0002953283 | BOOT | |
| 224 | A 0009974235 | PLUG |
| Repalced by: A 0009971186 | ||
| 224 | A 0009971186 | PLUG |
| 228 | A 0002950436 | INTERMEDIATE PIECE |
| Repalced by: A 0002950036 | ||
| A 0002950036 | INTERMEDIATE PIECE | |
| 232 | A 0005863529 | REPAIR KIT |
| Repalced by: A 0002903412 | ||
| 232 | A 0002903412 | REPAIR KIT |
| CLUTCH MASTER CYLINDER | ||
| 236 | N 000931006134 | SCREW |
| CLUTCH MASTER CYLINDER TO PEDAL BEARING BRACKET | ||
| 240 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 240 | N 910113006001 | NUT |
| CLUTCH MASTER CYLINDER TO PEDAL BEARING BRACKET | ||
| 244 | A 3079970172 | FITTING |
| CLUTCH MASTER AND SLAVE CYLINDERS | ||
| 248 | A 0009906070 | T-FITTING |
| LINE CONNECTIONS | ||

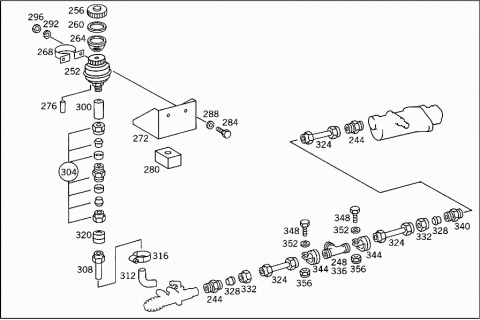

| 252 | A 0004314702 | RESERVOIR |
| LESS WARNING DEVICE | ||
| ATE | ||
| 252 | A 0014312902 | RESERVOIR |
| LESS WARNING DEVICE | ||
| FAG | ||
| 256 | A 0004313133 | FILLER CAP |
| Repalced by: A 0004315133 | ||
| 256 | A 0004314333 | FILLER CAP |
| Repalced by: A 0004315133 | ||
| 256 | A 0004315133 | FILLER CAP |
| Repalced by: A 0004315433 | ||
| 256 | A 0002950237 | SCREW PLUG |
| Repalced by: A 0004315433 | ||
| 256 | A 0004315433 | FILLER CAP |
| BUTTRESS THREAD | ||
| 260 | A 0009972940 | SEAL RING |
| 43.7X30 MM | ||
| 260 | A 0039976440 | SEAL RING |
| 42X21.5 MM | ||
| 264 | A 0004310034 | STRAINER |
| Repalced by: A 0004313734 | ||
| 264 | A 0004313734 | STRAINER |
| Repalced by: A 0004314334 | ||
| A 0004314334 | STRAINER | |
| RESERVOIR | ||
| 268 | A 0004311040 | CLAMP |
| RESERVOIR | ||
| 272 | A 3052900192 | COVER PLATE |
| 276 | A 0079974282 | HOSE |
| Repalced by: A 0009978952 | ||
| 276 | A 0009978952 | HOSE |
| RESERVOIR DE-AERATION | ||
| 280 | A 3078320198 | SEAL |
| 284 | N 007985006157 | SCREW |
| Repalced by: N 000000001145 | ||
| 284 | N 000000001145 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| 288 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 288 | N 009021006208 | WASHER |
| RESERVOIR AND COVER PLATE TO BRACKET | ||
| 292 | N 912004006102 | LOCK WASHER |
| RESERVOIR AND COVER PLATE TO BRACKET | ||
| 296 | N 000934006007 | NUT |
| RESERVOIR AND COVER PLATE TO BRACKET | ||
| 300 | A 0109976582 | HOSE |
| Repalced by: A 0109975982 | ||
| 300 | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 300 | A 0009872827 | PLASTIC PIPE |
| FROM RESERVOIR TO MASTER CYLINDER | ||
| 304 | A 0049971772 | FITTING |
| Repalced by: A 0029906171 | ||
| 304 | A 0029906171 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 308 | A 3072950013 | PIPE |
| Repalced by: A 0004290801 | ||
| 308 | A 3012952113 | PIPE |
| Repalced by: A 0004290801 | ||
| 308 | A 0004290801 | LINE |
| FROM RESERVOIR TO MASTER CYLINDER | ||
| 8X0.7 MM | ||
| 312 | A 3059970382 | HOSE |
| Repalced by: A 3109970382 | ||
| 312 | A 3099971682 | HOSE |
| Repalced by: A 3109970382 | ||
| 312 | A 3109970382 | HOSE |
| Repalced by: A 6039970482 | ||
| 312 | A 6039970482 | HOSE |
| LINES FROM MASTER CYLINDER TO RESERVOIR | ||
| 7.3X11.8 MM | ||
| 316 | N 900288014002 | CLAMP |
| HOSE TO DRIP PAN | ||
| 320 | A 3029970381 | GROMMET |
| SEAL IN DRIP PAN | ||
| 320 | A 3029970381 | GROMMET |
| SEAL IN DRIP PAN | ||
| 324 | A 0004290801 | LINE |
| FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER | ||
| 8X07 MM | ||
| 328 | N 003861008005 | GLAND |
| LINE CONNECTIONS | ||
| 332 | N 915017008100 | UNION NUT |
| LINE CONNECTIONS | ||
| 336 | A 0009906070 | T-FITTING |
| CONNECTOR I | ||
| 340 | A 0019972672 | FITTING |
| Repalced by: A 0039978972 | ||
| 340 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 340 | A 0029905971 | FITTING |
| CONNECTORS II,III,IV | ||
| 344 | N 916016008200 | CLAMP |
| PEDAL BEARING | ||
| 348 | N 000084005134 | SCREW |
| PEDAL BEARING | ||
| 352 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 352 | N 009021005205 | WASHER |
| PEDAL BEARING | ||
| 356 | N 913004005001 | NUT |
| PEDAL BEARING | ||
