Transporto priemonė: O 307; VIN numerio dalis: 307051
Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|

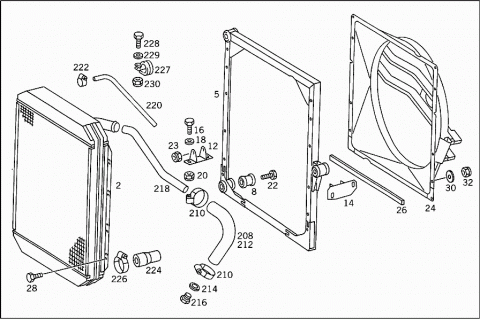

| 002 | A 3075010001 | RADIATOR |
| Repalced by: A 3055010601 | ||
| 002 | A 3055010601 | RADIATOR |
| 002 | A 3075010101 | RADIATOR |
| Repalced by: A 3075010801 | ||
| 002 | A 3075010801 | RADIATOR |
| 005 | A 3055000827 | SUPPORT |
| RADIATOR | ||
| A 3028880224 | MOUNTING | |
| Repalced by: A 0009884211 | ||
| A 3028880026 | SLEEVE | |
| Repalced by: A 0009884211 | ||
| 008 | A 0009884211 | BUFFER |
| RUBBER BUFFER TO BASE FRAME | ||
| 012 | A 3015000032 | STAY |
| RADIATOR BASE FRAME TO BEARING BRACKET | ||
| 014 | A 3075000032 | STAY |
| RADIATOR BASE FRAME TO BEARING BRACKET | ||
| 016 | N 000933010105 | SCREW |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| 018 | A 1169901140 | WASHER |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| 020 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 020 | N 910113010000 | NUT |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| 022 | N 000960012230 | SCREW |
| RADIATOR BASE FRAME TO BEARING BRACKET | ||
| 023 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 023 | N 910113012003 | NUT |
| RADIATOR BASE FRAME TO BEARING BRACKET | ||
| 024 | A 3055000427 | SUPPORT |
| FAN | ||
| 024 | A 3055001027 | SUPPORT |
| FAN | ||
| 026 | A 3059870014 | RUBBER STRIP |
| 028 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 028 | N 304017008021 | SCREW |
| RADIATOR BLOCK TO FRAME | ||
| 030 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 030 | N 000125008443 | WASHER |
| RADIATOR BLOCK TO FRAME | ||
| 032 | N 913004008004 | NUT |
| RADIATOR BLOCK TO FRAME | ||

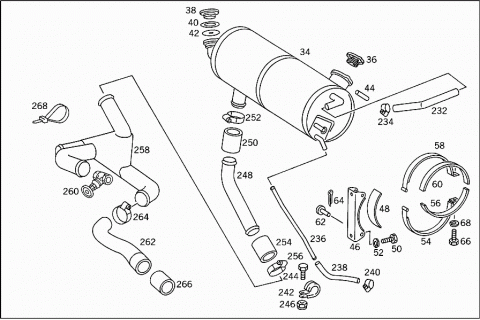

| 034 | A 3075000849 | TANK |
| EXPANSION TANK | ||
| 034 | A 3075001649 | TANK |
| EXPANSION TANK | ||
| 034 | A 3055000449 | TANK |
| Repalced by: A 3075000349 | ||
| 034 | A 3075000349 | TANK |
| EXPANSION TANK | ||
| 034 | A 3055000249 | TANK |
| Repalced by: A 3075000249 | ||
| 034 | A 3075000249 | TANK |
| EXPANSION TANK | ||
| 036 | A 0005012915 | RADIATOR CAP |
| TOP | ||
| 036 | A 0005013515 | RADIATOR CAP |
| TOP | ||
| 036 | A 0005013515 | RADIATOR CAP |
| TOP | ||
| 038 | A 0005013015 | RADIATOR CAP |
| LATERAL | ||
| 038 | A 0005014115 | RADIATOR CAP |
| LATERAL | ||
| 038 | A 0005013415 | RADIATOR CAP |
| LATERAL | ||
| 040 | A 0005010180 | GASKET |
| Repalced by: A 4045010060 | ||
| 040 | A 0005010180 | GASKET |
| TO 000 501 30 15 | ||
| 040 | A 0005010480 | GASKET |
| O.D., | ||
| 52 MM,TO 000 501 34 15 | ||
| 042 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM,TO 000 501 29 15,34 15 - 41 15 | ||
| 044 | A 0005010010 | DRAIN PIPE |
| 046 | A 3055000046 | CLAMP |
| EXPANSION TANK TO SUPPORT | ||
| 048 | A 3059870114 | RUBBER STRIP |
| Repalced by: A 3029870814 | ||
| 048 | A 3029870814 | RUBBER STRIP |
| 050 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 050 | N 304017008016 | SCREW |
| CLAMP TO SUBSTRUCTURE | ||
| 052 | N 912004008102 | LOCK WASHER |
| CLAMP TO SUBSTRUCTURE | ||
| 054 | A 3055000031 | BRACKET |
| RESERVOIR TO SUBSTRUCTURE | ||
| 056 | A 3059870214 | RUBBER STRIP |
| Repalced by: A 3029870814 | ||
| 056 | A 3029870814 | RUBBER STRIP |
| 058 | A 3055000131 | BRACKET |
| EXPANSION TANK | ||
| 060 | A 3059870314 | RUBBER STRIP |
| Repalced by: A 3029870814 | ||
| 060 | A 3029870814 | RUBBER STRIP |
| 062 | N 001434006085 | PIN |
| BRACKET TO STRAP | ||
| 064 | N 000094001605 | COTTER PIN |
| BRACKET TO STRAP | ||
| 066 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 066 | N 304017008021 | SCREW |
| EXPANSION TANK | ||
| 068 | N 912004008102 | LOCK WASHER |
| EXPANSION TANK | ||

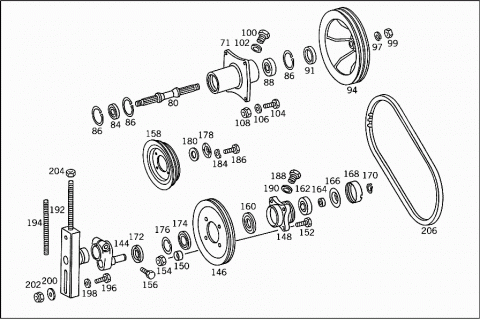

| 071 | A 3022050005 | BEARING BODY |
| FAN | ||
| 071 | A 3012050005 | BEARING BODY |
| FAN | ||
| 080 | A 3022050302 | FAN SHAFT |
| 080 | A 3012050002 | FAN SHAFT |
| 084 | N 000628003304 | ANG. CONTACT BALL BEARING |
| FAN DRIVE | ||
| 084 | N 005412600304 | CYLINDR. ROLLER BEARING |
| FAN DRIVE | ||
| 084 | A 0059819701 | CYLINDR. ROLLER BEARING |
| FAN DRIVE | ||
| 086 | N 000472052000 | LOCK RING |
| FAN DRIVE | ||
| 088 | N 000625026304 | GROOVED BALL BEARING |
| FAN DRIVE | ||
| 091 | A 0019978447 | SEAL RING |
| FAN DRIVE | ||
| 094 | A 3052050110 | PULLEY |
| FAN DRIVE | ||
| 094 | A 3052050710 | PULLEY |
| FAN DRIVE | ||
| 097 | N 912004016101 | LOCK WASHER |
| FAN DRIVE | ||
| 099 | N 000439016203 | NUT |
| FAN DRIVE | ||
| 100 | N 007604010102 | SCREW PLUG |
| FAN DRIVE | ||
| 102 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 102 | N 007603010110 | SEAL RING |
| FAN DRIVE | ||
| 104 | N 000931008248 | SCREW |
| Repalced by: N 304017008053 | ||
| 104 | N 304017008053 | SCREW |
| FAN DRIVE | ||
| 106 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 106 | N 000125008443 | WASHER |
| FAN DRIVE | ||
| 108 | N 913004008004 | NUT |
| FAN DRIVE | ||

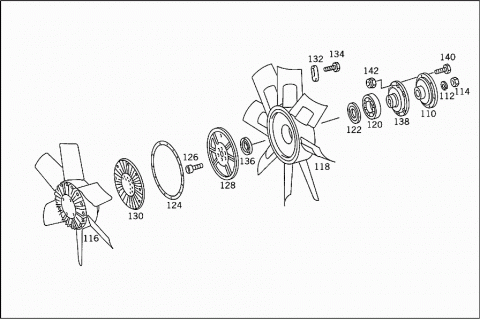

| 110 | A 3222050204 | HUB |
| FAN | ||
| 112 | N 912004016101 | LOCK WASHER |
| FAN TO HUB | ||
| 114 | N 000439016203 | NUT |
| FAN TO HUB | ||
| 116 | A 3052050006 | FAN |
| Repalced by: A 3072050006 | ||
| 116 | A 3072050006 | FAN |
| 118 | A 0012050306 | FAN |
| 120 | A 0039812925 | BALL BEARING |
| 122 | A 0002060151 | SPACER RING |
| 124 | A 0002060180 | GASKET |
| Repalced by: A 0002060680 | ||
| 124 | A 0002060680 | GASKET |
| 126 | N 000912006040 | SCREW |
| 128 | A 0002060328 | PRIMARY CUP |
| 130 | A 0002061103 | COVER |
| 132 | A 0002060118 | GUIDE |
| 134 | A 0002060071 | SCREW |
| 136 | A 0039979440 | SEAL RING |
| 138 | A 0002060245 | FLANGE |
| A 0005831635 | RECEPTACLE | |
| Repalced by: A 0005831835 | ||
| A 0005831835 | RECEPTACLE | |
| 140 | N 000933008177 | SCREW |
| Repalced by: N 304017008024 | ||
| 140 | N 304017008024 | SCREW |
| FAN TO HUB | ||
| 142 | N 913004008004 | NUT |
| FAN TO HUB | ||
| 144 | A 3022000373 | LEVER |
| CLAMPING LEVER TO FAN SPINDLE | ||
| 144 | A 3072000173 | LEVER |
| Repalced by: A 3072000573 | ||
| 144 | A 3072000573 | LEVER |
| CLAMPING LEVER TO FAN SPINDLE | ||
| 146 | A 3012060210 | PULLEY |
| 188 MM | ||
| 146 | A 3072050210 | PULLEY |
| 159 MM | ||
| 146 | A 3072060110 | PULLEY |
| 204 MM | ||
| 148 | A 3012060113 | HUB |
| 150 | A 3072060051 | SPACER RING |
| 152 | N 000931008047 | SCREW |
| Repalced by: N 304017008018 | ||
| 152 | N 304017008018 | SCREW |
| PULLEY TO HUB | ||
| 152 | N 000931008266 | SCREW |
| PULLEY TO HUB | ||
| 154 | N 913004008004 | NUT |
| PULLEY TO HUB | ||
| 156 | N 000960012189 | SCREW |
| Repalced by: N 308676012031 | ||
| 156 | N 308676012031 | SCREW |
| Repalced by: N 308676012011 | ||
| 156 | N 308676012011 | SCREW |
| CLAMPING LEVER ON SUPPORT | ||
| 158 | A 3052060019 | TIGHTENER PULLEY |
| 160 | A 3022050552 | SPACER WASHER |
| 0.2 MM | ||
| 160 | A 3022050652 | SPACER WASHER |
| 0.5 MM | ||
| 160 | A 3022050752 | SPACER WASHER |
| 1.0 MM | ||
| 162 | N 000625026304 | GROOVED BALL BEARING |
| 164 | A 3022060153 | SPACER TUBE |
| TIGHTENER PULLEY | ||
| 164 | A 3012060053 | SPACER TUBE |
| TIGHTENER PULLEY | ||
| 166 | A 3012060157 | EXPANSION PLUG |
| 168 | A 3012060072 | NUT |
| CLAMPING LEVER | ||
| 170 | N 000472052000 | LOCK RING |
| CLAMPING LEVER | ||
| 172 | N 003760025300 | RADIAL SEAL RING |
| CLAMPING LEVER | ||
| 174 | A 0019978547 | SEAL RING |
| CLAMPING LEVER | ||
| 174 | A 0119975447 | SEAL RING |
| CLAMPING LEVER | ||
| 174 | N 915035000012 | SEAL RING |
| CLAMPING LEVER | ||
| 176 | N 000471020001 | LOCK RING |
| CLAMPING LEVER | ||
| 178 | A 3022060157 | EXPANSION PLUG |
| PULLEY TO HUB | ||
| 180 | A 3022060179 | GASKET |
| PULLEY TO HUB | ||
| 184 | N 912004006102 | LOCK WASHER |
| PULLEY TO HUB | ||
| 186 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 186 | N 304017006034 | SCREW |
| PULLEY TO HUB | ||
| 188 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 188 | N 007603010110 | SEAL RING |
| 190 | N 007604010102 | SCREW PLUG |
| 192 | A 3212000039 | SUPPORT |
| CLAMPING LEVER | ||
| 192 | A 3052000439 | SUPPORT |
| CLAMPING LEVER | ||
| 194 | A 3219900005 | STUD |
| 194 | A 3019900005 | STUD |
| 196 | N 000931010264 | SCREW |
| SUPPORT TO FAN SUPPORT | ||
| 198 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 198 | N 000125010532 | WASHER |
| SUPPORT TO FAN SUPPORT | ||
| 200 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 200 | N 009021010209 | WASHER |
| SUPPORT TO FAN SUPPORT | ||
| 202 | N 913002010001 | NUT |
| SUPPORT TO FAN SUPPORT | ||
| 204 | N 000934012022 | NUT |
| SUPPORT TO FAN SUPPORT | ||
| 206 | N 007753012529 | NARROW V-BELT |
| Repalced by: A 0039970492 | ||
| 206 | A 0039970492 | V-BELT |
| FROM VIBRATION DAMPER TO TIGHTENER PULLEY | ||
| 12.5X1700 MM | ||
| 206 | N 007753012573 | NARROW V-BELT |
| FROM VIBRATION DAMPER TO TIGHTENER PULLEY | ||
| 12.5X1725 MM | ||
| 206 | A 0049972792 | V-BELT |
| Repalced by: A 0079976192 | ||
| 206 | A 0079976192 | V-BELT |
| Repalced by: A 0059973692 | ||
| 206 | A 0059973692 | V-BELT |
| LOW TENSIBILITY | ||
| 12.5X1800 MM | ||
| 206 | A 0059973692 | V-BELT |
| FROM VIBRATION DAMPER TO TIGHTENER PULLEY | ||
| 12.5X1800 MM | ||
| 206 | A 0049973092 | V-BELT |
| Repalced by: A 0079975792 | ||
| 206 | A 0079975792 | V-BELT |
| Repalced by: A 0059973192 | ||
| 206 | A 0059973192 | V-BELT |
| LOW TENSIBILITY | ||
| 12.5X1718 MM | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FROM VIBRATION DAMPER TO TIGHTENER PULLEY | ||
| 206 | A 0079975592 | V-BELT |
| Repalced by: A 0059972992 | ||
| 206 | A 0059972992 | V-BELT |
| Repalced by: A 0059973092 | ||
| 206 | A 0059973092 | V-BELT |
| LOW TENSIBILITY | ||
| 12.5X1693 MM | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FROM VIBRATION DAMPER TO TIGHTENER PULLEY | ||
| 206 | A 0019972692 | V-BELT |
| Repalced by: A 0039975092 | ||
| 206 | A 0039975092 | V-BELT |
| TOOTHED;LOW TENSIBILITY | ||
| 12.5X1000 MM | ||
| 206 | A 0039975092 | V-BELT |
| FROM TIGHTENER PULLEY TO FAN PULLEY | ||
| 12.5X1000 MM | ||
| 206 | A 0019979492 | V-BELT |
| Repalced by: A 0079974992 | ||
| 206 | A 0079974992 | V-BELT |
| Repalced by: A 0059971392 | ||
| 206 | A 0059971392 | V-BELT |
| TOOTHED;LOW TENSIBILITY | ||
| 12.5X1100 MM | ||
| 206 | A 0059971392 | V-BELT |
| FROM TIGHTENER PULLEY TO FAN PULLEY | ||
| 12.5X1100 MM | ||
| 206 | A 0039970492 | V-BELT |
| TOOTHED;LOW TENSIBILITY | ||
| 206 | A 0039970192 | V-BELT |
| Repalced by: A 0099976892 | ||
| 206 | A 0059973292 | V-BELT |
| TOOTHED;LOW TENSIBILITY | ||
| 12.5X1718 MM | ||
| 206 | A 0059973092 | V-BELT |
| TOOTHED;SET = 2 PIECES | ||
| 12.5X1693 MM | ||
| 206 | A 0059971492 | V-BELT |
| TOOTHED;LOW TENSIBILITY | ||
| 12.5X1100 MM | ||
| 206 | A 0079977992 | V-BELT |
| TOOTHED;SET = 2 PIECES | ||
| 206 | A 0069972192 | V-BELT |
| TOOTHED;LOW TENSIBILITY | ||
| 208 | A 3055011182 | HOSE |
| FROM THERMOSTAT TO RADIATOR | ||
| 210 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 210 | N 000000000671 | CLAMP |
| THERMOSTAT | ||
| 212 | A 3075000772 | LINE |
| FROM THERMOSTAT TO RADIATOR | ||
| 212 | A 3075000772 | LINE |
| FROM THERMOSTAT TO RADIATOR | ||
| 214 | N 007603012308 | SEAL RING |
| Repalced by: N 007603012111 | ||
| 214 | N 007603012111 | SEAL RING |
| 216 | N 007604012101 | SCREW PLUG |
| 218 | A 3075010124 | COOLING WATER PIPE |
| FROM THERMOSTAT TO RADIATOR | ||
| 218 | A 3075017524 | COOLING WATER PIPE |
| FROM THERMOSTAT TO RADIATOR | ||
| 218 | A 3075010024 | COOLING WATER PIPE |
| FROM THERMOSTAT TO RADIATOR | ||
| 220 | N 900271012018 | HOSE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 12X21 | ||
| 222 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 222 | N 000000000666 | CLAMP |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 224 | A 3025012082 | HOSE |
| Repalced by: A 3055011082 | ||
| 224 | A 3055011082 | HOSE |
| COOLING WATER LINE | ||
| 226 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 226 | N 000000000671 | CLAMP |
| COOLING WATER LINE | ||
| 226 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 226 | N 000000000672 | CLAMP |
| COOLING WATER LINE | ||
| 226 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 226 | N 000000000671 | CLAMP |
| DE-AERATION | ||
| 227 | N 916016050201 | CLAMP |
| COOLING WATER LINE | ||
| 227 | N 916016048200 | CLAMP |
| COOLING WATER LINE | ||
| 228 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 228 | N 304017008021 | SCREW |
| COOLING WATER LINE | ||
| 228 | N 000933006127 | SCREW |
| COOLING WATER LINE | ||
| 229 | N 000125006421 | WASHER |
| COOLING WATER LINE | ||
| 230 | N 913004008004 | NUT |
| COOLING WATER LINE | ||
| 230 | N 913001006003 | NUT |
| COOLING WATER LINE | ||
| 232 | A 3055011282 | HOSE |
| FROM RADIATOR TO EXPANSION TANK | ||
| 234 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 234 | N 000000000667 | CLAMP |
| FROM RADIATOR TO EXPANSION TANK | ||
| 236 | A 3075010125 | BREATHER PIPE |
| Repalced by: A 0004291001 | ||
| 236 | A 0004291001 | LINE |
| EXPANSION TANK | ||
| 236 | A 3075010025 | BREATHER PIPE |
| EXPANSION TANK | ||
| 238 | N 900271012010 | HOSE |
| DE-AERATION | ||
| 240 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 240 | N 000000000667 | CLAMP |
| DE-AERATION | ||
| 240 | N 916017001600 | CLAMP |
| DE-AERATION | ||
| 242 | N 916016012201 | CLAMP |
| DE-AERATION | ||
| 244 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 244 | N 304017008021 | SCREW |
| DE-AERATION | ||
| 246 | N 913004008005 | NUT |
| DE-AERATION | ||
| A 3055013124 | COOLING WATER PIPE | |
| FROM SEPARATOR TO TANK | ||
| 248 | A 3075012124 | COOLING WATER PIPE |
| FROM SEPARATOR TO TANK | ||
| 248 | A 3075012124 | COOLING WATER PIPE |
| FROM SEPARATOR TO TANK | ||
| 248 | A 3055013824 | COOLING WATER PIPE |
| FROM SEPARATOR TO TANK | ||
| 250 | N 900271038012 | HOSE |
| COOLING WATER PIPE | ||
| 252 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 252 | N 000000000670 | CLAMP |
| COOLING WATER PIPE | ||
| 254 | N 900271045010 | HOSE |
| FROM RADIATOR TO BUBBLE SEPARATOR | ||
| 256 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 256 | N 000000000671 | CLAMP |
| COOLING WATER LINE | ||
| 258 | A 3055000069 | SEPARATOR |
| Repalced by: A 3075000569 | ||
| 258 | A 3055000269 | SEPARATOR |
| 258 | A 3075001069 | SEPARATOR |
| 258 | A 3075000569 | SEPARATOR |
| 258 | A 3075001269 | SEPARATOR |
| 260 | A 3205060064 | VALVE |
| TO 307 500 05 69 | ||
| 262 | A 3075010182 | HOSE |
| AT ENGINE | ||
| 262 | A 3075010082 | HOSE |
| AT ENGINE | ||
| 264 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 264 | N 000000000671 | CLAMP |
| COOLING WATER LINE | ||
| 264 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 264 | N 000000000672 | CLAMP |
| COOLING WATER HOSE TO ENGINE | ||
| 266 | A 0129978282 | HOSE |
| AT FITTING | ||
| 268 | A 0019978390 | LOOM TIE |
| FOR HOSE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
