Transporto priemonė: O 307; VIN numerio dalis: 307051

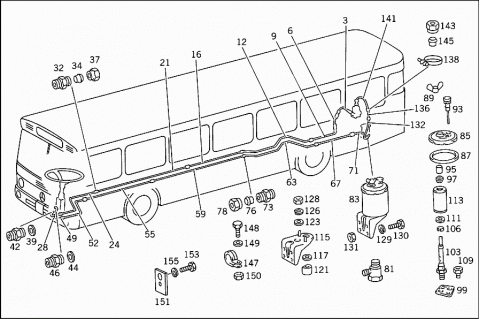

Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR STEERING,SEE UNIT STANDARD VERSION, MODEL: | ||
| 765.2 | ||
| 003 | A 3074661365 | LINE |
| Repalced by: A 3074664865 | ||
| 003 | A 3074662765 | LINE |
| Repalced by: A 3074664865 | ||
| 003 | A 3074664865 | LINE |
| Repalced by: A 3074604924 | ||
| 003 | A 3074660065 | LINE |
| Repalced by: A 3074664765 | ||
| 003 | A 3074664765 | LINE |
| Repalced by: A 3074604824 | ||
| 003 | A 3074604824 | LINE |
| Repalced by: A 3074604924 | ||
| 003 | A 3074604924 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 003 | A 3074607988 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 006 | A 3059971082 | HOSE |
| HIGH PRESSURE | ||
| 006 | A 3059971682 | HOSE |
| HIGH PRESSURE | ||
| 006 | A 0139971182 | HOSE |
| HIGH PRESSURE | ||
| 009 | A 3074602924 | LINE |
| FROM HOSE TO FITTING | ||
| 009 | A 0005516256 | TUBE |
| FROM HOSE TO FITTING | ||
| 012 | A 3074603024 | LINE |
| FROM CONNECTOR I TO CONNECTOR II | ||
| 012 | A 3074605124 | LINE |
| FROM CONNECTOR I TO CONNECTOR II | ||
| 012 | A 0005516256 | TUBE |
| FROM CONNECTOR I TO CONNECTOR II | ||
| 016 | A 3074607324 | LINE |
| FROM CONNECTOR II TO CONNECTOR III | ||
| 016 | A 3074605124 | LINE |
| FROM CONNECTOR II TO CONNECTOR III | ||
| 016 | A 3074601724 | LINE |
| FROM CONNECTOR II TO CONNECTOR III | ||
| 021 | A 3074606524 | LINE |
| FROM CONNECTOR III TO CONNECTOR IV | ||
| 021 | A 3074600524 | LINE |
| FROM CONNECTOR III TO CONNECTOR IV | ||
| 024 | A 3074600624 | LINE |
| FROM CONNECTION FITTING IV TO CONNECTION FITTING V | ||
| 024 | A 3074607424 | LINE |
| Repalced by: A 0005516256 | ||
| 024 | A 0005516256 | TUBE |
| FROM CONNECTION FITTING IV TO HYDRAULIC STEERING | ||
| 024 | A 3074602388 | LINE |
| FROM CONNECTION FITTING IV TO HYDRAULIC STEERING | ||
| 028 | A 3074606924 | LINE |
| FROM CONNECTION FITTING TO STEERING | ||
| 032 | N 003902015002 | CONNECTION FITTING |
| BETWEEN THE LINES | ||
| 034 | N 003861015004 | GLAND |
| FROM STEERING TO OIL TANK | ||
| 034 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 034 | A 0019901967 | SEAL CONE |
| FROM STEERING TO OIL TANK | ||
| 037 | N 915017015100 | UNION NUT |
| FROM STEERING TO OIL TANK | ||
| 037 | N 915017012100 | UNION NUT |
| FROM STEERING TO OIL TANK | ||
| 039 | N 007603016103 | SEAL RING |
| STEERING | ||
| 042 | A 3529970671 | FITTING |
| STEERING | ||
| 044 | N 007603018101 | SEAL RING |
| STEERING | ||
| 046 | A 3529970571 | FITTING |
| STEERING | ||
| A 3529970671 | FITTING | |
| AT PUMP | ||
| N 003901022006 | SCREW-IN FITTING | |
| AT PUMP | ||
| N 007603016103 | SEAL RING | |
| AT PUMP | ||
| N 007603022102 | SEAL RING | |
| AT PUMP | ||
| 049 | A 0004291601 | LINE |
| FROM HYDRAULIC STEERING TO CONNECTION FITTING I | ||
| 049 | A 3074607524 | LINE |
| FROM HYDRAULIC STEERING TO CONNECTION FITTING I | ||
| 049 | A 3074607024 | LINE |
| FROM HYDRAULIC STEERING TO CONNECTION FITTING I | ||
| 052 | A 0004291601 | LINE |
| FROM CONNECTOR I TO CONNECTOR II | ||
| 052 | A 3074600924 | LINE |
| FROM CONNECTOR I TO CONNECTOR II | ||
| 052 | A 3074606624 | LINE |
| FROM CONNECTOR I TO CONNECTOR II | ||
| 055 | A 3074603724 | LINE |
| FROM CONNECTOR II TO CONNECTOR III | ||
| 055 | A 3074601024 | LINE |
| FROM CONNECTOR II TO CONNECTOR III | ||
| 055 | A 3074601824 | LINE |
| FROM CONNECTOR II TO CONNECTOR III | ||
| 059 | A 0004291601 | LINE |
| FROM CONNECTOR III TO CONNECTOR IV | ||
| 059 | A 3074665165 | LINE |
| FROM CONNECTOR III TO CONNECTOR IV | ||
| 059 | A 3074603824 | LINE |
| FROM CONNECTOR III TO CONNECTOR IV | ||
| 063 | A 3074607288 | LINE |
| Repalced by: A 0004291601 | ||
| 063 | A 0004291601 | LINE |
| FROM CONNECTION FITTING IV TO CONNECTION FITTING V | ||
| 063 | A 3074604224 | LINE |
| FROM CONNECTION FITTING IV TO CONNECTION FITTING V | ||
| 067 | A 3074607188 | LINE |
| Repalced by: A 0004291601 | ||
| 067 | A 0004291601 | LINE |
| FROM CONNECTION FITTING V TO OIL TANK | ||
| 071 | A 3074604324 | LINE |
| FROM CONNECTION FITTING VI TO OIL TANK | ||
| 071 | A 3074604324 | LINE |
| FROM CONNECTION FITTING V TO OIL TANK | ||
| 071 | A 3074603924 | LINE |
| FROM CONNECTOR IV TO OIL TANK | ||
| 073 | N 003902022001 | CONNECTION FITTING |
| OIL LINES | ||
| 076 | N 003861022004 | GLAND |
| OIL LINES | ||
| 078 | N 915017022100 | UNION NUT |
| OIL LINES | ||
| 081 | A 0009907168 | FITTING |
| OIL LINES | ||
| 083 | A 0004662602 | TANK |
| 085 | A 0004661305 | COVER |
| 087 | A 0004660260 | SEAL RING |
| 089 | N 000315008006 | NUT |
| 093 | A 0004660067 | OIL DIPSTICK |
| 095 | A 0009870643 | RUBBER SLEEVE |
| 097 | A 0004660675 | CENTERING RING |
| 099 | A 0004660037 | REINFORCEMENT |
| 103 | A 0014664465 | FILTER CARRIER |
| 106 | A 0004660153 | SPACER TUBE |
| 109 | A 0004660571 | FITTING |
| 111 | A 0004660275 | WASHER |
| Repalced by: A 9402680552 | ||
| 111 | A 9402680552 | SPACER WASHER |
| 113 | A 0004660604 | FILTER |
| 115 | A 0004660040 | BRACKET |
| Repalced by: A 0004660840 | ||
| 115 | A 0004660840 | BRACKET |
| A 0009879046 | SEALING CORD | |
| Repalced by: A 0029973245 | ||
| 117 | A 0029973245 | SEAL RING |
| Repalced by: A 0059970848 | ||
| 117 | A 0059970848 | SEAL RING |
| 22X3.5 MM | ||
| 121 | A 0004660458 | CONNECTOR |
| 123 | A 0099970145 | SEAL RING |
| 9.2X3.5 MM | ||
| 126 | N 912004008102 | LOCK WASHER |
| 128 | N 000934008010 | NUT |
| 129 | N 912004010102 | LOCK WASHER |
| OIL TANK TO BRACKET IN ENGINE COMPARTMENT | ||
| 130 | N 304017010027 | SCREW |
| OIL TANK TO BRACKET IN ENGINE COMPARTMENT | ||
| M 10X15 | ||
| 130 | N 000933010128 | SCREW |
| OIL TANK TO BRACKET IN ENGINE COMPARTMENT | ||
| M 10X20 | ||
| 131 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 131 | N 910113010000 | NUT |
| OIL TANK TO BRACKET IN ENGINE COMPARTMENT | ||
| 132 | A 3074662165 | LINE |
| Repalced by: A 3074664365 | ||
| 132 | A 3074664365 | LINE |
| FROM OIL TANK TO HYDRAULIC PUMP | ||
| 132 | A 3074604424 | LINE |
| Repalced by: A 0004291601 | ||
| 132 | A 0004291601 | LINE |
| FROM OIL TANK TO HYDRAULIC PUMP | ||
| 132 | A 3054661065 | LINE |
| Repalced by: A 3054601024 | ||
| 132 | A 3054601024 | LINE |
| FROM OIL TANK TO HYDRAULIC PUMP | ||
| 132 | A 3074663965 | LINE |
| Repalced by: A 3074604024 | ||
| 132 | A 3074604024 | LINE |
| FROM OIL TANK TO HYDRAULIC PUMP | ||
| 136 | A 0069971182 | HOSE |
| FROM OIL TANK TO HYDRAULIC PUMP | ||
| 138 | A 0009976290 | LOOM TIE |
| Repalced by: N 916017025000 | ||
| 138 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 138 | N 000000000668 | CLAMP |
| FROM OIL TANK TO HYDRAULIC PUMP | ||
| 141 | A 3074662265 | LINE |
| Repalced by: A 3074664465 | ||
| 141 | A 3074664465 | LINE |
| Repalced by: A 3074604524 | ||
| 141 | A 3074604524 | LINE |
| FROM HOSE TO OIL PUMP | ||
| 141 | A 3054662165 | LINE |
| Repalced by: A 3054602224 | ||
| 141 | A 3054602224 | LINE |
| FROM HOSE TO OIL PUMP | ||
| 141 | A 3074664065 | LINE |
| Repalced by: A 3074604124 | ||
| 141 | A 3074604124 | LINE |
| FROM HOSE TO OIL PUMP | ||
| 143 | N 915017022100 | UNION NUT |
| FROM HOSE TO PUMP | ||
| 145 | N 003861022004 | GLAND |
| FROM HOSE TO PUMP | ||
| 147 | N 916016015202 | CLAMP |
| LINE TO SUBSTRUCTURE | ||
| 147 | A 0009959501 | CLAMP |
| Repalced by: N 916016022203 | ||
| 147 | N 916016022206 | CLAMP |
| LINE TO SUBSTRUCTURE | ||
| 148 | N 000933006127 | SCREW |
| LINE TO SUBSTRUCTURE | ||
| 149 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 149 | N 009021006208 | WASHER |
| LINE TO SUBSTRUCTURE | ||
| 150 | N 913004006003 | NUT |
| Repalced by: N 910113006001 | ||
| 150 | N 910113006001 | NUT |
| LINE TO SUBSTRUCTURE | ||
| 151 | A 3074660340 | BRACKET |
| BELL HOUSING | ||
| 153 | N 000933016060 | SCREW |
| LINE TO BRACKET | ||
| 155 | N 912004016101 | LOCK WASHER |
| LINE TO BRACKET | ||

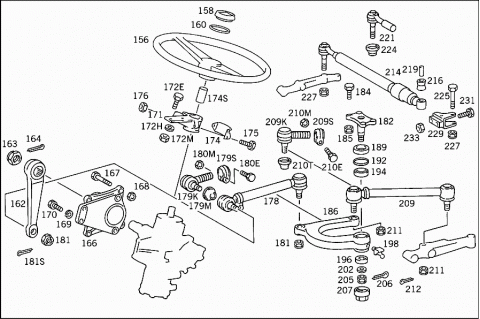

| 156 | A 3024640501 | STEERING WHEEL |
| Repalced by: A 3054640401 | ||
| 156 | A 3054640401 | STEERING WHEEL |
| 158 | A 0004641231 | CAP |
| Repalced by: A 0004642631 | ||
| 158 | A 0004642631 | CAP |
| 160 | A 0004640177 | PROTECTIVE RING |
| A 0004642631 | CAP | |
| 162 | A 3074630001 | PITMAN ARM |
| Repalced by: A 3074630601 | ||
| 162 | A 3074630601 | PITMAN ARM |
| Repalced by: A 3074630801 | ||
| 162 | A 3074630801 | PITMAN ARM |
| 162 | A 3074630101 | PITMAN ARM |
| Repalced by: A 3074630701 | ||
| 162 | A 3074630701 | PITMAN ARM |
| Repalced by: A 3074630901 | ||
| 162 | A 3074630901 | PITMAN ARM |
| 163 | N 000937042003 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 164 | N 000094008014 | COTTER PIN |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 166 | A 3074610040 | STEERING SUPPORT |
| 166 | A 3074610040 | STEERING SUPPORT |
| 166 | A 3074610140 | STEERING SUPPORT |
| 167 | N 000960014247 | SCREW |
| Repalced by: N 308676014013 | ||
| 167 | N 308676014013 | SCREW |
| STEERING MOUNTING | ||
| 167 | N 000960014190 | SCREW |
| STEERING MOUNTING | ||
| 168 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 168 | N 910113014000 | NUT |
| STEERING MOUNTING | ||
| 169 | N 912004016101 | LOCK WASHER |
| STEERING MOUNTING | ||
| 170 | N 000961016036 | SCREW |
| Repalced by: N 308676016013 | ||
| 170 | N 308676016013 | SCREW |
| STEERING MOUNTING | ||
| 171 | A 3074620021 | STEERING COLUMN BRACKET |
| 172E | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 172E | N 304017008034 | SCREW |
| STEERING COLUMN BRACKET TO WINDOW SILL | ||
| 172H | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 172H | N 009021008213 | WASHER |
| STEERING COLUMN BRACKET TO WINDOW SILL | ||
| 172M | N 913004008005 | NUT |
| STEERING COLUMN BRACKET TO WINDOW SILL | ||
| 174 | A 3224620022 | CLAMPING PIECE |
| STEERING COLUMN BRACKET TO WINDOW SILL | ||
| 174S | A 0009975282 | HOSE |
| STEERING COLUMN BRACKET TO WINDOW SILL | ||
| 175 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 175 | N 304017008043 | SCREW |
| STEERING COLUMN BRACKET TO WINDOW SILL | ||
| 176 | N 913004008005 | NUT |
| STEERING COLUMN BRACKET TO WINDOW SILL | ||
| 178 | A 3054600605 | DRAG LINK |
| Repalced by: A 3574601205 | ||
| 178 | A 3574601205 | DRAG LINK |
| LEMFOERDER | ||
| 178 | A 3574601305 | DRAG LINK |
| EHRENREICH | ||
| 178 | A 3054600705 | DRAG LINK |
| Repalced by: A 3074600405 | ||
| 178 | A 3074600405 | DRAG LINK |
| LEMFOERDER | ||
| A 0003301085 | BOOT | |
| FIXED PART OF JOINT | ||
| 179K | A 0004633129 | BALL JOINT |
| Repalced by: A 0004633429 | ||
| 179K | A 0004633429 | BALL JOINT |
| Repalced by: A 0013300135 | ||
| 179K | A 0013300135 | JOINT |
| LEMFOERDER | ||
| 179K | A 0013300235 | JOINT |
| EHRENREICH | ||
| 179M | A 0003301085 | BOOT |
| 179S | A 0004630117 | CLAMPING PIECE |
| Repalced by: A 0003382445 | ||
| 179S | A 0003382445 | CLAMP |
| LEMFOERDER | ||
| 179S | A 0003383445 | CLAMP |
| EHRENREICH | ||
| 180E | N 000960012296 | SCREW |
| M 12X60 | ||
| 180M | A 0004630572 | NUT |
| Repalced by: N 913004012008 | ||
| 180M | N 913004012008 | NUT |
| 181 | N 000937020001 | NUT |
| DRAG LINK,FRONT | ||
| 181S | N 000094004065 | COTTER PIN |
| DRAG LINK,FRONT | ||
| 182 | A 3174630011 | TRUNNION BEARING |
| STEERING INTERMEDIATE ARM | ||
| 184 | N 000961014054 | SCREW |
| STEERING INTERMEDIATE ARM | ||
| M 14X45 | ||
| 185 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 185 | N 910113014000 | NUT |
| STEERING INTERMEDIATE ARM | ||
| 186 | A 3054630010 | STEERING INTERMEDIATE ARM |
| 186 | A 3054630110 | STEERING INTERMEDIATE ARM |
| 189 | N 006504042100 | RADIAL SEAL RING |
| Repalced by: A 0079976446 | ||
| 189 | A 0079976446 | SEAL RING |
| STEERING INTERMEDIATE ARM | ||
| 192 | A 3174630052 | SPACER WASHER |
| STEERING INTERMEDIATE ARM | ||
| 194 | N 000720030206 | TAPERED ROLLER BEARING |
| TOP | ||
| 196 | N 000720030205 | TAPERED ROLLER BEARING |
| Repalced by: A 0059819105 | ||
| 196 | A 0059819105 | TAPERED ROLLER BEARING |
| BOTTOM | ||
| 198 | N 071412010200 | GREASE NIPPLE |
| STEERING INTERMEDIATE ARM | ||
| 202 | A 3174630062 | THRUST WASHER |
| STEERING INTERMEDIATE ARM BEARING | ||
| 205 | N 000937020001 | NUT |
| STEERING INTERMEDIATE ARM BEARING | ||
| 206 | N 000094004031 | COTTER PIN |
| STEERING INTERMEDIATE ARM BEARING | ||
| 207 | A 3214630033 | CAP |
| AT STEERING INTERMEDIATE ARM | ||
| 209 | A 3054600305 | DRAG LINK |
| Repalced by: A 3004600605 | ||
| 209 | A 3004600605 | DRAG LINK |
| LEMFOERDER | ||
| 209 | A 3004600705 | DRAG LINK |
| EHRENREICH | ||
| 209K | A 0003300248 | TIE ROD END |
| Repalced by: A 0004632229 | ||
| 209K | A 0004632229 | BALL JOINT |
| Repalced by: A 0004633429 | ||
| 209K | A 0004633429 | BALL JOINT |
| Repalced by: A 0013300135 | ||
| 209K | A 0013300135 | JOINT |
| LEMFOERDER | ||
| 209K | A 0013300235 | JOINT |
| EHRENREICH | ||
| 209S | A 0003381645 | CLAMP |
| Repalced by: A 4619955044 | ||
| 209S | A 4619955044 | CLAMP |
| "6245" | ||
| 210E | N 000960010035 | SCREW |
| 210M | A 0004630472 | NUT |
| Repalced by: N 913004010010 | ||
| 210M | N 913004010010 | NUT |
| Repalced by: N 910113010002 | ||
| 210M | N 910113010002 | NUT |
| 210T | A 0003301085 | BOOT |
| 211 | N 000937020001 | NUT |
| DRAG LINK TO STEERING INTERMEDIATE ARM | ||
| 212 | N 000094004065 | COTTER PIN |
| DRAG LINK TO STEERING INTERMEDIATE ARM | ||
| 214 | A 3024630432 | SHOCK ABSORBER |
| Repalced by: A 0004635932 | ||
| 214 | A 0004635932 | SHOCK ABSORBER |
| Repalced by: A 0004636132 | ||
| 214 | A 0004636132 | SHOCK ABSORBER |
| 214 | A 0004636132 | SHOCK ABSORBER |
| 216 | A 0004630065 | RUBBER RING |
| Repalced by: A 0004630565 | ||
| 216 | A 0004630565 | RUBBER RING |
| 216 | A 0004630565 | RUBBER RING |
| 219 | A 0004630050 | BUSHING |
| 219 | A 0004630050 | BUSHING |
| 221 | A 0004631729 | BALL JOINT |
| 221 | A 0004631729 | BALL JOINT |
| 224 | A 0003300185 | BOOT |
| Repalced by: A 0003300785 | ||
| 224 | A 0003300785 | BOOT |
| 224 | A 0003300785 | BOOT |
| 225 | N 000960014121 | SCREW |
| Repalced by: N 308676014014 | ||
| 225 | N 308676014014 | SCREW |
| FRONT AXLE SHOCK ABSORBER | ||
| 225 | N 308676014014 | SCREW |
| FRONT AXLE SHOCK ABSORBER | ||
| 227 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 227 | N 910113014000 | NUT |
| FRONT AXLE SHOCK ABSORBER | ||
| 227 | N 910113014000 | NUT |
| FRONT AXLE SHOCK ABSORBER | ||
| 229 | A 3024600235 | BRACKET |
| STEERING SHOCK ABSORBER | ||
| 229 | A 3024600235 | BRACKET |
| STEERING SHOCK ABSORBER | ||
| 231 | N 000960012331 | SCREW |
| STEERING SHOCK ABSORBER | ||
| M 12X1,5X95 | ||
| 231 | N 000960012331 | SCREW |
| STEERING SHOCK ABSORBER | ||
| M 12X1,5X95 | ||
| 233 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 233 | N 910113012003 | NUT |
| STEERING SHOCK ABSORBER | ||
| 233 | N 910113012003 | NUT |
| STEERING SHOCK ABSORBER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
