Transporto priemonė: O 309 B; VIN numerio dalis: 309073

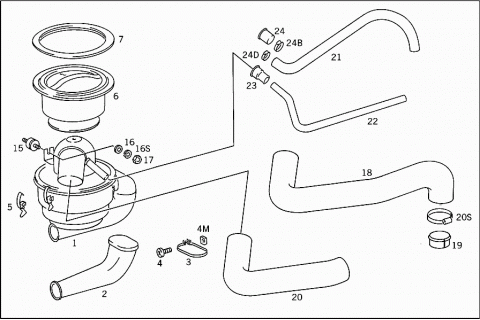

Grupė: 52 CHASSIS SHEET METAL
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 0040945502 | AIR CLEANER |
| OIL BATH | ||
| MANN & HUMMEL | ||
| 001 | A 0040945502 | AIR CLEANER |
| OIL BATH | ||
| MANN & HUMMEL | ||
| 001C | A 6160940502 | AIR CLEANER |
| MANN & HUMMEL | ||
| 002 | A 0000943608 | INTAKE PIPE |
| 002 | A 0000943608 | INTAKE PIPE |
| 003 | A 0000943942 | CLAMP |
| 003 | A 0000943942 | CLAMP |
| 004 | N 000084006137 | SCREW |
| 004 | N 000084006137 | SCREW |
| 004M | N 000557006002 | NUT |
| 004M | N 000557006002 | NUT |
| 004M | A 0029900851 | NUT |
| 005 | A 0000940155 | FASTENER |
| Repalced by: A 0000941255 | ||
| 005 | A 0000941255 | FASTENER |
| 005 | A 0000941255 | FASTENER |
| 006 | A 0000946904 | FILTER ELEMENT |
| 006 | A 0000946904 | FILTER ELEMENT |
| 006C | A 0020949604 | FILTER ELEMENT |
| 007 | A 0000942980 | GASKET |
| 007 | A 0000942980 | GASKET |
| N 007603010404 | SEAL RING | |
| A 0000940276 | WASHER | |
| FELT | ||
| N 000917010102 | NUT | |
| 015 | A 0019872640 | RUBBER BUFFER |
| Repalced by: A 0019875240 | ||
| 015 | A 0019875240 | RUBBER BUFFER |
| AIR CLEANER | ||
| 015 | A 0019875240 | RUBBER BUFFER |
| AIR CLEANER | ||
| 016 | N 912004008102 | LOCK WASHER |
| AIR CLEANER | ||
| 016 | N 912004008102 | LOCK WASHER |
| AIR CLEANER | ||
| 016S | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 016S | N 000125008443 | WASHER |
| AIR CLEANER | ||
| 017 | N 000934008010 | NUT |
| AIR CLEANER | ||
| 017 | N 000934008010 | NUT |
| AIR CLEANER | ||
| 017C | A 3520940083 | MUFFLER |
| RADIATOR BASE FRAME TO BEARING BRACKET | ||
| 017D | A 3520940042 | CLAMP |
| RADIATOR BASE FRAME TO BEARING BRACKET | ||
| 017E | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 017E | N 304017008027 | SCREW |
| RADIATOR BASE FRAME TO BEARING BRACKET | ||
| 017F | N 913004008004 | NUT |
| RADIATOR BASE FRAME TO BEARING BRACKET | ||
| 018 | A 3095280108 | AIR INTAKE PIPE |
| Repalced by: A 3095282008 | ||
| 018 | A 3095282008 | AIR INTAKE PIPE |
| 019 | A 3095280084 | SHIM |
| AIR INTAKE PIPE TO AIR CLEANER | ||
| 020 | A 3095280008 | AIR INTAKE PIPE |
| 020 | A 3095282108 | AIR INTAKE PIPE |
| 020 | A 3095282808 | AIR INTAKE PIPE |
| 020S | N 916017060000 | CLAMP |
| Repalced by: N 000000000673 | ||
| 020S | N 000000000673 | CLAMP |
| AIR INTAKE PIPE TO AIR CLEANER | ||
| 020S | N 000000000673 | CLAMP |
| AIR INTAKE PIPE TO AIR CLEANER | ||
| 020T | A 3095283408 | AIR INTAKE PIPE |
| 020TC | A 3095282240 | BRACKET |
| HOSE TO RADIATOR | ||
| 020TE | A 0019978490 | LOOM TIE |
| HOSE TO RADIATOR | ||
| A 3095282440 | BRACKET | |
| HOSE TO RADIATOR | ||
| N 007985005168 | SCREW | |
| HOSE TO RADIATOR | ||
| N 913004005001 | NUT | |
| HOSE TO RADIATOR | ||
| 020TH | N 071434004200 | CLAMP |
| AIR INTAKE PIPE TO CAB | ||
| 020TK | A 0019978490 | LOOM TIE |
| AIR INTAKE PIPE TO CAB | ||
| A 3095282340 | BRACKET | |
| AIR INTAKE PIPE TO CAB | ||
| N 007981004258 | SHEET METAL SCREW | |
| AIR INTAKE PIPE TO CAB | ||
| 020TL | A 3095283308 | AIR INTAKE PIPE |
| 020TP | N 916017080000 | CLAMP |
| Repalced by: N 000000000675 | ||
| 020TP | N 000000000675 | CLAMP |
| Repalced by: A 0059972990 | ||
| 020TP | A 0059972990 | CLAMP |
| HOSE TO AIR CLEANER | ||
| 020TR | N 916017060000 | CLAMP |
| Repalced by: N 000000000673 | ||
| 020TR | N 000000000673 | CLAMP |
| HOSE TO INTAKE PIPE AND TO ENGINE | ||
| 021 | A 3099970182 | HOSE |
| CRANKCASE BREATHING | ||
| 021 | A 3099970082 | HOSE |
| CRANKCASE BREATHING | ||
| 022 | A 6160160230 | PIPE |
| Repalced by: A 6160160330 | ||
| 022 | A 6160160330 | PIPE |
| CRANKCASE BREATHING | ||
| 023 | A 6160160081 | MOLDED HOSE |
| CRANKCASE BREATHING | ||
| 024 | A 3095280105 | DUST CAP |
| CRANKCASE BREATHING | ||
| 024B | N 916026020001 | CLAMP |
| Repalced by: N 000000000667 | ||
| 024B | N 000000000667 | CLAMP |
| OIL BATH AIR CLEANER | ||
| 024B | N 000000000667 | CLAMP |
| OIL BATH AIR CLEANER | ||
| 024D | N 916026016001 | CLAMP |
| Repalced by: A 0059970190 | ||
| 024D | A 0059970190 | LOOM TIE |
| CRANKCASE BREATHING | ||
| 024S | A 3099970822 | HOSE |
| WATER DRAIN | ||
| 024T | A 3099970982 | HOSE |
| WATER DRAIN | ||
| 024T | A 3099975182 | HOSE |
| WATER DRAIN | ||
| 025 | A 3095250239 | BRACKET |
| Repalced by: A 3095251839 | ||
| 025 | A 3095251839 | BRACKET |
| Repalced by: A 3095202641 | ||
| 025 | A 3095202641 | BRACKET |
| FRONT BUMPER | ||
| 026 | N 000933010128 | SCREW |
| BRACKET TO SPRING FRONT BRACKET | ||
| 027 | N 912004010102 | LOCK WASHER |
| BRACKET TO SPRING FRONT BRACKET | ||
| 028 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 028 | N 000125010532 | WASHER |
| BRACKET TO SPRING FRONT BRACKET | ||
| 032 | A 3096250039 | PARTITION PANEL |
| CAB | ||
| 034 | A 0009879672 | EDGE GUARD SECTION |
| CAB | ||
| 620 MM | ||
| A 3096220108 | COVERING | |
| CAB | ||
| 040 | N 007981004245 | SHEET METAL SCREW |
| Repalced by: N 007981004339 | ||
| 040 | N 007981004339 | SHEET METAL SCREW |
| Repalced by: N 000000000459 | ||
| 040 | N 000000000459 | SCREW |
| CAB | ||
| 048 | A 3109970081 | GROMMET |
| CAB | ||
