Transporto priemonė: O 309 B; VIN numerio dalis: 309073

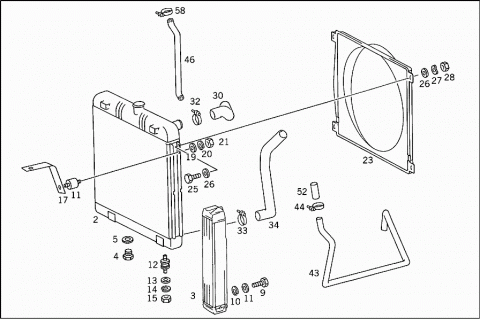

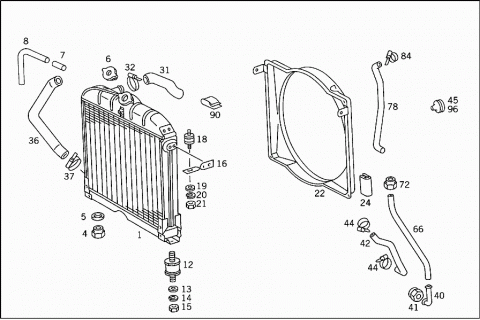

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 3095000102 | RADIATOR |
| BEHR | ||
| 001 | A 3095000002 | RADIATOR |
| Repalced by: A 3095001702 | ||
| 001 | A 3095001702 | RADIATOR |
| BEHR | ||
| 001 | A 3095001702 | RADIATOR |
| BEHR | ||
| 001 | A 3095004402 | RADIATOR |
| AUTOKUEHLER GMBH HOFGEISMAR | ||
| 001 | A 3105000002 | RADIATOR |
| BEHR | ||
| 001 | A 3095003002 | RADIATOR |
| BEHR | ||
| 002 | A 3095005902 | RADIATOR |
| WATER | ||
| 003 | A 3095010001 | RADIATOR |
| OIL | ||
| 004 | N 007604014101 | SCREW PLUG |
| TO 309 500 44 02,310 500 00 02 | ||
| 004 | N 007604014101 | SCREW PLUG |
| TO 309 500 30 02 | ||
| A 0019973230 | SCREW PLUG | |
| Repalced by: N 007604014101 | ||
| 004 | N 007604014101 | SCREW PLUG |
| TO 309 500 59 02 | ||
| 005 | N 007603014405 | SEAL RING |
| 005 | N 007603014405 | SEAL RING |
| A 0005010215 | RADIATOR CAP | |
| Repalced by: A 0005012915 | ||
| 006 | A 0005012915 | RADIATOR CAP |
| BEHR | ||
| 006 | A 0005013615 | RADIATOR CAP |
| AUTOKUELER GMBH HOFGEISMAR | ||
| A 0005012115 | RADIATOR CAP | |
| Repalced by: A 0005013515 | ||
| 006 | A 0005013515 | RADIATOR CAP |
| BEHR | ||
| 006 | A 0005013515 | RADIATOR CAP |
| BEHR | ||
| A 0005010880 | GASKET | |
| O.D., | ||
| 37 MM | ||
| 007 | A 0005010010 | DRAIN PIPE |
| TO 309 500 59 02 | ||
| 008 | A 0139978582 | HOSE |
| TO 309 500 59 02 | ||
| 009 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 009 | N 304017006034 | SCREW |
| OIL COOLER TO RADIATOR | ||
| TO 309 500 59 02 | ||
| 010 | N 912004006102 | LOCK WASHER |
| OIL COOLER TO RADIATOR | ||
| TO 309 500 59 02 | ||
| 011 | N 000125006421 | WASHER |
| OIL COOLER TO RADIATOR | ||
| TO 309 500 59 02 | ||
| A 0019873140 | RUBBER BUFFER | |
| Repalced by: A 0019875340 | ||
| 012 | A 0019875340 | RUBBER BUFFER |
| RADIATOR MOUNTING,BOTTOM | ||
| 013 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 013 | N 000125010532 | WASHER |
| RADIATOR MOUNTING,BOTTOM | ||
| 013 | N 009021010107 | WASHER |
| RADIATOR MOUNTING,BOTTOM | ||
| 014 | N 912004010102 | LOCK WASHER |
| RADIATOR MOUNTING,BOTTOM | ||
| 015 | N 000934010014 | NUT |
| RADIATOR MOUNTING,BOTTOM | ||
| 016 | A 3095040240 | BRACKET |
| RADIATOR BRACING,TOP | ||
| 016 | A 3095040840 | BRACKET |
| RADIATOR BRACING,TOP | ||
| 016 | A 3095041440 | BRACKET |
| RADIATOR BRACING,TOP | ||
| 016 | A 3095041440 | BRACKET |
| RADIATOR BRACING,TOP | ||
| 016 | A 3095042940 | BRACKET |
| RADIATOR BRACING,TOP | ||
| A 3095043440 | BRACKET | |
| Repalced by: A 3184924841 | ||
| 017 | A 3184924841 | BRACKET |
| RADIATOR BRACING,TOP | ||
| A 3095043540 | BRACKET | |
| Repalced by: A 3184924841 | ||
| A 0019872640 | RUBBER BUFFER | |
| Repalced by: A 0019875240 | ||
| 018 | A 0019875240 | RUBBER BUFFER |
| RADIATOR BRACING,TOP | ||
| 019 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 019 | N 000125008443 | WASHER |
| RADIATOR BRACING,TOP | ||
| 019 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 019 | N 009021008213 | WASHER |
| RADIATOR BRACING,TOP | ||
| 020 | N 912004008102 | LOCK WASHER |
| RADIATOR BRACING,TOP | ||
| 021 | N 000934008010 | NUT |
| RADIATOR BRACING,TOP | ||
| 021 | N 000934008010 | NUT |
| RADIATOR BRACING,TOP | ||
| 021 | N 000934008010 | NUT |
| RADIATOR BRACING,TOP | ||
| 022 | A 3195000555 | FAN SHROUD |
| A 3095000360 | FAN HOUSING | |
| Repalced by: A 3095051555 | ||
| 022 | A 3095051555 | FAN SHROUD |
| 022 | A 3095051855 | FAN SHROUD |
| 023 | A 3095052155 | FAN SHROUD |
| 024 | A 0009876870 | RUBBER SECTION |
| 170 MM | ||
| 025 | N 000933005059 | SCREW |
| FAN SHROUD | ||
| 025 | N 000933005058 | SCREW |
| FAN SHROUD | ||
| 025 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 025 | N 304017006034 | SCREW |
| FAN SHROUD TO RADIATOR | ||
| 025 | N 304017006034 | SCREW |
| FAN SHROUD TO RADIATOR | ||
| 025 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 025 | N 304017006020 | SCREW |
| FAN SHROUD TO RADIATOR | ||
| 026 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 026 | N 009021006208 | WASHER |
| FAN SHROUD TO RADIATOR | ||
| 027 | N 000137006204 | SPRING WASHER |
| FAN SHROUD TO RADIATOR | ||
| 027 | N 000137006204 | SPRING WASHER |
| FAN SHROUD TO RADIATOR | ||
| N 009021006205 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| 028 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 028 | N 913004006001 | NUT |
| FAN SHROUD TO RADIATOR | ||
| 028 | N 913004006001 | NUT |
| FAN SHROUD TO RADIATOR | ||
| 030 | A 3095010182 | HOSE |
| FROM THERMOSTAT TO RADIATOR | ||
| 030 | A 3095010882 | HOSE |
| FROM THERMOSTAT TO RADIATOR | ||
| 030 | A 3095011582 | HOSE |
| FROM THERMOSTAT TO RADIATOR | ||
| 030 | A 3095011582 | HOSE |
| FROM THERMOSTAT TO RADIATOR | ||
| 030 | A 3095014482 | HOSE |
| FROM THERMOSTAT TO RADIATOR | ||
| 031 | A 3095012282 | HOSE |
| FROM THERMOSTAT TO RADIATOR | ||
| 031 | A 3095013682 | HOSE |
| FROM THERMOSTAT TO RADIATOR | ||
| 031 | A 3775010082 | HOSE |
| 032 | N 916017004000 | CLAMP |
| FROM THERMOSTAT TO RADIATOR | ||
| 032 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 032 | N 000000000670 | CLAMP |
| FROM THERMOSTAT TO RADIATOR | ||
| 032 | N 000000000670 | CLAMP |
| FROM THERMOSTAT TO RADIATOR | ||
| 033 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 033 | N 000000000671 | CLAMP |
| FROM RADIATOR TO WATER PUMP | ||
| 033 | N 000000000671 | CLAMP |
| AS REQUIRED | ||
| 033 | N 000000000671 | CLAMP |
| FROM RADIATOR TO WATER PUMP | ||
| 033 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 033 | N 000000000670 | CLAMP |
| FROM RADIATOR TO WATER PUMP | ||
| 034 | A 3095010482 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| A 3095010782 | HOSE | |
| Repalced by: A 3095011382 | ||
| 034 | A 3095011382 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 034 | A 3095011382 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 034 | A 3095014382 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 036 | A 3095012382 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 036 | A 3095013782 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 037 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 037 | N 000000000671 | CLAMP |
| FROM RADIATOR TO THERMOSTAT | ||
| 037 | N 000000000671 | CLAMP |
| FROM RADIATOR TO THERMOSTAT | ||
| 037 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 037 | N 000000000671 | CLAMP |
| FROM RADIATOR TO THERMOSTAT | ||
| 040 | A 3195001678 | PIPE ELBOW |
| FROM CYLINDER HEAD TO HEAT EXCHANGER | ||
| 041 | N 915017018200 | UNION NUT |
| FROM CYLINDER HEAD TO HEAT EXCHANGER | ||
| 042 | N 900271015037 | HOSE |
| FROM CYLINDER HEAD TO HEAT EXCHANGER | ||
| A 3095062635 | HOSE | |
| Repalced by: A 3095062735 | ||
| 042 | A 3095062735 | HOSE |
| FROM CYLINDER HEAD TO HEAT EXCHANGER | ||
| 043 | A 3095063235 | HOSE |
| FROM CYLINDER HEAD TO HEAT EXCHANGER | ||
| 043 | A 3095063435 | HOSE |
| FROM CYLINDER HEAD TO HEAT EXCHANGER | ||
| 044 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 044 | N 000000000667 | CLAMP |
| 045 | A 3109970081 | GROMMET |
| A 3095060035 | HOSE | |
| Repalced by: A 3095061335 | ||
| 046 | A 3095061335 | HOSE |
| FROM HEAT EXCHANGER TO WATER PUMP | ||
| 046 | A 3095061335 | HOSE |
| FROM HEAT EXCHANGER TO WATER PUMP | ||
| 046 | A 3095063335 | HOSE |
| FROM HEAT EXCHANGER TO WATER PUMP | ||
| 052 | N 900271018038 | HOSE |
| FROM CYLINDER HEAD TO HEAT EXCHANGER | ||
| 18X27X60 | ||
| 058 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 058 | N 000000000667 | CLAMP |
| FROM CYLINDER HEAD TO HEAT EXCHANGER | ||
| 066 | A 3098323223 | HOSE |
| FROM HEATING WATER PIPE TO HEAT EXCHANGER | ||
| 072 | N 915017020000 | UNION NUT |
| FROM HEATING WATER PIPE TO HEAT EXCHANGER | ||
| A 3095060835 | HOSE | |
| Repalced by: A 3095061235 | ||
| 078 | A 3095061235 | HOSE |
| FROM HEAT EXCHANGER TO WATER PUMP | ||
| 084 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 084 | N 000000000667 | CLAMP |
| FROM HEAT EXCHANGER TO WATER PUMP | ||
| 084 | N 000000000667 | CLAMP |
| FROM HEAT EXCHANGER TO WATER PUMP | ||
| N 916026023001 | CLAMP | |
| FROM HEAT EXCHANGER TO WATER PUMP | ||
| 090 | A 0029887578 | CLIP |
| 096 | A 3819971881 | GROMMET |
