Transporto priemonė: O 309 B; VIN numerio dalis: 309073
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

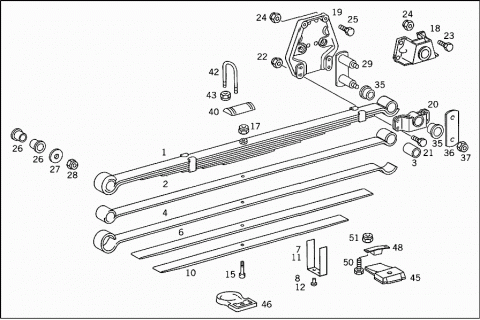

| 001 | A 3093200402 | FRONT SPRING |
| 6-LEAF | ||
| 001 | A 3093200502 | FRONT SPRING |
| Repalced by: A 3093201102 | ||
| 001 | A 3093201102 | FRONT SPRING |
| 7-LEAF | ||
| 002 | A 3093200094 | SPRING LEAF |
| Repalced by: A 3093200194 | ||
| 002 | A 3093200194 | SPRING LEAF |
| USED WITH SPRING LEAF NO.2 WITH ROUND SPRING EYE | ||
| NO.1 | ||
| 002 | A 3093202694 | SPRING LEAF |
| USED WITH SPRING LEAF NO.2 WITH FLATTEND SPRING EYE | ||
| NO.1 | ||
| 003 | A 3093220050 | BUSHING |
| 004 | A 3093210412 | SPRING LEAF |
| Repalced by: A 3093211012 | ||
| 004 | A 3093210512 | SPRING LEAF |
| Repalced by: A 3093211012 | ||
| 004 | A 3093211012 | SPRING LEAF |
| USED WITH SPRING LEAF NO.2 WITH ROUND SPRING EYE | ||
| NO.2 | ||
| 004 | A 3093212312 | SPRING LEAF |
| USED WITH SPRING LEAF NO.2 WITH FLATTEND SPRING EYE | ||
| NO.2 | ||
| 006 | A 3093210313 | SPRING LEAF |
| Repalced by: A 3093201094 | ||
| 006 | A 3093201094 | SPRING LEAF |
| WITH SPRING CLAMP | ||
| NO.3 | ||
| 006 | A 3093210413 | SPRING LEAF |
| Repalced by: A 3093201194 | ||
| 006 | A 3093201194 | SPRING LEAF |
| Repalced by: A 3093210913 | ||
| 006 | A 3093210913 | SPRING LEAF |
| LESS SPRING CLAMP | ||
| NO.3 | ||
| 007 | A 3093210133 | SPRING CLAMP |
| Repalced by: A 3093210933 | ||
| 007 | A 3093210033 | SPRING CLAMP |
| Repalced by: A 3093210933 | ||
| 007 | A 3093210933 | SPRING CLAMP |
| Repalced by: A 3093211833 | ||
| 007 | A 3093211833 | SPRING CLAMP |
| TO SPRING LEAF NO.3 | ||
| 007 | A 3093211833 | SPRING CLAMP |
| TO SPRING LEAF NO.3 | ||
| 007 | A 3103210633 | SPRING CLAMP |
| Repalced by: A 3223242033 | ||
| 007 | A 3223242033 | SPRING CLAMP |
| TO SPRING LEAF NO.3 | ||
| 008 | N 910006008000 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 8X15 MM | ||
| 008 | N 910006008000 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 8X15 MM | ||
| 010 | A 3093210314 | SPRING LEAF |
| NO.4 | ||
| 010 | A 3093210414 | SPRING LEAF |
| Repalced by: A 3093210914 | ||
| 010 | A 3093210914 | SPRING LEAF |
| NO.4 | ||
| 011 | A 3193210433 | SPRING CLAMP |
| Repalced by: A 3093210933 | ||
| 011 | A 3103210433 | SPRING CLAMP |
| Repalced by: A 3093210933 | ||
| 011 | A 3093210933 | SPRING CLAMP |
| Repalced by: A 3093211833 | ||
| 011 | A 3093211833 | SPRING CLAMP |
| TO SPRING LEAF NO. 5 | ||
| 011 | A 3093211833 | SPRING CLAMP |
| TO SPRING LEAF NO. 6 | ||
| 011 | A 3223242033 | SPRING CLAMP |
| TO SPRING LEAF NO. 6 | ||
| 012 | N 910006008000 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 8X15 MM | ||
| 012 | N 000660008026 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 8X20 MM | ||
| A 0003212353 | SPACER TUBE | |
| Repalced by: A 0003213253 | ||
| A 0003213253 | SPACER TUBE | |
| FOR SPRING CLAMPS | ||
| N 000931008189 | SCREW | |
| FOR SPRING CLAMPS | ||
| N 913004008004 | NUT | |
| FOR SPRING CLAMPS | ||
| 015 | N 004626010116 | SPRING BOLT |
| M 10X55 | ||
| 015 | N 004626010135 | SPRING BOLT |
| M 10X65 | ||
| 017 | N 913004010011 | NUT |
| 018 | A 3093200675 | SPRING BRACKET |
| (FRONT SPRING BRACKET),REAR | ||
| 019 | A 3093251901 | FRONT SPRING BRACKET |
| Repalced by: A 3093220501 | ||
| 019 | A 3093220501 | FRONT SPRING BRACKET |
| REAR INSIDE | ||
| 020 | A 3093200470 | REAR SUBFRAME |
| Repalced by: A 3093200570 | ||
| 020 | A 3093200570 | REAR SUBFRAME |
| (FRONT SPRING BRACKET),REAR,OUTSIDE | ||
| 021 | N 000931010258 | SCREW |
| FRONT SPRING REAR BRACKET | ||
| 022 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 022 | N 910113010000 | NUT |
| FRONT SPRING REAR BRACKET | ||
| 023 | N 000933010145 | SCREW |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| 023 | N 000933010145 | SCREW |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| 024 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 024 | N 910113010000 | NUT |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| 025 | N 000933010150 | SCREW |
| FRONT SPRING BRACKET TO SIDE MEMBER | ||
| 026 | A 3193240750 | BUSHING |
| FRONT SPRING TO FRONT SPRING FRONT BRACKET | ||
| 027 | A 3093250162 | THRUST WASHER |
| FRONT SPRING TO FRONT SPRING FRONT BRACKET | ||
| 028 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 028 | N 910113016002 | NUT |
| FRONT SPRING TO FRONT SPRING FRONT BRACKET | ||
| 029 | A 3193200662 | SHACKLE |
| Repalced by: A 3103200563 | ||
| 029 | A 3103200563 | SHACKLE |
| FRONT SPRING TO FRONT-SPRING REAR BRACKET | ||
| 035 | A 3193240750 | BUSHING |
| FRONT SPRING TO FRONT-SPRING REAR BRACKET | ||
| 036 | A 3193250320 | SHACKLE |
| FRONT SPRING TO FRONT-SPRING REAR BRACKET | ||
| 037 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 037 | N 910113016002 | NUT |
| FRONT SPRING TO FRONT-SPRING REAR BRACKET | ||
| 040 | A 3093310027 | SPACER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 042 | A 3093310225 | U-BOLT |
| Repalced by: A 3093311125 | ||
| 042 | A 3093310425 | U-BOLT |
| Repalced by: A 3093311125 | ||
| 042 | A 3093310625 | U-BOLT |
| Repalced by: A 3093311125 | ||
| 042 | A 3093310725 | U-BOLT |
| Repalced by: A 3093311125 | ||
| 042 | A 3093311125 | U-BOLT |
| Repalced by: A 3093311225 | ||
| 042 | A 3093311225 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 043 | N 913004012008 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 045 | A 3093300077 | STOP |
| Repalced by: A 3103300177 | ||
| 045 | A 3093300477 | STOP |
| Repalced by: A 3103300177 | ||
| 045 | A 3103300177 | STOP |
| LEFT FRONT SPRING | ||
| 046 | A 3093300377 | STOP |
| Repalced by: A 3103300077 | ||
| 046 | A 3093300677 | STOP |
| Repalced by: A 3103300077 | ||
| 046 | A 3103300077 | STOP |
| LEFT FRONT SPRING | ||
| A 3093300177 | STOP | |
| Repalced by: A 3103300377 | ||
| A 3093300577 | STOP | |
| Repalced by: A 3103300377 | ||
| A 3103300377 | STOP | |
| RIGHT FRONT SPRING | ||
| A 3093300277 | STOP | |
| Repalced by: A 3103300277 | ||
| A 3093300777 | STOP | |
| Repalced by: A 3103300277 | ||
| A 3103300277 | STOP | |
| RIGHT FRONT SPRING | ||
| 048 | A 3093300075 | RUBBER MOUNTING |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| 050 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 050 | N 304017010002 | SCREW |
| BUFFER TO CONSOLE ON AUXILIARY FRAME | ||
| 051 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 051 | N 910113010000 | NUT |
| BUFFER TO CONSOLE ON AUXILIARY FRAME | ||

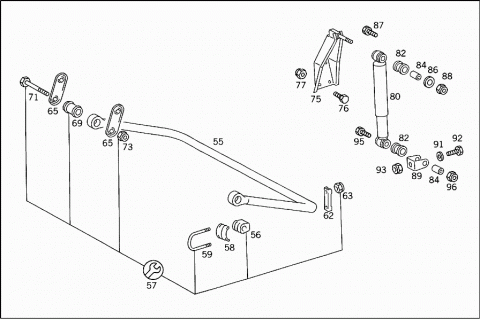

| 055 | A 3093230365 | TORSION BAR |
| Repalced by: A 3093230465 | ||
| 055 | A 3093230465 | TORSION BAR |
| DIA., | ||
| 30 MM | ||
| 056 | A 3093230285 | RUBBER MOUNTING |
| TORSION BAR | ||
| 056 | A 3093230385 | RUBBER MOUNTING |
| TORSION BAR | ||
| 057 | A 3095860232 | REPAIR KIT |
| Repalced by: A 3093200028 | ||
| 057 | A 3093200028 | REPAIR KIT |
| TORSION BAR TO FRONT AXLE | ||
| 057 | A 3095860132 | REPAIR KIT |
| Repalced by: A 3093200228 | ||
| 057 | A 3093200228 | REPAIR KIT |
| TORSION BAR TO FRONT AXLE | ||
| 058 | A 3093230440 | BRACKET |
| TORSION BAR,FRONT | ||
| 059 | A 3093230740 | BRACKET |
| Repalced by: A 3103230426 | ||
| 059 | A 3103230026 | CLAMP |
| Repalced by: A 3103230426 | ||
| 059 | A 3103230426 | CLAMP |
| TORSION BAR,FRONT | ||
| 062 | A 3093230840 | BRACKET |
| Repalced by: A 3103230540 | ||
| 062 | A 3103230040 | BRACKET |
| Repalced by: A 3103230540 | ||
| 062 | A 3103230540 | BRACKET |
| TORSION BAR,FRONT | ||
| 063 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 063 | N 910113010000 | NUT |
| TORSION BAR,FRONT | ||
| 065 | A 3143200063 | SHACKLE |
| Repalced by: A 3093200463 | ||
| 065 | A 3093200463 | SHACKLE |
| Repalced by: A 3093260547 | ||
| 065 | A 3093260547 | SHACKLE |
| TORSION BAR,FRONT | ||
| 069 | A 3143260181 | RUBBER MOUNTING |
| Repalced by: A 3093200073 | ||
| 069 | A 3143260481 | RUBBER MOUNTING |
| Repalced by: A 3093200073 | ||
| 069 | A 3143260053 | SPACER TUBE |
| Repalced by: A 3093200073 | ||
| 069 | A 3143260153 | SPACER TUBE |
| Repalced by: A 3093200073 | ||
| 069 | A 3093200073 | BEARING |
| RUBBER MOUNTING | ||
| 071 | N 000960012197 | SCREW |
| TORSION BAR TO SHACKLE | ||
| 073 | N 913004012008 | NUT |
| TORSION BAR TO SHACKLE | ||
| 075 | A 3093200278 | CONSOLE |
| Repalced by: A 3093200678 | ||
| 075 | A 3093200378 | CONSOLE |
| Repalced by: A 3093200678 | ||
| 075 | A 3093200678 | CONSOLE |
| FRONT SHOCK ABSORBERS | ||
| 075 | A 3093200678 | CONSOLE |
| FRONT SHOCK ABSORBERS | ||
| 075 | A 3093200678 | CONSOLE |
| FRONT SHOCK ABSORBERS | ||
| 076 | N 000933010105 | SCREW |
| TOP BEARING BRACKET TO FRAME | ||
| 077 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 077 | N 910113010000 | NUT |
| TOP BEARING BRACKET TO FRAME | ||
| 080 | A 0013265400 | SHOCK ABSORBER |
| Repalced by: A 0033236100 | ||
| 080 | A 0013267900 | SHOCK ABSORBER |
| Repalced by: A 0033236100 | ||
| 080 | A 0023233000 | SHOCK ABSORBER |
| Repalced by: A 0033236100 | ||
| 080 | A 0013266200 | SHOCK ABSORBER |
| Repalced by: A 0033236100 | ||
| 080 | A 0033234400 | SHOCK ABSORBER |
| Repalced by: A 0033236100 | ||
| 080 | A 0033236200 | SHOCK ABSORBER |
| Repalced by: A 0033236100 | ||
| 080 | A 0043238000 | SHOCK ABSORBER |
| Repalced by: A 0033236100 | ||
| 080 | A 0043238200 | SHOCK ABSORBER |
| Repalced by: A 0033236100 | ||
| 080 | A 0033236100 | SHOCK ABSORBER |
| FRONT | ||
| 082 | A 0003232544 | RUBBER BUFFER |
| Repalced by: A 0003230185 | ||
| 082 | A 0003230185 | RUBBER MOUNTING |
| TO 001 326 54 00,001 326 79 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 323 30 00 | ||
| 082 | A 0003231585 | RUBBER MOUNTING |
| TO 003 323 44 00,001 326 62 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 003 323 61 00 | ||
| 082 | A 0003232944 | RUBBER BUFFER |
| TO 003 323 62 00 | ||
| 084 | A 0003230353 | SPACER TUBE |
| Repalced by: A 0003232750 | ||
| 084 | A 0003233350 | BUSHING |
| Repalced by: A 0003232750 | ||
| 084 | A 0003232250 | BUSHING |
| Repalced by: A 0003232750 | ||
| 084 | A 0003232750 | BUSHING |
| 086 | A 3193260076 | WASHER |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 087 | A 3093260371 | SCREW |
| Repalced by: N 000960014287 | ||
| 087 | N 000960014287 | SCREW |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 088 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 088 | N 910113014001 | NUT |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 089 | A 3093230540 | BRACKET |
| Repalced by: A 3093230026 | ||
| 089 | A 3093230026 | CLAMP |
| Repalced by: A 3093230226 | ||
| 089 | A 3093230226 | CLAMP |
| AT AXLE BEAM | ||
| 091 | A 3093230076 | WASHER |
| Repalced by: A 3193260076 | ||
| 091 | A 3193260076 | WASHER |
| CLAMP TO AXLE BODY | ||
| 092 | N 308676014002 | SCREW |
| CLAMP TO AXLE BODY | ||
| 093 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 093 | N 910113014001 | NUT |
| CLAMP TO AXLE BODY | ||
| 095 | A 3099900001 | SCREW |
| Repalced by: A 3099901101 | ||
| 095 | A 3099901101 | SCREW |
| Repalced by: N 000960014121 | ||
| 095 | N 000960014121 | SCREW |
| Repalced by: N 308676014014 | ||
| 095 | N 308676014014 | SCREW |
| SHOCK ABSORBER TO BRACKET AT FRONT AXLE | ||
| 096 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 096 | N 910113014001 | NUT |
| SHOCK ABSORBER TO BRACKET AT FRONT AXLE | ||
| 100 | A 3093201306 | REAR SPRING |
| 5-LEAF | ||
| 100 | A 3093201406 | REAR SPRING |
| 6-LEAF | ||
| 100 | A 3093202006 | REAR SPRING |
| Repalced by: A 3093202806 | ||
| 100 | A 3093202806 | REAR SPRING |
| 6-LEAF | ||
| 100 | A 3093201806 | REAR SPRING |
| Repalced by: A 3093202906 | ||
| 100 | A 3093202906 | REAR SPRING |
| 7-LEAF | ||
| 100 | A 3093202906 | REAR SPRING |
| 7-LEAF | ||
| 105 | A 3093200293 | SPRING LEAF |
| NO.1 | ||
| 105 | A 3093200193 | SPRING LEAF |
| NO.1 | ||
| 105 | A 3093200593 | SPRING LEAF |
| Repalced by: A 3093200493 | ||
| 105 | A 3093200493 | SPRING LEAF |
| NO.1 | ||
| 105 | A 3093200493 | SPRING LEAF |
| NO.1 | ||
| 109 | A 3093220050 | BUSHING |
| 115 | A 3093242012 | SPRING LEAF |
| Repalced by: A 3093242612 | ||
| 115 | A 3093242612 | SPRING LEAF |
| NO.2 | ||
| 115 | A 3093241412 | SPRING LEAF |
| NO. 2 | ||
| 115 | A 3093241312 | SPRING LEAF |
| Repalced by: A 3093242712 | ||
| 115 | A 3093241812 | SPRING LEAF |
| Repalced by: A 3093242712 | ||
| 115 | A 3093242712 | SPRING LEAF |
| NO.2 | ||
| 115 | A 3093242712 | SPRING LEAF |
| NO.2 | ||
| 115 | A 3093242712 | SPRING LEAF |
| NO.2 | ||
| 117 | A 3093240913 | SPRING LEAF |
| Repalced by: A 3093201593 | ||
| 117 | A 3093201593 | SPRING LEAF |
| WITH SPRING CLAMP | ||
| NO.3 | ||
| 118 | A 0003828233 | EXPANSION PLUG |
| Repalced by: A 3093210933 | ||
| 118 | A 3093210933 | SPRING CLAMP |
| Repalced by: A 3093211833 | ||
| 118 | A 3093211833 | SPRING CLAMP |
| TO SPRING LEAF NO.3 | ||
| 119 | N 000660008026 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 120 | A 3093241613 | SPRING LEAF |
| Repalced by: A 3093242213 | ||
| 120 | A 3093242213 | SPRING LEAF |
| NO.3 | ||
| 120 | A 3093241013 | SPRING LEAF |
| NO.3 | ||
| 120 | A 3093241413 | SPRING LEAF |
| Repalced by: A 3093242313 | ||
| 120 | A 3093242313 | SPRING LEAF |
| NO.3 | ||
| 120 | A 3093242313 | SPRING LEAF |
| NO.3 | ||
| 123 | A 3263240214 | SPRING LEAF |
| NO.4 | ||
| 123 | A 3093202093 | SPRING LEAF |
| NO.4 | ||
| 123 | A 3093201893 | SPRING LEAF |
| NO.4 | ||
| 123 | A 3093202193 | SPRING LEAF |
| NO.4 | ||
| 123 | A 3093201993 | SPRING LEAF |
| Repalced by: A 3093242314 | ||
| 123 | A 3093242314 | SPRING LEAF |
| LESS SPRING CLAMP | ||
| NO.4 | ||
| 123 | A 3093242314 | SPRING LEAF |
| LESS SPRING CLAMP | ||
| NO.4 | ||
| 125 | A 0013213333 | SPRING CLAMP |
| Repalced by: A 3093210933 | ||
| 125 | A 3093210933 | SPRING CLAMP |
| Repalced by: A 3093211833 | ||
| 125 | A 3093211833 | SPRING CLAMP |
| TO SPRING LEAF NO.3 | ||
| 32 MM | ||
| 125 | A 3093211833 | SPRING CLAMP |
| TO SPRING LEAF NO.4 | ||
| 32 MM | ||
| 125 | A 3093211833 | SPRING CLAMP |
| TO SPRING LEAF NO.3 | ||
| 32 MM | ||
| 125 | A 3093211833 | SPRING CLAMP |
| TO SPRING LEAF NO.3 | ||
| 32 MM | ||
| 125 | A 3223242033 | SPRING CLAMP |
| TO SPRING LEAF NO.3 | ||
| 30 MM | ||
| 125 | A 3223242033 | SPRING CLAMP |
| TO SPRING LEAF NO.3 | ||
| 30 MM | ||
| 126 | N 910006008022 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 8X20 MM | ||
| 128 | A 0003212153 | SPACER TUBE |
| Repalced by: A 0003212353 | ||
| 128 | A 0003212353 | SPACER TUBE |
| Repalced by: A 0003213253 | ||
| 128 | A 0003213253 | SPACER TUBE |
| FOR SPRING CLAMPS | ||
| 129 | N 000931008189 | SCREW |
| FOR SPRING CLAMPS | ||
| 130 | N 000934008010 | NUT |
| FOR SPRING CLAMPS | ||
| 132 | A 3093210333 | SPRING CLAMP |
| Repalced by: A 3093210933 | ||
| 132 | A 3093210533 | SPRING CLAMP |
| Repalced by: A 3093210933 | ||
| 132 | A 3093210933 | SPRING CLAMP |
| Repalced by: A 3093211833 | ||
| 132 | A 3093211833 | SPRING CLAMP |
| TO SPRING LEAF NO. 6 | ||
| 32 MM | ||
| 132 | A 3093211833 | SPRING CLAMP |
| FOR SPRING LEAF NO. 7 | ||
| 32 MM | ||
| 132 | A 3093211833 | SPRING CLAMP |
| REAR SPRING | ||
| 32 MM | ||
| 132 | A 3223242033 | SPRING CLAMP |
| FOR SPRING LEAF NO. 7 | ||
| 30 MM | ||
| 132 | A 3223242033 | SPRING CLAMP |
| FOR SPRING LEAF NO. 7 | ||
| 30 MM | ||
| 134 | N 910006008025 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 8X22 MM | ||
| 137 | N 004626010124 | SPRING BOLT |
| M10X75 | ||
| 137 | N 004626010124 | SPRING BOLT |
| M10X85 | ||
| 137 | N 004626010121 | SPRING BOLT |
| M10X80 | ||
| 137 | N 004626010105 | SPRING BOLT |
| M10X95 | ||
| 137 | N 004626010105 | SPRING BOLT |
| M10X95 | ||
| 140 | N 000934010009 | NUT |
| Repalced by: N 304032010002 | ||
| 140 | N 304032010002 | NUT |
| REAR SPRING | ||
| A 3093206506 | REAR SPRING | |
| 5-LEAF | ||
| A 3093220050 | BUSHING | |
| A 3223242033 | SPRING CLAMP | |
| TO SPRING LEAF NO.4 | ||
| N 910006008025 | RIVET | |
| SPRING CLAMP TO SPRING LEAF | ||
| 8X22 MM | ||
| A 0003212353 | SPACER TUBE | |
| Repalced by: A 0003213253 | ||
| A 0003213253 | SPACER TUBE | |
| FOR SPRING CLAMPS | ||
| N 000931008189 | SCREW | |
| FOR SPRING CLAMPS | ||
| N 913004008004 | NUT | |
| FOR SPRING CLAMPS | ||
| A 3093250025 | SPRING CLAMP | |
| AT LEAF NO.5 | ||
| A 3133250095 | WEB | |
| AT LEAF NO.5 | ||
| N 910006008029 | RIVET | |
| SPRING CLAMP TO SPRING LEAF | ||
| 8X18 MM | ||
| A 3133210084 | SHIM | |
| BETWEEN THE SPRING LEAVES | ||
| A 3133210062 | THRUST WASHER | |
| BETWEEN THE SPRING LEAVES | ||
| N 004626010105 | SPRING BOLT | |
| N 913004010011 | NUT | |
| REAR SPRING | ||
| 145 | A 3093200077 | RUBBER SPRING |
| REAR SPRING | ||
| 145 | A 3093200177 | RUBBER SPRING |
| REAR SPRING | ||
| 145 | A 3093200277 | RUBBER SPRING |
| Repalced by: A 6673200077 | ||
| 145 | A 6673200077 | RUBBER SPRING |
| REAR SPRING | ||
| 145 | A 6673200077 | RUBBER SPRING |
| REAR SPRING | ||
| 146 | A 3093250184 | SHIM |
| RUBBER SPRING | ||
| 146 | A 3093250184 | SHIM |
| RUBBER SPRING | ||
| 148 | A 3093250040 | BRACKET |
| RUBBER SPRING | ||
| 155 | A 3093200675 | SPRING BRACKET |
| (REAR SPRING BRACKET),REAR | ||
| 156 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 156 | N 304017010002 | SCREW |
| REAR SPRING REAR BRACKET TO SIDE MEMBER | ||
| 158 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 158 | N 910113010000 | NUT |
| REAR SPRING REAR BRACKET TO SIDE MEMBER | ||
| 160 | A 3193240450 | BUSHING |
| Repalced by: A 3193240750 | ||
| 160 | A 3193240750 | BUSHING |
| REAR SPRING TO REAR SPRING FRONT BRACKET | ||
| 161 | A 3093250042 | SUPPORTING SHELL |
| REAR SPRING TO REAR SPRING FRONT BRACKET | ||
| 162 | A 3093250142 | SUPPORTING SHELL |
| REAR SPRING TO REAR SPRING FRONT BRACKET | ||
| 163 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 163 | N 910113016002 | NUT |
| REAR SPRING TO REAR SPRING FRONT BRACKET | ||
| 164 | A 3093250162 | THRUST WASHER |
| REAR SPRING TO REAR SPRING FRONT BRACKET | ||
| 165 | A 3193200662 | SHACKLE |
| Repalced by: A 3103220030 | ||
| 165 | A 3103220030 | SHACKLE PIN |
| REAR SPRING TO REAR SPRING REAR BRACKET | ||
| 166 | A 3193250320 | SHACKLE |
| REAR SPRING TO REAR SPRING REAR BRACKET | ||
| 166 | A 3193250320 | SHACKLE |
| REAR SPRING TO REAR SPRING REAR BRACKET | ||
| 167 | A 3193240750 | BUSHING |
| REAR SPRING TO REAR SPRING REAR BRACKET | ||
| 168 | A 3093250042 | SUPPORTING SHELL |
| REAR SPRING TO REAR SPRING REAR BRACKET | ||
| 169 | A 3093250142 | SUPPORTING SHELL |
| REAR SPRING TO REAR SPRING REAR BRACKET | ||
| N 000960016182 | SCREW | |
| REAR SPRING TO REAR SPRING REAR BRACKET | ||
| 170 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 170 | N 910113016002 | NUT |
| REAR SPRING TO REAR SPRING REAR BRACKET | ||
| 171 | A 3093250331 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 171 | A 3093250431 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 173 | A 3093510525 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 210 MM | ||
| 173 | A 3093510125 | U-BOLT |
| Repalced by: A 3093510225 | ||
| 173 | A 3093510225 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 160 MM | ||
| 173 | A 3093510225 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 160 MM | ||
| 173 | A 3093510225 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 160 MM | ||
| 173 | A 3093510325 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 180 MM | ||
| 175 | A 3193510076 | SHIM |
| Repalced by: N 074361012301 | ||
| 175 | N 074361012301 | LOCK WASHER |
| REAR SPRING TO REAR AXLE | ||
| 177 | N 913004012008 | NUT |
| REAR SPRING TO REAR AXLE | ||
| 180 | A 3093250084 | SHIM |
| REAR SPRING TO REAR AXLE | ||

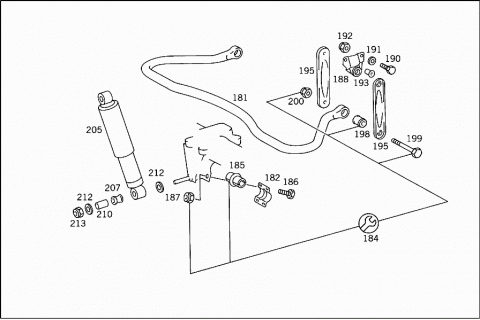

| 181 | A 3093260265 | TORSION BAR |
| Repalced by: A 3103260165 | ||
| 181 | A 3103260165 | TORSION BAR |
| Repalced by: A 3103260365 | ||
| 181 | A 3103260365 | TORSION BAR |
| REAR AXLE | ||
| 182 | A 3093260140 | BRACKET |
| TORSION BAR TO REAR AXLE | ||
| 182 | A 3093260740 | BRACKET |
| TORSION BAR TO REAR AXLE | ||
| 184 | A 3095860032 | REPAIR KIT |
| Repalced by: A 3093200128 | ||
| 184 | A 3093200128 | REPAIR KIT |
| TORSION BAR TO REAR AXLE | ||
| 184 | A 3095860332 | REPAIR KIT |
| Repalced by: A 3093200428 | ||
| 184 | A 3093200428 | REPAIR KIT |
| TORSION BAR TO REAR AXLE | ||
| 184 | A 3095860432 | REPAIR KIT |
| Repalced by: A 3093200528 | ||
| 184 | A 3093200528 | REPAIR KIT |
| TORSION BAR TO REAR AXLE | ||
| 185 | A 3093260181 | RUBBER MOUNTING |
| TORSION BAR | ||
| 185 | A 3093260281 | RUBBER MOUNTING |
| TORSION BAR | ||
| 185 | A 3093260481 | RUBBER MOUNTING |
| TORSION BAR | ||
| A 3093200443 | BRACKET | |
| Repalced by: A 3093260240 | ||
| A 3093260240 | BRACKET | |
| TORSION BAR TO REAR AXLE | ||
| 186 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 186 | N 304017008021 | SCREW |
| TORSION BAR TO REAR AXLE | ||
| 187 | N 913004008004 | NUT |
| TORSION BAR TO REAR AXLE | ||
| 188 | A 3143200478 | CONSOLE |
| LEFT | ||
| 188 | A 3143200578 | CONSOLE |
| RIGHT | ||
| 190 | N 000933010157 | SCREW |
| CONSOLE TO FRAME | ||
| 191 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 191 | N 000125010532 | WASHER |
| CONSOLE TO FRAME | ||
| 192 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 192 | N 910113010000 | NUT |
| CONSOLE TO FRAME | ||
| 193 | N 910005010014 | RIVET |
| CONSOLE TO FRAME | ||
| 195 | A 3093200063 | SHACKLE |
| Repalced by: A 3093200263 | ||
| 195 | A 3093200263 | SHACKLE |
| Repalced by: A 3093260347 | ||
| 195 | A 3093260347 | SHACKLE |
| TORSION BAR,REAR | ||
| 195 | A 3093260447 | SHACKLE |
| Repalced by: A 6673200837 | ||
| 195 | A 6673200837 | SHACKLE |
| TORSION BAR,REAR | ||
| 198 | A 3143260181 | RUBBER MOUNTING |
| Repalced by: A 3093200073 | ||
| 198 | A 3143260481 | RUBBER MOUNTING |
| Repalced by: A 3093200073 | ||
| 198 | A 3143260053 | SPACER TUBE |
| Repalced by: A 3093200073 | ||
| 198 | A 3143260153 | SPACER TUBE |
| Repalced by: A 3093200073 | ||
| 198 | A 3093200073 | BEARING |
| TORSION BAR | ||
| 199 | N 000960012197 | SCREW |
| SHACKLE TO TORSION BAR AND TO CONSOLE | ||
| 199 | N 000960012246 | SCREW |
| Repalced by: N 000960012353 | ||
| 199 | N 000960012353 | SCREW |
| SHACKLE TO TORSION BAR AND TO CONSOLE | ||
| 200 | N 913004012008 | NUT |
| SHACKLE TO TORSION BAR AND TO CONSOLE | ||
| 205 | A 0003268800 | SHOCK ABSORBER |
| Repalced by: A 0033236100 | ||
| 205 | A 0013264000 | SHOCK ABSORBER |
| Repalced by: A 0033236100 | ||
| 205 | A 0013265300 | SHOCK ABSORBER |
| Repalced by: A 0033236100 | ||
| 205 | A 0013267800 | SHOCK ABSORBER |
| Repalced by: A 0033236100 | ||
| 205 | A 0013268200 | SHOCK ABSORBER |
| Repalced by: A 0033236100 | ||
| 205 | A 0013266300 | SHOCK ABSORBER |
| Repalced by: A 0033236100 | ||
| 205 | A 0033234300 | SHOCK ABSORBER |
| Repalced by: A 0033236100 | ||
| 205 | A 0033236200 | SHOCK ABSORBER |
| Repalced by: A 0033236100 | ||
| 205 | A 0043238000 | SHOCK ABSORBER |
| Repalced by: A 0033236100 | ||
| 205 | A 0043238200 | SHOCK ABSORBER |
| Repalced by: A 0033236100 | ||
| 205 | A 0033236100 | SHOCK ABSORBER |
| REAR AXLE | ||
| 205 | A 0043238100 | SHOCK ABSORBER |
| Repalced by: A 0033236000 | ||
| 205 | A 0043238300 | SHOCK ABSORBER |
| Repalced by: A 0033236000 | ||
| 205 | A 0033236000 | SHOCK ABSORBER |
| REAR AXLE | ||
| 207 | A 0003232244 | RUBBER BUFFER |
| Repalced by: A 0003230185 | ||
| 207 | A 0003232544 | RUBBER BUFFER |
| Repalced by: A 0003230185 | ||
| 207 | A 0003230185 | RUBBER MOUNTING |
| TO 000 326 88 00,001 326 40 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 001 326 53 00,001 326 78 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 001 326 82 00 | ||
| 207 | A 0003231585 | RUBBER MOUNTING |
| TO 001 326 63 00,003 323 43 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 003 323 61 00,003 323 60 00 | ||
| 207 | A 0003232944 | RUBBER BUFFER |
| TO 003 323 62 00 | ||
| 210 | A 0003230353 | SPACER TUBE |
| Repalced by: A 0003232750 | ||
| 210 | A 0003233350 | BUSHING |
| Repalced by: A 0003232750 | ||
| 210 | A 0003232250 | BUSHING |
| Repalced by: A 0003232750 | ||
| 210 | A 0003232750 | BUSHING |
| 212 | A 3193260076 | WASHER |
| SHOCK ABSORBER MOUNTING | ||
| 213 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 213 | N 910113014001 | NUT |
| SHOCK ABSORBER MOUNTING | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
