Transporto priemonė: O 309 B; VIN numerio dalis: 309073

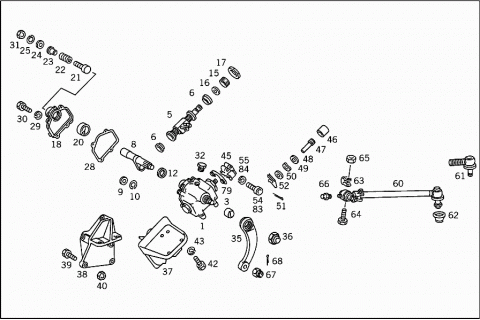

Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 3094601201 | STEERING BOX ASSEMBLY |
| LESS PITMAN ARM | ||
| 001 | A 3094601301 | STEERING BOX ASSEMBLY |
| LESS PITMAN ARM | ||
| 003 | A 1114620350 | BUSHING |
| STEERING SHAFT BEARING | ||
| 005 | A 3094600308 | STEERING WORM |
| WITH STEERING NUT | ||
| 005 | A 3094600408 | STEERING WORM |
| WITH STEERING NUT | ||
| 006 | A 0009810318 | ROLLER BEARING |
| STEERING NUT BEARING | ||
| 006 | A 0009815105 | TAPERED ROLLER BEARING |
| STEERING NUT BEARING | ||
| A 1114600511 | STEERG. WORM SECTOR SHAFT | |
| Repalced by: A 3094600211 | ||
| 008 | A 3094600211 | STEERG. WORM SECTOR SHAFT |
| 009 | A 1114620137 | BALL CUP |
| STEERING SHAFT BEARING | ||
| 010 | N 000472030000 | LOCK RING |
| STEERING SHAFT BEARING | ||
| 012 | A 0019979346 | SEAL RING |
| STEERING WORM SECTOR SHAFT SEALING | ||
| 012 | A 0029977146 | SEAL RING |
| STEERING WORM SECTOR SHAFT SEALING | ||
| 012 | A 0029977246 | SEAL RING |
| STEERING WORM SECTOR SHAFT SEALING | ||
| 015 | A 1114610406 | SET COLLAR |
| STEERING NUT BEARING | ||
| 016 | A 0029977046 | SEAL RING |
| 016 | A 0029974746 | SEAL RING |
| 016 | A 0049971546 | SEAL RING |
| 016 | A 0109972546 | SEAL RING |
| 017 | A 1209900551 | NUT |
| STEERING NUT BEARING | ||
| 018 | A 3094600414 | STEERING BOX COVER |
| STEERING BOX | ||
| 018 | A 3094600514 | STEERING BOX COVER |
| STEERING BOX | ||
| 020 | A 1114620250 | BUSHING |
| STEERING SHAFT BEARING IN COVER | ||
| 021 | A 1114620471 | SCREW |
| STEERING SHAFT BEARING IN COVER | ||
| 022 | A 1119932101 | SPRING |
| STEERING SHAFT BEARING IN COVER | ||
| 023 | A 1114620485 | THRUST PIECE |
| STEERING SHAFT BEARING IN COVER | ||
| 024 | A 1114610462 | THRUST WASHER |
| STEERING SHAFT BEARING IN COVER | ||
| 025 | A 0009944641 | LOCK |
| STEERING SHAFT BEARING IN COVER | ||
| 028 | A 3094610280 | GASKET |
| COVER TO STEERING BOX | ||
| 029 | N 912004008102 | LOCK WASHER |
| COVER TO STEERING BOX | ||
| 030 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 030 | N 304017008034 | SCREW |
| COVER TO STEERING BOX | ||
| 031 | N 000934010014 | NUT |
| STEERING SHAFT BEARING IN COVER | ||
| 032 | N 000908012003 | SCREW PLUG |
| Repalced by: N 000908012009 | ||
| 032 | N 000908012009 | SCREW PLUG |
| OIL DRAIN | ||
| 035 | A 3094630401 | PITMAN ARM |
| 035 | A 3094631301 | PITMAN ARM |
| 035 | A 3094630501 | PITMAN ARM |
| 035 | A 3094631401 | PITMAN ARM |
| 036 | A 0019901251 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 036 | A 0019907651 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 037 | A 3094600329 | STEERING BRACKET |
| 037 | A 3094600729 | STEERING BRACKET |
| 037 | A 3094600429 | STEERING BRACKET |
| 038 | A 3094612740 | STEERING SUPPORT |
| 039 | N 000933010105 | SCREW |
| STEERING BRACKET TO FRAME | ||
| M 10X25 | ||
| 039 | N 000933010145 | SCREW |
| STEERING BRACKET TO FRAME | ||
| M 10X35 | ||
| 040 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 040 | N 910113010000 | NUT |
| STEERING BRACKET TO FRAME | ||
| 042 | N 000933010105 | SCREW |
| STEERING TO STEERING BRACKET | ||
| M 10X25 | ||
| 042 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 042 | N 304017010002 | SCREW |
| STEERING TO STEERING BRACKET | ||
| M 10X30 | ||
| 043 | N 912004010102 | LOCK WASHER |
| STEERING TO STEERING BRACKET | ||
| A 3094600010 | STEERING COUPLING | |
| Repalced by: A 3094600210 | ||
| 045 | A 3094600210 | STEERING COUPLING |
| 046 | A 1114620165 | RING |
| 046 | A 3094620065 | RING |
| A 1114620074 | PIN | |
| Repalced by: A 3094620074 | ||
| 047 | A 3094620074 | PIN |
| 047 | A 3094620174 | PIN |
| 048 | A 1119903040 | WASHER |
| 048 | A 3099901540 | WASHER |
| 049 | N 900055010002 | SPRING WASHER |
| 050 | A 1369909540 | WASHER |
| 051 | N 000094002059 | COTTER PIN |
| 052 | N 912002010001 | LOCK |
| A 3094600057 | UNIVERSAL JOINT | |
| Repalced by: A 3094600157 | ||
| 053 | A 3094600157 | UNIVERSAL JOINT |
| 053 | A 3094600257 | UNIVERSAL JOINT |
| 053 | A 6674600057 | UNIVERSAL JOINT |
| 053 | A 6674600157 | UNIVERSAL JOINT |
| 054 | A 1119900420 | SCREW |
| STEERING COUPLING TO STEERING SHAFT AND TO STEERING | ||
| 055 | N 912004008102 | LOCK WASHER |
| STEERING COUPLING TO STEERING SHAFT AND TO STEERING | ||
| 056 | A 3169900114 | SCREW |
| UNIVERSAL JOINT | ||
| M 8X38 | ||
| A 0019901651 | NUT | |
| Repalced by: N 913004008005 | ||
| 058 | N 913004008005 | NUT |
| UNIVERSAL JOINT | ||
| A 3094602905 | DRAG LINK | |
| Repalced by: A 3094603105 | ||
| 060 | A 3094603105 | DRAG LINK |
| 060 | A 3094603205 | DRAG LINK |
| 061 | A 0004604148 | DRAG LINK END |
| Repalced by: A 0004608548 | ||
| 061 | A 0004608548 | DRAG LINK END |
| ADJUSTABLE | ||
| LEMFOERDER | ||
| A 3103301335 | JOINT | |
| Repalced by: A 0004604548 | ||
| 061 | A 0004604548 | DRAG LINK END |
| ADJUSTABLE | ||
| EHRENREICH | ||
| A 0004631396 | BOOT | |
| Repalced by: A 0004631896 | ||
| 062 | A 0004631896 | BOOT |
| STEERING JOINT | ||
| A 0004631396 | BOOT | |
| 062 | A 0004631896 | BOOT |
| FIXED PART OF JOINT | ||
| 063 | A 0003380563 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| 063 | A 0003382745 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| 064 | N 000960010023 | SCREW |
| DRAG LINK END TO DRAG LINK | ||
| 065 | N 913004010010 | NUT |
| Repalced by: N 910113010002 | ||
| 065 | N 910113010002 | NUT |
| DRAG LINK END TO DRAG LINK | ||
| 066 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 066 | N 071412008102 | GREASE NIPPLE |
| STEERING JOINT | ||
| 067 | N 000979014007 | NUT |
| DRAG LINK TO LEVER | ||
| 068 | N 000094003226 | COTTER PIN |
| DRAG LINK TO LEVER | ||

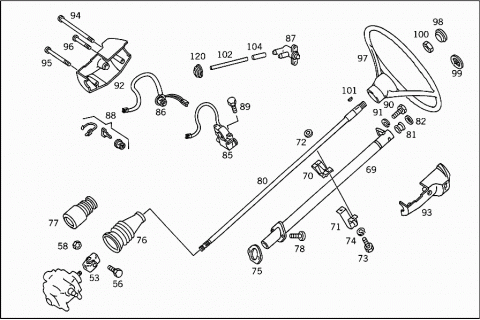

| A 3094600216 | STEER. COLUMN JACKET TUBE | |
| Repalced by: A 3094600316 | ||
| 069 | A 3094600316 | STEER. COLUMN JACKET TUBE |
| A 3094601016 | STEER. COLUMN JACKET TUBE | |
| Repalced by: A 3094601916 | ||
| 069 | A 3094601916 | STEER. COLUMN JACKET TUBE |
| 069 | A 3094602716 | STEER. COLUMN JACKET TUBE |
| 069 | A 3094602716 | STEER. COLUMN JACKET TUBE |
| 069 | A 3094602416 | STEER. COLUMN JACKET TUBE |
| 069 | A 3094603016 | STEER. COLUMN JACKET TUBE |
| 070 | A 3094610045 | STEERING COLUMN BRACKET |
| STEERING COLUMN JACKET TUBE,FIRE WALL | ||
| 071 | A 3094600165 | STRAP |
| STEERING COLUMN JACKET TUBE,FIRE WALL | ||
| 072 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 072 | N 000125008443 | WASHER |
| STEERING COLUMN JACKET TUBE,FIRE WALL | ||
| 073 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 073 | N 304017008021 | SCREW |
| STEERING COLUMN BRACKET TO CAB | ||
| 074 | N 912004008102 | LOCK WASHER |
| STEERING COLUMN BRACKET TO CAB | ||
| A 3094620297 | SEAL | |
| Repalced by: A 3094620397 | ||
| 075 | A 3094620397 | SEAL |
| STEERING COLUMN JACKET TUBE TO FLOOR PLATE | ||
| 076 | A 3094620496 | BOOT |
| UNIVERSAL JOINT COVERING | ||
| 076 | A 3094620496 | BOOT |
| UNIVERSAL JOINT COVERING | ||
| A 3094620896 | BOOT | |
| Repalced by: A 3094621396 | ||
| 077 | A 3094621396 | BOOT |
| UNIVERSAL JOINT COVERING | ||
| 078 | N 000966006020 | SCREW |
| STEERING COLUMN JACKET TUBE TO FLOOR PLATE | ||
| A 0009902291 | NUT RETAINER | |
| Repalced by: A 3094600235 | ||
| 079 | A 3094600235 | BRACKET |
| STEERING COLUMN JACKET TUBE TO FLOOR PLATE | ||
| 080 | A 3094600109 | STEERING SHAFT |
| 080 | A 3094600109 | STEERING SHAFT |
| 080 | A 3094600409 | STEERING SHAFT |
| A 3094603209 | STEERING SHAFT | |
| Repalced by: A 3094604209 | ||
| 080 | A 3094604209 | STEERING SHAFT |
| 080 | A 3094604709 | STEERING SHAFT |
| 080 | A 3094623901 | STEERING SHAFT |
| 081 | A 3124621050 | BUSHING |
| STEERING COLUMN TUBE TO UNIVERSAL JOINT | ||
| 082 | A 3124621065 | RING |
| STEERING COLUMN TUBE TO UNIVERSAL JOINT | ||
| 083 | A 1119900420 | SCREW |
| STEERING COLUMN TUBE TO UNIVERSAL JOINT | ||
| 084 | N 912004008102 | LOCK WASHER |
| STEERING COLUMN TUBE TO UNIVERSAL JOINT | ||
| 085 | A 0014621030 | STEERING LOCK |
| 085 | A 0014621830 | STEERING LOCK |
| 086 | A 0005455513 | SWITCH BOX |
| 087 | A 0004600284 | VALVE |
| A 3094600004 | TUMBLER | |
| 088 | A 3094620079 | TUMBLER |
| WITH 2 KEYS | ||
| A 0007600606 | KEY | |
| A 0007665306 | KEY | |
| BLANK | ||
| 089 | A 0004622371 | SCREW |
| (BREAK-OFF BOLT),STEERING LOCK MOUNTING | ||
| 090 | N 007985004165 | SCREW |
| 091 | N 912006004000 | LOCK WASHER |
| 092 | A 3184620043 | SHELL |
| 093 | A 3184620143 | SHELL |
| 093 | A 3184620243 | SHELL |
| 093 | A 3184620343 | SHELL |
| 094 | A 3819900321 | SCREW |
| STEERING COLUMN PANELLING | ||
| M 5X83 | ||
| 095 | A 3819900821 | SCREW |
| STEERING COLUMN PANELLING | ||
| 096 | A 3819900921 | SCREW |
| STEERING COLUMN PANELLING | ||
| A 3144600303 | STEERING WHEEL | |
| Repalced by: A 3104640001 | ||
| 097 | A 3104640001 | STEERING WHEEL |
| 097 | A 3134640201 | STEERING WHEEL |
| A 3134620055 | RING HALF | |
| STEERING COLUMN MOUNTED SWITCH RESET | ||
| N 007983002205 | SHEET METAL SCREW | |
| STEERING WHEEL | ||
| A 0004641231 | CAP | |
| Repalced by: A 0004642631 | ||
| 098 | A 0004642631 | CAP |
| STEERING WHEEL | ||
| 099 | A 0004640432 | BADGE |
| STEERING WHEEL | ||
| 100 | N 000439022004 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| 101 | N 006888005006 | WOODRUFF KEY |
| STEERING WHEEL TO STEERING COLUMN | ||
| A 0009973952 | HOSE | |
| Repalced by: A 3359972282 | ||
| 102 | A 3359972282 | HOSE |
| FROM STEERING LOCK TO VACUUM PUMP LINE | ||
| 800 MM | ||
| 102 | A 3359972282 | HOSE |
| FROM STEERING LOCK TO VACUUM PUMP LINE | ||
| 1100 MM | ||
| 102 | A 0009974152 | HOSE |
| Repalced by: A 0001581435 | ||
| 102 | A 0001581435 | PIPE LINE |
| VACUUM LINE FROM STEERING LOCK TO INJECTION PUMP | ||
| 1300 MM | ||
| 102 | A 0001581435 | PIPE LINE |
| VACUUM LINE FROM STEERING LOCK TO INJECTION PUMP | ||
| 1250 MM | ||
| 102 | A 1179970982 | HOSE |
| FROM STEERING LOCK TO VACUUM PUMP LINE | ||
| 30 MM | ||
| 102 | A 1170780281 | HOSE |
| FROM STEERING LOCK TO VACUUM PUMP LINE | ||
| 102 | A 1170780281 | HOSE |
| VACUUM LINE FROM STEERING LOCK TO INJECTION PUMP | ||
| 104 | A 1170780581 | HOSE |
| VACUUM LINE FROM STEERING LOCK TO INJECTION PUMP | ||
| 120 | A 0099728811 | PLATE |
| VACUUM LINE THRU WINDOW LEVEL GIRDER | ||
| 120 | A 0009972081 | GROMMET |
| VACUUM LINE THRU INSTRUMENT PANEL | ||
