Transporto priemonė: O 309 D; VIN numerio dalis: 310386

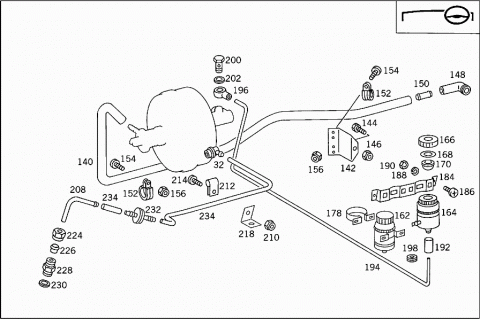

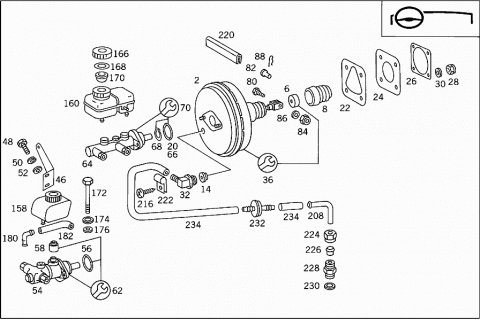

Grupė: 42 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL: | ||
| 730.5 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL: | ||
| 730.6 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR BRAKES,SEE UNIT STANDARD VERSION, MODEL: | ||
| 741.2 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR BRAKES,SEE UNIT STANDARD VERSION, MODEL: | ||
| 741.3 | ||

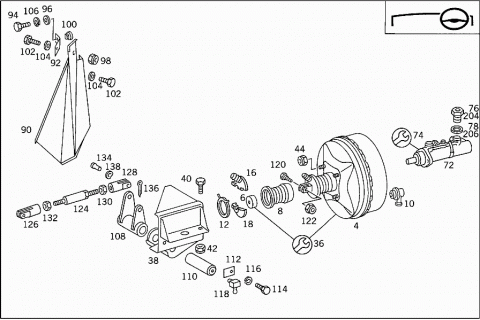

| A 0014302530 | BRAKE BOOSTER ASSEMBLY | |
| Repalced by: A 0024305630 | ||
| 002 | A 0024305630 | BRAKE BOOSTER ASSEMBLY |
| Repalced by: A 0024304830 | ||
| 002 | A 0024304830 | BRAKE BOOSTER ASSEMBLY |
| A 0014303030 | BRAKE BOOSTER ASSEMBLY | |
| Repalced by: A 0024305730 | ||
| 002 | A 0024305730 | BRAKE BOOSTER ASSEMBLY |
| 004 | A 0014301430 | BRAKE BOOSTER ASSEMBLY |
| Repalced by: A 0044300630 | ||
| 004 | A 0044300630 | BRAKE BOOSTER ASSEMBLY |
| 004 | A 0014304630 | BRAKE BOOSTER ASSEMBLY |
| 006 | A 0004350712 | DAMPING RING |
| A 0004350612 | FILTER RING | |
| Repalced by: A 0015864143 | ||
| 008 | A 0004312987 | PROTECTIVE CAP |
| 008 | A 0004315387 | PROTECTIVE CAP |
| 010 | A 0004303681 | CONNECTION HOUSING |
| 012 | A 0004311091 | CLAMPING RING |
| 014 | A 0004319960 | SEAL RING |
| 016 | A 0004311940 | BRACKET |
| 018 | A 0004312040 | BRACKET |
| 020 | A 0049973245 | SEAL RING |
| 022 | A 3094350080 | GASKET |
| 024 | A 3094350180 | GASKET |
| 026 | A 1154310180 | GASKET |
| 028 | N 913004008004 | NUT |
| 030 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 030 | N 000125008443 | WASHER |
| 032 | A 0019900371 | ELBOW FITTING |
| A 0004313107 | VALVE | |
| Repalced by: A 0004313607 | ||
| 036 | A 0015864143 | REPAIR KIT |
| TO 001 430 25 30,001 430 30 30 | ||
| 036 | A 0015864143 | REPAIR KIT |
| TO 002 430 57 30 | ||
| 038 | A 3104301139 | SUPPORT |
| BRAKE BOOSTER ASSEMBLY | ||
| 038 | A 3104301339 | SUPPORT |
| BRAKE BOOSTER ASSEMBLY | ||
| 040 | N 000933010105 | SCREW |
| SUPPORT TO FRAME | ||
| 042 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 042 | N 910113010000 | NUT |
| SUPPORT TO FRAME | ||
| 044 | N 913004008004 | NUT |
| BRAKE BOOSTER ASSEMBLY TO SUPPORT | ||
| 046 | A 3094311240 | BRACKET |
| BRAKE BOOSTER BRACING | ||
| 048 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 048 | N 304017008016 | SCREW |
| BRAKE BOOSTER BRACING | ||
| 050 | N 912004008102 | LOCK WASHER |
| BRAKE BOOSTER BRACING | ||
| 052 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 052 | N 000125008443 | WASHER |
| BRAKE BOOSTER BRACING | ||
| 054 | A 0034300301 | BRAKE MASTER CYLINDER |
| 056 | A 0049973245 | SEAL RING |
| 058 | A 0009970886 | PLUG |
| A 0004308081 | VALVE | |
| 062 | A 0015866543 | REPAIR KIT |
| TO 003 430 03 01 | ||
| 064 | A 0034300401 | BRAKE MASTER CYLINDER |
| 22.20 MM | ||
| 064 | A 0034300601 | BRAKE MASTER CYLINDER |
| 25.40 MM | ||
| 066 | A 0049973245 | SEAL RING |
| 068 | N 000472025000 | LOCK RING |
| TO 003 430 04 01 | ||
| 068 | N 000472028000 | LOCK RING |
| TO 003 430 06 01 | ||
| A 0005866643 | REPAIR KIT | |
| Repalced by: A 0004302183 | ||
| 070 | A 0004302183 | REPAIR KIT |
| TO 003 430 04 01 | ||
| 070 | A 0015860543 | REPAIR KIT |
| TO 003 430 06 01 | ||
| 072 | A 0024306401 | BRAKE MASTER CYLINDER |
| 072 | A 0034300701 | BRAKE MASTER CYLINDER |
| A 0005866643 | REPAIR KIT | |
| Repalced by: A 0004302183 | ||
| 074 | A 0004302183 | REPAIR KIT |
| TO 002 430 64 01 | ||
| 074 | A 0015860543 | REPAIR KIT |
| TO 003 430 07 01 | ||
| A 3099900054 | NUT | |
| Repalced by: A 0009904968 | ||
| 076 | A 0009904968 | FITTING |
| 078 | N 007603022102 | SEAL RING |
| A 3094260071 | SCREW | |
| Repalced by: A 3094260171 | ||
| 080 | A 3094260171 | SCREW |
| PUSH ROD TO BRAKE PEDAL | ||
| 082 | A 1262920074 | PIN |
| PUSH ROD TO BRAKE PEDAL | ||
| 084 | N 913004008004 | NUT |
| PUSH ROD TO BRAKE PEDAL | ||
| 084 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 084 | N 913004006001 | NUT |
| PUSH ROD TO BRAKE PEDAL | ||
| 086 | N 000125006421 | WASHER |
| PUSH ROD TO BRAKE PEDAL | ||
| 088 | N 912011008000 | LOCK |
| PUSH ROD TO BRAKE PEDAL | ||
| 090 | A 3104310762 | COVERING |
| A 3104312940 | BRACKET | |
| Repalced by: A 3184923641 | ||
| 092 | A 3184923641 | BRACKET |
| Repalced by: A 3184923441 | ||
| 092 | A 3184923441 | BRACKET |
| 094 | N 000933006083 | SCREW |
| BRACKET TO COVER PLATE | ||
| M 6X16 | ||
| 096 | N 000125006421 | WASHER |
| BRACKET TO COVER PLATE | ||
| 098 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 098 | N 913004006001 | NUT |
| BRACKET TO COVER PLATE | ||
| 100 | N 913010006106 | RIVETED NUT |
| BRACKET AND COVER PLATE TO CAB | ||
| 102 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 102 | N 304017006020 | SCREW |
| BRACKET AND COVER PLATE TO CAB | ||
| M 6X20 | ||
| 104 | N 000125006421 | WASHER |
| BRACKET AND COVER PLATE TO CAB | ||
| 106 | N 912004006102 | LOCK WASHER |
| BRACKET AND COVER PLATE TO CAB | ||
| 108 | A 3104200781 | LEVER |
| INTERMEDIATE LEVER | ||
| 108 | A 3104200981 | LEVER |
| INTERMEDIATE LEVER | ||
| 110 | A 3104260003 | PIVOT |
| INTERMEDIATE LEVER TO BRACKET | ||
| 110 | A 3104260203 | PIVOT |
| INTERMEDIATE LEVER TO BRACKET | ||
| 112 | A 3149940101 | LOCK |
| INTERMEDIATE LEVER TO BRACKET | ||
| 114 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 114 | N 304017008016 | SCREW |
| INTERMEDIATE LEVER TO BRACKET | ||
| 116 | N 912004008102 | LOCK WASHER |
| INTERMEDIATE LEVER TO BRACKET | ||
| 118 | N 071412010300 | GREASE NIPPLE |
| 120 | A 3104260071 | SCREW |
| PUSH ROD TO INTERMEDIATE LEVER | ||
| 122 | N 913004008004 | NUT |
| PUSH ROD TO INTERMEDIATE LEVER | ||
| A 3104201174 | ROD | |
| Repalced by: A 3104260430 | ||
| 124 | A 3104260430 | ROD |
| FROM INTERMEDIATE LEVER TO BRAKE PEDAL | ||
| 126 | A 3109960001 | YOKE |
| L.H. THREAD | ||
| 128 | A 3199960101 | YOKE |
| R.H. THREAD | ||
| 130 | N 000934012022 | NUT |
| 132 | N 000934012037 | NUT |
| L.H. THREAD | ||
| 134 | N 001434012106 | PIN |
| PUSH ROD TO BRAKE PEDAL AND TO INTERMEDIATE LEVER | ||
| 136 | N 000094004051 | COTTER PIN |
| PUSH ROD TO BRAKE PEDAL AND TO INTERMEDIATE LEVER | ||
| 138 | N 900055012001 | SPRING WASHER |
| PUSH ROD TO BRAKE PEDAL AND TO INTERMEDIATE LEVER | ||
| 140 | A 3109970282 | HOSE |
| 142 | A 3104311440 | BRACKET |
| 144 | N 000933010128 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 146 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 146 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 148 | A 3104310135 | CONNECTOR |
| 150 | A 3104310035 | CONNECTOR |
| A 0009959501 | CLAMP | |
| Repalced by: N 916016022203 | ||
| 152 | N 916016022206 | CLAMP |
| FRESH AIR HOSE TO BRACKET | ||
| 154 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 154 | N 000000001146 | SCREW |
| FRESH AIR HOSE TO BRACKET | ||
| M 6X16 | ||
| 156 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 156 | N 913004006001 | NUT |
| FRESH AIR HOSE TO BRACKET | ||
| A 3104312740 | BRACKET | |
| FRESH AIR HOSE TO BRACKET | ||
| 158 | A 0004318502 | RESERVOIR |
| FLUID RESERVOIR | ||
| 160 | A 0004318602 | RESERVOIR |
| FLUID RESERVOIR | ||
| A 0014313902 | RESERVOIR | |
| Repalced by: A 0004314702 | ||
| 162 | A 0004314702 | RESERVOIR |
| FLUID RESERVOIR | ||
| 164 | A 0004318302 | RESERVOIR |
| FLUID RESERVOIR | ||
| A 0004311333 | FILLER CAP | |
| Repalced by: A 0004315133 | ||
| A 0004315133 | FILLER CAP | |
| Repalced by: A 0004315433 | ||
| 166 | A 0004315433 | FILLER CAP |
| BUTTRESS THREAD | ||
| A 0002950237 | SCREW PLUG | |
| Repalced by: A 0004315433 | ||
| 168 | A 0009972940 | SEAL RING |
| 43.7X30 MM | ||
| 168 | A 0039976440 | SEAL RING |
| 42X21.5 MM | ||
| A 0004310034 | STRAINER | |
| Repalced by: A 0004313734 | ||
| A 0004313734 | STRAINER | |
| Repalced by: A 0004314334 | ||
| 082 | A 0004314334 | STRAINER |
| TO 000 431 83 02,000 431 86 02 | ||
| 082 | A 0004314334 | STRAINER |
| TO 000 431 47 02 | ||
| 170 | A 0004314334 | STRAINER |
| TO 001 431 39 02 | ||
| 172 | A 0004311371 | SCREW |
| 174 | A 0004316287 | PROTECTIVE CAP |
| 176 | A 0014310060 | SEAL RING |
| 178 | A 0004311040 | CLAMP |
| TO 000 431 47 02 | ||
| 180 | A 3092950036 | INTERMEDIATE PIECE |
| 182 | A 0099973882 | HOSE |
| 184 | A 3094311840 | BRACKET |
| FLUID RESERVOIR TO SEAT BOX | ||
| 186 | N 007985006161 | SCREW |
| Repalced by: N 007985006580 | ||
| 186 | N 007985006580 | SCREW |
| FLUID RESERVOIR TO SEAT BOX | ||
| M 6X10 | ||
| 188 | N 912006006002 | LOCK WASHER |
| FLUID RESERVOIR TO SEAT BOX | ||
| 190 | N 000934006007 | NUT |
| FLUID RESERVOIR TO SEAT BOX | ||
| A 3109970382 | HOSE | |
| Repalced by: A 6039970482 | ||
| 192 | A 6039970482 | HOSE |
| 194 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 194 | A 0009872727 | PLASTIC PIPE |
| 500 MM | ||
| 196 | N 915052006021 | BANJO UNION |
| 198 | A 3109970081 | GROMMET |
| 200 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 200 | N 915036010108 | HOLLOW SCREW |
| 202 | N 007603014405 | SEAL RING |
| 204 | A 3099900054 | NUT |
| BRAKE LINE | ||
| 206 | N 007603022102 | SEAL RING |
| BRAKE LINE | ||
| A 3094350225 | LINE | |
| Repalced by: A 3104320038 | ||
| 208 | A 3104320038 | PIPE |
| 208 | A 3094350425 | LINE |
| FROM AIR COMPRESSOR TO CHECK VALVE | ||
| A 3094350525 | LINE | |
| FROM CHECK VALVE TO BRAKE BOOSTER ASSY | ||
| 210 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 210 | N 913004006001 | NUT |
| VACUUM LINE TO BRACKET | ||
| 212 | A 3609950301 | CLAMP |
| VACUUM LINE TO BRACKET | ||
| 214 | N 007985006538 | SCREW |
| VACUUM LINE TO BRACKET | ||
| M 6X16 | ||
| 216 | N 007981006208 | SHEET METAL SCREW |
| 218 | A 3104312240 | BRACKET |
| VACUUM LINE | ||
| A 0019876172 | EDGE GUARD SECTION | |
| Repalced by: A 0009871972 | ||
| 220 | A 0009871972 | EDGE GUARD SECTION |
| FRONT PANEL | ||
| 222 | A 3609950401 | CLAMP |
| VACUUM LINE TO BRACKET | ||
| 224 | N 915017012100 | UNION NUT |
| 224 | N 915017010100 | UNION NUT |
| 226 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 226 | A 0019901967 | SEAL CONE |
| 226 | N 003861010009 | GLAND |
| 228 | A 0029971172 | FITTING |
| 228 | N 074313010100 | FITTING |
| AT AIR COMPRESSOR | ||
| 228 | A 0029971572 | FITTING |
| 230 | N 007603022102 | SEAL RING |
| AT AIR COMPRESSOR | ||
| 230 | N 007603016401 | SEAL RING |
| A 0004313107 | VALVE | |
| Repalced by: A 0004313607 | ||
| 232 | A 0004313607 | VALVE |
| CHECK | ||
| 232 | A 0004314007 | VALVE |
| Repalced by: A 0004316107 | ||
| 232 | A 0004316107 | VALVE |
| CHECK | ||
| 234 | A 0004358382 | HOSE |
| FROM CHECK VALVE TO BRAKE BOOSTER ASSY | ||
| 234 | A 3104300129 | LINE |
| FROM CHECK VALVE TO BRAKE BOOSTER ASSY | ||
| 234 | A 3104350125 | LINE |
| FROM CHECK VALVE TO BRAKE BOOSTER ASSY | ||

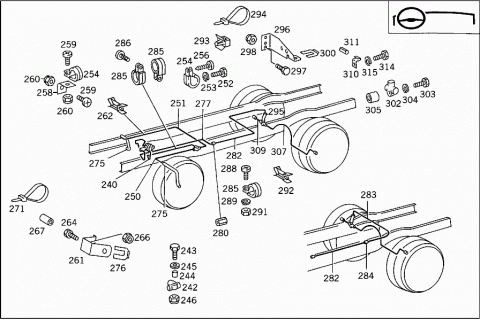

| 240 | A 3404202529 | LINE |
| FROM BRAKE MASTER CYLINDER TO DISTRIBUTOR | ||
| 1400 MM | ||
| 240 | A 3404202829 | LINE |
| FROM BRAKE MASTER CYLINDER TO DISTRIBUTOR | ||
| 1550 MM | ||
| 241 | A 3404203129 | LINE |
| FROM BRAKE MASTER CYLINDER TO DISTRIBUTOR | ||
| 1700 MM | ||
| 241 | A 3404203329 | LINE |
| FROM BRAKE MASTER CYLINDER TO DISTRIBUTOR | ||
| 1800 MM | ||
| 241 | A 3404203429 | LINE |
| FROM BRAKE MASTER CYLINDER TO DISTRIBUTOR | ||
| 242 | A 0004290437 | DISTRIBUTOR |
| 242 | A 0004294337 | DISTRIBUTOR |
| 243 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 243 | N 304017008043 | SCREW |
| 244 | A 3094280053 | SPACER TUBE |
| 245 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 245 | N 000125008443 | WASHER |
| 246 | N 913004008004 | NUT |
| 250 | A 3404201329 | LINE |
| FROM DISTRIBUTOR TO FRONT LEFT BRAKE HOSE | ||
| 800 MM | ||
| 250 | A 3404201229 | LINE |
| FROM DISTRIBUTOR TO FRONT LEFT BRAKE HOSE | ||
| 750 MM | ||
| 250 | A 3404200729 | LINE |
| FROM DISTRIBUTOR TO FRONT LEFT BRAKE HOSE | ||
| 500 MM | ||
| 251 | A 3404203829 | LINE |
| FROM DISTRIBUTOR TO FRONT RIGHT BRAKE HOSE | ||
| 2200 MM | ||
| 251 | A 3404203529 | LINE |
| FROM DISTRIBUTOR TO FRONT RIGHT BRAKE HOSE | ||
| 1900 MM | ||
| 251 | A 3404203529 | LINE |
| FROM DISTRIBUTOR TO FRONT RIGHT BRAKE HOSE | ||
| 1900 MM | ||
| 251 | A 3404203429 | LINE |
| FROM DISTRIBUTOR TO FRONT RIGHT BRAKE HOSE | ||
| 1850 MM | ||
| 252 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 252 | N 304017010028 | SCREW |
| BRAKE LINE TO CROSS MEMBER | ||
| 253 | N 912004010102 | LOCK WASHER |
| BRAKE LINE TO CROSS MEMBER | ||
| 254 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 254 | N 916016008200 | CLAMP |
| BRAKE LINE TO CROSS MEMBER | ||
| 256 | N 007981006209 | SHEET METAL SCREW |
| BRAKE LINE TO CROSS MEMBER | ||
| 256 | N 007981006216 | SHEET METAL SCREW |
| BRAKE LINE TO CROSS MEMBER | ||
| 257 | A 1269912240 | SPACER TUBE |
| BRAKE LINE TO CROSS MEMBER | ||
| 258 | A 3604280143 | ANGLE |
| BRAKE LINE TO FRAME | ||
| 259 | N 007985006188 | SCREW |
| BRAKE LINE TO FRAME | ||
| 260 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 260 | N 913004006001 | NUT |
| BRAKE LINE TO FRAME | ||
| 261 | A 3094280043 | ANGLE |
| LEFT | ||
| 261 | A 3094280443 | ANGLE |
| LEFT | ||
| 261 | A 3094280143 | ANGLE |
| RIGHT | ||
| 261 | A 3094280543 | ANGLE |
| RIGHT | ||
| 261 | A 3094280643 | ANGLE |
| RIGHT | ||
| 262 | A 0049881478 | CLIP |
| BRAKE LINE MOUNTING | ||
| A 3092920440 | BRACKET | |
| RELEASE SPRING | ||
| 263 | A 3092921840 | BRACKET |
| RELEASE SPRING | ||
| 264 | N 000933010045 | SCREW |
| ANGLE TO FRAME | ||
| M 10X28 | ||
| 264 | N 000931010331 | SCREW |
| ANGLE TO FRAME | ||
| M 10X65 | ||
| 265 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 265 | N 007349010007 | WASHER |
| ANGLE TO FRAME | ||
| 266 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 266 | N 910113010000 | NUT |
| ANGLE TO FRAME | ||
| 266 | N 910113010000 | NUT |
| ANGLE TO FRAME | ||
| 267 | A 3129970582 | HOSE |
| 268 | A 3129950935 | CLAMP |
| Repalced by: A 0019978290 | ||
| 269 | N 000084004151 | SCREW |
| HOSE TO BRAKE LINE | ||
| M 4X6 | ||
| 270 | N 000934004006 | NUT |
| HOSE TO BRAKE LINE | ||
| 271 | A 0019978390 | LOOM TIE |
| HOSE TO BRAKE LINE | ||
| A 0004287635 | BRAKE HOSE | |
| Repalced by: A 0024280535 | ||
| 275 | A 0024280535 | BRAKE HOSE |
| 275 | A 0014285535 | BRAKE HOSE |
| A 1072950073 | LOCK | |
| Repalced by: A 1072950173 | ||
| 276 | A 1072950173 | LOCK |
| 276 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 276 | A 6525040038 | MOUNTING PLATE |
| 277 | A 3404203829 | LINE |
| FROM MASTER CYLINDER TO CONNECTOR | ||
| 2200 MM | ||
| 279 | A 3404202429 | LINE |
| FROM MASTER CYLINDER TO CONNECTOR | ||
| 1350 MM | ||
| 279 | A 3404202629 | LINE |
| FROM MASTER CYLINDER TO CONNECTOR | ||
| 1450 MM | ||
| 280 | A 0004292736 | CONNECTOR |
| 282 | A 3404204329 | LINE |
| FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE | ||
| 3200 MM | ||
| 282 | A 3404204529 | LINE |
| FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE | ||
| 3600 MM | ||
| 282 | A 3404204729 | LINE |
| FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE | ||
| 4000 MM | ||
| 283 | A 3404201429 | LINE |
| RELOCATION OF BRAKE HOSE FROM THE LEFT TO THE RIGHT | ||
| 850 MM | ||
| 284 | A 0004281131 | CONNECTOR |
| 285 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 285 | N 916016008200 | CLAMP |
| BRAKE LINE TO FRAME | ||
| 286 | N 007516006105 | TAPPING SCREW |
| BRAKE LINE TO CROSS MEMBER | ||
| 287 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 287 | N 304017006016 | SCREW |
| BRAKE LINE TO FRAME | ||
| 288 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 288 | N 000000001146 | SCREW |
| BRAKE LINE TO FRAME | ||
| 289 | N 912004006102 | LOCK WASHER |
| BRAKE LINE TO FRAME | ||
| 290 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 290 | N 913004006001 | NUT |
| BRAKE LINE TO FRAME | ||
| 291 | N 000934006007 | NUT |
| BRAKE LINE TO FRAME | ||
| 292 | A 0049881478 | CLIP |
| BRAKE LINE MOUNTING | ||
| 293 | A 0049882678 | CLIP |
| BRAKE LINE MOUNTING | ||
| 294 | A 0019978390 | LOOM TIE |
| BRAKE LINE MOUNTING | ||
| 294 | A 0019978490 | LOOM TIE |
| BRAKE LINE MOUNTING | ||
| A 0014283635 | BRAKE HOSE | |
| Repalced by: A 0004280135 | ||
| 295 | A 0004280135 | BRAKE HOSE |
| REAR | ||
| 450 MM | ||
| 296 | A 3094281240 | BRACKET |
| 297 | N 000933010105 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X25 | ||
| 298 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 298 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| A 0004280473 | LOCK | |
| Repalced by: A 1072950073 | ||
| A 1072950073 | LOCK | |
| Repalced by: A 1072950173 | ||
| 300 | A 1072950173 | LOCK |
| 300 | A 6525040038 | MOUNTING PLATE |
| 302 | A 0004290437 | DISTRIBUTOR |
| 302 | A 0004294337 | DISTRIBUTOR |
| 303 | N 000933008116 | SCREW |
| Repalced by: N 000933008337 | ||
| 303 | N 000933008337 | SCREW |
| Repalced by: A 0099900101 | ||
| 303 | A 0099900101 | SCREW |
| DISTRIBUTOR TO REAR AXLE | ||
| M8X28 | ||
| 303 | N 000931008266 | SCREW |
| DISTRIBUTOR TO REAR AXLE | ||
| M 8X40 | ||
| 304 | N 912004008102 | LOCK WASHER |
| DISTRIBUTOR TO REAR AXLE | ||
| 305 | A 3094280053 | SPACER TUBE |
| DISTRIBUTOR TO REAR AXLE | ||
| 307 | A 3404201929 | LINE |
| TO LEFT REAR WHEEL | ||
| 1100 MM | ||
| 307 | A 3404200829 | LINE |
| TO LEFT REAR WHEEL | ||
| 550 MM | ||
| 307 | A 3404200629 | LINE |
| TO LEFT REAR WHEEL | ||
| 450 MM | ||
| 309 | A 3404200829 | LINE |
| TO RIGHT REAR WHEEL | ||
| 550 MM | ||
| 309 | A 3404201929 | LINE |
| TO RIGHT REAR WHEEL | ||
| 1100 MM | ||
| 309 | A 3404202129 | LINE |
| TO RIGHT REAR WHEEL | ||
| 1200 MM | ||
| 310 | A 3129951020 | CLAMP |
| 311 | A 3129973482 | HOSE |
| 314 | N 000933008175 | SCREW |
| 315 | N 912004008102 | LOCK WASHER |

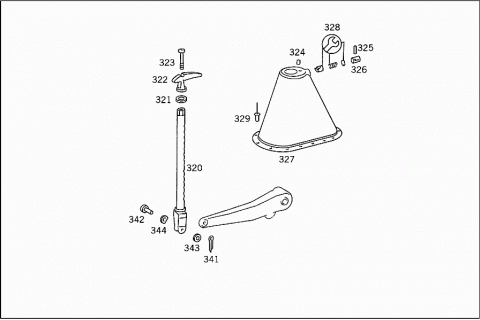

| 320 | A 3094200288 | RATCHET ROD |
| PISTOL-GRIP HAND BRAKE | ||
| 320 | A 3094200488 | RATCHET ROD |
| 321 | A 3124271086 | DAMPING RING |
| 322 | A 3094270020 | HANDLE |
| 323 | N 007985010120 | SCREW |
| Repalced by: N 000965010006 | ||
| 323 | N 000965010006 | SCREW |
| A 3094200144 | PROTECTIVE PLATE | |
| Repalced by: A 3094200044 | ||
| A 3124271215 | PAWL | |
| Repalced by: A 3094200292 | ||
| A 1539930701 | SPRING | |
| Repalced by: A 3094200292 | ||
| A 3129900043 | PLATE | |
| Repalced by: A 3094200292 | ||
| 324 | N 001472003009 | GROOVED PIN |
| N 000965003013 | SCREW | |
| 325 | N 001470003002 | GROOVED PIN |
| 326 | A 3099870115 | PLUG |
| 327 | A 3094200044 | PROTECTIVE PLATE |
| A 3145860142 | REPAIR KIT | |
| Repalced by: A 3144200092 | ||
| 328 | A 3144200092 | REPAIR KIT |
| PAWL | ||
| 328 | A 3094200292 | REPAIR KIT |
| PAWL | ||
| 329 | A 0009900297 | RIVET |
| A 3094270206 | COVER | |
| AT CAB FLOOR | ||

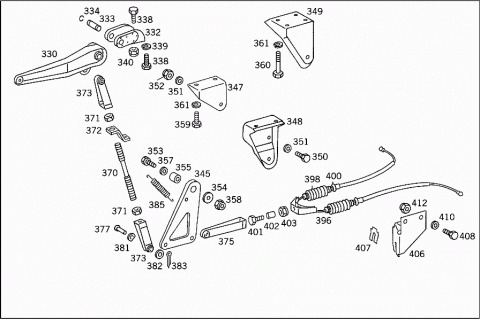

| 330 | A 3094201512 | BRAKE LEVER |
| 330 | A 3094201612 | BRAKE LEVER |
| 332 | A 3094200678 | BEARING BRACKET |
| 333 | A 3094270274 | PIN |
| 334 | N 009045016001 | SNAP RING |
| 335 | A 3104270550 | BUSHING |

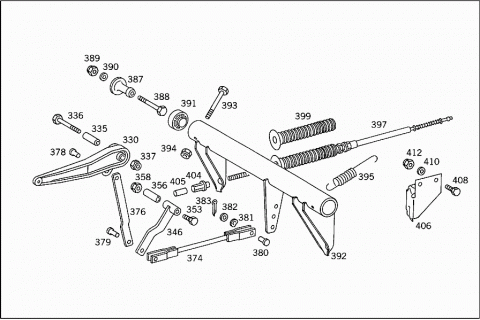

| 336 | N 000931010331 | SCREW |
| M 10 X 65 | ||
| 337 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 337 | N 910113010000 | NUT |
| 338 | N 000933010128 | SCREW |
| BEARING BRACKET TO CROSS MEMBER | ||
| 339 | N 912004010102 | LOCK WASHER |
| BEARING BRACKET TO CROSS MEMBER | ||
| 340 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 340 | N 910113010000 | NUT |
| BEARING BRACKET TO CROSS MEMBER | ||
| 341 | N 000094002059 | COTTER PIN |
| HAND BRAKE ROD TO HAND BRAKE LEVER | ||
| 342 | N 001434008092 | PIN |
| HAND BRAKE ROD TO HAND BRAKE LEVER | ||
| 342 | N 001444008223 | PIN |
| HAND BRAKE ROD TO HAND BRAKE LEVER | ||
| 343 | N 000433008003 | WASHER |
| HAND BRAKE ROD TO HAND BRAKE LEVER | ||
| 343 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 343 | N 000125008443 | WASHER |
| HAND BRAKE ROD TO HAND BRAKE LEVER | ||
| 344 | N 900055008002 | SPRING WASHER |
| HAND BRAKE ROD TO HAND BRAKE LEVER | ||
| 345 | A 3104200181 | LEVER |
| INTERMEDIATE LEVER | ||
| 346 | A 3104201481 | LEVER |
| INTERMEDIATE LEVER | ||
| 347 | A 3094270536 | CONSOLE |
| 348 | A 3104270036 | CONSOLE |
| 349 | A 3104270136 | CONSOLE |
| 350 | N 000933010105 | SCREW |
| CONSOLE TO CONSOLE | ||
| M 10 X 25 | ||
| 351 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 351 | N 000125010532 | WASHER |
| CONSOLE TO CONSOLE | ||
| 352 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 352 | N 910113010000 | NUT |
| CONSOLE TO CONSOLE | ||
| 353 | N 000931010282 | SCREW |
| INTERMEDIATE LEVER TO CONSOLE | ||
| M 10 X 40 | ||
| 353 | N 000931010331 | SCREW |
| INTERMEDIATE LEVER TO CONSOLE | ||
| M 10 X 65 | ||
| 354 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 354 | N 009021010209 | WASHER |
| INTERMEDIATE LEVER TO CONSOLE | ||
| 355 | A 3104270050 | BUSHING |
| INTERMEDIATE LEVER TO CONSOLE | ||
| 356 | A 3104270550 | BUSHING |
| INTERMEDIATE LEVER TO CONSOLE | ||
| 357 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 357 | N 000125010532 | WASHER |
| INTERMEDIATE LEVER TO CONSOLE | ||
| 358 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 358 | N 910113010000 | NUT |
| INTERMEDIATE LEVER TO CONSOLE | ||
| 359 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 359 | N 304017008021 | SCREW |
| CONSOLE TO CAB | ||
| M 8 X 20 | ||
| 359 | N 304017008021 | SCREW |
| CONSOLE TO CAB | ||
| M 8 X 20 | ||
| 360 | N 000931008248 | SCREW |
| Repalced by: N 304017008053 | ||
| 360 | N 304017008053 | SCREW |
| CONSOLE TO CAB | ||
| M 8 X 60 | ||
| A 3094270184 | SHIM | |
| Repalced by: A 3094270284 | ||
| A 3094270284 | SHIM | |
| CONSOLE TO CAB | ||
| 361 | N 912004008102 | LOCK WASHER |
| CONSOLE TO CAB | ||
| A 3104200374 | ROD | |
| A 3094202274 | ROD | |
| 370 | N 900331010667 | PULL ROD |
| 200 MM | ||
| 370 | N 900331010668 | PULL ROD |
| 400 MM | ||
| 371 | N 000934010014 | NUT |
| R.H. THREAD | ||
| 371 | N 000934010035 | NUT |
| L.H. THREAD | ||
| 372 | A 3094270689 | CONNECTOR |
| BRACKET | ||
| 373 | A 3214200176 | END PIECE |
| 374 | A 3104202274 | ROD |
| PULL ROD TO LEVER | ||
| 375 | A 3094200276 | END PIECE |
| SHACKLE TO LEVER | ||
| 376 | A 3104271289 | CONNECTOR |
| SHACKLE TO LEVER | ||
| 377 | N 001434010125 | PIN |
| SHACKLE TO LEVER | ||
| 378 | N 001444010228 | PIN |
| SHACKLE TO LEVER | ||
| 11 X 25 MM | ||
| 379 | N 001444010229 | PIN |
| SHACKLE TO LEVER | ||
| 11X36 MM | ||
| N 001444010207 | PIN | |
| Repalced by: A 4252920074 | ||
| 380 | A 4252920074 | PIN |
| PULL ROD TO LEVER | ||
| 11X28 | ||
| 381 | N 900055010002 | SPRING WASHER |
| PULL ROD TO LEVER | ||
| 382 | N 000433010505 | WASHER |
| PULL ROD TO LEVER | ||
| 382 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 382 | N 000125010532 | WASHER |
| PULL ROD TO LEVER | ||
| 383 | N 000094003219 | COTTER PIN |
| PULL ROD TO LEVER | ||
| 385 | A 3199930810 | SPRING |
| 387 | A 3104270083 | SPHERICAL PIECE |
| AT FRAME | ||
| 388 | N 000931010274 | SCREW |
| Repalced by: N 304014010004 | ||
| 388 | N 304014010004 | SCREW |
| AT FRAME | ||
| 389 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 389 | N 910113010000 | NUT |
| AT FRAME | ||
| 390 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 390 | N 000125010532 | WASHER |
| AT FRAME | ||
| 391 | A 3104270332 | BEARING BODY |
| A 3104200368 | SUPPORT | |
| Repalced by: A 3104200568 | ||
| 392 | A 3104200568 | SUPPORT |
| 392 | A 3104200468 | SUPPORT |
| 393 | N 000931006187 | SCREW |
| Repalced by: N 304014006005 | ||
| 393 | N 304014006005 | SCREW |
| SUPPORT TO SPHERICAL PIECE | ||
| M 6X70 | ||
| 394 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 394 | N 913004006001 | NUT |
| SUPPORT TO SPHERICAL PIECE | ||
| 395 | A 3149931210 | SPRING |
| 396 | A 3094201585 | BRAKE CABLE |
| Repalced by: A 3094201885 | ||
| 396 | A 3094201885 | BRAKE CABLE |
| A 3104200485 | BRAKE CABLE | |
| Repalced by: A 3104200985 | ||
| 397 | A 3104200985 | BRAKE CABLE |
| 398 | A 3094270296 | CUP |
| 399 | A 3104270096 | CUP |
| 400 | A 3094270077 | THIMBLE |
| 401 | N 000931010282 | SCREW |
| BRAKE CABLE TO FORK | ||
| 402 | A 3094270153 | SPACER TUBE |
| BRAKE CABLE TO FORK | ||
| 403 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 403 | N 910113010000 | NUT |
| BRAKE CABLE TO FORK | ||
| 404 | A 3104270072 | NUT |
| BRAKE CABLE TO FORK | ||
| 405 | A 3149972882 | HOSE |
| BRAKE CABLE TO FORK | ||
| 406 | A 3094272941 | BRACKET |
| LEFT | ||
| 406 | A 3094273041 | BRACKET |
| RIGHT | ||
| 407 | A 3093250040 | BRACKET |
| (CLAMPING PIECE) | ||
| 408 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 408 | N 304017008021 | SCREW |
| BRACKET TO FRAME | ||
| 408 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 408 | N 304017008034 | SCREW |
| BRACKET TO FRAME | ||
| 410 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 410 | N 000125008443 | WASHER |
| BRACKET TO FRAME | ||
| 412 | N 913004008004 | NUT |
| BRACKET TO FRAME | ||

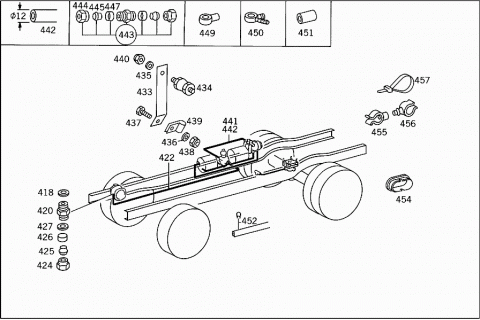

| 418 | N 007603022102 | SEAL RING |
| COMPRESSED AIR LINE TO AIR COMPRESSOR | ||
| 420 | N 074298022203 | DOUBLE FITTING |
| COMPRESSED AIR LINE TO AIR COMPRESSOR | ||
| 422 | A 0004291401 | LINE |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| 15 MM | ||
| 424 | N 915018015000 | UNION NUT |
| 425 | N 003861015004 | GLAND |
| 426 | N 915065015101 | THRUST RING |
| 427 | N 915045012100 | SEAL RING |
| Repalced by: N 007603012121 | ||
| 427 | N 007603012121 | SEAL RING |

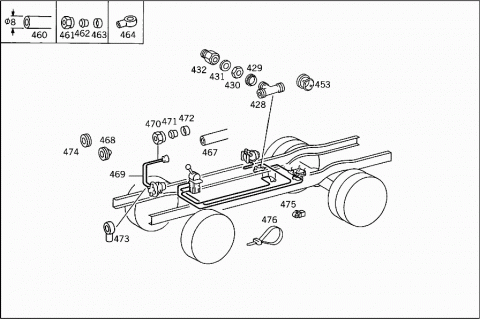

| 428 | A 0019903870 | T-FITTING |
| AT SIDE MEMBER | ||
| 429 | A 3134290050 | BUSHING |
| T-FITTING TO SIDE MEMBER | ||
| 430 | N 074305022202 | NUT |
| T-FITTING TO SIDE MEMBER | ||
| 431 | N 915045012100 | SEAL RING |
| Repalced by: N 007603012121 | ||
| 431 | N 007603012121 | SEAL RING |
| T-FITTING TO SIDE MEMBER | ||
| 432 | A 0004295434 | ADAPTER FITTING |
| Repalced by: A 0029971072 | ||
| 432 | A 0029971072 | FITTING |
| T-FITTING TO SIDE MEMBER | ||
| 433 | A 3104290440 | BRACKET |
| AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING | ||
| A 3104290840 | BRACKET | |
| Repalced by: A 3104290940 | ||
| 433 | A 3104290940 | BRACKET |
| AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING | ||
| 434 | A 0019875240 | RUBBER BUFFER |
| AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING | ||
| 435 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 435 | N 000125008443 | WASHER |
| AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING | ||
| 436 | N 000125006421 | WASHER |
| AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING | ||
| 437 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 437 | N 304017006016 | SCREW |
| AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING | ||
| M 6X15 | ||
| 438 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 438 | N 913004006001 | NUT |
| AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING | ||
| 439 | A 3609950501 | CLAMP |
| Repalced by: A 3609952001 | ||
| 439 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 439 | A 6739950001 | CLAMP |
| AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING | ||
| 440 | N 913004008004 | NUT |
| AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING | ||
| 441 | A 0004292101 | LINE |
| FROM PRESSURE REGULATOR TO PROTECTIVE VALVE | ||
| 12 MM | ||
| 442 | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 442 | A 0009872827 | PLASTIC PIPE |
| AIR RESERVOIR,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE | ||
| 9X12 MM | ||
| 442 | A 0009872827 | PLASTIC PIPE |
| FROM PRESSURE REGULATOR TO PROTECTIVE VALVE | ||
| 9X12 MM | ||
| 443 | A 0049971772 | FITTING |
| Repalced by: A 0029906171 | ||
| 443 | A 0029906171 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| TO 010 997 59 82 | ||
| 444 | N 915017012100 | UNION NUT |
| 445 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 445 | A 0019901967 | SEAL CONE |
| 447 | A 0009921505 | BUSHING |
| Repalced by: N 915062009000 | ||
| 447 | N 915062009000 | SLEEVE |
| 449 | N 915052009009 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 9/16 MM | ||
| 450 | A 0019901088 | BANJO UNION |
| 451 | N 040621030200 | INSULATING HOSE |
| 452 | A 0019877625 | PLASTIC SECTION |
| 453 | A 3094760150 | BUSHING |
| LINE THRU FRAME | ||
| 453 | A 3094760350 | BUSHING |
| Repalced by: A 0009973481 | ||
| 453 | A 0009973481 | GROMMET |
| LINE THRU FRAME | ||
| 454 | A 3094760250 | BUSHING |
| LINE THRU FRAME | ||
| A 1109950365 | CLAMP | |
| Repalced by: A 0004760436 | ||
| 455 | A 0004760436 | BRACKET |
| 456 | A 1159950565 | CLAMP |
| Repalced by: A 0009956665 | ||
| 456 | A 0009956665 | CLAMP |
| Repalced by: A 0079973890 | ||
| 456 | A 0079973890 | BRACKET |
| A 0039971490 | LOOM TIE | |
| Repalced by: A 1149970290 | ||
| 457 | A 1149970290 | LOOM TIE |
| Repalced by: A 1149970590 | ||
| 457 | A 1149970590 | LOOM TIE |

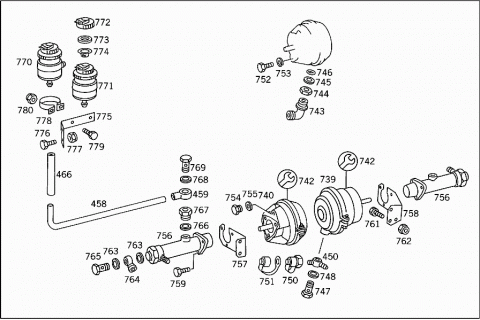

| 458 | A 0089975482 | HOSE |
| FROM FLUID RESERVOIR TO CYLINDER | ||
| 459 | N 915052008016 | BANJO UNION |
| FROM FLUID RESERVOIR TO CYLINDER | ||
| 460 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 460 | A 0009872727 | PLASTIC PIPE |
| FOUR-CIRCUIT PROTECTIVE VALVE,HAND BRAKE VALVE,RELAY VALVE | ||
| 6X8 MM | ||
| 461 | N 915017008100 | UNION NUT |
| 462 | N 003861008005 | GLAND |
| A 0007630043 | SLEEVE | |
| Repalced by: N 915062006000 | ||
| 463 | N 915062006000 | SLEEVE |
| 464 | N 915052006021 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/14 MM | ||
| 464 | N 915052006014 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/16 MM | ||
| 465 | A 0099973882 | HOSE |
| PARKING BRAKE VALVE BLEEDING | ||
| A 3109970382 | HOSE | |
| Repalced by: A 6039970482 | ||
| 466 | A 6039970482 | HOSE |
| FLUID RESERVOIR | ||
| 467 | N 040621030200 | INSULATING HOSE |
| 468 | A 3359970081 | GROMMET |
| 469 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 469 | A 0009872627 | PLASTIC PIPE |
| BLACK | ||
| 4X6 MM | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FROM BRAKE VALVE TO PRESSURE GAUGE | ||
| 470 | N 915017006100 | UNION NUT |
| 471 | N 003861006007 | GLAND |
| A 0009920105 | BUSHING | |
| Repalced by: N 915062004000 | ||
| 472 | N 915062004000 | SLEEVE |
| 473 | N 915052004019 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/16 MM | ||
| 474 | A 1869970681 | GROMMET |
| 475 | A 0049881378 | CLIP |
| COMPRESSED AIR LINE MOUNTING | ||
| 475 | A 0049882678 | CLIP |
| COMPRESSED AIR LINE MOUNTING | ||
| 476 | A 0019978390 | LOOM TIE |
| COMPRESSED AIR LINE MOUNTING | ||
| 476 | A 0019978490 | LOOM TIE |
| COMPRESSED AIR LINE MOUNTING | ||
| A 0014310006 | PRESSURE REGULATOR | |
| Repalced by: A 0024314906 | ||
| A 0014311206 | PRESSURE REGULATOR | |
| Repalced by: A 0024314906 | ||
| A 0024314906 | PRESSURE REGULATOR | |
| Repalced by: A 0024314306 | ||
| A 0014313406 | PRESSURE REGULATOR | |
| Repalced by: A 0024314306 | ||
| A 0014310606 | PRESSURE REGULATOR | |
| Repalced by: A 0024313406 | ||
| A 0024313406 | PRESSURE REGULATOR | |
| Repalced by: A 0024314306 | ||

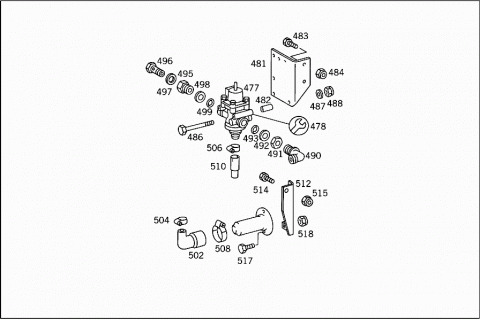

| 477 | A 0024314306 | PRESSURE REGULATOR |
| BOSCH | ||
| 477 | A 0034313606 | PRESSURE REGULATOR |
| BOSCH | ||
| 477 | A 0024318306 | PRESSURE REGULATOR |
| KNORR | ||
| 478 | A 0004301107 | REPAIR KIT |
| TO 001 431 00 06,WABCO 975 300 110 0 | ||
| 478 | A 0024304681 | REPAIR KIT |
| VALVE KIT | ||
| TO 001 431 00 06,WABCO 975 300 110 0 | ||
| 478 | A 0025866743 | REPAIR KIT |
| TO 001 431 12 06,KNORR 3200 | ||
| 478 | A 0025866043 | REPAIR KIT |
| TO 001 431 34 06,GRAU 312 017 014 | ||
| A 0015868543 | REPAIR KIT | |
| Repalced by: A 0004301407 | ||
| 478 | A 0004301407 | REPAIR KIT |
| TO 001 431 06 06,BOSCH 0 481 039 101 | ||
| 478 | A 0004301768 | REPAIR KIT |
| DIAPHRAGM | ||
| TO 002 431 34 06,BOSCH 0 481 039 221 | ||
| 478 | A 0004301768 | REPAIR KIT |
| DIAPHRAGM | ||
| TO 002 431 43 06,BOSCH 0 481 039 201 | ||
| 478 | A 0004307960 | REPAIR KIT |
| TIRE INFLATING CONNECTION | ||
| TO 002 431 34 06,BOSCH 0 481 039 221 | ||
| 478 | A 0004307960 | REPAIR KIT |
| TIRE INFLATING CONNECTION | ||
| TO 002 431 43 06,BOSCH 0 481 039 201 | ||
| 478 | A 0004300407 | REPAIR KIT |
| TO 002 431 83 06,KNORR 90309 | ||
| 481 | A 3104314540 | BRACKET |
| PRESSURE REGULATOR | ||
| 482 | A 3094760250 | BUSHING |
| BRACKET TO PRESSURE REGULATOR | ||
| 483 | N 000933010105 | SCREW |
| BRACKET TO FRAME | ||
| 484 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 484 | N 910113010000 | NUT |
| BRACKET TO FRAME | ||
| 486 | N 000931008228 | SCREW |
| Repalced by: N 000933008134 | ||
| 486 | N 000933008134 | SCREW |
| PRESSURE REGULATOR TO BRACKET | ||
| 487 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 487 | N 000125008443 | WASHER |
| PRESSURE REGULATOR TO BRACKET | ||
| 488 | N 913004008004 | NUT |
| PRESSURE REGULATOR TO BRACKET | ||
| 490 | N 074301022203 | ELBOW FITTING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 491 | N 074305022202 | NUT |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 492 | A 0004290227 | THRUST RING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 493 | A 0009870446 | SEALING CORD |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 495 | A 0029971172 | FITTING |
| PRESSURE REGULATOR,CONNECTION "21" | ||
| 495 | A 0009905168 | FITTING |
| PRESSURE REGULATOR,CONNECTION "21" | ||
| 496 | N 915036012203 | HOLLOW SCREW |
| PRESSURE REGULATOR,CONNECTION "21" | ||
| 497 | N 007603016401 | SEAL RING |
| PRESSURE REGULATOR,CONNECTION "21" | ||
| 498 | A 0004290227 | THRUST RING |
| PRESSURE REGULATOR,CONNECTION "21" | ||
| 499 | A 0009870446 | SEALING CORD |
| PRESSURE REGULATOR,CONNECTION "21" | ||
| 502 | A 3094310086 | CUP |
| PRESSURE REGULATOR,CONNECTION "3" | ||
| 504 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 504 | N 000000000667 | CLAMP |
| PRESSURE REGULATOR,CONNECTION "3" | ||
| 506 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 506 | N 000000000668 | CLAMP |
| PRESSURE REGULATOR,CONNECTION "3" | ||
| 508 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 508 | N 000000000671 | CLAMP |
| BOOT TO MUFFLER | ||
| 510 | A 0004300070 | MUFFLER |
| Repalced by: A 0004300170 | ||
| 510 | A 0004300170 | MUFFLER |
| 512 | A 3094314540 | BRACKET |
| MUFFLER | ||
| 514 | N 000933010128 | SCREW |
| BRACKET TO FRAME | ||
| 515 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 515 | N 910113010000 | NUT |
| BRACKET TO FRAME | ||
| 517 | N 000933006102 | SCREW |
| MUFFLER TO BRACKET | ||
| 518 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 518 | N 913004006001 | NUT |
| MUFFLER TO BRACKET | ||

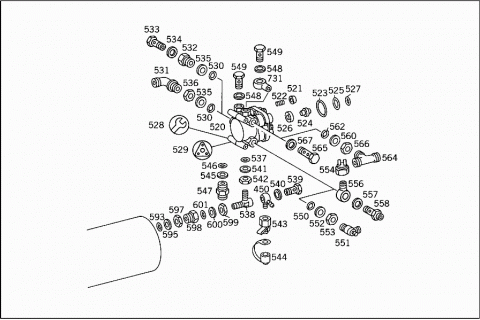

| 520 | A 0014313806 | VALVE |
| Repalced by: A 0024310406 | ||
| 520 | A 0024310406 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| BOSCH | ||
| 520 | A 0014314706 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| WABCO | ||
| A 0014313506 | VALVE | |
| Repalced by: A 0014318406 | ||
| 520 | A 0014318406 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| KNORR | ||
| A 0014316806 | VALVE | |
| Repalced by: A 0024312906 | ||
| A 0024312906 | VALVE | |
| Repalced by: A 0024319306 | ||
| 520 | A 0024319306 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| GRAU | ||
| 521 | A 0014310986 | CUP |
| TO 002 431 04 06,BOSCH | ||
| A 0009934905 | SPRING | |
| Repalced by: A 0009935205 | ||
| 522 | A 0009935205 | SPRING |
| TO 002 431 04 06,BOSCH | ||
| 523 | A 0014311860 | SEAL RING |
| 34X2.3 MM,TO 001 431 68 06,GRAU | ||
| 524 | A 0024298844 | VALVE |
| TO 001 431 68 06, GRAU 37001 | ||
| 525 | A 0099972448 | SEAL RING |
| 19.3X2.4 MM, GRAU 37001 | ||
| 525 | A 0059973248 | SEAL RING |
| 25.3X2.4 MM,TO 001 431 68 06,GRAU | ||
| 526 | A 0004313188 | VALVE SEAT |
| TO 001 431 68 06, GRAU 37001 | ||
| A 0014311960 | SEAL RING | |
| Repalced by: A 0009971548 | ||
| 527 | A 0009971548 | SEAL RING |
| 15X2 MM,TO 001 431 68 06, GRAU 19001 | ||
| 528 | A 0004303160 | REPAIR KIT |
| TO 001 431 84 06,KNORR | ||
| 528 | A 0034300881 | REPAIR KIT |
| TO 002 431 93 06 GRAU 74001 | ||
| 528 | A 0015868443 | REPAIR KIT |
| SEAL RING | ||
| TO 001 431 38 06,BOSCH | ||
| 528 | A 0025861743 | REPAIR KIT |
| BOOT | ||
| TO 001 431 38 06,BOSCH | ||
| 528 | A 0025862843 | REPAIR KIT |
| TO 001 431 47 06,WABCO 2100 | ||
| 528 | A 0004300468 | REPAIR KIT |
| TO 001 431 47 06,WABCO 2210 | ||
| 528 | A 0015863842 | REPAIR KIT |
| TO 001 431 35 06,KNORR | ||
| 529 | A 0004302906 | GASKET KIT |
| BOOT | ||
| TO 002 431 04 06,BOSCH | ||
| 530 | A 0009870446 | SEALING CORD |
| FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1" | ||
| 531 | A 0009907771 | ELBOW FITTING |
| FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1" | ||
| 532 | A 0009905168 | FITTING |
| FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1" | ||
| 533 | N 915036012203 | HOLLOW SCREW |
| FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1" | ||
| 534 | N 007603016401 | SEAL RING |
| FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1" | ||
| 535 | A 0004290227 | THRUST RING |
| FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1" | ||
| 536 | N 074305022202 | NUT |
| FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1" | ||
| A 0029971640 | SEAL RING | |
| Repalced by: A 0009971548 | ||
| 537 | A 0009971548 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "11" | ||
| 538 | A 0019979472 | FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "11" | ||
| 538 | A 0039977072 | FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "11" | ||
| 539 | N 915036012203 | HOLLOW SCREW |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: | ||
| "11""12""22" | ||
| 540 | N 007603016401 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: | ||
| "11""12""22" | ||
| A 0004290727 | THRUST RING | |
| Repalced by: A 0004290927 | ||
| 541 | A 0004290927 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "11" | ||
| 542 | N 080705016003 | NUT |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "11" | ||
| 543 | A 0004312031 | TEST CONNECTION |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: | ||
| "11"12",VOSS | ||
| 543 | A 0004314531 | TEST CONNECTION |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: | ||
| "11"12",SCHAEFER | ||
| 543 | A 0004314831 | TEST CONNECTION |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: | ||
| "11"12",WABCO | ||
| 543 | A 0004316131 | TEST CONNECTION |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: | ||
| "11""22",WIRA | ||
| 544 | A 0009979486 | PLUG |
| 545 | A 0004290927 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "21" | ||
| A 0029971640 | SEAL RING | |
| Repalced by: A 0009971548 | ||
| 546 | A 0009971548 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "21" | ||
| 547 | A 0029971572 | FITTING |
| FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "21" | ||
| 548 | N 007603016103 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "12,22" | ||
| 549 | N 915036012203 | HOLLOW SCREW |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "12,22" | ||
| A 0029971640 | SEAL RING | |
| Repalced by: A 0009971548 | ||
| 550 | A 0009971548 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23" | ||
| 551 | A 0009909470 | T-FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23" | ||
| A 0004290727 | THRUST RING | |
| Repalced by: A 0004290927 | ||
| 552 | A 0004290927 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23" | ||
| 553 | N 080705016003 | NUT |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23" | ||
| 554 | A 0005455414 | SWITCH |
| SUPPLY | ||
| 556 | A 0019900788 | BANJO UNION |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23" | ||
| 557 | N 007603016401 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23" | ||
| 558 | N 915039012206 | HOLLOW SCREW FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23" | ||
| 560 | A 0004290927 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24" | ||
| 562 | A 0029971640 | SEAL RING |
| Repalced by: A 0009971548 | ||
| 562 | A 0009971548 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24" | ||
| 564 | A 0009905670 | T-FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24" | ||
| 565 | N 915047012203 | HOLLOW SCREW |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24" | ||
| 566 | N 080705016003 | NUT |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24" | ||
| 567 | N 007603016401 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24" | ||

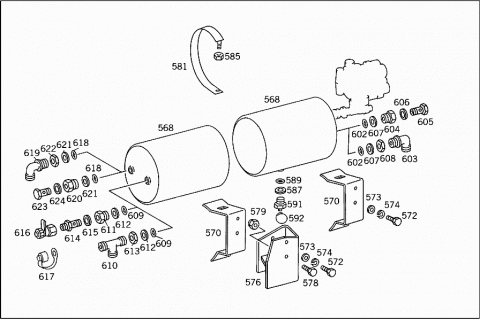

| 568 | A 0004326501 | RESERVOIR |
| Repalced by: A 0034321501 | ||
| 568 | A 0034321501 | RESERVOIR |
| 20 L | ||
| 570 | A 3104301910 | BRACKET |
| AIR RESERVOIR | ||
| 572 | N 000933010105 | SCREW |
| BRACKET TO FRAME | ||
| 573 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 573 | N 000125010532 | WASHER |
| BRACKET TO FRAME | ||
| 574 | N 912004010102 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 576 | A 3104302210 | BRACKET |
| BRACKET TO SIDE MEMBER | ||
| 578 | N 000933010105 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 579 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 579 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 581 | A 3184300040 | STRAP |
| Repalced by: A 6204300040 | ||
| 581 | A 6204300040 | STRAP |
| AIR RESERVOIR TO BRACKET | ||
| A 3584320119 | BASE | |
| AIR RESERVOIR TO BRACKET | ||
| 585 | N 000934010014 | NUT |
| AIR RESERVOIR TO BRACKET | ||
| 587 | A 0004290227 | THRUST RING |
| DRAIN VALVE | ||
| 589 | A 0009870446 | SEALING CORD |
| DRAIN VALVE | ||
| 591 | A 0004321107 | VALVE |
| DRAIN | ||
| 591 | A 0004322107 | VALVE |
| DRAIN | ||
| 591 | A 0004322407 | VALVE |
| DRAIN | ||
| 591 | A 0004322407 | VALVE |
| AIR RESERVOIR | ||
| 592 | A 0005830296 | RING |
| DRAIN VALVE | ||
| TO 000 432 08 07 | ||
| 593 | A 0009870446 | SEALING CORD |
| FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR | ||
| 595 | A 0004290227 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR | ||
| 597 | N 074305022202 | NUT |
| FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR | ||
| 598 | A 0009905168 | FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR | ||
| 599 | N 080705016003 | NUT |
| FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR | ||
| 600 | A 0004290927 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR | ||
| 601 | A 0009971548 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR | ||
| 602 | A 0009870446 | SEALING CORD |
| REAR AIR RESERVOIR,INSIDE CONNECTION | ||
| 603 | A 0009907771 | ELBOW FITTING |
| REAR AIR RESERVOIR,INSIDE CONNECTION | ||
| 604 | A 0009905168 | FITTING |
| REAR AIR RESERVOIR,INSIDE CONNECTION | ||
| 605 | N 915036012203 | HOLLOW SCREW |
| REAR AIR RESERVOIR,INSIDE CONNECTION | ||
| 606 | N 007603016401 | SEAL RING |
| REAR AIR RESERVOIR,INSIDE CONNECTION | ||
| 607 | A 0004290227 | THRUST RING |
| REAR AIR RESERVOIR,INSIDE CONNECTION | ||
| 608 | N 074305022202 | NUT |
| REAR AIR RESERVOIR,INSIDE CONNECTION | ||
| 609 | A 0009870446 | SEALING CORD |
| FRONT AIR RESERVOIR,INSIDE CONNECTION | ||
| A 0009903970 | T-FITTING | |
| Repalced by: A 0019901070 | ||
| 610 | A 0019901070 | T-FITTING |
| FRONT AIR RESERVOIR,INSIDE CONNECTION | ||
| 611 | A 0009905168 | FITTING |
| FRONT AIR RESERVOIR,INSIDE CONNECTION | ||
| 612 | A 0004290227 | THRUST RING |
| FRONT AIR RESERVOIR,INSIDE CONNECTION | ||
| 613 | N 074305022202 | NUT |
| FRONT AIR RESERVOIR,INSIDE CONNECTION | ||
| 614 | N 915039012206 | HOLLOW SCREW FITTING |
| FRONT AIR RESERVOIR,INSIDE CONNECTION | ||
| 615 | N 007603016401 | SEAL RING |
| FRONT AIR RESERVOIR,INSIDE CONNECTION | ||
| 616 | A 0004312031 | TEST CONNECTION |
| FRONT AIR RESERVOIR,INSIDE CONNECTION | ||
| VOSS,"21,22" | ||
| 616 | A 0004314531 | TEST CONNECTION |
| FRONT AIR RESERVOIR,INSIDE CONNECTION | ||
| SCHAEFER,"21,22" | ||
| 616 | A 0004314831 | TEST CONNECTION |
| FRONT AIR RESERVOIR,INSIDE CONNECTION | ||
| WABCO,"21,22" | ||
| 616 | A 0004316131 | TEST CONNECTION |
| FRONT AIR RESERVOIR,INSIDE CONNECTION | ||
| WIRA,"21,22" | ||
| 617 | A 0009979486 | PLUG |
| 618 | A 0009870446 | SEALING CORD |
| FRONT AIR RESERVOIR,OUTSIDE CONNECTION | ||
| 619 | A 0009907771 | ELBOW FITTING |
| FRONT AIR RESERVOIR,OUTSIDE CONNECTION | ||
| 620 | A 0009905168 | FITTING |
| FRONT AIR RESERVOIR,OUTSIDE CONNECTION | ||
| 621 | A 0004290227 | THRUST RING |
| FRONT AIR RESERVOIR,OUTSIDE CONNECTION | ||
| 622 | N 074305022202 | NUT |
| FRONT AIR RESERVOIR,OUTSIDE CONNECTION | ||
| 623 | N 915036012203 | HOLLOW SCREW |
| FRONT AIR RESERVOIR,OUTSIDE CONNECTION | ||
| 624 | N 007603016401 | SEAL RING |
| FRONT AIR RESERVOIR,OUTSIDE CONNECTION | ||
| 625 | A 0014299144 | VALVE |
| RELAY | ||
| GRAU | ||
| 625 | A 0034291644 | VALVE |
| RELAY | ||
| BOSCH | ||
| 625 | A 0014296844 | VALVE |
| RELAY | ||
| WABCO | ||
| 625 | A 0034295344 | VALVE |
| RELAY | ||
| KNORR | ||
| 626 | A 0034295944 | VALVE |
| RELAY | ||
| BOSCH | ||
| 626 | A 0024298444 | VALVE |
| RELAY | ||
| WABCO | ||
| 627 | A 0059972648 | SEAL RING |
| 23.3X2.4 MM,TO 001 429 91 44,GRAU | ||
| 628 | A 0004312788 | VALVE SEAT |
| TO 001 429 91 44,GRAU | ||
| 629 | A 0004311088 | VALVE SEAT |
| TO 002 429 84 44,WABCO | ||
| 630 | A 0059972748 | SEAL RING |
| 80X3 MM,TO 001 429 91 44 GRAU | ||
| A 0099970448 | SEAL RING | |
| Repalced by: A 0179979048 | ||
| 631 | A 0179979048 | SEAL RING |
| 42.52X2.62 MM,TO 002 429 84 44,WABCO | ||
| 632 | A 0014311660 | SEAL RING |
| 28X2 MM,TO 001 429 91 44,GRAU | ||
| 633 | A 0099970648 | SEAL RING |
| 82.22X2.62 MM,TO 002 429 84 44,WABCO | ||
| 634 | A 0014311760 | SEAL RING |
| 86X2 MM,TO 001 429 91 44,GRAU | ||
| 635 | A 0059976745 | SEAL RING |
| 74.20X5.7 MM,TO 002 429 84 44 ,WABCO | ||
| 636 | A 0004311980 | GASKET |
| 34X2X6 MM,TO 001 429 91 44,GRAU | ||
| 637 | A 0005865742 | REPAIR KIT |
| TO 001 429 68 44,WABCO | ||
| 637 | A 0014309060 | REPAIR KIT |
| TO 002 429 84 44,WABCO | ||
| A 0025865642 | REPAIR KIT | |
| Repalced by: A 0004201071 | ||
| 637 | A 0004201071 | VALVE |
| GASKET KIT | ||
| TO 003 429 16 44,BOSCH; UP TO 03.82 | ||
| 637 | A 0004201271 | VALVE |
| GASKET KIT | ||
| TO 003 429 16 44,BOSCH; FROM 04.82 | ||
| A 0025865742 | REPAIR KIT | |
| Repalced by: A 0004301109 | ||
| 637 | A 0004301109 | REPAIR KIT |
| BLEEDER VALVE | ||
| TO 003 429 16 44,BOSCH | ||
| 638 | A 0004290227 | THRUST RING |
| RELAY VALVE,CONNECTION "1" | ||
| 639 | A 0009870446 | SEALING CORD |
| RELAY VALVE,CONNECTION "1" | ||
| 640 | A 0029971172 | FITTING |
| RELAY VALVE,CONNECTION "1" | ||
| 641 | A 0009905168 | FITTING |
| RELAY VALVE,CONNECTION "1" | ||
| 642 | N 915036012203 | HOLLOW SCREW |
| RELAY VALVE,CONNECTION "1" | ||
| 643 | N 007603016401 | SEAL RING |
| RELAY VALVE,CONNECTION "1" | ||
| 644 | A 0004300370 | MUFFLER |
| Repalced by: A 0004302370 | ||
| 644 | A 0004302370 | MUFFLER |
| 644 | A 0004300470 | MUFFLER |
| 645 | A 0004290227 | THRUST RING |
| RELAY VALVE,CONNECTION: | ||
| 3 | ||
| 646 | A 0009870446 | SEALING CORD |
| RELAY VALVE,CONNECTION: | ||
| 3 | ||
| 647 | A 0004290927 | THRUST RING |
| RELAY VALVE,CONNECTION "2",FRONT | ||
| 648 | A 0009971548 | SEAL RING |
| RELAY VALVE,CONNECTION "2",FRONT | ||
| 650 | A 0029971572 | FITTING |
| RELAY VALVE,CONNECTION "2",FRONT | ||
| 651 | N 915036012203 | HOLLOW SCREW |
| RELAY VALVE,CONNECTION "2",FRONT | ||
| 652 | N 007603012200 | SEAL RING |
| RELAY VALVE,CONNECTION "2",FRONT | ||
| 653 | A 0004290927 | THRUST RING |
| RELAY VALVE,CONNECTION "2",REAR | ||
| 654 | A 0009971548 | SEAL RING |
| RELAY VALVE,CONNECTION "2",REAR | ||
| 655 | N 000908016001 | SCREW PLUG |
| RELAY VALVE,CONNECTION "2",REAR | ||
| 656 | A 0004290927 | THRUST RING |
| RELAY VALVE,CONNECTION "4" | ||
| 657 | A 0009971548 | SEAL RING |
| RELAY VALVE,CONNECTION "4" | ||
| 658 | A 0004294238 | ELBOW FITTING |
| RELAY VALVE,CONNECTION "4" | ||
| 659 | N 080705016003 | NUT |
| RELAY VALVE,CONNECTION "4" | ||
| 660 | N 915036012203 | HOLLOW SCREW |
| RELAY VALVE,CONNECTION "4" | ||
| 661 | N 007603016401 | SEAL RING |
| RELAY VALVE,CONNECTION "4" | ||
| 662 | N 913004008004 | NUT |
| VALVE TO BRACKET | ||
| 663 | A 3104290740 | BRACKET |
| RELAY VALVE | ||
| 664 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 664 | N 304017008021 | SCREW |
| BRACKET TO CONSOLE | ||
| 665 | N 913004008004 | NUT |
| BRACKET TO CONSOLE | ||
| 666 | A 0014315905 | BRAKE VALVE |
| Repalced by: A 0014318905 | ||
| 666 | A 0014317205 | BRAKE VALVE |
| Repalced by: A 0014318905 | ||
| 667 | A 0014318905 | BRAKE VALVE |
| 668 | A 0004310378 | RUBBER RING |
| TO 001 431 72 05 | ||
| A 0109974348 | SEAL RING | |
| Repalced by: A 0049970248 | ||
| 669 | A 0049970248 | SEAL RING |
| TO 001 431 72 05,60X3 MM | ||
| 670 | A 0059975348 | SEAL RING |
| TO 001 431 72 05,106X2 MM | ||
| 671 | A 0059975248 | SEAL RING |
| TO 001 431 72 05,12X2 MM | ||
| 672 | A 0059975548 | SEAL RING |
| TO 001 431 72 05,104X3 MM | ||
| 673 | A 0049979148 | SEAL RING |
| TO 001 431 72 05,14X2,5 MM | ||
| 674 | A 0059975448 | SEAL RING |
| TO 001 431 72 05,24X2,5 MM | ||
| 675 | A 0004317787 | PROTECTIVE CAP |
| TO 001 431 72 05 | ||
| 676 | A 0014316993 | SPRING |
| TO 001 431 89 05 | ||
| 677 | A 0025861343 | REPAIR KIT |
| VALVE DISC | ||
| TO 001 431 72 05 | ||
| A 0025865742 | REPAIR KIT | |
| Repalced by: A 0004301109 | ||
| 677 | A 0004301109 | REPAIR KIT |
| SUPPORTING BODY | ||
| TO 001 431 72 05 | ||
| 677 | A 0005868643 | REPAIR KIT |
| TO 001 431 59 05 | ||
| A 0025868743 | REPAIR KIT | |
| Repalced by: A 0004303506 | ||
| 678 | A 0004303506 | REPAIR KIT |
| TO 001 431 89 05 | ||
| 679 | A 0009971548 | SEAL RING |
| BRAKE VALVE,CONNECTIONS "11,12" | ||
| 680 | N 007603016401 | SEAL RING |
| BRAKE VALVE,CONNECTIONS "11,12" | ||
| 681 | A 0009904770 | T-FITTING |
| BRAKE VALVE,CONNECTIONS "11,12" | ||
| 682 | N 915039012206 | HOLLOW SCREW FITTING |
| BRAKE VALVE,CONNECTIONS "11,12" | ||
| 683 | A 6734310073 | BREATHER PIPE |
| BRAKE VALVE,CONNECTION: | ||
| 3 | ||
| 684 | A 0004290927 | THRUST RING |
| BRAKE VALVE,CONNECTIONS "11,12" | ||
| 685 | N 080705016003 | NUT |
| BRAKE VALVE,CONNECTIONS "11,12" | ||
| 686 | A 0009971548 | SEAL RING |
| BRAKE VALVE,CONNECTIONS: | ||
| "21,22,11,12" | ||
| N 074315012100 | FITTING | |
| Repalced by: A 0019903371 | ||
| 687 | A 0019903371 | ELBOW FITTING |
| BRAKE VALVE,LEFT CONNECTIONS: | ||
| "21,22" | ||
| 688 | N 000908016001 | SCREW PLUG |
| BRAKE VALVE,CONNECTIONS: | ||
| "21,22,11,12" | ||
| 689 | A 0004290927 | THRUST RING |
| BRAKE VALVE,CONNECTIONS: | ||
| "21,22,11,12" | ||
| 690 | N 080705016003 | NUT |
| BRAKE VALVE,LEFT CONNECTIONS: | ||
| "21,22" | ||
| A 0029971640 | SEAL RING | |
| Repalced by: A 0009971548 | ||
| 691 | A 0009971548 | SEAL RING |
| BRAKE VALVE,LEFT CONNECTIONS: | ||
| "21,22" | ||
| 692 | A 3529900071 | ELBOW FITTING |
| BRAKE VALVE,RIGHT CONNECTIONS: | ||
| "21,22" | ||
| 693 | A 3104290038 | ELBOW FITTING |
| BRAKE VALVE,LEFT CONNECTIONS: | ||
| "21,22" | ||
| 694 | A 0004290927 | THRUST RING |
| BRAKE VALVE,LEFT CONNECTIONS: | ||
| "21,22" | ||
| 695 | A 3169900070 | T-FITTING |
| BRAKE VALVE,CONNECTIONS "21,22" | ||
| 695 | A 0009904670 | T-FITTING |
| BRAKE VALVE,CONNECTIONS "21,22" | ||
| 696 | N 074305022202 | NUT |
| BRAKE VALVE,CONNECTIONS "21,22" | ||
| 697 | A 0004290227 | THRUST RING |
| (THROTTLE CHECK VALVE) | ||
| 698 | A 0009870446 | SEALING CORD |
| (THROTTLE CHECK VALVE) | ||
| 699 | A 0034293444 | VALVE |
| (THROTTLE CHECK VALVE) | ||
| 700 | A 0004290088 | VALVE SEAT RING |
| 701 | A 0004290049 | BUSHING |
| A 0004290727 | THRUST RING | |
| Repalced by: A 0004290927 | ||
| 702 | A 0004290927 | THRUST RING |
| BRAKE VALVE,RIGHT CONNECTIONS: | ||
| "21,22" | ||
| 703 | N 080705016003 | NUT |
| BRAKE VALVE,RIGHT CONNECTIONS: | ||
| "21,22" | ||
| 704 | A 0009905168 | FITTING |
| (THROTTLE CHECK VALVE) | ||
| 705 | A 0004290227 | THRUST RING |
| (THROTTLE CHECK VALVE) | ||
| 706 | A 0009870446 | SEALING CORD |
| (THROTTLE CHECK VALVE) | ||
| 707 | N 915036012203 | HOLLOW SCREW |
| (THROTTLE CHECK VALVE) | ||
| 708 | N 007603016401 | SEAL RING |
| (THROTTLE CHECK VALVE) | ||
| 709 | A 0004312031 | TEST CONNECTION |
| BRAKE VALVE,RIGHT CONNECTIONS: | ||
| VOSS,"21,22" | ||
| 709 | A 0004314531 | TEST CONNECTION |
| BRAKE VALVE,RIGHT CONNECTIONS: | ||
| SCHAEFER,"21,22" | ||
| 709 | A 0004314831 | TEST CONNECTION |
| BRAKE VALVE,RIGHT CONNECTIONS: | ||
| WABCO,"21,22" | ||
| 709 | A 0004316131 | TEST CONNECTION |
| BRAKE VALVE,RIGHT CONNECTIONS: | ||
| WIRA,"21,22" | ||
| 710 | A 0009979486 | PLUG |
| 712 | A 3094312440 | BRACKET |
| REINFORCEMENT | ||
| 713 | N 913004008004 | NUT |
| BRAKE VALVE TO BRACKET | ||
| 714 | A 3094300810 | BRACKET |
| BRAKE VALVE | ||
| 715 | A 3134300110 | BRACKET |
| BRAKE VALVE | ||
| 716 | A 3134310080 | GASKET |
| BRACKET TO BRAKE VALVE | ||
| 717 | N 913004008004 | NUT |
| BRACKET TO BRAKE VALVE | ||
| 718 | A 3094350080 | GASKET |
| BRACKET TO FIRE WALL | ||
| 719 | A 3134310180 | GASKET |
| BRACKET TO FIRE WALL | ||
| 720 | A 3094350180 | GASKET |
| BRACKET TO FIRE WALL | ||
| 721 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 721 | N 000125008443 | WASHER |
| BRACKET TO FIRE WALL | ||
| 722 | N 913004008004 | NUT |
| BRACKET TO FIRE WALL | ||
| 722 | N 913004008004 | NUT |
| BRACKET TO BRACKET | ||
| A 3094202574 | ROD | |
| Repalced by: A 3094202674 | ||
| 724 | A 3094202674 | ROD |
| FROM BRAKE PEDAL TO BRAKE VALVE | ||
| 725 | A 3134200774 | ROD |
| FROM BRAKE PEDAL TO BRAKE VALVE | ||
| 726 | N 000934012021 | NUT |
| 727 | N 000439010101 | NUT |
| 728 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 728 | N 000125010532 | WASHER |
| 729 | A 3099960101 | YOKE |
| Repalced by: A 3099960201 | ||
| 729 | A 3099960201 | YOKE |
| Repalced by: A 3139960001 | ||
| 730 | A 3139960001 | YOKE |
| 731 | N 001444008209 | PIN |
| ROD TO BRAKE PEDAL | ||
| 732 | A 1262920074 | PIN |
| ROD TO BRAKE PEDAL | ||
| 733 | N 900055008002 | SPRING WASHER |
| ROD TO BRAKE PEDAL | ||
| 734 | N 000094002059 | COTTER PIN |
| ROD TO BRAKE PEDAL | ||
| 735 | N 912011008000 | LOCK |
| ROD TO BRAKE PEDAL | ||
| 736 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 736 | N 304017008034 | SCREW |
| BRAKE PEDAL STOP | ||
| 737 | N 000934008010 | NUT |
| BRAKE PEDAL STOP | ||
| 739 | A 0014311514 | BRAKE CYLINDER |
| REAR AXLE | ||
| WABCO | ||
| 739 | A 0014318414 | BRAKE CYLINDER |
| REAR AXLE | ||
| KNORR | ||
| 740 | A 0014317014 | BRAKE CYLINDER |
| FRONT AXLE,DIAPHRAGM CYLINDER | ||
| WABCO | ||
| 740 | A 0014318314 | BRAKE CYLINDER |
| FRONT AXLE,DIAPHRAGM CYLINDER | ||
| KNORR | ||
| A 0004311928 | DIAPHRAGM | |
| Repalced by: A 0025867143 | ||
| A 0005457109 | SWITCH | |
| TO 001 431 15 14,WABCO | ||
| A 0069978145 | SEAL RING | |
| Repalced by: A 0025867143 | ||
| 742 | A 0025867143 | REPAIR KIT |
| TO 001 431 15 14,001 431 70 14,WABCO | ||
| 742 | A 0004300668 | REPAIR KIT |
| TO 001 431 83 14,001 431 84 14,KNORR | ||
| N 074315012100 | FITTING | |
| Repalced by: A 0019903371 | ||
| 743 | A 0019903371 | ELBOW FITTING |
| DIAPHRAGM CYLINDER,CONNECTION "1" | ||
| 744 | N 080705016003 | NUT |
| DIAPHRAGM CYLINDER,CONNECTION "1" | ||
| 745 | A 0004290927 | THRUST RING |
| DIAPHRAGM CYLINDER,CONNECTION "1" | ||
| 746 | A 0029971640 | SEAL RING |
| Repalced by: A 0009971548 | ||
| 746 | A 0009971548 | SEAL RING |
| DIAPHRAGM CYLINDER,CONNECTION "1" | ||
| 747 | N 915036012203 | HOLLOW SCREW |
| DIAPHRAGM CYLINDER,CONNECTION "1" | ||
| 748 | N 007603016401 | SEAL RING |
| DIAPHRAGM CYLINDER,CONNECTION "1" | ||
| 750 | A 0004312031 | TEST CONNECTION |
| DIAPHRAGM CYLINDER,CONNECTION "1" | ||
| 750 | A 0004314531 | TEST CONNECTION |
| DIAPHRAGM CYLINDER,CONNECTION "1" | ||
| 750 | A 0004314831 | TEST CONNECTION |
| DIAPHRAGM CYLINDER,CONNECTION "1" | ||
| 750 | A 0004316131 | TEST CONNECTION |
| DIAPHRAGM CYLINDER,CONNECTION "1" | ||
| 751 | A 0009979486 | PLUG |
| 752 | N 000961012034 | SCREW |
| DIAPHRAGM CYLINDER | ||
| 753 | N 912004012100 | LOCK WASHER |
| DIAPHRAGM CYLINDER | ||
| 754 | N 007604012102 | SCREW PLUG |
| DIAPHRAGM CYLINDER | ||
| 755 | N 007603012405 | SEAL RING |
| DIAPHRAGM CYLINDER | ||
| 756 | A 0034308601 | BRAKE MASTER CYLINDER |
| 757 | A 3134310040 | BRACKET |
| MASTER CYLINDER,FRONT | ||
| A 3134310140 | BRACKET | |
| Repalced by: A 3134310340 | ||
| 758 | A 3134310340 | BRACKET |
| MASTER CYLINDER,REAR | ||
| 759 | N 000933010073 | SCREW |
| CYLINDER TO BRACKET | ||
| N 912004010102 | LOCK WASHER | |
| CYLINDER TO BRACKET | ||
| 761 | N 000933010105 | SCREW |
| BRACKET TO FRAME | ||
| 762 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 762 | N 910113010000 | NUT |
| BRACKET TO FRAME | ||
| 763 | N 007603014405 | SEAL RING |
| MASTER CYLINDER,CONNECTION "2" | ||
| 764 | A 0004280830 | CONNECTOR |
| MASTER CYLINDER,CONNECTION "2" | ||
| 765 | A 0004280026 | HOLLOW SCREW |
| MASTER CYLINDER,CONNECTION "2" | ||
| 766 | N 007603022102 | SEAL RING |
| MASTER CYLINDER,CONNECTION "0" | ||
| 767 | A 0009904968 | FITTING |
| 768 | N 007603014106 | SEAL RING |
| 769 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 769 | N 915036010108 | HOLLOW SCREW |
| A 0004317002 | RESERVOIR | |
| Repalced by: A 0004315802 | ||
| 770 | A 0004315802 | RESERVOIR |
| FLUID RESERVOIR | ||
| A 0014310802 | RESERVOIR | |
| Repalced by: A 0004318302 | ||
| 771 | A 0004318302 | RESERVOIR |
| FLUID RESERVOIR | ||
| 772 | A 0004313433 | FILLER CAP |
| TO 000 431 70 02 | ||
| A 0004313733 | FILLER CAP | |
| Repalced by: A 0004316533 | ||
| 772 | A 0004316533 | FILLER CAP |
| Repalced by: A 0004317633 | ||
| 772 | A 0004317633 | FILLER CAP |
| TO 000 431 58 02,001 431 08 02 | ||
| 773 | A 0009972940 | SEAL RING |
| 43.7X30 MM | ||
| 773 | A 0039976440 | SEAL RING |
| 42X21.5 MM | ||
| 774 | A 0004312134 | STRAINER |
| TO 000 431 70 02 | ||
| 774 | A 0004313134 | STRAINER |
| TO 000 431 58 02,001 431 08 02 | ||
| 775 | A 3094314640 | BRACKET |
| FLUID RESERVOIR | ||
| 776 | N 000933006102 | SCREW |
| BRACKET TO CAB | ||
| 777 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 777 | N 913004006001 | NUT |
| BRACKET TO CAB | ||
| 778 | A 0004311040 | CLAMP |
| FLUID RESERVOIR TO BRACKET | ||
| 779 | N 000933006102 | SCREW |
| FLUID RESERVOIR TO BRACKET | ||
| 780 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 780 | N 913004006001 | NUT |
| FLUID RESERVOIR TO BRACKET | ||
| 781 | A 3404200829 | LINE |
| FROM MASTER CYLINDER TO DISTRIBUTOR | ||
| 550 MM | ||
| 782 | A 0004290437 | DISTRIBUTOR |
| FRONT | ||
| 782 | A 0004294337 | DISTRIBUTOR |
| FRONT | ||
| 783 | A 3094280053 | SPACER TUBE |
| DISTRIBUTOR TO SIDE MEMBER | ||
| 784 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 784 | N 304017008043 | SCREW |
| DISTRIBUTOR TO SIDE MEMBER | ||
| 785 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 785 | N 000125008443 | WASHER |
| DISTRIBUTOR TO SIDE MEMBER | ||
| 786 | N 913004008004 | NUT |
| DISTRIBUTOR TO SIDE MEMBER | ||
| 787 | A 3404201229 | LINE |
| FROM DISTRIBUTOR TO LEFT FRONT WHEEL BRAKE HOSE | ||
| 750 MM | ||
| 787 | A 3404200729 | LINE |
| FROM DISTRIBUTOR TO LEFT FRONT WHEEL BRAKE HOSE | ||
| 500 MM | ||
| 788 | A 3404203829 | LINE |
| FROM DISTRIBUTOR TO RIGHT FRONT WHEEL BRAKE HOSE | ||
| 2200 MM | ||
| 788 | A 3404203529 | LINE |
| FROM DISTRIBUTOR TO RIGHT FRONT WHEEL BRAKE HOSE | ||
| 1900 MM | ||
| 789 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 789 | N 916016008200 | CLAMP |
| BRAKE LINE TO CROSS MEMBER | ||
| 790 | N 007516006103 | TAPPING SCREW |
| BRAKE LINE TO CROSS MEMBER | ||
| 791 | A 0049881478 | CLIP |
| BRAKE LINE TO CROSS MEMBER | ||
| 792 | A 3094280043 | ANGLE |
| LEFT FRONT BRAKE HOSE | ||
| 792 | A 3094280443 | ANGLE |
| LEFT FRONT BRAKE HOSE | ||
| 792 | A 3094280143 | ANGLE |
| RIGHT FRONT BRAKE HOSE | ||
| 792 | A 3094280543 | ANGLE |
| RIGHT FRONT BRAKE HOSE | ||
| 793 | N 000933010157 | SCREW |
| ANGLE TO FRAME | ||
| 794 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 794 | N 910113010000 | NUT |
| ANGLE TO FRAME | ||
| 795 | A 0004288235 | BRAKE HOSE |
| FRONT | ||
| 550 MM | ||
| 795 | A 0024281235 | BRAKE HOSE |
| FRONT | ||
| 796 | A 8339970081 | GROMMET |
| BRAKE HOSE,FRONT | ||
| A 1072950073 | LOCK | |
| Repalced by: A 1072950173 | ||
| 797 | A 1072950173 | LOCK |
| BRAKE HOSE TO ANGLE | ||
| A 0004280473 | BRACKET | |
| Repalced by: A 6525040038 | ||
| 797 | A 6525040038 | MOUNTING PLATE |
| BRAKE HOSE TO ANGLE | ||
| 798 | A 3104280640 | BRACKET |
| LEFT STEERING KNUCKLE | ||
| 799 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 799 | N 910113010000 | NUT |
| LEFT STEERING KNUCKLE | ||
| 800 | A 3129970582 | HOSE |
| BRAKE LINES TO FRAME | ||
| 801 | A 3129950935 | CLAMP |
| Repalced by: A 0019978290 | ||
| 802 | N 000084004151 | SCREW |
| BRAKE LINES TO FRAME | ||
| 803 | N 000934004006 | NUT |
| BRAKE LINES TO FRAME | ||
| 804 | A 0019978390 | LOOM TIE |
| BRAKE LINES TO FRAME | ||
| 807 | A 3404202529 | LINE |
| FROM MASTER CYLINDER TO CONNECTOR | ||
| 1400 MM | ||
| 808 | A 0004292736 | CONNECTOR |
| 810 | A 3404204629 | LINE |
| FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE | ||
| 810 | A 3404204329 | LINE |
| FROM MASTER CYLINDER TO BRAKE HOSE AT REAR AXLE | ||
| 3200 MM | ||
| 811 | A 0049881478 | CLIP |
| LINE TO SIDE MEMBER | ||
| 812 | A 0049882678 | CLIP |
| BRAKE LINE TO CROSS MEMBER | ||
| 814 | A 0019978490 | LOOM TIE |
| LINE TO SIDE MEMBER | ||
| 816 | A 3094281240 | BRACKET |
| BRAKE LINE | ||
| 818 | N 000933010105 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 820 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 820 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 822 | A 0004280135 | BRAKE HOSE |
| REAR | ||
| 824 | A 1072950073 | LOCK |
| Repalced by: A 1072950173 | ||
| 824 | A 1072950173 | LOCK |
| BRAKE HOSE TO BRACKET | ||
| 824 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 824 | A 6525040038 | MOUNTING PLATE |
| BRAKE HOSE TO BRACKET | ||
| 825 | A 3104280340 | BRACKET |
| BRAKE LINE | ||
| 826 | A 3104280240 | BRACKET |
| Repalced by: A 3104280740 | ||
| 826 | A 3104280740 | BRACKET |
| LEFT BRAKE LINE | ||
| 827 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 827 | N 304017008039 | SCREW |
| BRACKET TO REAR AXLE | ||
| M 8X12 | ||
| 828 | A 0004290437 | DISTRIBUTOR |
| REAR | ||
| 828 | A 0004294337 | DISTRIBUTOR |
| REAR | ||
| 829 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 829 | N 304017008027 | SCREW |
| DISTRIBUTOR TO BRACKET | ||
| M 8X30 | ||
| 830 | N 913004008004 | NUT |
| DISTRIBUTOR TO BRACKET | ||
| 831 | A 3404200929 | LINE |
| FROM DISTRIBUTOR TO RIGHT REAR WHEEL | ||
| 600 MM | ||
| 831 | A 3404200829 | LINE |
| FROM DISTRIBUTOR TO RIGHT REAR WHEEL | ||
| 550 MM | ||
| 832 | A 3404202029 | LINE |
| FROM DISTRIBUTOR TO LEFT REAR WHEEL | ||
| 1150 MM | ||
| 832 | A 3404201929 | LINE |
| FROM DISTRIBUTOR TO LEFT REAR WHEEL | ||
| 1100 MM | ||
| 833 | N 000933006102 | SCREW |
| BRAKE LINE TO BRACKET | ||
| M 6X16 | ||
| 834 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 834 | N 913004006001 | NUT |
| BRAKE LINE TO BRACKET | ||
| 835 | A 3094281440 | BRACKET |
| BRAKE LINE | ||
| 836 | N 000933010128 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 837 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 837 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 838 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 838 | N 916016008200 | CLAMP |
| BRAKE LINE TO BRACKET | ||
| 839 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 839 | N 000000001146 | SCREW |
| BRAKE LINE TO BRACKET | ||
| 840 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 840 | N 913004006001 | NUT |
| BRAKE LINE TO BRACKET | ||
| 841 | A 3104200586 | BRACKET |
| RIGHT;REAR AXLE | ||
| N 000933008152 | SCREW | |
| Repalced by: N 304017008027 | ||
| N 304017008027 | SCREW | |
| AT DISTRIBUTOR | ||
| A 3096890208 | COVERING | |
| TO 001 430 01 81 | ||
| 842 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 842 | N 304017008018 | SCREW |
| BRACKET TO REAR AXLE | ||
| 842 | N 000933008145 | SCREW |
| BRACKET TO REAR AXLE | ||
| I | ||
| A 3096202330 | SUPPORT | |
| 843 | N 912004008102 | LOCK WASHER |
| 844 | A 3092840052 | SPACER WASHER |
| 845 | A 3129973482 | HOSE |
| BRACKET AND BRAKE LINE TO REAR AXLE | ||
| 846 | A 3129951020 | CLAMP |
| BRACKET AND BRAKE LINE TO REAR AXLE | ||
| 847 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 847 | N 304017008021 | SCREW |
| BRACKET AND BRAKE LINE TO REAR AXLE | ||
| 848 | A 3104310084 | SHIM |
| 849 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 849 | N 000125008443 | WASHER |
| 850 | N 000966008021 | SCREW |
| M 8X35 | ||
| 850 | N 007985008152 | SCREW |
| M 8X25 | ||
| 854 | A 0014300181 | VALVE |
| PARKING BRAKE | ||
| WABCO | ||
| 854 | A 0014300881 | VALVE |
| PARKING BRAKE | ||
| BOSCH | ||
| A 0014301781 | VALVE | |
| PARKING BRAKE | ||
| KNORR | ||
| 855 | A 0014311087 | PROTECTIVE CAP |
| TO 001 430 01 81,08 81 | ||
| 856 | A 0009972877 | HANDLE |
| TO 001 430 08 81,BOSCH | ||
| 856 | A 0009972277 | HANDLE |
| TO 001 430 01 81,WABCO | ||
| 857 | A 0004311122 | COVER |
| TO 001 430 08 81,BOSCH | ||
| 858 | A 0004311064 | ACTUATING PART |
| TO 001 430 08 81,BOSCH | ||
| 859 | A 0009922905 | BUSHING |
| TO 001 430 08 81,BOSCH | ||
| 860 | A 0009911501 | PIN |
| TO 001 430 08 81,BOSCH | ||
| 861 | A 0009911601 | PIN |
| TO 001 430 08 81,BOSCH | ||
| 862 | A 0004311264 | ACTUATING PART |
| TO 001 430 08 81,BOSCH | ||
| A 0004300227 | HANDLE | |
| (PARTS KIT) | ||
| TO 001 430 17 81,KNORR | ||
| 863 | A 0004300127 | HANDLE |
| (PARTS KIT) | ||
| TO 001 430 08 81,BOSCH | ||
| A 0025867243 | REPAIR KIT | |
| Repalced by: A 0034303381 | ||
| 864 | A 0034303381 | REPAIR KIT |
| TO 001 430 01 81,WABCO | ||
| 864 | A 0025866343 | REPAIR KIT |
| TO 001 430 08 81,BOSCH | ||
| 864 | A 0004300960 | REPAIR KIT |
| TO 001 430 17 81,KNORR | ||
| 865 | N 007603014405 | SEAL RING |
| CONNECTIONS: | ||
| 11,12,21,23 | ||
| 866 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 866 | N 915036010108 | HOLLOW SCREW |
| CONNECTIONS: | ||
| 11,12,21,23 | ||
| 870 | A 0014292444 | VALVE |
| TWO-WAY | ||
| WABCO | ||
| 871 | A 0034294644 | VALVE |
| (SHUTTLE VALVE) | ||
| WABCO | ||
| 871 | A 0034295144 | VALVE |
| (SHUTTLE VALVE) | ||
| VOSS | ||
| A 0004290682 | VALVE | |
| Repalced by: A 0004290782 | ||
| A 0004290782 | VALVE | |
| Repalced by: A 0004291182 | ||
| 872 | A 0004291182 | VALVE BODY |
| TO 001 429 24 44,WABCO | ||
| A 0029810485 | BALL | |
| TO 003 429 11 44,VOSS | ||
| A 0004290180 | GASKET | |
| TO 003 429 11 44,VOSS | ||
| 873 | A 0109973348 | SEAL RING |
| TO 003 429 46 44,WABCO | ||
| 874 | A 0004290227 | THRUST RING |
| CONNECTION "11" | ||
| 875 | A 0009870446 | SEALING CORD |
| CONNECTION "11" | ||
| 876 | A 0009907771 | ELBOW FITTING |
| CONNECTION "11" | ||
| 877 | N 074305022202 | NUT |
| CONNECTION "11" | ||
| 878 | N 915036012203 | HOLLOW SCREW |
| CONNECTION "11" | ||
| 879 | N 007603016401 | SEAL RING |
| CONNECTION "11" | ||
| 880 | A 0004290227 | THRUST RING |
| CONNECTION "12" | ||
| 881 | A 0009870446 | SEALING CORD |
| CONNECTION "12" | ||
| A 0009908471 | ELBOW FITTING | |
| Repalced by: A 0019904371 | ||
| 882 | A 0019904371 | ELBOW FITTING |
| CONNECTION "12" | ||
| 883 | N 074305022202 | NUT |
| CONNECTION "12" | ||
| 884 | N 915036010203 | HOLLOW SCREW |
| CONNECTION "12" | ||
| 885 | N 007603014405 | SEAL RING |
| CONNECTION "12" | ||
| 886 | A 0009870446 | SEALING CORD |
| TWO-WAY VALVE TO SPRING LOAD ACCUMULATOR CYLINDER | ||
| 887 | A 0009971548 | SEAL RING |
| TWO-WAY VALVE TO SPRING LOAD ACCUMULATOR CYLINDER | ||
| 888 | A 0004290227 | THRUST RING |
| TWO-WAY VALVE TO SPRING LOAD ACCUMULATOR CYLINDER | ||
| 889 | A 0004290927 | THRUST RING |
| TWO-WAY VALVE TO SPRING LOAD ACCUMULATOR CYLINDER | ||
| 890 | N 074305022202 | NUT |
| TWO-WAY VALVE TO SPRING LOAD ACCUMULATOR CYLINDER | ||
| 891 | N 080705016003 | NUT |
| TWO-WAY VALVE TO SPRING LOAD ACCUMULATOR CYLINDER | ||
| 894 | A 0014316214 | BRAKE CYLINDER |
| SPRING LOAD ACCUMULATOR | ||
| 895 | A 0079975048 | SEAL RING |
| 170X3.5 | ||
| A 0004318186 | CUP | |
| Repalced by: A 0015864342 | ||
| A 0004310736 | FILTER BOTTOM | |
| 896 | A 0059975248 | SEAL RING |
| 897 | A 0014311786 | CUP |
| A 0005457309 | SWITCH | |
| Repalced by: A 0005455409 | ||
| A 0005455409 | SWITCH | |
| Repalced by: A 0005458009 | ||
| 898 | A 0005458009 | SWITCH |
| Repalced by: A 0005459109 | ||
| 898 | A 0005459109 | SWITCH |
| Repalced by: A 0015451209 | ||
| 898 | A 0015451209 | SWITCH |
| Repalced by: A 0015452809 | ||
| 898 | A 0015452809 | SWITCH |
| SPRING LOAD ACCUMULATOR LINKE ADJUSTMENT CONTROL | ||
| TO 001 431 62 14 | ||
| A 0015864342 | REPAIR KIT | |
| Repalced by: A 0034201724 | ||
| 899 | A 0034201724 | REPAIR KIT |
| 902 | A 0039977072 | FITTING |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1" | ||
| 905 | A 0019901470 | T-FITTING |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1" | ||
| 906 | A 0019900788 | BANJO UNION |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1" | ||
| 907 | N 007603016401 | SEAL RING |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1" | ||
| 908 | N 080705016003 | NUT |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1" | ||
| 909 | A 0004290927 | THRUST RING |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1" | ||
| 910 | A 0009971548 | SEAL RING |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1" | ||
| 912 | N 003953006101 | T-FITTING |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1" | ||
| 913 | N 915039012205 | HOLLOW SCREW FITTING |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER CONNECTION "1" | ||
| 915 | A 0004312031 | TEST CONNECTION |
| VOSS | ||
| 915 | A 0004314531 | TEST CONNECTION |
| SCHAEFER | ||
| 915 | A 0004314831 | TEST CONNECTION |
| WABCO | ||
| 915 | A 0004316131 | TEST CONNECTION |
| WIRA | ||
| 916 | A 0009979486 | PLUG |
| 918 | A 0005455414 | SWITCH |
| PARKING BRAKE | ||
| 919 | A 3104316440 | BRACKET |
| SPRING LOAD ACCUMULATOR | ||
| 920 | N 000933010164 | SCREW |
| 921 | N 912004010102 | LOCK WASHER |
| 922 | N 000933012077 | SCREW |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER TO BEARING BRACKET | ||
| 923 | N 913002012004 | NUT |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER TO BEARING BRACKET | ||
| 924 | A 3104200580 | BRAKE INTERMEDIATE SHAFT |
| 925 | A 3104200978 | BEARING BRACKET |
| BRAKE INTERMEDIATE SHAFT | ||
| A 3025860242 | REPAIR KIT | |
| Repalced by: A 3534200067 | ||
| A 3534200067 | REPAIR KIT | |
| Repalced by: A 3534200167 | ||
| 926 | A 3534200167 | BALL CUP |
| BRAKE INTERMEDIATE SHAFT BEARING | ||
| 927 | N 000933010164 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 928 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 928 | N 000125010532 | WASHER |
| BEARING BRACKET TO FRAME | ||
| 929 | N 912004010102 | LOCK WASHER |
| BEARING BRACKET TO FRAME | ||
| 930 | A 3144200047 | YOKE |
| FROM INTERMEDIATE LEVER SHAFT TO BRAKE LEVER AT REAR AXLE | ||
| N 900331010483 | PULL ROD | |
| Repalced by: N 900331010669 | ||
| 931 | N 900331010669 | PULL ROD |
| FROM INTERMEDIATE LEVER SHAFT TO BRAKE LEVER AT REAR AXLE | ||
| 933 | N 071752010009 | YOKE |
| Repalced by: A 0009961501 | ||
| 933 | A 0009961501 | YOKE |
| FROM INTERMEDIATE LEVER SHAFT TO BRAKE LEVER AT REAR AXLE | ||
| 934 | N 000934010014 | NUT |
| FROM INTERMEDIATE LEVER SHAFT TO BRAKE LEVER AT REAR AXLE | ||
| 935 | N 000934010035 | NUT |
| FROM INTERMEDIATE LEVER SHAFT TO BRAKE LEVER AT REAR AXLE | ||
| 936 | A 3149910207 | PIN |
| 937 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 937 | N 000125010532 | WASHER |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 938 | N 000094003219 | COTTER PIN |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 939 | N 900055010002 | SPRING WASHER |
| 941 | A 3149910107 | PIN |
| Repalced by: A 3529910007 | ||
| 941 | A 3529910007 | PIN |
| PULL ROD TO BRAKE LEVER,REAR AXLE | ||
| 942 | N 000094003219 | COTTER PIN |
| PULL ROD TO BRAKE LEVER,REAR AXLE | ||
| 943 | A 3189930410 | SPRING |
| RELEASE SPRING | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
