Transporto priemonė: O 309 D; VIN numerio dalis: 310386
Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|

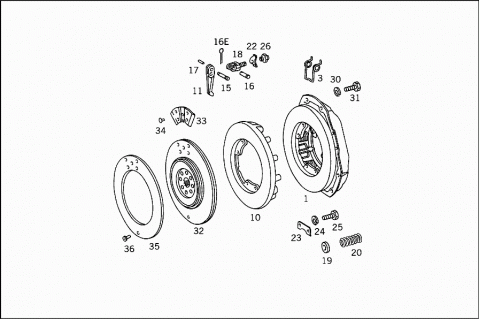

| A 0012507504 | CLUTCH PRESSURE PLATE | |
| Repalced by: A 0032501004 | ||
| 001 | A 0032501004 | CLUTCH PRESSURE PLATE |
| A 0002521632 | HOUSING | |
| 003 | A 0002520527 | SPRING |
| 010 | A 0002507204 | CLUTCH PRESSURE PLATE |
| A 0002522206 | CLUTCH PRESSURE PLATE | |
| Repalced by: A 0002526212 | ||
| A 0002526212 | PRESSURE PLATE | |
| 011 | A 0002522613 | RELEASE LEVER |
| Repalced by: A 0002525713 | ||
| 011 | A 0002525713 | RELEASE LEVER |
| Repalced by: A 0002526413 | ||
| 011 | A 0002526413 | RELEASE LEVER |
| 015 | A 0002520016 | SPINDLE |
| Repalced by: A 0002523516 | ||
| 015 | A 0002523516 | SPINDLE |
| Repalced by: A 0002524216 | ||
| 015 | A 0002524216 | SPINDLE |
| FOR RELEASE LEVERS | ||
| 016 | A 0002520516 | SPINDLE |
| Repalced by: A 0002523816 | ||
| 016 | A 0002523616 | SPINDLE |
| Repalced by: A 0002523816 | ||
| 016 | A 0002523816 | SPINDLE |
| FOR BRACKETS | ||
| 016E | N 000094002059 | COTTER PIN |
| N 006799007007 | LOCK PLATE | |
| 017 | A 0002520018 | ROLLER |
| 018 | A 0002521014 | BRACKET |
| Repalced by: A 0002522514 | ||
| 018 | A 0002522514 | BRACKET |
| Repalced by: A 0002523114 | ||
| 018 | A 0002523114 | BRACKET |
| 019 | A 0002520024 | INSULATING WASHER |
| A 0002526320 | PRESSURE SPRING | |
| Repalced by: A 0002527920 | ||
| 020 | A 0002527920 | PRESSURE SPRING |
| SPRING STEEL WIRE DIA., | ||
| 4.5 MM | ||
| 022 | A 0002520819 | LEAF SPRING |
| 023 | A 0002520573 | LOCK |
| 024 | N 912004008102 | LOCK WASHER |
| 025 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 025 | N 304017008039 | SCREW |
| 026 | A 0002521171 | NUT |
| Repalced by: A 0002523372 | ||
| 026 | A 0002523372 | NUT |
| 030 | N 912004008102 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||
| 031 | A 3122521071 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| 032 | A 0072502103 | CLUTCH DISC |
| Repalced by: A 0142509403 | ||
| 032 | A 0142509403 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 032 | A 0022507403 | CLUTCH DISC |
| 033 | A 0002520919 | LEAF SPRING |
| A 0002525819 | LEAF SPRING | |
| TO 014 250 94 03 | ||
| 034 | A 0002520175 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 034 | A 0002522075 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| TO 014 250 94 03 | ||
| 035 | A 0012525310 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| 035 | A 0002522310 | CLUTCH LINING |
| TO 014 250 94 03 | ||
| 035 | A 0002528110 | CLUTCH LINING |
| 036 | A 0002520375 | RIVET |
| Repalced by: A 0002521275 | ||
| 036 | A 0002521275 | RIVET |
| Repalced by: A 0002524375 | ||
| 036 | A 0002524375 | RIVET |
| LINING WITH CLUTCH DISC AND INTERMEDIATE SPRING | ||
| 036 | A 0002524375 | RIVET |
| LINING WITH CLUTCH DISC AND INTERMEDIATE SPRING | ||
| TO 014 250 94 03 | ||

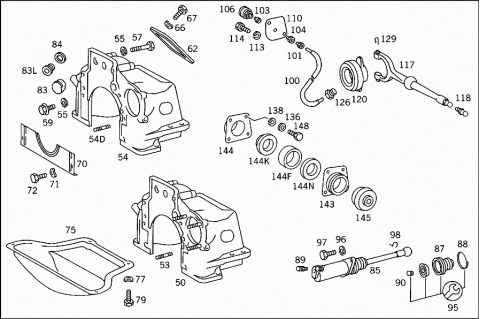

| 050 | A 3102500105 | HOUSING |
| Repalced by: A 3102510301 | ||
| 053 | N 000939010027 | STUD BOLT |
| BELL HOUSING | ||
| 054 | A 3102510301 | BELL HOUSING |
| Repalced by: A 3102510501 | ||
| 054 | A 3102510501 | BELL HOUSING |
| Repalced by: A 3102510601 | ||
| 054 | A 3102510601 | BELL HOUSING |
| 054D | A 0009902805 | STUD |
| BELL HOUSING | ||
| 055 | N 912004012100 | LOCK WASHER |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 057 | N 000931012180 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M12 X 110 | ||
| 059 | N 900170012005 | SCREW |
| Repalced by: A 0029906804 | ||
| 059 | A 0029906804 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M12 X 35 | ||
| 062 | A 3602510004 | END COVER |
| TOP | ||
| 066 | N 000137006204 | SPRING WASHER |
| END COVER TO BELL HOUSING | ||
| 067 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 067 | N 304017006034 | SCREW |
| END COVER TO BELL HOUSING | ||
| 070 | A 3122511006 | PROTECTIVE PLATE |
| Repalced by: A 3522500055 | ||
| 070 | A 3522500055 | PROTECTIVE PLATE |
| Repalced by: A 3522510106 | ||
| 070 | A 3522510106 | PROTECTIVE PLATE |
| BELL HOUSING | ||
| 071 | N 000137006204 | SPRING WASHER |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| 072 | N 914125006306 | SCREW |
| Repalced by: N 910106006006 | ||
| 072 | N 910106006006 | SCREW |
| Repalced by: N 000000002270 | ||
| 072 | N 000000002270 | SCREW |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| 075 | A 3142510002 | BELL HOUSING |
| Repalced by: A 3142501005 | ||
| 075 | A 3142501005 | HOUSING |
| Repalced by: A 3142510302 | ||
| 075 | A 3142510302 | BELL HOUSING |
| LOWER PART | ||
| 077 | N 000137006204 | SPRING WASHER |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| 079 | N 914125006306 | SCREW |
| Repalced by: N 910106006006 | ||
| 079 | N 910106006006 | SCREW |
| Repalced by: N 000000002270 | ||
| 079 | N 000000002270 | SCREW |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| 083 | A 3242510083 | PLUG |
| BELL HOUSING | ||
| 083L | N 000908016008 | SCREW PLUG |
| BELL HOUSING | ||
| 084 | N 007603016401 | SEAL RING |
| BELL HOUSING | ||
| 085 | A 0002958307 | SLAVE CYLINDER |
| CLUTCH RELEASE | ||
| A 0002950233 | ROD | |
| 087 | A 0002952983 | BOOT |
| 088 | A 0002950873 | LOCK |
| Repalced by: A 0005863829 | ||
| A 0004202155 | BLEEDER VALVE | |
| Repalced by: A 0004310265 | ||
| 089 | A 0004310265 | VALVE |
| Repalced by: A 3075530107 | ||
| 089 | A 3075530107 | VALVE |
| A 0004212687 | PROTECTIVE CAP | |
| Repalced by: A 0004210887 | ||
| 090 | A 3164210187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 090 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 090 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 090 | A 0004210887 | PROTECTIVE CAP |
| 095 | A 0005863829 | REPAIR KIT |
| CLUTCH SLAVE CYLINDER | ||
| 096 | N 912004008102 | LOCK WASHER |
| CLUTCH SLAVE CYLINDER TO INTERMEDIATE FLANGE | ||
| 097 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 097 | N 304017008034 | SCREW |
| CLUTCH SLAVE CYLINDER TO INTERMEDIATE FLANGE | ||
| 098 | N 071805016402 | SECURING CLIP |
| CLUTCH SLAVE CYLINDER TO RELEASE YOKE | ||
| 100 | A 3059971982 | HOSE |
| RELEASE BEARING LUBRICATION | ||
| 101 | N 003871004102 | UNION SCREW |
| RELEASE BEARING LUBRICATION | ||
| 103 | N 003862004001 | DOUBLE TAPER RING |
| RELEASE BEARING LUBRICATION | ||
| 104 | N 071428004102 | SCREW-IN FITTING |
| RELEASE BEARING LUBRICATION | ||
| 106 | N 003411002000 | GREASE CUP |
| RELEASE BEARING LUBRICATION | ||
| 106 | N 003411002001 | GREASE CUP |
| RELEASE BEARING LUBRICATION | ||
| 110 | A 3102500055 | COVER |
| Repalced by: A 3102500155 | ||
| 110 | A 3102500155 | COVER |
| LATERAL | ||
| 113 | N 912004008102 | LOCK WASHER |
| COVER TO BELL HOUSING | ||
| 114 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 114 | N 304017008016 | SCREW |
| COVER TO BELL HOUSING | ||
| 117 | A 3522500113 | RELEASE LEVER |
| Repalced by: A 3522930311 | ||
| 117 | A 3522930311 | RELEASE YOKE |
| 117 | A 3142540008 | RELEASE LEVER |
| 118 | A 3029910015 | BALL PIVOT |
| RELEASE LEVER | ||
| 118 | A 3529910415 | BALL PIVOT |
| RELEASE LEVER | ||
| 120 | A 0002501715 | RELEASE BEARING |
| Repalced by: A 0002504015 | ||
| 120 | A 0002503715 | RELEASE BEARING |
| Repalced by: A 0002504015 | ||
| 120 | A 0002504015 | RELEASE BEARING |
| CLUTCH | ||
| 120 | A 0002503115 | RELEASE BEARING |
| CLUTCH | ||
| 120 | A 0002504615 | RELEASE BEARING |
| Repalced by: A 0012509315 | ||
| 120 | A 0012509315 | RELEASE BEARING |
| CLUTCH | ||
| 120 | A 0002504215 | RELEASE BEARING |
| CLUTCH | ||
| 126 | N 071428004102 | SCREW-IN FITTING |
| RELEASE BEARING LUBRICATION | ||
| 129 | A 3402540013 | SPRING LOCK |
| RELEASE YOKE TO RELEASE BEARING | ||
| 129 | A 3812540113 | SPRING LOCK |
| RELEASE YOKE TO RELEASE BEARING | ||
| 136 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 136 | N 000125008443 | WASHER |
| BRACKET TO BELL HOUSING | ||
| 138 | N 912004008102 | LOCK WASHER |
| BRACKET,BEARING,AND RELEASE LEVER TO BELL HOUSING | ||
| 143 | A 3102500043 | BRACKET |
| Repalced by: A 3102540540 | ||
| 143 | A 3102540540 | BRACKET |
| OUTSIDE | ||
| 144 | A 3102540140 | BRACKET |
| Repalced by: A 3102540440 | ||
| 144 | A 3102540440 | BRACKET |
| INSIDE | ||
| 144F | A 3522540135 | BEARING |
| Repalced by: A 3802540035 | ||
| 144F | A 3802540035 | BEARING |
| OUTSIDE | ||
| 144F | A 3802540135 | BEARING |
| OUTSIDE | ||
| 144K | A 3802540059 | SEAL RING |
| SOFT | ||
| 144K | A 3802540259 | SEAL RING |
| SOFT | ||
| 144N | A 3802540159 | SEAL RING |
| HARD | ||
| 144N | A 3802540359 | SEAL RING |
| HARD | ||
| 145 | A 3522540097 | BOOT |
| Repalced by: A 3142540197 | ||
| 145 | A 3142540197 | BOOT |
| RELEASE LEVER | ||
| 148 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 148 | N 304017008021 | SCREW |
| BRACKET,BEARING,AND RELEASE LEVER TO BELL HOUSING | ||
| M 8X20 | ||
| 148 | N 914126008016 | SCREW |
| BRACKET,BEARING,AND RELEASE LEVER TO BELL HOUSING | ||
| M 8X25 | ||
